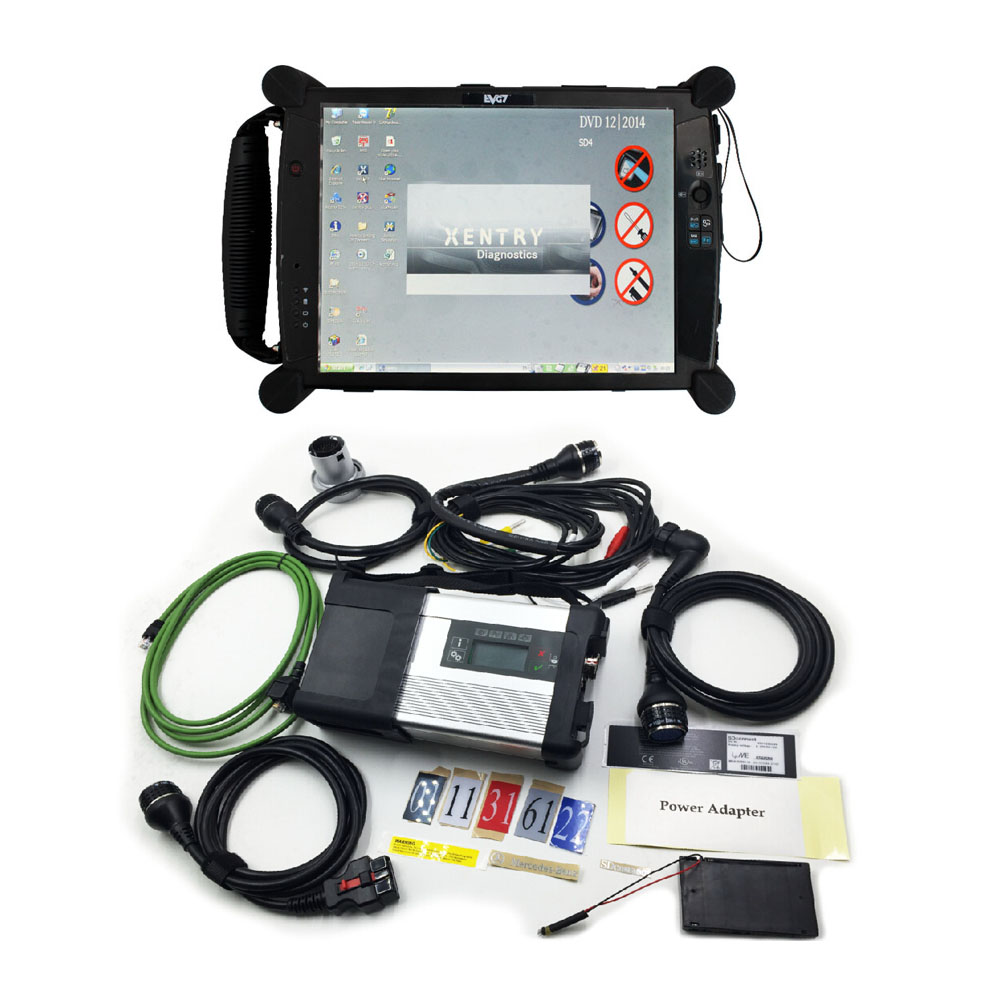

DOIP MB SD C5 Connect Compact 5 DoIP Star Diagnosis Tool With WiFi V2024.10 Plus EVG7 Diagnostic Controller Tablet PC

The new MB STAT C4/C5 is able to work for DoIP.
This MB SD Connect C4/C5 diagnosis tool has better quality. It's waterproof, shockproof and tamper proof.

Attention :
2024 MB Star BENZ Diagnostic Software : There have car software and truck software selection, please choose the correct software which you request
The software with authorization, add free offline diagnostic certificate. Supporting diagnostic tests for new cars such as benz C205 W206 W213 W223 W167 W447 W448 etc

Please kindly note:
1.Including Super Engineer Software: DTS monaco V9.02+V8.16 And Vediamo V5.01.01 Support Offline Programming
2.Support Wireless
3.Software Version: V2024.09 Car / V2024.10 Truck Diagnostic Software
4.Support Multi-Language: (Default language is English, if you want other languages, please leave message)
English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese
5.Support Both Mercedes Benz Cars and Trucks
6.Support Mercedes Benz Cars After Year 2000
7.Support Offline and Online Programming, If You Want to Do Online,you must have an account online

Softwares list:
1. DAS 2024.09 for car and DAS 2024.10 for truck: the automatically Diagnosis Assistance System
2. Xentry 2024.09 for car and Xentry 2024.10 for truck: New software released by Bennz Company after 04/2009 by diagnosis new cars.
3. WIS net 2021.07: Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail
4. EPC.net 2018.11: Electronic Parts Catalog
5. ST Finder: Part Location Finder options: 2016 and 2020 and 2022
6. STARUTILITIES: the movement management system and self-test
7. SD MEDIA 2014
8. PL76 2022.01
9.HHT Software for old cars
10.Engineer version Vediamo updated to V5.01.01, Engineer version DTS updated to V9.02, Upgrade to the latest version of 2022 data
1) Fix the error that Mercedes-Benz DAS cannot directly call WIS
2) Join the DAS sedan smart offline programming
3) Join the 204 DAS stand-alone version, which can be mutated (German), which is more powerful than Vediamo
4) Join DAS special function password-free access PKW and SMART
5) Repair SMART 450, 451, 452, 454 No longer need TAN Caculator, all offline
6) Increase offline EOL and VMAX all LKW, modify truck maximum speed limit
7) Lift the truck NOx TORGUE restriction, do not need FDOK XT calculation code, directly enter, directly cancel the legal speed limit, you can modify without special function
8) Clear the truck SCR/ADBLUE fault code (MR), do not need FDOK XN calculation code, enter directly
9）Add DAS 212，207 prototyp model
10）Add Xentry special features and the VeDoc calculator($53 for activation)

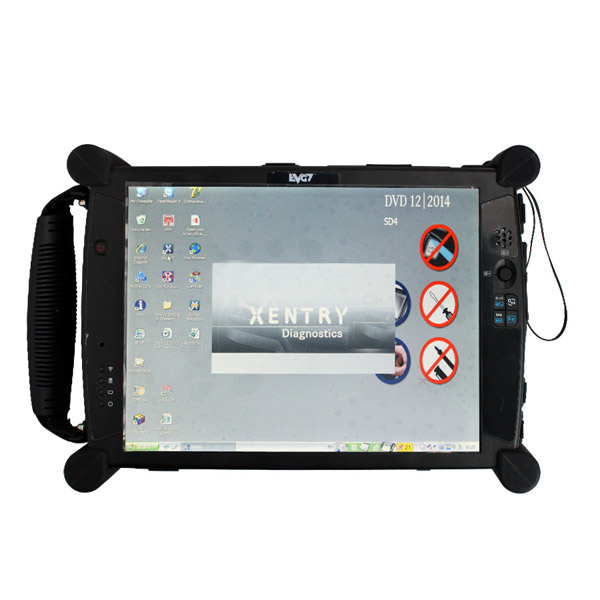

Software Display:

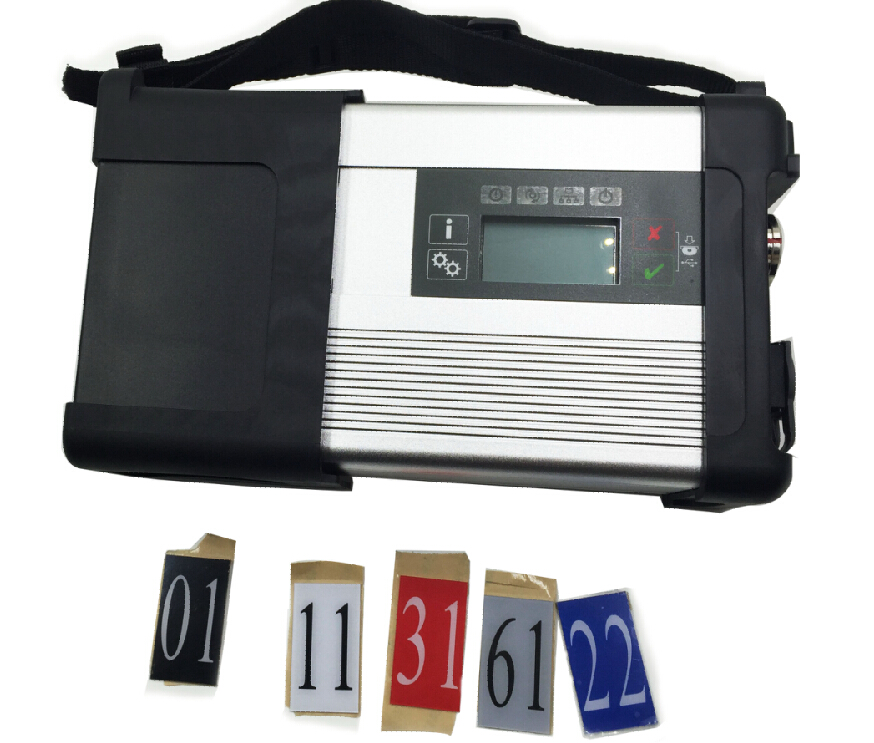

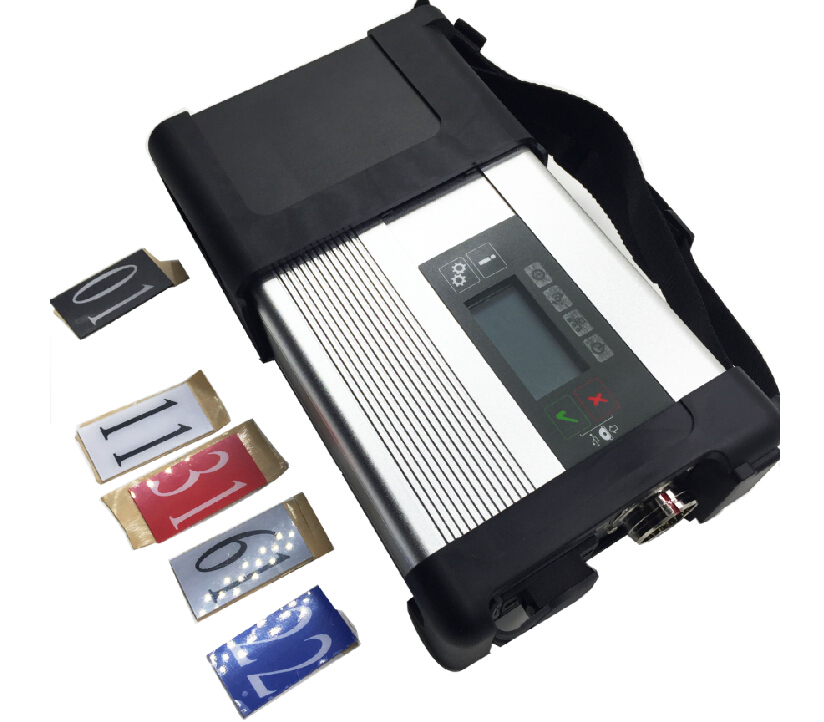

New MB Compact 5 Features
1. New MB SD Connect Compact 5 Star Diagnosis support wireless diagnose;
2. New MB SD Connect Compact 5 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol.
3. Multiplexer now use Lan cable to connect
4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;
5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

MB SD Connect Compact 5 Supported Vehicle List:
MB SD C5 Support Mercedes Benz Cars After Year 2000

Passenger Car Support List:
 A(176),  A(169),  A(168),  B(246),  B(245),  CLC(117),  C(204)  C(203),  C(202),  190(201),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),  S(220),  S(140),  S(126),
 E(207),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),  CL(215),  CL(140)  SLK(172),  SLK(171),  SLK(170),  SL(231),  SL(230),  SL(129),  SL(107),  SLS(197),
 M(166),  M(164),  M(163),  G(463),  G(461),  E(212),  E(211),  E(210),  124(124),  S(222),  S(221),S(220),  S(140),  CLK(209),  CLK(208),  CLS(218),  CLS(219),  CL(216),
 CL(215),  CL(140),  SLK(172),  SL(231),  SL(230),  SL(129),  SL(107),SLS(197),  M(166),  M(164),  M(163),  G(460),  GL(164),  GLK(204),  R(251)

Van Support List:
 MB 100(631),  T1,  SprinterIII,  SprinterII,  SprinterI,  Sprinter900,  Citan,  Vito(639),  Vito(638), V(638),   Viano(639),  T2,  Vario,  Vaneo(414)

Truck Support List:
 Actros963/4,  Actros2,3,  AtegoIII,  AtegoII,  AxorII,  Eonic,  Zetros,  Actros,  Atego Light,  Atego Heavey,  HPN M96,  Atron,  HPN M2000,  SKL,  FSK,  Further model series

Unimog Support List:
 U20,  UGN,  UHN

Super Sports Car Support List:
 SLR(199)

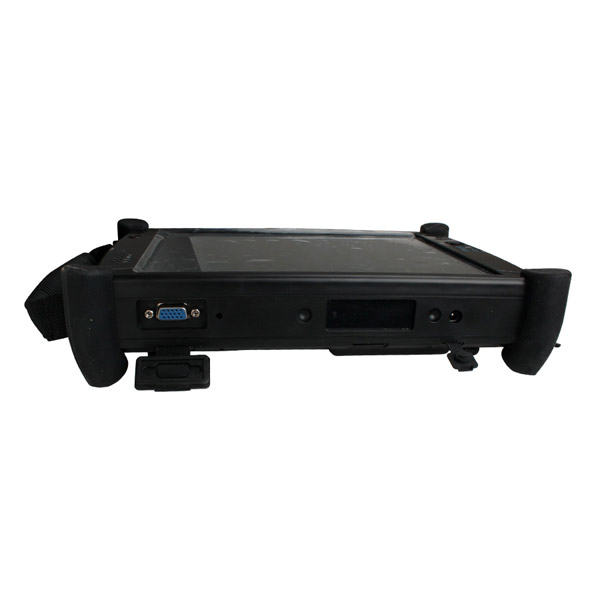

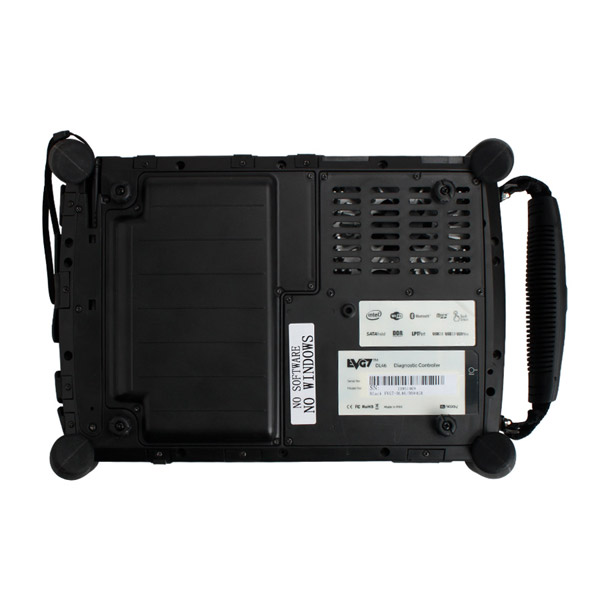

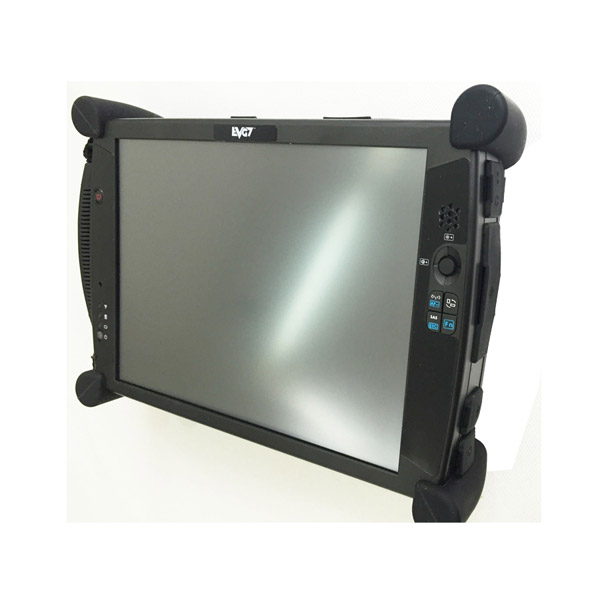

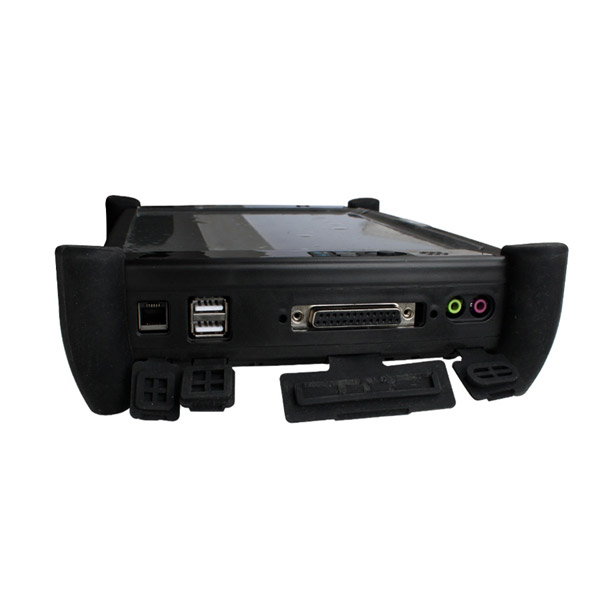

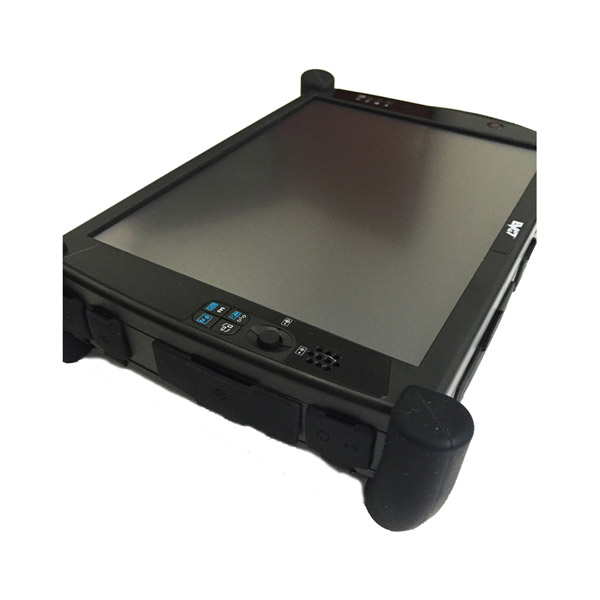

EVG7 DL46 Specification:
Mark : EVG7
Model : DL46
Processor : Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
DDR : The biggest support memory : 4GB
HDD : 500G SSD or 256G SSD (Optional)
LCD : 10.4 Inch The resolution of the 1024x768
Graphics :
touchscreen widescreen LED backlight
The core graphics Intel HD Graphics
Speakers : Built-in Speakers
Wireless : 802.11b/g/n
LAN : The built-in 10-100M card
Bluetooth : BT2.0 , 4.0
USB : USB3.0 / Mini USB / 2 x USB2.0
Card Reader : TF Card Reader
Other Interface :
VGA Voice Input / The Sound Output /
DC Power Jack / Parallel LPT Port I/O
VGA Output
Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter : 110V-240V The adaptive communication power supply
Battery Life : The specific time depending on the use environment
Specifications : 270x180x60 mm
weight : 1911g (with battery)
Certificates : CE / FCC /  RoHS

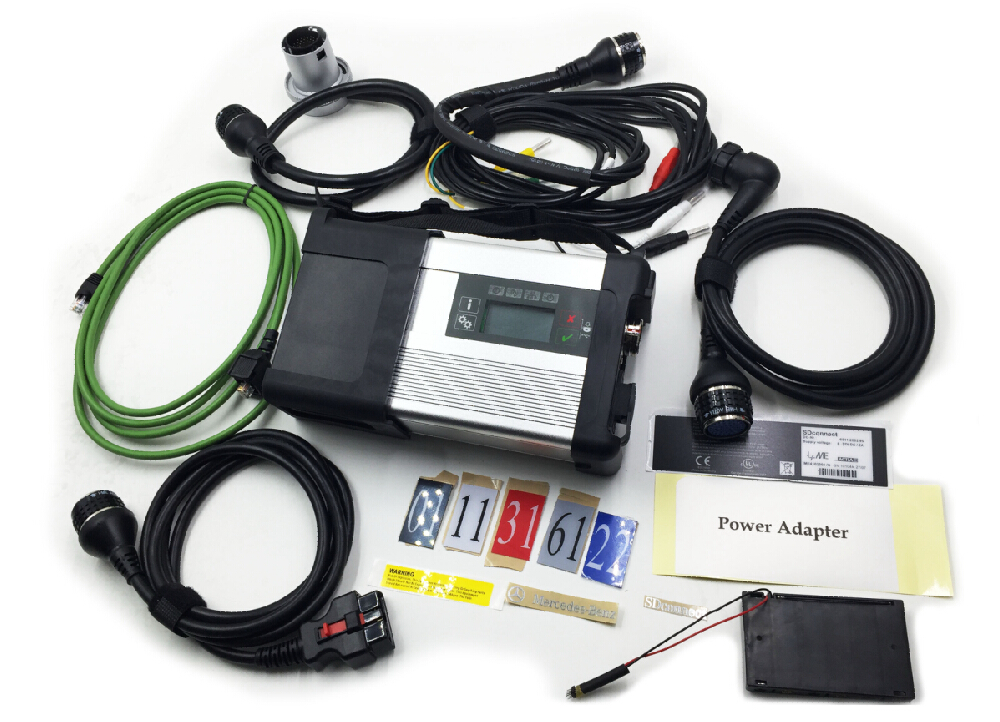

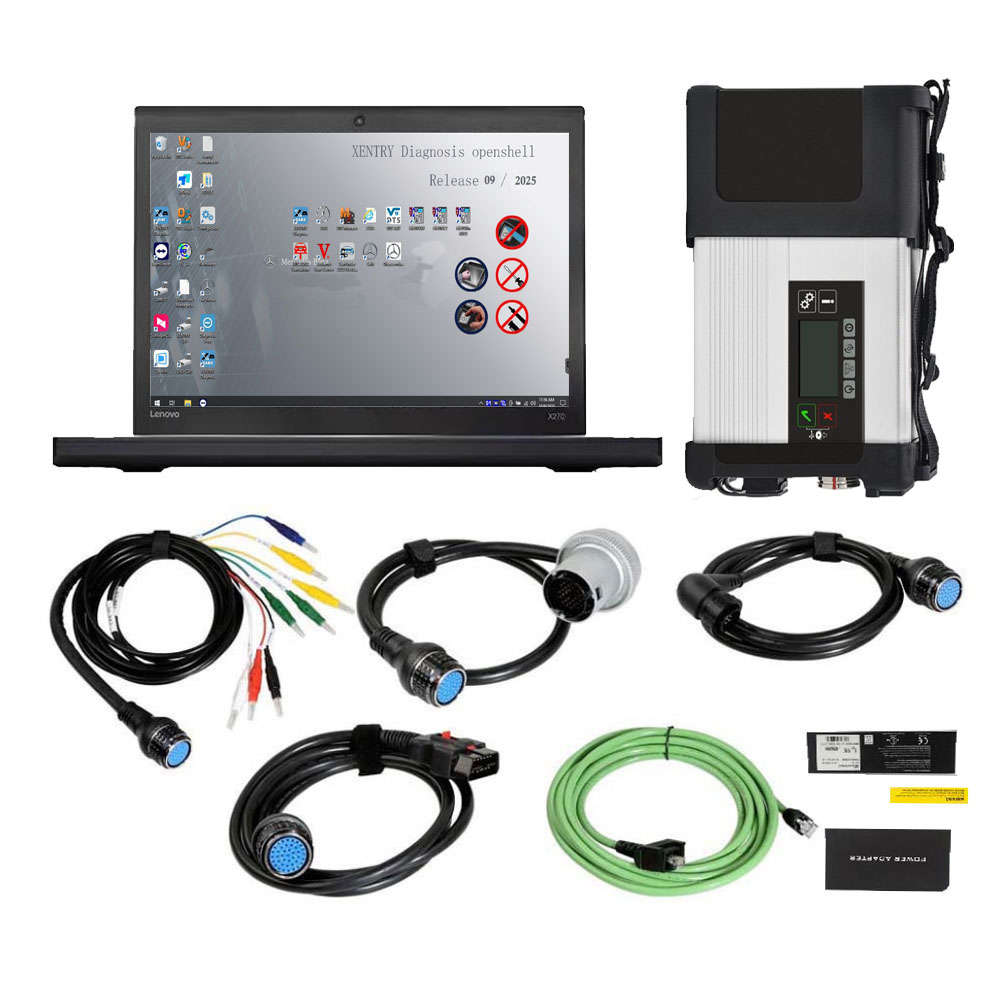

MB SD C5 Package List
1pc x Multiplexer
1pc x OBDII 16PIN Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1pc x EVG7 tablet pc plus MB Star Diagnostic Software (Optional)

User Comment(Total 55 User Comment Num)

• by Rakesh singh,Jul 14,2022


  May I know if the tablet is touch screen?

  Reply #1 by Nancy Jul 15,2022
  Yes, the tablet is touch screen.

  Nancy

  ---

• by John Decker,Jul 02,2022


  Can I buy the online programming account from you?

  Reply #1 by Nancy Jul 03,2022
  Sorry, we can’t sell this, the account needs to buy from the original benz.

  Nancy

  ---

• by Wayne Keller,Jun 04,2022


  Does it work with the sprinter W907?

  Reply #1 by Nancy Jun 05,2022
  Yes, it works with sprinter W907.

  Nancy

  ---

• by Lucky Baloy,Jul 07,2022


  If it can do 2012-2018 Benz cars?

  Reply #1 by Nancy Jul 08,2022
  Hello, it can diagnose 2012-2018 Benz cars, programming just can do the offline.

  Nancy

  ---

• by alvin singh,Jul 01,2022


  I just want the MB C5, 16 pin OBDII cable, how much?

  Reply #1 by Nancy Jul 02,2022
  Hello, just the 16pin OBDII cable, unit price is 30USD.

  Nancy

  ---

• by David Mash,Jun 23,2022


  The WIS is not working, engineer fixed it by remote tool, thanks.

  Reply #1 by Nancy Jun 24,2022
  Hello, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by JACK OWENS,Jun 04,2022


  Can I pay via Credit Card?

  Reply #1 by Nancy Jun 05,2022
  Hello, you can make the payment via PayPal, Bank Transfer, Western Union.

  Nancy

  ---

• by Johan Smith,May 27,2022


  Is it the full set and with the software?

  Reply #1 by Nancy May 28,2022
  Yes, it is the full MB SD C5 set, and the software has installed at the tablet, readyt to use.

  Nancy

  ---

• by Dacke Line,May 15,2022


  i want to find out this computer is for trucks??

  Reply #1 by Nancy May 16,2022
  Yes, the MB Star C5 can work with Benz cars and trucks.

  Nancy

  ---

• by Farl Martin,May 06,2021


  Very good price for a high quality scanner!

  Reply #1 by Nancy May 07,2021
  Hello, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---
