Mercedes BEZN MB SD Connect C6  Benz Xentry diagnosis VCI OEM DOIP Xentry Diagnosis tool with V2024.03 Software

Note:This product cannot be used with C4 or C5 software and must be used with our C6 software. If you don't have C6 software,pls choose configuration 2 or 3 with software.

Notice:

If you choose hardware and software（500G HDD or 512G SSD）

1. Please install the 500GB HDD(512G SSD) on laptop above 4GB Memory and I5 CPU, and use it on one laptop only.

2. There is keygen in our software HDD(SSD), no need activation by us.

3. This Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 can't support All Key Lost,needs one key at least.

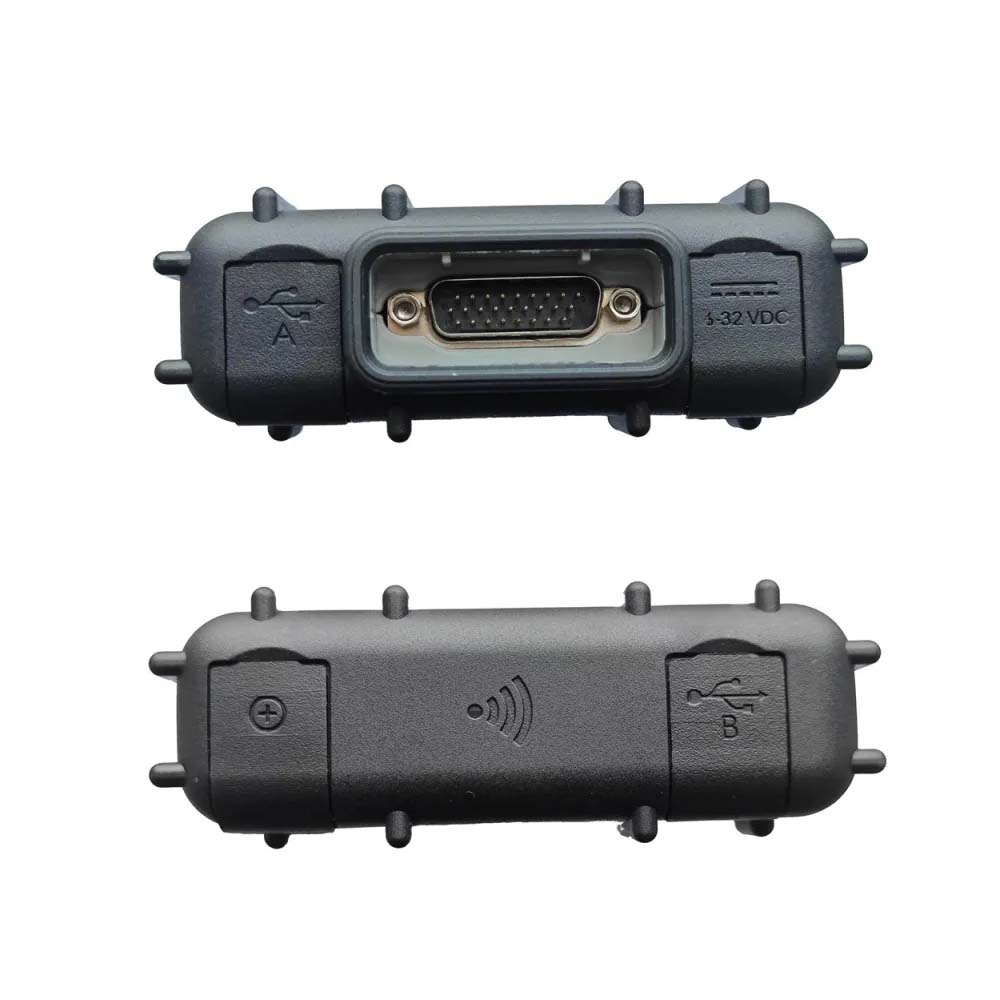

Mercedes Benz C6 OEM Xentry diagnosis VCI DOIP Pass thur interfac is the latest interface for For Mercedes & SMART vehicles can replace Star C4/C5. XENTRY Diagnosis VCI acts as a Pass-through Interface, also called MB Star C6, For Benz C6 multiplexer to provide complete communication between a vehicle and the XENTRY software loaded on a PC.

Note:In March 2024, log in to xentry and leave the account and password blank, then click login directly.
If you enter the account and password, the software will not work.

Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface Benz C6 Overview:
Compatible Software: VXDIAG For XENTRY/Das Software
Support Vehicle: Mercede For Benz & Smart vehicles
DoIP: Support DoIP
Functions: Star Diagnostic & programming

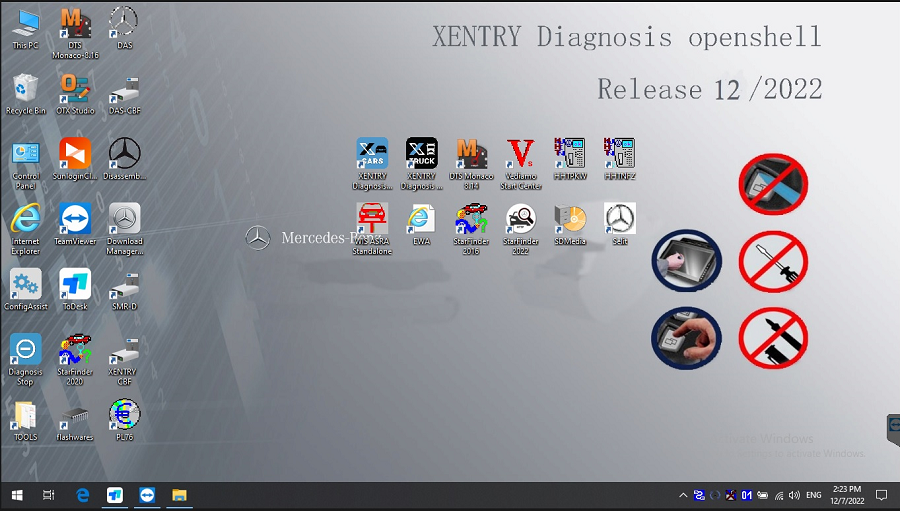

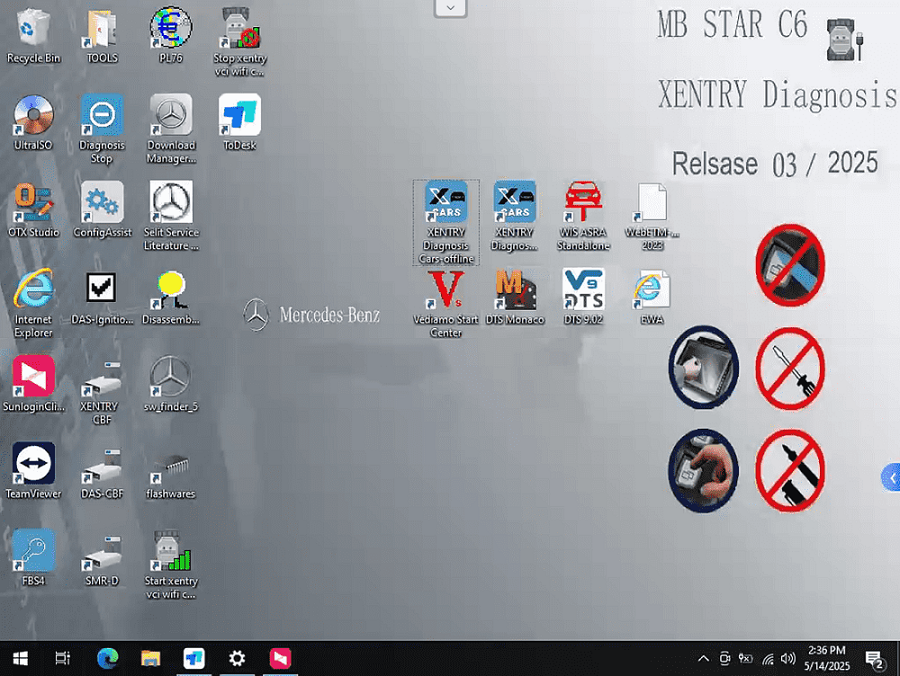

MB Star C6 Software Description:

1.  DAS / Xentry 2024.03
2.  WIS net 2021.07
3.  EPC net 2021.07: Electronic Parts Catalog
4.  ST Finder 2016-2022: optional: a Part location finder
5.  SDmedia 2015.01
6.  DTS 8.14.016 Monaco
7.  VX Manager 1.6.0
8.  Vediamo Database (This C6 hardware not support Vediamo)

Software Version: V2024.03（Xentry and DAS）
Support Multi-Language: (Default language is English, if you want other languages, please leave message) English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/  German/  Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese

Notice:
Please install the 500GB HDD on laptop above 4GB Memory and I5 CPU, and use it on one laptop only. If change laptop, software may get broken and need to ship HDD back to us to copy software again.
ThisMercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 can/'t support All Key Lost,needs one key at least.

What is DOIP
DOIP is ISO 13400 diagnostic protocol
ISO 13400-1:2011 describes the general use cases and communication scenarios which are covered by an Internet Protocol-based vehicle communication standard. Each use case drives specific communication capabilities of the vehicle communication interface, for instance in order to be interoperable in an existing computer network.
The diagnostic communication over Internet Protocol (DoIP) protocol supports the standardized service primitive interface as specified in ISO 14229-2.
The descriptions in ISO 13400-1:2011 cover different application layer implementations, such as:
enhanced vehicle diagnostics (system diagnostics beyond legislated functionality, non-emissions-related system diagnostics);
WWH-OBD (World-Wide Harmonized On-Board Diagnostics) as specified in ISO 27145-2 and ISO 27145-3.
The mercedes  Land Rover JLR all use this new Diagnostic Protocol now.

Where need DOIP device
when we test mercedes new car like w222 w205
In Audio\Comand section you can find DoIP test page.
If cable is DoIP you will see green mark that DEVICE is Ok.
Xentry will prompt you that other device must carry yellow marks.

MB Star C6 Xentry diagnosis VCI DoIP Pass-thru interface Supported Vehicle List:
MB SD C6 Support Mercedes Benz Cars After the Year 2010

Mercedes Benz VCI DoIP C6 Support Functions List:
Diagnosing
Programming
Smulation studying
Repair information
Automotive maintenance
Technical service bulletin
DPF Regeneration (work same as original)

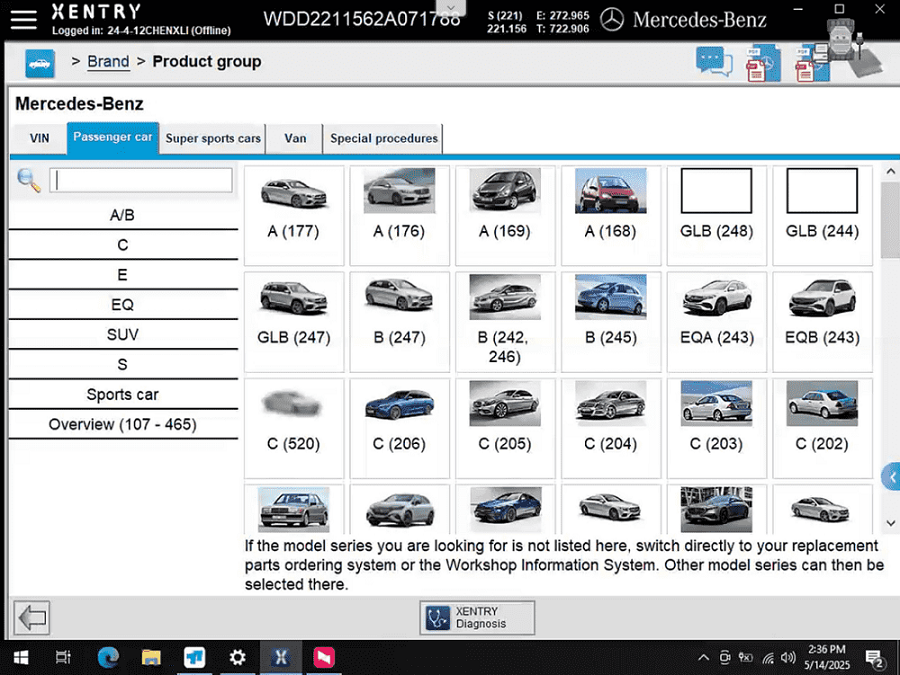

Passenger Car Support List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Super Sports Car Support List:
SLR(199) etc.

DPF Regeneration menu lets you perform the DPF cleaning to clear the blockage through continuous burning of the particulates captured in the DPF filter. Which will avoid the filter being blocked by ash, then the owner has to replace the new diesel particulate filter (worth 1000usd -200usd)

Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 Features:

Can be used for all model series of For Mercedes For Benz vehicles
Support DoIP, cover more functions during SCN Coding than SD C4/C5
Functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
Diagnosis updates no longer necessary – firmware updates required on rare occasions
Does not need a power supply unit for external power supply
Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
Engines (All Gasoline & Diesel Systems)
Transmissions and Electronic Selector Modules
Airmatic and Active Body Control Suspension Systems
Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
Drive Authorisation System
Sam (Signal Acquisition) Modules
Electronic Ignition System (EIS)
Pneumatic System Equipment and ATA functions
Air Conditioning / climate control Systems
Instrument Cluster
Tyre Pressure Control
Parktronic System
Keyless Go
D2b Command & Audio Gateway (D2B and MOST networks)
TV Tuner
Headlamp Range Adjustment
Seat Electronics
Rvc, RST & Vario Roof modules
Automatic Clutch System ACS
M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
Assyst & ASSYST + systems

Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 Summary:

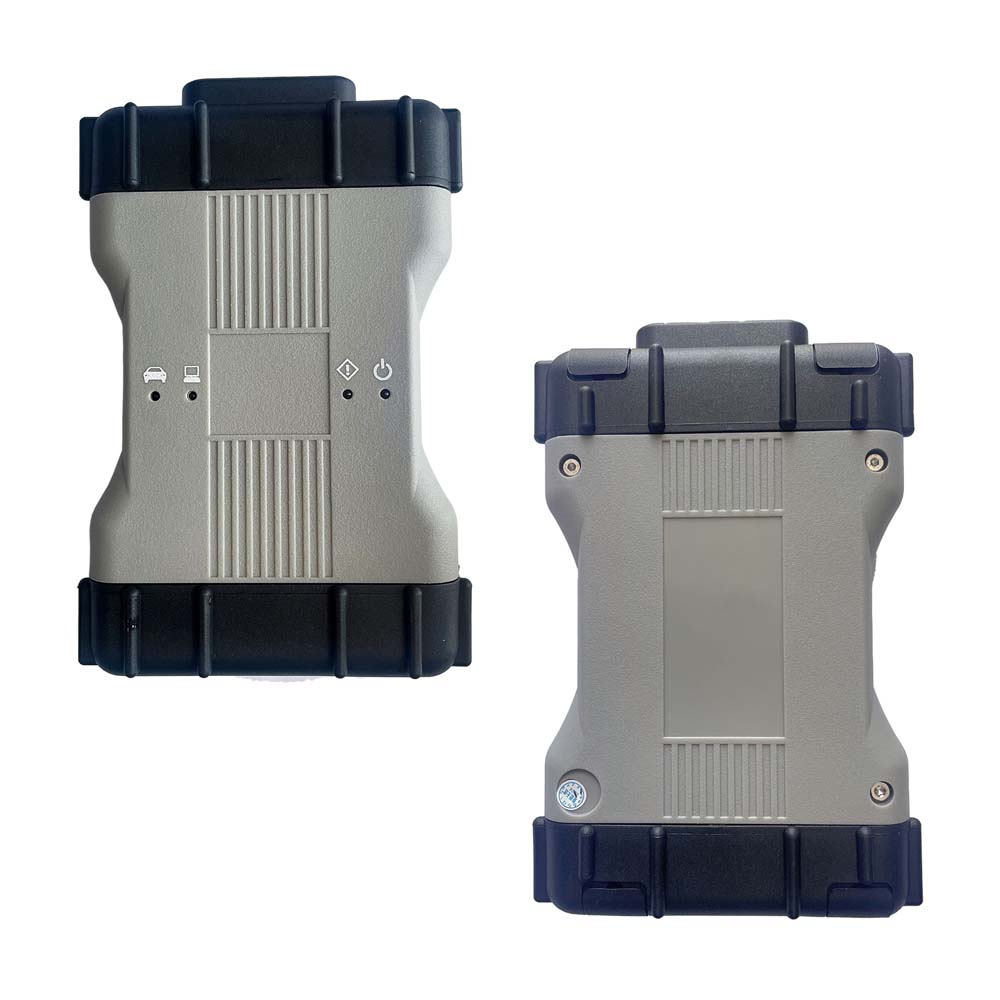

Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 (Vehicle Communication Interface) multiplexer serves as the interface to the vehicle when performing diagnosis and repairs, and programming electric and electronic on-board vehicle systems.

The Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 does not have its own PC core, battery, fan, or display. It is operated using the VXDIAG For XENTRY Diagnosis Pad via WLAN or a USB cable connection.

What is DOIP?

DOIP is ISO 13400 diagnostic protocol

ISO 13400-1:2011 describes the general use cases and communication scenarios which are covered by an Internet Protocol-based vehicle communication standard. Each use case drives specific communication capabilities of the vehicle communication interface, for instance in order to be interoperable in an existing computer network.

The diagnostic communication over Internet Protocol (DoIP) protocol supports the standardized service primitive interface as specified in ISO 14229-2.

The descriptions in ISO 13400-1:2011 cover different application layer implementations, such as:

enhanced vehicle diagnostics (system diagnostics beyond legislated functionality, non-emissions-related system diagnostics);

WWH-OBD (World-Wide Harmonized On-Board Diagnostics) as specified in ISO 27145-2 and ISO 27145-3.

The mercedes  Land Rover JLR all use this new Diagnostic Protocol now.

Where do you need DOIP device?

When we test mercedes new car like w222  w205

In Audio\Comand section you can find DoIP test page.

If cable is DoIP you will see green mark that DEVICE is Ok.

Xentry will prompt you that other device must carry yellow marks.

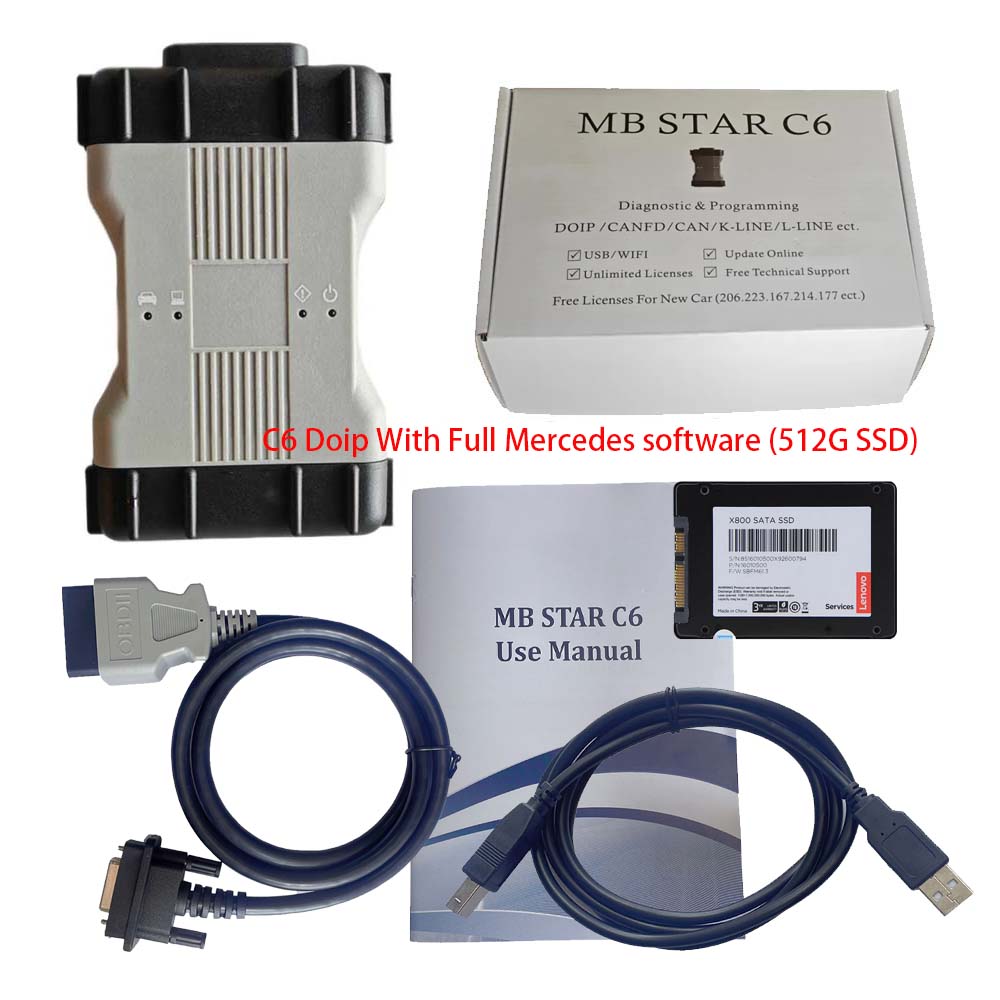

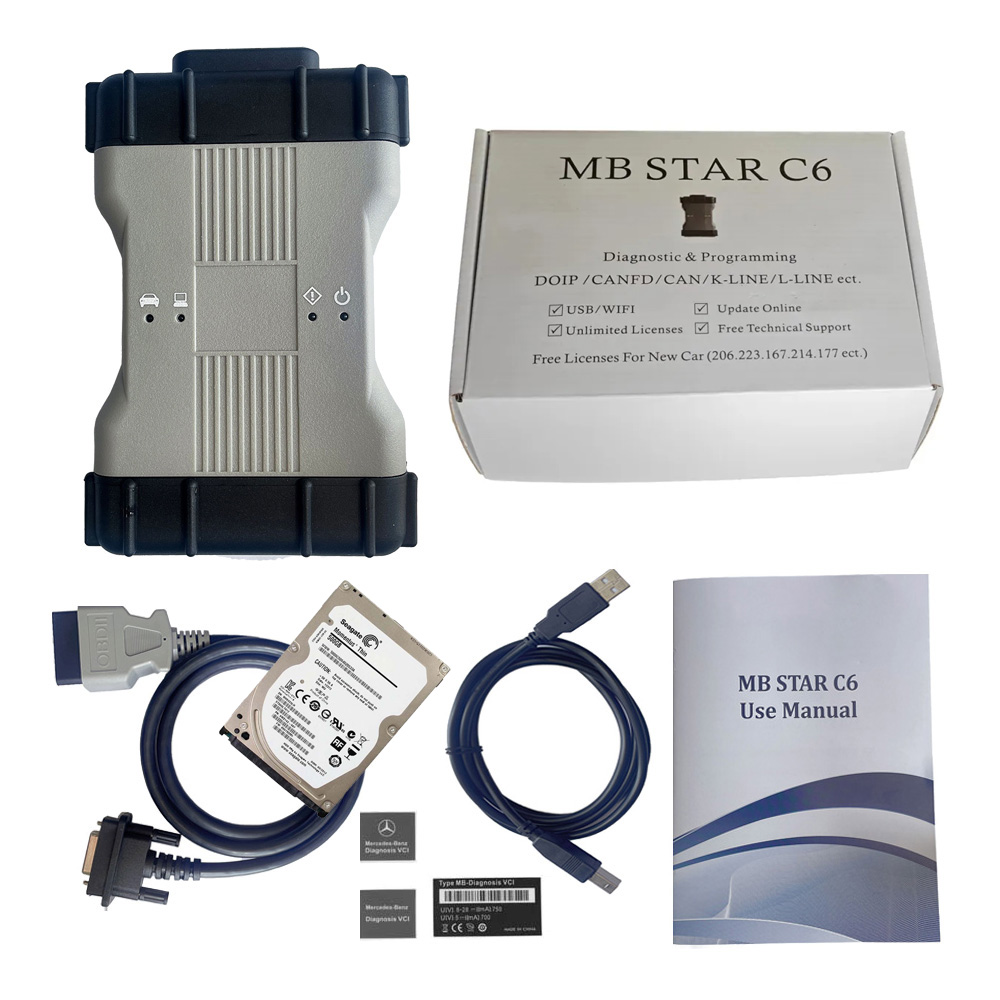

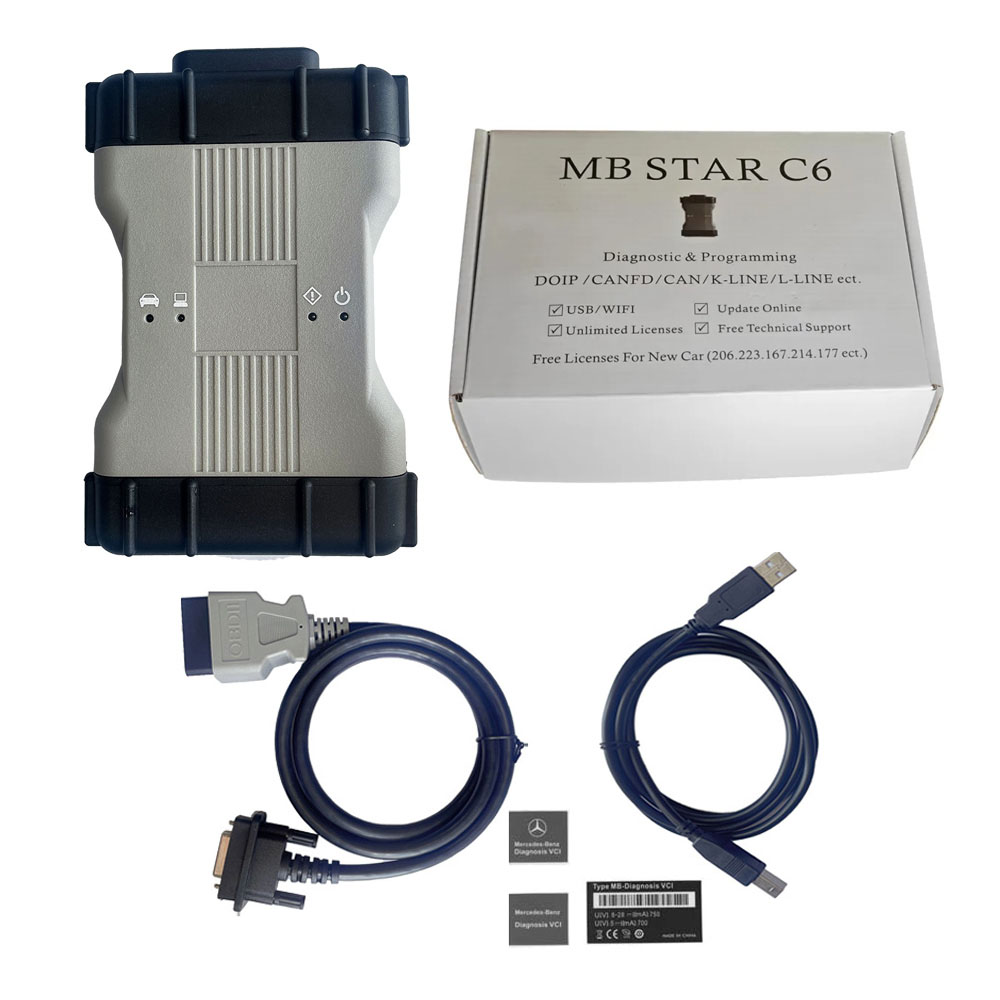

Package list:

Package 1：

1pc x MB STAR C6 Multiplexer

1pc x OBDII Cable

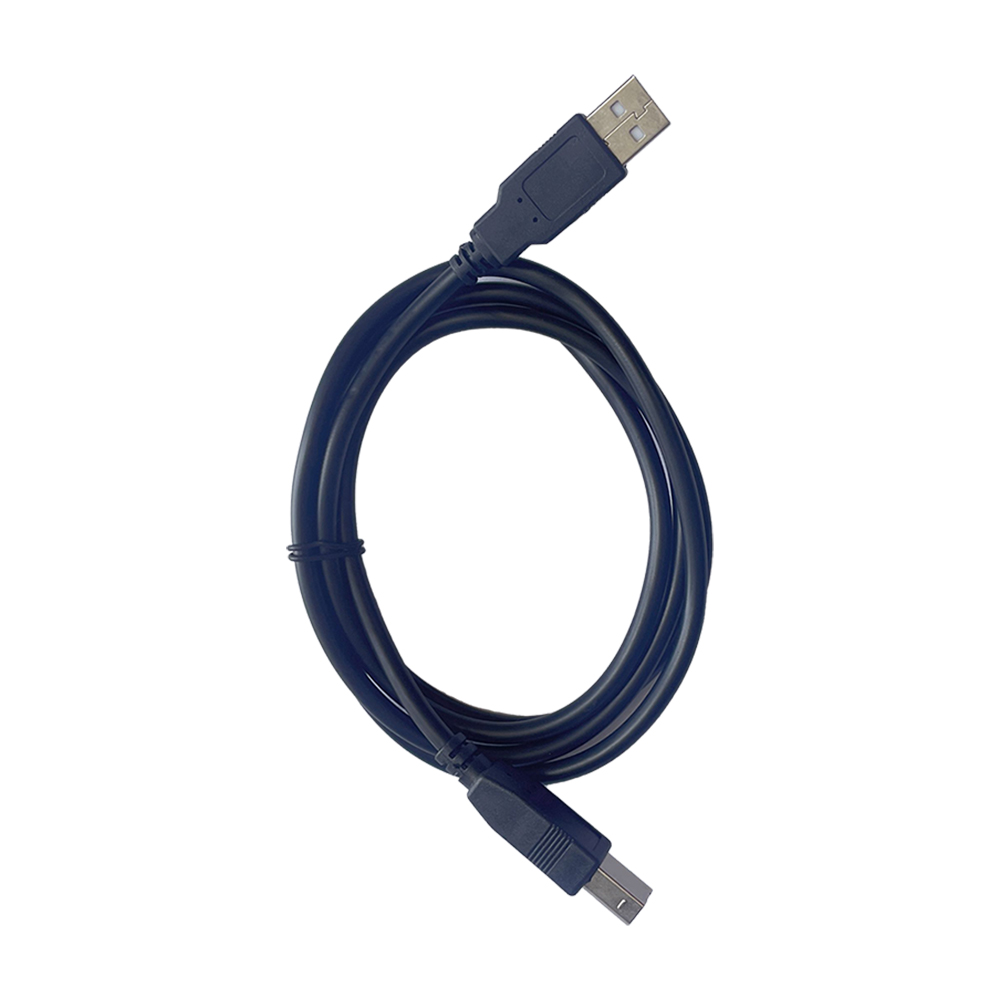

1pc x USB Cable

1pc x 500G HDD

Package 2：

1pc x MB STAR C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

1pc x 256G SSD

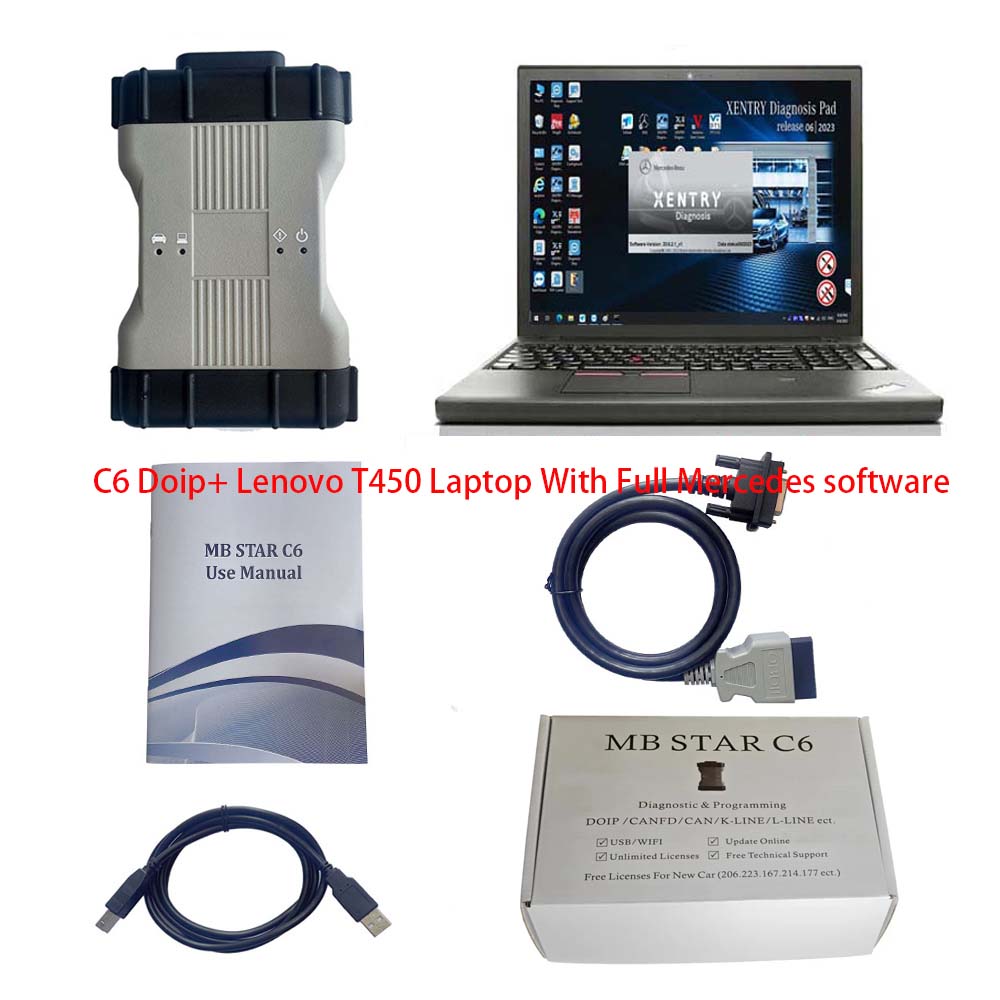

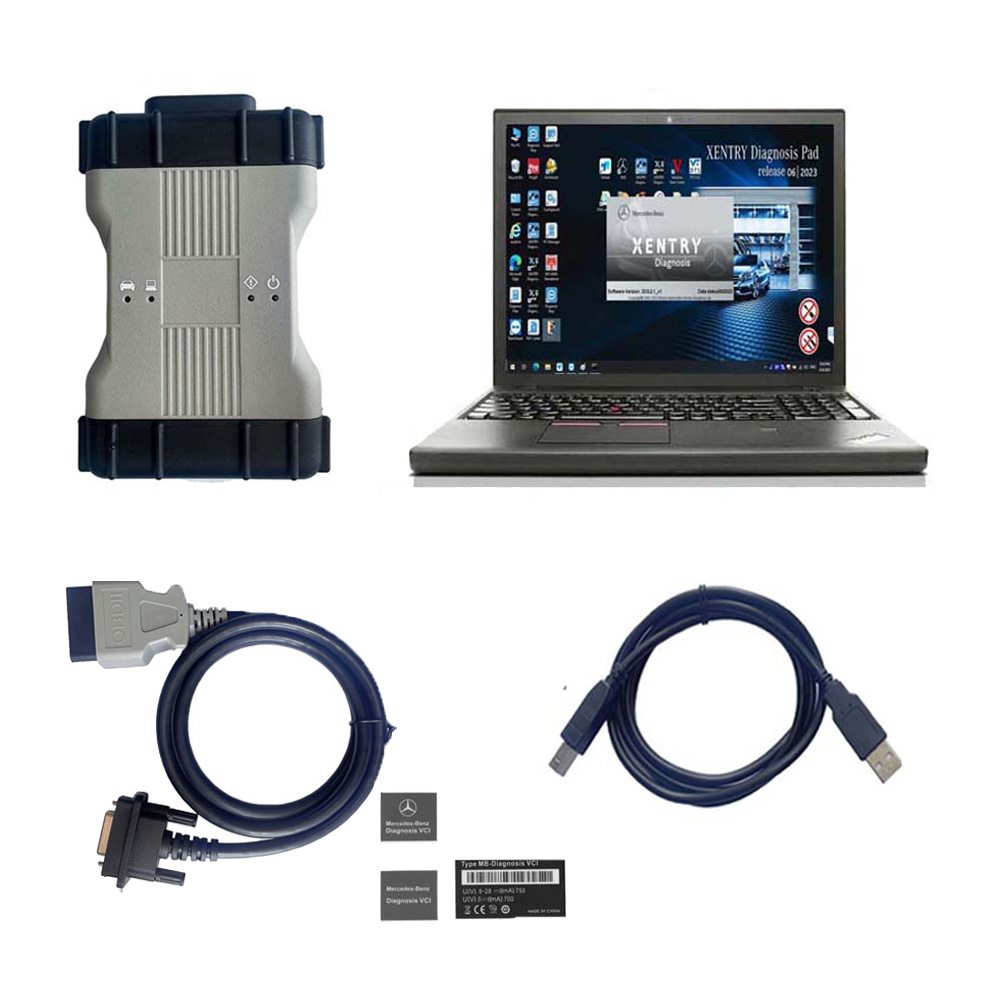

Package 3：

1pc x MB STAR C6 Multiplexer

1pc x OBDII Cable

1pc x USB Cable

1pc x Lenovo T450 with 256G SSD
