2024.10V DOIP MB SD Connect C4/C5 Star Diagnosis Plus Lenovo T420 Laptop With Vediamo and DTS Engineering Software Support Offline Programming

The new MB STAT C4/C5 is able to work for DoIP.
This MB SD Connect C4/C5 diagnosis tool has better quality. It's waterproof, shockproof and tamper proof.

Attention :
2024 MB Star BENZ Diagnostic Software : There have car software and truck software selection, please choose the correct software which you request
The software with authorization, add free offline diagnostic certificate. Supporting diagnostic tests for new cars such as benz C205 W206 W213 W223 W167 W447 W448 etc

XENTRY Activate VIDEO:

Please kindly note :

1.Including Super Engineer Software：DTS monaco V9.02+V8.16 And Vediamo V5.01.01 Support Offline Programming
2.Support Wireless
3.Software Version: V2024.09 Car / V2024.10 Truck Diagnostic Software
Hardware Verison:OS:2.3 CSD:2.11

4.Support Multi-Language: (Default language is English, if you want other languages, please leave message)

English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese..

5.Support Both Mercedes Benz Cars and Trucks

6.Support Mercedes Benz Cars After Year 2000
7.Support Offline and Online Programming, If You Want to Do Online,you must have an account online.



Softwares list:

1. DAS 2024.09 for car and DAS 2024.10 for truck: the automatically Diagnosis Assistance System
2. Xentry 2024.09 for car and Xentry 2024.10 for truck: New software released by Bennz Company after 04/2009 by diagnosis new cars.
3.WIS net 2021.07:Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
4. EPC.net 2018.11:Electronic Parts Catalog
5. ST Finder:Part Location Finder options: 2016 and 2020
6. STARUTILITIES :the movement management system and self-test
7. SD MEDIA 2014
8. PL76 2022.01
9. HHT Software for old cars
10. Engineer version Vediamo updated to V5.01.01 ，Engineer version DTS updated to V9.02, Upgrade to the latest version of 2022 data
1) Fix the error that Mercedes-Benz DAS cannot directly call WIS
2) Join the DAS sedan smart offline programming
3) Join the 204 DAS stand-alone version, which can be mutated (German), which is more powerful than Vediamo
4) Join DAS special function password-free access PKW and SMART
5) Repair SMART 450, 451, 452, 454 No longer need TAN Caculator, all offline
6) Increase offline EOL and VMAX all LKW, modify truck maximum speed limit
7) Lift the truck NOx TORGUE restriction, do not need FDOK XT calculation code, directly enter, directly cancel the legal speed limit, you can modify without special function
8) Clear the truck SCR/ADBLUE fault code (MR), do not need FDOK XN calculation code, enter directly

9）Add DAS 212，207 prototyp model
10）Add Xentry special features and the VeDoc calculator($53 for activation)

Software Display:

Mercedes-Benz engineer software comparison:

Vediamo: Vediamo software can only read module single data, set code, authority is too low
DTS maonaco software is development by Mercedes Benz manufacturers ,all car data one click scan and save. Data can be directly change the underlying data, the module used directly copied data replacement. Automatic programming, can automatically set code completely out of online operation. not afraid of your new models, the latest models more awesome

DAS Special Functions
1. DAS Special Function Password Free PKW and SMART
purpose:
when you do special functions, e.g AB or ABR ecu in DAS W204, you are asked to insert password. With this patch, you can enter any character, minimum one and F2 to continue.
2. Audio Video Navigation and telematics - HU Exchange Audio 50 to COMAND password free
purpose: No password required, F3 to continue.
3.Audio Video Navigation and telematics - add Dev menu in DAS COMAND APS menu
purpose: Add developer menu in DAS Comand APS menu
4. TRANSMISSION or GETRIEBE - EGS1 Special Function password free
purpose: No password required, F3 to continue.
5.TRANSMISSION or GETRIEBE - EGS2 Diagnosis Routine password free
purpose: No password required, F3 to continue.
6.DAS Deutsch - TRANSMISSION or GETRIEBE VGS3 SonderAbläufe Sonderfunktionen password free
purpose: No password required, F3 to continue.
This unique menu only if you use DAS in Deutsch (German language). Cmiiw, this is like eeprom dump special function.
7.Adding 204 in DAS STANDALONE
purpose: Add 204 in DAS Standalone. You can do variant coding in development menu with language (in Deutsch) that are more friendly than vediamo, or adaptation or actuation that are password protected in 204 xentry. I 'facelift' the menu and delete a disturb file compare to the one which floating around. The disturbed file causes 'data missing' error in diagnostic DAS vehicles that are missing definition because of the use of older def file.
8.W164 DAS Password for Tailgate special function
purpose: No Password Required, press F2 to continue
jaxone quote:
"We replaced a Rear Sam Module (bought NEW module from Mercedes) for a ML 320cdi (164) as the old one went in fumes of smoke because of water damage.
Module installed and coded and everything is fine except the height of the tailgate (hydraulic).
When I want to make adaptation of tailgate (in REAR SAM), DAS will come and ask for a password for this function."
9.212 PROTOTYPE FOR XDOS DAS Standalone ver 0.8
purpose:
        - Diagnose 212 using XDOS DAS Standalone.
        - No cbf conversion error like the one that floating in internet/forum
        - Several error fixes for 212 (not fully yet. will be added later)
        - Includes old prototype cbf (without seedkey?)
        - ability to add/expand Development Data ourselves
10,ADD SMART SAM 450 & 452 Extra Functions for power users
purpose:: Add extra functions: Writing VIN & Development Status (inside control unit adaptation).
11.ADD SMART 451 Special Functions for power users
purpose:
- Add Development Data & Development Data (inside control unit adaptation) SAM451
- Add Development Data & Extra Coding(inside conrol unit adaptation) ESP451
12.ADD SMART 454 Special Functions for power users
purpose: Add Development Data and Read codingstring in ESP 454
13.Suppress ALL TAN  codes for Smart equipment upto 2016-09 without Qutomotive Advertisement
purpose: Suppress ALL TAN  codes for Smart equipment upto 2016-09 and without Qutomotive Advertisement
14. ADD SMART 451 & 454 OFFLINE KEY TEACH-IN program key transponder key DAS 2016-12 UP
purpose:
Since Xentry 12/16 there is a new system to teach in Smart keys (BR 451 and BR 454). You don't have the TAN input to teach in again. Smart TAN Calculator and the old csdsmart solution don't work anymore. biggrinEAD:
Now you have to log in to daimler server. While Smart 450, 452 don't go online and also do not need TAN codes.
This fix is able to teach in program key transponder key Offline & don't need TAN codes too for Smart SAM451 & ETACS454.
15. ADD SMART 451 & 454 OFFLINE SAM Assignment DAS 2016-12 UP
purpose: SMART 451 454 OFFLINE SAM Assignment 2016-12UP
16.Special Function Password Free Transporter
purpose: Special Function Password Free for Transporter
17.DAS PKW/SMART/TRANSP Offline Programming & Online/Offline Entry of Retrofits & Modifications
purpose: to update ecu firmware & Offline/Online Entry of Retrofist & Modifications
Note:
Change to original mode when update addons. Daimler always update to increase security in Online Programming!!!
If not, the offline patch will get error when using.
18. Nox Torque Limit Setting (FR/CPC0) with correct New FDOK XT
purpose:
- Nox Torque limit Setting: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK internally, and change the encrypted random number to correct one in memory
- Added value: UNLOCK Legal speed limit direct edit without going to special function
19.Erase SCR/ADBLUE fault code (in MR) with correct New FDOK XN
purpose:
- Erasing of emission-relevant (SCR/ADBLUE) fault code: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK XN internally, and change the encrypted random number to correct one in memory
20.NFZ SonderFunktion Password Free
purpose: password free for NFZ when doing SonderFunktion (Flash/Programming)
21.Added Offline EOL & VMAX ALL LKW (OBD1 & OBD2) for DAS 2014-12UP
purpose:
Patch original files from XDOS 2018-07:
- Added Offline EOL & VMAX ALL LKW  (OBD1 & OBD2) for DAS 2014-12UP
- Added Deleted VIN function
- Avoid MR Manipulation because of change VIN
22.MR1_96 Conversion to emissions standard 'Euro 3' download + Flash Data Complete
Purpose: Offline downgrade MR FLASH memory from Euro 4/5 to Euro 3 to disable AdBlue
23.ADM2 & ADM3 Unlock speed
purpose: Speed limit Read/Write on ADM2 and ADM3 on Kamaz, MAZ, Industrial motors, Crans, Combines
24.CPC4 Unlock speed
purpose: New IMO replace its old ADM2/3 with new CPC4 - TC1796. This will unlock speed limit Read/Write on Kamaz, MAZ, Freightliner,...

DTS and Vediamo difference
Function	DTS	Vediamo
entire vehicle setting code one-click save	yes	no
entire vehicle control unit software number one-click save	yes	no
read entire vehicle fault code	yes	no
data exchange	yes	no
quick test	yes	no
single control unit one-click setting code offline	yes	no
Offline programming	yes	yes
Increase or decrease SA code	yes	yes
Personalized settings control unit parameters	yes	yes

DTS-monacointroduction：
1.DTS-monaco is the official software used by Daimler Benz development engineers
2.DTS Monaco is universal engineering test terminal for the diagnosis and control function of the vehicle controller, The name Monaco is derived from the modular analyzer used in vehicle traffic
3.DTS Monaco covers all the tasks in the field of engineering, testing and production test preparation
4.When Mercedes-Benz maintenance test it is the greatest authority，the perfect support for C4（SDconnect) and (Ecom) Hardware(at present, Das-xentry.Vediamo lower authority)

DTS-monaco special feature：
1.Quick Test；Entire vehicle ECU quick test, and the test can choose to edit more
2.Variant Coding； Coding with variation add VO- delete VO function
3.ID identification ； One click to read the whole car and save all modules programmed numbers
4.Complete Variant Coding； One time to read all the ECU coding vehicle data, can be written to the vehicle again, completely off-line operation
5.Diagnostic Services； Advanced features can see your choice of internal and external data module, turn on the computer authorization(not driving license), Activate ECU, reset ECU, modifying the original chassis number
6.Flash programming； Fully offline programming
7.Diagnostic Trouble Code； Diagnostic module DTC fault code
8.ECU Exchange； Two of the same ECU, by reading data import data exchange
9.Symbolic trace： Record and track the file, after repeated viewing, analysis of fault logic point

Basic programming set code function:
1.unit for off-line programming
2.a key to off-set code
3.W166, cancel the programmed number of calculation method of urea, one perfect canceled all 166 urea system.
The new c s-series to the factory installed conversion:
4.222, 205 installing fragrance systems
5.2015, paragraph 212, changing traffic light permanently lit
6.212, 204, adding electric ear
7.222 205 HU5 traffic solution for DVD video
8.W164 closed recycling system
9.W205, retro atmosphere lamp
10.205, 222 adding electric ear electric trunk, the trunk kicking function
11.166, how to modify the gateway set up codes
12.166 meters finished degrees Fahrenheit to degrees Celsius
13.US standard maintenance mileage be set to the number of miles
14.164 disabled diesel particle filter regeneration system
15.166 canceled urea
16.205 added electric rear vision mirror
17.HU45 regional Chinese resolve lock
18.W204 W166 foldable rear-view mirror
19.change the 166 on board, display in Celsius
20.W212 disable ECO configurations
21.activate the HOLD function ABR2XT
22.open W22 looked up appears
23.the AMG sports package enabled W212
24.the air bag computer reset factory State W166
25.to increase the brightness of the color instrument cluster s W222
26.22.97g to install the steering wheel shift paddles
27.W221 AMG W216 dashboard style
28.airbag ECU unlock W204 212
29.disabled child seat recognition sensors W221
30.opening rear fog lamps as spare brake lights with W222
31.increasing engine power MED177

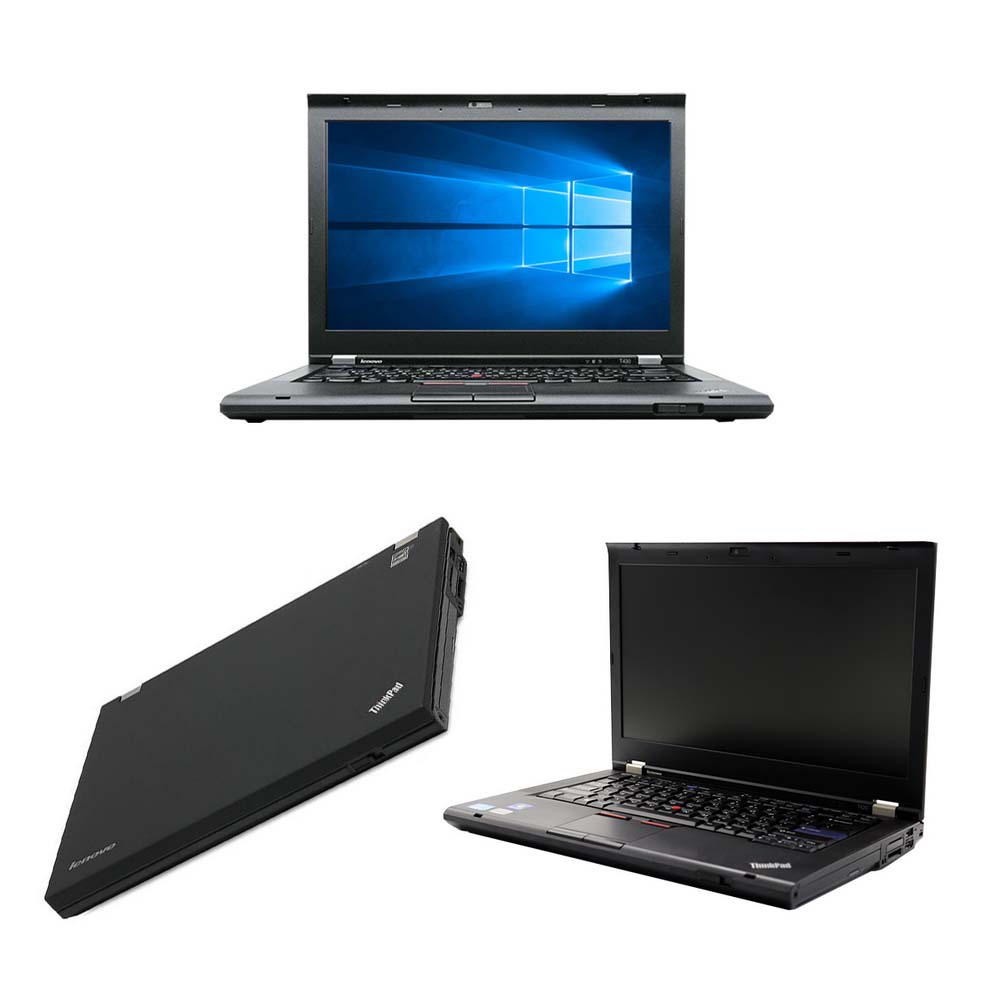

Second Hand Laptop Lenovo T420 Laptop Specification ：

Brand: Lenovo

Condition: Used

Type:  Laptop/Notebook

Screen Size:  14.0

Processor Type:  Intel (R) Core(TM) I5-2520M CPU

Processor Speed:  2.50 GHz

Processor Configuration:  Dual Core

Memory: 4GB

Compared with other laptop, this one is better quality and run faster.

MB Star SD Connect C4 Wire Connection Picture:

MB SD C4 Wireless Connection Picture:

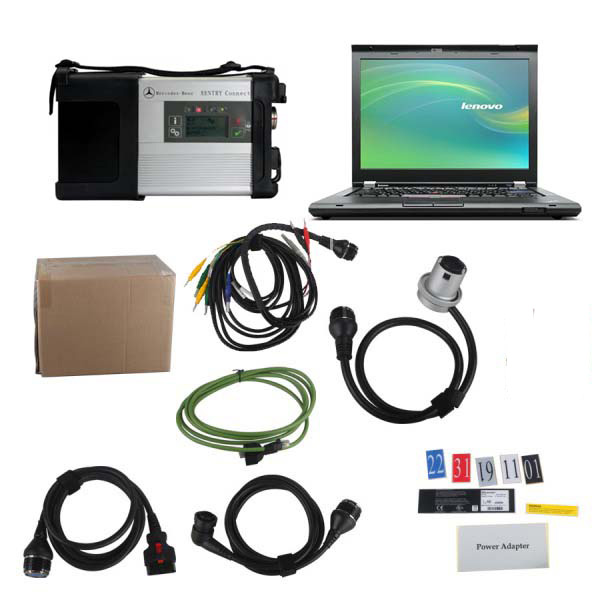

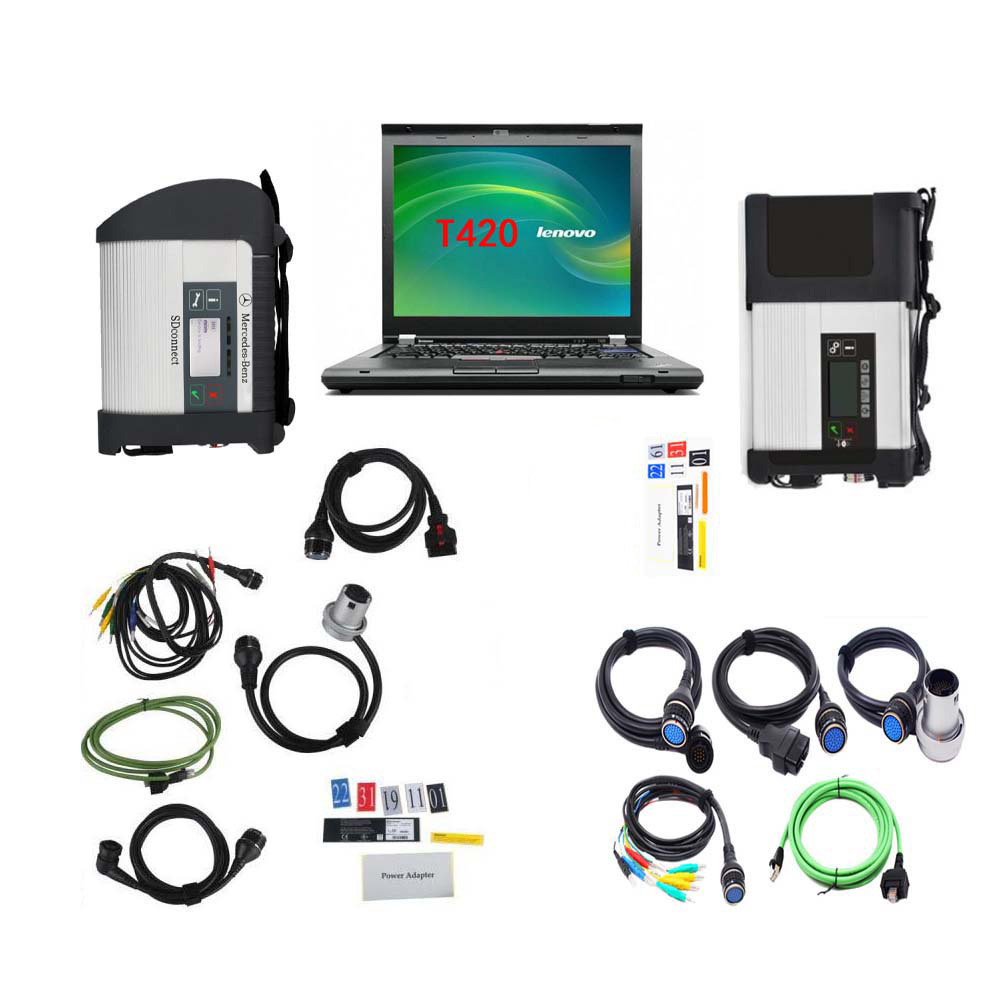

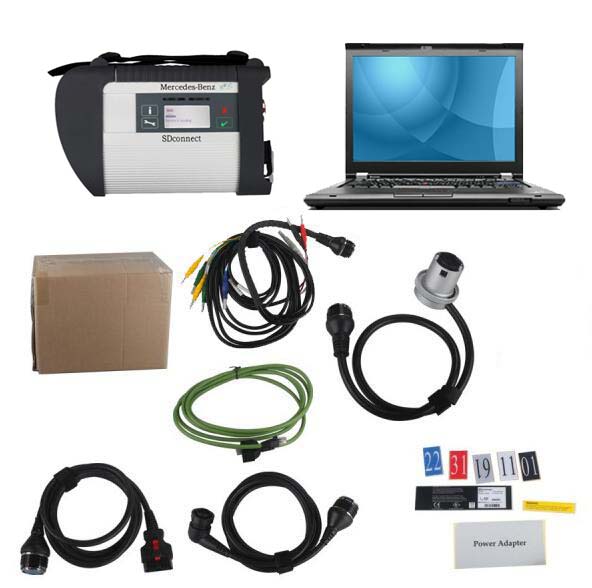

Package List:
1pc x Multiplexer
1pc x OBDII 16Pin Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1pc x Hard Disk (500G New)
1set x Second Hand Lenovo T420 Laptop I5 4GB Laptop plus MB Star Diagnostic Software (Optional)

User Comment(Total 26 User Comment Num)

• by JACKIE INGLISH,Aug 07,2022


  Does it support the mercedes a257 chassis?

  Reply #1 by Nancy Aug 08,2022
  Yes, it can support mercedes a257 chassis.

  Nancy

  ---

• by ramah yassir,Jul 03,2022


  Can I use it diagnose the 2011 Mercedes s450?

  Reply #1 by Nancy Jul 04,2022
  Yes, you can use this tool diagnose the 2011 Mercedes s450.

  Nancy

  ---

• by tim johnston,Dec 27,2021


  Nice work on my 2016+ Metris and Sprinter Van.

  Reply #1 by Nancy Dec 28,2021
  Hello tim, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by jimmy veilleux,Dec 17,2021


  Free shipping to Spain, thanks.

  Reply #1 by Nancy Dec 18,2021
  Hello friend, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by Xu Han,Aug 16,2021


  Hello,
  I just bought a star SSD software I was able to activate Xentry but EWA I couldn’t since the LAN ID is unknown thank you for your help

  Reply #1 by Kelly Aug 17,2021
  Please send me teamviewer ID and password, I will inform our engineer to activation for you.

  Kelly

  ---

• by ,Jun 04,2021


  And this program will connect to heady duty engines?

  Reply #1 by Kelly Jun 05,2021
  Hello, mb star c4 it is good for benz car and trucks.

  Kelly

  ---

• by brandon rodriguez,Mar 11,2021


  Hello, I recently purchased a Xentry C5 multiplexer and ssd for laptop. The Wifi does not work!

  Reply #1 by Kelly Mar 12,2021
  Hello,

  About wifi setting, you can follow this link to operation.

  https://www.obd2tool.com/blog/2019/08/21/2019-mb-sd-connect-compact-c4-c5-wifi-set-up-instruction/

  Regards
  Kelly

  Kelly

  ---

• by Jung In Hwang,Nov 06,2020


  Excellent material works just perfectly with Xentry. Compatible wifi but honestly no interest is much simpler with ethernet cable that is quite long. No complaints.

  Reply #1 by Kelly Nov 07,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by Gunnar Larsen,Mar 27,2020


  Product in verry good shape, work very good tested after 1h from receptions on my both cars 210 and 211, honestly recommend this seller.

  Reply #1 by Kelly Mar 28,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by Ferogh Mansury,Sep 18,2019


  All working, printer too. you guys are great and wonderful excellent company. appreciate your support. good day. regards

  Reply #1 by obd2tool Sep 18,2019
  Thanks for your feedback

  obd2tool

  ---

Total 26 records, divided into3 pages. First Prev Next Last

Rank:
Your first & Lat Name:
Your E-mail Address:
Review detail:
Verification code:

Download & Technical Support

 MB-STAR-C4-C5-diagnosis-activation-steps.pdf
