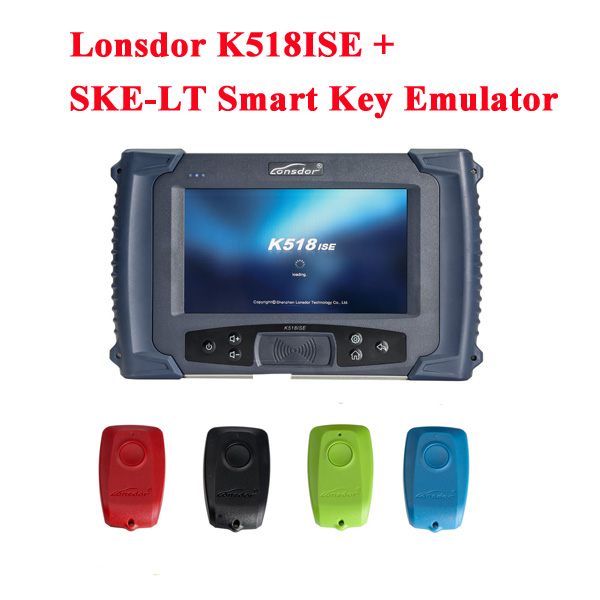

Lonsdor K518ISE Key Programmer Plus SKE-LT Smart Key Emulator

K518ISE key programmer is the latest version of Lonsdor, with wider vehicle coverage in key programming, it is customized as the first masterpiece to the overseas market from Lonsdor. With months of preparation and rigorous testing, from the software design to the user experience, it is an epitomize of Lonsdor years of industry experience. It is tailored and perfect for vehicle locksmith, to help making their work easier, faster and more powerful!

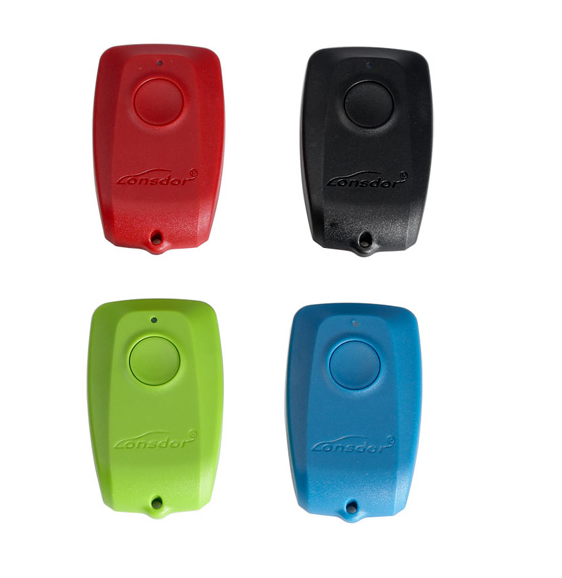

SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all key lost via OBD
Black:  SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.



Supported language: English
Update: One key update online

With Free BMW FEM key programming function

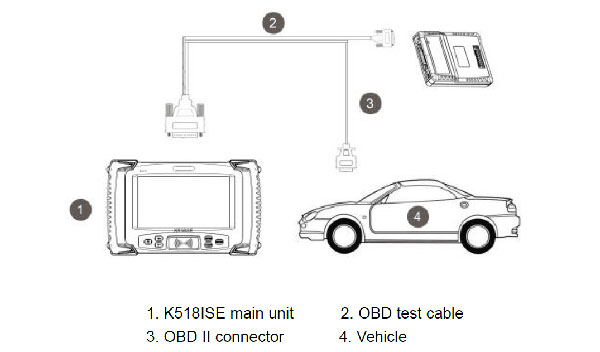

Lonsdor K518ISE Connection Diagram

Lonsdor K518ISE Main Functions & Features:

Main Functions:Immobilization
                         Odometer adjustment
                         Built-in Volkswagen 4th 5th adapter
                         Built-in Chip & remote detection module.

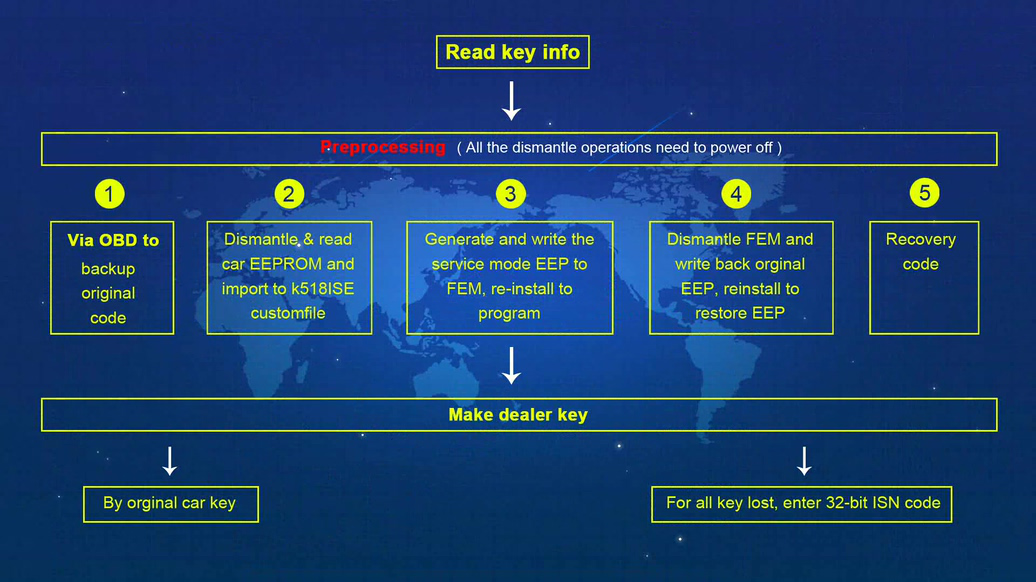

                         Free BMW FEM key programming

Features:1.The best car diagnostic tool based on Android

                    2.WIFI networking ensures software upgrading more convenient.
                    3.No need to plug memory card, or connect the computer with data cable, more flexible in online upgrading, updating and activating.
                    4.with USB-B2.0 standard connector, OBD-II test cable integrated with the diagnostic connector function of the adapter.
                    5.Diagnostic speed greatly accelerated, work efficiency improved, better time saving.
                    6.7 inches high brightness, high definition color IPS capacitive screen
                    7.3800mAh polymer battery
                    8.Support external memory expansion, better within 32G
                    9. Built-in professional, powerful operation assistant system
                   10.Free BMW FEM key programming

Lonsdor K518ISE key programmer Function Description:

1.Please pay attention to below function description before using the device. Ø Immobilization: immobilizer system diagnosis

2.Odometer adjustment: mileage diagnosis and correction

3.Hardware testing: test if the hardware can function well

4.Adapter: after dismantling, diagnose certain car models

5.Setting: set up basic device information

6.Update firmware: adapter firmware upgrade & update (connect KPROG adapter

7.with OBD test cable and connect K518ISE with 12V power supply)

8.One key upgrade: click to update to the latest system data

9.Shutdown - turn off the device

Lonsdor K518ISE Key programmer Special Features:
Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.

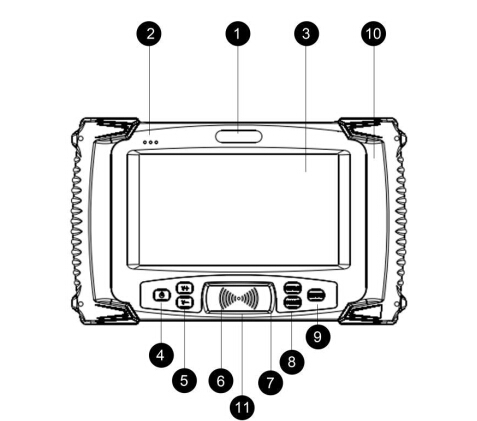

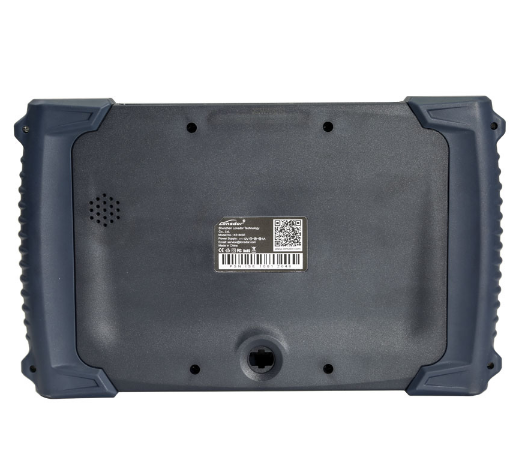

Lonsdor K518ISE Main Unit Appearance:

1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE

Screen shot: press power button and volume down button together.

Lonsdor K518ISE Technical Parameter:
RFID:                                                          Support 125KHz ASK,134.2KHz FSK
CPU:                                                           ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display:                                                      1024*600,7 inch IPS capacitive
Memory:                                                      eMMC 8G RAM 1G
Battery Capacity:                                       3800 mAh
Power Supply:                                            DC12V 1A
Power port:                                                 5.5x2.1mm
OBD Port:                                                    OBD-II
Comm Port:                                                USB 2.0-type B
OBDII Protocols:                                        ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG:                                                      Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance:             10m

Lonsdor K518 ISE Immobilization Car List:

Europe:Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG, Land Rover,  Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,Borgward

America:Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury

Asia:Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota, Shigaoka Queen

China:Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car models are included)

Odometer Adjustment Car List:

VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...

Lonsdor K518ISE Newest Update Info:

Lonsdor K518ISE Software Latest Update (2019-05-28)

Ssangyong Bypass Pin Code offline

Actyon

Chairman

Korando

Kyron

Musso

Rexton

Rodious

Tivolan

Lonsdor K518 Update Announcement(August 8th,2018)
Toyota Series:
84 Smart Key
2007 Crown Key
Alphard Add Smart Key
2006 Reiz
Crown 68 chip all lost

Hyundai Series:
2013/2015 Verna Remote
2009 Rohens Add Smart Key
2014 Sonata 8 Communication
2014 IX25 Smart Key All Lost

Honda & Nissan Series:
Honda Accord 9th key
2017 Nissan Teana 4A Transponder

European Vehicle Makes and Models Update [May 5, 2018]
PEUGEOT
PEUGEOT\Select from vehicle\1007\Immobilizer\Type 3
PEUGEOT\Select from vehicle\308\Immobilizer\Type 2
PEUGEOT\Select from vehicle\4008(China)\Smart Key
PEUGEOT\Select from vehicle\4008(China)\Immobilizer

LAND ROVER
LAND ROVER\Select from type\Smart Key\Type 1
LAND ROVER\Select from type\Smart Key\Type 2
LAND ROVER\Select from type\Remote\Type 1
LAND ROVER\Select from type\Immobilizer\Type 1
LAND ROVER\Select from type\Immobilizer\Type 2
LAND ROVER\Select from type\Immobilizer\Type 3
LAND ROVER\Select from vehicle\Defender\Remote\2010-2014
LAND ROVER\Select from vehicle\Evoque\Smart Key\2015-
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 1
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 2
LAND ROVER\Select from vehicle\Freelander\Smart Key
LAND ROVER\Select from vehicle\Freelander\Remote
LAND ROVER\Select from vehicle\Freelander 2\Immobilizer\2006-2012

MG
MG\Remote\MG7-L
MG\Immobilizer\ZS\Mechanical Key
MG\Immobilizer\ZS\Smart Key

LANCIA
LANCIA\Immobilizer\Delta
LANCIA\Immobilizer\Musa
LANCIA\Immobilizer\Phedra\Type 1
LANCIA\Immobilizer\Phedra\Type 2
LANCIA\Immobilizer\Phedra\Type 3
LANCIA\Immobilizer\Z\Type 1
LANCIA\Immobilizer\Z\Type 2
LANCIA\Immobilizer\Z\Type 3

SAAB
SAAB\9-7\2006-2008\Immobilizer

Lonsdor K518ISE American Vehicles Immobilization [May 3,2018]
FORD
FORD\Remote System

LINCOLN
LINCOLN\Navigator\Remote System

HUMMER
HUMMER\H2\Remote Programming\Type2\2008-2009
HUMMER\H2\Remote Programming Method\2003-2007
HUMMER\H2\Remote Programming Method\2008-2009

DODGE
DODGE\Mechanical Key\Type\Type1(CAN)
DODGE\Mechanical Key\Type\Type2(CAN)
DODGE\Mechanical Key\Type\Type3(CAN)
DODGE\Mechanical Key\Type\Type4(CAN)
DODGE\Mechanical Key\Type\Type5(CAN)
DODGE\Mechanical Key\Type\Type6(VPW)
DODGE\Smart Key\Type\Type1(CAN)
DODGE\Smart Key\Type\Type2(CAN)
DODGE\Smart Key\Vehicle Type\Challenger\2015-
DODGE\Smart Key\Vehicle Type\Charger\2011-
DODGE\Smart Key\Vehicle Type\Dart\2013-\Half Smart
DODGE\Smart Key\Vehicle Type\Dart\2013-\Smart
DODGE\Smart Key\Vehicle Type\Magnum\2011-
DODGE\Smart Key\Vehicle Type\Viper\2013-
DODGE\Remote\Type\Type1
DODGE\Remote\Type\Type2(VPW)
DODGE\Remote\Type\Type3(VPW)
DODGE\Remote\Type\Type4(CAN)
DODGE\Remote\Type\Type5
DODGE\Remote\Type\Type6
DODGE\Remote\Type\Type7
DODGE\Remote\Type\Type8
DODGE\Remote\Vehicle Type\Caravan\2001-2003\Remote Programming
DODGE\Remote\Vehicle Type\Dakota\2001-2004\Remote Programming
DODGE\Remote\Vehicle Type\Durango\2001-2003\Remote Programming
DODGE\Remote\Vehicle Type\Intrepid\1998-2004\Remote Programming
DODGE\Remote\Vehicle Type\Neon\2000-2005\Remote Programming
DODGE\Remote\Vehicle Type\Ram\2002-2005\Remote Programming
DODGE\Remote\Vehicle Type\Startus\4 door\2001-2006\Remote Programming

CHRYSLER
CHRYSLER\Select from System\Remote\Type1
CHRYSLER\Select from System\Remote\Type5
CHRYSLER\Select from System\Remote\Type6
CHRYSLER\Select from System\Remote\Type7
CHRYSLER\Select from System\Remote\Type8
CHRYSLER\Vehicle Type \Smart Key\200\2015-
CHRYSLER\Vehicle Type\Smart Key\300\2011-
CHRYSLER\Vehicle Type\Smart Key\Freemont\2011-
CHRYSLER\Vehicle Type\Remote\300M\1999-2000
CHRYSLER\Vehicle Type\Remote\Concorde\1998-2004
CHRYSLER\Vehicle Type\Remote\LHS\1999-2001
CHRYSLER\Vehicle Type\Remote\PT cruiser\2001-2005
CHRYSLER\Vehicle Type\Remote\Sebring\2001-2006
CHRYSLER\Vehicle Type\Remote\Town&Country\2001-2003

BUICK
BUICK\Excelle\2017-\Immobilizer

CADILLAC
CADILLAC\ATSL\2015-2016\Smart Key Immobilizer\Type2
CADILLAC\SRX\2010-2014\Smart Key Immobilizer\Type2

CHEVROLET
CHEVROLET\Cavalier\Immobilizer

Free Update [March 27,2018]
Mitsubishi\Select from vehicle\America\USA\Diamante\2000-2006
Mitsubishi\Select from vehicle\America\USA\Eclipse[CAN]\2006-2009
Mitsubishi\Select from vehicle\America\USA\Eclipse/1996-2005
Mitsubishi\Select from vehicle\America\USA\Endeavor
Mitsubishi\Select from vehicle\America\USA\Endeavor[CAN]\2006-2009
Mitsubishi\Select from vehicle\America\USA\EVO
Mitsubishi\Select from vehicle\America\USA\Galant[CAN]\2006-2009
Mitsubishi\Select from vehicle\America\USA\Galant[PIN1]\2000-2003
Mitsubishi\Select from vehicle\America\USA\Galant[PIN1]\1996-2000
Mitsubishi\Select from vehicle\America\USA\Galant[PIN2]\2000-2003
Mitsubishi\Select from vehicle\America\USA\Galant[PIN2]\1996-2000
Mitsubishi\Select from vehicle\America\USA\Galant\2004-2005
Mitsubishi\Select from vehicle\America\USA\Lancer
Mitsubishi\Select from vehicle\America\USA\Mirage\2012
Mitsubishi\Select from vehicle\America\USA\Montero Sport\1999-2004
Mitsubishi\Select from vehicle\America\USA\Montero\2001-2006
Mitsubishi\Select from vehicle\America\USA\Montero\1999-2000
Mitsubishi\Select from vehicle\America\USA\Outlander(Sport)
Mitsubishi\Select from vehicle\America\USA\Outlander[CAN]\2007-2009
Mitsubishi\Select from vehicle\America\USA\Outlander\2000-2003
Mitsubishi\Select from vehicle\America\USA\Outlander\2004-2006
Mitsubishi\Select from vehicle\America\USA\Outlander\2014
Mitsubishi\Select from vehicle\America\USA\Rvr
Mitsubishi\Select from vehicle\Australia\3000gt
Mitsubishi\Select from vehicle\Australia\Airtrek
Mitsubishi\Select from vehicle\Australia\ASX
Mitsubishi\Select from vehicle\Australia\Challenger\1999-2003
Mitsubishi\Select from vehicle\Australia\CJ Evolution
Mitsubishi\Select from vehicle\Australia\CJ Lancer\Sedan
Mitsubishi\Select from vehicle\Australia\CJ Lancer\Sportback
Mitsubishi\Select from vehicle\Australia\CJ Ralliart\Sedan
Mitsubishi\Select from vehicle\Australia\CJ Ralliart\Sportback
Mitsubishi\Select from vehicle\Australia\Colt
Mitsubishi\Select from vehicle\Australia\EVO
Mitsubishi\Select from vehicle\Australia\Express
Mitsubishi\Select from vehicle\Australia\Express\1996-
Mitsubishi\Select from vehicle\Australia\Galant
Mitsubishi\Select from vehicle\Australia\Lancer Sport back
Mitsubishi\Select from vehicle\Australia\Lancer SW\1996-2003
Mitsubishi\Select from vehicle\Australia\Lancer Wagon
Mitsubishi\Select from vehicle\Australia\Lancer(CAN)
Mitsubishi\Select from vehicle\Australia\Lancer(Sport)
Mitsubishi\Select from vehicle\Australia\Lancer\2003-2006
Mitsubishi\Select from vehicle\Australia\Lancer\1996-2003
Mitsubishi\Select from vehicle\Australia\Mirage\1996-2005
Mitsubishi\Select from vehicle\Australia\Mirage\-2001-2012
Mitsubishi\Select from vehicle\Australia\Mirage\2012
Mitsubishi\Select from vehicle\Australia\Mirage\1996-2012
Mitsubishi\Select from vehicle\Australia\Nimbus\1998-1999
Mitsubishi\Select from vehicle\Australia\Nimbus\1999-2002
Mitsubishi\Select from vehicle\Australia\Outlander(CAN)
Mitsubishi\Select from vehicle\Australia\Outlander
Mitsubishi\Select from vehicle\Australia\Pajero IO\1999-
Mitsubishi\Select from vehicle\Australia\Pajero\2000-2005
Mitsubishi\Select from vehicle\Australia\Star Wagon
Mitsubishi\Select from vehicle\Australia\Trion Challenger
Mitsubishi\Select from vehicle\Australia\Verada\1996-2002

Free Update[March 21, 2018]
Mitsubishi\Select from vehicle\America\South America\ASX
Mitsubishi\Select from vehicle\America\South America\Diamonte
Mitsubishi\Select from vehicle\America\South America\Eclipse
Mitsubishi\Select from vehicle\America\South America\Eclipse[CAN]
Mitsubishi\Select from vehicle\America\South America\Endeavor
Mitsubishi\Select from vehicle\America\South America\Endeavor[CAN]
Mitsubishi\Select from vehicle\America\South America\EVO
Mitsubishi\Select from vehicle\America\South America\Galant
Mitsubishi\Select from vehicle\America\South America\Galant[CAN]
Mitsubishi\Select from vehicle\America\South America\Lancer
Mitsubishi\Select from vehicle\America\South America\Lancer[CAN]
Mitsubishi\Select from vehicle\America\South America\Montero
Mitsubishi\Select from vehicle\America\South America\Montero[CAN]\2007
Mitsubishi\Select from vehicle\America\South America\Outlander
Mitsubishi\Select from vehicle\America\South America\Outlander(2013)
Mitsubishi\Select from vehicle\America\South America\Outlander[CAN]
Mitsubishi\Select from vehicle\America\South America\Outlander\Pajero\v97\v98
Mitsubishi\Select from vehicle\America\South America\Outlander\Rvr\2012
Mitsubishi\Select from vehicle\Europe\3000gt
Mitsubishi\Select from vehicle\Europe\ASX
Mitsubishi\Select from vehicle\Europe\Carisma
Mitsubishi\Select from vehicle\Europe\Colt Lander
Mitsubishi\Select from vehicle\Europe\Eclipse
Mitsubishi\Select from vehicle\Europe\EVO
Mitsubishi\Select from vehicle\Europe\Galant Wagon
Mitsubishi\Select from vehicle\Europe\Galant\1996-2004
Mitsubishi\Select from vehicle\Europe\Grandis
Mitsubishi\Select from vehicle\Europe\I-miev
Mitsubishi\Select from vehicle\Europe\L200
Mitsubishi\Select from vehicle\Europe\L200[CAN]\2011-
Mitsubishi\Select from vehicle\Europe\L400
Mitsubishi\Select from vehicle\Europe\Lancer
Mitsubishi\Select from vehicle\Europe\Lancer Sportback
Mitsubishi\Select from vehicle\Europe\Lancer Wagon
Mitsubishi\Select from vehicle\Europe\Lancer EX
Mitsubishi\Select from vehicle\Europe\Lancer[CAN]
Mitsubishi\Select from vehicle\Europe\Magunm
Mitsubishi\Select from vehicle\Europe\Mirage\2013
Mitsubishi\Select from vehicle\Europe\Outlander[CAN]
Mitsubishi\Select from vehicle\Europe\Outlander
Mitsubishi\Select from vehicle\Europe\Pajero PININ
Mitsubishi\Select from vehicle\Europe\Pajero\1999-2006
Mitsubishi\Select from vehicle\Europe\Shogun
Mitsubishi\Select from vehicle\Europe\sigma

Mitsubishi\Select from vehicle\Europe\Space Wagon

Free Update(Oct.27,2017)
BMW FEM/BDC series key programming
CAS4 Enable/Disable Key

Free update for 2017 Ford Taurus key programming by OBD without pin code (2017-10-19)
Free update for 2017-Ford New Mondeo smart key programming (2017-10-18)
Free update BMW FEM Key Programming. No need open authorization. No need token(2017-10)
Fiat Ottimo Yue Yue/Flying Cheung smart key programming(2017-07-07)

(2017-04-19)
--[ World First] Add  Mazda Angkesaila smart key program(2017);
--Adding Nissan key system (4 Digit Pin Code) ;
--Adding Nissan remote system ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) ;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Qashqai(after 2015);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Q5;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support X-TRAIL(before 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Kroraina;
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support QX60(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support teana-vip(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support Cima(after 2013);
--Adding Nissan smart key system (New 20 Digit Rolling Pin Code) support JX35(after 2013);

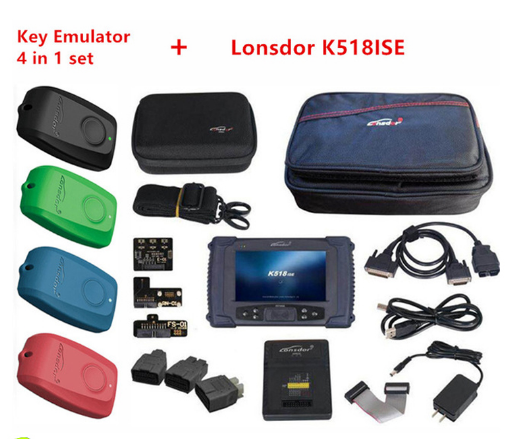

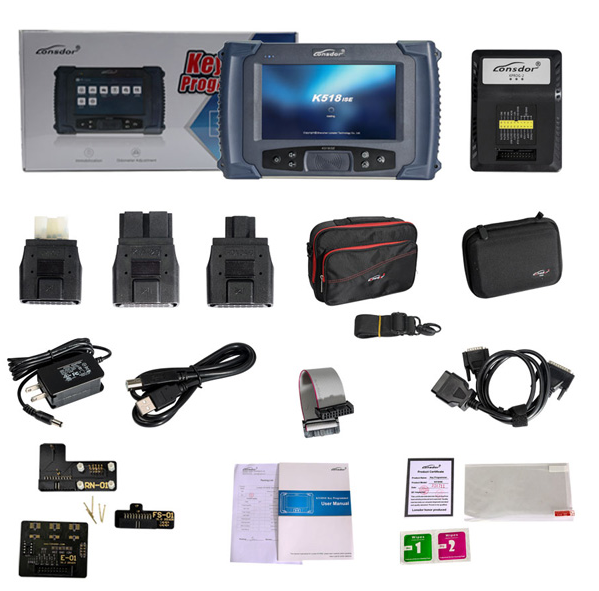

Package List:

  4*SKE-LT Smart Key Emulator

  1* Portable Bag(big)
  1*Main Host
  1*Power Adaptor
  1*USB Cable
  1*Packing Bundle
  1*OBD Test Cable
  1*Extra Connector
  1*User Manual
  1*Portable Bag(small)
  1*KPROG Adapter

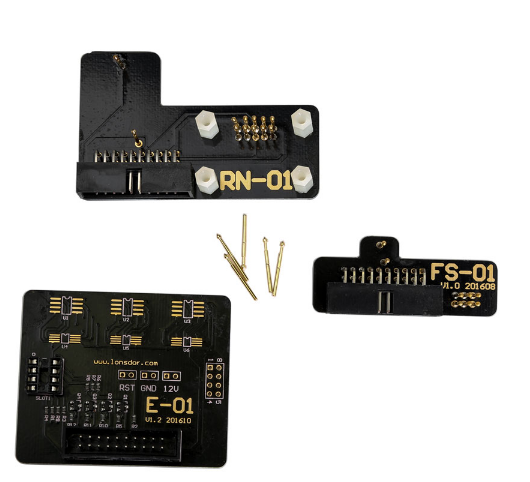

  1*RN-01 Board
  1*E-01 Board
  1*FS-01 Board
  1*20P Cable
  5*Backup Pin
  1*Certificate

User Comment(Total 11 User Comment Num)

• by Lepper Lepper,Mar 13,2020


  received already but not yet test

  Reply #1 by Kelly Mar 14,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by David Raj,Dec 21,2019


  Already received it today,I will work it later,thank you

  Reply #1 by Vivian Dec 21,2019
  Thanks for your feedback.

  Vivian

  ---

• by Nevaash,Dec 14,2019


  software upgrading is convenient via WIFI

  Reply #1 by Vivian Dec 14,2019
  Thanks for your feedback.

  Vivian

  ---

• by florencio Martinez,Aug 21,2019


  This works SO well.So easy to use!I highly recommend this to ANYONE!

  Reply #1 by Vivian Aug 21,2019
  Thanks for your feedback.

  Vivian

  ---

• by moses nuveh,Aug 17,2019


  Can it make a key in 2013 LINCOLN Navigator?

  Reply #1 by Vivian Aug 17,2019
  Yes,it can

  Vivian

  ---

• by Grant Milnes,Jan 16,2019


  It can also read pin code for Hyundai.Very nice tool

  Reply #1 by Vivian Jan 16,2019
  Thanks for your feedback.

  Vivian

  ---

• by Mauro Carvalho Fulgêncio,Oct 11,2018


  I run a service department at a new car dealership and it has helped us greatly

  Reply #1 by Vivian Oct 11,2018
  Thanks for your feedback.

  Vivian

  ---

• by Samer Hadad,Jun 02,2018


  It was fast delivery satisfied the machine as described thanks

  Reply #1 by Vivian Jun 02,2018
  Thanks for your feedback

  Vivian

  ---

• by boutakhedmit said,Apr 04,2018


  thanks, perfect communication seller, quick response and super quality nice, very good seller!

  Reply #1 by Vivian Apr 04,2018
  Thank you for your feedback

  Vivian

  ---

• by Turki,Apr 12,2018


  Hi frends

  Reply #1 by obd2tool Apr 13,2018
  Hello,

  What can I do for you?

  obd2tool

  ---

Total 11 records, divided into2 pages. First Prev Next Last

Rank:
Your first & Lat Name:
Your E-mail Address:
Review detail:
Verification code:

Download & Technical Support

 lonsdor_k518ise_key_programmer_user_manual.pdf

 lonsdor_k518ise_odometer_correction_car_list.doc

 lonsdor_k518ise_hex_editor_instruction.docx

 lonsdor_k518ise_key_programmer_car_list.pdf

 how_to_use_lonsdor_k518ise_service_center.docx

 how_to_update_lonsdor_k518ise_key_programmer_to_latest_version.pdf

 lonsdor_k518ise_basic_information.pdf
