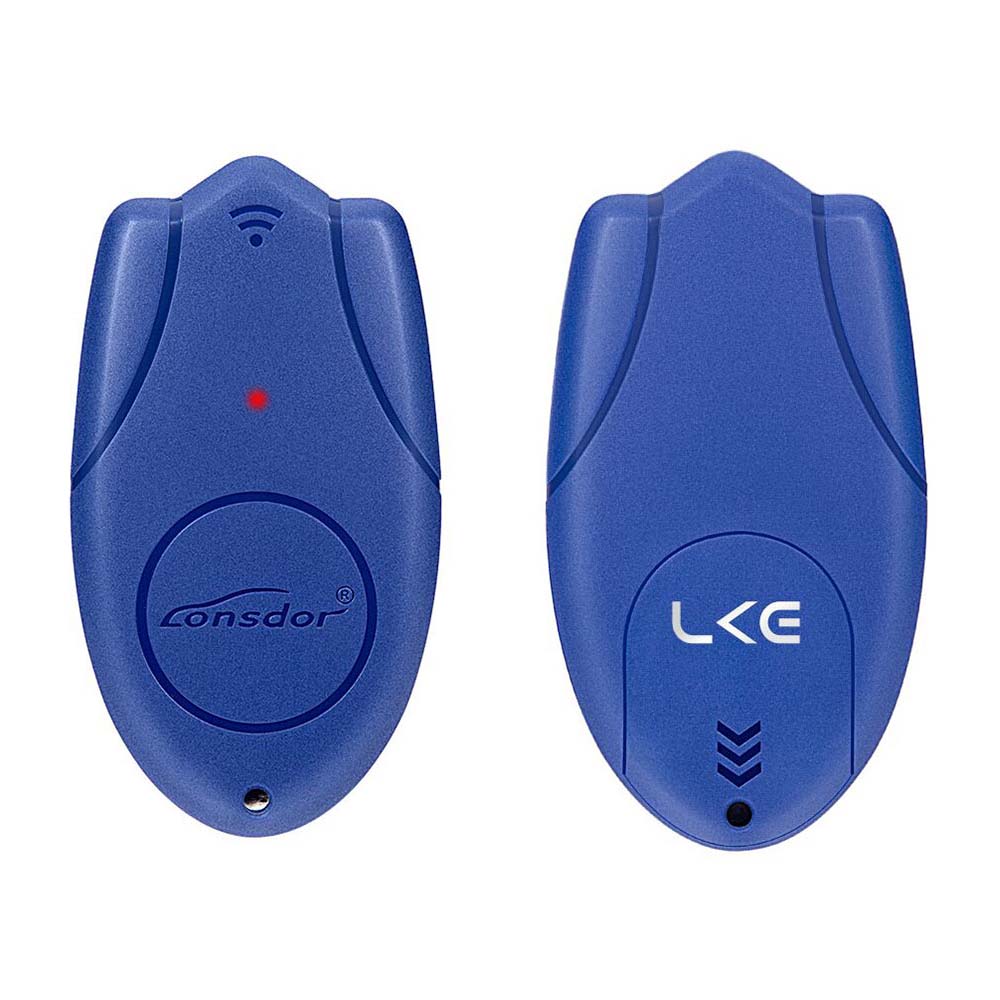

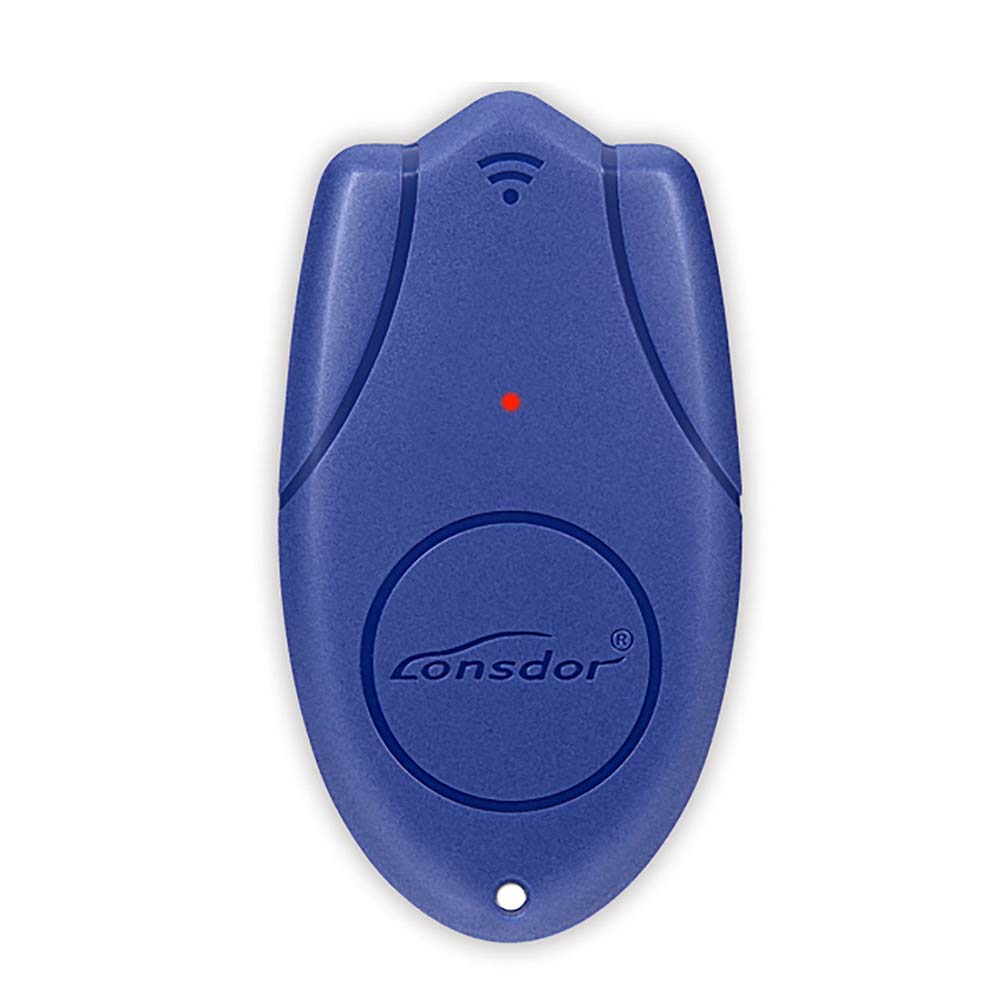

Lonsdor LKE Smart Key Emulator 5 in 1 for Lonsdor K518ISE Key Programmer

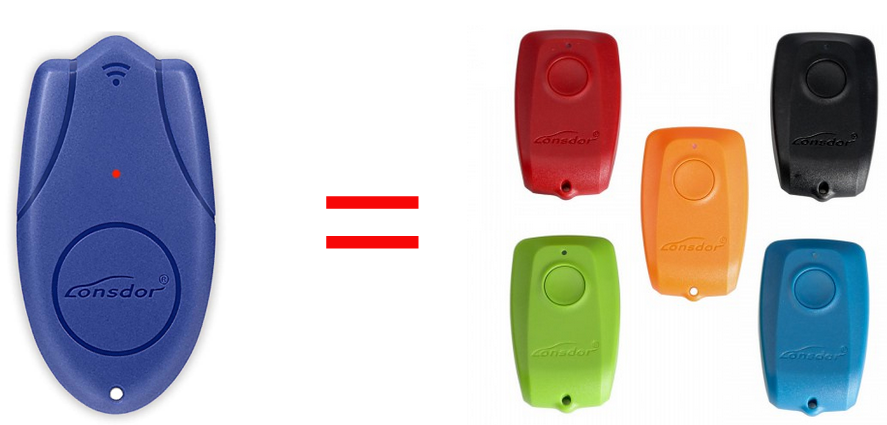

Lonsdor LKE Smart Key Emulator=SKE-LT Smart Key Emulator 4pcs+ SKE-LT-DSTAES 128 Bit Smart Key Emulator 1pc

LKE is a car smart key emulator newly released by Shenzhen Lonsdor Technology co.,ltd, as an ancillary product for K518 device. It supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys; simulate key chip(4D and 46 chip are supported currently, more chip types to be continued). It’s lightweight and convenient, and can match all the vehicle models with 4D or 46 chip by working with K518. Meanwhile, LKE adopts low-power design, and has CR2032 button battery installed externally, which is easy to replace batteries and can avoid damage to casing. It can be upgraded through K518.

Instructions for use
Boot K518 device, click "Special function" icon and choose corresponding functions (such as Identify© chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts. When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 secs.

As K518 helper:
Achieve programming key without PIN for Hyundai and Kia.
Achieve programming key without PIN for BYD.
Achieve programming key without PIN for Porsche Cayman(2005-2010) and boxster.

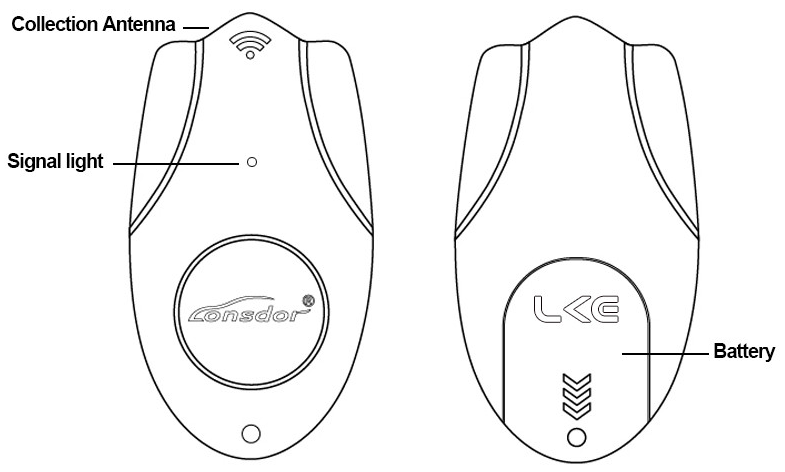

Collection Antenna: place one end of antenna into K518 card slot to operate.

Signal light: State ① start to work. (the light will go on)
                      State ② collecting...( the light will flash)

                      State ③ finished. ( the light will go out after 3 secs)

Battery: standard CR2032

Product functions
(1)Simulate key chip
Boot K518 device, place LKE into K518 card slot, go to "Special function" in the menu interface and choose "Analog chip->Generate analog chip" to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like Great wall motor, Zotye auto, Geely and etc; 4D chip can be used to generate key chip for Toyota, Lexus, Subaru and etc.

(2) Collect data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Decode chip", you can decode different types of chip.

(3) Detect ignition coil fault and chip type
Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Ignition coil->Detect ignition coil " to detect whether the coil is normal and identify chip type.

(4) Upgrade functions
Boot K518 device, place LKE into the card slot, in the interface of "Special function", click function icon, the system  will notify whether to update, click OK to upgrade online directly.

Features of Toyota/Lexus smart key all lost(5 emulators-in-1):
Dismantle-free
No need networking
Localized computing

Generate chip:
LKE can be used to work as an emergency key to program when no dedicated chip.

Copy chip
By collecting data to decode and copy chip, LKE currently supports some 46 and 4D chip copy.

Simulate and convert chip
Use [Generate chip] to make various chips, part of 4D/46 and SKE Toyota currently supported.

Decode chip
Decode 46 and 4D chips to obtain SK.

Identify ignition coil and key chip type(all key lost)

Specifications

(1) Device size: 68mmX37mmX11mm

(2) Battery: CR2032

(3) Standby current: 3.5ua

(4) Working current: ≤4ma

Package includes:

1pc x LKE car key emulator
