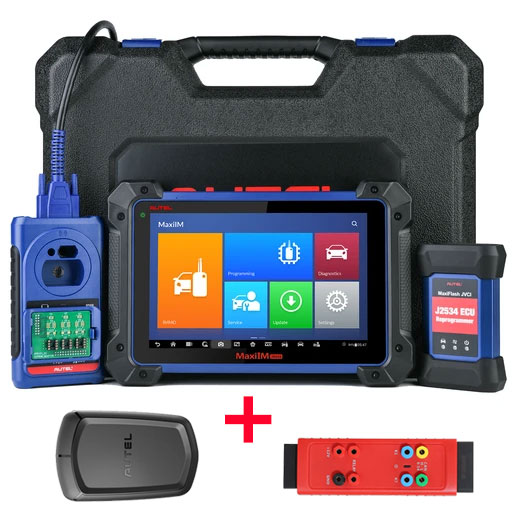

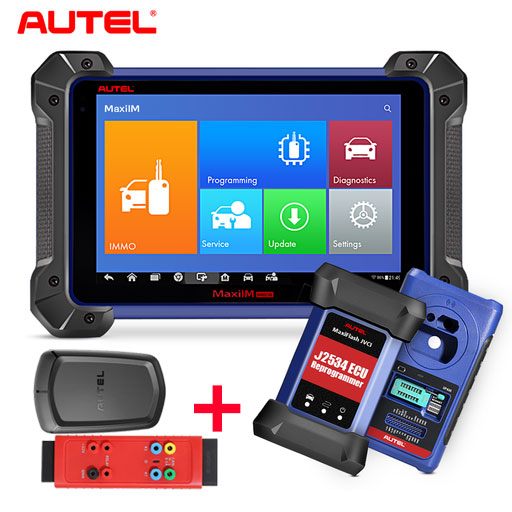

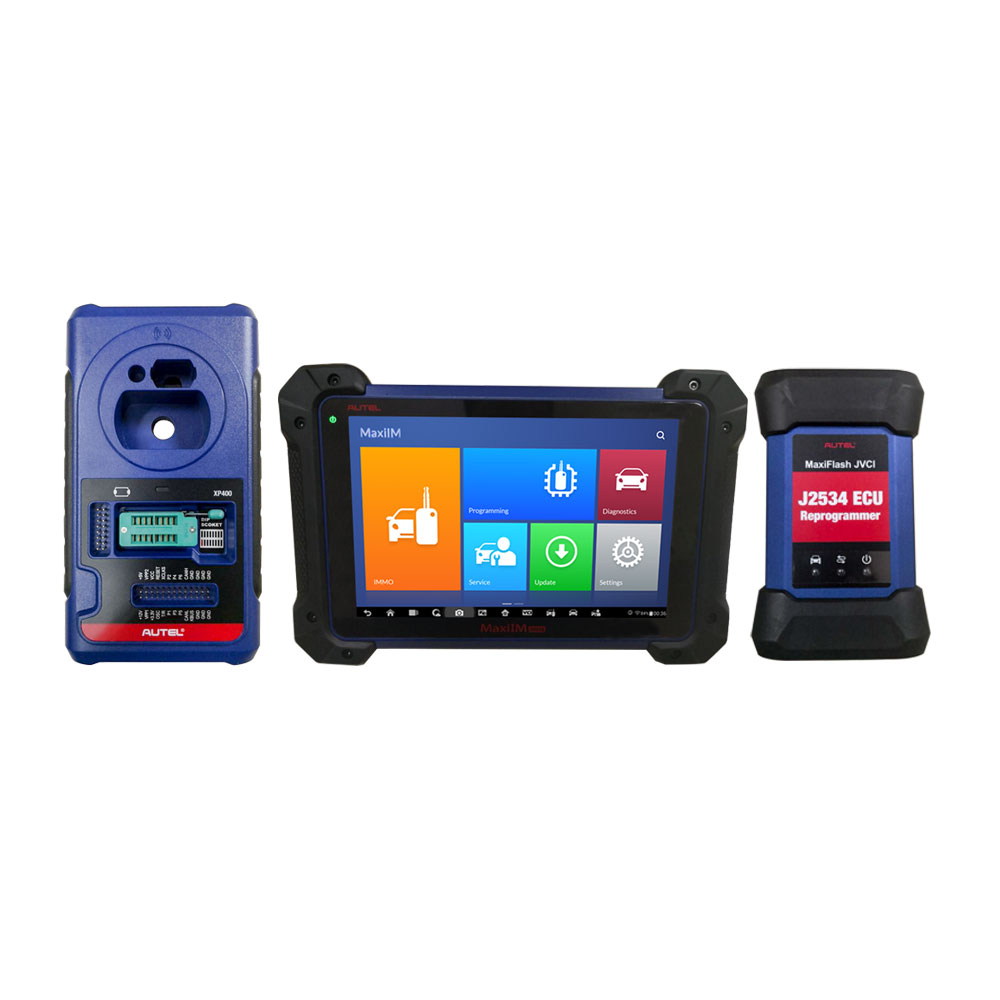

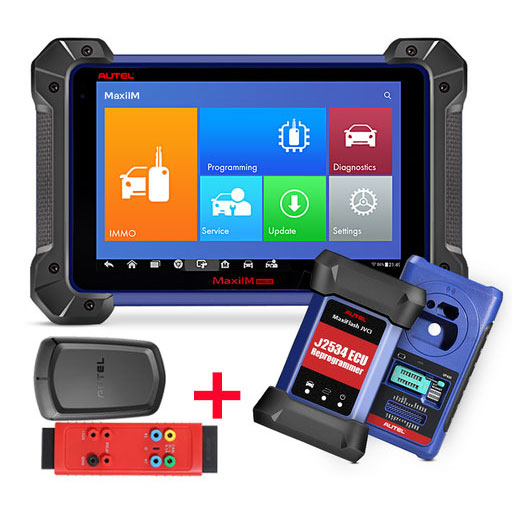

Autel MaxiIM IM608 Diagnostic Key Programming and ECU Coding Tool PLUS APB112 Smart Key Simulator and G-BOX 2

Please select the correct area (attribute) when purchasing the device. If you choose it incorrectly, you may not be able to upgrade.

Kindly Note: Clients from UK,Portugal, Spain please do not buy AUTEL IM608 from China, or your device will get locked, please buy from your local dealer.

For example: if you use in the United States, choose the Americas region.

If you buy Autel MaxiIM IM608 Diagnostic Key Programming and ECU Coding Tool,you will get the gift APB112 Smart Key Simulator and G-BOX 2 Tool

Description:

Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted

IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths.?It combines the most advanced key programming and immobilizer experience with advanced automotive diagnostics and service functions, a 10-inch Android-based, touch-screen tablet with the latest in art. Autel MaxiIM IM608, a comprehensive, ideal immobilizer and key programming tool for automobile technicians and locksmiths.

Autel MaxiIM IM608 Highlights:

1.Free Update Online for 1 Year, after one year, it will cost $1100

2.Warranty for 12 Months.

3.ADVANCED IMMO & KEY PROGRAMMING

4.OE-Level Diagnostic and Service Functions as MaxiSYS Pro

5.with XP400 and MaxiFlash JVCI for ECU Programming

6. Language: English, Spanish and French. (We can ship to Spain and France now)

7. Autel have released BMW CAS4/CAS4+ through OBD update!

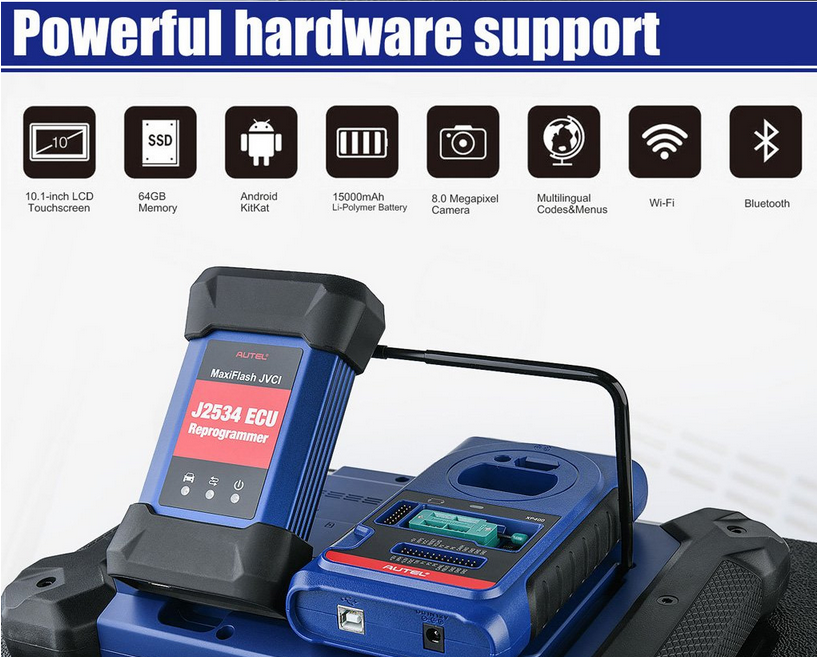

Autel MaxiIM IM608 Features:

The IM608 is an OE-Level Diagnostic and Service Functions as MaxiSYS Pro with additional software and accessories for IMMO and key programming.

1. Extraordinarily powerful Cortex A7+A15 six-core processor

2. 10.1-inch LED capacitive touch screen with 1920x1200 resolution

3. Internal reliable 64GB On-board Memory for better performance

4. Built-in 8-megapixel rear camera with autofocus and flashlight

5. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources

6. Open source Android Operating System for fast boot-up and multitasking

7. Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services

8. Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage

9. Smart mode for guided and automated key learning

10. Expert mode for advanced key learning

11. Read PIN/CS (all key lost), generate key, key learning, remote learning

12. IMMO ECU reset/adaptation, refresh/coding

13. Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency

14. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

15. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

16. All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

Autel MaxiIM IM608 Functions:

1. Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)

2. Service Functions | Oil light / EPB / BMS / SAS / DAF etc

3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)

4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)

5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)

6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device

7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write

ADVANCED IMMO & KEY PROGRAMMING:

Connect the IM608 tablet to the vehicle (via the Bluetooth VCI or Main Cable) and to the XP400 (via USB cable) to access IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc. The software provides two methods to access IMMO functions

1. Smart Mode – for Guided and Automated Key Learning - step by step through a series of functions.

2. Expert Mode – for Advanced Key Learning - select a specific function.

1). PIN / CS Reading (Full Lost)

2). Key Generation

3). Key Programming

4). Command Introduction

5). Backup / Repair IMMO Data

6). IMMO ECU Brain Reset / Adaptation

7). IMMO ECU Brain Reset / Coding

8). BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming

9). BMW FEM / BDC Key Programming and ECU Adaptation

10). BMW CAS4 / 3/2 Key Programming

11). VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...

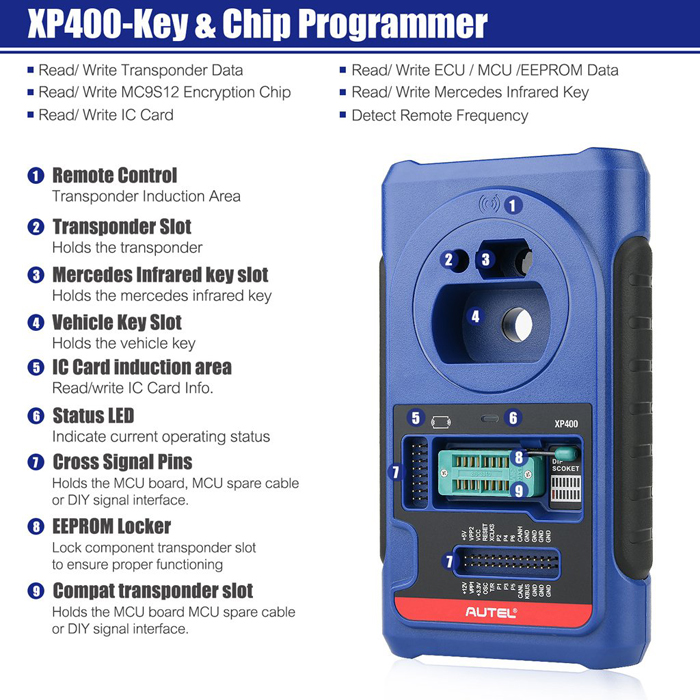

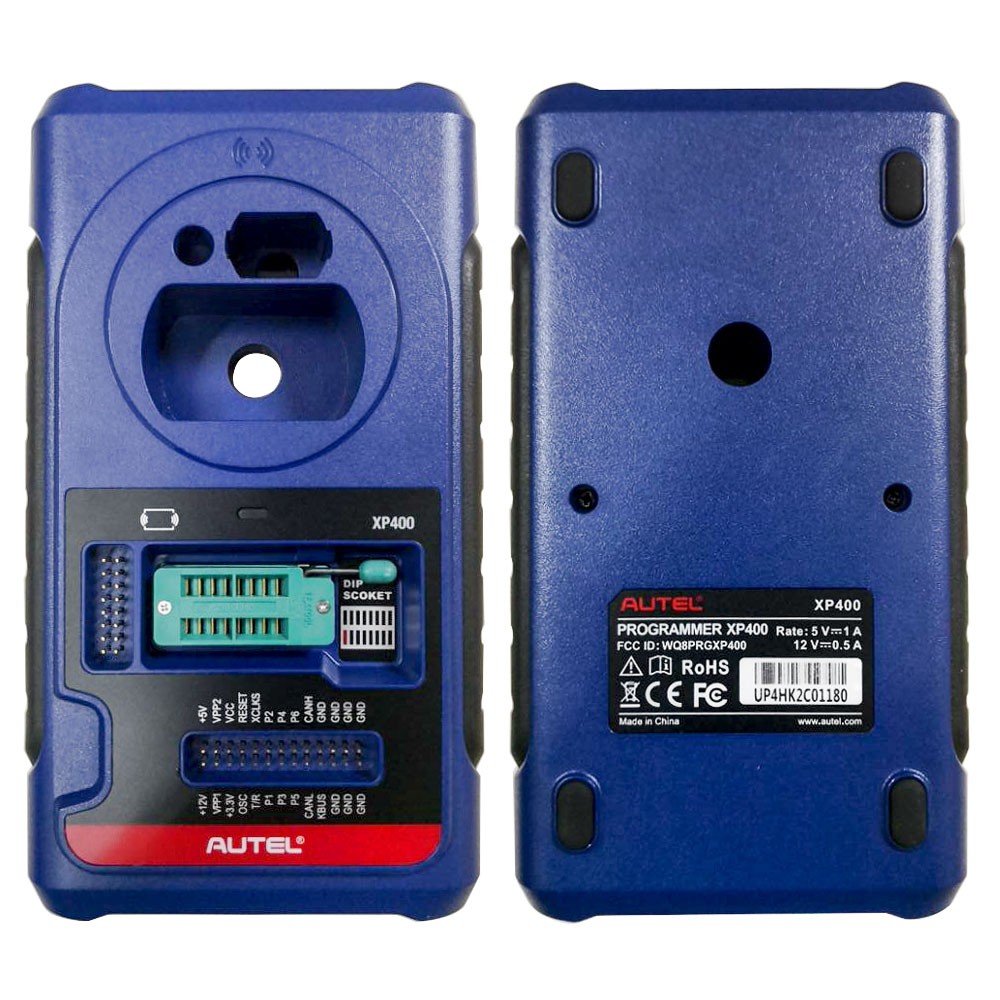

XP400 KEY & CHIP PROGRAMMER:

Support PC

MCU / EEPROM Chips Read / Write

ECU Read / Write

MC9S12 Encryption Chip Read / Write

Key Read / Write

Mercedes Infrared Key Read / Write

Remote Frequency Detect

IC Card Read/Write

OE-Level DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL

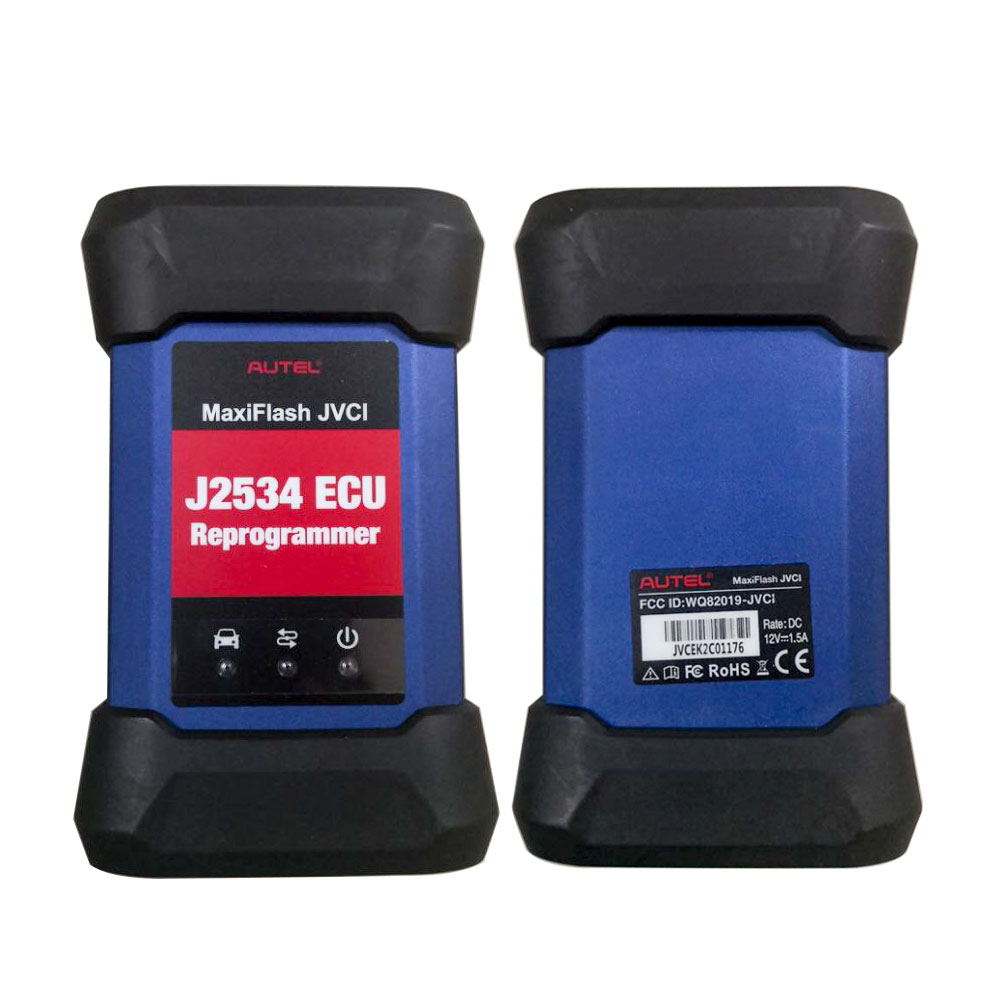

MaxiFlash JVCI ECU Programmer (Bluetooth/USB cable)

Connect the IM608 tablet to the vehicle via the OtoFlash (VCI) to perform extensive diagnostic and service functions.

1. All System Diagnostics

2. Auto Search / VIN Finding

3. Reading / Deleting Error Code

4. Viewing the Live Data Stream

5. View Records of Failure History

6. Store and Data Management Applications

7. MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)

ADVANCED SERVICE FUNCTIONS

1. ECU Coding

2. All Special Functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming etc.

3. 10.1-inch LCD Touch Screen-64GB Memory-Android Kit Floor-TURKISH LANGUAGE Support-15000mAh Li-polymer Battery-8.0 Megapixel Camera-Wi-Fi-Bluetooth

Autel MaxiIM IM608 IMMO Vehicle List:

Chrysler,Dodge,Ford,GM,Hummer,Jeep,Citroen,Fiat,Jaguar,LandRover,Maserati,Opel,Peugeot,Renault,Saab,Volvo,Volkswagen,Audi,Bently,Seat,Skoda,BMW,Mini,Honda,Hyundai,Kia,Lexus,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota

Audi:

A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:

Alhambra,Altea,Altea,Cordoba,CupraLeon,Exeo,Ibiza,Leon,Mii,Toledo

Skoda:

Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:

Amarok,Arteon,Atlas,Beetle,Bora,BoraGli,Caddy,Crafter,EOS,Fox Africa,,Fox EU,Fox,GTI,Gol County,Gol(5U),Gol(5W),Golf PLUS,Golf/Rabbit(1K),Golf6 ESTATE,Jetta,Parati,Passat,Phaeton,Polo,Scirocco,Sharan,Suran,T-Roc,Tiguan,Touareg,Touran,Transporter5/Multivan,up,UP!/cross UP!

Fiat:

500,500L,500X prox,Albea,Boxer,Daily,Doblo,Doblo New,Ducato,Egea,Fiorino,Freemont,,Idea,Grande punto

,Jumper,Linea,Marea,Nemo,Ottimo,Palio,Palio RST,Panda,Perla,Promaster,Punto,Sinea,Stilo,Viaggio

More  Autel MaxiIM IM608 IMMO vehicle models please check here:

https://pro.auteltech.com/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2

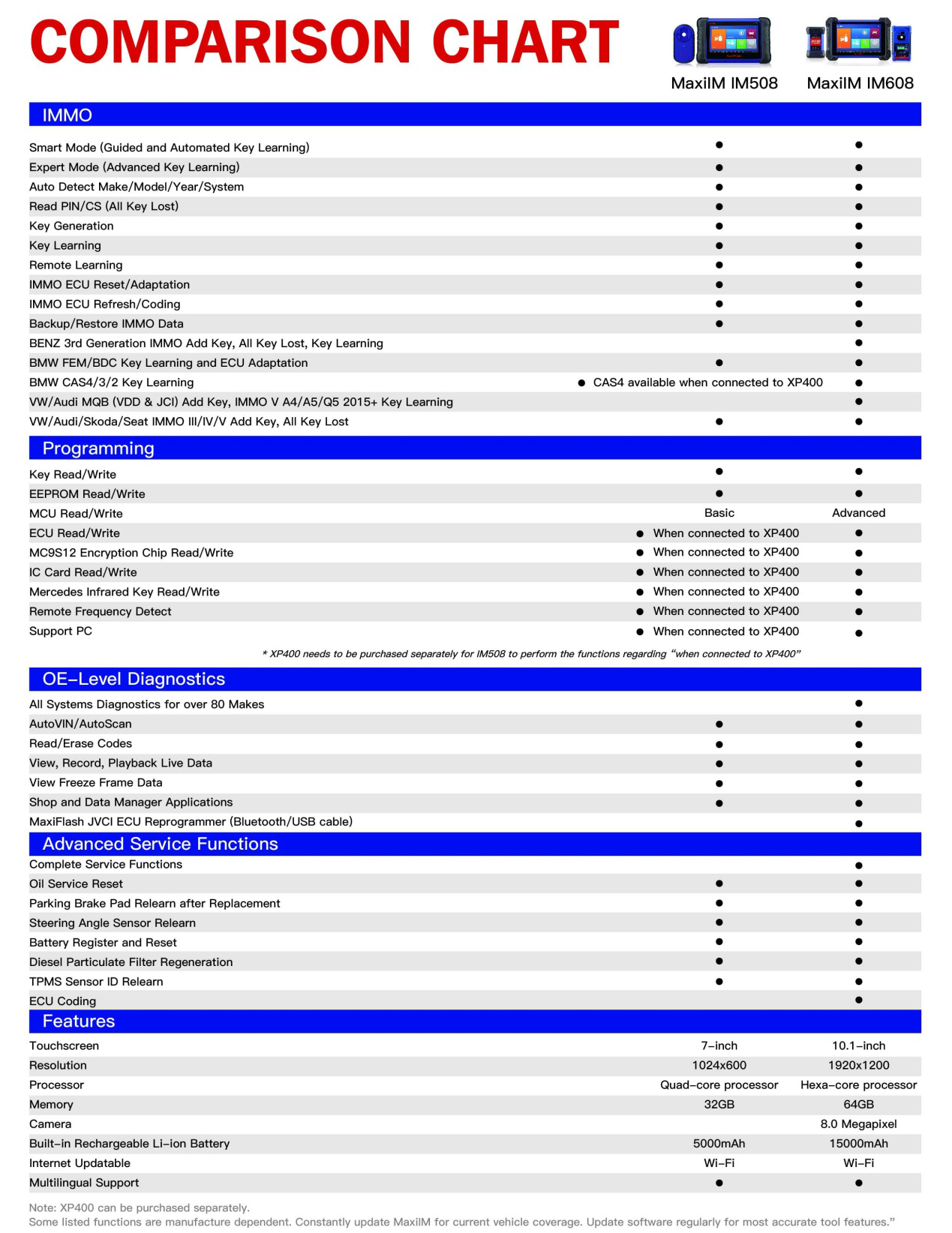

Autel MaxiIM IM608 vs. IM508 Comparison Chart:

Autel MaxiIM IM608 VS MaxiIM IM508 VS Auro OtoSys IM600 VS IM100

Product	Autel MaxiIM IM508	Autel MaxiIM IM608	AuroOtoSys IM100	AuroOtoSys IM600
IMMO
Smart Mode (Guided and Automated Key Learning Function)	√	√	√	√
Expert Mode (Advanced key Learning)	√	√
Auto Detect Make/Model/Year/System			√	√
Read PIN/CS			√	√
Read PIN/CS (All Keys Lost)	√	√	√	√
Key Generation	√	√
Key Learning	√	√	√	√
IMMO ECU Reset/Adaption	√	√	√	√
IMMO ECU Refresh/Coding	√	√	√	√
Remote Learning	√	√	√	√
Backup /Restore IMMO Data	√	√
AUDI Q5/A4/A5 2015-2017 Read PIN/CS			N/A	√
BMW FEM/BDC Key Learning and Adaption			√	√
Mercedes Key Learning			×	√
Benz 3rd Generation IMMO Add key, all key lost, key Learning	N/A	√
BMW FEM/BDC Key Learning and ECU adaptation	√	√
BMW CAS4/3/2 key learning	CAS4 available when connected to XP400	√
VW /Audi MQB (VDO & JCI) add key, IMMO V A4/A5/Q5 2015+ Key learning	N/A	√
VW /Audi /Skoda / Seat IMMO III /IV /V add key, all key lost	√	√
Programming
Key read /write	√	√
EEPROM Read/Write	√	√	√	√
MCU Read/Write	Basic	Advanced	Basic	Advanced
ECU Read/Write	When connected to XP400	√
MC9S12 Encryption Chip read/write	When connected to XP400	√
IC Card Read/Write	When connected to XP400	√	N/A	√
Mercedes Infrared Key Read/Write	When connected to XP400	√	N/A	√
Remote Frequency Detect	When connected to XP400	√	N/A	√
Support PC	When connected to XP400	√
OE-Level Diagnostics
All Systems for Over 80 Makes and Models	N/A	√	√	√
AutoVIN /Auto scan	√	√
Read /Erase codes	√	√
View, record, playback live data	√	√
View Freeze Frame data	√	√
Shop and data Manager applications	√	√
MaxiFlash JVCI ECU Reprogrammer (Bluetooth /USB cable)	N/A	√
OtoFlash (J2534 ECU Reprogrammer)			N/A	√
Advanced Service Functions
Oil Serive Reset	√	√	√	√
Parking Brake Pad Relearn After Replacement	√	√	√	√
Steering Angle Sensor Relearn	√	√	√	√
Battery Registration and Reset	√	√	√	√
Diesel Particulate Filter Regeneration	√	√	√	√
Tire Pressure Monitoring System Sensor ID Relearn	√	√	√	√
ECU Coding	N/A	√	N/A	√
VW/Audi Component Protection			N/A	√
Complete Service Functions	N/A	√	N/A	√
Tool Features
Built-in Rechargeable Li-ion Battery	5000 mAh	15000 mAh	5000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi
Multilingual Support	√	√	√	√
One Year Warranty	√	√	√	√
Free Online Update Two Years	√	√	√	√
Touchscreen	7-inch	10.1-inch	7-inch	10.1-inch
Memory	32 GB	64 GB	32 GB	64 GB
Processor	Cortex-A9 processor	Cortex A7+A15 six-core processor	Quad-core processor	Hexa-core processor
Camera	N/A	8.0 Megapixel	N/A	8.0 Megapixel
Resolution	1024×600	1920×1200	1024×600	1920×1200
Note: XP400 can be purchased separately.
Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software regularly for most accurate tool features.

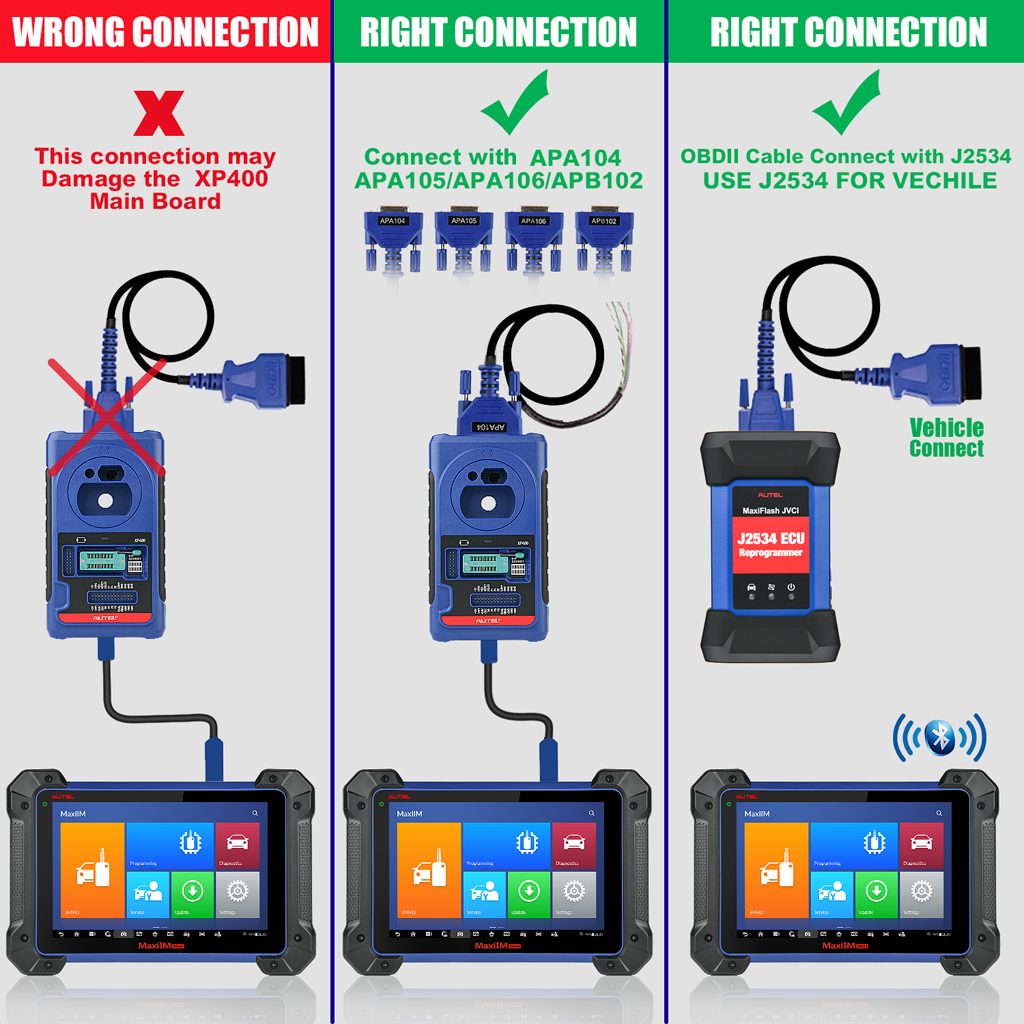

Autel MaxiIM IM608'S XP400 & J2534 Connection Instruction:

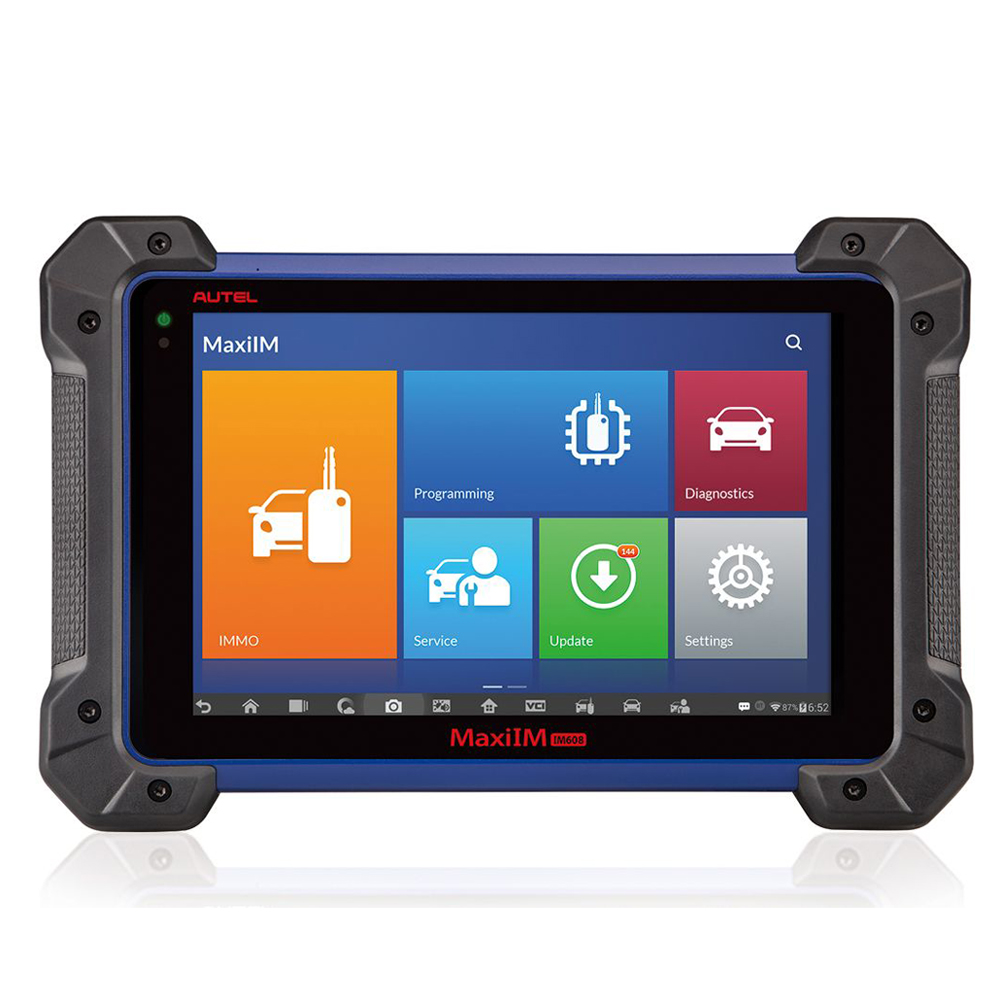

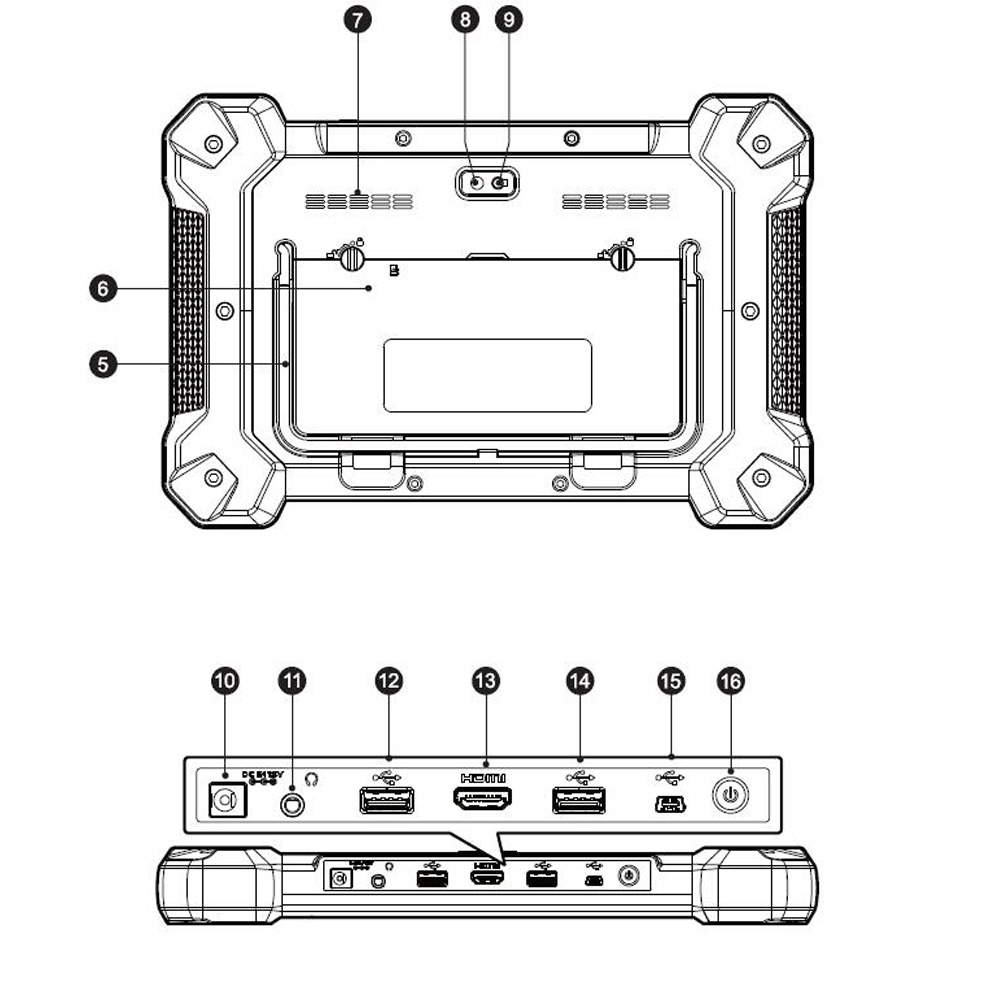

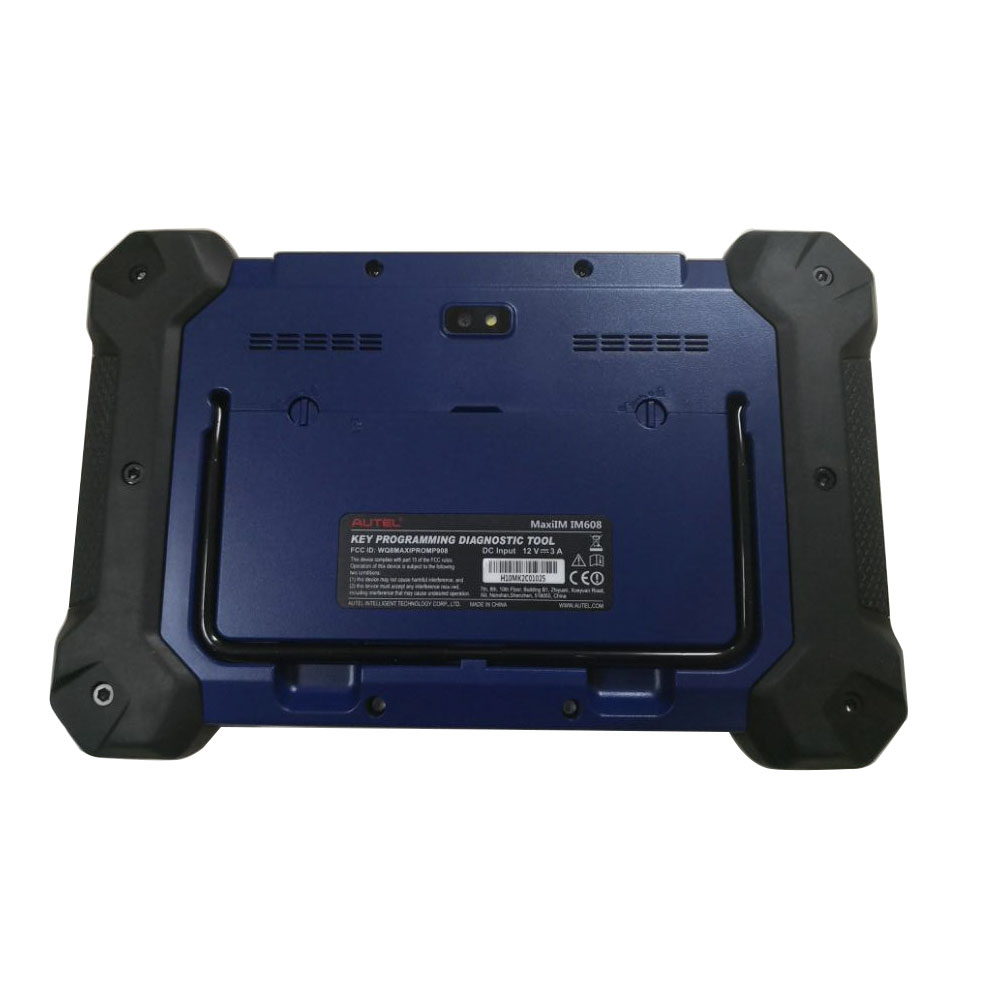

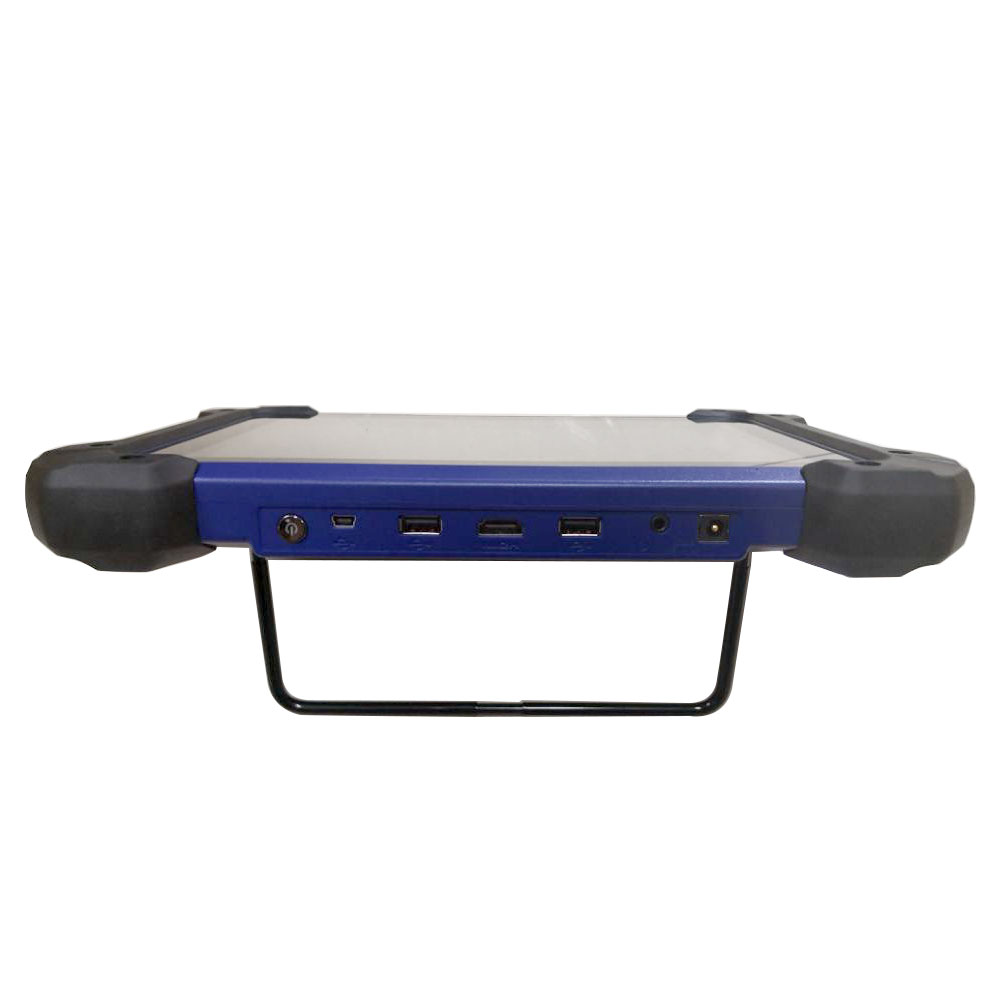

Autel MaxiIM IM608 Main Unit Overviews:

1.10.1-inch LCD Capacitve Touchscreen

2.Ambient Light Sensor-detects ambient brightness.

3.Power LED-indicates battery level & charging or system status.

4.Microphone

5.Collapsible Stand-extends from the back to allow hands-free viewing of the Display Tablet

6.Built-in Bttery

7.Loudspeaker

8.Camera Lens

9.Camera Flash

10.DC Power Supply Input Port

11.Headphone Jack

12.USB Port

13.HDMI (high-definition multimedia interface) Port

14.USB Port

15.Mini USB Port

16.Lock/Power Button-turns the evice on & off with long press,or locks the screen with short press.

Autel MaxiIM IM608 Specifications:

Operating System	AndroidTM 4.4.2, KitKat
Processor	Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory	2GB RAM & 64GB On-board Memory
Display	10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI
Camera (rear)	8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12 V (9-24 V)
Power Consumption	6.5 W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,  SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,  GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,  SAE J1708, Fault-Tolerant CAN

How to Update Autel MaxiIM IM608 Software:

Autel IM608 Update application allows you to download the latest released software.

The updates can improve the MaxiIM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The Display Tablet automatically searches for available updates for all of the MaxiIM software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiIM System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiIM Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.

3. Check all available updates:

--If you decide to update all the items of IMMO software, select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.

-- If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Autel MaxiIM IM608 Customers Feedbacks:

Golf MK5 2005 AKL - add key OK - 2min

Scirocco 2011 - add key OK - 2min40sec

Honda Civic 2006 - add key OK - 55sec

Golf V AKL 2007 without remove dashboard

Done Tiguan 2013, Scirocco and few others VAGs. Works fine on them

Autel MaxiIM IM608 program key for Volvo XC60 successfully

Benz W212 akl can be done by OBD

2014 Seat Ibiza, 2 keys added

Mercedes ML320 CDI 2007

BMW FEM system Add Key complete

Audi a3 2010 add key Sprinter 2006 add key Vw t5 2008 add key Skoda yeti 2014 add key

Added keys on Golf MK5 2005 AKL, Honda Civic 2006, Scirocco 2011, really fast!!!

Works Great on adding keys, all keys lost, G key

Mercedes E220 (All lost keys) New key works

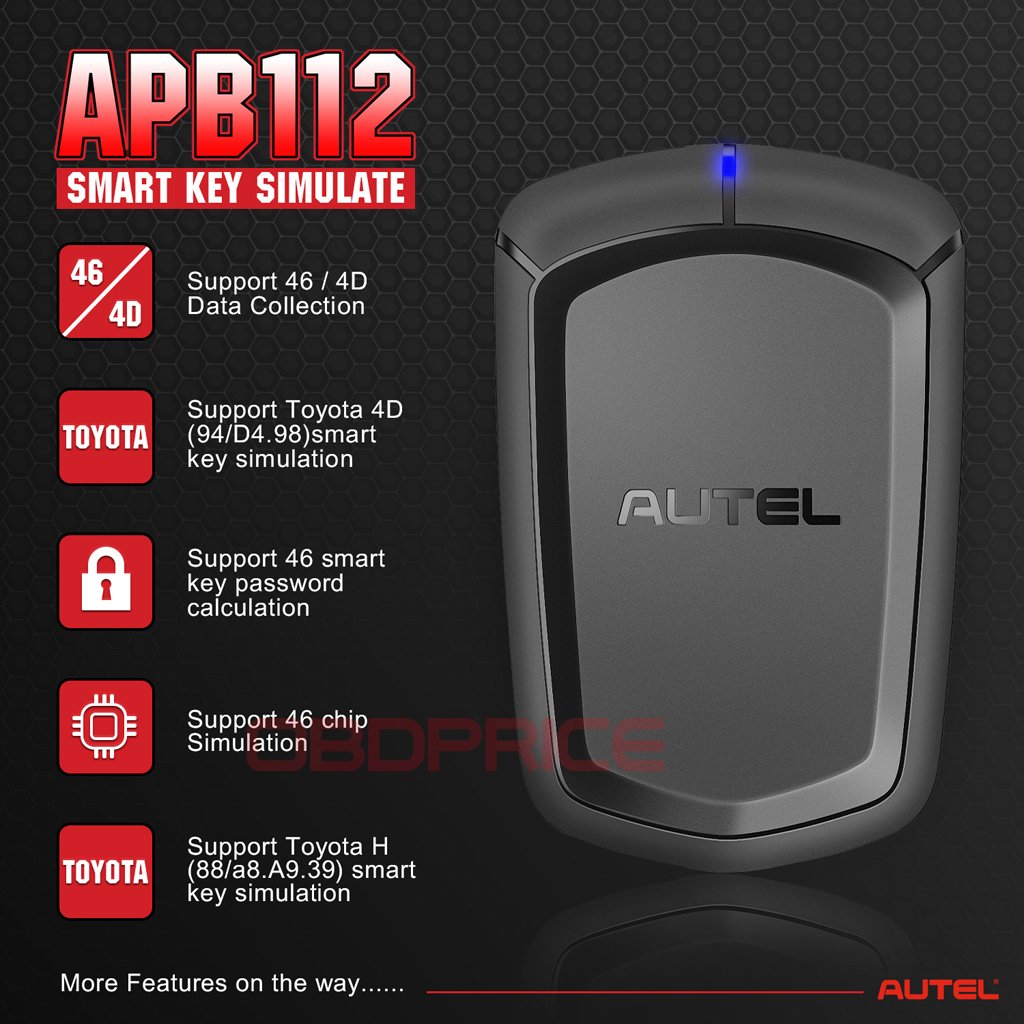

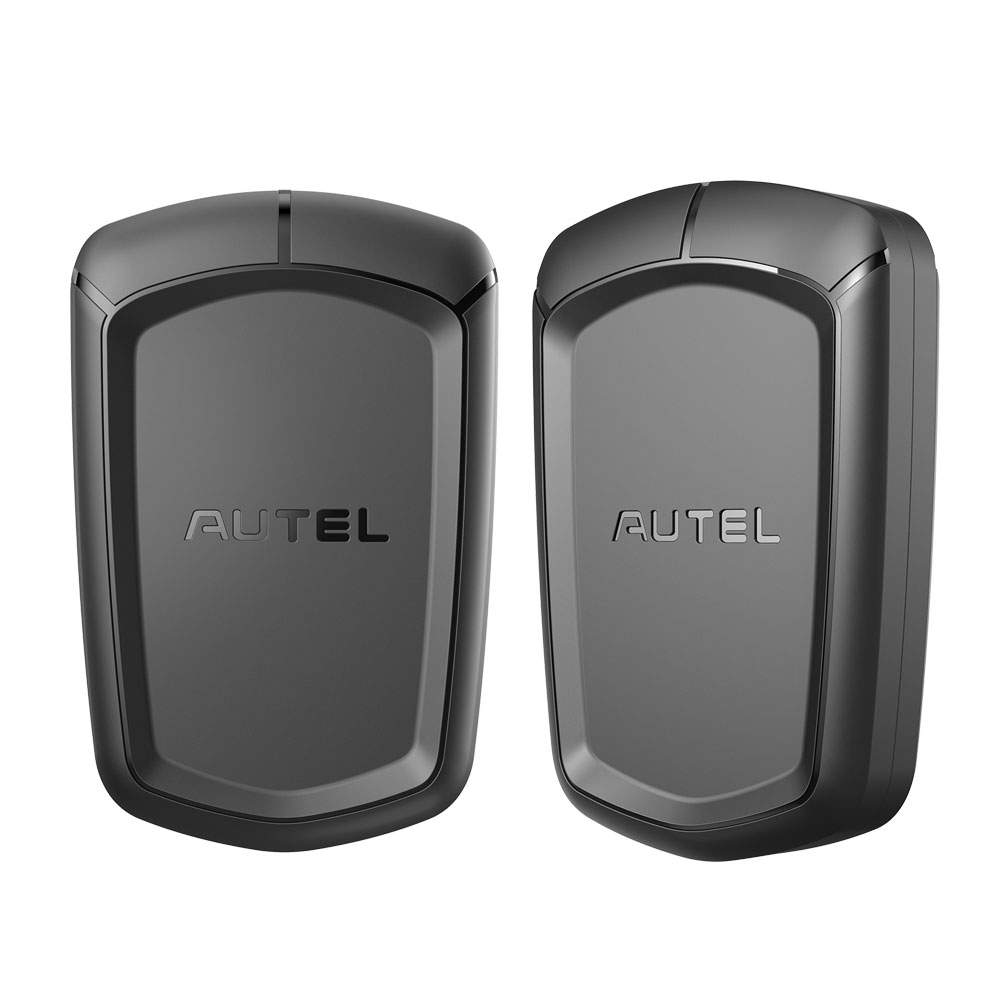

Autel APB112 Features:
*   The APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip. Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.
*   Smart key simulator
*   46, 4D data collection
*   46 smart key password calculation
*   46 chip simulation
*   Toyota 4D (94/D4, 98) smart key simulation
*   Toyota H (88/A8, A9, 39) smart key simulation
*   Toyota/Lexus smart key all key lost
*   Chip decoding (Hyundai 46)
*   Collects data from the ignition coil
*   Identify ignition coil troubles
*   Decode vehicle key chip data
*   Simulate vehicle key chip (ex - 4D chip)
*   Must be used with an Autel diagnostic tool
*   Compatible with Autel MaxiIM IM608, IM508, and MX808IM, Auro Otosys IM100, IM600
*   Compact but would need to be used with the XP400
*   Cannot be used with the XP200

autel apb112 overview

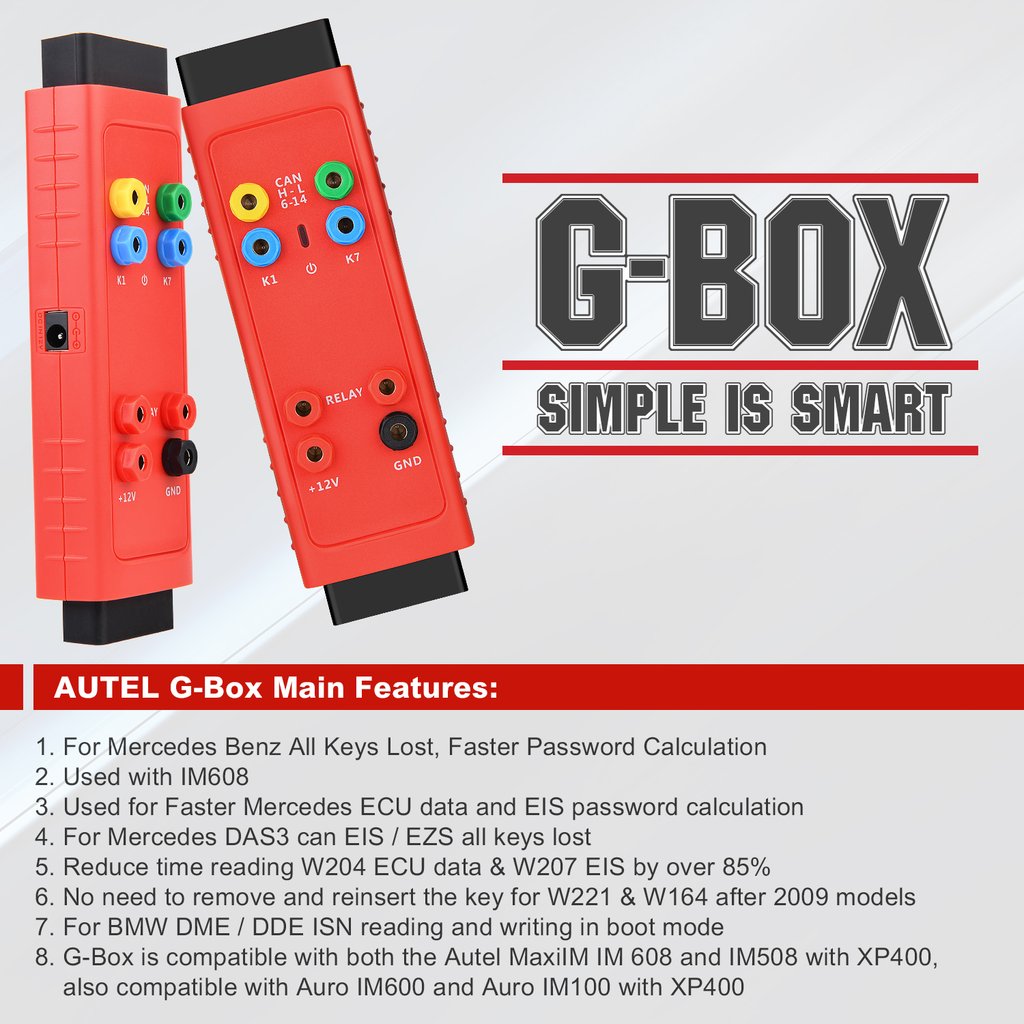

Autel G-Box Accessory Tool
*   The Autel G-Box is designed to be used on for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to save time for reading the ECU data from W204 and W207 EISs by over 85%.

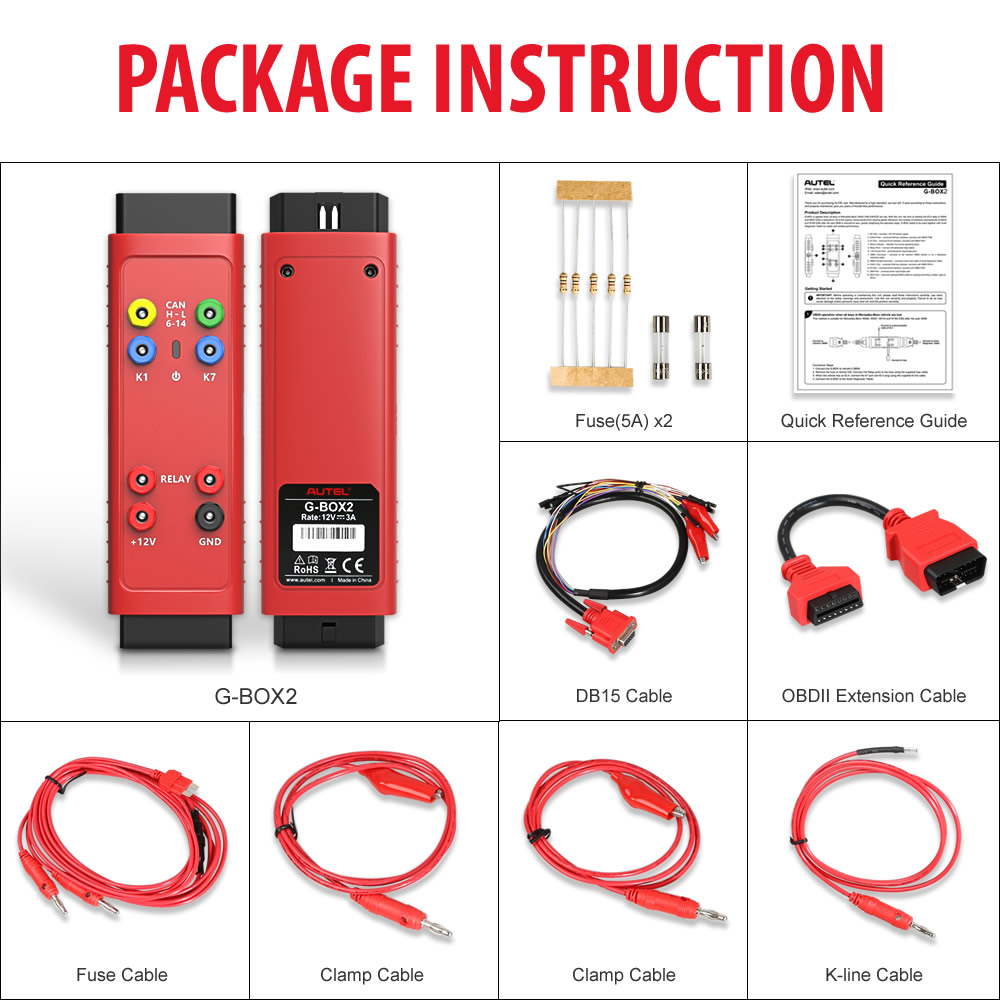

*   The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using ths DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
*   The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks wagen Vehicles. This capability supports the ability to perform adaptions when all keys are lost and engine is replaced.
*   The G-BOX2 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.

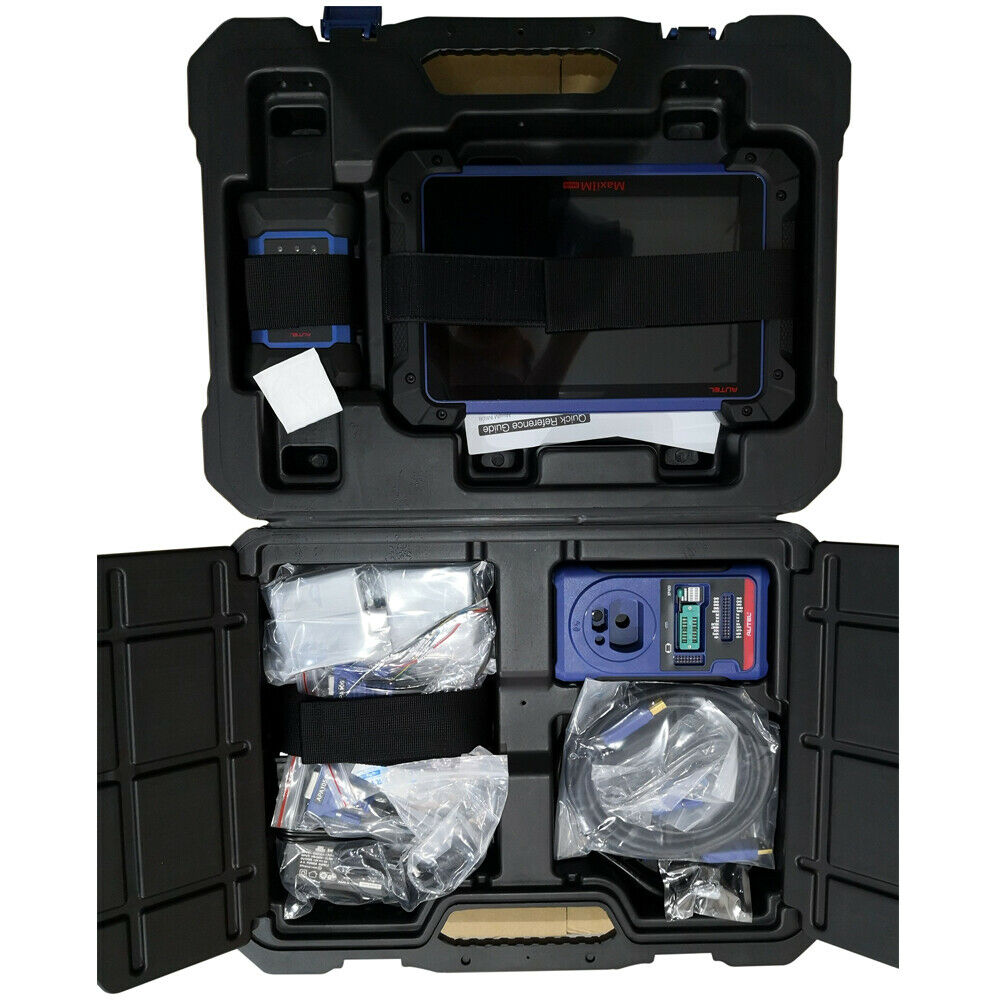

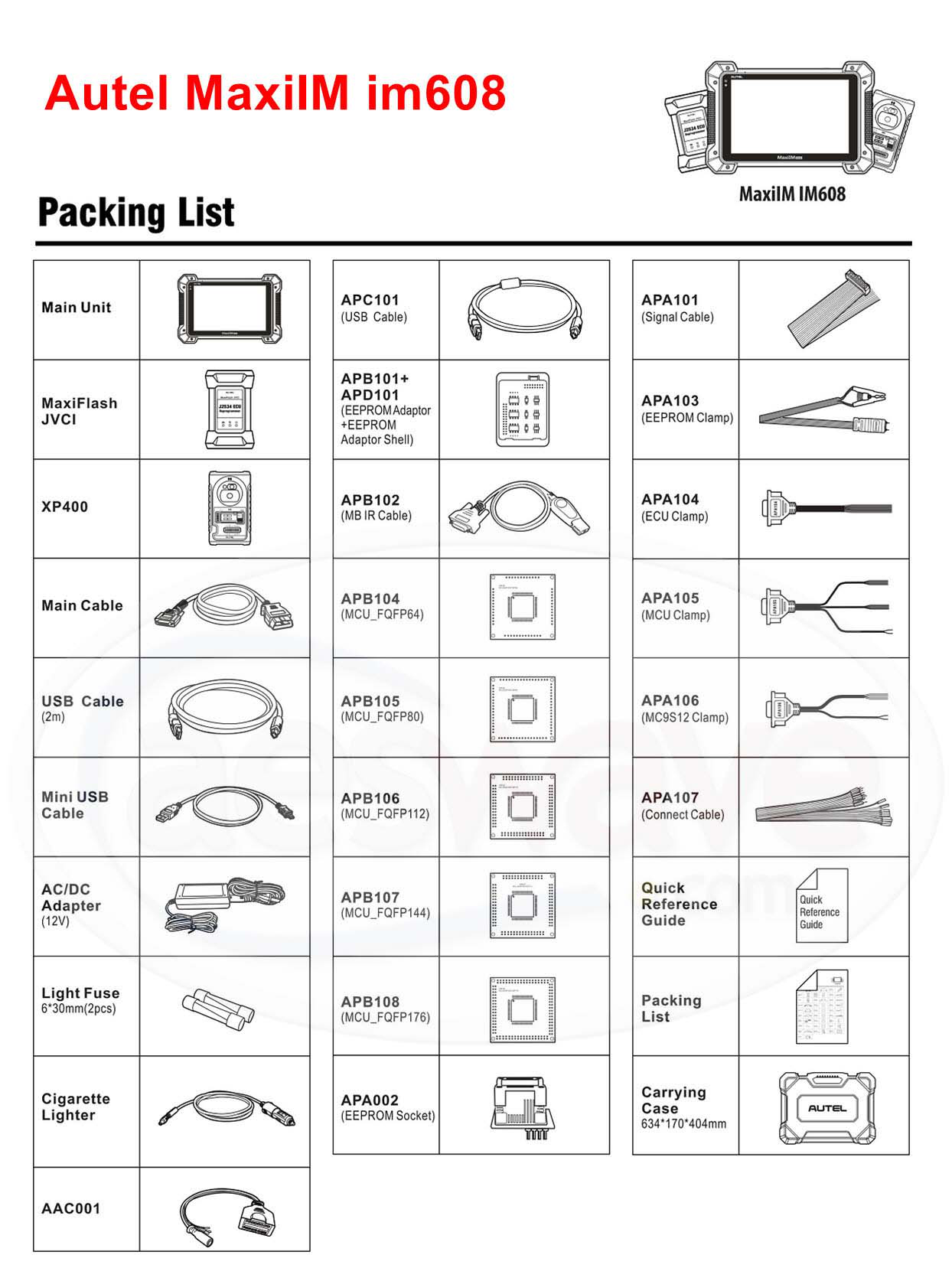

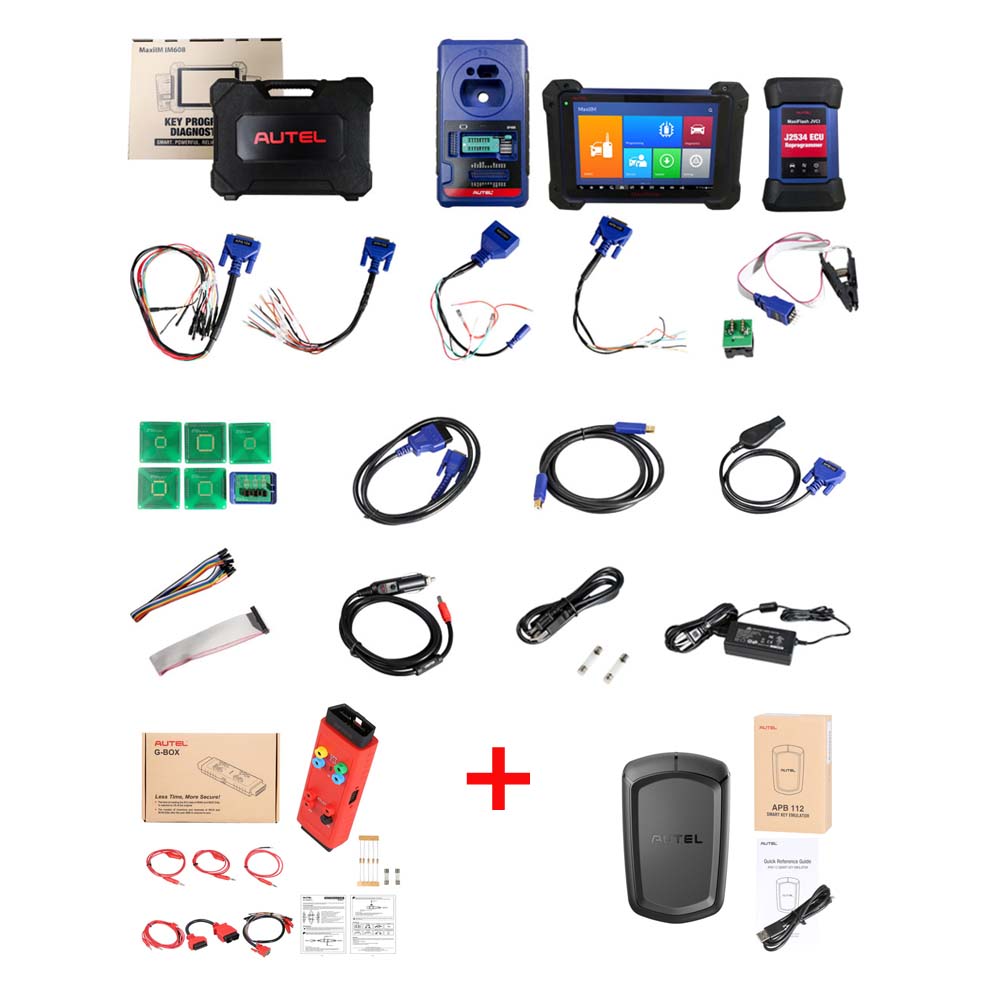

Autel IM608 Bundle Package List:
*   1x Autel MaxiIM IM608 Main Unit
*   1x G-box
*   1x Autel APB112 smart key simulator
*   1x APC101 USB Cable
*   1x APA101 Signal Cable
*   1x MaxiFlash JVCI
*   1x APB101+ APD101 (EEPROM Adaptor + EEPROM Adapter Shell)
*   1x APA103 (EEPROM Clamp)
*   1x XP400
*   1x APB102 MB IR Cable
*   1x APA104 ECU Clamp
*   1x Main Cable
*   1x APB104 (MCU_FQFP64)
*   1x APA105 (MCU Clamp)
*   1x USB Cable (2m)
*   1x APB105 MCU_FQFP80
*   1x APA106 (MC9S12 Clamp)
*   1x Mini USB Cable
*   1x APB106 (MCU_FQFP144)
*   1x APA107 (Connect Cable)
*   1x AC/DC 12V Adapter
*   1x APB107 (MCU_FQFP144)
*   1x Quick Reference Guide
*   2x Light Fuse 6*30mm
*   1x APB108 (MCU_FQFP176)
*   1x Packing List
*   1x Cigarette Lighter
*   1x APA002 (EEPROM Socket)

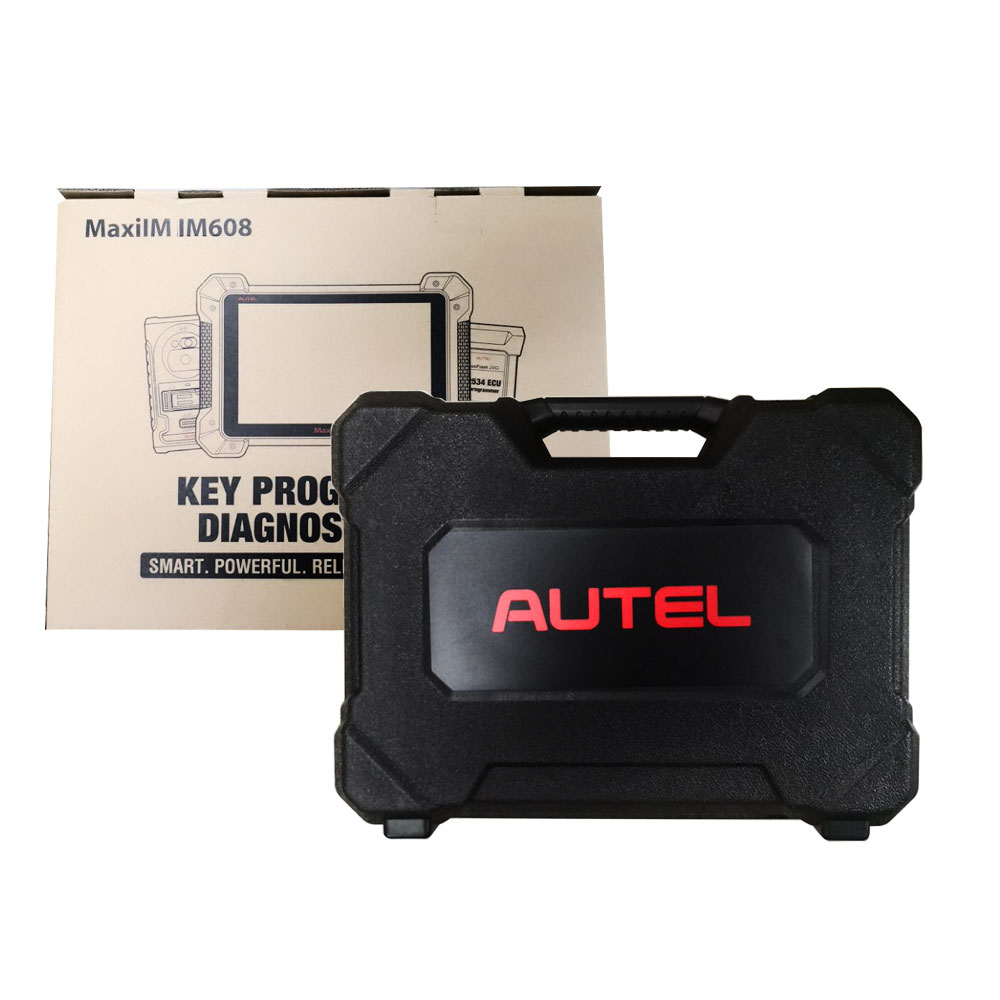

*   1x Carrying Case 634*170*404mm
*   1x AAC001

User Comment(Total 20 User Comment Num)

• by Alexandros Malounis,Sep 21,2021


  If possible to support change tire size?

  Reply #1 by Julie Sep 22,2021
  Yes, it’s possible.However, the service functions are not universal.To check the function or compatibility, please send your car information(car VIN(17 digits), brand, model, year), and the detailed functions you need to our email:sales@obd2tool.com

  Julie

  ---

• by David Pedersen,Mar 22,2021


  Hi Kelly,
  Thanks for getting back to me. I have got link from my sister who lives in Texas but myself I am based in London. However I want to buy this as a present to my dad who needs it in east Africa (Uganda) can you please advise.
  Regards

  Reply #1 by Kelly Mar 23,2021
  Hello,

  We can ship all around the world via DHL.

  But please make sure you will use the tool in Africa but not Europe.

  Autel products have distributors in different regions, we can’t sell AUTEL products to Europe.

  Hope you can understand.

  Best regards
  Kelly

  Kelly

  ---

• by RICHARD LAVIGNE,Jan 27,2021


  Do you have a discount price for regular customer ?

  Reply #1 by Kelly Jan 28,2021
  Hello, Our best price for this item is 2999USD.

  Kelly

  ---

• by Garrett Curtis,Aug 08,2020


  Good for getting in there. No issues.

  Reply #1 by Vivian Aug 08,2020
  Thanks for your feedback.

  Vivian

  ---

• by curtis wilson,May 20,2020


  I recently purchased a Autel MaxiIM608 programming diagnostic tool. It has currently helped me with GM and Ford key programming and Chrysler diagnostics.

  Reply #1 by Vivian May 20,2020
  Thanks for your feedback.

  Vivian

  ---

• by Charles Sipes,Apr 04,2020


  very good order and fast shipping thanks

  Reply #1 by Kelly Apr 05,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by Barbara Cox,Apr 03,2020


  It is perfect.I lan on buying another one in the near future.

  Reply #1 by Vivian Apr 03,2020
  Thanks for your feedback

  Vivian

  ---

• by Igor Vybornov,Mar 25,2020


  it came in faster than I expected and is working well.

  Reply #1 by Kelly Mar 26,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by Steven Burrell,Mar 20,2020


  It works well for a few days,will learn more.

  Reply #1 by Vivian Mar 20,2020
  Thanks for your feedback

  Vivian

  ---

• by Mr.Rory Noel,Mar 11,2020


  Very prompt and fast service, even in the troublesome time china is going through, excellent keep it up

  Reply #1 by Kelly Mar 11,2020
  Thanks for your feedback.

  Kelly

  ---

Total 20 records, divided into2 pages. First Prev Next Last

Rank:
Your first & Lat Name:
Your E-mail Address:
Review detail:
Verification code:

Download & Technical Support

 IM508-IM608-Comparison.pdf

 IM608-User-Manual.pdf

 Autel-IM-case-study-youtube-link.pdf
