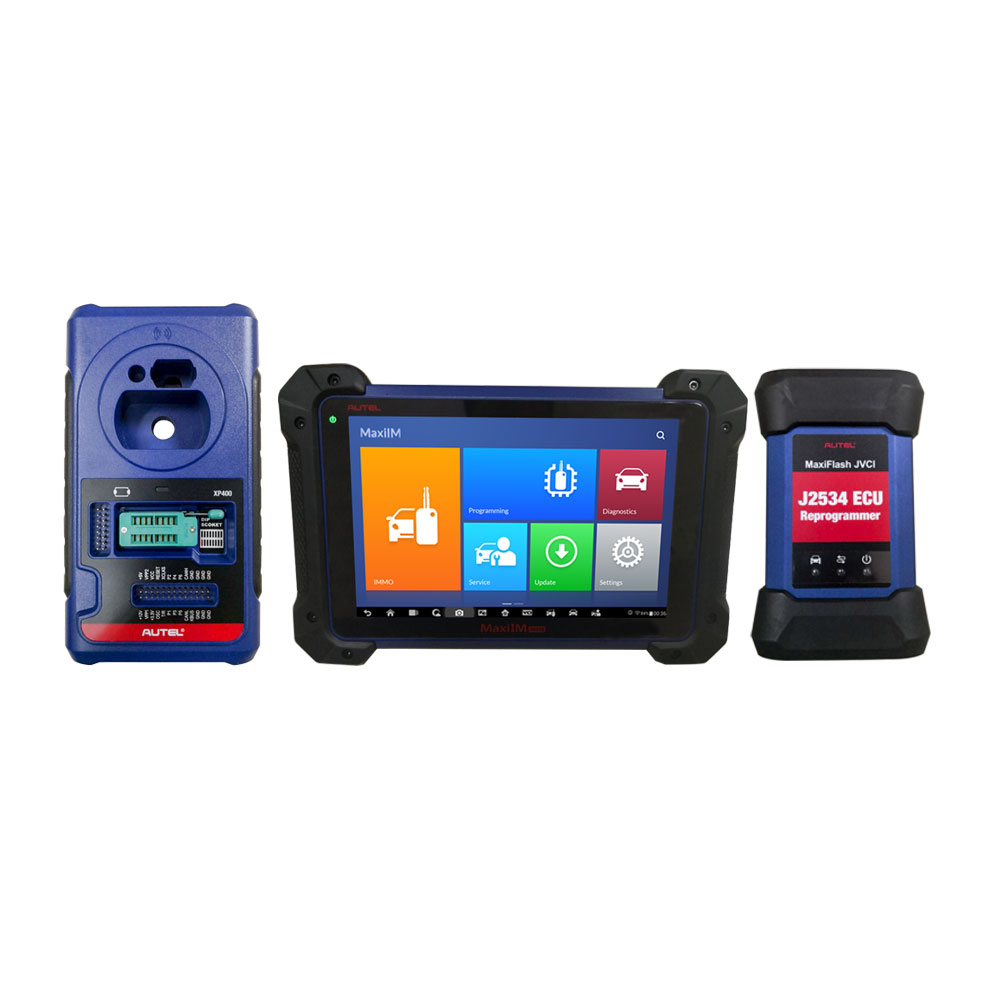

Autel MaxiIM IM608 Diagnostic Key Programming and ECU Coding Tool Replaces Auro OtoSys IM600 & MX808IM

Description:

Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted

IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths.It combines the most advanced key programming and immobilizer experience with advanced automotive diagnostics and service functions, a 10-inch Android-based, touch-screen tablet with the latest in art. Autel MaxiIM IM608, a comprehensive, ideal immobilizer and key programming tool for automobile technicians and locksmiths.

Autel MaxiIM IM608 Highlights:

1.Free Update Online for 1 Year, after one year, it will cost $1100

2.Warranty for 12 Months.

3.ADVANCED IMMO & KEY PROGRAMMING

4.OE-Level Diagnostic and Service Functions as MaxiSYS Pro

5.with XP400 and MaxiFlash JVCI for ECU Programming

6. Language: English, Spanish and French. (We can ship to Spain and France now)

7. Autel have released BMW CAS4/CAS4+ through OBD update!

Autel MaxiIM IM608 Features:

The IM608 is an OE-Level Diagnostic and Service Functions as MaxiSYS Pro with additional software and accessories for IMMO and key programming.

1. Extraordinarily powerful Cortex A7+A15 six-core processor

2. 10.1-inch LED capacitive touch screen with 1920x1200 resolution

3. Internal reliable 64GB On-board Memory for better performance

4. Built-in 8-megapixel rear camera with autofocus and flashlight

5. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources

6. Open source Android Operating System for fast boot-up and multitasking

7. Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services

8. Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage

9. Smart mode for guided and automated key learning

10. Expert mode for advanced key learning

11. Read PIN/CS (all key lost), generate key, key learning, remote learning

12. IMMO ECU reset/adaptation, refresh/coding

13. Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency

14. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

15. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.

16. All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

Autel MaxiIM IM608 Functions:

1. Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)

2. Service Functions | Oil light / EPB / BMS / SAS / DAF etc

3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)

4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)

5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)

6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device

7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write

ADVANCED IMMO & KEY PROGRAMMING:

Connect the IM608 tablet to the vehicle (via the Bluetooth VCI or Main Cable) and to the XP400 (via USB cable) to access IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc. The software provides two methods to access IMMO functions

1. Smart Mode – for Guided and Automated Key Learning - step by step through a series of functions.

2. Expert Mode – for Advanced Key Learning - select a specific function.

1). PIN / CS Reading (Full Lost)

2). Key Generation

3). Key Programming

4). Command Introduction

5). Backup / Repair IMMO Data

6). IMMO ECU Brain Reset / Adaptation

7). IMMO ECU Brain Reset / Coding

8). BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming

9). BMW FEM / BDC Key Programming and ECU Adaptation

10). BMW CAS4 / 3/2 Key Programming

11). VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...

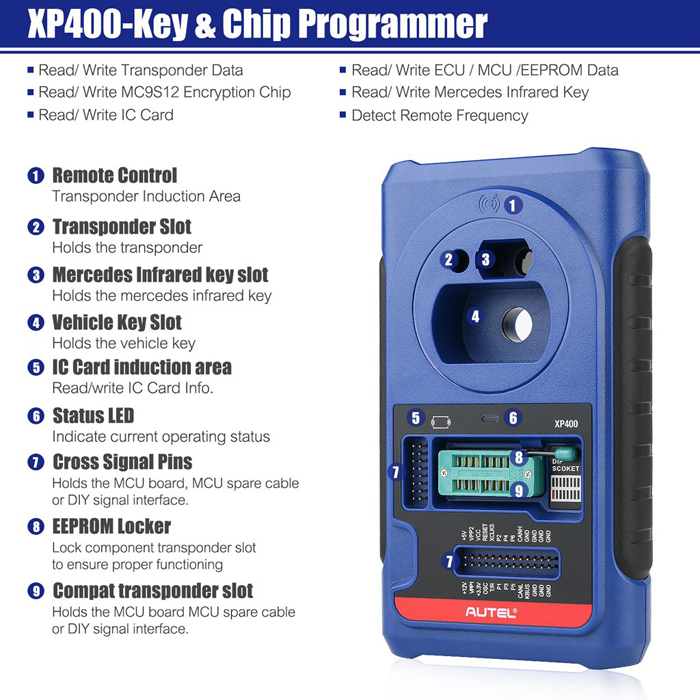

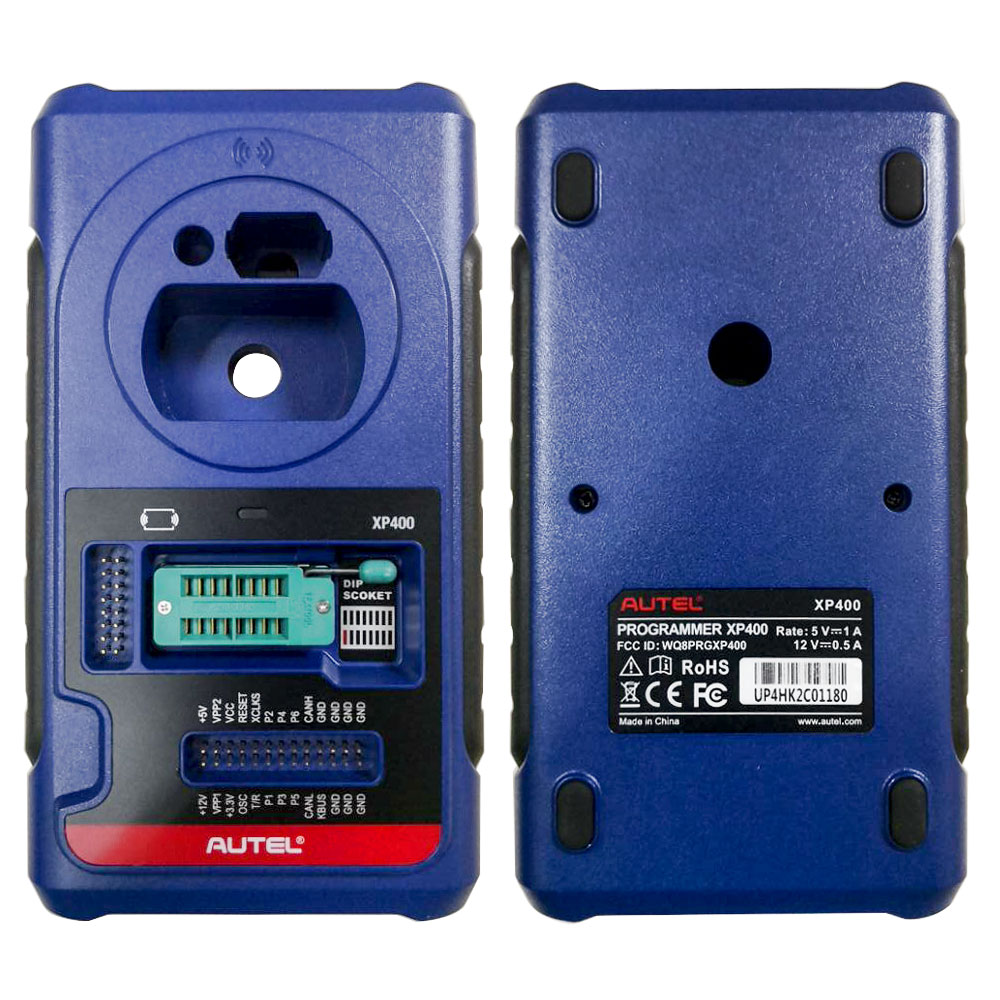

XP400 KEY & CHIP PROGRAMMER:

Support PC

MCU / EEPROM Chips Read / Write

ECU Read / Write

MC9S12 Encryption Chip Read / Write

Key Read / Write

Mercedes Infrared Key Read / Write

Remote Frequency Detect

IC Card Read/Write

OE-Level DIAGNOSTIC FUNCTION OF MORE THAN 80 VEHICLES IN ADVANCED LEVEL

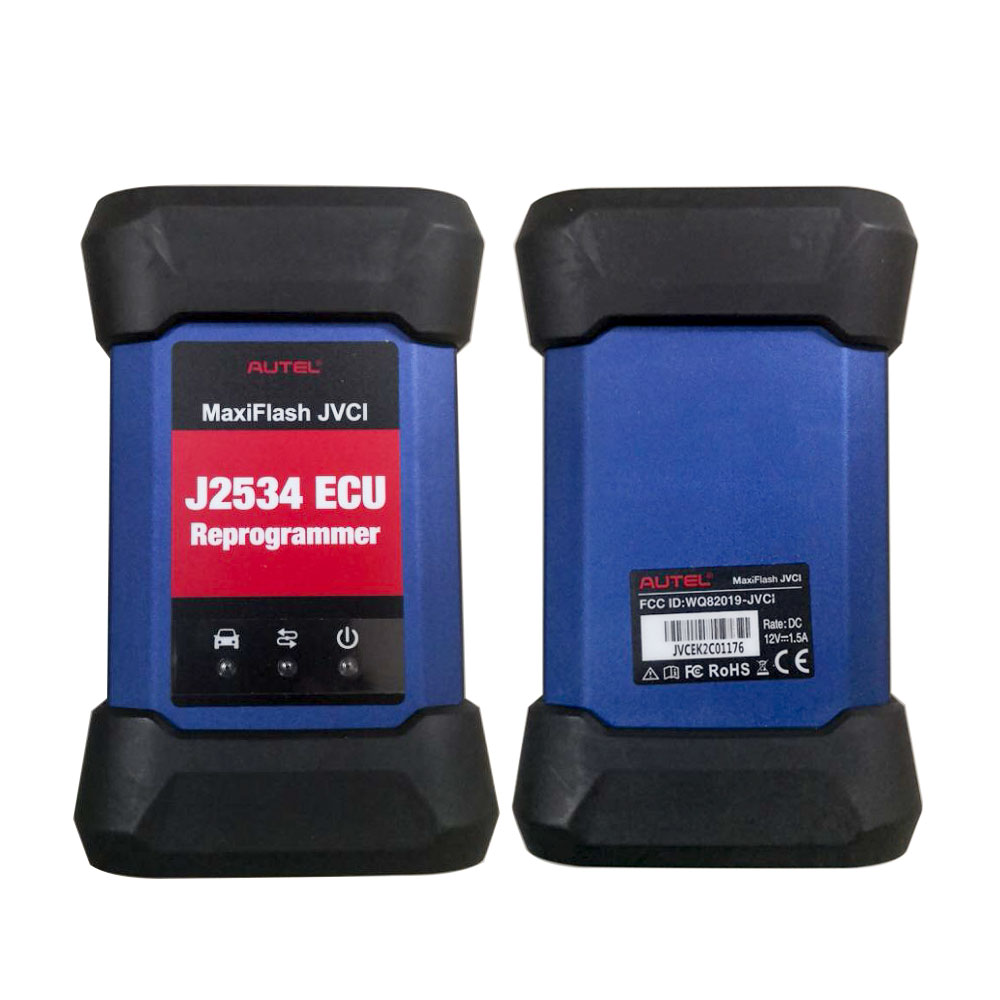

MaxiFlash JVCI ECU Programmer (Bluetooth/USB cable)

Connect the IM608 tablet to the vehicle via the OtoFlash (VCI) to perform extensive diagnostic and service functions.

1. All System Diagnostics

2. Auto Search / VIN Finding

3. Reading / Deleting Error Code

4. Viewing the Live Data Stream

5. View Records of Failure History

6. Store and Data Management Applications

7. MaxiFlash JVCI ECU Programmer (Bluetooth / USB Cable)

ADVANCED SERVICE FUNCTIONS

All Special Functions, e.g. EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Relearn, etc.ECU Coding

Autel MaxiIM IM608 IMMO Vehicle List:

Chrysler,Dodge,Ford,GM,Hummer,Jeep,Citroen,Fiat,Jaguar,LandRover,Maserati,Opel,Peugeot,Renault,Saab,Volvo,Volkswagen,Audi,Bently,Seat,Skoda,BMW,Mini,Honda,Hyundai,Kia,Lexus,Mazda,Mitsubishi,Nissan,Subaru,Suzuki,Toyota

Audi:

A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:

Alhambra,Altea,Altea,Cordoba,CupraLeon,Exeo,Ibiza,Leon,Mii,Toledo

Skoda:

Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:

Amarok,Arteon,Atlas,Beetle,Bora,BoraGli,Caddy,Crafter,EOS,Fox Africa,,Fox EU,Fox,GTI,Gol County,Gol(5U),Gol(5W),Golf PLUS,Golf/Rabbit(1K),Golf6 ESTATE,Jetta,Parati,Passat,Phaeton,Polo,Scirocco,Sharan,Suran,T-Roc,Tiguan,Touareg,Touran,Transporter5/Multivan,up,UP!/cross UP!

Fiat:

500,500L,500X prox,Albea,Boxer,Daily,Doblo,Doblo New,Ducato,Egea,Fiorino,Freemont,,Idea,Grande punto

,Jumper,Linea,Marea,Nemo,Ottimo,Palio,Palio RST,Panda,Perla,Promaster,Punto,Sinea,Stilo,Viaggio

More  Autel MaxiIM IM608 IMMO vehicle models please check here:

https://pro.auteltech.com/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2

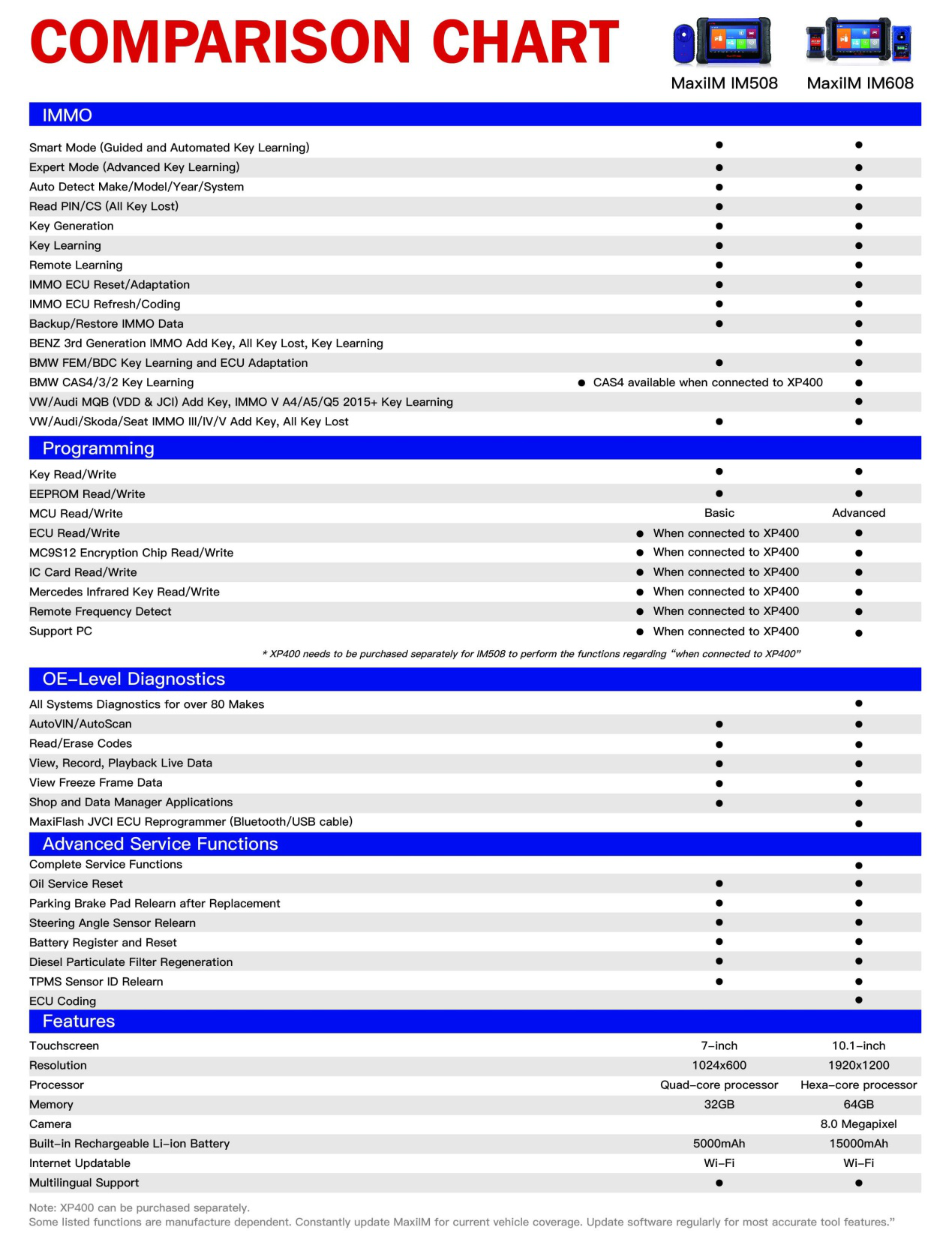

Autel MaxiIM IM608 vs. IM508 Comparison Chart:

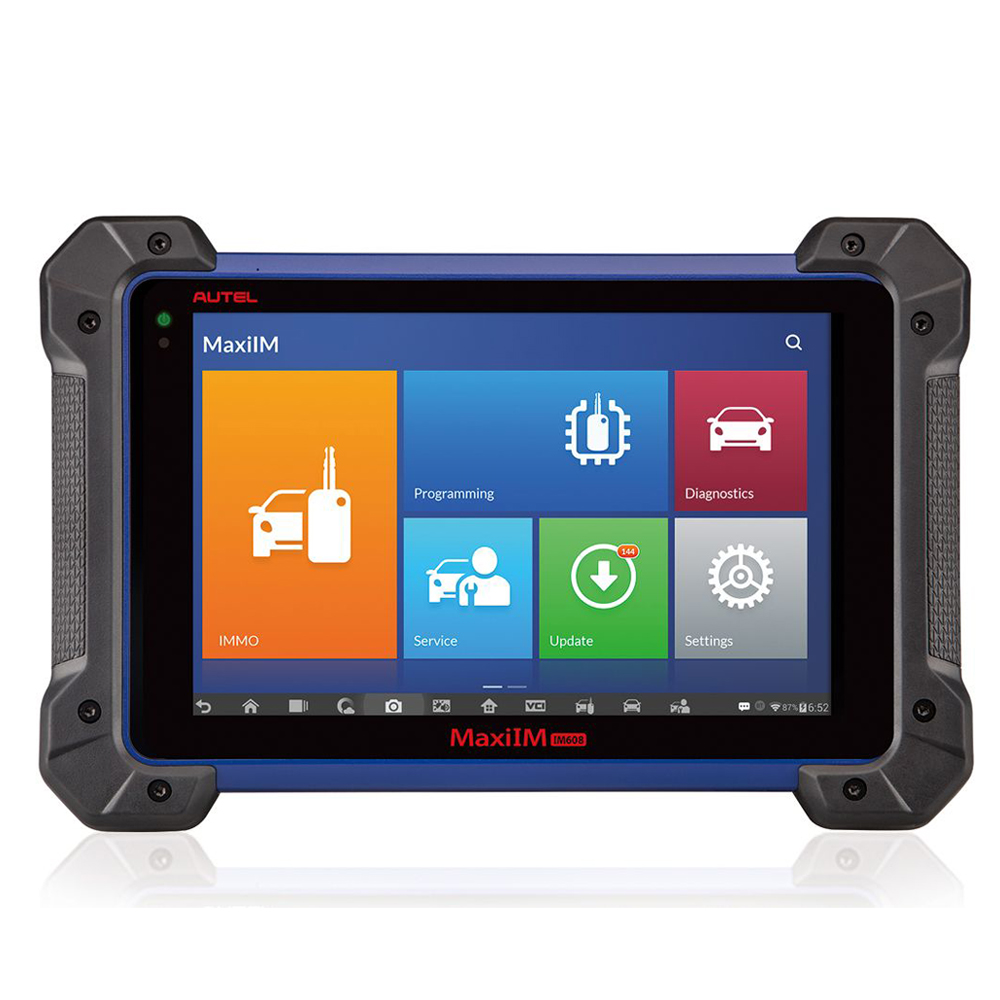

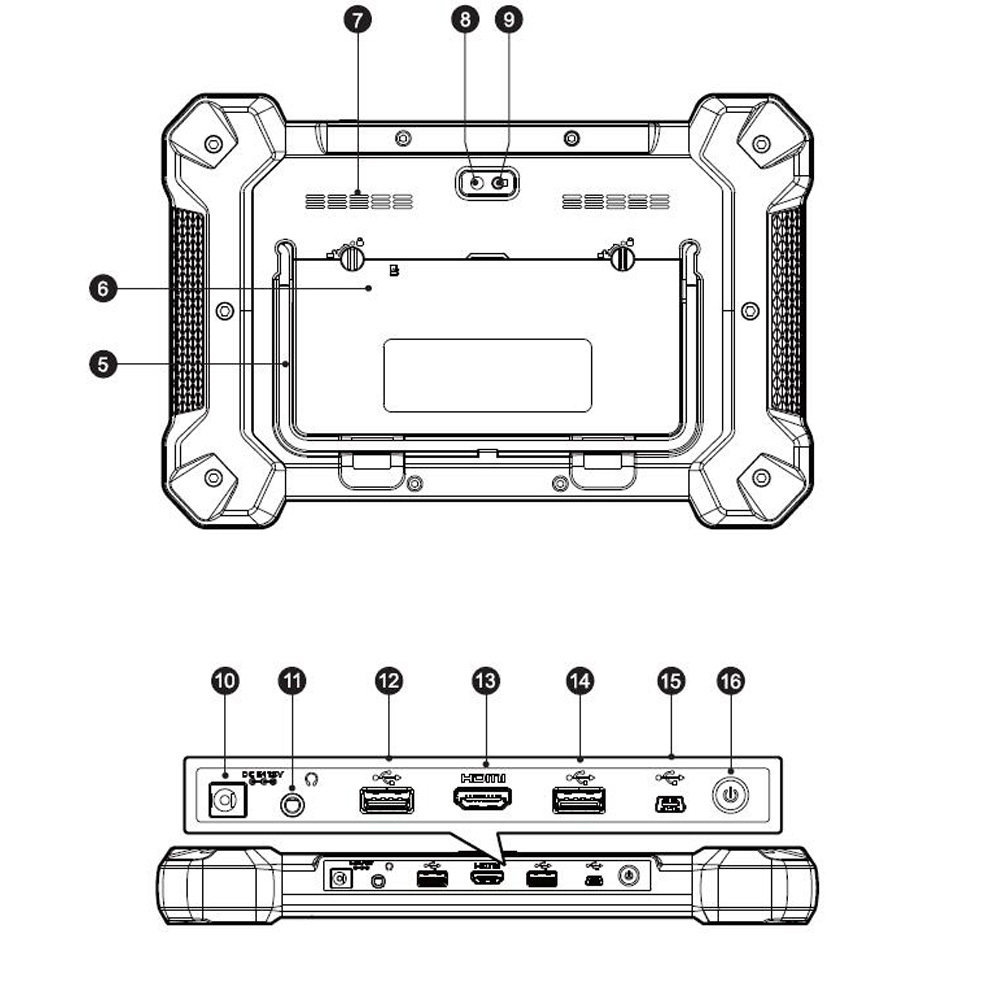

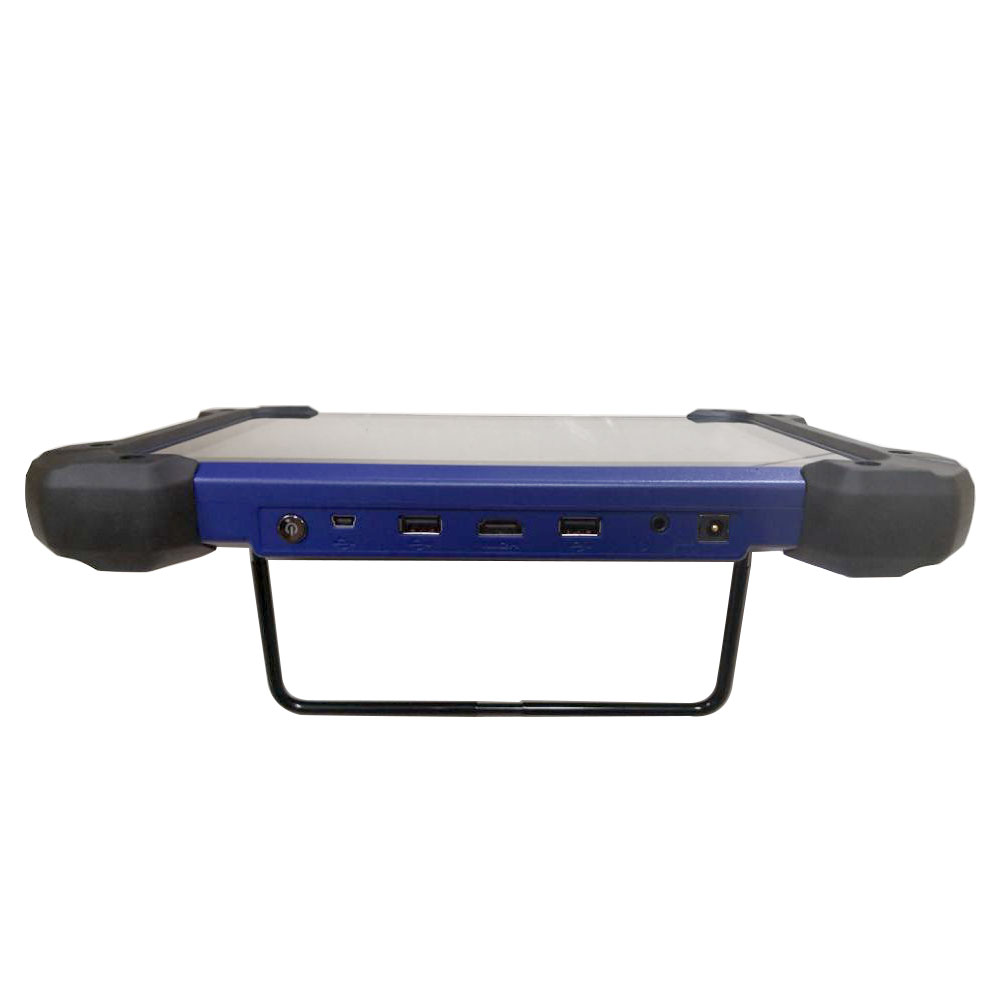

Autel MaxiIM IM608 Main Unit Overviews:

1.10.1-inch LCD Capacitve Touchscreen

2.Ambient Light Sensor-detects ambient brightness.

3.Power LED-indicates battery level & charging or system status.

4.Microphone

5.Collapsible Stand-extends from the back to allow hands-free viewing of the Display Tablet

6.Built-in Bttery

7.Loudspeaker

8.Camera Lens

9.Camera Flash

10.DC Power Supply Input Port

11.Headphone Jack

12.USB Port

13.HDMI (high-definition multimedia interface) Port

14.USB Port

15.Mini USB Port

16.Lock/Power Button-turns the evice on & off with long press,or locks the screen with short press.

How to Update Autel MaxiIM IM608 Software:

Autel IM608 Update application allows you to download the latest released software.

The updates can improve the MaxiIM applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. The Display Tablet automatically searches for available updates for all of the MaxiIM software when it is connected to the internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the MaxiIM System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiIM Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.

3. Check all available updates:

--If you decide to update all the items of IMMO software, select IMMO Tab and then tap the Update All button; if you want to update all items of diagnostic software, select Diagnose Tab and then tap the Update All button.

-- If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).

4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point.

5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.

Autel MaxiIM IM608 Customers Feedbacks:

Golf MK5 2005 AKL - add key OK - 2min

Scirocco 2011 - add key OK - 2min40sec

Honda Civic 2006 - add key OK - 55sec

Golf V AKL 2007 without remove dashboard

Done Tiguan 2013, Scirocco and few others VAGs. Works fine on them

Autel MaxiIM IM608 program key for Volvo XC60 successfully

Benz W212 akl can be done by OBD

2014 Seat Ibiza, 2 keys added

Mercedes ML320 CDI 2007

BMW FEM system Add Key complete

Audi a3 2010 add key Sprinter 2006 add key Vw t5 2008 add key Skoda yeti 2014 add key

Added keys on Golf MK5 2005 AKL, Honda Civic 2006, Scirocco 2011, really fast!!!

Works Great on adding keys, all keys lost, G key

Mercedes E220 (All lost keys) New key works

Autel MaxiIM IM608 VS MaxiIM IM508 VS Auro OtoSys IM600 VS IM100

Autel MaxiIM IM608 Specifications:

Operating System	AndroidTM 4.4.2, KitKat
Processor	Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory	2GB RAM & 64GB On-board Memory
Display	10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI
Camera (rear)	8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12 V (9-24 V)
Power Consumption	6.5 W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,  SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,  GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,  SAE J1708, Fault-Tolerant CAN

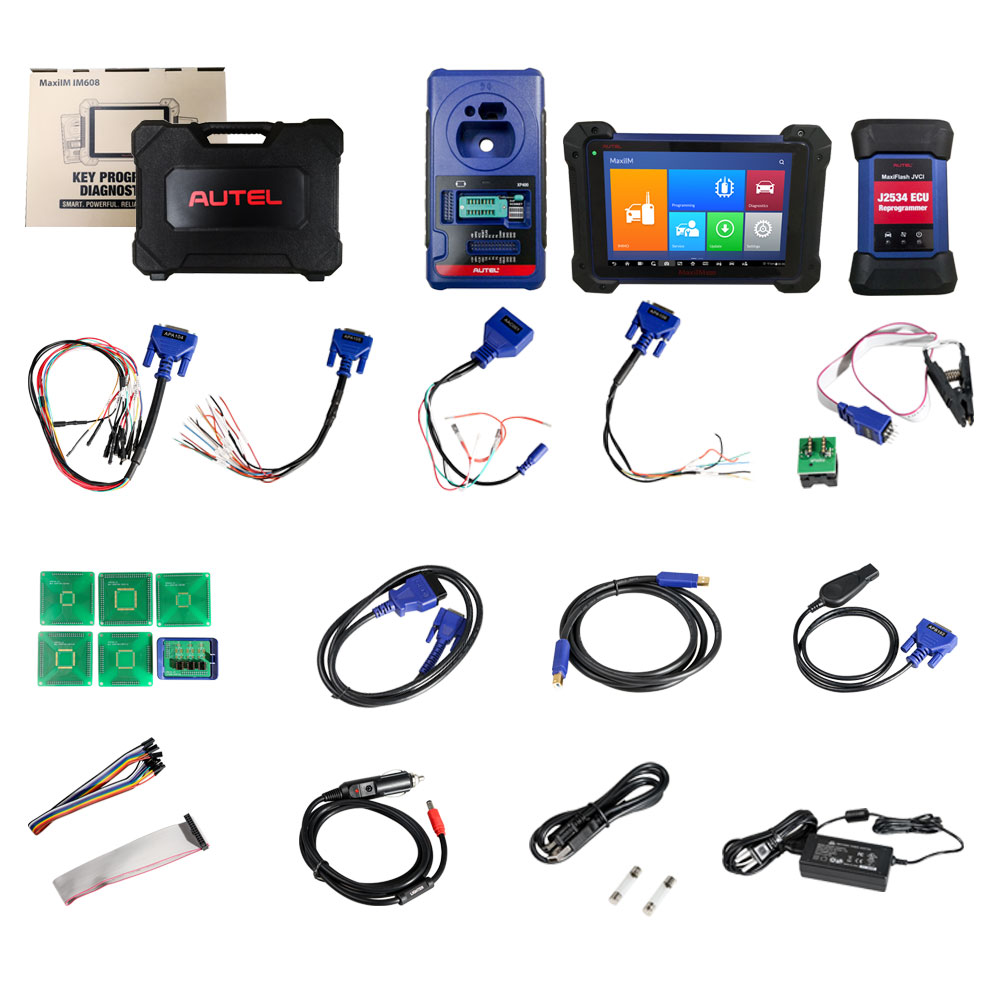

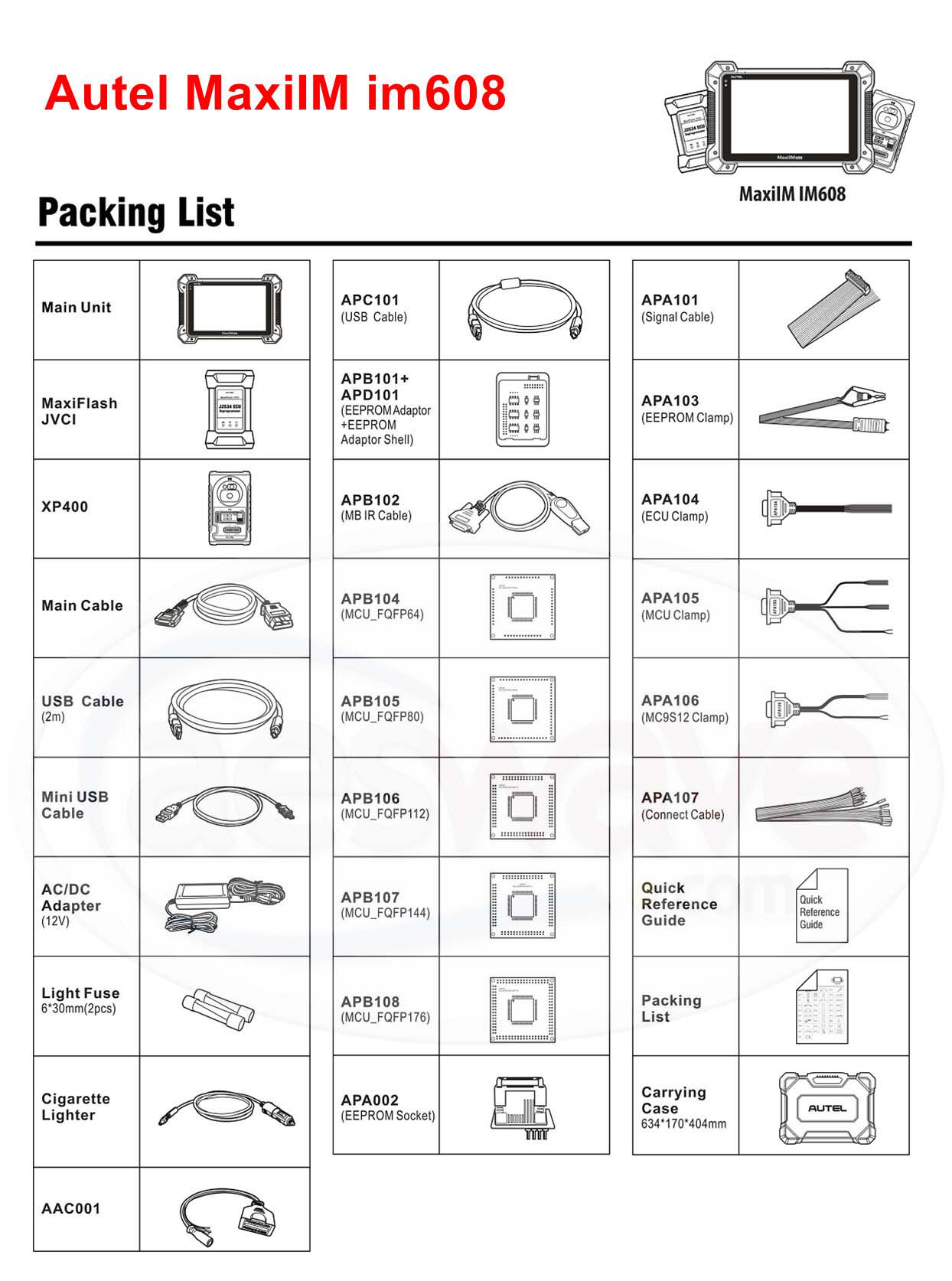

Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit

1x APC101 USB Cable

1x APA101 Signal Cable

1x MaxiFlash JVCI

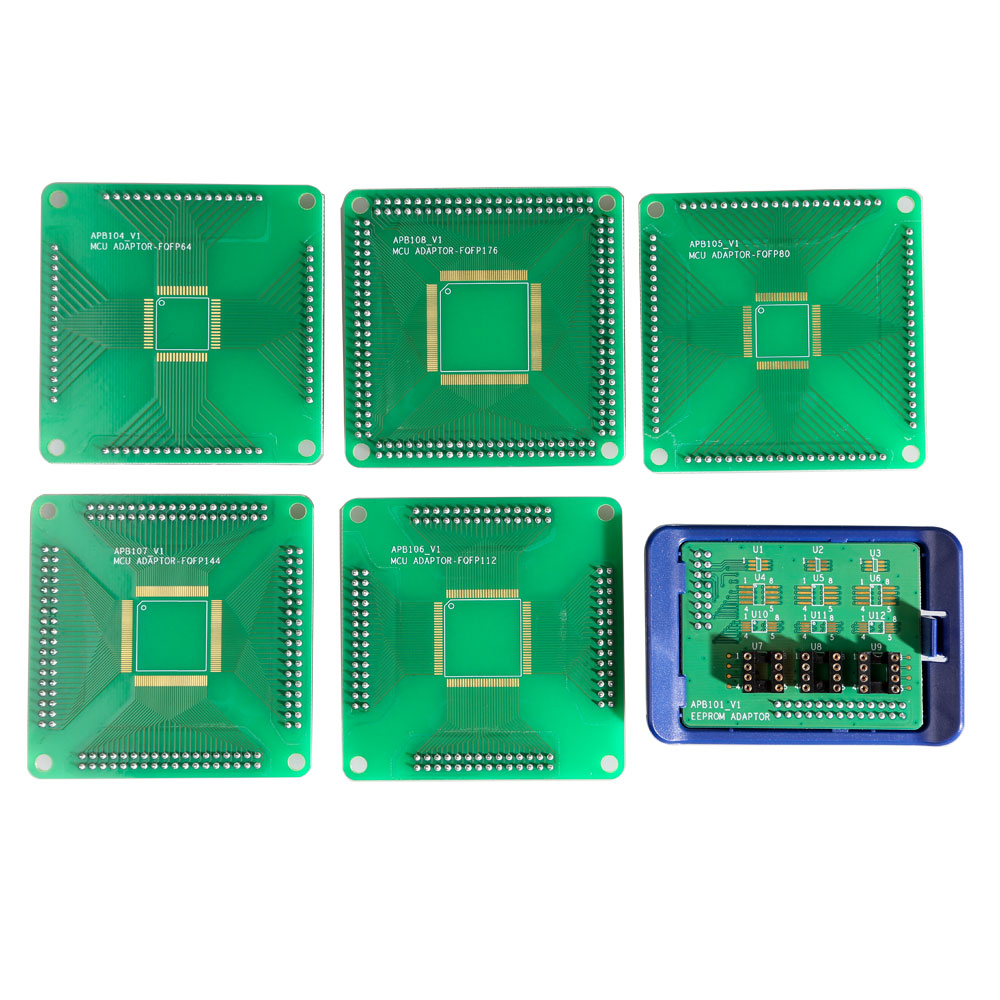

1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)

1x APA103(EEPROM Clamp)

1x XP400

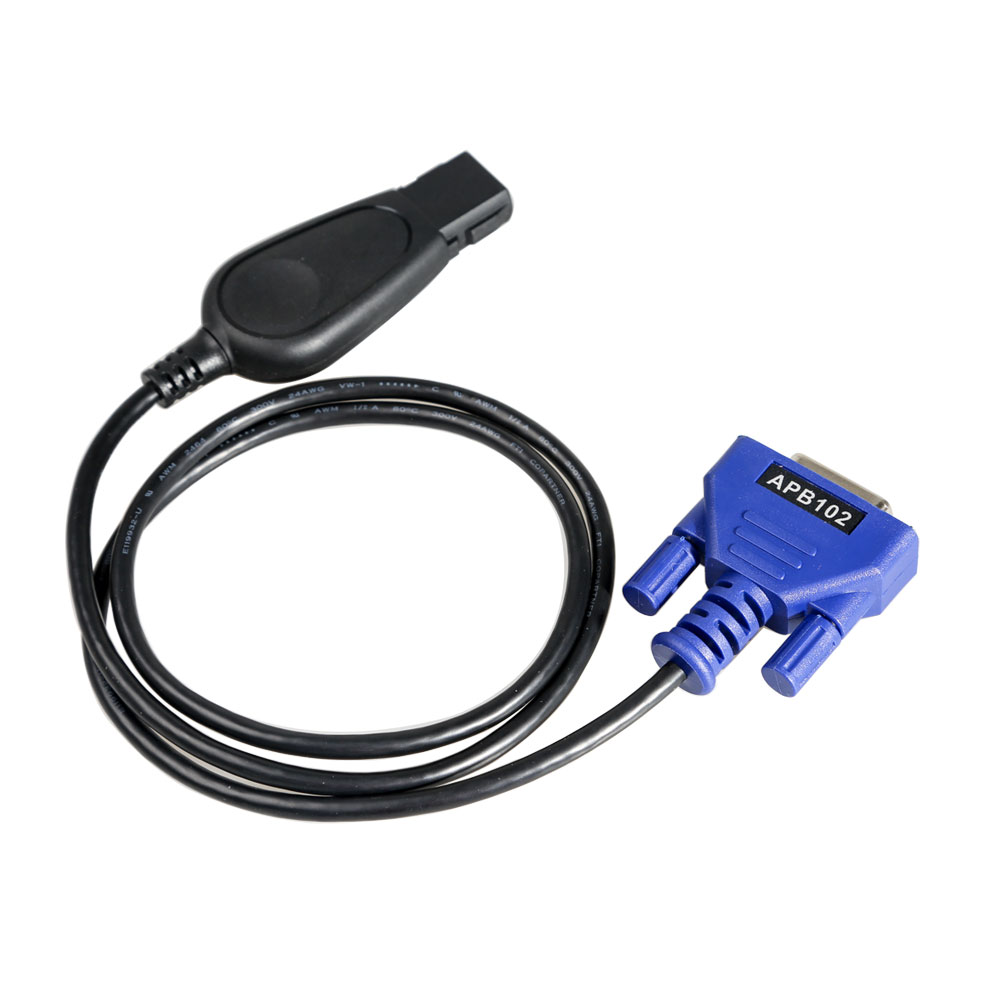

1x APB102 MB IR Cable

1x APA104 ECU Clamp

1x Main Cable

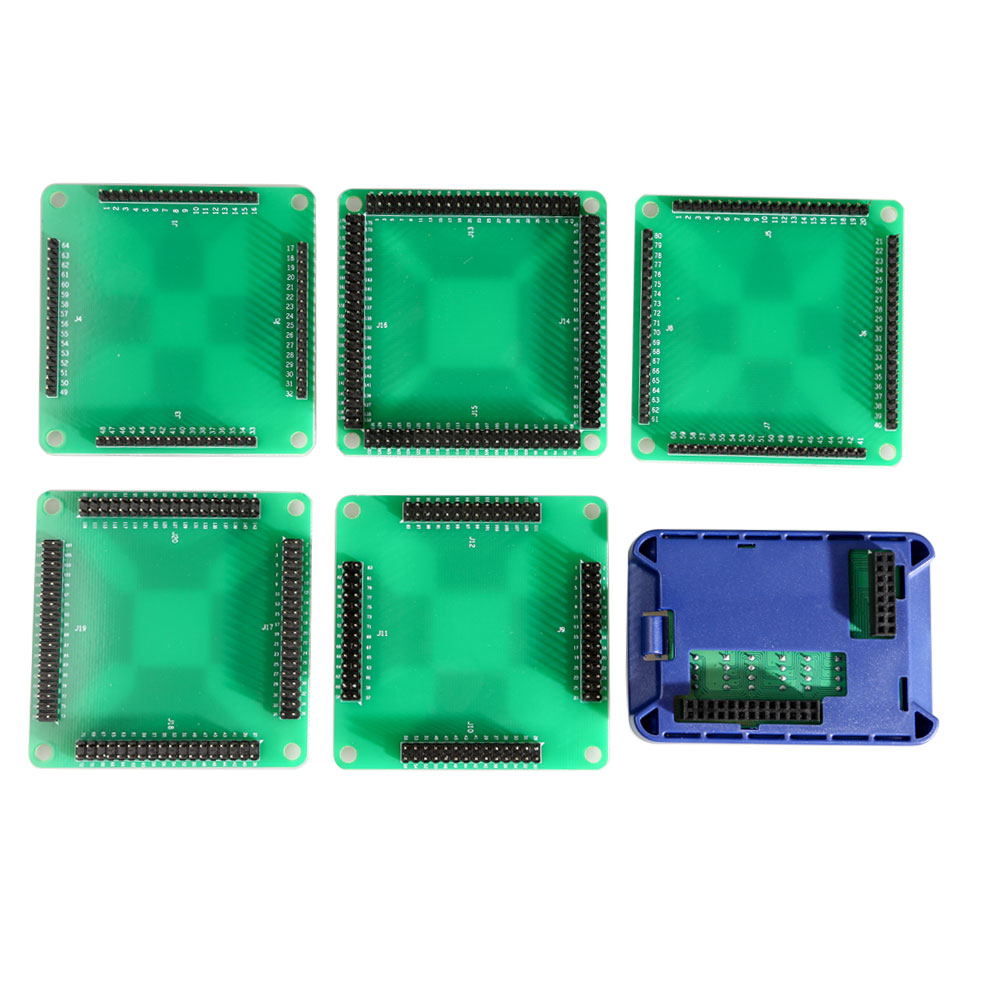

1x APB104(MCU_FQFP64)

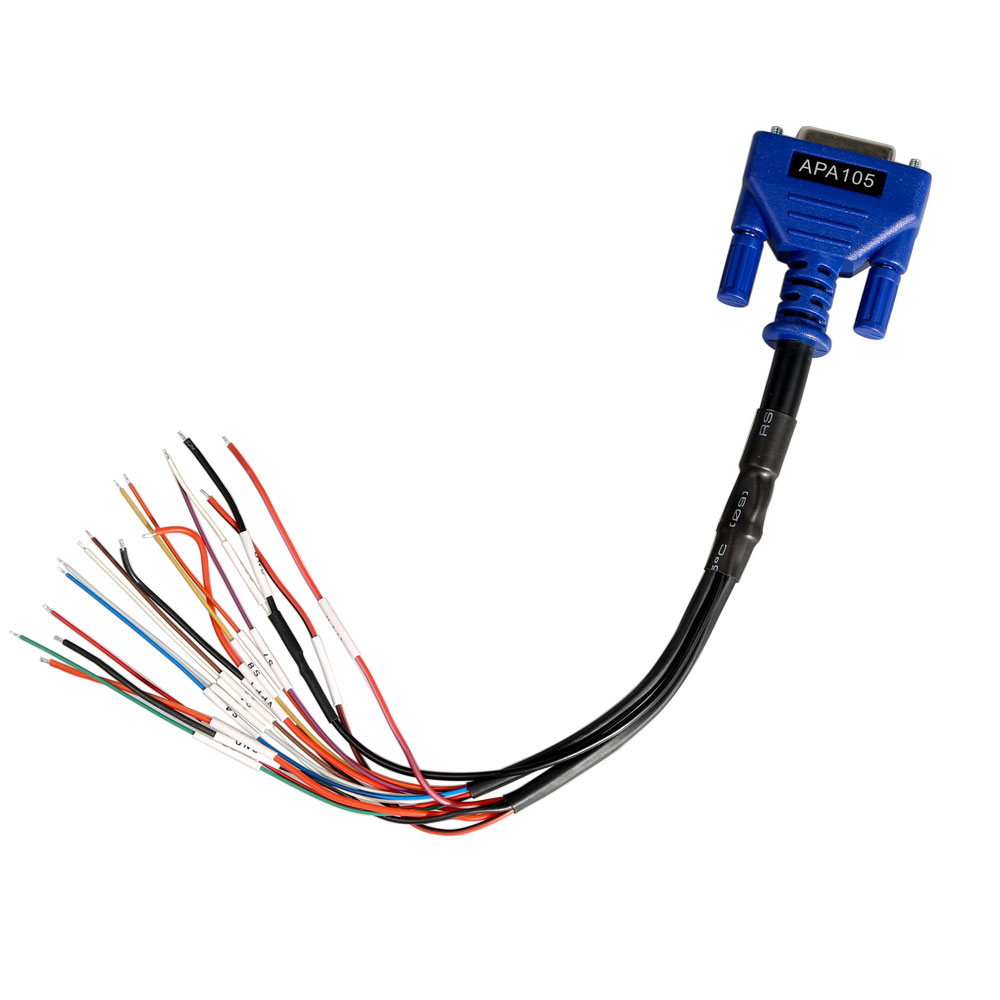

1x APA105(MCU Clamp)

1x USB Cable (2m)

1x APB105 MCU_FQFP80

1x APA106(MC9S12 Clamp)

1x Mini USB Cable

1x APB106(MCU_FQFP144)

1x APA107(Connect Cable)

1x AC/DC 12V Adapter

1x APB107(MCU_FQFP144)

1x Quick Reference Guide

2x Light Fuse 6*30mm

1x APB108(MCU_FQFP176)

1x Packing List

1x Cigarette Lighter

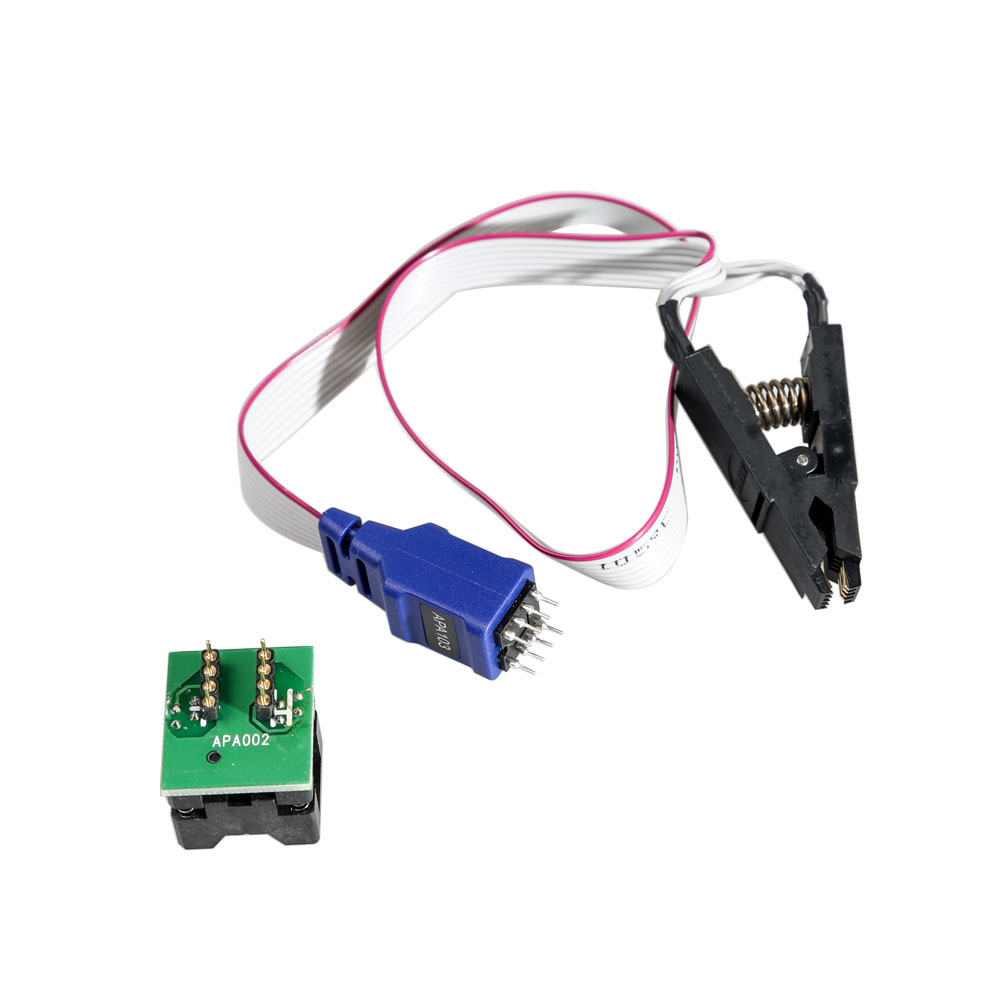

1x APA002(EEPROM Socket)

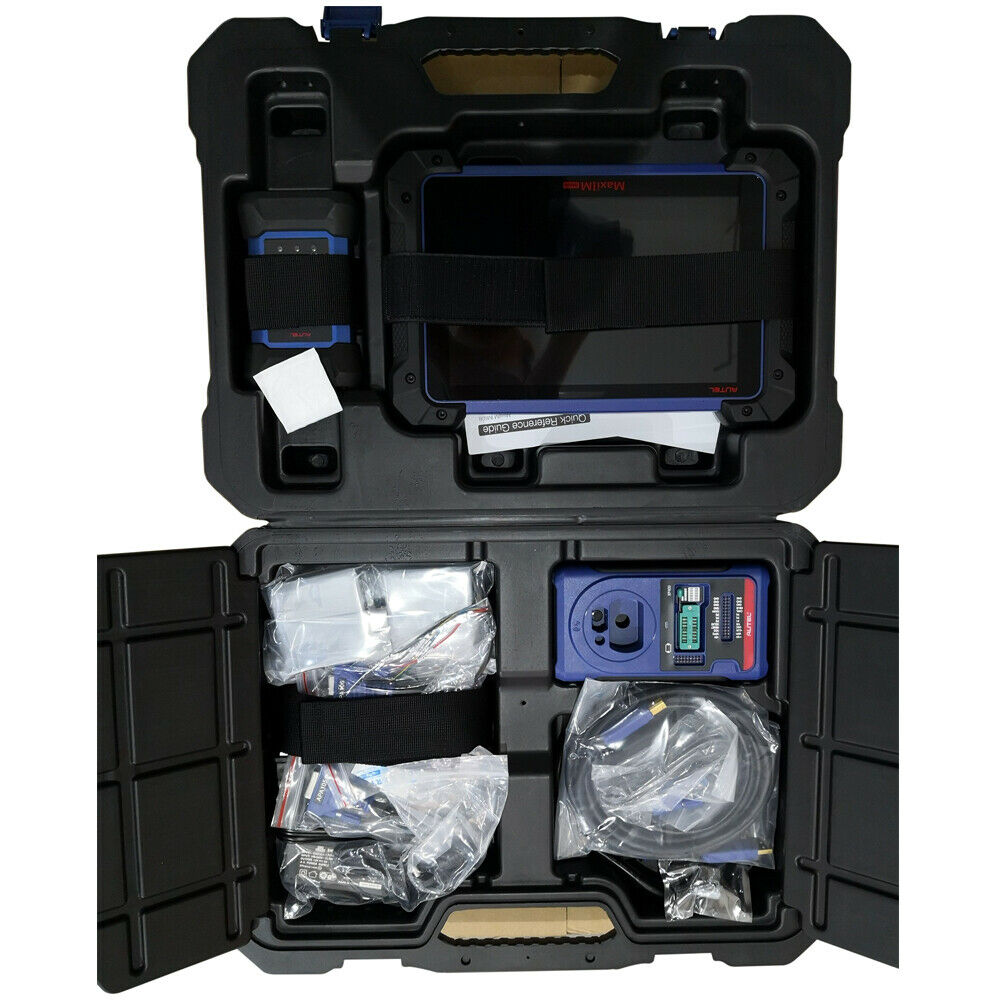

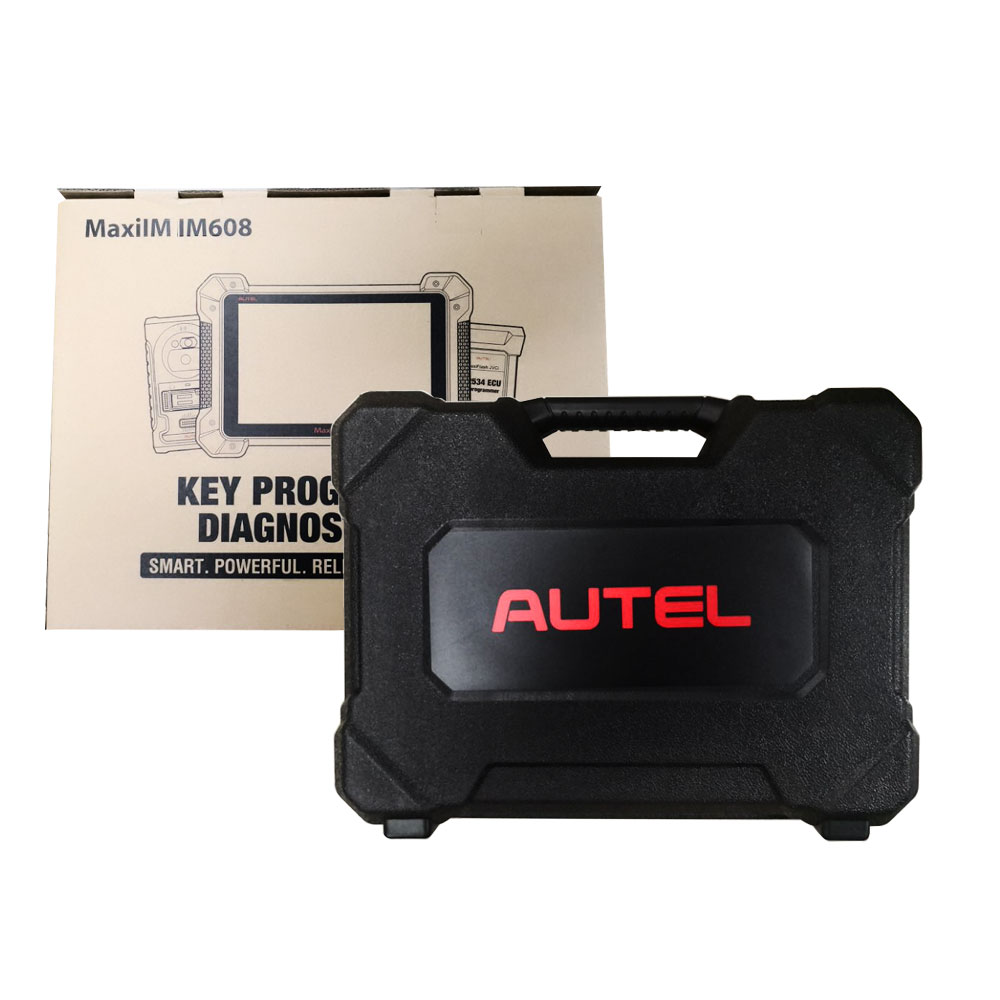

1x Carrying Case 634*170*404mm

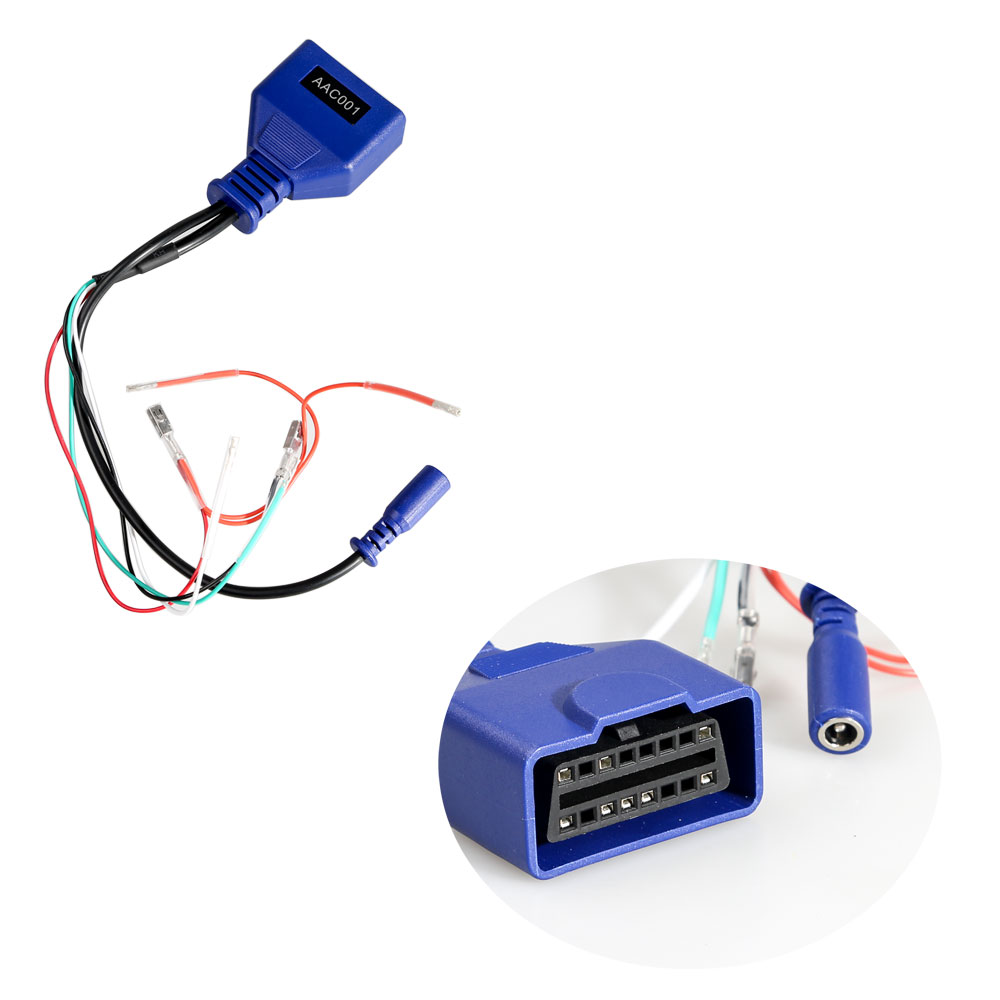

1x AAC001
