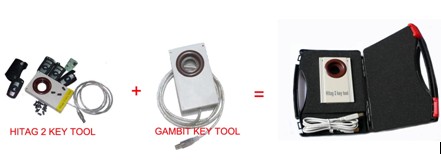

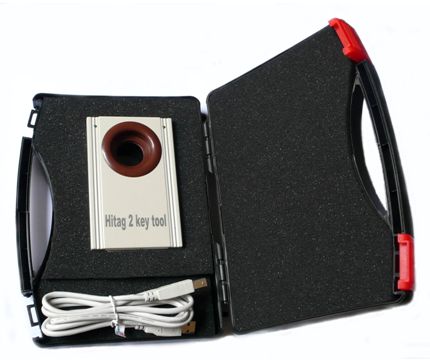

Gambit+Hitag2 V4.3 Programmer 2-IN-1 PROGRAMMER





HITAG2 PROGRAMMER  KEYTOOL v4.3+CAR KEY MASTER(GAMBIT)



With help of this tool you can program/generate key/transponders of Audi A8, VW Touareg, VW Phaeton, Bentley Continental, Porsche Cayenne, BMW E38, E39, E46, E53, E60, E61, E63, E64, E65, E66, E70, E87, E90, E91, E92. Supported immobilizers EWS2, EWS3, EWS3+, EWS4, CAS, CAS2, CAS3. Now you can read data stored inside of the key - identification number, ODOMETER! Added generation of keys by dump of kessy (Audi A8, VW Touareg, Bentley Continental, Porsche Cayenne). Works with latest 2008 models. Possibility to program "dealer keys"

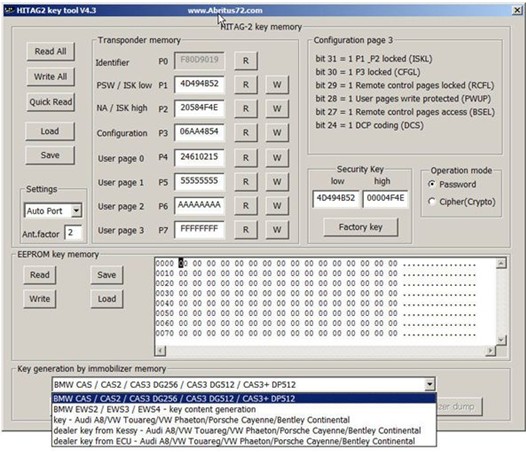

Main screen of Software

For programming of Keys or Transponders of BMW cars you need to read eeprom dump from EWS or CAS and software automaticly prepare key/transponder ready to start car.

For programming of Keys or Transponders of Audi A8/VW Touareg/VW Phaeton/Porsche Cayenne/ Bently Continental you need to read eeprom from kessy (93c86 eeprom) and software automaticly prepare key/transponder ready to start car. This is for car up to 2007 year.

For programming of Keys or Transponders of Audi A8/VW Touareg/VW Phaeton/Porsche Cayenne/ Bently Continental you need to read eeprom from kessy (93c86 eeprom) or eeprom from Engine Control Unit and software automaticly prepare DEALER key/transponder ready to start car. This is for car 2007 and 2008 year.

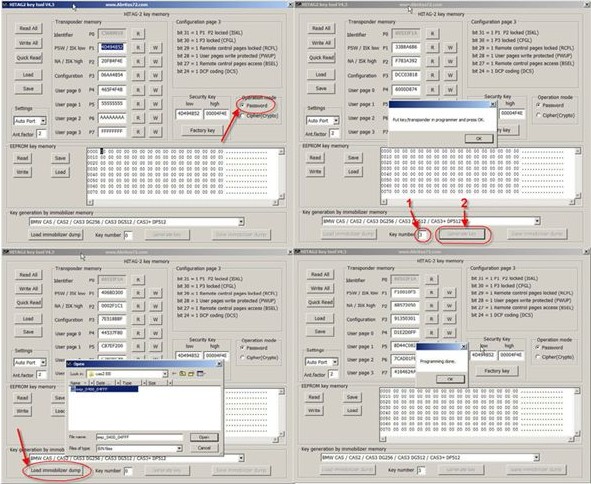

Attached picture is EXAMPLE how to programm transponder - BMW E60 with CAS2.

First you must Read eeprom dump from CAS2 ( you can use any programmer )
1. If you use Transponder you must switch Operation mode in PASSWORD. If you use key you must switch Operation mode in Crypto.
2. Push button - Load immobilized dump and choose readed eeprom from CAS2.
3. Next step is to write what number of key you want to programm in CAS2 ( in this example is Key number 3) after push button Generate key and Hitag2 programmer programm Transponder ( or Key).
4. After finishing programming you see message : Programming done

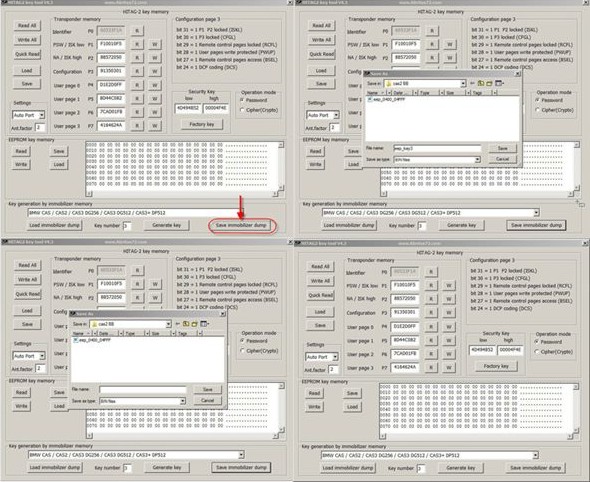

5. After successcull programming of transponder or key you must push button - Save immobilizer dump
6. Write new name of modify by software dump.
7. Save this new dump and programm in CAS2

Now you can start car with this transponder.

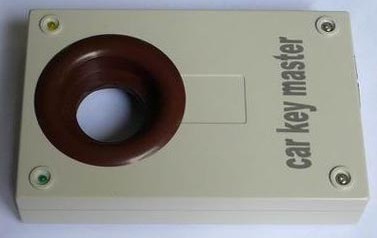

CAR KEY MASTER(GAMBIT)



Supported transponders:

transponder type	Read	Write
PCF7930	YES	YES
PCF7931	YES	YES
PCF7935	YES	YES
PCF7936	YES	YES Note 2
EML	YES	YES
MEGAMOS	YES	NO Note 1,3,5
TEMIC 11	YES	NO Note 1,5
TEMIC 12	YES	NO Note 1,5
T5	Note 4	YES

Note 1. Transponder is OTP (One Time Programable).
Note 2. Password Mode.
Note 3. Transponder can be emulated on PCF7935.
Note 4. Transponder can be read after its configuration (as Temic11-12, Megamos)
Note 5. Transponder can be copied (cloned) into T5 transponder

Key Makers:

Alfa Romeo 1996 with 93C46 eeprom v.1 (Compatible also for Alfa Romeo 33)
Alfa Romeo 1999 with 93C46 eeprom v.2
Audi immobox 4A0953234 eeprom 93C46
BMW EWS1 immo
BMW EWS2 immo
BMW EWS3 immo

BMW ALL IMMO MODELS:
Bmw-EWS1 immo
Bmw-EWS2 immo
Bmw-EWS3 immo
Bmw-EWS4 immo
Bmw-CAS (CAS1)
Bmw-CAS2
Bmw-CAS3
Citroen Evasion with eeprom 93C66
Dachia Supernova Sagem immobilizer
Daewoo Nexia
Daewoo Espero
Fiat Brava, MC68HC908AZ32
Fiat Bravo, eeprom 93C46.
Fiat Bravo, MC68HC705E6
Fiat Cinquecento, eeprom 93C46
Fiat Ducato, eeprom 93C46.
Fiat Palio, MC68HC705E6
Fiat Punto eeprom 93C46
Fiat Scudo, motorola
Ford Galaxy box-case immo TMS-based
Ford Galaxy box-case immo Motorola-based
Ford Probe 96-97
Honda Shuttle, eeprom 93C46
Honda Civic, eeprom 93C46
Honda Civic, eeprom 93C46 2003
Honda CRV eeprom 93C46
Mercedes Benz set for cars with transponder-type key.
Compatible to 129, 140, 210, S300 S320, S420, S500, E290, Vaneo, A-160, etc.
Supported immobilizers:
motorola maskset 0D53J
motorola maskset 0D69J
motorola maskset 0D66J
Mercedes ML-seria AAM-based
Mercedes ML-seria EAM-based
Mercedes Actros (93C86)
Mercedes Actros (93C66)
Mercedes Atego (93C86)
Mercedes Atego (93C66)
Mercedes Actros
Mercedes Sprinter
Mercedes Vito
Mitsubishi Carisma witth 93C46 eeprom
Nissan NATS-2 immo
Nissan NATS-4 immo
Opel Motorola based
Opel TMS based
Opel Movano 2000, eeprom 93C46
Opel Frontera, eeprom 93C46
Peugeot motorcycle Spedfight2 Motorola MC68HC05B8 based
Peugeot 306 (eeprom M95040)
Peugeot 406 (Valeo, eeprom 93C46)
Peugeot Boxer (eeprom 93C46)
Peugeot Partner (eeprom 93C46)
Peugeot Squab
Renault Clio (Sagem immobilizer, eeprom 93C46)
Renault Kangoo up to 2002 Sagem immo
Renault Laguna 1998, eeprom 93C46
Renault Master, eeprom 93C46
Renault Laguna 1998 Valeo immo
Rover 75
Seat Alhambra (7M0 953 257 F) Motorola maskset 3D33J
Subaru Legacy. Motorola maskset 0F10V
Subaru Impreza. Motorola maskset 3D33J
Subaru Outback. Motorola
Volvo 850 (eeprom 93C46)
Volvo V70 (eeprom 93C56)
Volvo V70 (eeprom 93C66)
VW box-case immo Motorola MC68HC05B6 based
VW box-case immo TMS-based
VW box-case immo 6x0 953 257

Image dump generators :
Type 44
Audi A8 2003?006
VW Touareg
VW Phaeton
BMW E60
BMW E64
BMW E65
BMW E87
Porsche Cayenne
Citroen Xsara Picasso 2000?004
Citroen C3 2004
Peugeot 307 2004
Opel fixed code
Mitsubishi (PCF7936)

Pin calculator :
EDC16 (eeprom 95320 / 25C320) and BoschMotronic (eeprom ST95P08)
List of car equipped with these ECUs:
AUDI A3, A4, A6, A8
VW Golf 4, Touran, Touareg, Phaeton, Caddy
SKODA Octavia II

SEAT Leon, Toledo

Available languages - English


Key generation from dump is available for the following cars:
1. BMW (CAS1/2/3/3+)
2. AUDI (KESSY)

3. VW (KESSY)

4. PORSCHE (KESSY)

5. BENTLEY (KESSY)

6. CHRYSLER (SKIM)

7. LAND ROVER (EWSх)

8. NISSAN (NATS)

9. OPEL (CIM)

10. RENAULT (UCH)

11. SAAB (CIM)
