V-checker T501 TPMS Tire Pressure Monitoring System Tire External Sensor Bluetooth Outside

Features:

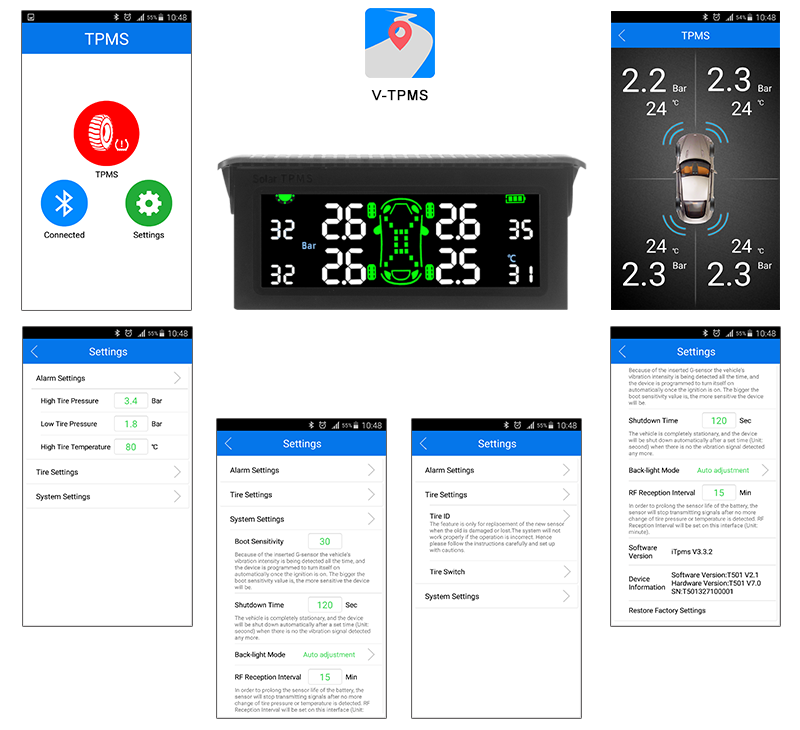

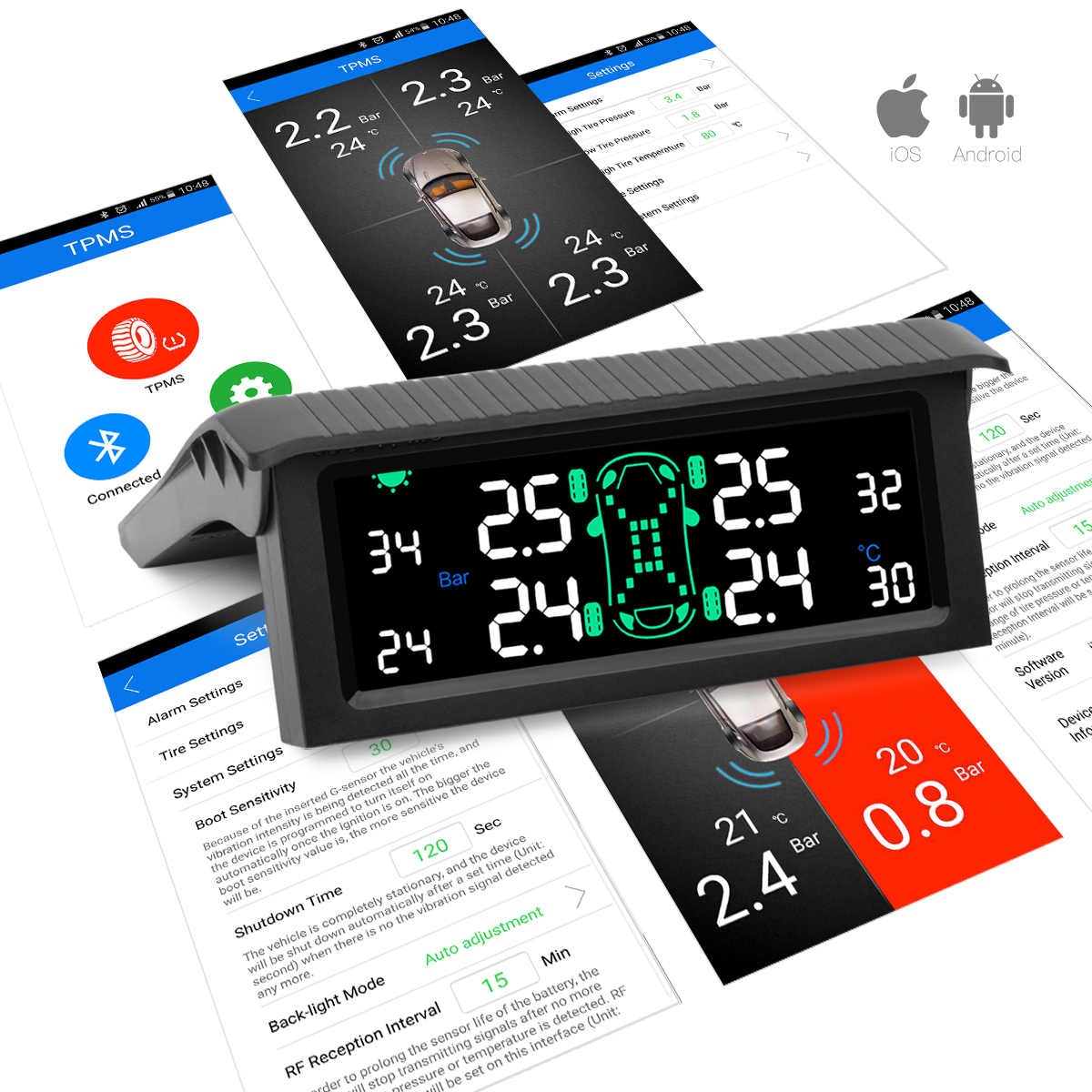

1.80% driving accident comes from abnormal tire pressure.The T501 TPMS dynamically monitors tire pressure, which can prevent puncture and damage of car parts caused by flat tire. Improve fuel efficiency, prolong tire life, increase traffic safety and avoid abnormal wear of vehicle parts. Adopting Infineon solution, the device mainly consists of 4 tire sensors modules and monitoring the vehicle tire status and showing all related information such as tire pressure & temperature in real time. through blue-tooth, The device can be connected with your intelligent mobile phone via our self-developed Android and iOS Apps available in Google Play and App Store.

2.4" LCD Screen and Brilliantly Colorful Display. Witch the inserted G-sensor, the device is automatically activated once the ignition is on, and turns itself off when the engine stalls. Smart Sleeping Mode for Energy Conservation.

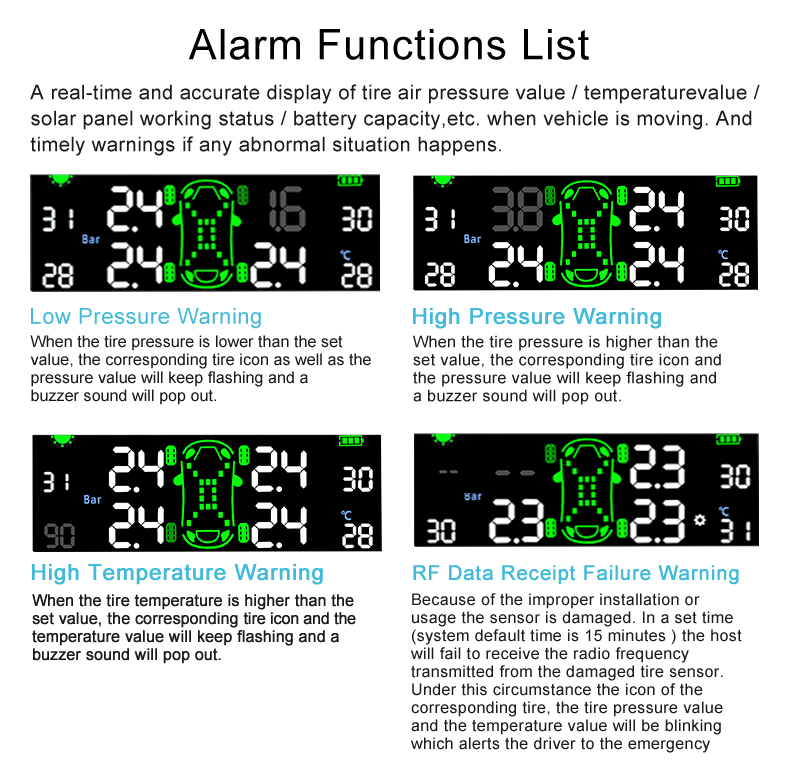

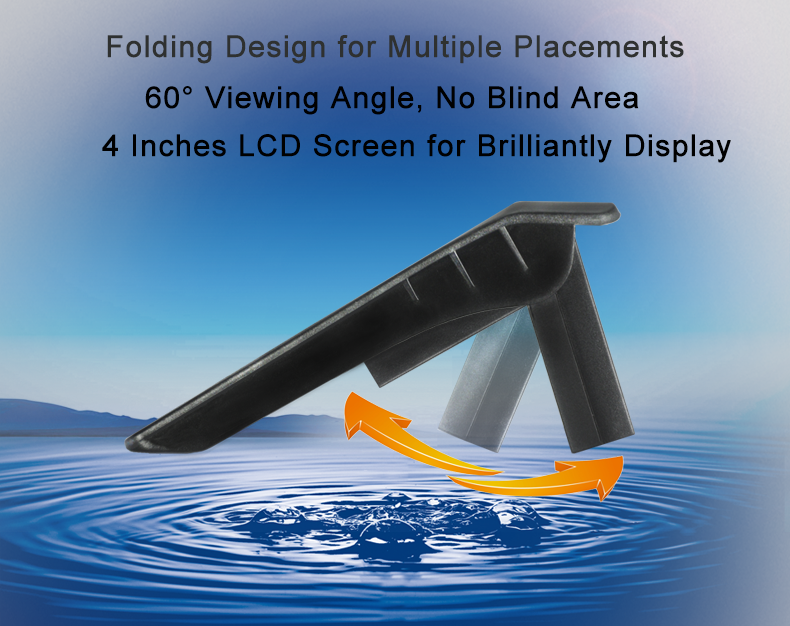

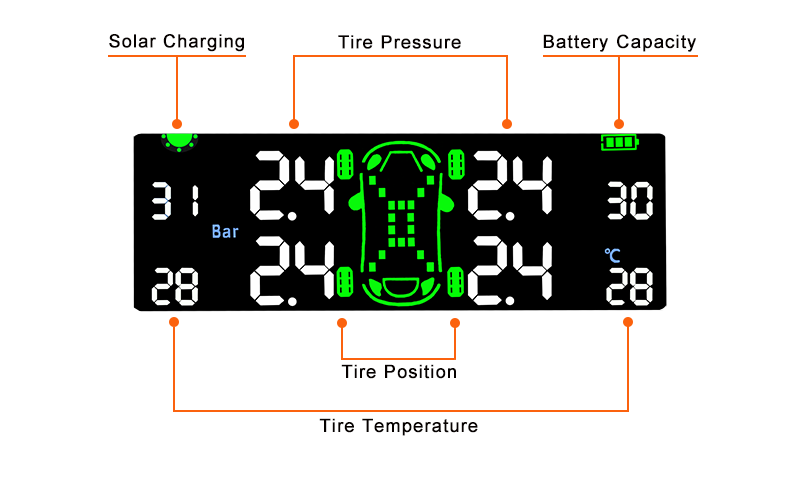

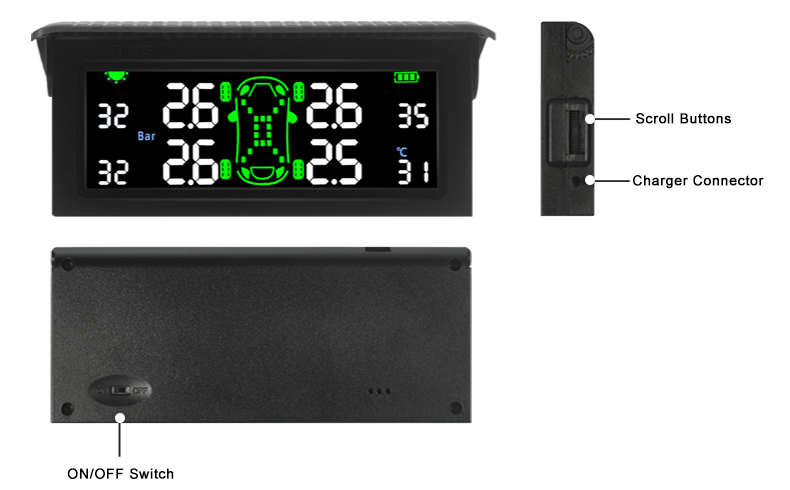

3.A real-time and accurate display of tire air pressure / temperature / solar panel working status / battery capacity, etc, timely warnings if any abnormal situation happens. Multiple Placements - On Dashboard or On Windshield. Flexible Adjustment of Viewing Angles and No Visual Blind Area.

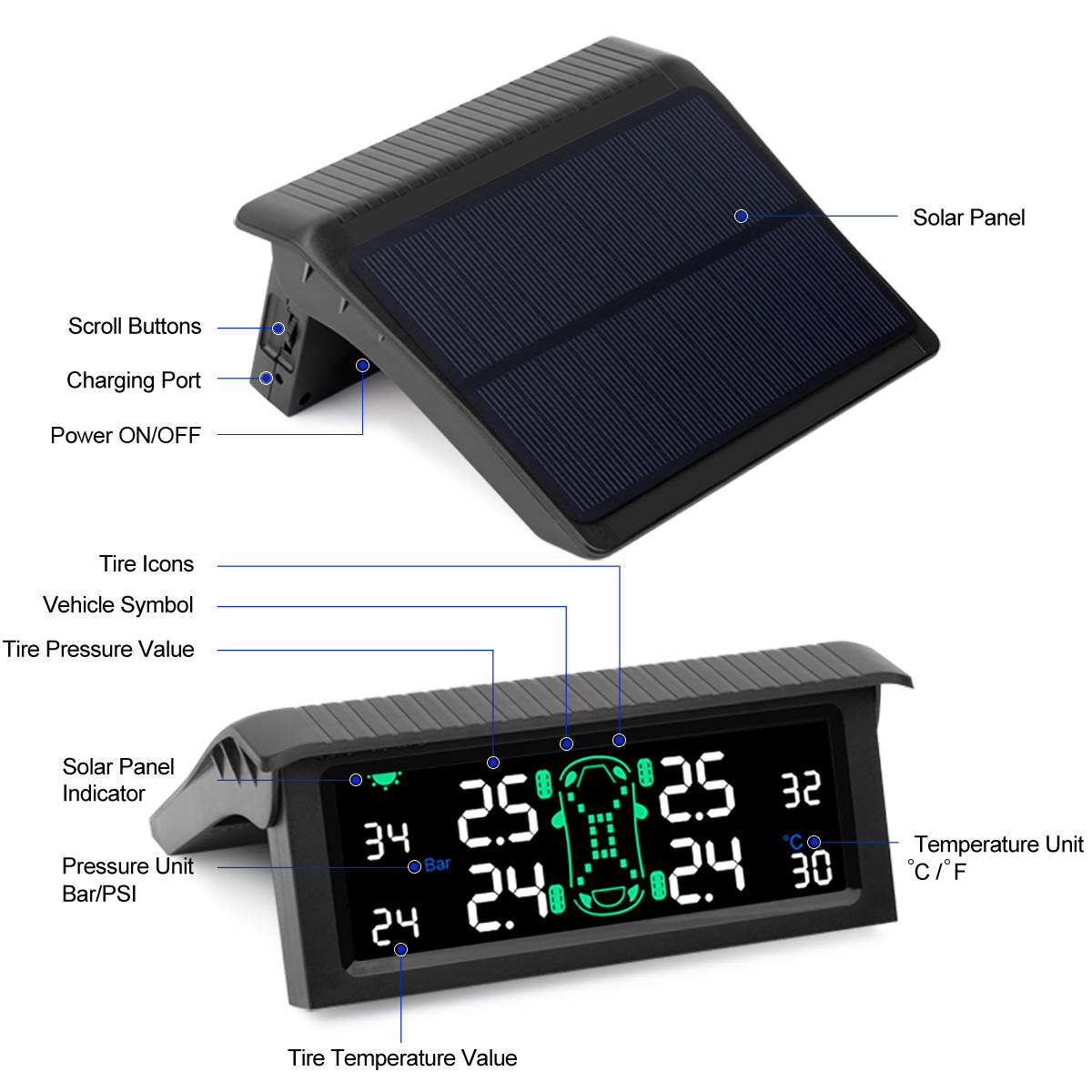

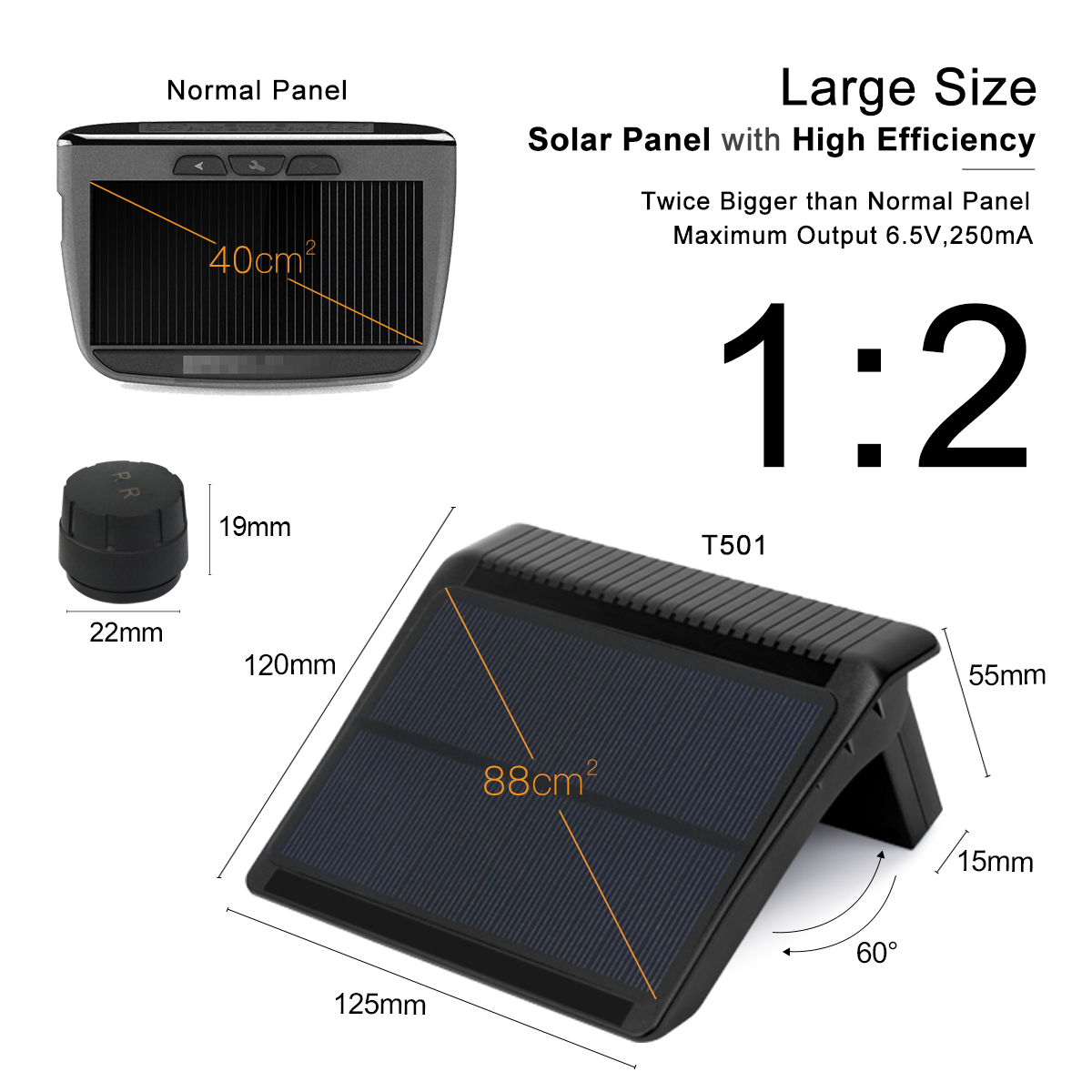

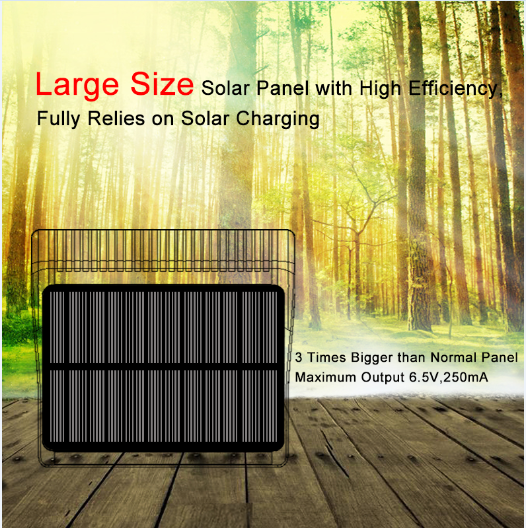

4.Large size solar Panel with high efficiency, fully relies on solar charging. Explosion-proof battery built-in, high and low temperature resistance. Battery capacity 2000mAH, Once fully charged the endurance can support continuous Usage for 60 days. No need to occupy the cigar lighter.

5.All models for: all kinds of cars, off-road vehicles, SUV, commercial vehicles, MPV, etc.

DO YOU KNOW ?

20% under-inflation reduces tire lifetime by 30%;

30% over-inflation reduces tire lifetime by 45%;

30% pressure lower looks like proper inflated tire

So you need a V-checker® T501 TPMS to monitor tire dynamic pressure, warn early of abnormal tire pressure, improve fuel efficiency, increase tire life and traffic safety.

Specifications:

Host  Parameters
Dimensions	118 x 130 x 20 (mm)
Operating Frequency	433.92MHZ
Operating Voltage	3.5 - 6.0 VDC
USB Charging Current	≤ 600mA
Operating Environment Temperature Range	-20 - 85℃
Sleeping Mode Current	< 1mA
Environment Temperature Range for Long-term Storage	-20 to 85℃(-22 to 158℉)
Monitoring Air Pressure Range	0.0 - 4.0 Bar
Supported Bluetooth	Bluetooth 4.0 Version or Above
Monitoring Temperature Range	-20 - 85℃(-4 to 185℉)
Battery Capacity	2000mAH
Solar Charging Time	4Hours
Operating Environment Humidity Range	0 - 100%
Weight	Approx 0.2 Kg
Tire Sensor (External)  Parameters
Battery	3V Imported Lithium Battery
Sensor Chip	Infineon
Operating Environment Humidity Range	0 - 100%
Operating Environment Temperature Range	-55 - 125℃(-67 to 257℉)
Air Pressure Range	0.0 - 4.0Bar
Radio Frequency	433.92MHZ
Transmitting Power	≤ 5dBm
Pressure Display Accuracy	0.1Bar
Temperature Measuring Accuracy	2℃(35.6℉)
Weight	Approx 9 grams
Batter Life	2-3 Years(depending on the actual usage conditions)

Package Specifications:

l Dimensions: 255 * 130 * 78 (mm)

l Weight: Approx 0.42Kg

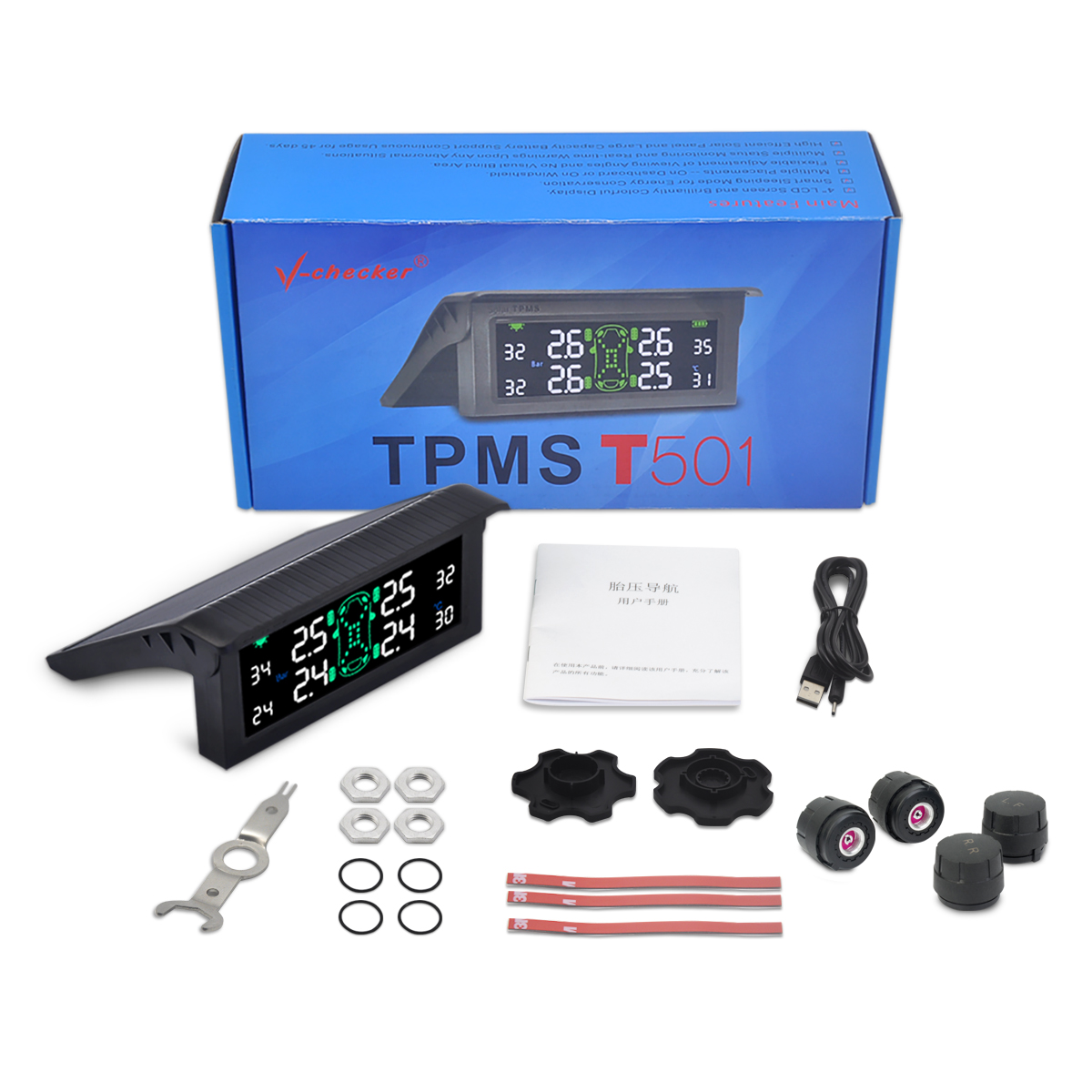

Package Contains:

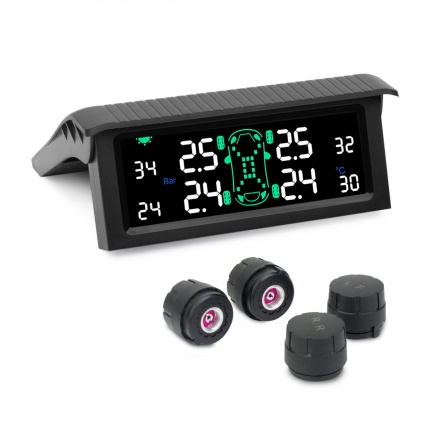

1 x T501 Main Unit

4 x Tire External Sensor

1 x USB Charge Cable

4 x Adhesive Tape

4 x Anti-theft Hex Nut

1 x Spanner for hex nut

4 x Spanner for sensor cap

1 x User's Manual

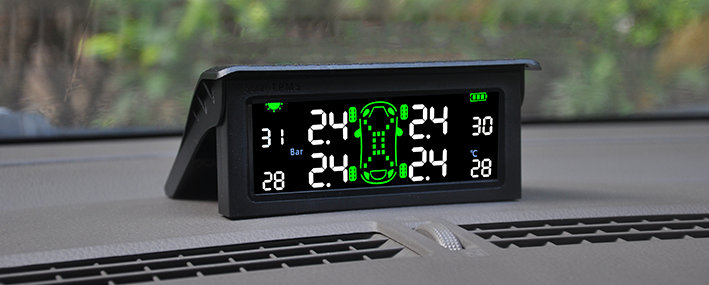

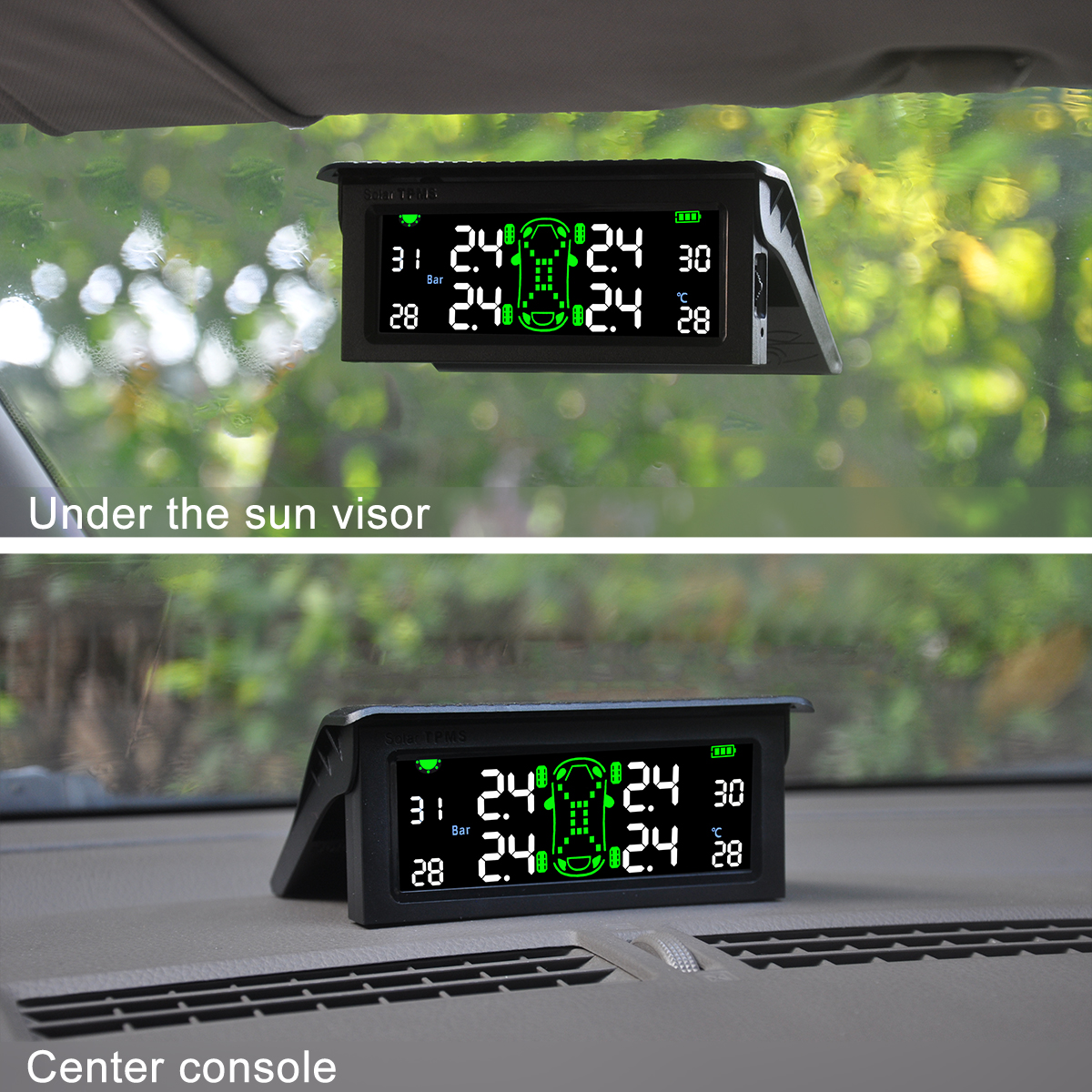

Placement A: On the Middle of the Central Console

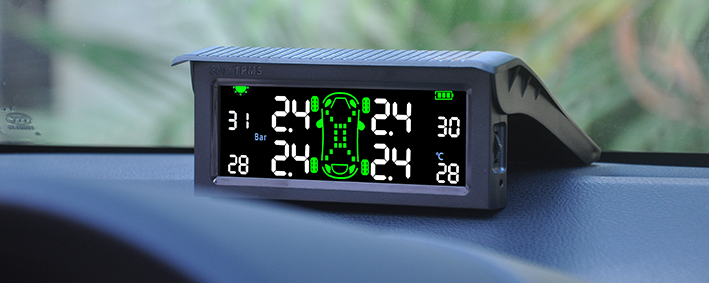

Placement B: On the Central Console, Right in Front of the Driver

Placement C: On the Windshield, Left Front Side of the driver, Near the A Pillar

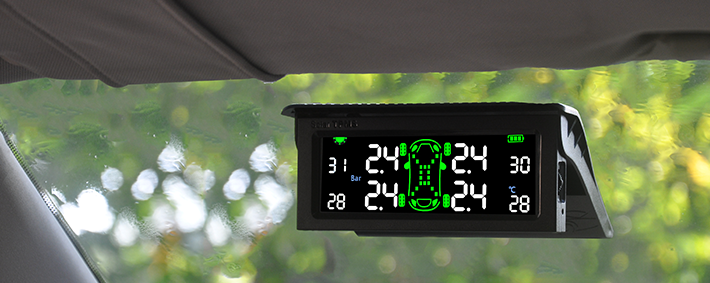

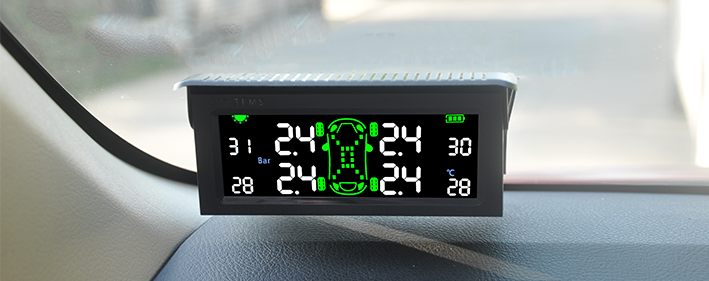

Placement D: On the Windshield, Below the Sun Visor

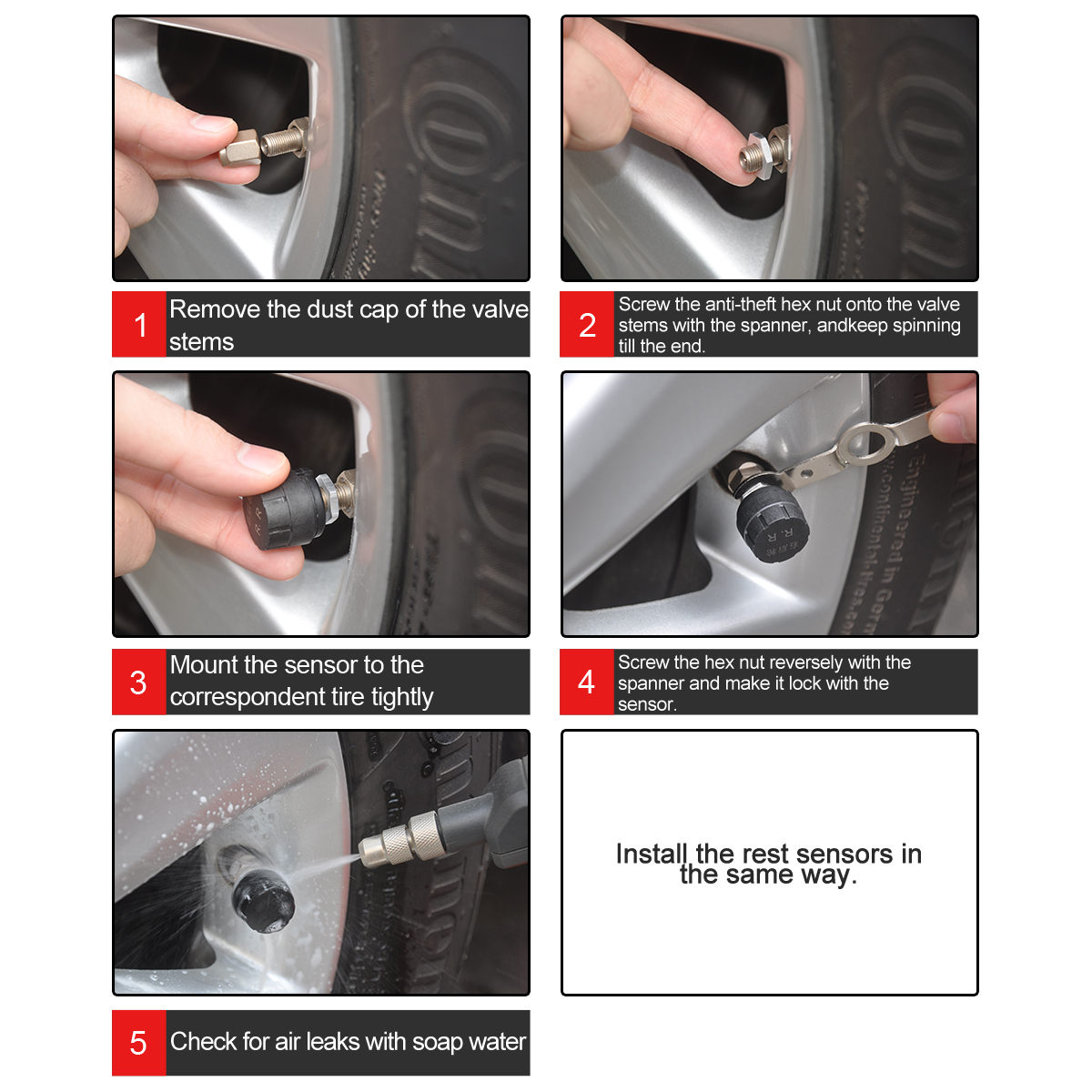

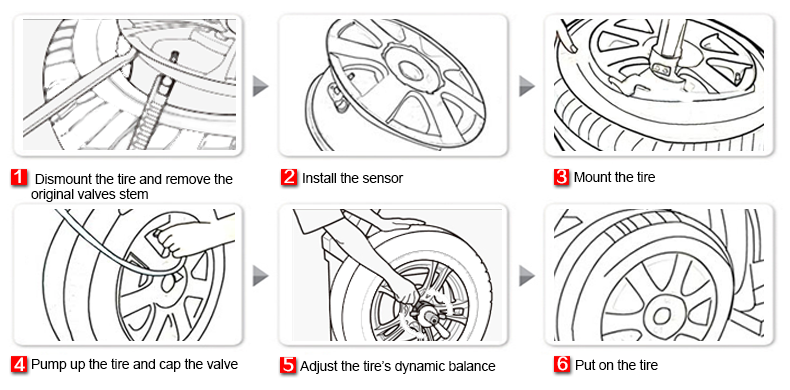

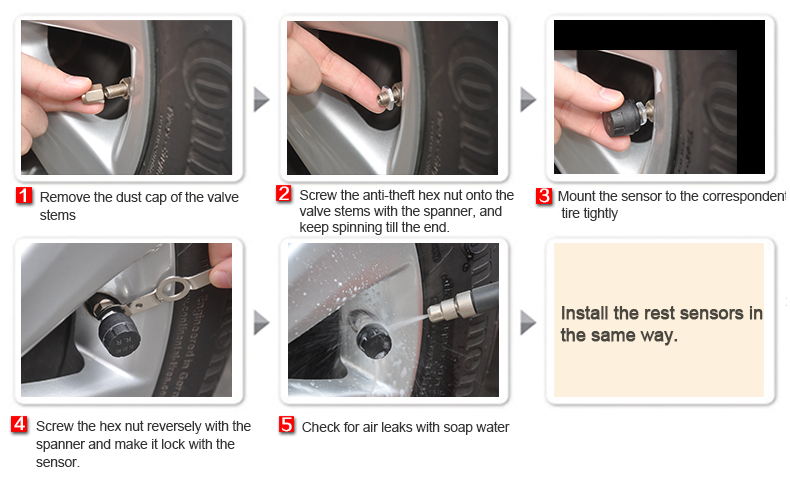

Installing And Setting Up the Tire Sensor

Tire Sensor (External)

Tire Sensor (Internal)
