V2.0.0.11 Diatronik SRS+DASH+CALC+EPS OBD Tool Support All Renesas and Infineon via OBD2

Latest software version: 2.0.0.11

Language available: English, Russian…..

Operating System:  Windows 7, Windows 10

The Diatronik cable now updated to genuine ELS27 interface from Russia (FULL Chip STN2120).

For Airbag reset it support all renesas and infineon via OBD2:

1. Support and Adoption: Renesas
R5F61797, RF61725, R5F61723, R5F61721, the model in the computer are assembled as follows: Toyota, Honda, Subaru

2. Support and Adoption:
XC2060N-40F,XC2060M-104F,XC2336B-24F,XC2336B-40F,XC236
1A-56F,XC2361A72F,XC2361E72F,XC2363A-56F,XC2363A-72F,XC2364A-56F,XC23
64A-72F,XC2364A-104F,XC2365A-56F,XC2365A-72F,XC2365A-104F,XC2361B-24F,XC2361B-40F,XC2363B-24F,XC2361B-40F,XC2364B-24F, XC2364B-40F,XC2365B-24F,XC2365B-40F,
The model in the computer are assembled as follows: Nissan, Suzuki, Hyundai, Ford, Mazda, Land Rover, Jaguar, GM. 20 seconds of read and write. It is the fastest reading speed worldwide.

3.Support and Adoption: Freescale
MPC5604P(0M26V)(1M36W)the model in the computer are assembled as follows:Honda

4. Support and Adoption: ST
SPC560 the model in the computer are assembled as follows:Volkswagen

5. Support and Adoption: CPU
ATMEGA169, ATMEGA32, ATMEGA16, ATMEGA8, ATMEGA88, ATMEGA48. The instrument model tune number of kilometers

Car list:

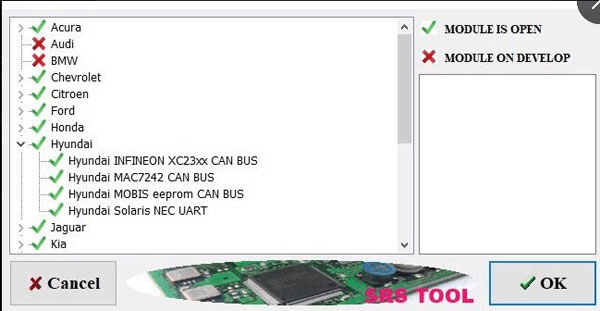

SRS TOOL
Acura----Acura Renesas H8SX CRASH Reset
Citroen---Citroen SRS V850 D70F3624 UART

Ford:
Ford FOCUS 2 CRASH RESETER CAN BUS
Ford Renesas RH850 SRS Tool
FORD SRS INFINEON XC23xx CAN BUS
Ford SRS K-Line OBD2

Honda:
Acura Renesas H850 SRS Tool
Hyundai
Hyundai INFINEON XC23xx CAN BUS
Hyundai MAC7242 CAN BUS
Hyundai MOBIS eeprom CAN BUS
Hyundai Solaris NEC UART

Jaguar
Jaguar SRS INFINEON XC23xx CAN BUS

KIA
KIA INFINEON XC23cc CAN BUS
KIA MAC7242 CAN BUS
KIA MOBIS eeprom CAN BUS
KIA SPC560 UART
LAND ROVER
Land Rover SRS INFINEON XC23xx CAN BUS

MAZDA
Mazda 3 CRASH Reseter CAN BUS
Mazda SRS INFINEON XC23xx CAN BUS

Nissan
Nissan INFINEON XC23xx CAN BUS Ver.1
Nissan INFINEON XC23xx CAN BUS Ver.2

Peugeot
Peugeot SRS V850 D70F3624 UART

Renault
Renault Logan Crash Reset K-LINE(Temic)
Renault Megane III/Fluence/Scenic III(CAN BUS)
Renault SPC560 Crash Reset CAN(Continental)

Subaru
Subaru Denso H8SX/1725,1721 256kb(2012-)
Subaru Denso H8SX/1797 512kb(2012-)
Subaru Denso H8SX K-Line Reset(2012)

Suzuki
SX4 SPC560 Crash Reset CAN(Continental)

Toyota
Toyota Denso H8SX/1725,1721   256kb
Toyota Denso H8SX/1797              512kb
Toyota Fujitsu H8SX/1725,1721    256kb
Toyota Fujitsu H8SX/1797               512kb
Toyota Renesas H8SX UART Tool(GPROG ONLY)

Volvo
Volvo V30-V40 SRS INFINEON CAN BUS

Update:

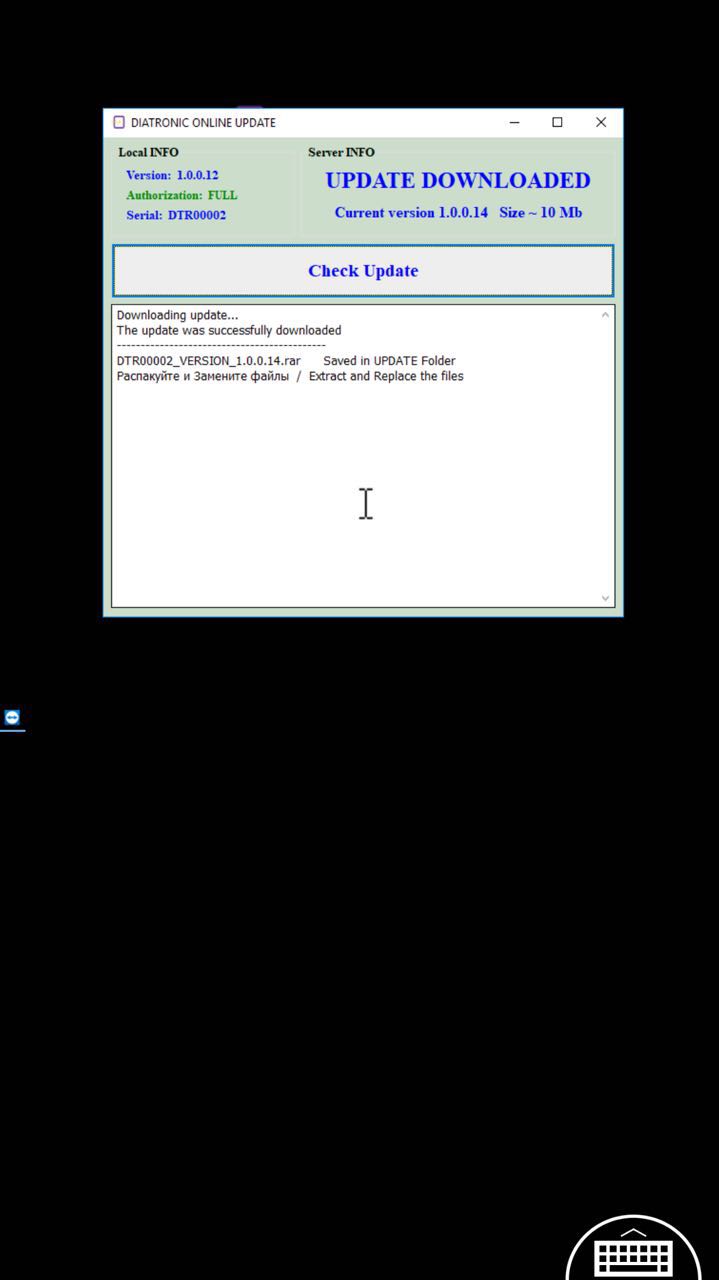

Update online, when the newest version is developed, you will receive prompt to update.

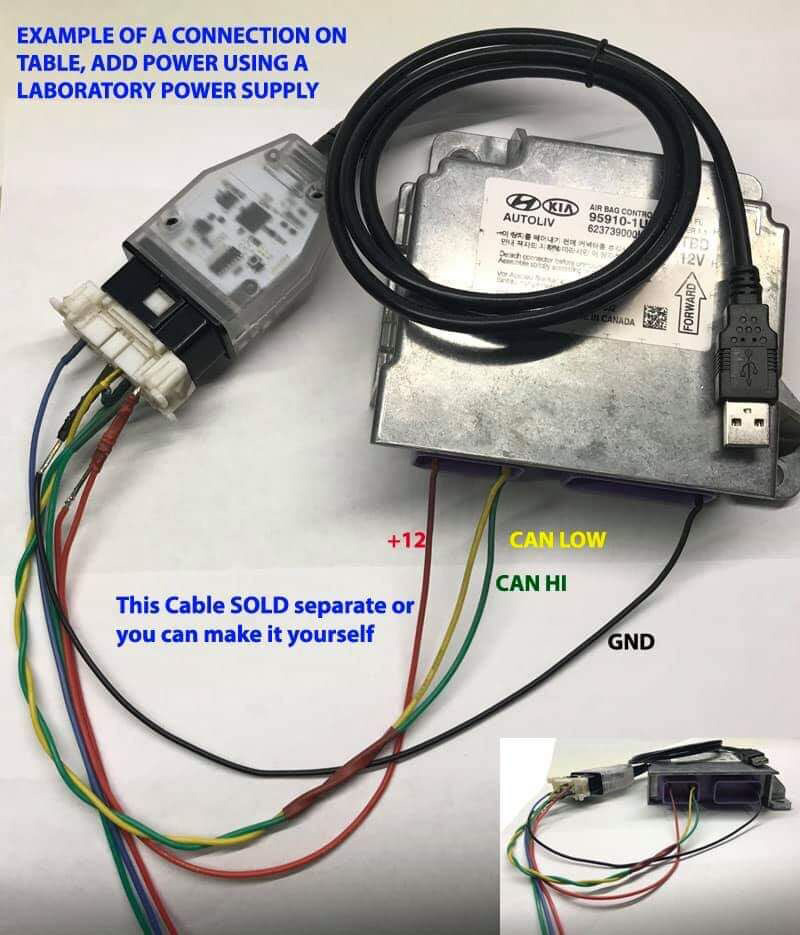

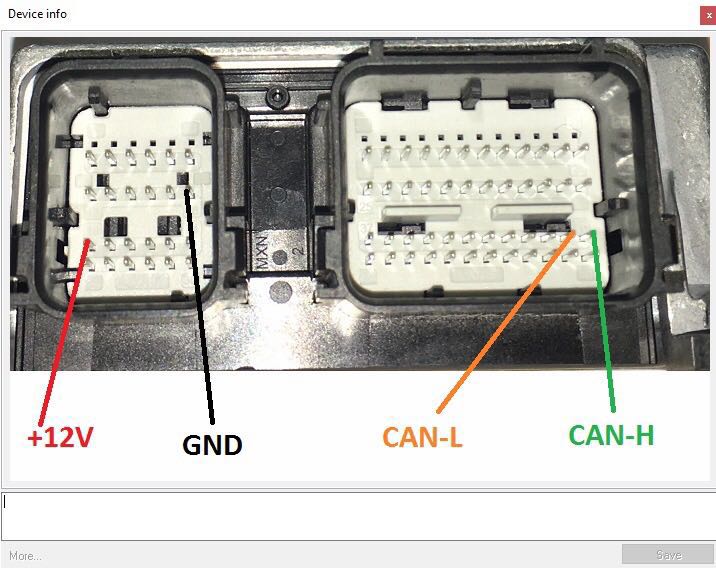

Diatronik SRS+DASH+Calculation+EPS OBD Tool  Connection

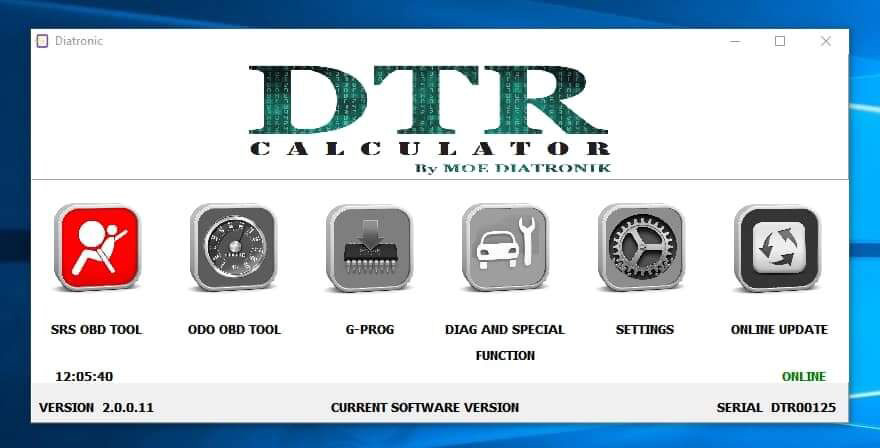

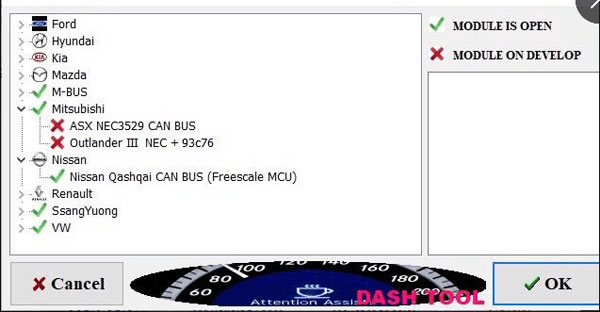

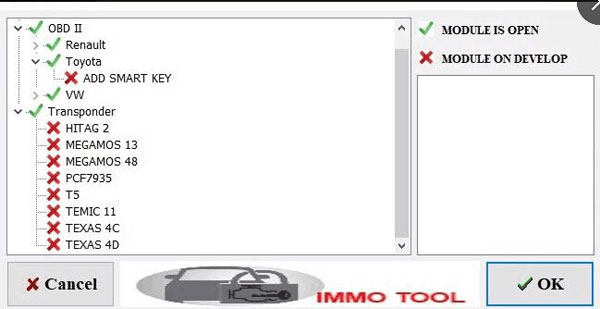

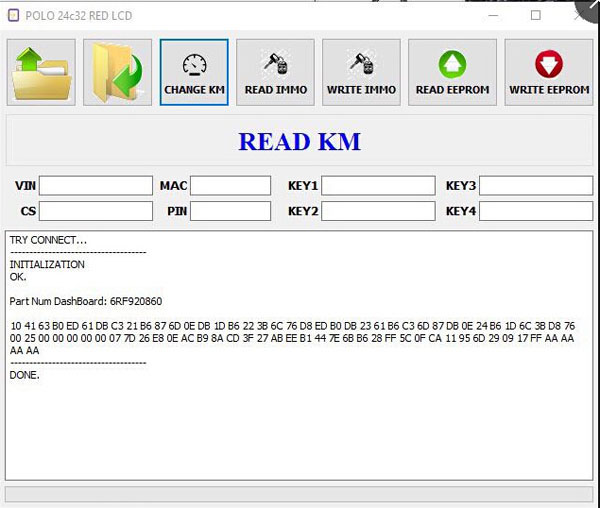

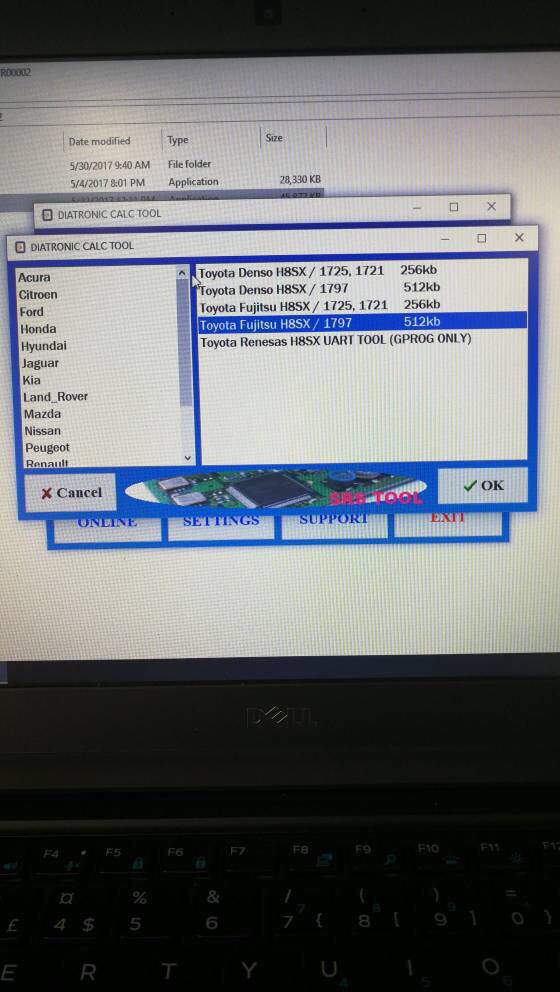

Diatronik Software Display:

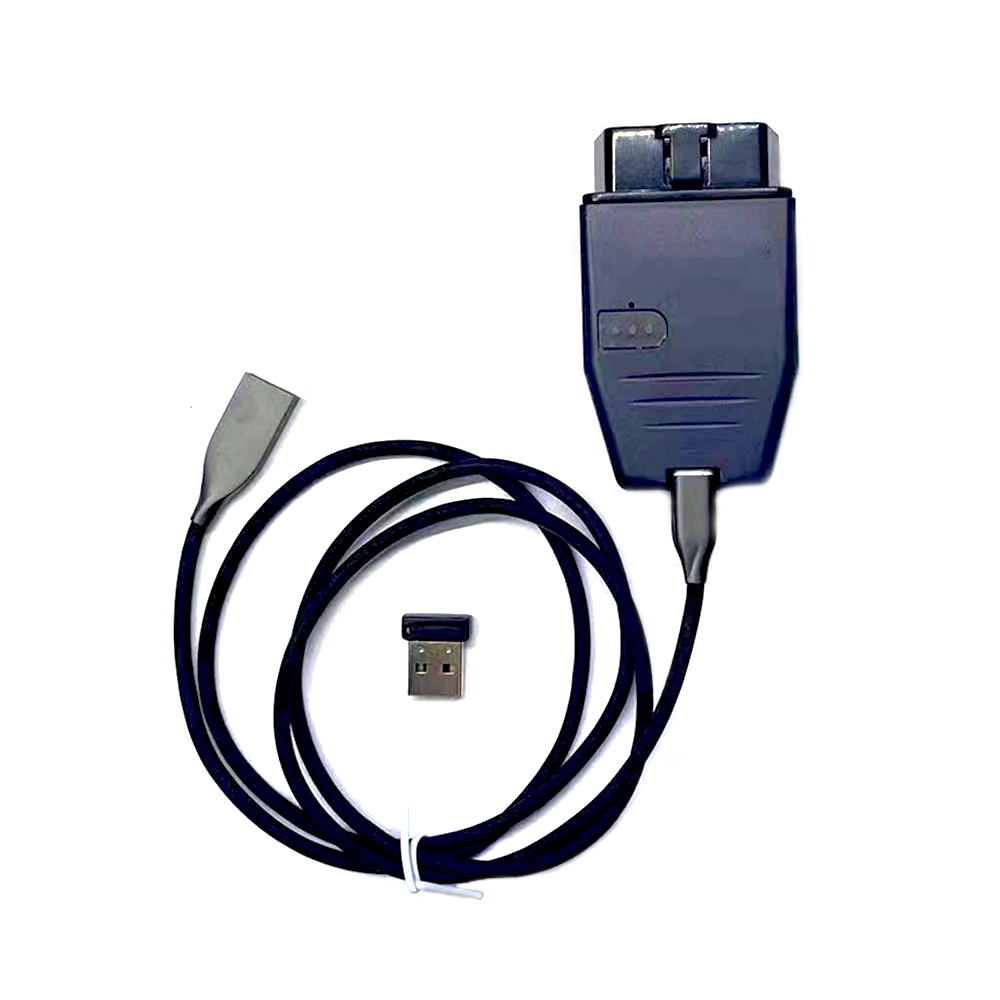

Package including:

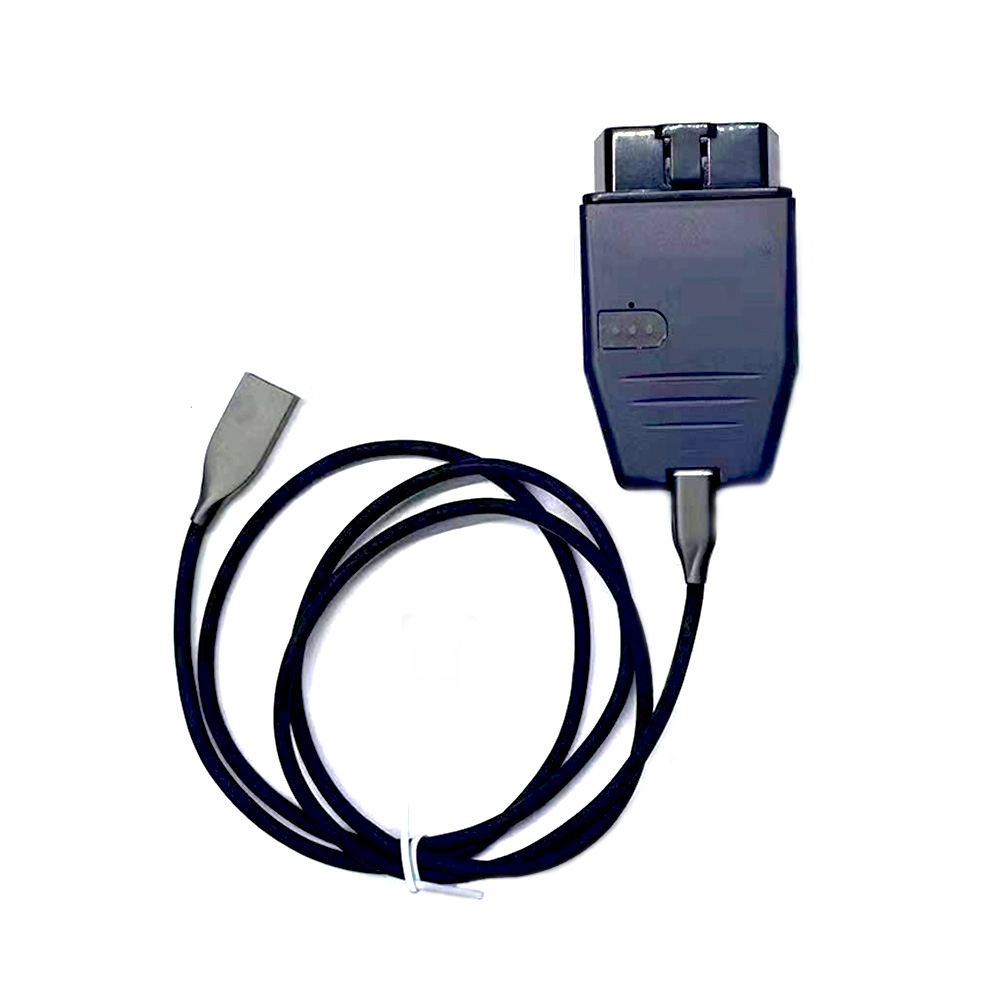

1pc x Diatronik Cable( Origina ELS27)

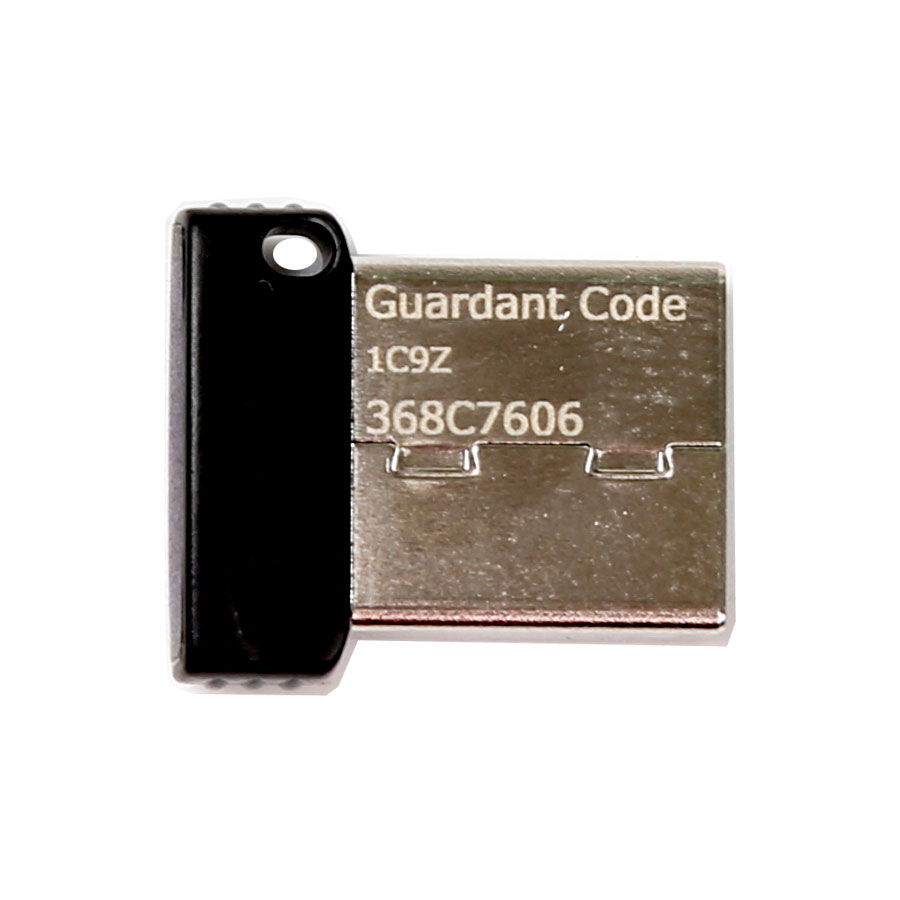

1pc x USB Dongle

(After you receive the parcel,Please provide us the serial number for dongle, we will send you software online）
