Autel MaxiTPMS TS608 TPMS Diagnostic and Service Tool combining with TS601,MD802 and MaxiCheck Pro 3 in 1

1. One-Year Warranty and One Year Free Update Online
2. Combine with TS601,MD802 and MaxiCheck Pro 3 in 1
3. Vehicle Coverage: Compatible with Vehicles 1996 and Newer
4. Mini Bluetooth Vehicle Communications Interface (VCI) for Wireless Connectivity
5. Three Tools in One Tablet: Complete TPMS diagnostics, advanced service features and all systems diagnostics
6. Embedded Antenna for TPMS Sensor Activation and MX-Sensor Programming to Replace Damaged Sensors

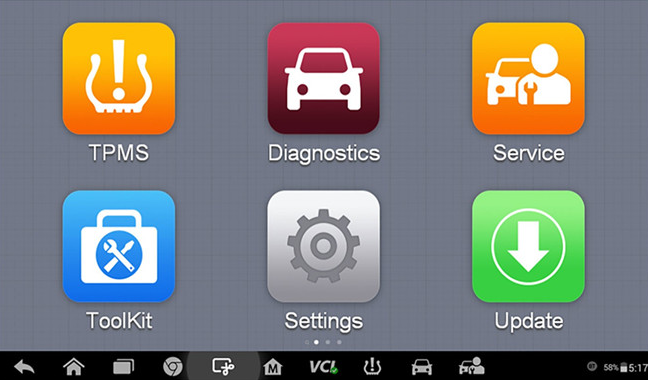

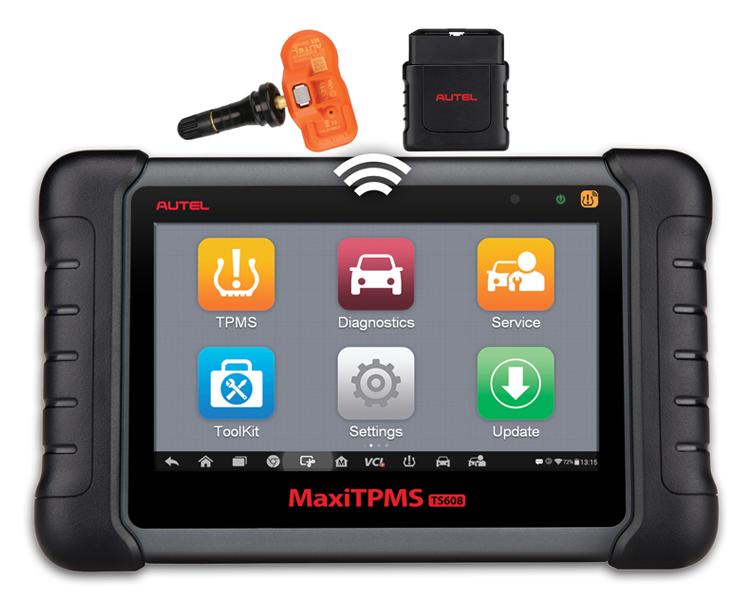

COMPLETE TPMS & ALL SYSTEM SERVICE TABLET TOOL

As the first comprehensive TPMS & Diagnostic tool in the market, MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.

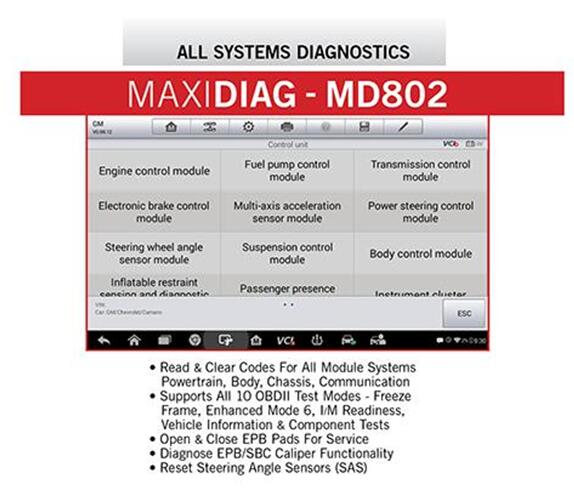

ALL SYSTEMS DIAGNOSTICS
1.Read/clear codes for all available electronic systems;
2.Turn off warning lights;
3.Display live data in text, graph & analog for easy data review;
4.Supports all 10 test modes of the latest J1979 OBD II test specs;
5.Enhanced OBDII Mode 6;

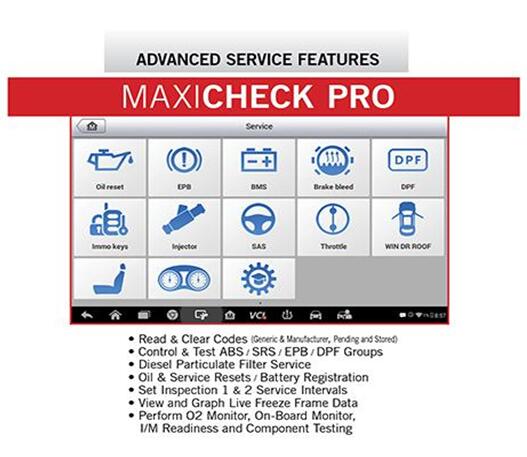

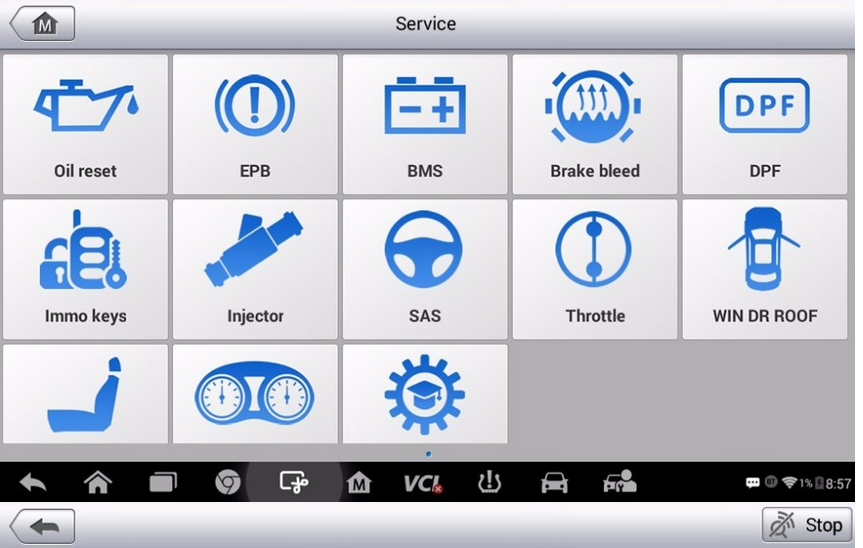

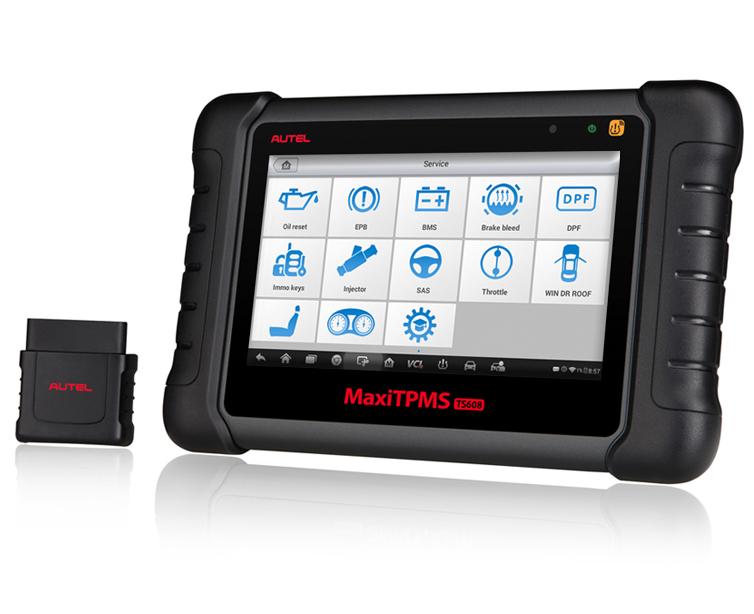

ADVANCED SERVICE FEATURES
1.Relearn parking brake pad after replacement;
2.Reset Steering Angle Sensor (SAS);
3.Reset service mileage and service intervals;
4.Forced regeneration and adjusting injectors;
5.Support battery registration and reset;
6.Support IMMO functions;

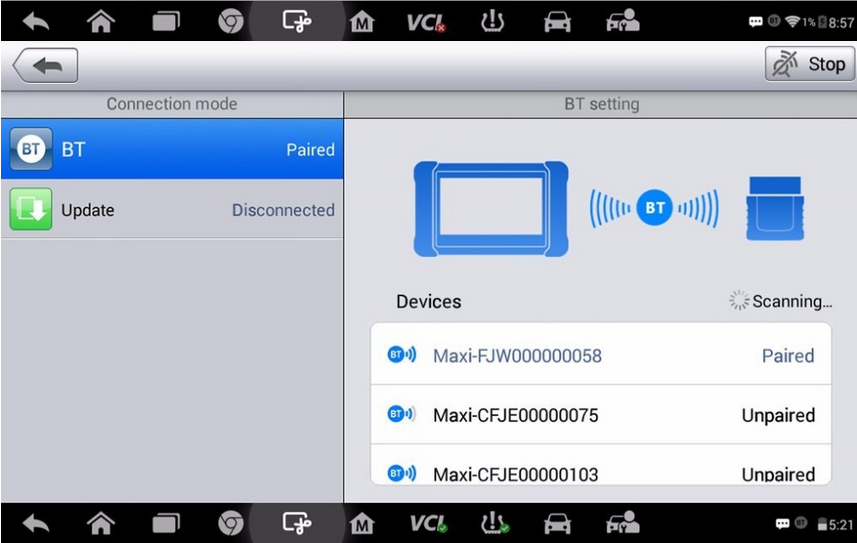

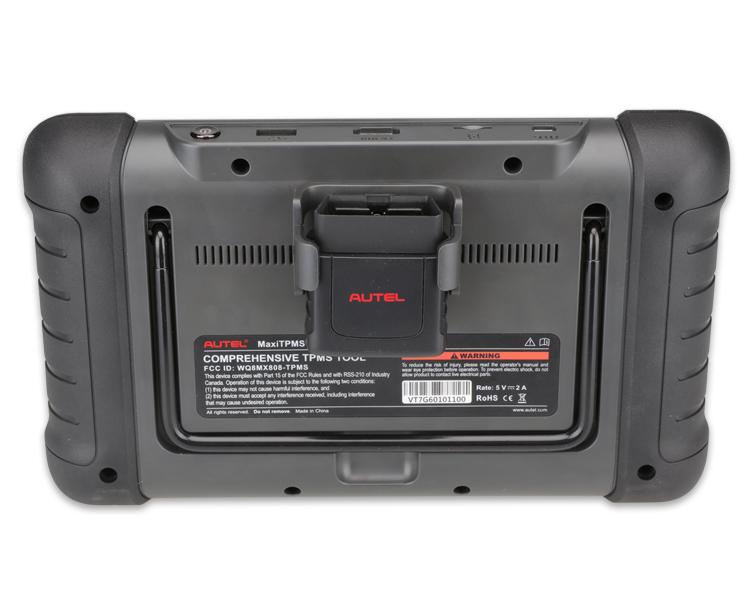

WIRELESS BLUETOOTH MAXI-VCI MINI
The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission

Description：

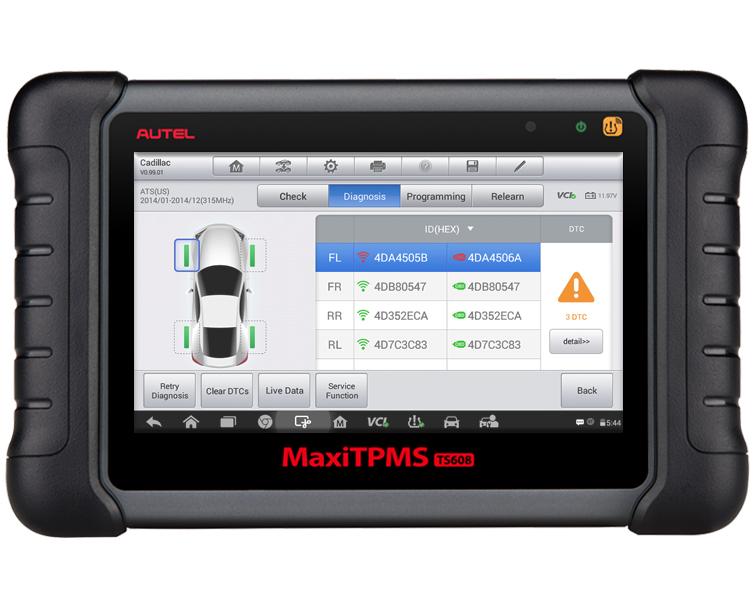

COMPLETE TPMS FUNCTIONS
1.Activate all known TPMS sensors and read sensor status;
2.Diagnose ECU for complete TPMS health check with DTC description;
3.Read DTCs from ECU and erase DTCs;
4.Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5.On-tool relearn procedure and wide OBD relearn coverage;
6.Toolkit, special TPMS functions;

Specifications：

Recommended Use	Indoor
Operating System	Android™ 4.4.2, KitKat
Processor	Cortex-A9 processor (1.6 GHz)
Memory	1GB RAM DDR3 & 32GB ROM
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0; USB 2.0; Wi-Fi; HDMI Type A; Micro SD card slot (supports up to 32GB);
Sensors	Light sensor for brightness auto adjust
Audio input/output	Input: N/A; Output: Beep;
Power and Battery	3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply;
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	-10 to 60°C(14 to 140°F)
Storage Temp.	-20 to 70°C (-4 to 158°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

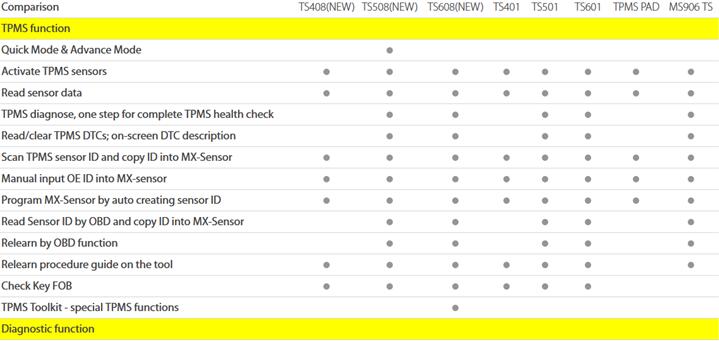

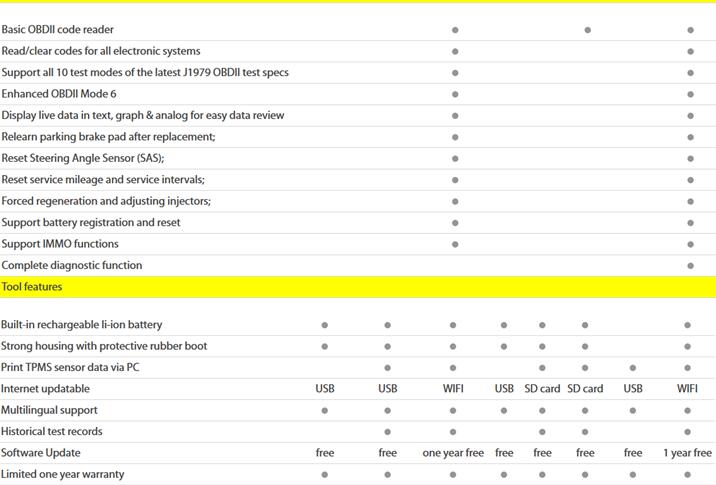

Comparison：

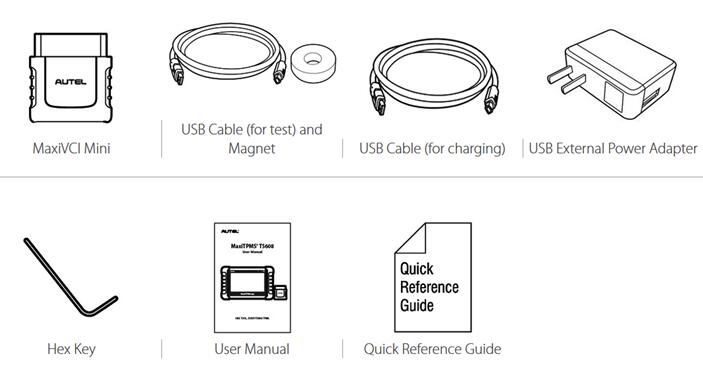

Accessories：

User Comment(Total 8 User Comment Num)

• by Merk Dietmar,Jun 10,2018


  Well got this at a good price. But without having nothing to compare to as far as autel I believe it is decent scan tool. Domestic scan is iffy on if the car is listed or will bepicked up by vin. The tpms is the great feature on it as far as reading and programming to car, but will not program the aftermarket sensors.

  Reply #1 by Vivian Jun 10,2018
  Thanks for your feedback

  Vivian

  ---

• by Michael Neel,Apr 11,2018


  have not registered yet, the item is accurate as description on picture

  Reply #1 by Kelly Apr 12,2018
  Thank you for your feedback. We are looking forward to do business with you again. Thanks!

  Kelly

  ---

• by Tim Hockenbury ,Feb 22,2018


  Received fastly.TPMS service function is very great.

  Reply #1 by Vivian Feb 22,2018
  Thank you for your feedback

  Vivian

  ---

• by Tommy Larsen ,Jan 25,2018


  TPMS function is what I want,and help me read sensor status,good tool

  Reply #1 by Vivian Jan 25,2018
  Thank you for your feedback

  Vivian

  ---

• by Gunnar Karllson,Jan 12,2018


  Is it original tool?

  Reply #1 by Vivian Jan 12,2018
  Hello,yes ,it is.

  Vivian

  ---

• by Mika Sissonen,Jan 05,2018


  IT IS VERY HANDY MODULE SO FAR IT WORKS GREAT FOR MY CARS

  Reply #1 by Kelly Jan 06,2018
  Thank you so much for your feedback. We are looking forward to do business with you again!

  Kelly

  ---

• by Erik Scholtus ,Dec 28,2017


  If your looking for a tpms tool, get this one, if your looking for a scan tool under $1000, get this one. I still grab my modis ultra for diagnostics, it has faster live data, faster loading screens, better recording, better information, and a built in lab scope, but this is a solid backup, I take it with me in the weekends, it is our only tpms and oil service light tool, and worth more than it s price.

  Reply #1 by Kelly Dec 29,2017
  Thank you so much for your feedback. We are looking forward to do business with you again!

  Kelly

  ---

• by Jeffrey van de Laar,Dec 28,2017


  Is there a user manual?

  Reply #1 by Vivian Dec 28,2017
  Hello,you can check the attachment for the user manual in product description

  Vivian

  ---
