Original XTOOL HD900 Heavy Duty Truck Code Reader Replace PS201 Diagnosis

XTOOL HD900 Product Features:

Large easy-to-read Color LCD screen.
Access to generic and manufacturer specific codes.
Easily determines the cause of the “Check Engine Light” (MIL).
Turns off Check Engine Light (MIL), clears codes and resets monitors.
Displays DTC definitions on screen.
Displays real-time Live Data.
Support SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles.

XTOOL HD900 Specifications:

Item	HD900 heavy duty truck diagnostic scan
Screen	3.5’’ TFT-LCD Display
Input Voltage Range	11~36V

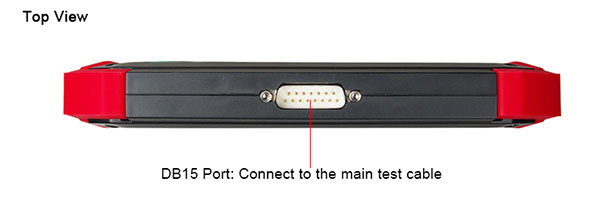

Connection	DB15
Storage	Built-in TF Card (4GB)
Operating Temperature	-20~50℃ (-4~126℉)
External Dimension	7.48’’(L)x3.94’’(W)x1.06’’(H)
Support	SAE J1939(CAN) and SAE J1708/J1587 protocol heavy duty vehicles

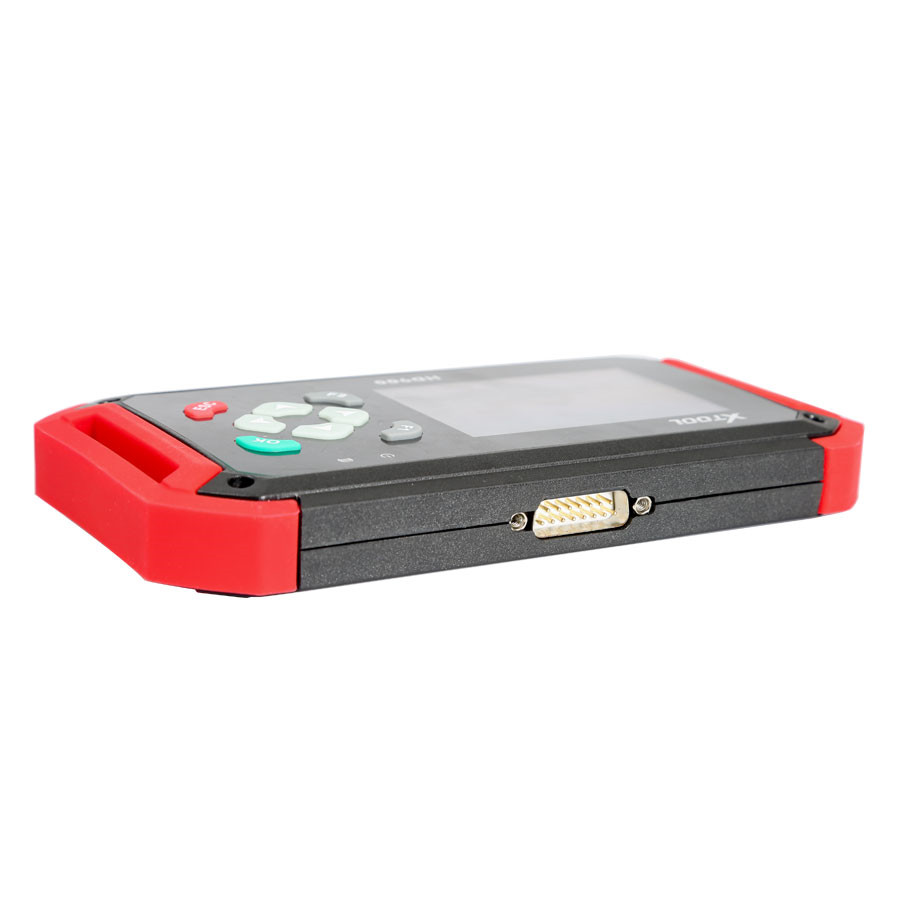

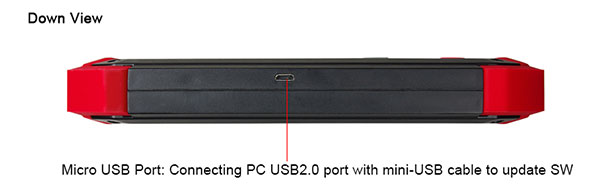

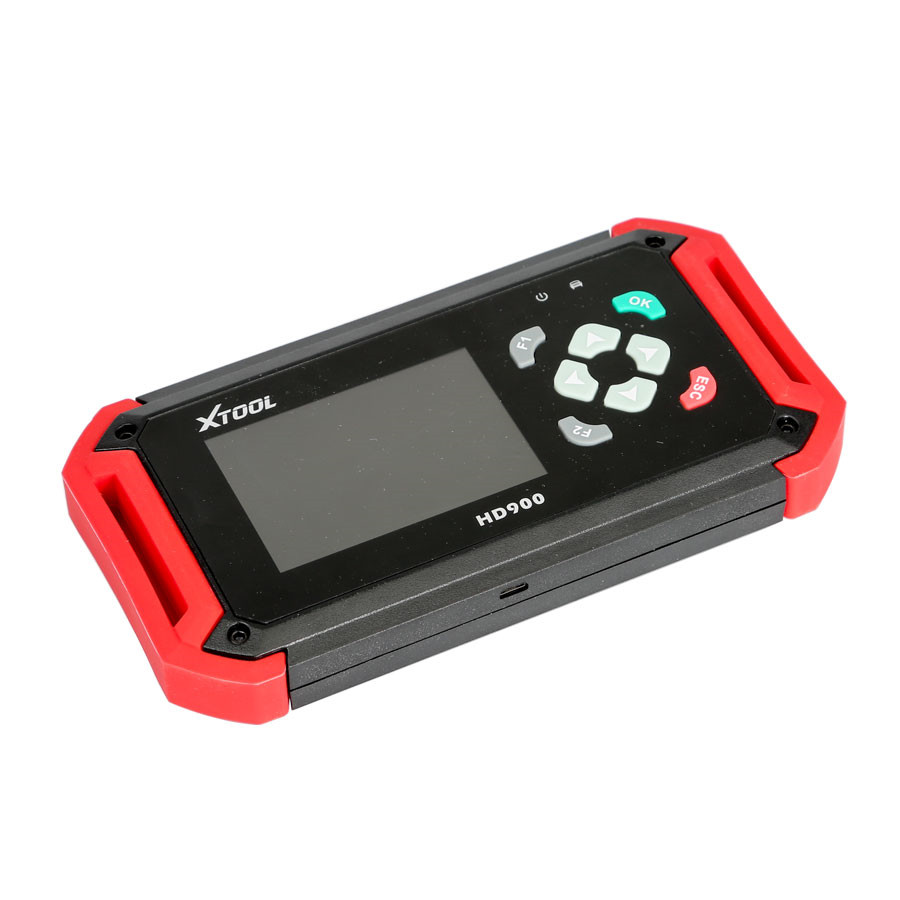

Layout of HD900

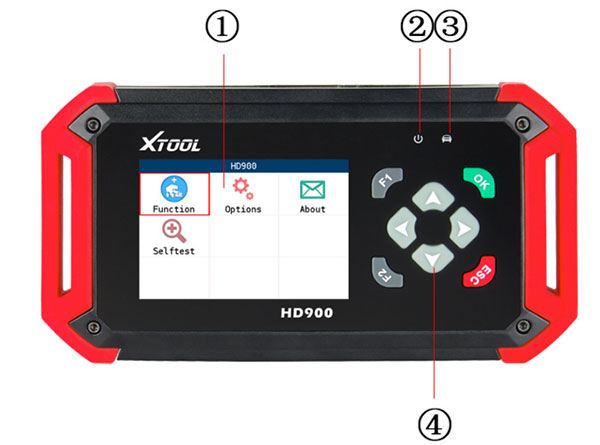

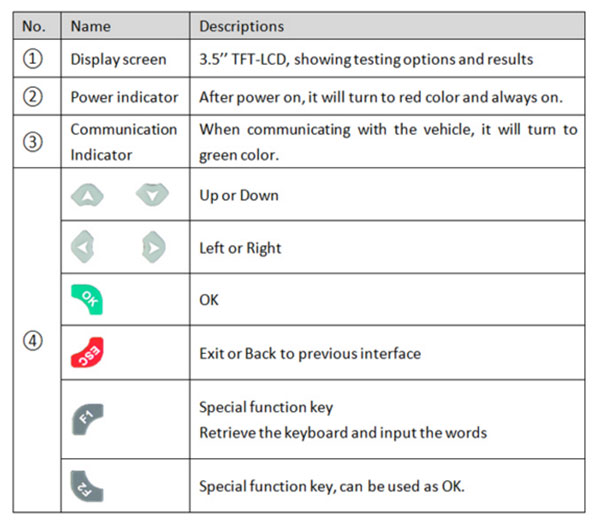

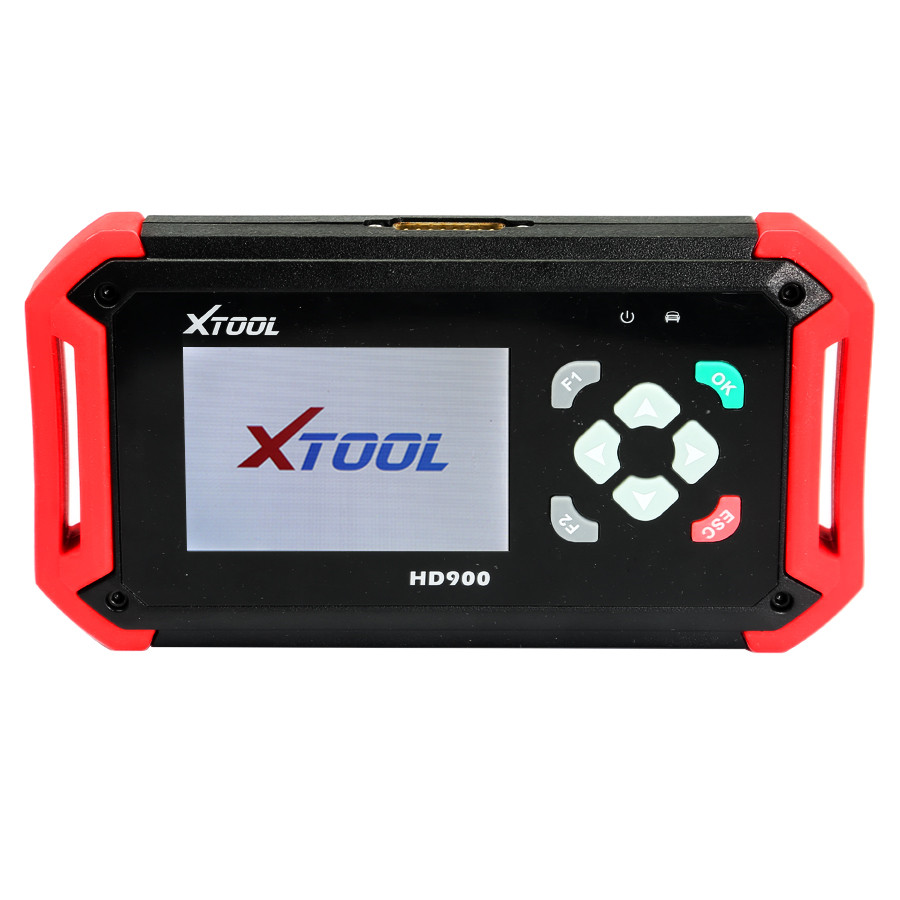

Front View

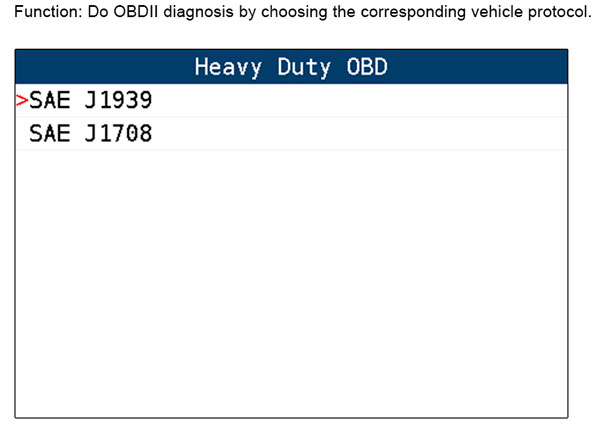

Functions

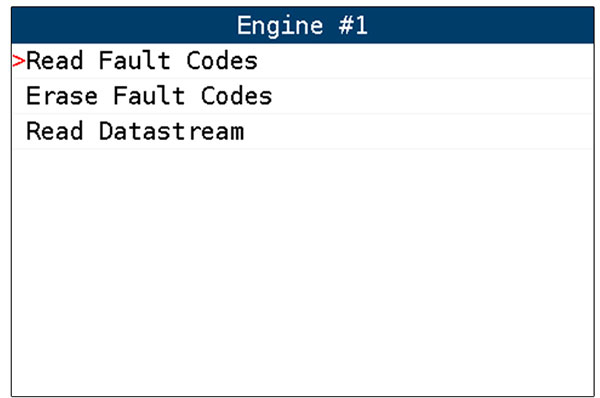

Read Diagnostic Trouble Codes
Clear Diagnostic Trouble Codes

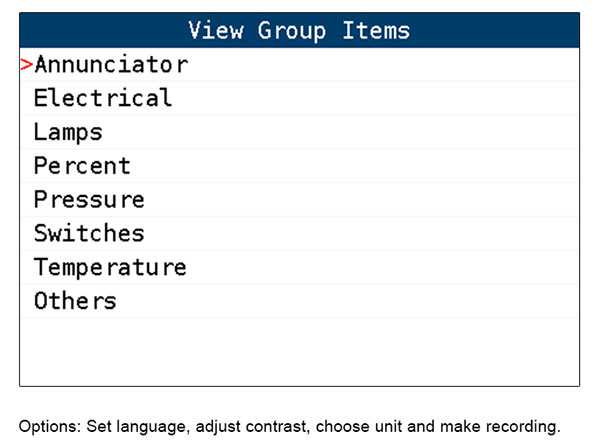

View Live Data
MIL Status
O2 Sensor Test
EVAP system test
Retrieve vehicle information (VIN, CIN and CVN)

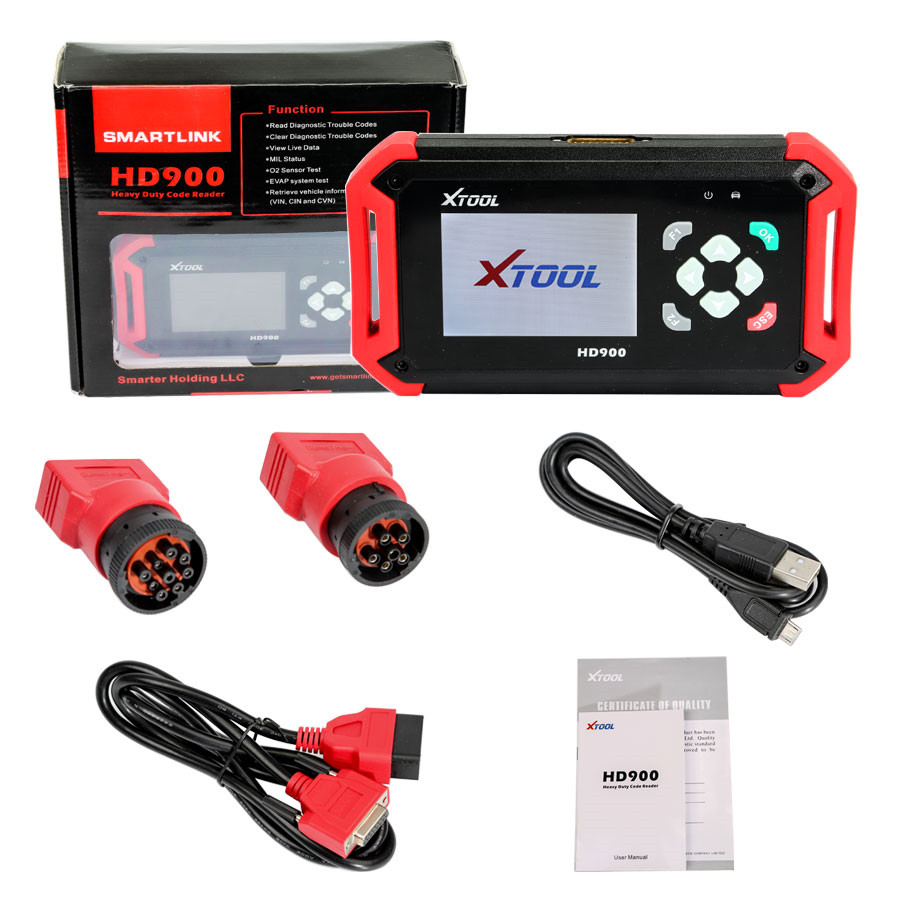

Package includes:

1pc x HD900 Mainframe

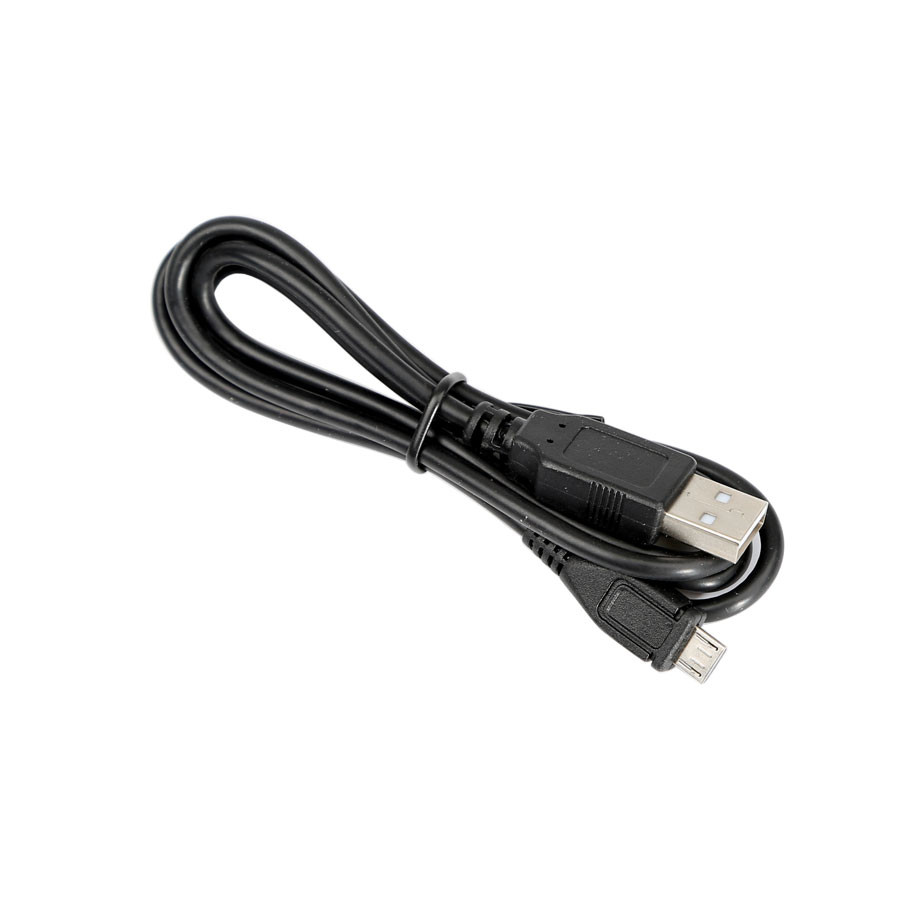

1pc x Micro USB Cable

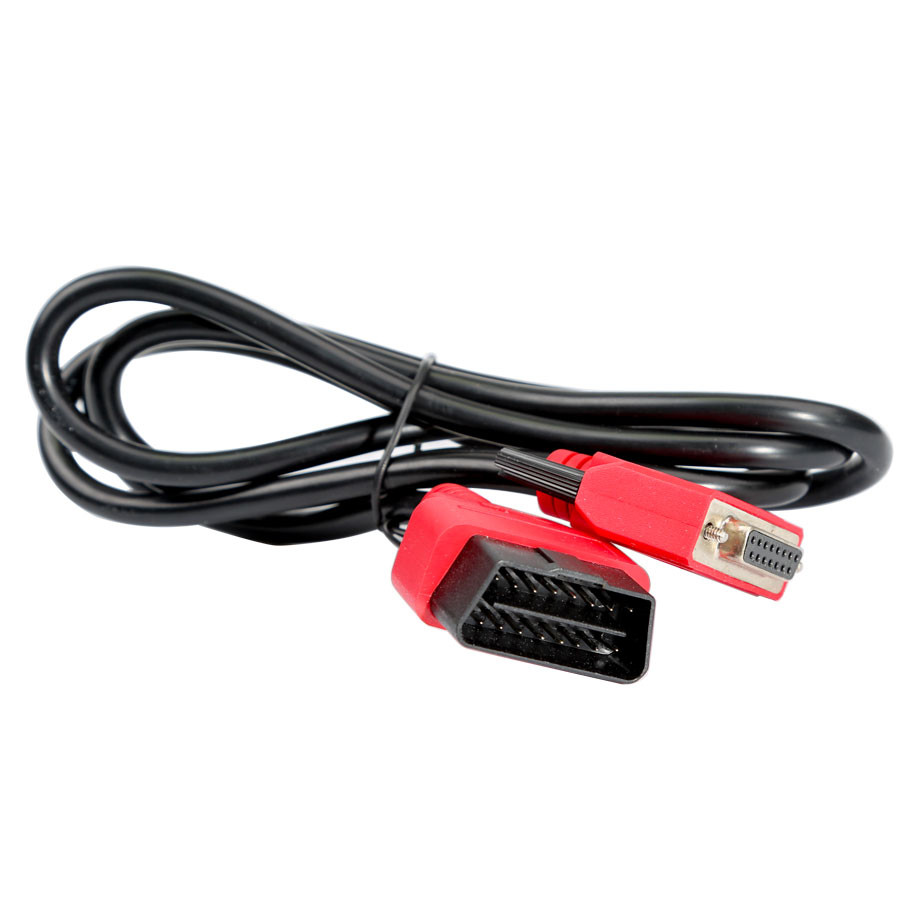

1pc x Test Cable
1pc x Certificate of Quality

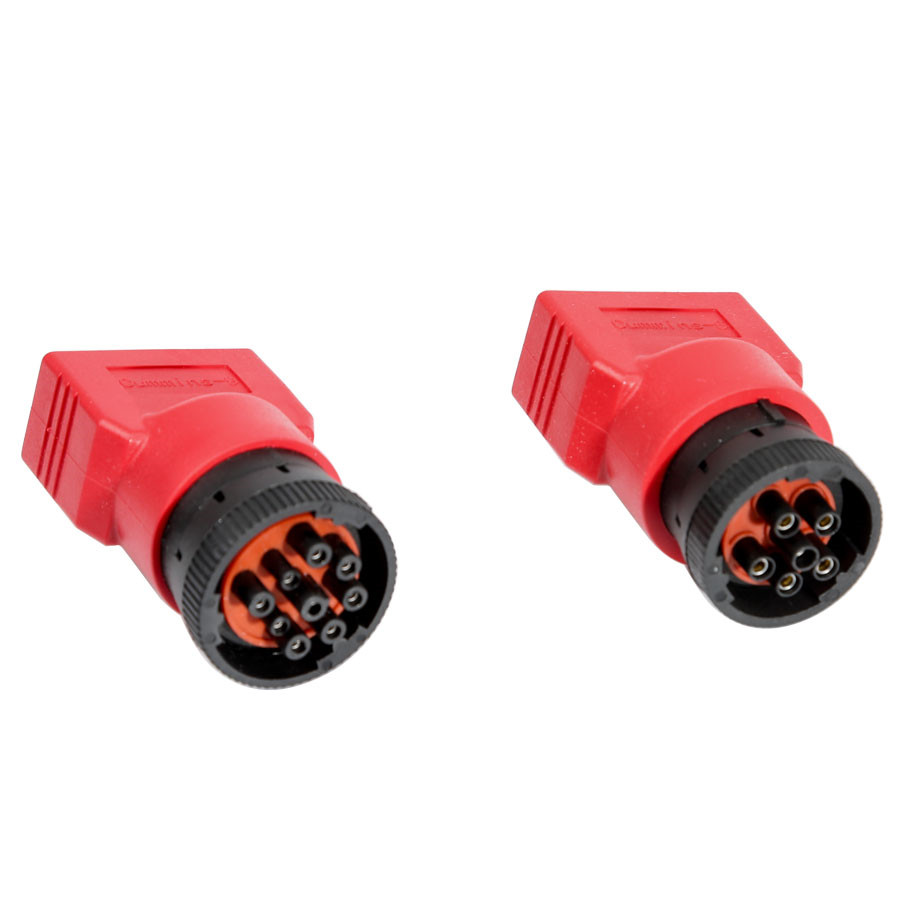

1pc x Cummins-6
1pc x User Manual
1pc x Cummins-9
