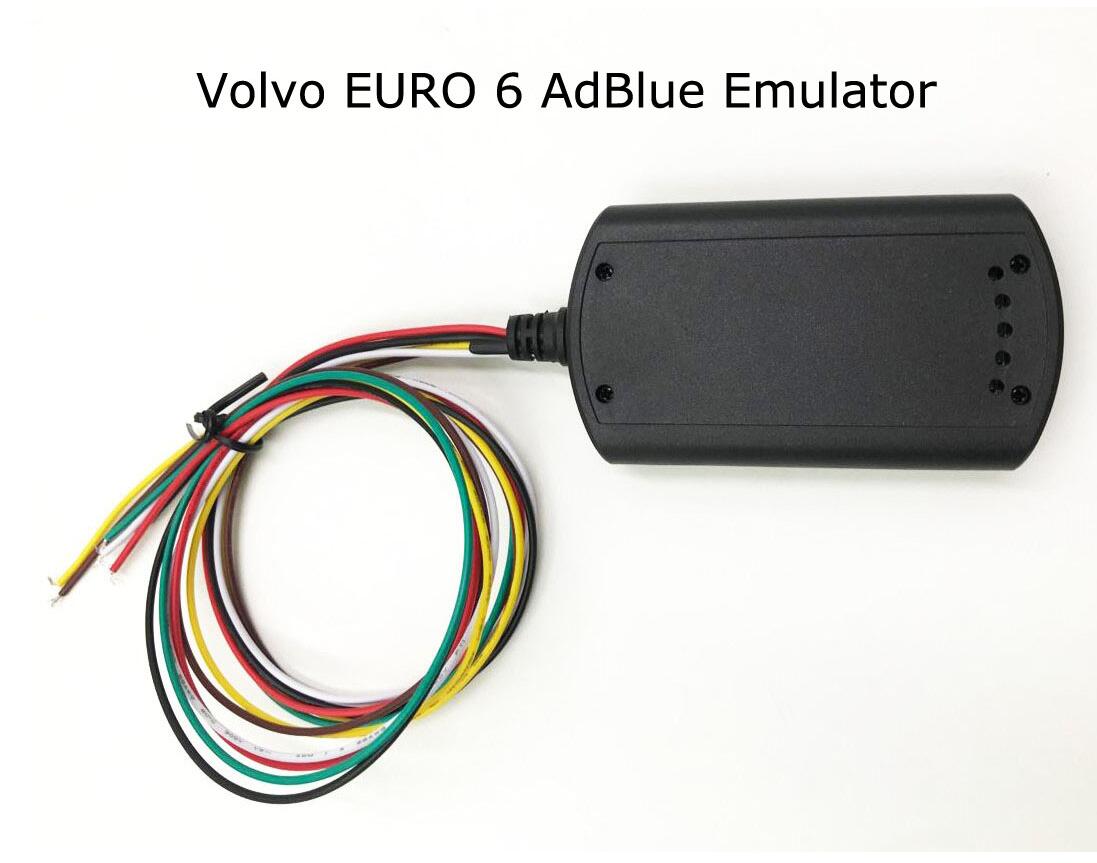

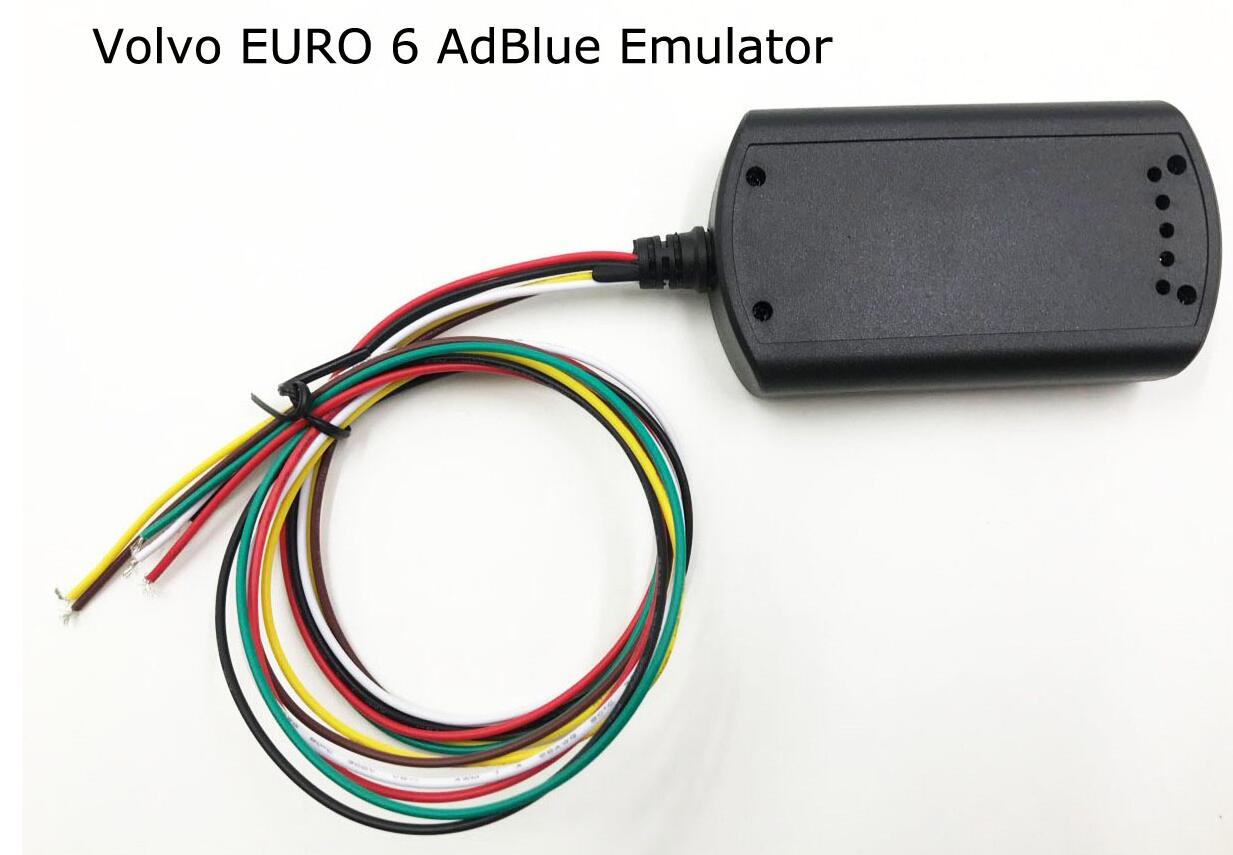

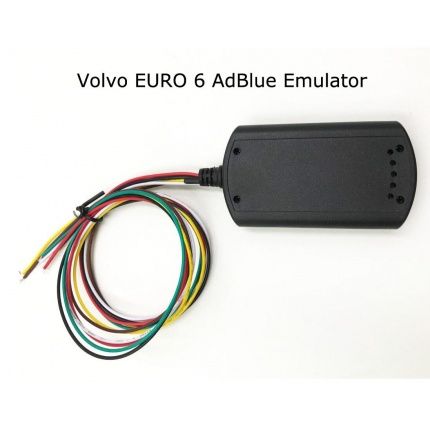

VOLVO EURO 6 AdBle Emulator

Top 4 Reasons To Get Volvo Euro6 Adblue Emulator:

Avoid all of adblue system errors
Do not need adblue fuel
Do not get and adblue or NOx fault
Prevent torque loss

Importance of Volvo Euro6 Adblue Emulator:

Trucks generally give adblue or nox system errors so work hard. Your truck can cause loss so some adblue errors or fault lights.
These problems cause you money and time. After installing adblue remove emulator, you dont get other adblue errors and you do not need to add adblue fuel. After the installation, your adblue fuel level will be up automatically.

Adblue Remove emulator disable these systems:

AdxBlue system (All)
AdxBlue NOX sensor
DPF system
DPF temperature sensors

DPF regeneration Supported Models:

Euro 6 for the Volvo FMX Series
Euro 6 for the Volvo FH Series
Euro 6 for the Volvo FM Series

Instalation emulator for Volvo Euro 6

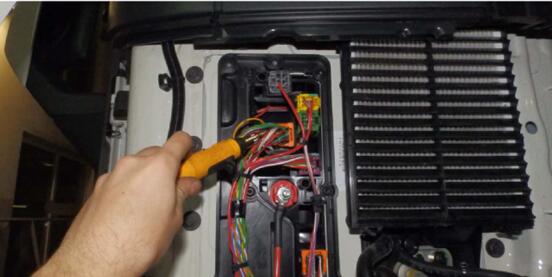

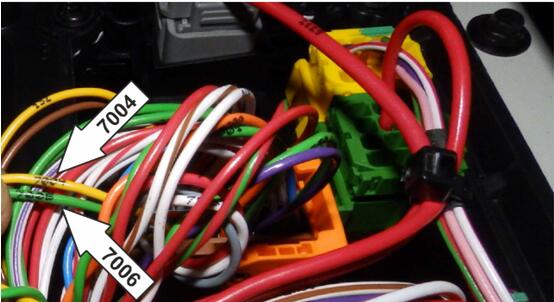

1.Find wire number 7004(CAN High) and 7006(CAN low) located on the front of car,Like on the photo.

2.Connect wires from the emulator as follows:

YELLOW wire form emulator--->7004(CAN High)

GREEN wire form emulator--->7006(CAN Low)

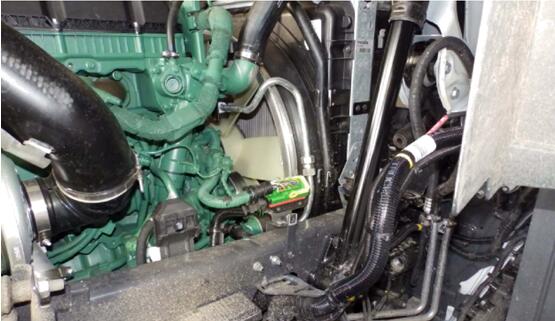

3.On the right side of the frame,locate the plug visiblity on the photo



4.connect wires from the emulator(two long wires in black isolation) as follows:

WHITE wire form emulator--->GREY wire to pin nr 34(CAN High)

BROWN wire form emulator--->ORANGE wire to pin nr 36(CAN Low)



5.You should connect power supply (single wires) to the unit.

BROWN wire from emulator - Ground

WHITE wire from emulator - +24V(after the ingition)

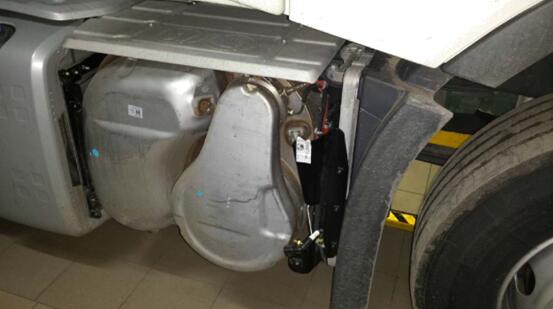

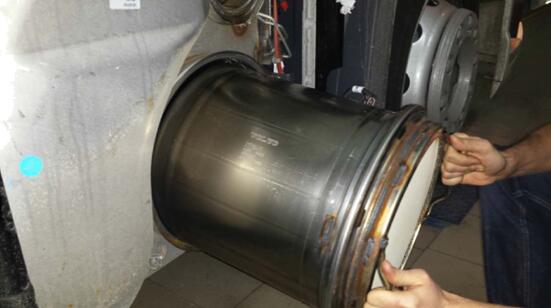

6.You should disconnect plug from the pump and remove DPF

If car have any errors,remove them from ECU
