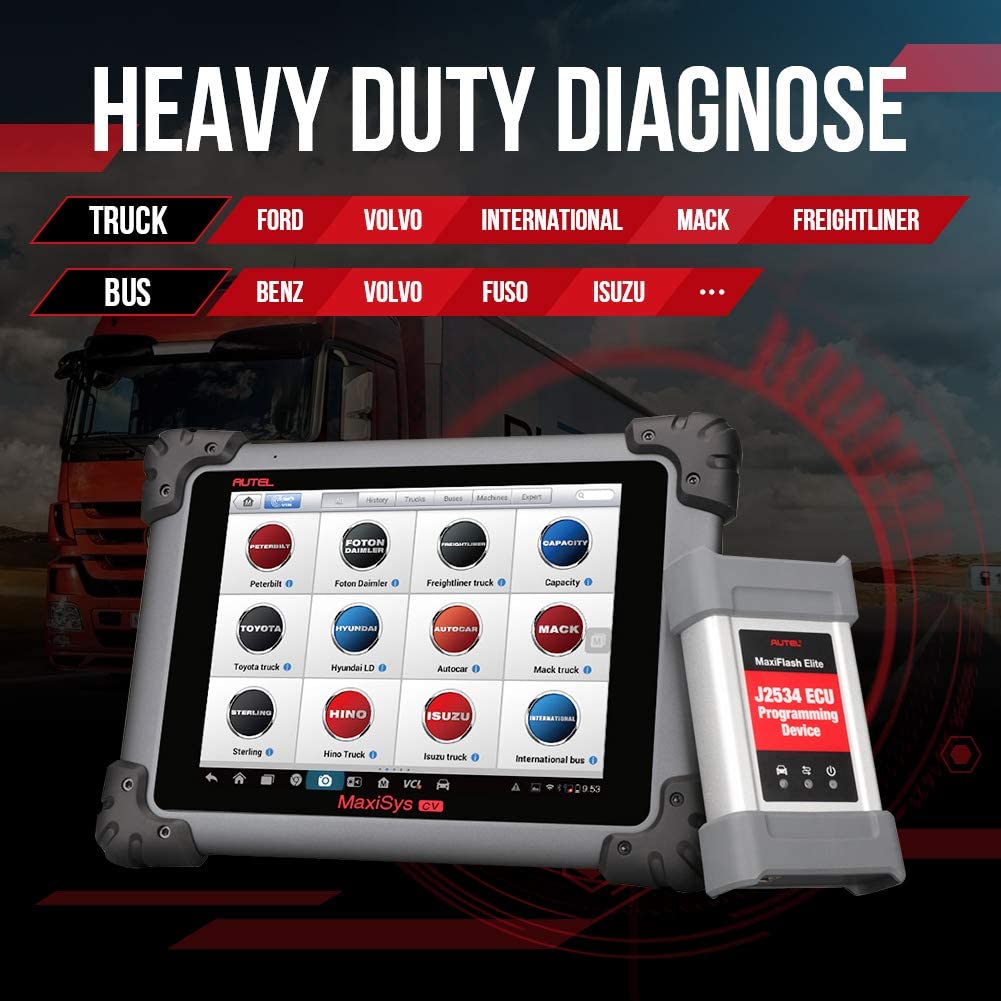

Autel MaxiSYS CV MS908cv Heavy Duty Diagnostic Scan Tool Full Configuration with all Adapters

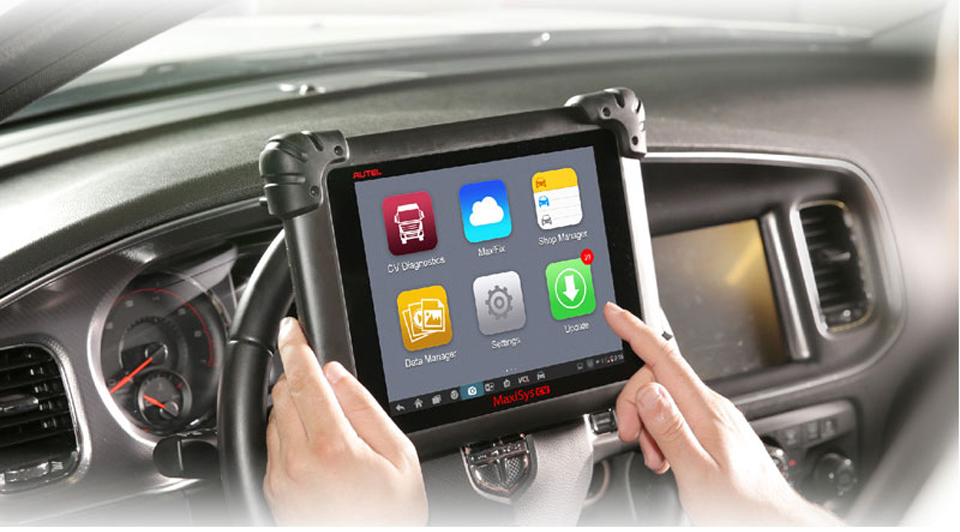

As a new member of Autel’s MaxiSys family, the MaxiSys CV is built on the powerful MaxiSys 908 platform and provides a comprehensive disgnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe and Asia. Offering advanced features and extreme ease-of-use, MaxiSys CV is the ideal solution for independent repair shops, owner-operators and various sized fleets seeking a single scan tool for all their professional heavy duty needs.

Built on the MaxiSYS Android-based platform, the MaxiSYS CV performs enhanced system diagnostics on more than 60 commercial vehicle brands. Read and clear codes, view and graph live data, perform tool-guided maintenance services, complete an array of special functions and diagnose manufacturer-specific systems including Allison transmissions, Bendix ABS Brake systems, Detroit Diesel Engines and Eaton and Wabash ABS trailer brakes. 1-Year Warranty Included and we can support update online,1000USD/year.

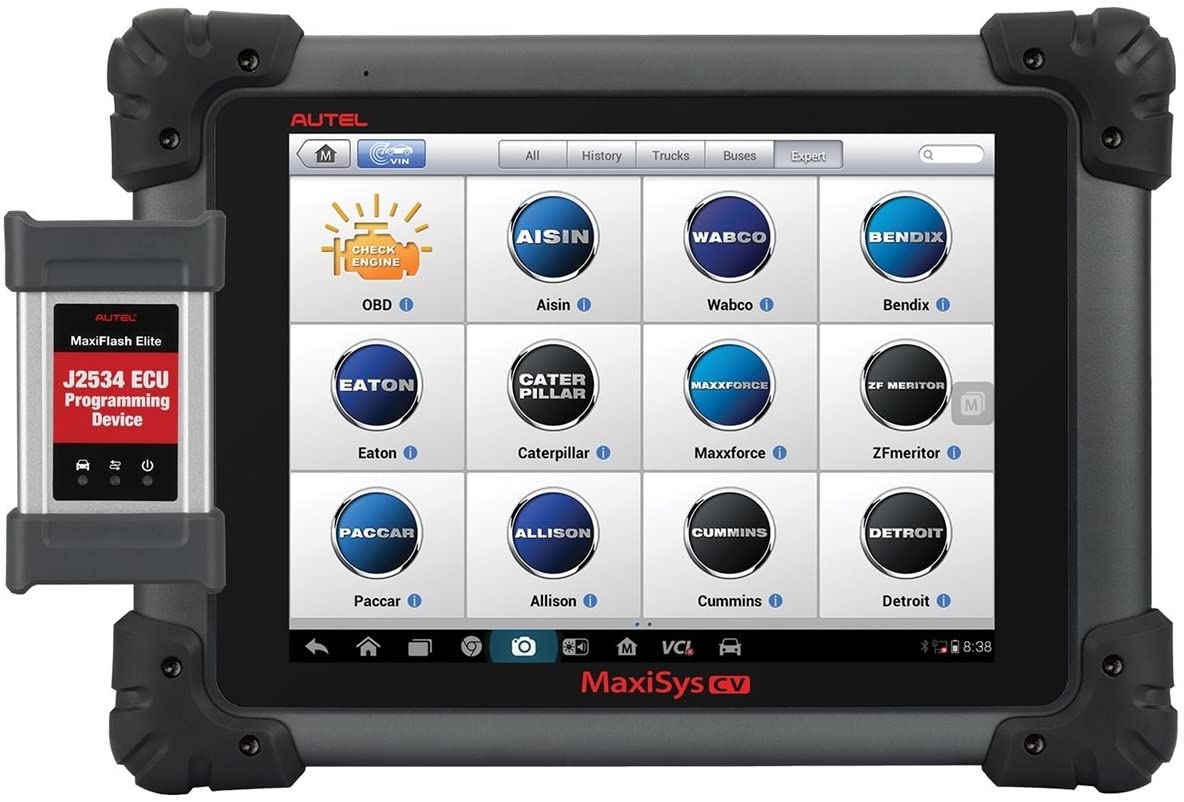

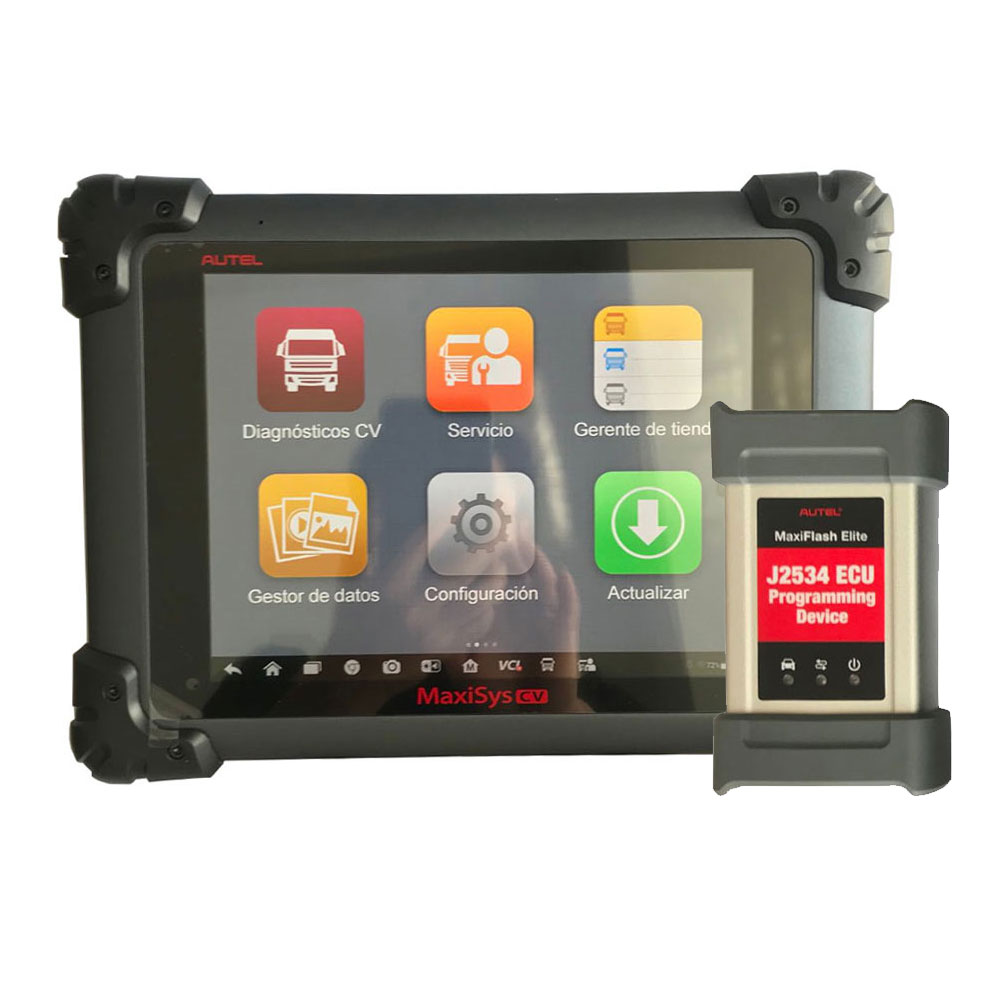

The complete MaxiSys CV tool kit includes a compact sized MaxiFlash Elite which performs J2534 and J2534-2 pass-thru programming and provides bluetooth VCI communication between the vehicle and MaxiSys CV tablet.



Features:

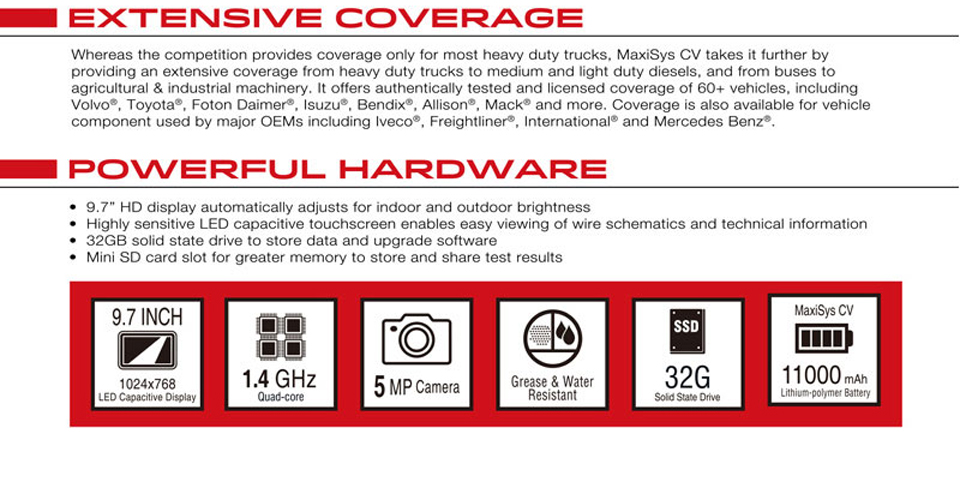

Hardware

1.Extraordinarily powerful Cortex-A9 quad-core processor

2.9.7” 1024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

3.Internal reliable and fast 32GB Solid State Drive for better performance

4.Built-in 5-megapixel rear camera with autofocus and flashlight

5.Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

6.Unique shop tough ergonomic design features strong rubber protection and housing;

7.Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation

8.USB, audio and auxiliary ports make it easy to connect accessories

9.The VCI connects to the main unit wirelessly with up to 230 meters working range



Software

1.Open source Android Operating System for fast boot-up and multitasking

2.Easy and intuitive navigation makes finding what you need simple and fast

3.Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines

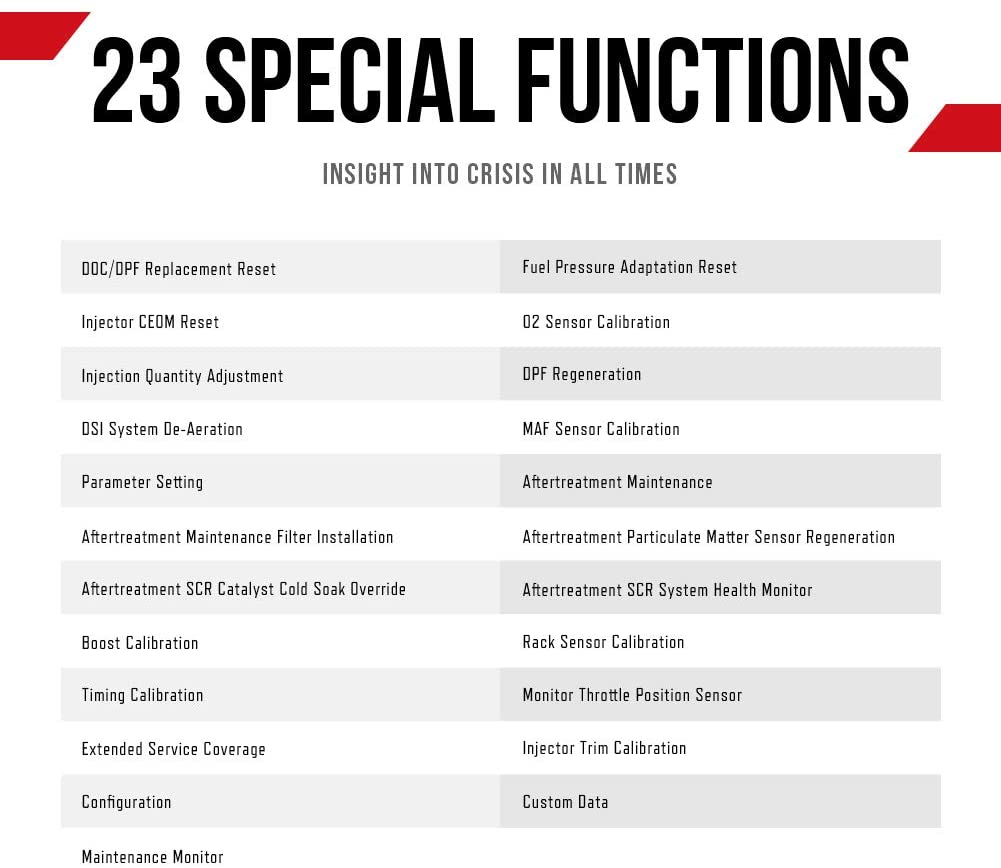

4.Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

5.Displays live data in text, graph, analog and digital gauge for easy data review and analysis

6.Configures display options, sets triggers, records and playbacks results with one touch

7.Records and playbacks live data to pinpoint troubles of sensors and components

8.Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

9.Remote technical support for convenient demonstration, training and increased customer satisfaction

10.Prints out recorded data anytime and anywhere with Wi-Fi technology

11.Automatic Wi-Fi updates available in new software releases

Coverage for Light Duty / Medium Duty / Heavy Duty (1996-present)
The MaxiSys CV performs enhanced system diagnostics on more than 60 light, medium, and heavy duty commercial vehicle brands. Read and clear codes, view and graph live data, perform tool-guided maintenance services, complete an array of special functions and diagnose manufacture-specific systems including Allison transmissions, Bendix ABS Brake systems, Detroit Diesel Engines and Eaton and Wabash ABS trailer brakes.

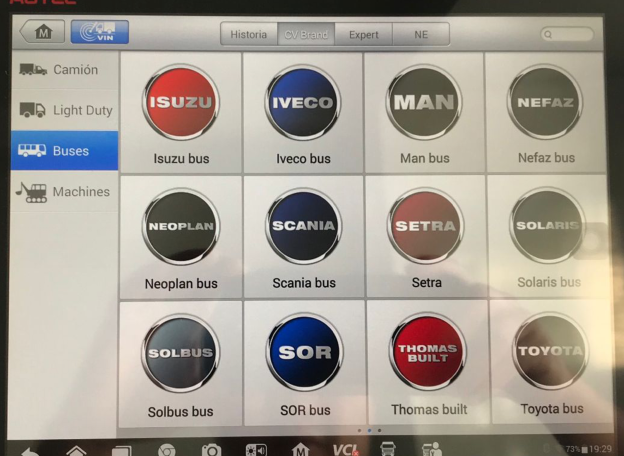

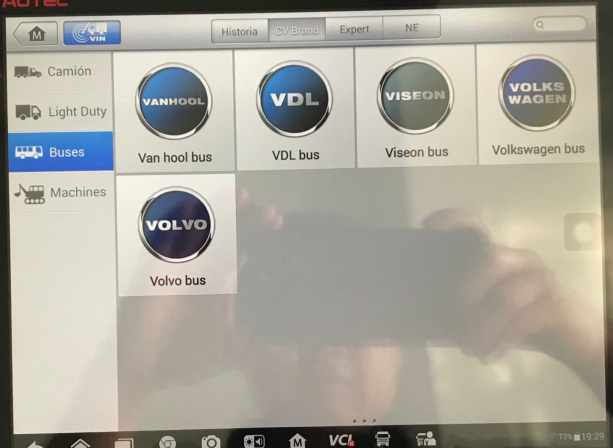

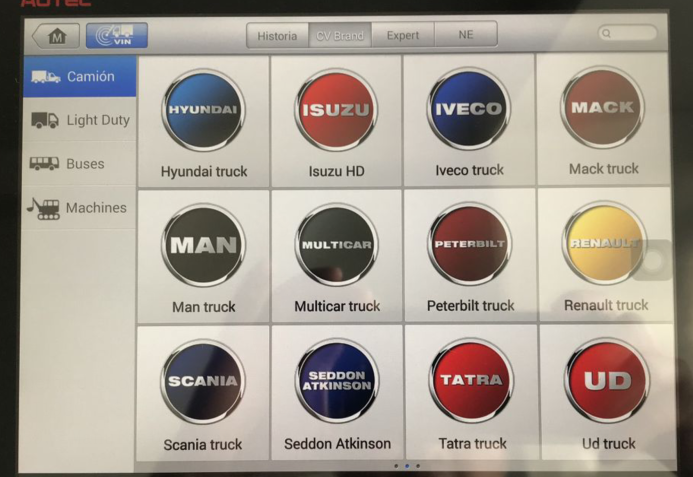

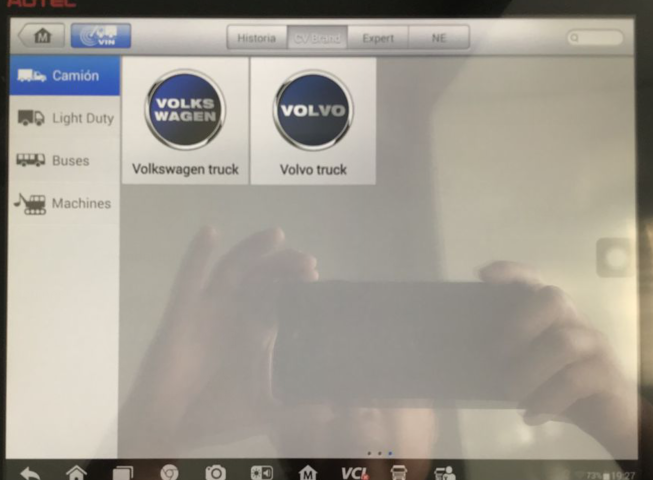

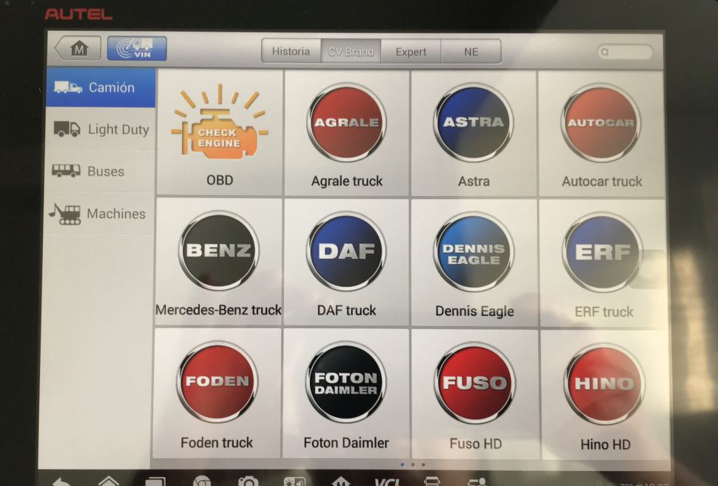

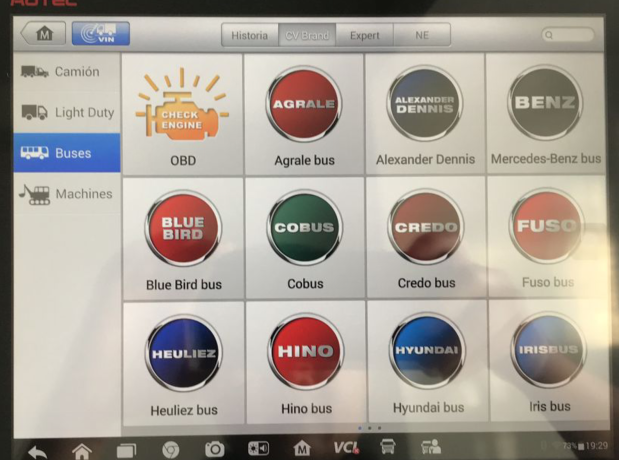

European version car list:

BUS	Alexander Dennis bus	CVBAlexanderdennis
BUS	Autosan bus	CVBAutosan
BUS	Benz bus	CVBBenz
BUS	BMC bus	CVBBmc
BUS	Credo bus	CVBCredo
BUS	Fuso bus	CVBFuso
BUS		CVBHyundai
BUS	Isuzu bus	CVBIsuzu
BUS	Iveco bus	CVBIveco
BUS	MAN bus	CVBMan
BUS		CVBMaz
BUS		CVBNefaz
BUS	Neoplan bus	CVBNeoplan
BUS	Otokar bus	CVBOtokar
BUS	Scania bus	CVBScania
BUS	Setra bus	CVBSetra
BUS	Solaris bus	CVBSolaris
BUS	Solbus bus	CVBSolbus
BUS	SOR bus	CVBSor
BUS	Temsa bus	CVBTemsa
BUS	Viseon bus	CVBViseon
BUS	Volkswagen bus	CVBVolkswagen
BUS	Volvo bus	CVBVolvo
BUS	Nefaz bus	CVBNefaz
BUS	VDL bus	CVBVdl
Expert	Aisin	CVEAisin
Expert	Allison	CVEAllison
Expert	Boschauto	CVEBoschauto
Expert	Caterpillar	CVECaterpillar
Expert	Cummins	CVECummins
Expert	Voith	CVEVoith
Expert	Wabco	CVEWabco
Expert	ZF	CVEZf
TRUCK	Astra truck	CVTAstra
TRUCK	Avia truck	CVTAvia
TRUCK	Benz truck	CVTBenz
TRUCK	BMC truck	CVTBmc
TRUCK		CVTCitroenld
TRUCK	DAF truck	CVTDaf
TRUCK	ERF truck	CVTErf
TRUCK		CVTFiat
TRUCK	Foden truck	CVTFoden
TRUCK		CVTFord
TRUCK	Foton truck	CVTFoton
TRUCK	Fuso truck	CVTFuso
TRUCK		CVTGaz
TRUCK		CVTGreatwall
TRUCK	Hino truck	CVTHino
TRUCK	Hyundai LD	CVTHyundaild
TRUCK	Hyundai truck	CVTHyundai
TRUCK	Isuzu truck	CVTIsuzu
TRUCK	Iveco truck	CVTIveco
TRUCK		CVTKamaz
TRUCK		CVTKia
TRUCK	MAN truck	CVTMan
TRUCK		CVTMaz
TRUCK		CVTMazda
TRUCK		CVTMitsubishi
TRUCK		CVTNissan
TRUCK		CVTOpel
TRUCK		CVTPeugeot
TRUCK	Renault truck	CVTRenault
TRUCK	Renault LD	CVTRenaultld
TRUCK	Scania truck	CVTScania
TRUCK	Seddon Atkinson truck	CVTSeddonatkinson
TRUCK	Sisu truck	CVTSisu
TRUCK	Tatra truck	CVTTatra
TRUCK		CVTToyota
TRUCK	Ud truck	CVTUd
TRUCK		CVTVauxhall
TRUCK	VW LD	CVTVw
TRUCK	Volvo truck	CVTVolvo
TRUCK	Dennis Eagle truck	CVTDenniseagle
TRUCK	LDV truck	CVTLdv
TRUCK	Multicar truck	CVTMulticar
TRUCK	Piaggio truck	CVTPiaggio
TRUCK	URO truck	CVTUro
TRUCK	Terberg truck	CVTTerberg
TRUCK	Heuliez truck	CVTHeuliez
TRUCK	Iris Bus	CVBIris
TRUCK	Seddon Atkinson truck	CVTSeddon Atkinson
TRUCK	Astra truck	CVTAstra

American version car list:

Cummins_Expert

DETROIT_Expert

UD_Truck

VOLVO_Truck

HINO TRUCK

HINO_BUS

Volvo_BUS

Agrale_BUS

Maxxforce_Expert

Aisin_Expert

Allison_Expert

Bendix_Expert

Eaton_Expert

Mack_ENG

PACCAR_Expert

Wabco_Expert

Mwm_Expert

CATERPILLAR_Expert

Agrale_Truck

Autocar_Truck

Capacity_Truck

Freightliner_Truck

International_Truck

Kenworth_Truck

Mack_Truck

Peterbilt_Truck

Sterling_Truck

Westernstar_Truck

International_BUS

Freightliner_BUS

Thomas built_BUS

Vanhool_BUS

BuleBird_BUS

Expert

Allison,Bendix,Caterpillar,Cummins,International,Detroit,PACCAR,VOLVO,Freightliner,Wabco,ZF Meritor,MERCEDESBENZ,Boschauto,PowerStroke,AISIN,IVECO,Mack,Eaton,MTU, MWM

Buses
OBD,VOLVO,AGRALE,HINO,ISUZU,MERCEDES BENZ,MITSUBISHI FUSO,VOLKSWAGEN,TOYOTA,RENAULT,

Trucks
VOLVO,AGRALE,AUTOCAR,CAPACITY,Dodge,FIAT,FORD,FOTON,Freightliner,GMC,GREAT WALL,HINO,HYUNDAI,ISUZU,KIA,MERCEDES BENZ,MITSUBISHI,MITSUBISHI,FUSO,NISSAN,Sterling,International,IVECO,VOLKSWAGEN,Kenworth,Mack,Peterbilt,WORKHORSE,WESTERN STAR,SETRA,UD,Renault

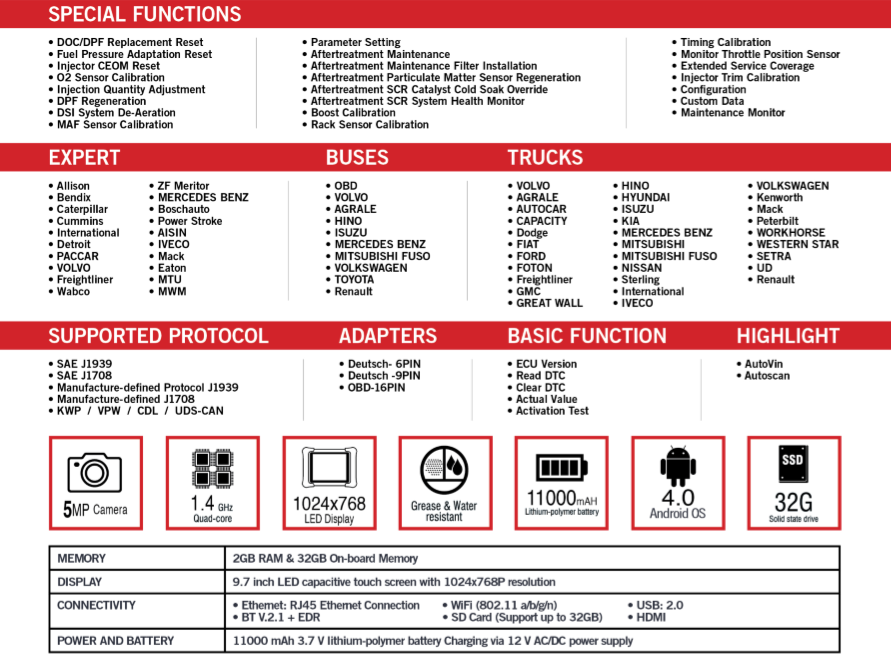

Supported Protocols

• SAE J1939
• SAE J1708
• Manufacture-defined Protocol J1939
• Manufacture-defined J1708
• KWP
• VPW
• UDS-CAN
• CDL

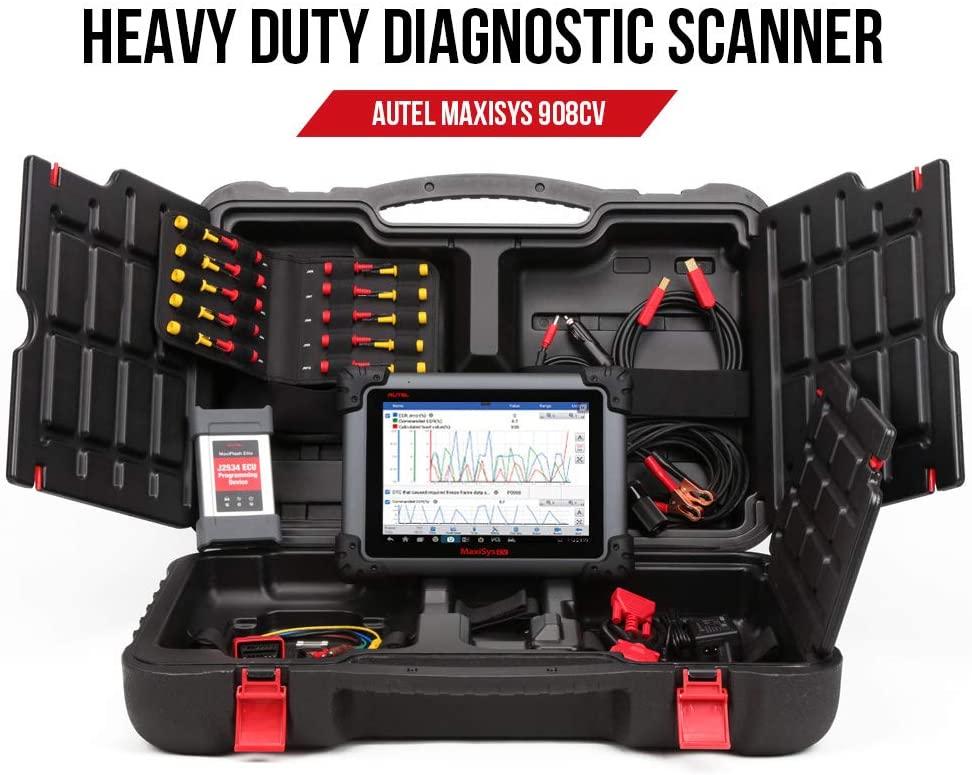

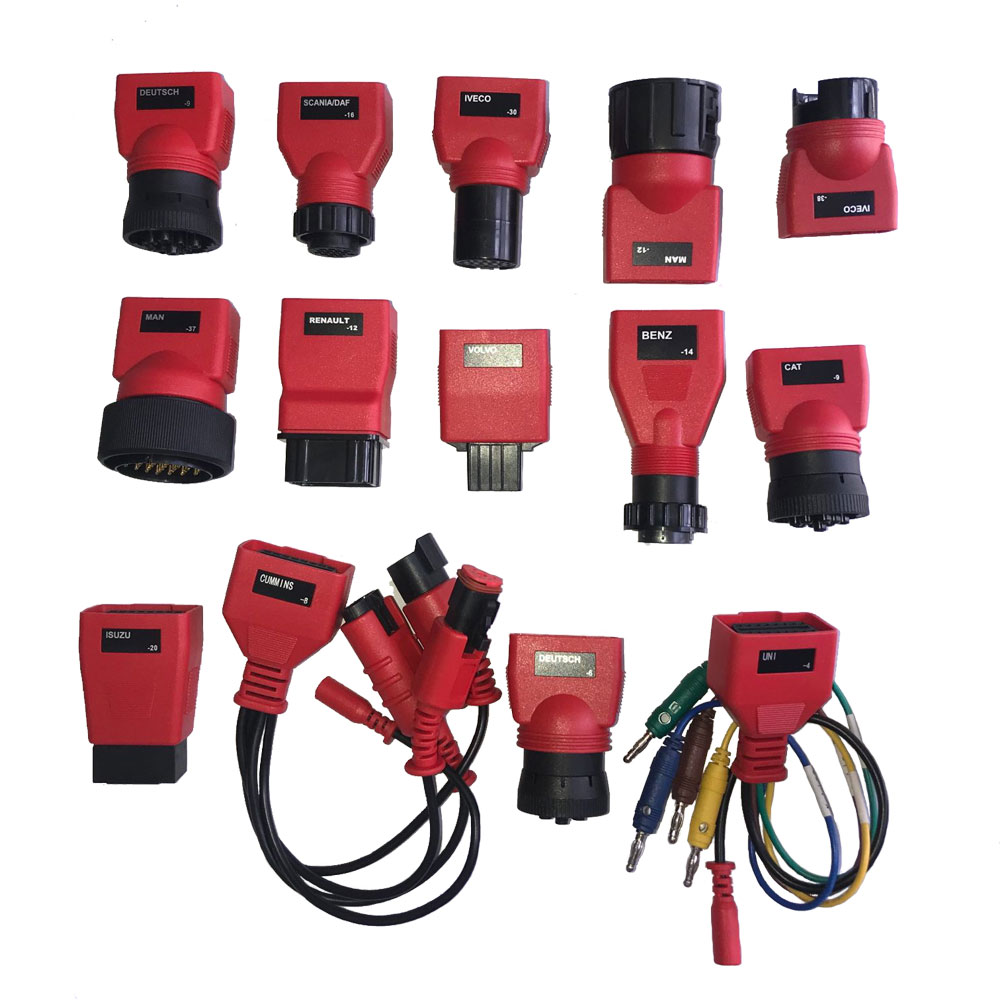

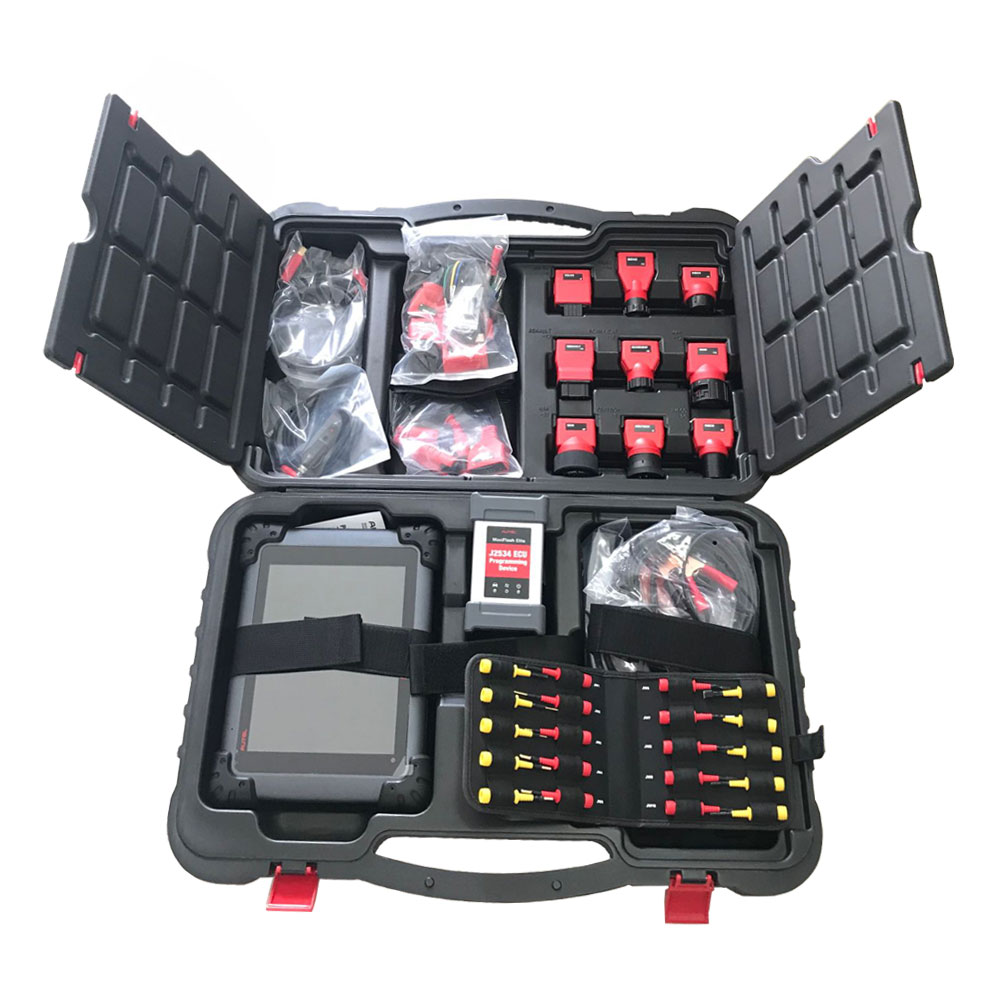

Autel MAXISYS MS908CV Package List:

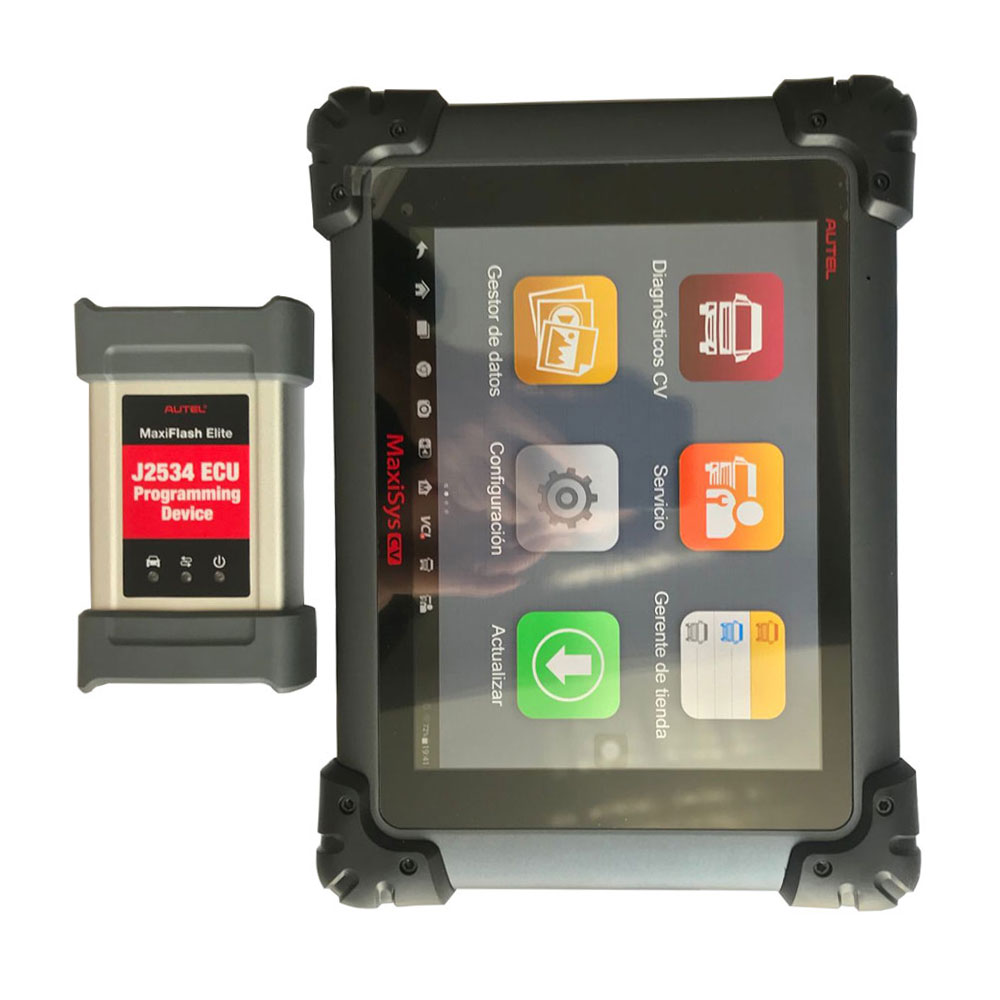

- MaxiSYS MS908 CV Head Unit
- MaxiFlash Elite J2534 ECU Programming Device / VCI
-Benz -14 adapter
-Iveco -30 adapter
-Iveco -38 adapter-
-Scania / DAF -16 adapter
-MAN -37 adapter
-MAN -12 adapter
-Volvo -8 adapter
-ISUZU -20 adapter
-Commins -8 adapter
-Deutsch -9 adapter
-Cat -9 adapter
-Uni -4 adapter
-Deutshch - 6 adapter
-Renault -12 adapter
- AC/DC Adapter (12V)
- Main Cable
- USB Cable
- Mini USB Cable
- Clipper Cable
- Cigarette Lighter
- Light Fuse 6*30mm (2pcs)
- JW1 x2
- JW2 x2
- JW3 x2
- JW4 x2
- JW5 x2
- JW6 x2
- JW7 x2
- JW8 x2
- JW9 x2
- JW10 x2
- User Manual
- Quick Reference Guide
- Packing List
-  CD
- Soft Cloth Screen Wipe

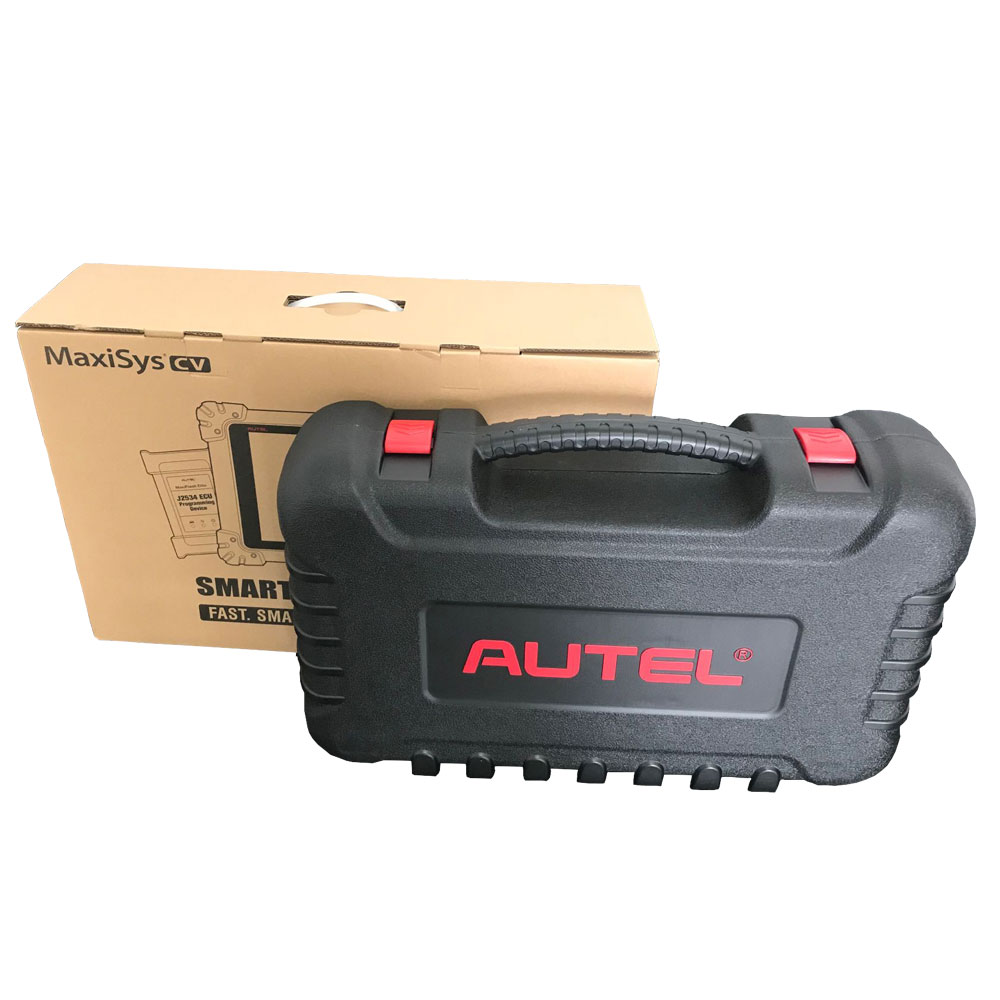

- Carrying Case
- 1-Year Software Updates
- 1-Year Warranty

Connectivity

• Ethernet: RJ45 Ethernet Connection
• WiFi (802.11 a/b/g/n)
• USB 2.0
• Bluetooth V.2.1 + EDR
• SD Card (up to 32GB)
• HDMI - connect to a large monitor
