MaxiVideo MV108 8.5mm Digital Inspection Camera for MaxiSys Tablet Kit



MaxiVideo MV108 8.5mm Digital Inspection Camera Features and Functions:

White LED lights to illuminate the inspection areas

Small diameter allows it to be used in the tight spaces

Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections

Powerful and perfect for inspecting most spark plug holes

Super bright LED and high resolution provide crystal clear images



MaxiVideo MV108 8.5mm Digital Inspection Camera Specifications:

Optimal Viewing Distance: 1’’ to 14’’ (2.54cm to 35.56cm)

Image Capture: 640x480

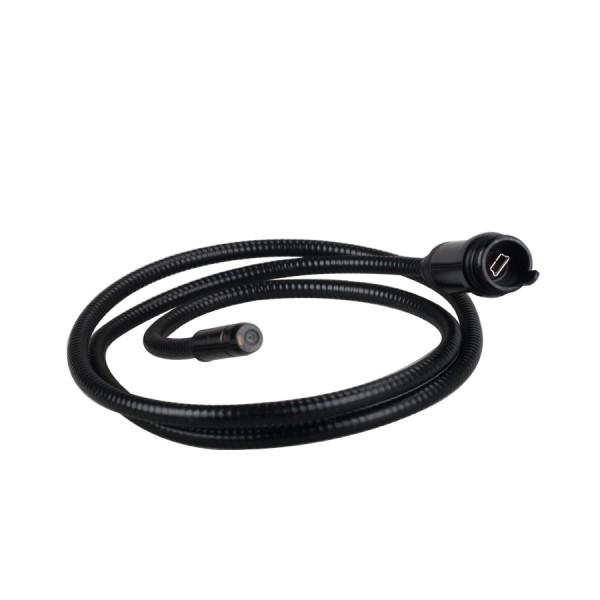

Image Head: 8.5mm (0.33’’)

Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)

Cable: -10°C to 70°C (14°F to 158°F)

Storage Temperature: -20°C to 75°C (-4°F to 167°F)

Waterproof: Imager head and cable to 1m(3’)

Weight: 0.3kg with 8.5mm diameter imager head

Compliance: FCC (EMC), CE (EMC and LVD)

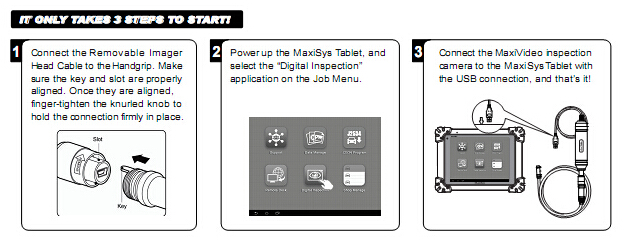

MaxiVideo MV108 8.5mm Digital Inspection Camera Connection:

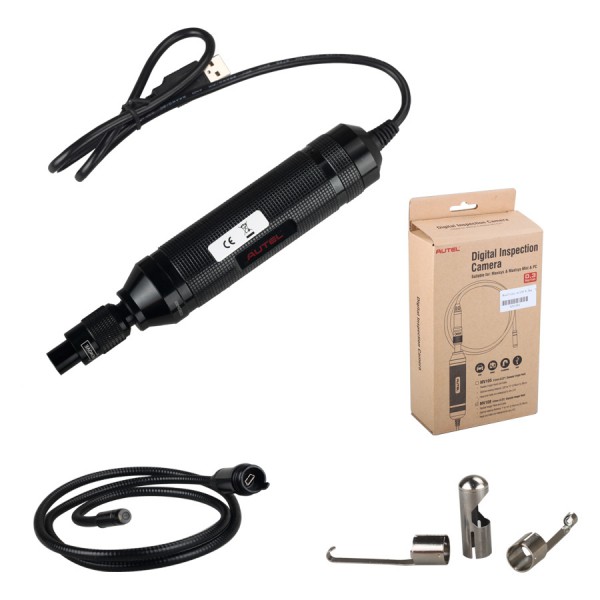

Package Including:

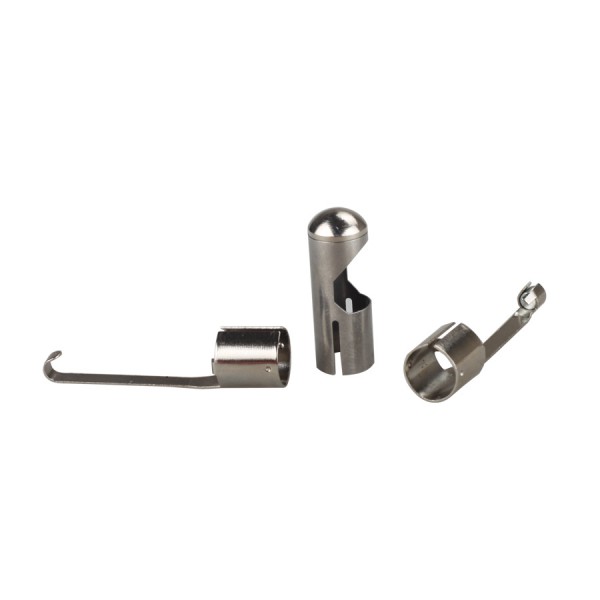

1pc x Magnet

1pc x Mirror

1pc x Hook
