> Auto Scanner Tools > Foxwell > Foxwell NT510 Multi-System Scanner Support Multi-Languages
Foxwell NT510 Multi-System Scanner
Foxwell NT510 is the most cost-effective professional scan tool for enthusiasts, small garages, independent repairs, specialized garages and technicians by delivering OE-level diagnosis on all the electronic systems. It does not only include basic functions such as codes and live data, but also is capable of advanced functions such as actuation, adaptation and programming. In addition, it lets you to access the most commonly required service features such as oil service light reset, throttle body adjustment, DPF regeneration and much more.
Delicately developed by the most distinguished experts of this industry, NT510 Multi-System Scanner is the most cost-effective professional scan tool of the industry. It is a unique tool that delivers genuine coverage, depth and value for different car manufacturers.
Foxwell NT510 will be shipped with one car software and OBDII package, and users are allowed to buy extra car software(each software cost 100usd) when necessary(up to five car software). Technicians will just have to pay for what they really need, which will greatly reduce their costs.
Available brands are Chrysler,GM, Honda, Accura, Kia, Toyota,Lexus, Sicon, Land Rover, Jaguar, OPEL, Vauxhall, VW, AUDI, Seat, Skoda and more.
Notice:It is free update for 18 months,but you need pay 60 usd one year if you want to update after 18 months.
Foxwell NT510 Support cars:
1. Chrysler
2. GM
3. Honda, Acura
4. Hyundai, KIA
5. Toyota, Lexus, Sicon
6. Land Rover, Jaguar
7. Opel, Vauxhall
8. VW, Audi, Seat, Skoda
9. BMW
10. FIAT
Foxwell NT510 Scanner Features and Benefits:
* Compatible with both OBDI and OBDII vehicles
* Works on the latest 2014/2015 models
* Gets access to powertrain, chassis and body systems
* Quick Test function to test most vehicle systems
* Reads and clears diagnostic trouble codes and resets MIL
* Requests and records live sensor data
* Provides live data graphing
* Merges graphs for easy and intuitive diagnosis
* Displays freeze frame data
* Retrieves ECU information
* Runs component/system bi-directional tests
* Supports adaptations and control module coding on selected cars
* Supports the most commonly required service features like brake deactivation, service resets, and transmission adaptations
* Upgradable to cover other car makes
* TF memory card for data backup and software update
* As easy as 1-2-3 with large TFT color screen and menu-driven operations
* Ergonomic design and ruggedly built for both shop and road tests
* 18 month free update
Specifications
Display: Backlit,240*320 TFT color display
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
External Power: 8 to 18 V provided via vehicle
Dimensions: 200*100*38MM(L*W*H)
Display:2.8”TFT color screen
Storage Temperature:-20 to 70°C (-4 to 158°F)
Dimensions : 145*94*32MM
Color Box: 530*525*336MM
Foxwell NT510 Functions:
Foxwell NT510 shows live vehicle sensors data in text and graph format and allows you to focus on any suspecious or symptom-specific data parameters. It's powerful graphing capability gives you the "real picture" of what's going on in the vehicle. You can view 2 parameter graphs simultaneously and merge them into one coordinate. So you can easily see how they affect each other, providing you with the most comprehensive and functional look at live data possible.
Foxwell NT510 diagnostic tool cannot only read your codes, but it can also actuate components, run system tests, program control modules. Reading the trouble codes from your vehicle is easy, but without live data, bi-directional controls and other special functions, you may not have enough information to get the problem fixed right. It allows you to use the scan tool temporarily activate or control a system or component. With NT510, the check of electronic components such as switches, sensors, relay and actuators is made a simple task, saving your time and labor costs. It gives you the ability to flash a control unit with ne program data. Provided that a module can be re-coded, NT510 allows for the coding and programming of a replacement control module or changing previously stored incorrect coding as expensive factory tools do.
In addition, it has access to the most commonly required service features like brake deactivation, adaptation and service resets.
Foxwell NT510 Diagnostic tool Update:
With internet access, you will always have the latest bug fixes, new vehicles, newly added parameters and functionality at your fingertips. And they are free for first 18months after your registration. Simply install the SD Card into your computer or an SD Card reader, log into the PC application, and click update. The application does all the work, syncing the latest software to your tool.
The easy yet elegant design of this scanner was developed by technicians for technicians.Clearly arranged keypad,menu-driven operation,shortcuts and impressive 2.8" color display together make the scanner extremely easy to use.
NT510 is built to last. It is constructed to resist impact and damage in the tough workshop environment.A rubberized sleeve protects your investment.The secure fit,extra corner padding and screen protector ensure your scan tool will be around for a long time.

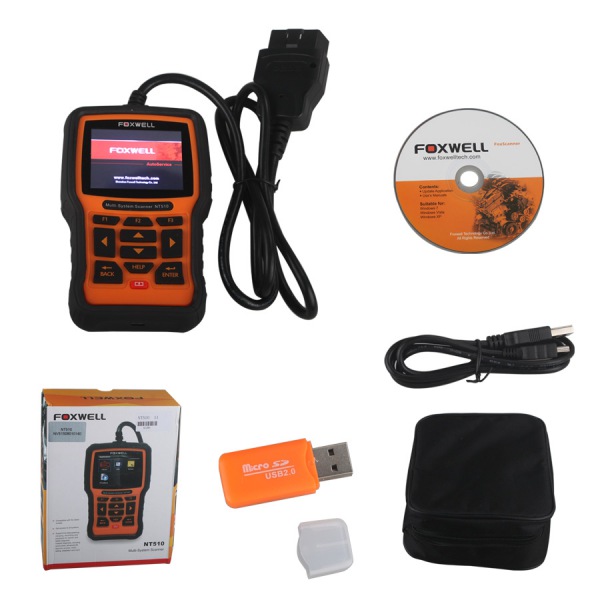

Packing List:
1x NT510 Multi-System Scan Tool
1x User’s Guide

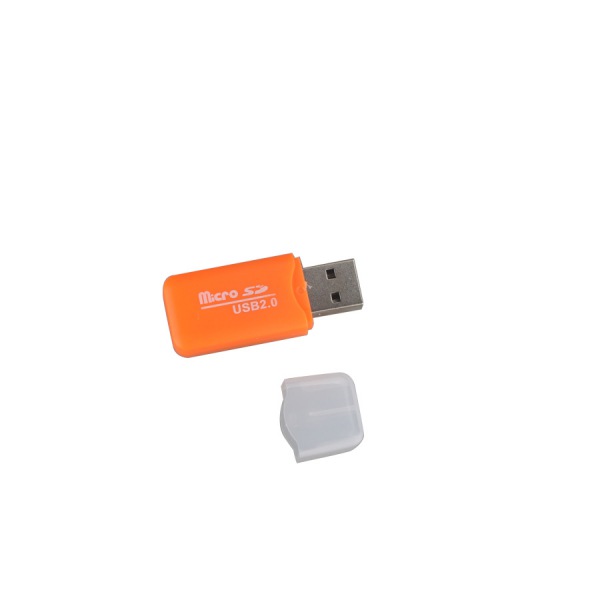

1x Memory Card

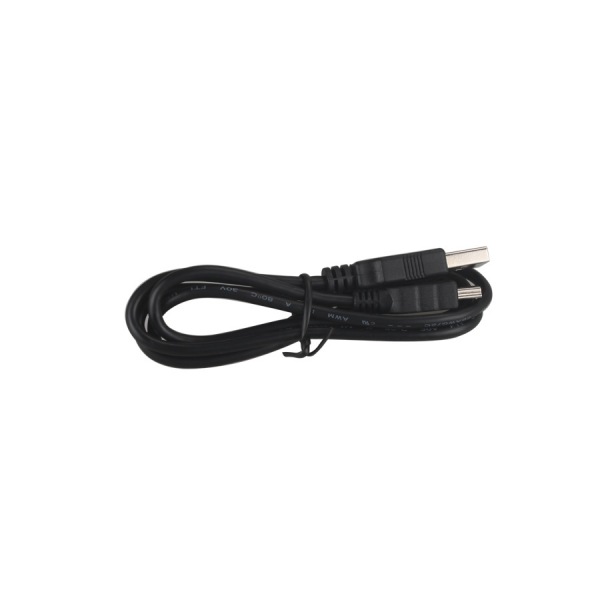

1x USB Cable
1x CD Software
1x Nylon Carry Pouch
