Original Xhorse VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function Plus EIS/ELV Test Line

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function will be released soon.

9. Renew other control modules function will support soon

Notice:

1. If you have bought Condor key cutting machine(iKeycutter CONDOR XC-MINI),you can buy VVDI MB BGA TooL

 It Supports Password Calculator Function. Each time will cost 35USD. It takes 4 minutes to collect data, and 2 minutes to calculate.

VVDI MB TOOL Latest Version V2.0.7 Update(2016-02-26)

Require firmware V2.0.7
===== BENZ V2.0.7   =====
1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version dont support password calculation
2. User manual v1.2 released, overview v1.3 released
3. Add support for renew ECU/Gearbox/ISM etc
4. Fix diable key in K-Line protocol
5. Fix clear TP in K-Line protocol
6. Fix read key bug in password calculation
7. Bugfix



VVDI MB TOOL Latest Version V2.0.6 Update(2016-01-16)

 Require firmware V2.0.6

===== BENZ V2.0.6 =====

1. Attention: All user update device to firmware v2.0.6, software v2.0.6, the lower version dont support password calculation

2. User manual v1.1 released, overview v1.2 released

3. Add support for disable key

4. Fix bug for test W164, W221 EIS status

5. Fix bug for write EIS data

6. Bugfix

SK185 VVDI - MB TOOL V2.0.5
1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times
3. Password calculation with working key support: add working key test before data acquisition
4. Add EIS status test, working key test function
5. Fix bug for OBD read W203, W639, W463(K) EIS
6. Autodetect W212 EIS with ELV
7. Fix bug for read v51 key password via NEC adaptor
8. Add IR repair key function
9. Bugfix

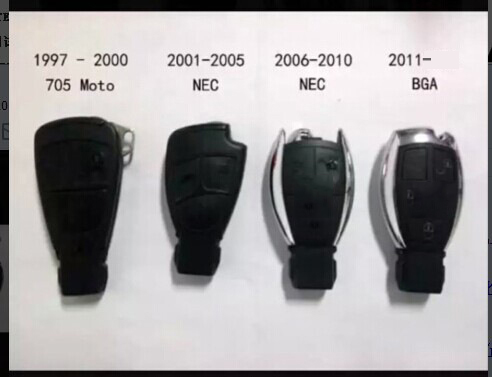

Support Key Types Display:

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.



Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906



Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61

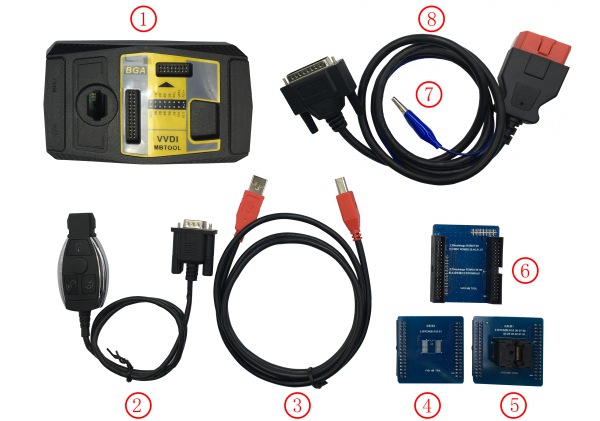

Package List:

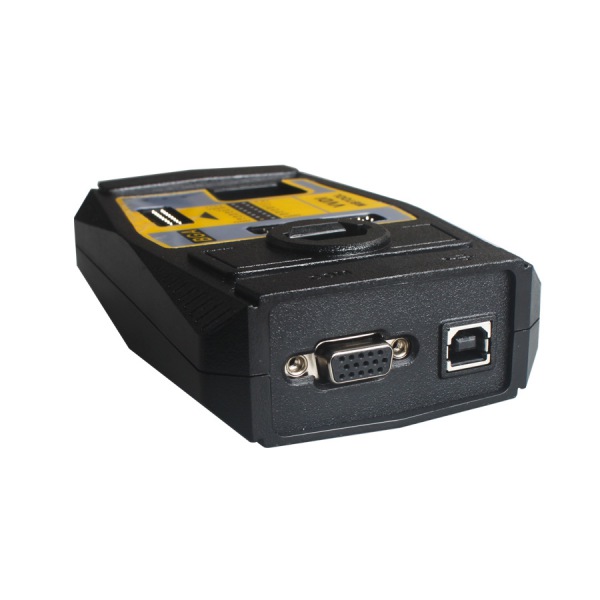

1. VVDI-MB TOOL device

2. IR adaptor

3. USB cable

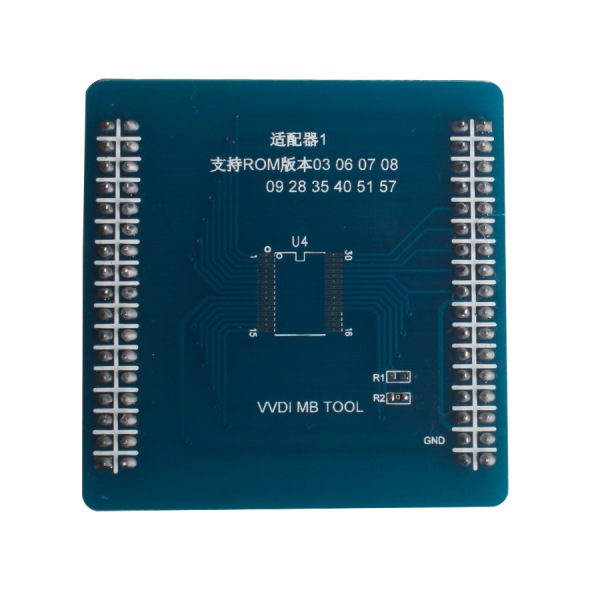

4. NEC adaptor 1

5. NEC adaptor 2

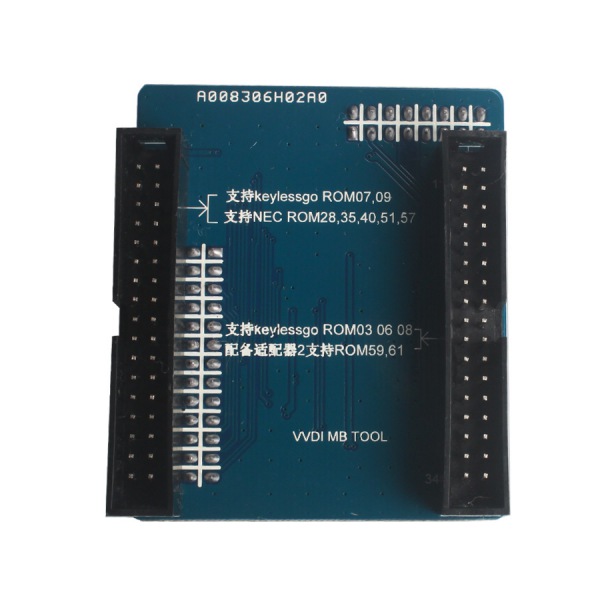

6. NEC adaptor base PCB

7. K Line in OBD line

8. OBD line

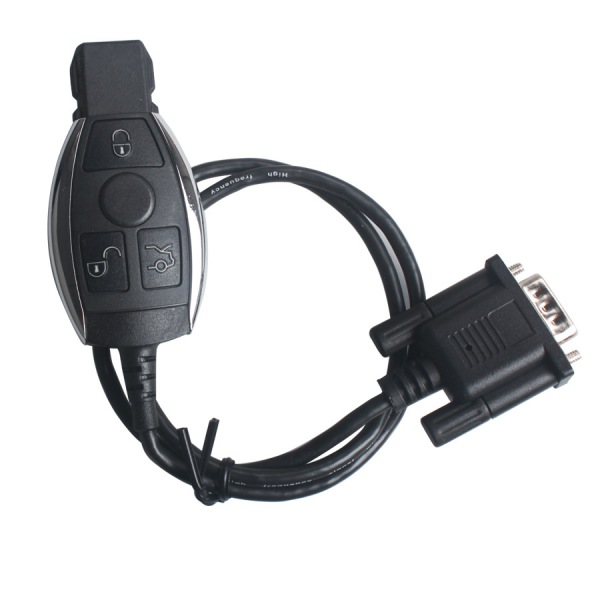

9. Mercedes Locks OBD Test line

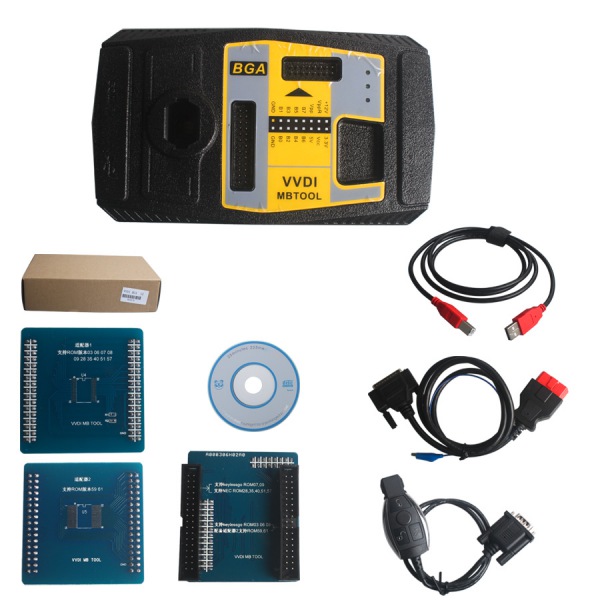

Package List Diisplay:

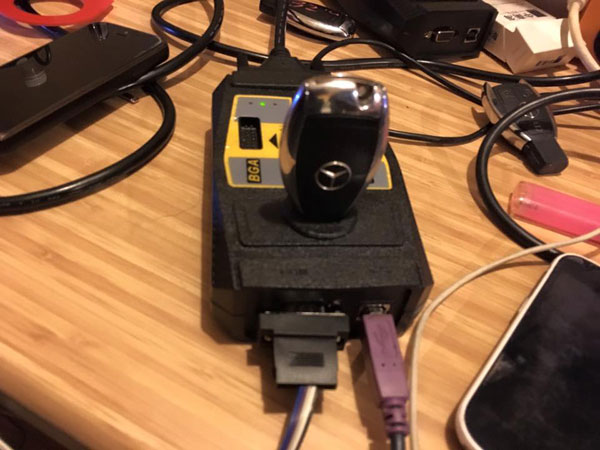

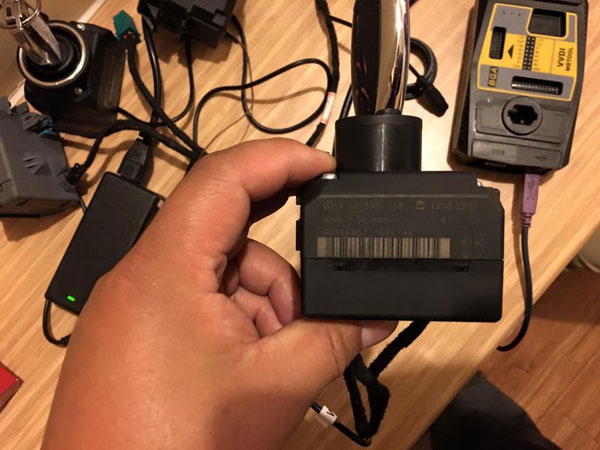

Connection Display:

FAQ:

Q1: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?
A1:Read eis via obd for W164, W169, W211, W209, require gateway connected
