Original Xhorse V5.1.0 VVDI MB BGA TooL Benz Key Programmer Including BGA Calculator Function

Xhorse VVDI MB BGA TOOL Function Introduction:

1. Support BE key, read password and prepare new key via IR.

2. NEC V051,V057 support on board get password

3. All NEC keys support on board write and erase

4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.

5. Support renew EIS and ELV

6. Support write EIS and ELV

7. Support online generate key file

8. Unlock ELV function will be released soon.



Notice:

1. If you have bought Original iKeycutter CONDOR XC-MINI, you can buy  VVDI MB BGA Tool at 1358usd Only
2. It Supports Password Calculator Function. Each time will cost 35USD. It takes 4 minutes to collect data, and 2 minutes to calculate.

3. On March 2nd, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).

1.Read Write Key
    1.  Read key basic information
    2.  Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
    3.  Support IR repair key, repair key not work via IR
    4.  NEC adaptor can read key password from NEC v51, v57 version
    5.  Support write and renew (NEC adaptor) NEC key versions following:
                 v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)

2.EIS Tools
    1.  Support read EIS data via OBD and IR adaptor
    2.  Under OBD mode, we provide auto detect EIS type for CAN protocol
    3.  Support read W164, W209, W211 EIS via OBD without gateway support
    4.  Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
    5.  Support renew EIS, make 2 nd hand EIS to new one (online)
    6.  Support replace EIS, you can write original EIS data to new EIS via IR
    7.  Support write new VIN
    8.  Support clear TP
    9.  Support disable key position
    10. Support personalize W204 ESL
    11. Support test EIS, ELV, working key status
    12. Support type：
                 W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV)
                 W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-

3.Password Calculation: support working key and lost all key
     1.  Password calculation can get the key password from working key and EIS(online)
     2.  CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
     3.  We also support calculate password for NEC v51, v57 keys. No soldering.
     4.  Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
     5.  Calculate time in server: 30 seconds – 1 minute
     6.  Now VVDI-MB TOOL is the fastest tool for password calculation
     7.  Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
     8.  Support type (have working key)：
               W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-

4.Prepare Key File

     1.  Prepare key file means prepare the key file which you will write to new key(online)
     2.  Prepare key file need about 20 seconds
     3.  Support VVDI-MB type EIS data and old Motorola EEPROM dump

5.ESL Tools
     1.  Support read ESL data via OBD (K-Line)
     2.  Support renew ESL, make 2 nd hand ESL to new one (online)
     3.  Support replace ESL, you can write original ESL or EIS data to new ESL
     4.  Support write new VIN
     5.  Support clear TP
     6.  Support auto personalized ESL, no need renew EIS
     7.  Support check ESL damage status
     8.  Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
     9.  Support renew VVDI-MB W204 emulator

6. Renew ECU/Gearbox
    1.  This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc

VVDI MB TOOL latest software version V4.0.0 update
*** 2018-03-14
*** Require firmware V4.0.0
************************************************* *********************
===== BENZ V4.0.0 =====
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix

VVDI MB TOOL latest software version V3.8.0 Update:
*** 2018-02-26
*** Require firmware V3.6.0
************************************************* *********************
===== BENZ V3.8.0 =====
1. Support spanish language
2. Support load Motorola EEPROM dump in EIS window and display key information
3. Bugfix for read KM in some W207 EIS
4. Bugfix for old motorola keys show incorrect key password
5. Support read VIN and EIS part number for Kline EIS(OBD communication require short connect PIN7 and PIN1)
6. Bugfix

VVDI MB TOOL latest software version V3.7.0 update 2018-1-11
*** 2018-01-10
*** Require firmware V3.6.0
************************************************ ********************
===== BENZ V3.7.0 =====
1. Bugfix for some countries can't synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix

VVDI MB TOOL latest software version V3.6.0 update 2017-12-23
*** Require firmware V3.6.0
************************************************* *********************
===== BENZ V3.6.0 =====
1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation
2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit
3. Improve the success rate of BAG key password, erase password and enable key password
1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)
2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation
3) The server have 99% success rate for erase password and enable key password now
4) Add some old version NEC key for password calculation
5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password
4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS
5. Support activate W906(NEC) ELV from OBDII
6. Bugfix

VVDI MB TOOL latest software version V3.5.0 update
*** 2017-11-21
*** Require firmware V3.5.0
************************************************* *********************
===== BENZ V3.5.0 =====
1. Attention: All user update device to firmware v3.5.0, software v3.5.0
2. Improve the success rate of erase password, the server will continue improve the database
3. New function: Menu->Other Function->Eeprom dump tool, support repair W210/W220 ISN eeprom dump
4. New function: Menu->Other Function->Read/Write EERPOM via OBDII, support read CPU eeprom from W202,W208,W210 EIS directly with KLine
5. New function: Menu->Other Function->Customer request, support communicate unit with CAN command(Professional user use)
6. Support detect EIS CPU chip from OBDII, after read EIS data via OBDII, you can get CPU chip is motorola or NEC
7. Support renew W639, W906(NEC) ESL via KLine
8. Bugfix for OBD communication with W639, W906 on the bench
9. Bugfix for erase problem in W204 ESL
10. Bugfix for IR read key hash on the motorola EIS
11. Support W209, W211 read password(from IR) under OBD mode
12. Add W251 EIS type
13. In Prepare Key File window, support save the key file in EIS folder automatically
14. Support Polish language
15. Bugfix

VVDI MB Tool V3.0.0 Update Feature:
*** 2017-05-02
*** Require firmware V3.0.0
************************************************** **********************
===== BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix

Xhorse VVDI MB TOOL 2.1.7  Update2017-01-07
Require firmware V2.1.7
===== BENZ V2.1.7   =====
1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

Latest Version:V2.1.7

VVDI MB TOOL V2.1.5 Software Update: 2016-12-23
Need firmware V2.1.5

= = = = = For BENZ V2.1.5 = = = = =
1. Warning: All update user firmware device v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key (0CF4)
4. Correction for data acquisition in some older version key
5. Language correction

VVDI MB Tool Update to V2.14  2016-09-12
 Require firmware V2.1.4
=====    BENZ V2.1.4            =====
1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key


Support Key Types Display:

Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.



Model Support IR/OBD:

W164, W164 2009+

A166, W197,W212, W218, A246

A169, W209, W211

W172, W204, A207

W203

W204, W207, W212 only by dump

W209 only by dump

W210

W215, W220

W230

W216

W221

W906



Keys Version Supported:

v03, v06, v08

v05, v07, v09

v59,v61

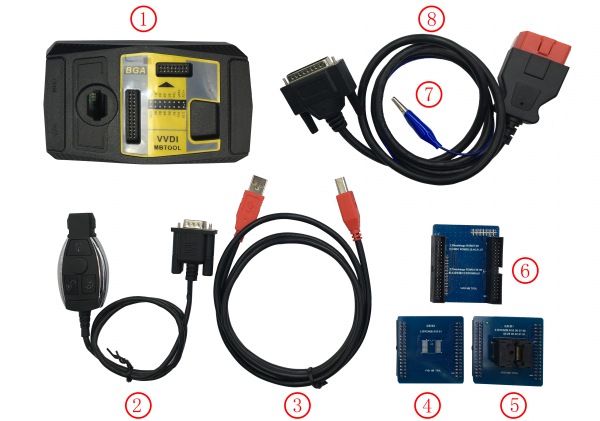

Package List:

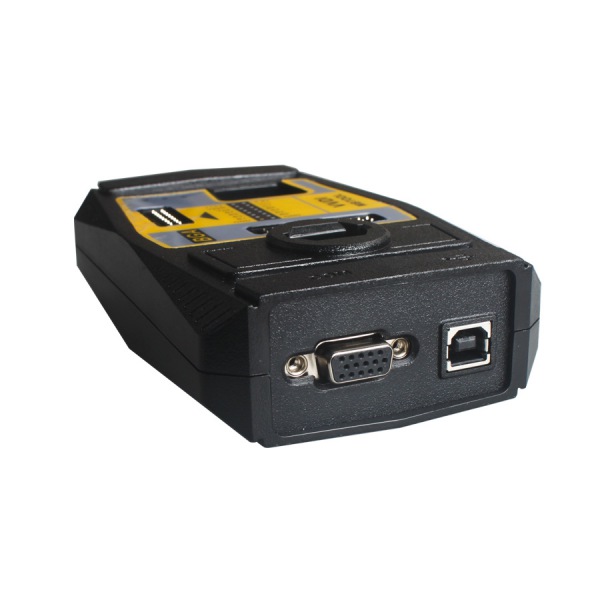

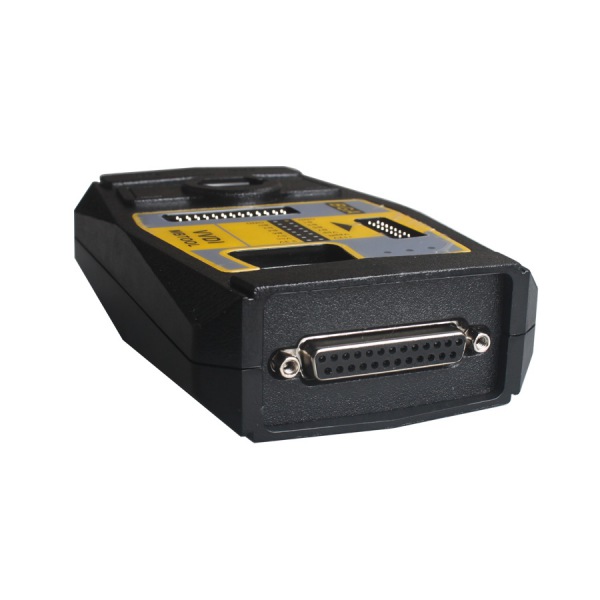

1. VVDI-MB TOOL device

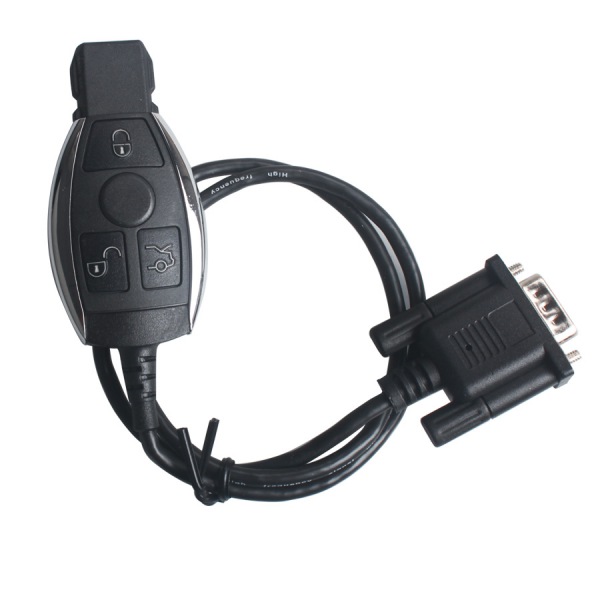

2. IR adaptor

3. USB cable

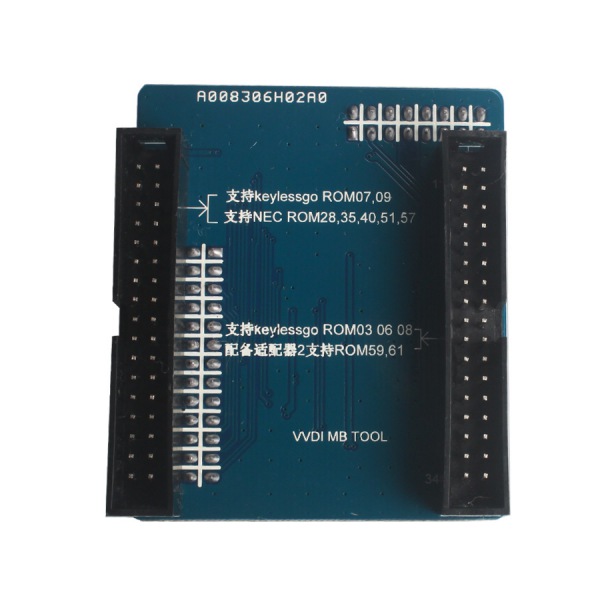

4. NEC adaptor 1

5. NEC adaptor 2

6. NEC adaptor base PCB

7. K Line in OBD line

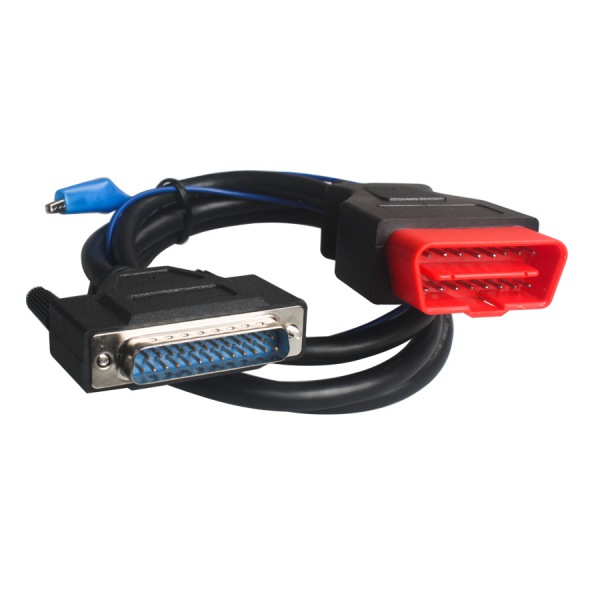

8. OBD line

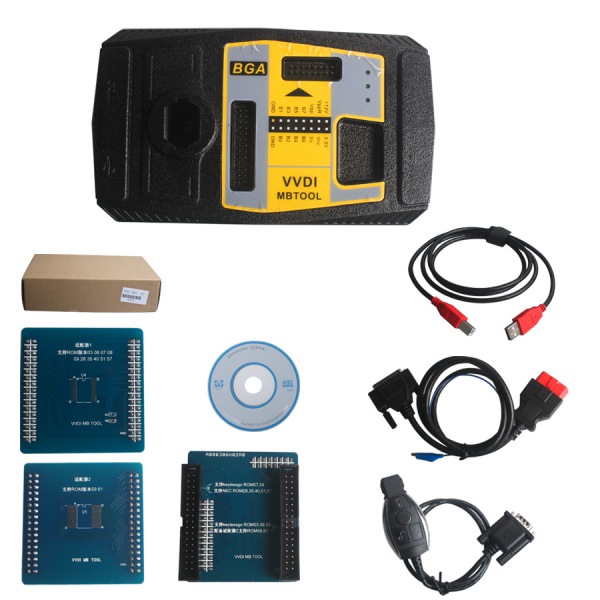

Package List Diisplay:



Connection Display:
