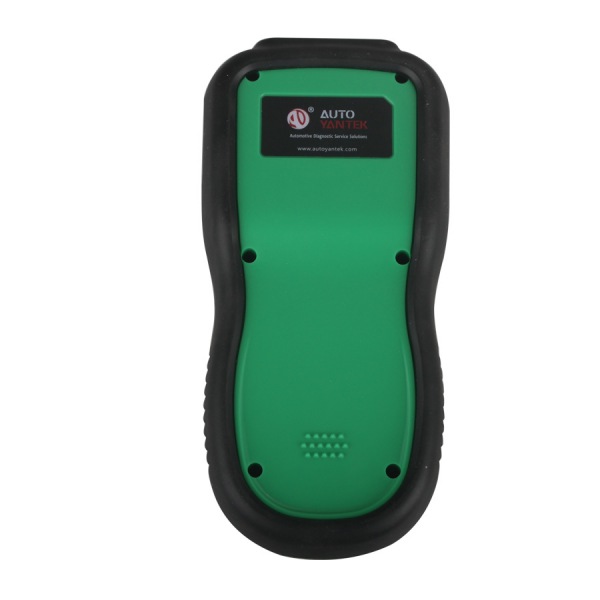

YD509 OBDII EOBD CAN Auto Code Scanner



YD509 OBDII EOBD CAN Auto Code Scanner:

1.Supports multiple code requests: Generic, manufacturer specific and pending codes.

2.Displays DTC definition on the TFT color screen. Reading/Erasing DTC and I/M readiness hot keys make it easy to use this tool right out of the package. Provides quick access to emissions readiness status. DTC information and erase function.

3. Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification.

4. Bright color coded LEDs and built-in speaker  indicate emissions monitor status.

5. Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes.

6. Displays monitor and I/M readiness status (emissions).

7. Easily determines the cause of the Malfunction Indicator Light ( MIL). Clear codes, turns off Malfunction Indicator Light (MIL) and reset monitors.

8. Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set

9. Reads live PCM datastream.

10. Retrieves vehicle information (VIN, CID and CVN).

11. Displays live O2 sensor test data.

12. Enhanced OBDII Mode 6 functions.

13. Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data.

14. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time.

15. Prints data via PC



YD509 OBDII EOBD CAN Auto Code Scanner Features:

Display: 2.8” TFT color screen

Operating Temperature: 0 to 60°C (32 to 140°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

Power: 8 to 18 V provided via vehicle

Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898)

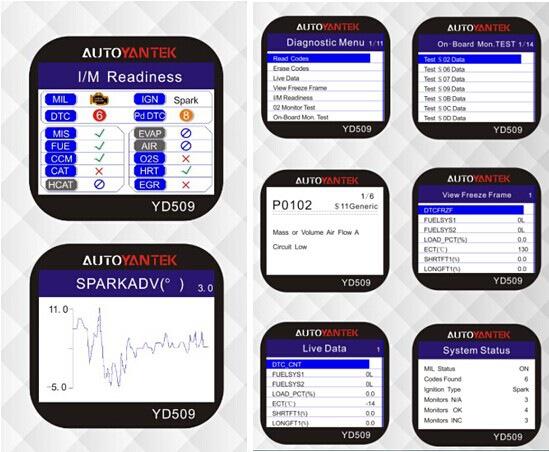

Software Screenshot:

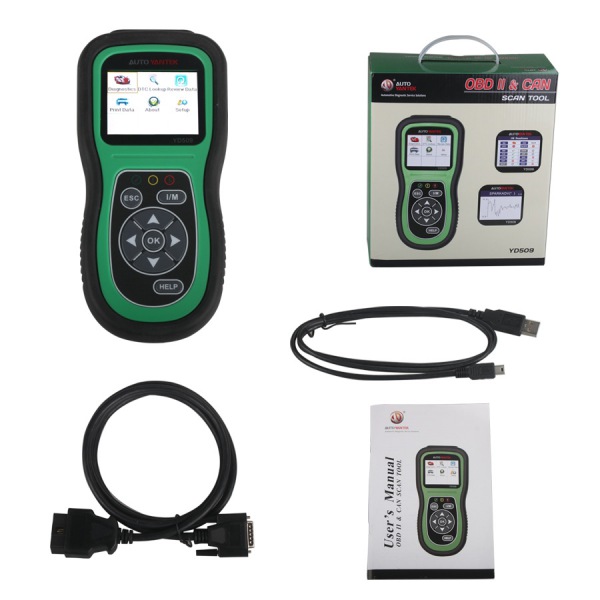

Package Including:

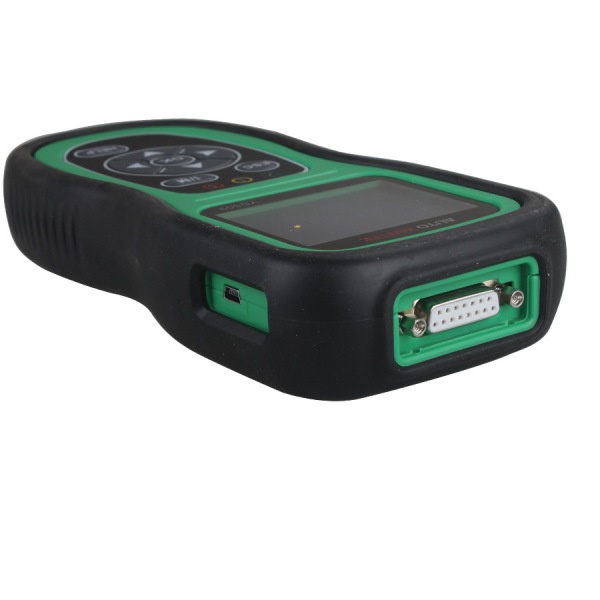

1pc x OBDII/EOBD code reader

1pc x User's guide

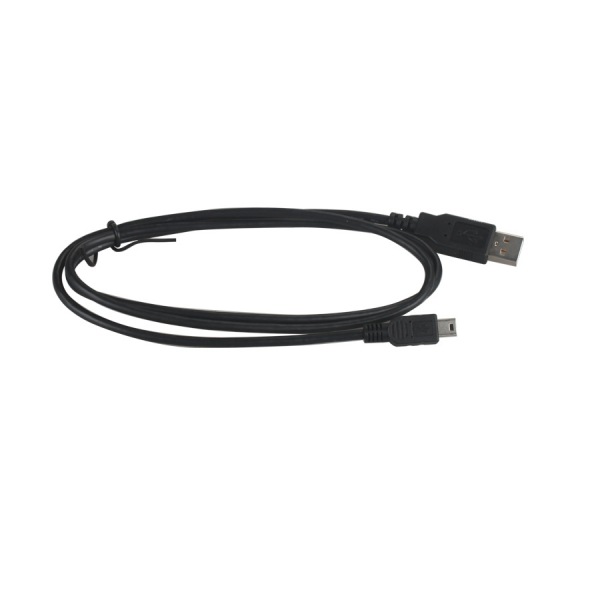

1pc x USB cable

1pc x Software CD
