Best Quality NEXIQ 125032 USB Link Truck Diagnostic Tool Heeavy Duty Truck Scanner with All Adapters

Note:

1. It Support windows XP and windows 7 installation.(windows xp is better compatible with all programs)

2. Volvo, Hino, Perkins, cat, and nissan software must be installed in XP system, other softwares can be used in Win7 32bit system

3. Do not use other nexiq software not buy from us.

Top 7 Reasons To Get Nexiq 125032 :

1.NEXIQ 125032 USB Link is compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more.

2.Reduce reprogramming times with direct USB connection

3.Mixed fleet capabilities with broad protocol support

4.Quick access to vehicle data for maintenance or management reports

5.Quickly attaches to vehicle's diagnostic connector.

6.Easy portability increases flexibility, May be used with desktop PC or laptop.

7.NEXIQ support Heavy-Duty, Light-and Medium-Duty Trucks, CONSTRUCTION EQUIPMENT like (Wheel loader, Articulated Hauler and Excavator), Genset.

NEXIQ 125032 USB Link Compatible Software:

- Allison (Included!)

- Bendix 6.3.8.0 (Included!)

- Detroit Diesel DDDL 7.05 ((Included!)

- Detroit Diesel DDCT (Included!)

- Detroit Diesel Calibration Tool (Included!)

- Eaton Service Ranger 3.2 (Included!)

- International DLB (Included!)

- International ICAP, IPTS, NETS, IPC (Included!)

- International Master Diagnostic (Incluided!)

- Meritor and Wabco Diagnostics (Included!)

- Cummins Insite 7.5 (Included!)

- Hino 2.0.2. (Included!)

- Caterpillar 2.0.1.0 (Included!)

- Perkins EST 2010B (Included!)

- V Macks 2.6.12 (Included!)

- V Macks Dealer Pro (Included!)

- Volvo VCADS 2.35.10 (Included!)

-Toyota Techstream for car (Included!) New added!!

NEXIQ 125032 USB Link Specifications:

RP1210A, RP1210B, and J2534 API support

USB vehicle-to-PC connectivity

Protocol coverage for automotive to heavy duty vehicles:

CAN - J1939/CAN125/CAN250/CAN500/CAN1000

2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000

Automatic bit rate detection for both CAN channels

J1587/J1708

J1850

ISO 15765 (Diagnostic CAN)

ISO 14230 (KWP2000 over ISO9141)

J2534

ALDL

ATEC 160 (160 baud)

NEXIQ 125032 USB Link API Support

• RP1210A, RP1210B

• J2534-2

• USB vehicle-to-PC connectivity, NEXIQ USB linke supports Windows xp and windows 7 32-bit and 64-bit and windows CE compliant

Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact us, a specialist will help you make the right choice.

NEXIQ 125032 Protocol Coverage

CAN - J1939/CAN125/CAN250/CAN500/CAN1000

2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000

J1587/J1708 J1850 J2534

ISO 15765 (Diagnostic CAN)

ISO 14230 (KWP2000 over ISO9141) ALDL ATEC 160 (160 baud)

FREE Heavy-Duty Truck Diagnostic Applications:

1. VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12, F16, NL10, NL12,VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

2. VOLVO BUS: B12B, B12M, B12R, B6R, B7L, B7R, B9L, B9R, B9S, B9TL, PREVH, PREVX,

3. MACK TRUCKS: V-MAC I, V-MAC II, V-MAC III, V-MAC IV, Service Diagnostic

4. VOLVO CONSTRUCTION EQUIPMENT (CE):

Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F

Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,

Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B,

EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,

EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611

Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5. Navistar: ALL Diamond Logic Builder (DLB) ServiceMaxx

6. International:ALL Intune, MD32,

7. Freightliner:ALL ServiceLink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA, 4900SA,4900EX.

8. HINO: ENGINE:300SERIES, 500 SERIES, CR03_J08E, CR03_J05D, COMMONRAIL(J05E), J05D_US, J08E_US,P11C,

VCS, Hibrid, Inverter, Brake(ABS), AT_45043LE

9. ISUZU_GMC: 1996-1999 NPR Diesel and F Series

Include, NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L 6HK1 Engine

Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,

NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine

GM: W3500, W4500, W5500, WT5500, W5500 HD,with 5.2L Diesel Engine Only,T6500,

T7500, T8500

10. SCANIA VEHICLE, KOMATSU excavator, and MAN vehicle will be update

NEXIQ USB-Link works with all popular Engines including: Detroit Diesel, Caterpillar, Cummins, Perkins Engines.

1. Detroit Diesel Diagnostic Link™ (DDDL)

All DDEC VI equipped engines,

DD13,DD15,DD16,SERIES60,MBE4000, MBE900, and RS9, RSX9-A,RSX9-B, RSX9-R,

RS10, RSX10 J1939 engine brake level for Series 2000 and 4000 Engines with USA and

ISO firing order selection

2. Caterpillar (on high way engine for j1939)

3126, 3406, 3306B, 3512C, C4.4, C6.6 C7 C9 C11, C13

3. Cummins INSITE

4d95-cm2150c/D

6d125/6d140/6d170

B5.9g

C Gas plus/B Gas plus

C8.3g/L10G

Gas compression GTA3.9/5.9/8.3GC,

KTA19/38GC-CM556

ISB-CM2150D

ISB-CM2250

ISB-CM850

ISB Daimler Chrysler

ISB4.5/6.7 CM2150

ISB5.9G-CM2180

ISBe-CM850

ISBe-CM2150E

ISC-CM2150D

ISC-CM2250

ISC-Transit Bus ISL8.3-CM850

ISDe-CM2150C

ISF2.8-CM2220E

ISF2.8-CM2220S

ISF3.8-CM2220

ISF3.8-CM2220S

ISL-CM2150D

ISL-CM2250

ISL G-CM2180A

ISL8.9-CM850

ISLe4.5-CM2150E

ISM-CM870

ISM-CM875

ISM-CM876

ISM11 CM876

ISX-CM871

ISX11.9/15/16-CM2250

ISX/ISZ13-CM2150

L Gas Plus

PIM

QSB 6.7-CM2250

QSB 3.3-CM2150D

QSB4.5/5.9/6.7-CM850

QSB5/7-CM850

QSC8.3-CM2250

QSC8.3/QSL9

QSK19-CM850/CM2150

QSK19/23/45/60/78

QSK19G/45G/60G,QSV81/91

QSK23-CM500

QSK38-CM850/CM2150

QSK50/60-CM850/CM2150

QSL 9-CM2250

QSL9-CM850

QSM11-CM876

QST30-CM552

QST30-CM850

QSX15

Signature/ISX-CM870

4.Perkins Engines

1000 (6 Cyl) / 6.354 Series

RA - 6.247 Series

RA - 6.247

T - 6.354 Series

SOS - 6.354 Standard Option Schemes

TC - 6.354

TD - H6.354

TE - T6.354

TF - HT6.354

TG - 6.354.1

TH - T6.354.1

TJ - 6.354.2

TK - C6.354.2

TP - T6.354.3

TR - 6.372

TT - TC6.354.1

TU - T6.354.4

TV - 6.372.4

TW - 6.354.4

TX - C6.354.4

TY - H6.354.4

TZ - HT6.354.4

Y - Phaser / 1006 Series

YA - 6.60

YB - T6.60

YC - C6.60

YD - CC6.60

YE - T6.60CC

YG - 6.601

YH - T6.601

YJ - CCA6.601

YK - CCW6.601

YS - Option Packs M225TI / M215C

1100 Series

D - 1100 Series 3 Cylinder

DC - 1103C-33

DD - 1103C-33T

DF - 1103B-33

DG - 1103B-33T

DJ - 1103A-33

DK -1103A-33T

R - 1100 Series 4 Cylinder

RE - 1104C-44

RF - 1104C-E44

RG - 1104C-44T

RH - 1104C-E44T

RJ - 1104C-44TA

RK - 1104C-E44TA

RR -1104A-44

RS -1104A-44T

RT -1104A-44TA

V - 1100 Series 6 Cylinder

VK - 1106-E60TA

P - 1100D Series 6 Cylinder

PJ - 1106D-E66TA

PO - Option Packs 1100 Series

N - 1100D Series 4 Cylinder ()

NH - 1104D-E44T ()

1300 / Peregrine Series

W - 1300 Series

WB - T6.466

WC - CC6.466

WD - T6.67

WE - CC6.67

WF - T6.76

WG - CC6.76

WH - T6.87

WJ - CC6.87

WK - UT6.76 HEUI

WL - UCC6.76 HEUI

WM - UT6.87 HEUI

WN - UCC6.87 HEUI

WO - 1300 Series Option Packs

WP - UT6.761(I) HEUI

WR - UT6.871(I) HEUI

WS - UCC6.871(I) HEUI

2000 / 3000 Series

4 - 3000 Series

S4B - 3008

S4C - 8M700 / 800TI Condor Marine

S4E - 3008 SI

6 - 3000 Series

6A - 3012

S6A - 3012

S6C - 3012

S6D - 3012

S6E - 3012 SI

8 - 2000 Series

8B - 2006

8C - Eagle / 2006

8D - Drops / 2006

8G - 2006 SI

S8B - 2006

S8C - Eagle / 2006

S8D - Drops / 2006

S8E - 2006 SI

S - 2000 / 3000 Series

SAA - E300TX Euro1 Eagle

SAC - E335TX Euro1 Eagle

SAF - E375TX Euro1 Eagle

SAG - E400TX Euro1 Eagle

SAJ - E340TX Euro2

SAK - E380TX Euro2

SAL - E410TX Euro2

SGA - TAG1A Elektropak / Gen Sets

SGB - TAG2 Elektropak / Gen Sets

SGC - TAG2A Elektropak / Gen Sets

SGD - TAG3A Elektropak / Gen Sets

SGE - TAG4 Elektropak / Gen Sets

SGF - TG Elektropak / Gen Sets

SGG - TG1A Elektropak / Gen Sets

SGH - TG2A Elektropak / Gen Sets

SGJ - TTAG Elektropak / Gen Sets

SGK - TWG2 Elektropak / Gen Sets

SGM - TAG5 Elektropak / Gen Sets

SGN - TAG2B Elektropak / Gen Sets

SGP - TAG1B Elektropak / Gen Sets

SHA - 2006 TWH

SIA - SI Combined Heat / Power

SIB - SI Combined Heat / Power

SIC - TSI Combined Heat / Power

SID - TSI Combined Heat / Power

SMA - M600TI Condor Marine

SMB - M700TI Condor Marine

SMC - M800TI Condor Marine

SMO - M600/700/800 Duffield Opt Kit

SPA - Industrial 17T

SPB - Industrial 12T1

SPC - Industrial 12T2

SPD - Industrial 12TA

SPM - Industrial 12TW

SPN - Industrial 26TW1

SXA - Prototype

SXD - Prototype

SXG – Prototype

SXI - Prototype

SXM - Prototype

SXP - Prototype

2300 / 2800 Series

2300 - 6 Cylinder

FGA - 14L TAG1 Generating Sets

FGB - 14L TAG2 Generating Sets

FGD - 14L TAG3 Generating Sets

2800 - 6 Cylinder

HGA - 16L TAG1 Generating Sets

HGB - 16L TAG2 Generating Sets

JGA - 18L TAG1 Generating Sets

JGB - 18L TAG2 Generating Sets

JGD

4000 Series

D - 4000 Series

DGA - TAG1 Generating Sets

DGB - TAG2 Generating Sets

DGD - TAG3 Generating Sets

DGE - TAG4 Generating Sets

DGF - TG Generating Sets

DGK - TWG2 Generating Sets

DGL - TAG Generating Sets

DGM - TWG Generating Sets

DGN - TWG3 Generating Sets

DGP - TEG Generating Sets

DGR - TEG2 Generating Sets

DGS - TEG3 Generating Sets

DGV - TWG2C Generating Sets

DIE - TESI Combined Heat / Power

DIF - TESI Gas Unit

DIG - 4016E61TRS

DME - Seaking – Marine

Transmissions and Brakes:

1. Meritor WABCO toolbox

D and E Versions, HABS, hpb, ESC, RSC, ECAS

2. Bendix® ACom™ Diagnostics

EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced),

A-18T, MC-30T and the trailer antilock braking TABS-6 unit

3. Meritor ZF

4. Eaton Service Ranger

Vorad VS-400 Collision Warning System

Generation 2 Auto shift and Ultra shift Transmissions

Generation 3 Auto shift and Ultra shift Transmissions

Ultra Shift PLUS Transmissions

Lightning Transmissions

Hybrid Drivetrain Systems

5. Allison DOC

Allison1000, 2000, 3000, 4000,

Cec2-5610, 6610, 8610, 9610

CEC-MTB600, CLBT-V, HT700,B700

CEC-5, CEC-6, CEC-8, CEC9000

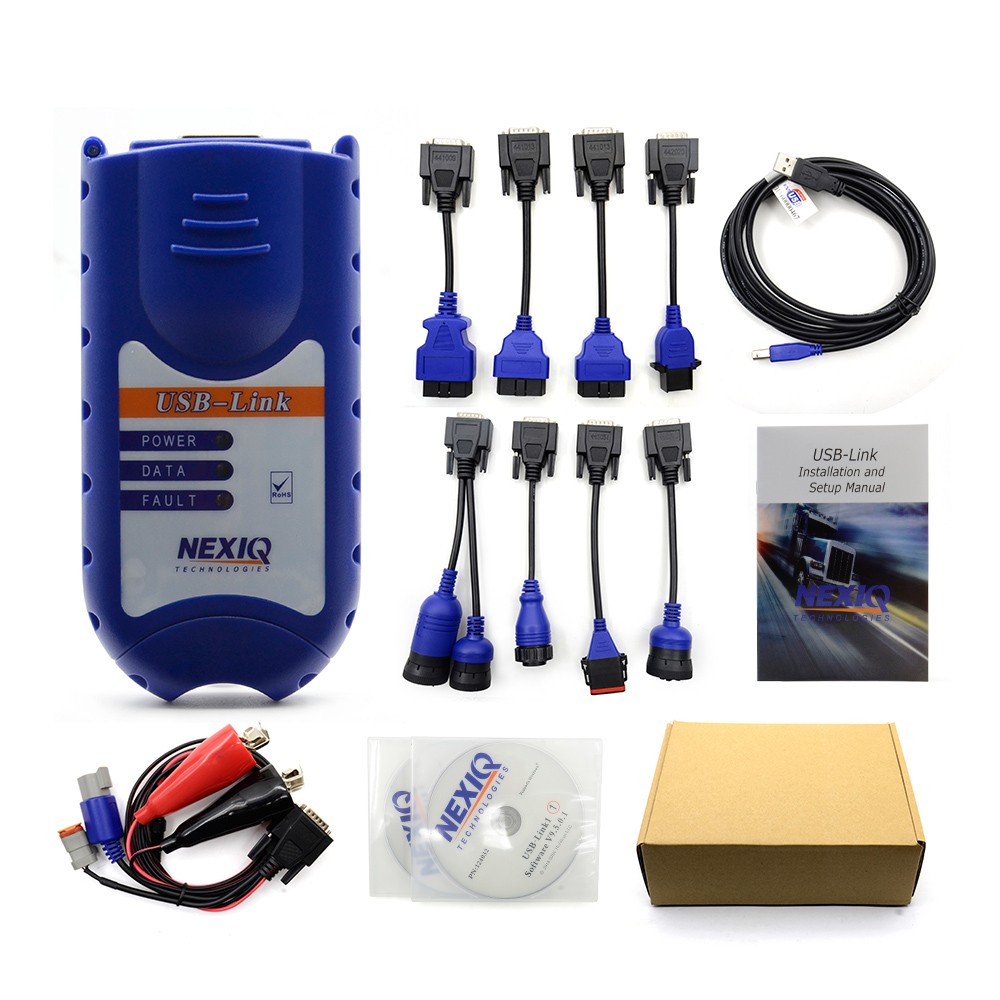

Nexiq 125032 USB Link Package including:

1PC * Nexiq USB-Link module

1PC * 6-pin / 9-pin vehicle "Y" adapter

1PC * 16PIN J1962(OBD2)

1PC * 16PIN J1962(Heavy Duty)

1PC * 8-pin  Volvo / MACK

1pc * 14 -pin Volvo construction equipment

1PC * USB cable
