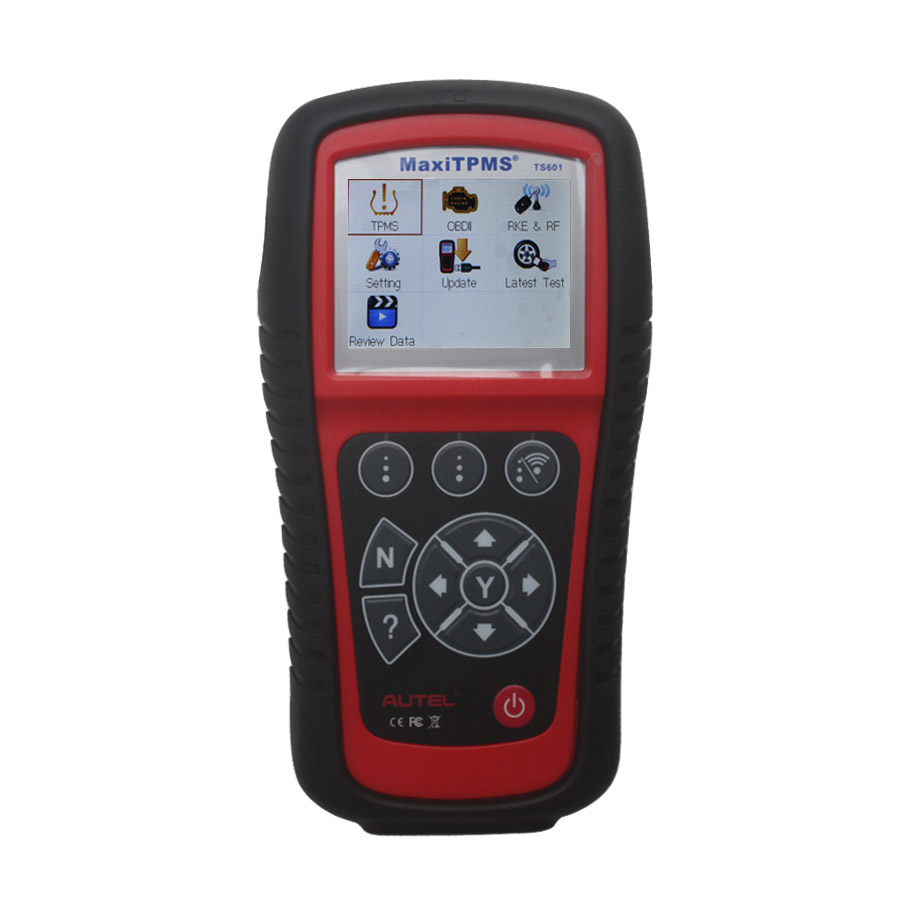

Autel TPMS Diagnostic and Service Tool MaxiTPMS TS601 Automotive Activator Tire repair tools Sensor programming Code Reader

Description:

The MaxiTPMS TS601 is capable of wirelessly diagnosing TPMS problems as well as reprogramming the vehicle's ECU. This professional tool is the best solution for busy tire and automotive workshops that require a diverse tool.

TS601 supports most languages around the world. After you get your device, please send the S/N number and the language. We will add the language for you.

Please kindly note:

1. Free Update Online Lifetime on Autel Official Website
2. Automatic power-off to preserve battery life

3. Ergonomic design features strong housing and protective rubber boot

4. On-screen code definitions

5. Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions

6. Proper LF signal to prevent being fooled by other RF signals

7. Built-in rechargeable Li-polymer battery

Features:

Activates ALL magnetic, frequency and tire deflation triggered sensors using 125KHz continuous or modulated wave signals

Receives both 315MHz and 433MHz signals

Reads / writes sensor ID from vehicle ECU

Reads / clears codes of TPMS system and resets malfunction indicator light

Reads activated sensor data including sensor ID, tire pressure, temperature, battery condition, OE part number, relearn information

Reads, records and playbacks TPMS live data, including tire pressure, signal status, temperature, battery status, etc.

Retrieves TPMS ECU information

Performs actuation tests and special functions

Programs vehicle ECU to learn sensor IDs and positions

Capable of programming single tires for Chrysler, Renault, and Citroen

Checks Remote Keyless Entry (Key FOB) for transmissions

Graphs vehicle with 4 or 5 wheels to simplify the diagnostic process

Pre-selection process offers faster activation and diagnostics

Provides visual and audible responses to confirm sensors are working properly

On-screen code definitions

Incredibly easy to use with intuitive navigation and step-by-step on-screen instructions

Proper LF signal to prevent being fooled by other RF signals

Built-in rechargeable Li-polymer battery

Automatic power-off to preserve battery life

Ergonomic design features strong housing and protective rubber boot

Professional TPMS Diagnosis and Programming
The easy-to-use TPMS tool Autel TS601 provides users with unparalleled experience of efficiency and accuracy for complete TPMS diagnosis. Instead of simply checking the sensor data, sensor ID, tire pressure/temperature, battery condition, sensor position and diagnosing the TPMS to read/write sensor ID, read/clear TPMS codes (turn off TPMS warning light), retrieve TPMS ECU information, and perform actuation test, this TPMS tool allows user programming the sensor data to MX-sensor and replacing faulty sensor that is with low battery life or is not functioning.

Fast Access to Accurate OBDII Diagnosis
Autel TS601 is the first one to integrate the TPMS tool with OBDII code reader. Except professional diagnosis to the TPMS, you can also perform the exceptional diagnosis to vehicle engine running conditions and the operating status of the exhaust after-treatment, which is called OBDII diagnosis.
With OBDII diagnostic functions, you can quickly check the vehicle self-inspection condition, accurately locate the fault that caused the Check Engine Light, and easily turn off the check engine light after the maintenance and repair.

Easy and Fast MX-Sensor Programming
The TPMS sensor programming can and will only work with the Autel MX-sensor. There are 4 options available for you to complete MX-sensor programming, and they each have their own advantages and characteristics:
Auto Create applying random ID for the tested vehicle
Manual Create manually input the random ID or the original sensor ID
Copy by OBD read sensor ID with Relearn function, and write it to MX-sensor
Copy by Activation automatically write in the retrieved original sensor data to MX-sensor in the case of original sensor is triggered

Supported Car Brands:
for ABARTH, for Acuba, for Alfa Romeo, For Alpina, for Aston Martin, for Audi,for Bentley,  for BMW, for Bugatti, for Buick, for BYD, for Cadillac, for ChangAn, for Chery, for Chevrolet,  for Chrysler, for Citroen, for Dacia, for Daewoo, for Dodge, for Ferrari, for Fiat, for Ford,  for Foton, for Geely, for GMC, for GreatWall, for Haval, for Holden, for Honda, for HSV, for Hummer,  for Hyundai, for Infiniti, for ISUZU, for JAC, for Jaguar, for Jeep, for Junpai, for KIA, for Lada,  for Lamborghini, for Lancia, for LandRover, for Lexus, for Lifan, for Lincoln, for Lotus, for Mahindra,  for Maserati, for Maybach, for Mazda, for McLaren, for Mercedes Benz, for Mercury, for MG, for Mini,  for Mitsubishi, for Nissan, for Oldsmobile, for Opel, for Peugeot, for Plymouth, for Pontiac, for Porsche,  for Renault, for Rolls-Royce, for SAAB, for Samsung, for Saturn, for Scion, for Skoda, for Smart, for SsangYong,  for Subaru, for Suzuki, for Tesla, for Toyota, for Venucia, for Volvo, for VPG, for VW.

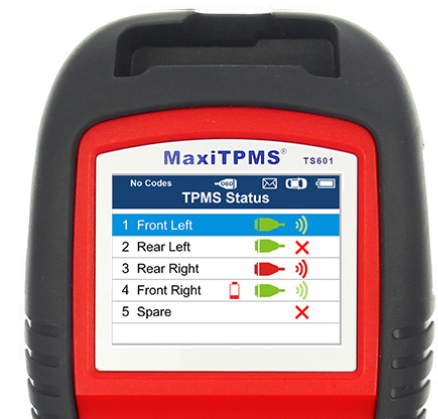

At-A-Glance TPMS Status Screen

The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features, and compare sensor and ECU data, then instantly pinpoint system faults to identify the fix. This At-A-Glance view of all sensor information, easily shows the location of which sensor battery is low and needs to be replaced soon.

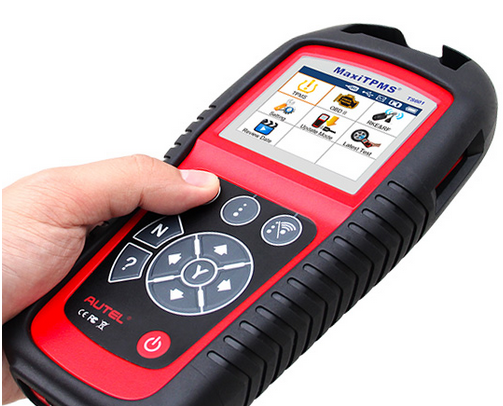

Easy To Use Software Operation

Performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS601 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete.

Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!

OBDII Connected TPMS & Vehicle Diagnostics

The TS601 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning. The TS601 also offers advanced TPMS diagnostics like Live Data Graphing for performance vehicles and complete system diagnostics like Emissions Testing and Live Data Graphing to help technicians complete multiple projects quickly with a single tool.

Specifications:

Display TFT color display (320 x 240 dpi)

Power 3.7V Li-polymer battery

Operating Temperature 0 to 50°C (32 to 122 °F)

Storage Temperature -20 to 70°C (-4 to 158 °F)

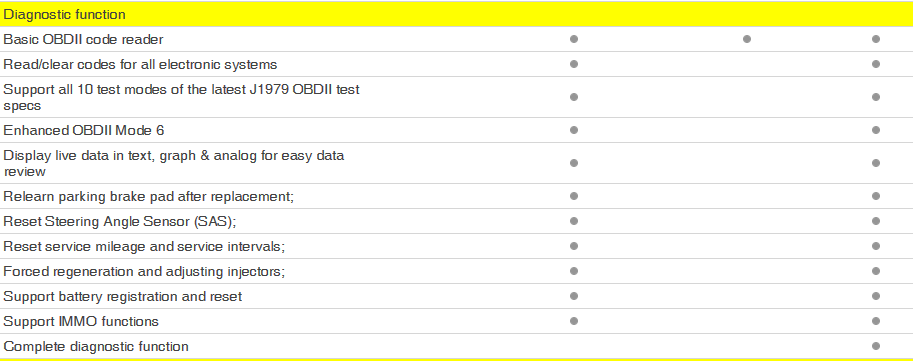

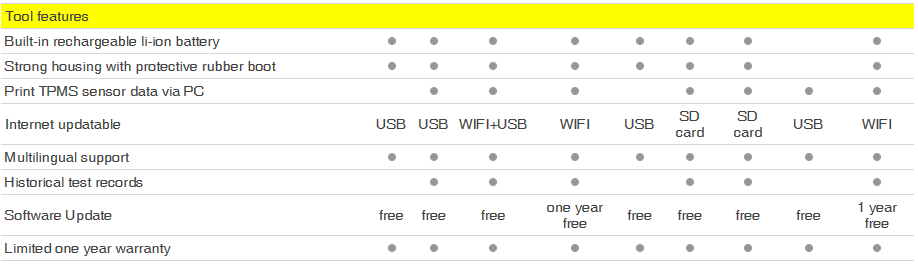

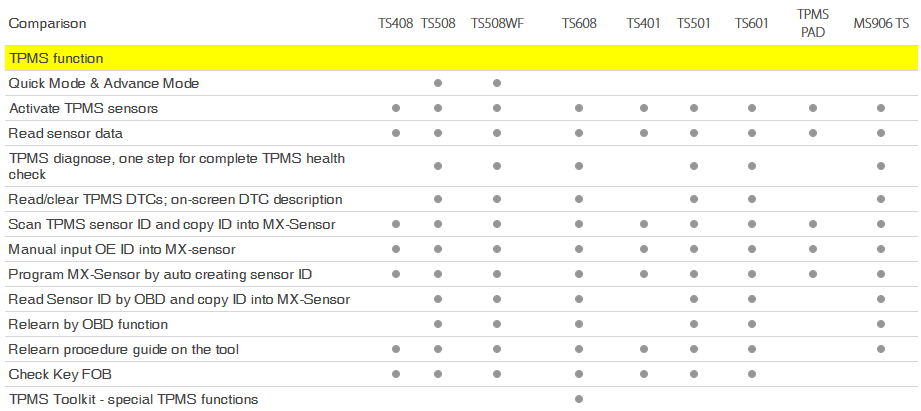

TPMS Function Compare:

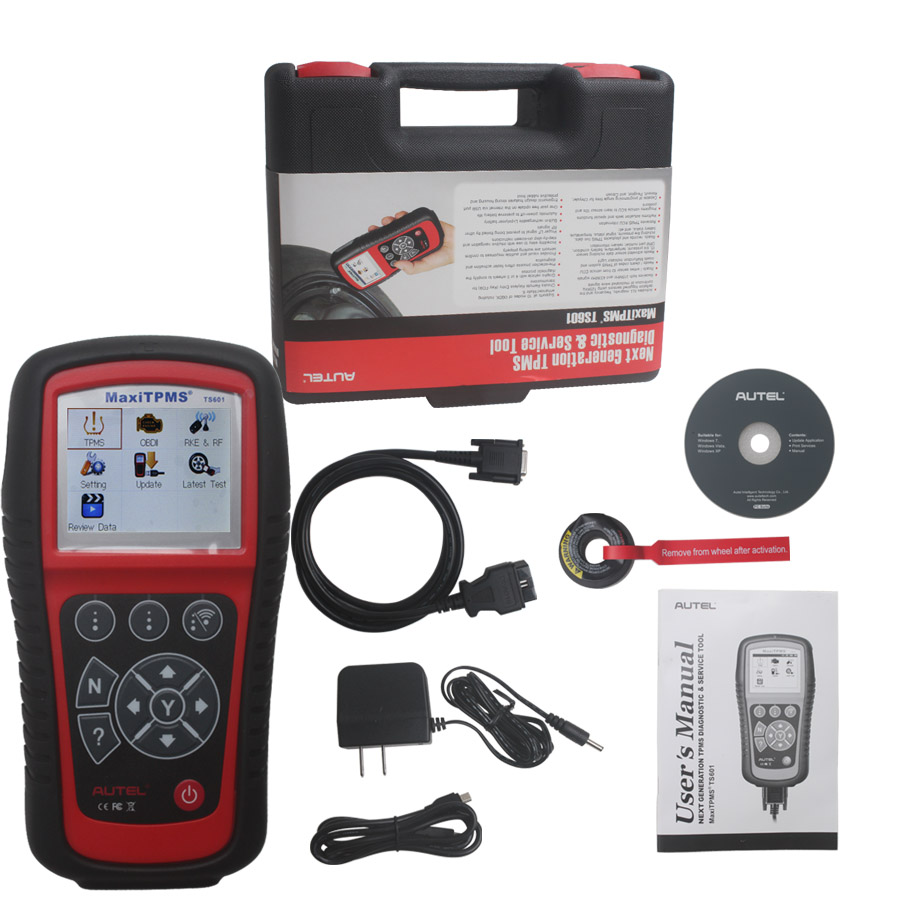

Package List:

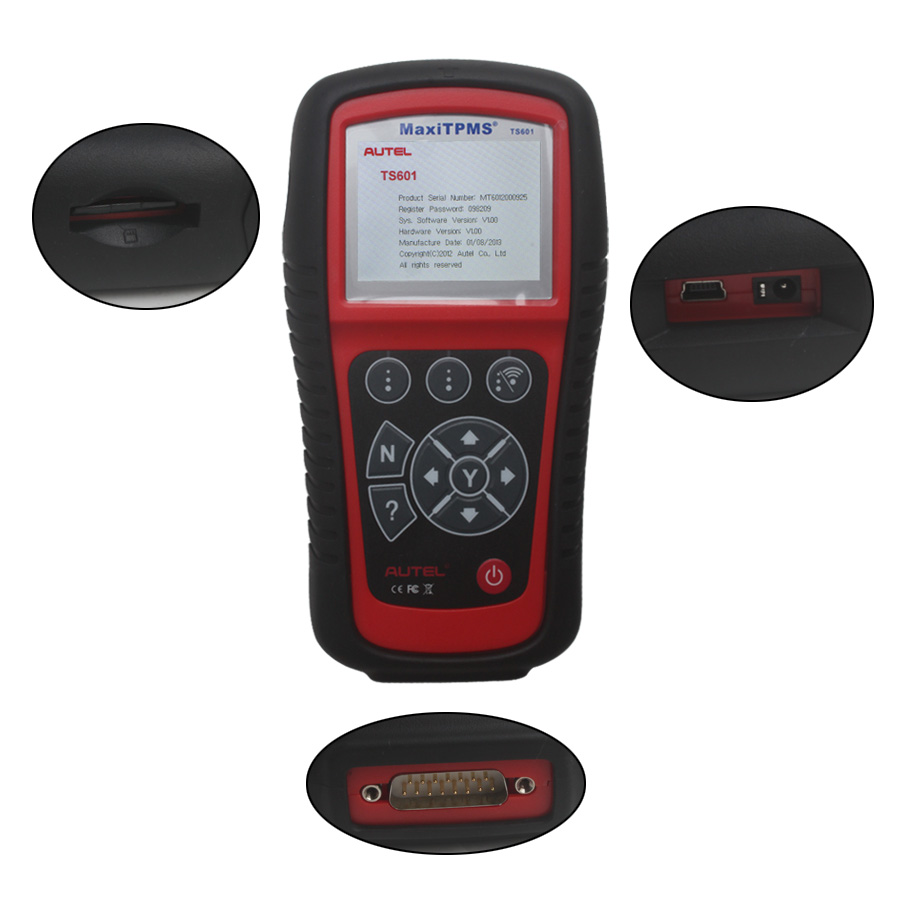

1 x TS601 main unit

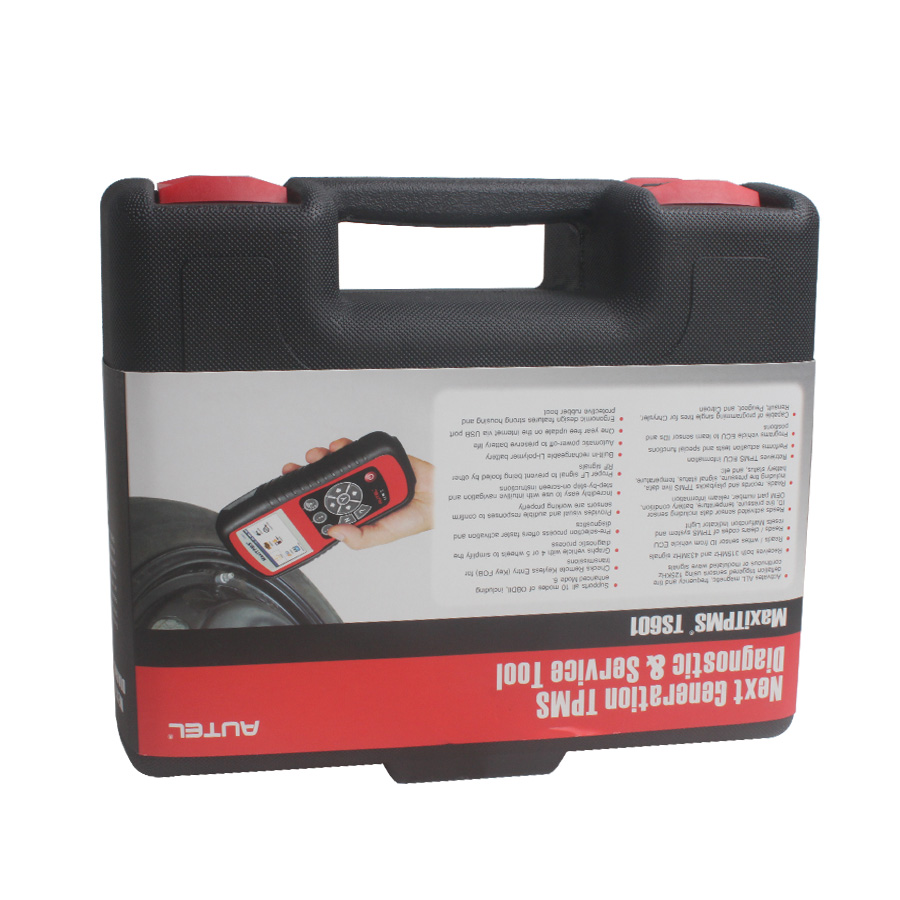

1x Carry case

1x SD Card

1x CD

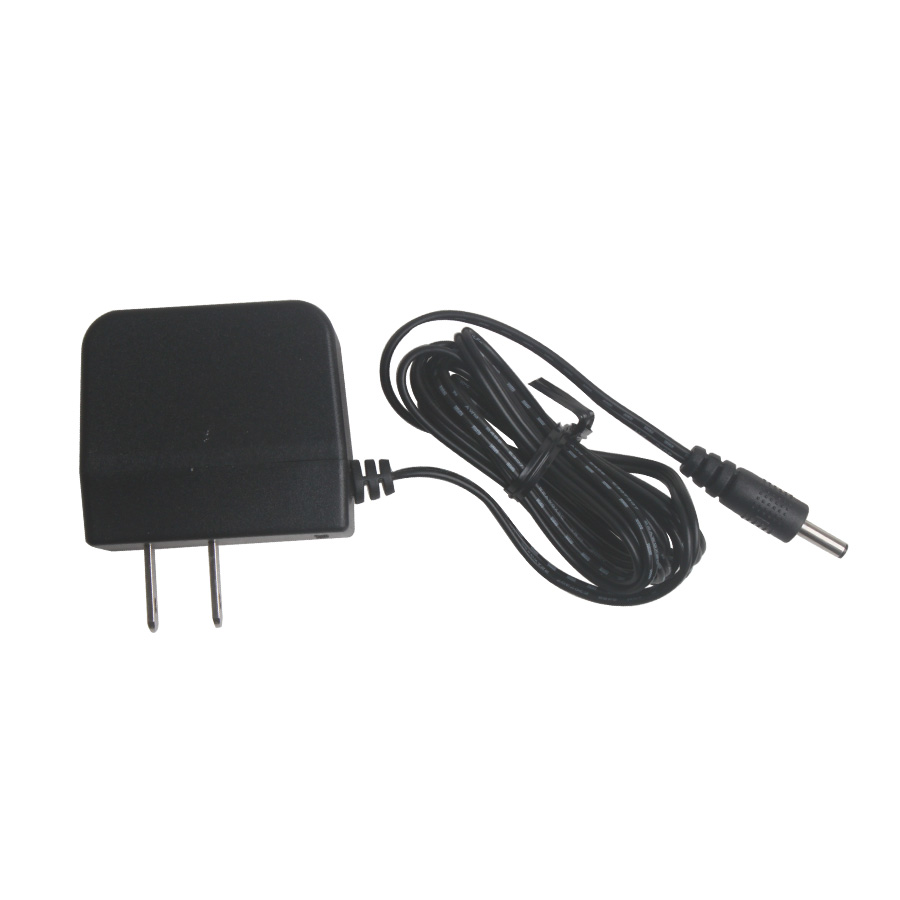

1x Charger

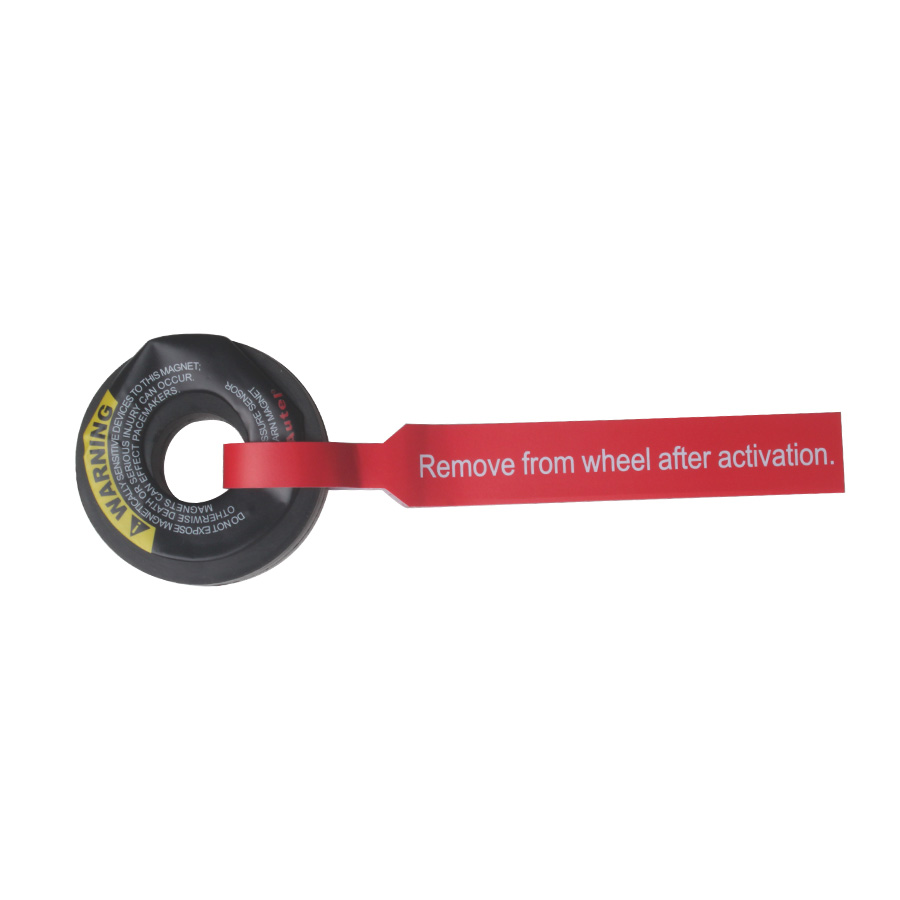

1x Magnet

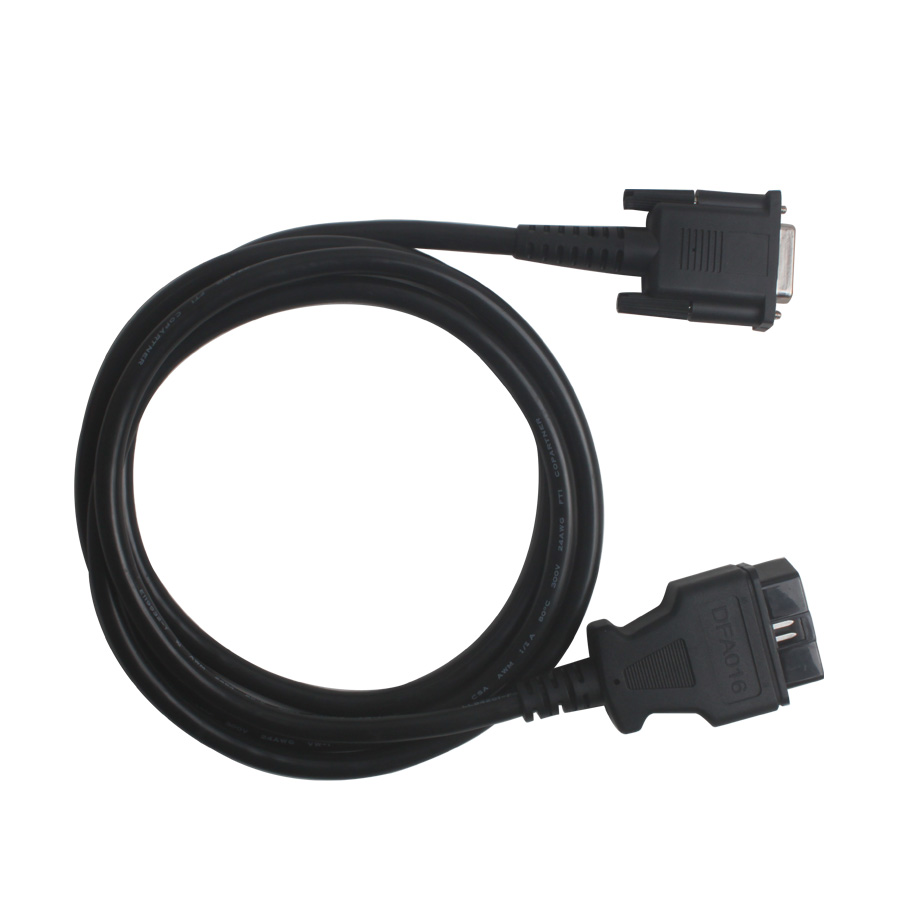

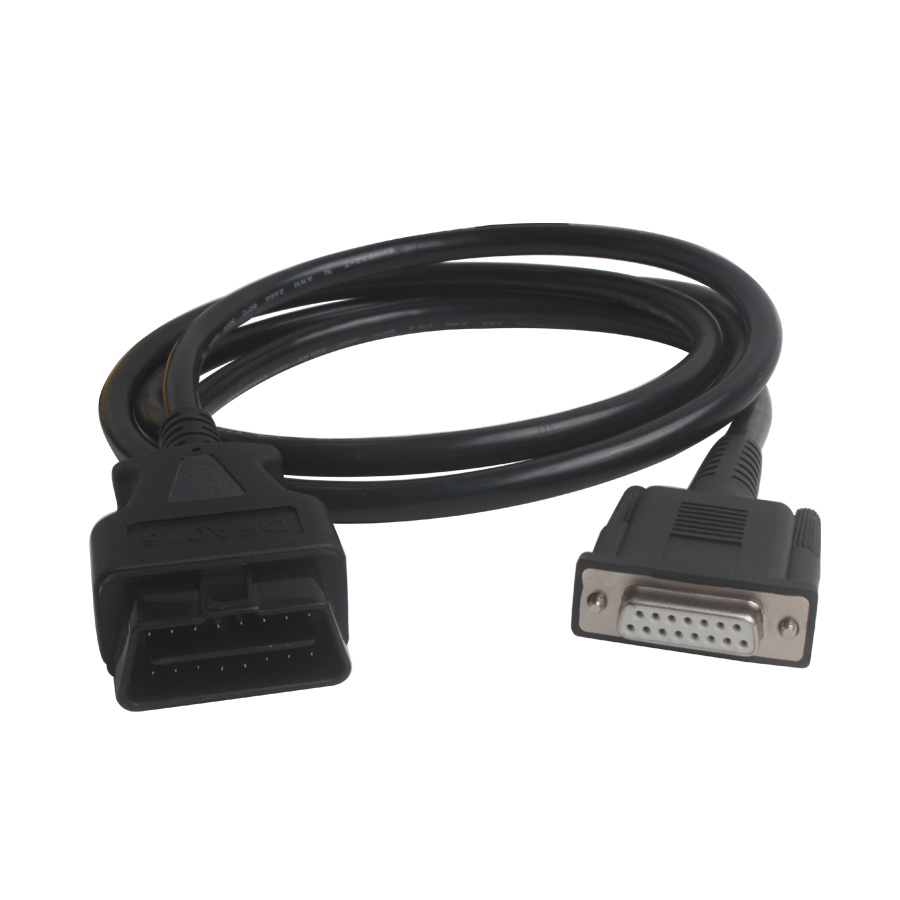

1x OBDII Cable

1x User Manual

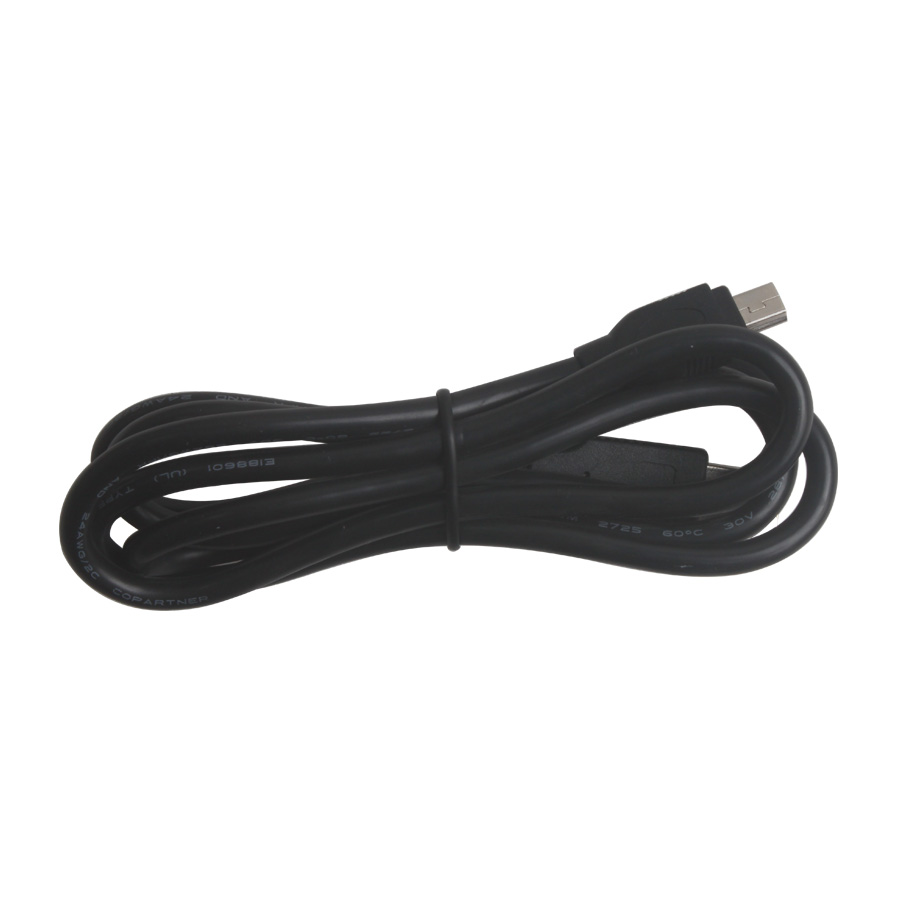

1x USB Cable
