    ADD51 One-Hand Automotive Multimeter

    • Item No.  Z160
    • History: 174  sold
    • Quantity
      Total
      Shipping:
      Express Shipping Service    Estimated delivery time: 5-7 days »
      Affected by the epidemic, there will be delays in transit time.
      continue
    • Quantity:  199
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video

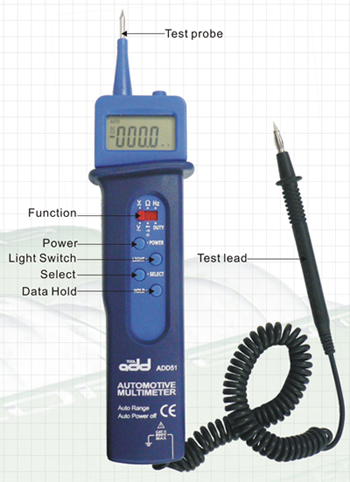

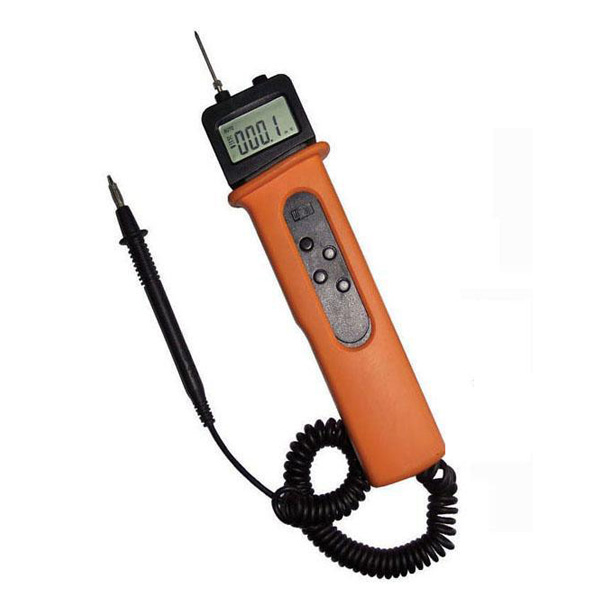

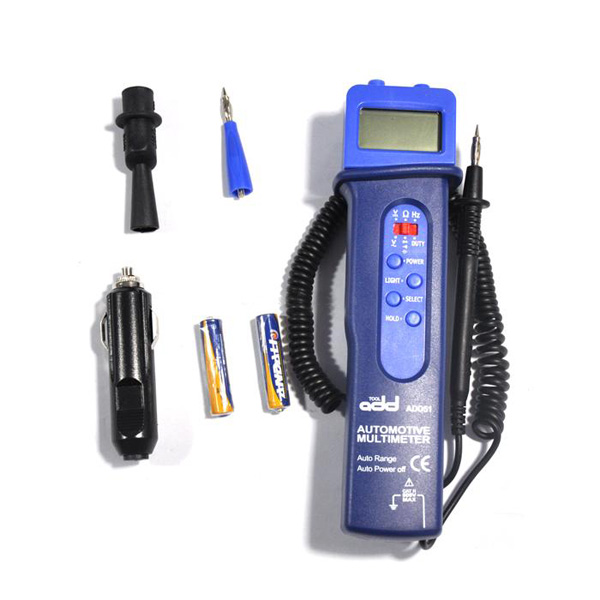

    One-Hand Automotive Multimeter ADD51


    Description

    Professional design for automotive diagnostic and testing, which can be used with one hand with bright light used in darkness
    Digits LCD display,Max.reading 3999
    Data-hold function
    Auto ranging
    Auto power off
    Overload protection
    Size:28cm*16cm*4.5cm
    Weight:0.4kg


    Specifications

    •DCV
    400m-4-40-400-600V
    •ACV
    400m-4-40-400-500V
    •OHM
    400-4K-40K-400K-4M-40MΩ
    •CAP
    4n-40n-400n-4μ-40μ-200μF
    •FREQ:9.999-99.99-999.9-9.999K-99.99K-999.9K-30MHz
    •DUTY:0.1%~99.9%
    •Diode Check:1.5V/1mA
    •Size/weight
    230x44x30mm/110g

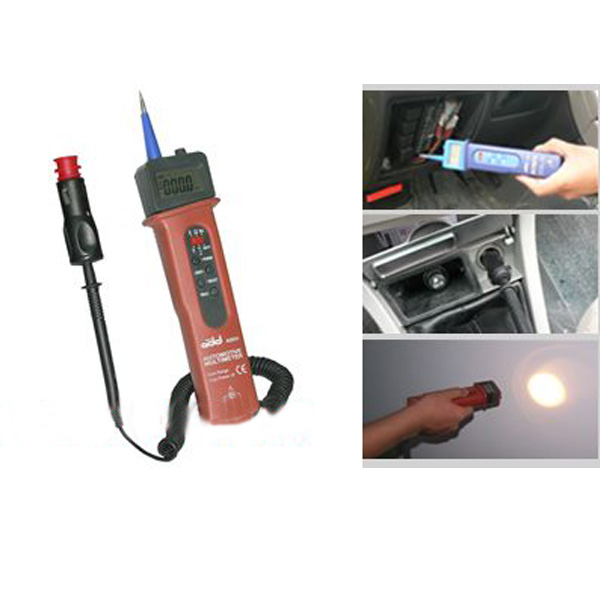

    Applications

    Measure output in sensors like Oxygen (O2),Pressure (MAP)
    Coolant Temperature,Throttle Position (TPS),Manifold Air
    Manifold Air Flow (MAF) etc
    Check grounds Voltage drops and continuity across Connectors Wires, Cables, Relays Contacts, Lamps, Switches, etc
    Check components like Alternator Diodes, Relays Coils, Condensers, Ignition Coils, Spark Plug Wires
    Magnetic Pick-ups, Motors, Switches, Fuses, etc
    An essential tool for all around troubleshooting of electrical electronic circuit and systems
