Ignition System Quickly Tester (Two In One) ADD790

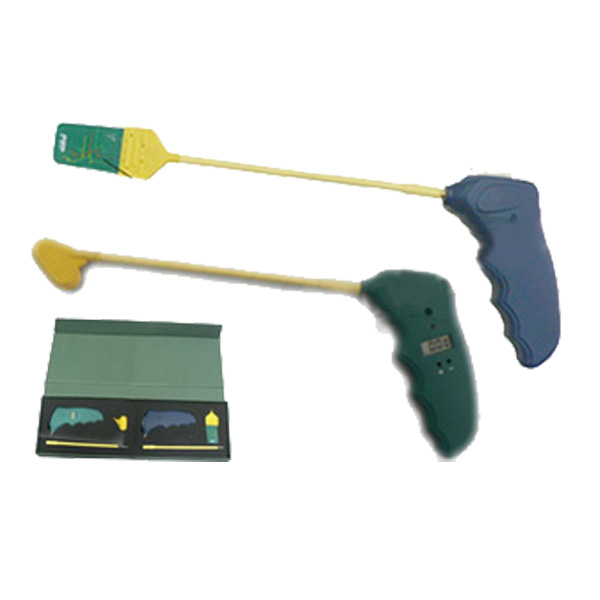

This product consists of two of our ADD products: ADD760 (Ignition System KV Quick Tester) and ADD750 (Coil on Plug Ignition Quick Tester). The two products are used to test car ignition system.

Description

This product consists of two of our ADD products: ADD760 (Ignition System KV Quick Tester) and ADD750 (Coil on Plug Ignition Quick Tester). The two products are used to test car ignition system.

ADD750 is used to test COP (Coil on Plug) ignition system. Technicians can use this product to test KV value and Arc (glow) duration output.

ADD 760 is designed to work on distributor and DIS systems, and it can quick measure KV value of the secondary ignition and compare peak kV, or verify the proper firing of the secondary ignition system.
Size:32cm*18cm*4.5cm
Weight:0.6kg

Features

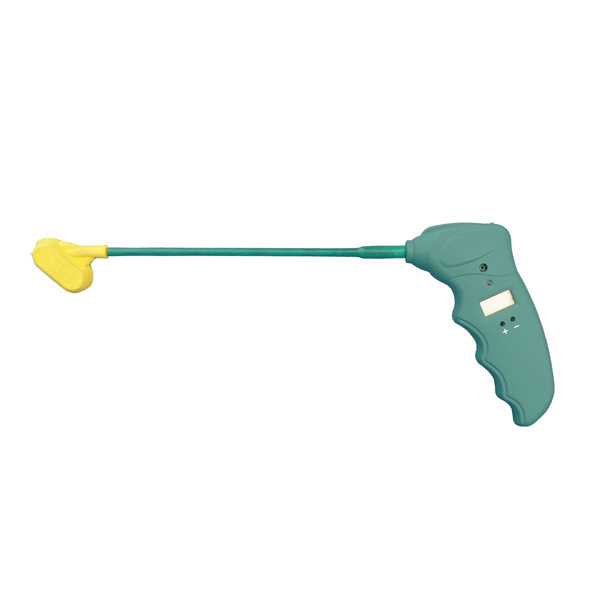

The kV/Arc Quick Tester ADD760 is a battery-operated, hand-held tester designed to easily and quickly check the presence of a spark in the vehicle's cylinders, determine the polarity (+/-), and measure the peak voltage as the spark plug is firing on Distributor and Oistributodess ignition Systems.
The tester works by receiving a signal transmitted from the spark plug's wire. In the Quick Check Mode, the red LED light flashes when a spark is detected, If the polarity is negative (-), the green LED lights; and if positive (+),the red LED lights. In the Measurement Mode, the tester measures and displays the peak spark voltage for approximately 15 seconds.

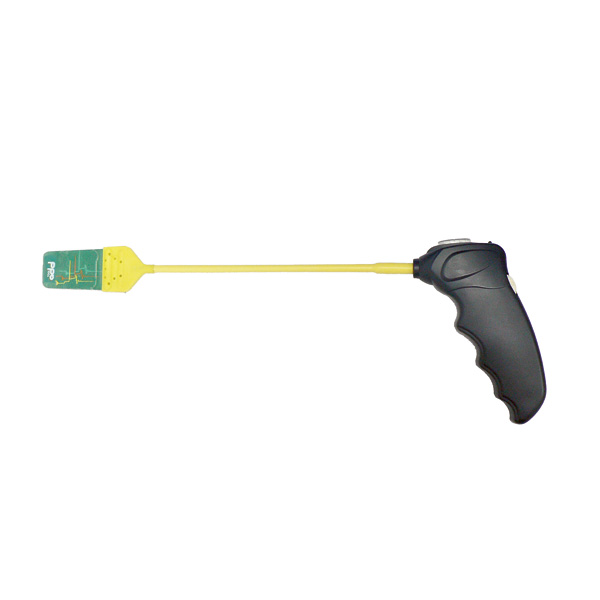

The Coil On Plug (COP) Quick Ignition tester ADD750 is a battery-operated, hand-held quick tester designed to easily and quickly determine if a COP is producing a proper spark for the plug.
The quick tester works by receiving a signal from the secondary ignition coil. Once the signal is received, the tester determines if the COP is producing the correct amount of voltage and the duration of the arc. If the voltage is correct, the tester beeps and the red LED light flashes; and if the duration of the arc is correct, the green LED will also flash
