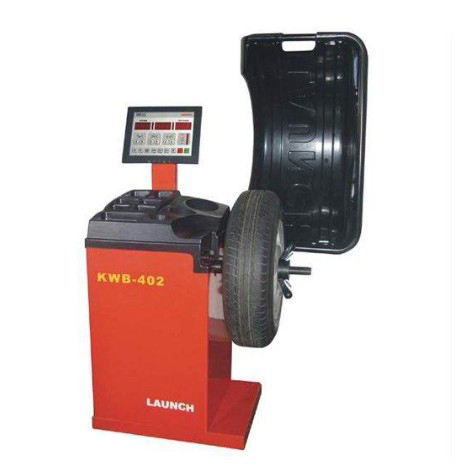

KWB-402 Wheel Balancer

The KWB-402 wheel balancer features compact size, good design, simple operation, strong functions and high measurement precision. It can also be a great help in car repair garage and tire shops.

Functions
*Quick and accurate measurement of imbalance value.
*Automatic inspection of dynamic balance (in four modes) and static balance,both with compensation.

Feature
*Manual measuring scale(manual input of values)
*Static and four modes dynamic balance inspection both with compensation
*Indication of imbalance both in grams and ounces
*Locking wing nut reduce time of mounting and demounting wheel
*Precison of imbalance up to 1 gram
*Automatic correction and memorization of structural parameters
*Optional universal clamping fixture for different type of wheels
*High precision indication

Specification
*Rim Diameter:10″~22″(254--558mm)
*Rim Width:1.5″~18″(38--457mm)
*Balancing precision:±1g
*Cycle time:7s
*Power supply:220V/110V 50Hz/60Hz
*Motor Power:180W/370W
*RPM:240rpm
*Working noise:<70dB(A)
*Temperature:0~50
*Humidity:=<85 pecentage
*Max. Wheel Weigh:65kg
*Dimensions:1200*1000*1350mm
