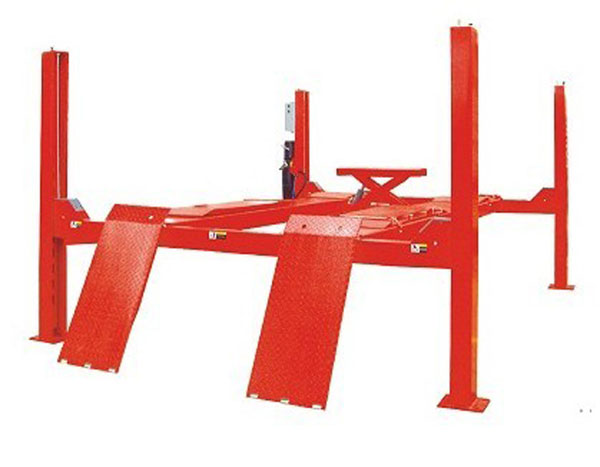

Scissor lift jack Launch TLT440EW

Scissor lift jack Launch TLT440EW Features
1.Designed based on the international standard, meeting the demand of the garage and workshop.
2.Driven by hydraulic cylinder in stable lifting and lowering.
3.Offering full-range mechanical safety protection by using the safety latches.
4.Connected by four steel cables; forced synchronized movement of the lift in order to effectively prevent the sloping of the vehicles.
5.Equipped with rolling jack, turntable and sideslip, suitable for wheel alignment.
6.Adjustable distance between runways to accommodate different wheel track.

Scissor lift jack Launch TLT440EW Specifications
*Load capacity(kg) 4000
*Lifting height(mm) 1850
*Raising time(s) t≤60
*Lowering time(s) 20≤t≤40
*Power(kw) 2.2
*Passing width(mm) 3045
*Equipment width(mm) 3445
*Equipment height(mm) 2172
*Runway length(mm) 4240
*Runway width(mm) 500
*Max wheel base(mm) 1950
*Min wheel base(mm) 950
*Lowest height(mm) 220
Rolling jack:
*Capacity(kg): 2000
Lifting height(mm) 250
Raising time(s) t≤30
Lowering time(s) 10≤t≤20

Package including:
1 X TLT440EW
