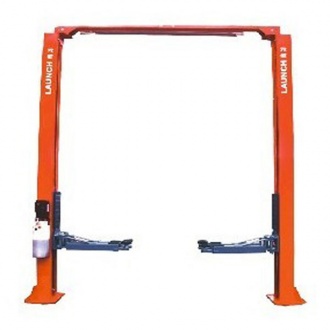

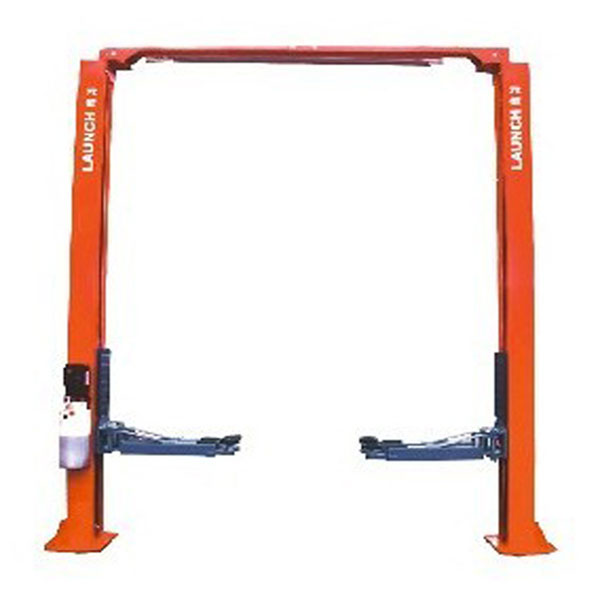

Launch TLT235SC Clear Floor Two Post Lift



Feature

One-piece column design, with decent and elegant

appearance and convenient for installation .

Fully automatic unlocking safety device is adopted for

operating only with UP/DOWN button

The cable and oil pipe are fully concealed; with decent and

elegant appearance.

Double hydraulic cylinder and high strength chain drive

 makes stable and smooth lifting and lowering

Wire rope equalization system forces synchronous

movement of two carriages and effectively prevents vehicle

 form tilting.

24V low voltage control box（IP54 level）ensures operator's

safety.

Cylinder travel limit switch effectively protects cylinder and

extends its lifespan.

 Emergency lowering valve can be manually operated to

make lift lower safely in case power is off.

Anti-explosion valve is deployed to make lift slower or stop

lowering for the case of oil explosion ,thus protects

operator's safety and vehicle not being damaged.

CE-STOP function with safety alarm beep would

automatically warn operators to keep safe distance from lift

when it lowers to about 250mm high from ground.

Door rubber pad protects car door from being damaged in

collision.

More lifting pads with different height meets the

requirements for light lorries and SUVs.

Symmetric and asymmetric installation types are optional.

Passed 115% dynamic loading test and 150% static loading

test



Specification

Rated load： 3500kg

 Lifting height： 1850mm

 Initial height：　110mm 　　

 Lifting time： less than or equal to 50s

 Lowering time： between 20s and 40s

Passing width for symmetric installation：2424mm

Overall width for symmetric installation： 3392mm

Passing width for asymmetric installation：2378mm

Overall width for asymmetric installation：3544mm

Overall height： 3840mm

Motor power ： 2 .2kw

Motor voltage： 3 phase/380v or Single phase/220V

Working noise： less than or equal to 75dB（A）

Working oil pressure： 16M Pa

Package including:

1 X TLT235SC
