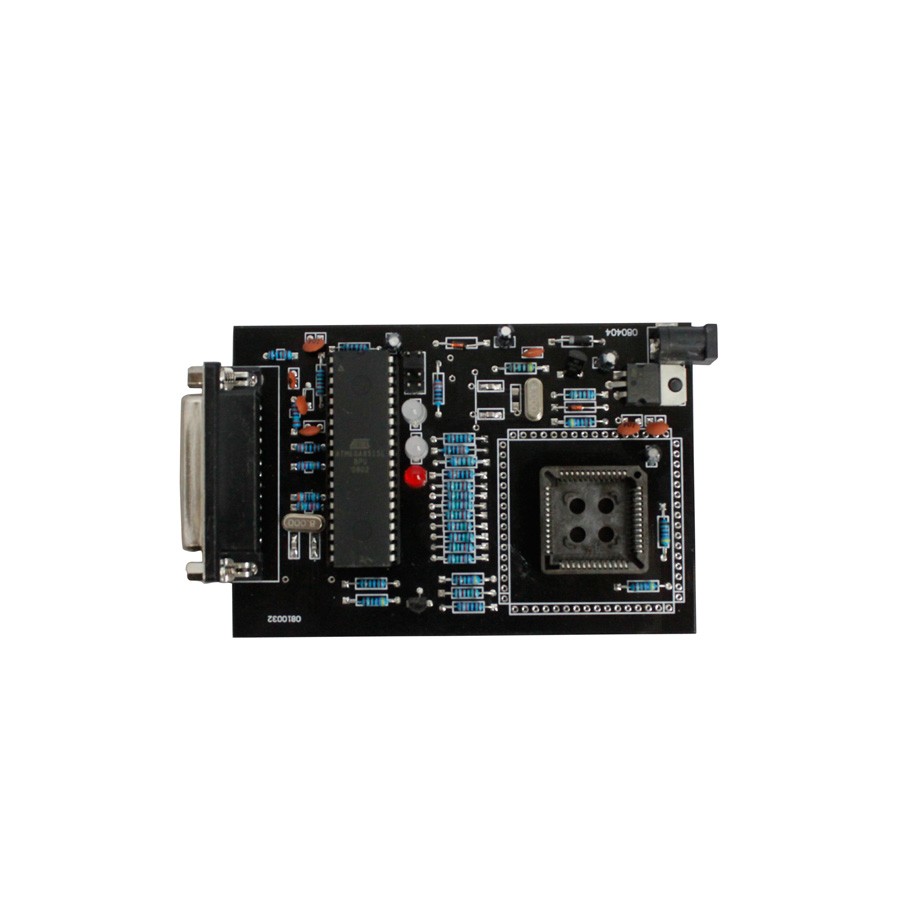

MC68HC05 Motorola 705 Programmer

A parallel port interface (LPT1, LPT2) connects the programmer to any desktop PC running DOS or Windows systems.
The four jumpers located on the programmer board are intending for device type selection. Smart firmware controls all read/program operations so access to device can be establish even if device secured. Default settings permit to read and write Motorola MCU internal EEPROM without processor structure knowledge. The Device Menu displays all available functions to perform on the device (read, program, verify, program security, etc...). A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.

Features
--Easy to use DOS, Windows 95/98/NT/2000/XP software
--Onboard processor
--Device selection by 4 jumpers
--2 color LEDs indicates mode of operation, security condition (check option available without PC)
--LPT port self-check function on a board
--52PLCC PGA socket on a board and additional adaptor for 64QFP device in complete

Supported Devices
MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32

Package Included
1.one 705 programmer
2.one MC68HC705B16 QFP-64

Additional items you'll need to use this tool
--Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
--Power supply: An 12 Volt / 500MA power adapter.

Note: You may purchase a 12V power adapter in this site if you like.

CAUTION!
On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode. So 20 MHz Crystal must be used with this device.
