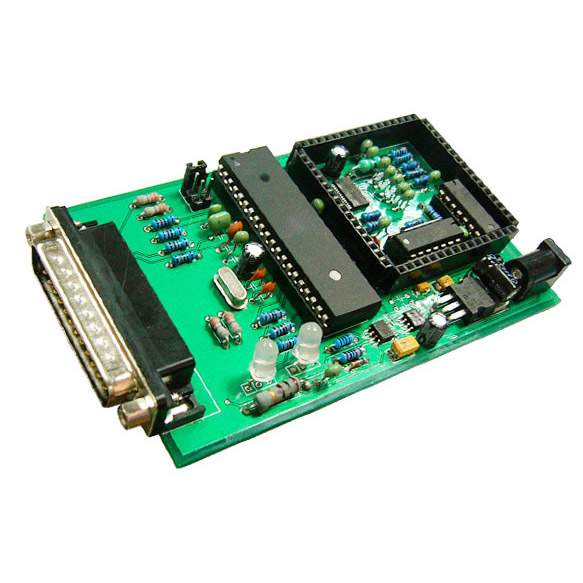

MC68HC08 908 Motorola Programmer

--In-Circuit EEPROM programming (MON08 Rev1 adaptor must be used).
--Ultra high-speed On-Board FLASH/EEPROM programming.
--2x2 color LEDs indicates mode of operation, power supply status

Description:
A parallel port interface (LPT1, LPT2) connects the programmer to any desktop PC running Windows 98/NT/XP.
The MC68HC908AZ60 Windows based software makes programming simple. Programmer has 2 interfaces: In-circuit and On-Board. In-circuit programming interface designed to allow fast access to MCU EEPROM resources. In this mode programmer automatically detects target MCU bus speed. On-Board programming interface is intended for full access to EEPROM/FLASH resources even if security sequence unknown. In this mode programmer automatically find out security sequence and store it. The Device Menu displays all available functions to perform on the device (read, program, verify, etc...). The MC68HC908AZ60 programmer can process 2 popular file formats - Motorola S-record and binary. A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.

Supported chip list:
MC68HC908AZ60 (2J74Y)
MC68HC908AZ60 (4J74Y)
MC68HC908AZ60A (3K85K)
MC68HC908AS60 (3J74Y)
MC68HC908AB32 (3K56G)
MC68HC08AZ60 (1J35D)
MC68HC08AZ32 (0J66D)
MC68HC08AZ32 (1H56A)
MC68HC08AS20 (0H94K)
MC68HC08AZ32A (1L52H)
MC68HC05H12 (0H57A) 4.19 MHz
MC68HC908AS60A (1L87J)
MC68HC05H12 (0H57A) 4.00 MHz
MC68HC08AB16A (0L72A)

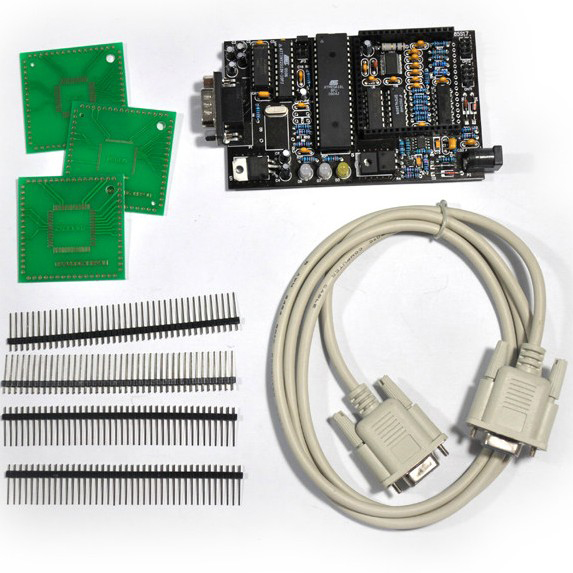

Package list:
1pc x 908 programmer
1pc x MC68HC908AZ60 QFP-100 adapter
1pc x MC68HC908AZ60 QFP-64 adapter
1pc x MC68HC908AZ60 PLCC-52 adapter

Additional items you'll need to use this tool
Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500 mA power adapter.

Note: You may purchase a 12V power adapter in this site if you like.
