HDS HIM Diagnostic Tool for Honda V3.104.24 Supporting Honda cars Till 2020

Top 7 Reasons To Get Honda HDS:

1. Software Version: V3.104.24  This Version No Need Activation

2. Support VIN Reader and IMMO.

3. Test Coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.

4. Honda HDS HIM supports CAN BUS system, and it can re-program the Auto ECU. This HIM is based on PC operation platform.
5. Use Z-TEK USB1.1 to RS232 Convert Connector together, It is easy to use Honda HDS on the computer that without COM port
6. Support Honda vehicles from 1992-2020 year

7. Supports Multi-language：

Notice:
Operate System: Windows XP and Win7

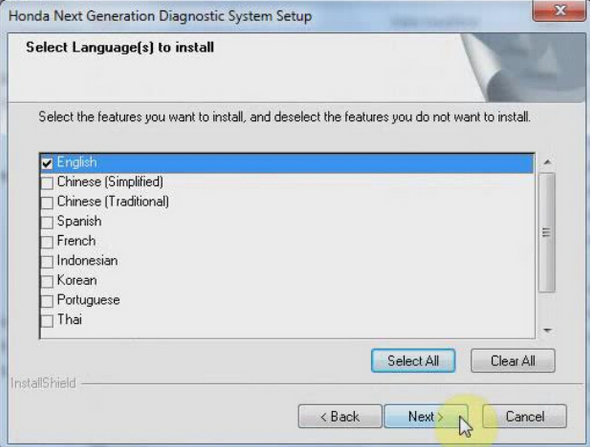

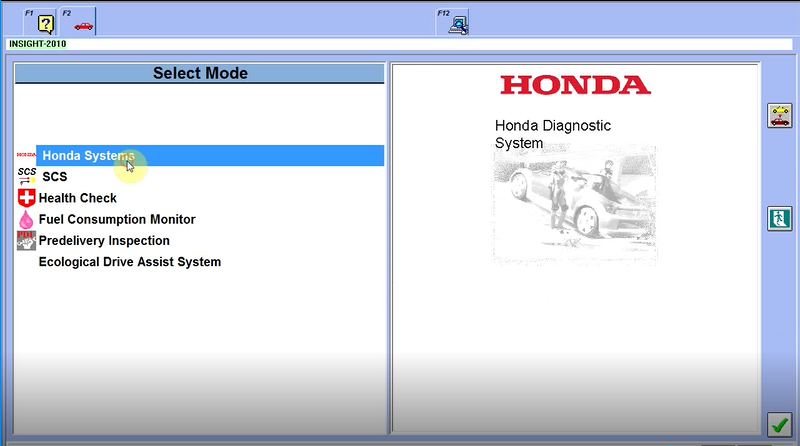

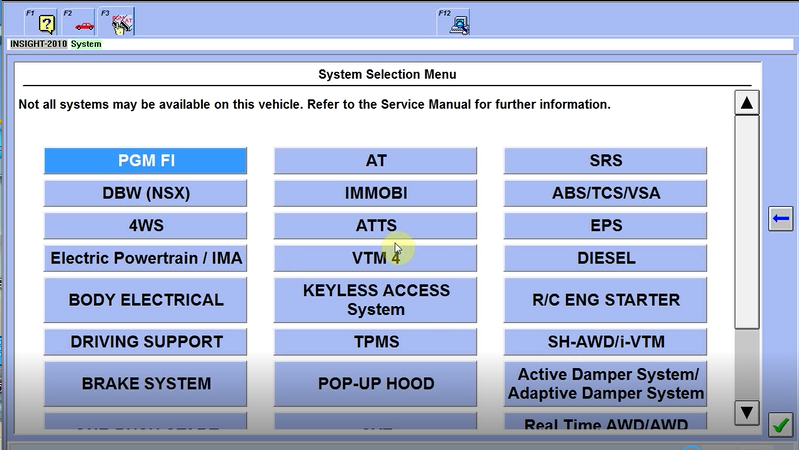

V3.104.24 Honda HDS HIM Software Display:

Honda HDS HIM Function:

1. Functions Supported by Honda/Acura Protocols

Reading and decoding fault codes from control blocks memory

Deleting fault codes

Displays system current parameters in digital form

Combined displaying of data

Management of executive devices

Logs keeping - writing and keeping of digital parameters in memory
Special functions - changing of permissible settings of blocks, programming etc.



2. Functions Supported by OBD-II Protocols

Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once)

Mode $02 - Displays parameters of freeze frame

Mode $03 - Reading and decoding of fault codes from control block? memory

Mode $04 - Deleting of fault codes (memory clearing)

Mode $05 - Displays results of oxygen sensors

Mode $06 - Displays results of changeably controlled systems and components

Mode $07 - Displays results of constantly controlled systems and components

Mode $08 - Management of executive devices

Mode $09 - Displays car identification info

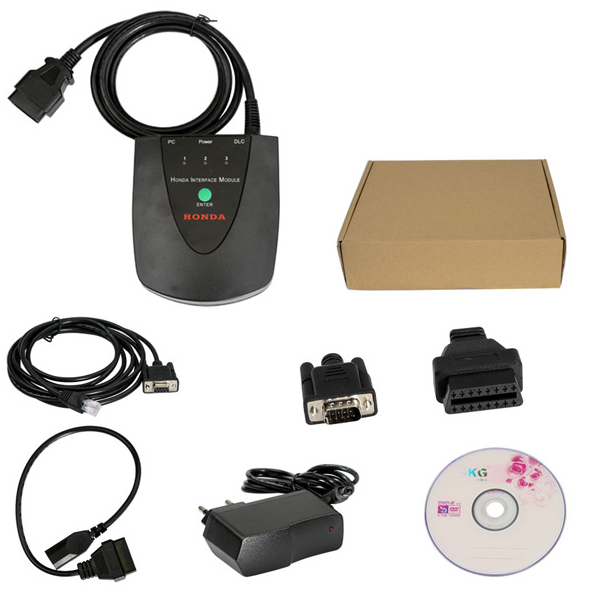

Honda HDS HIM Package List 1:

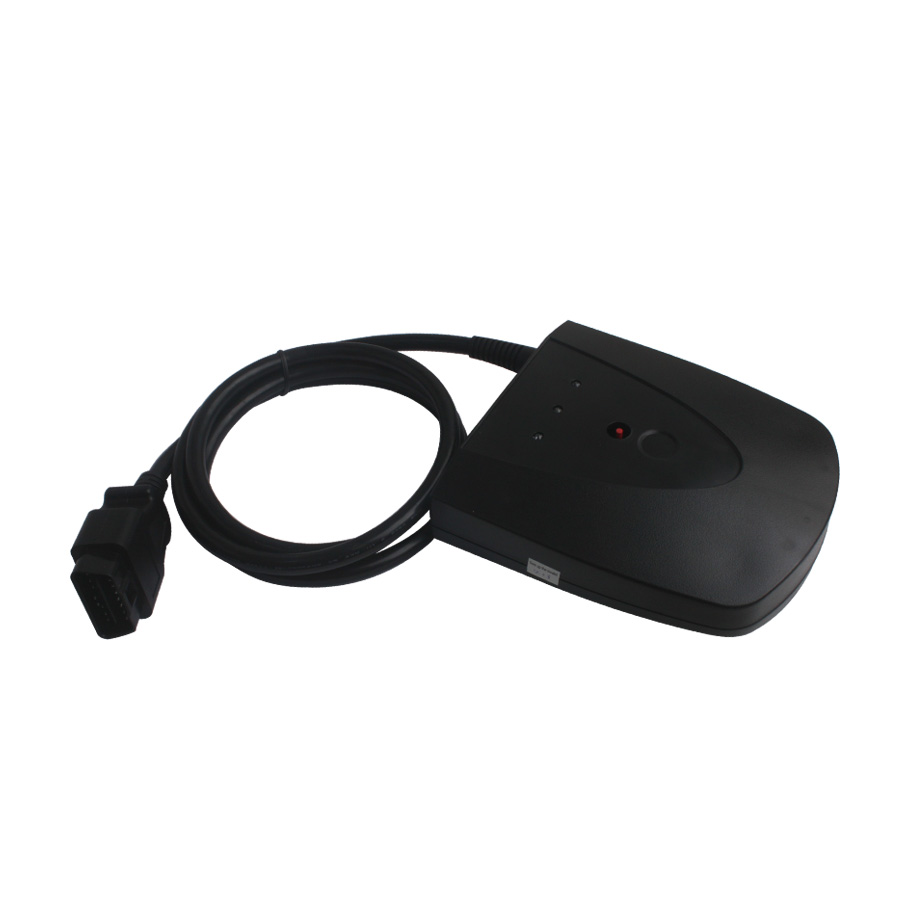

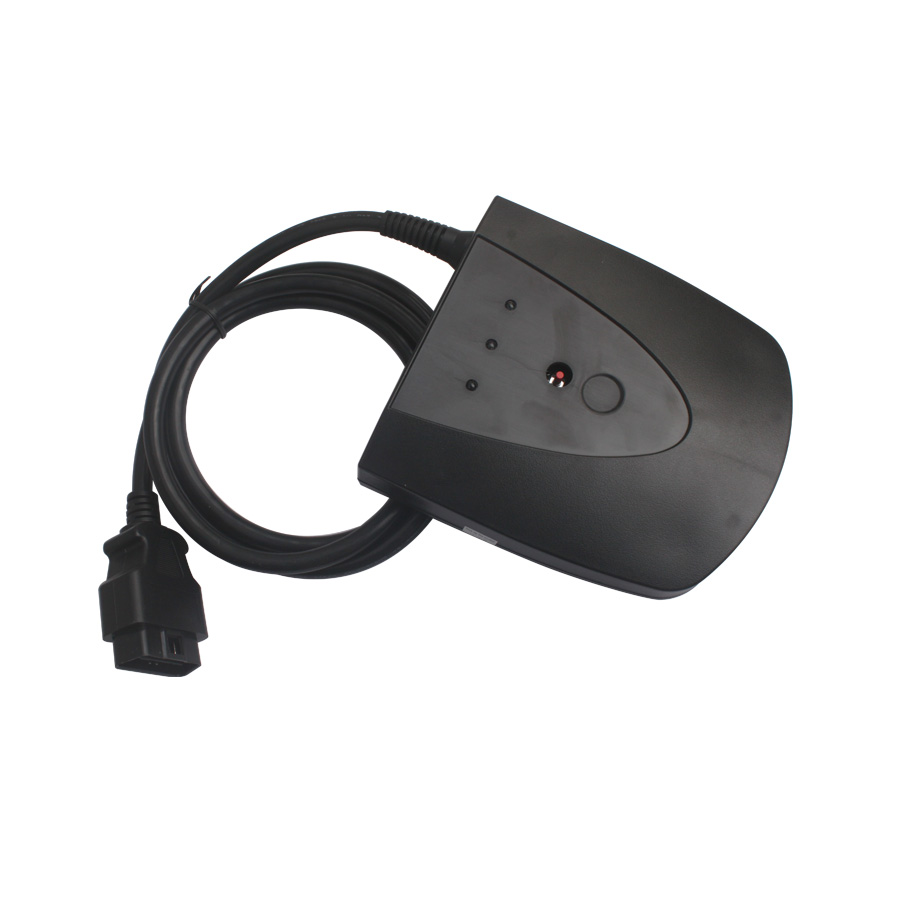

1 x HIM with OBD II Cable

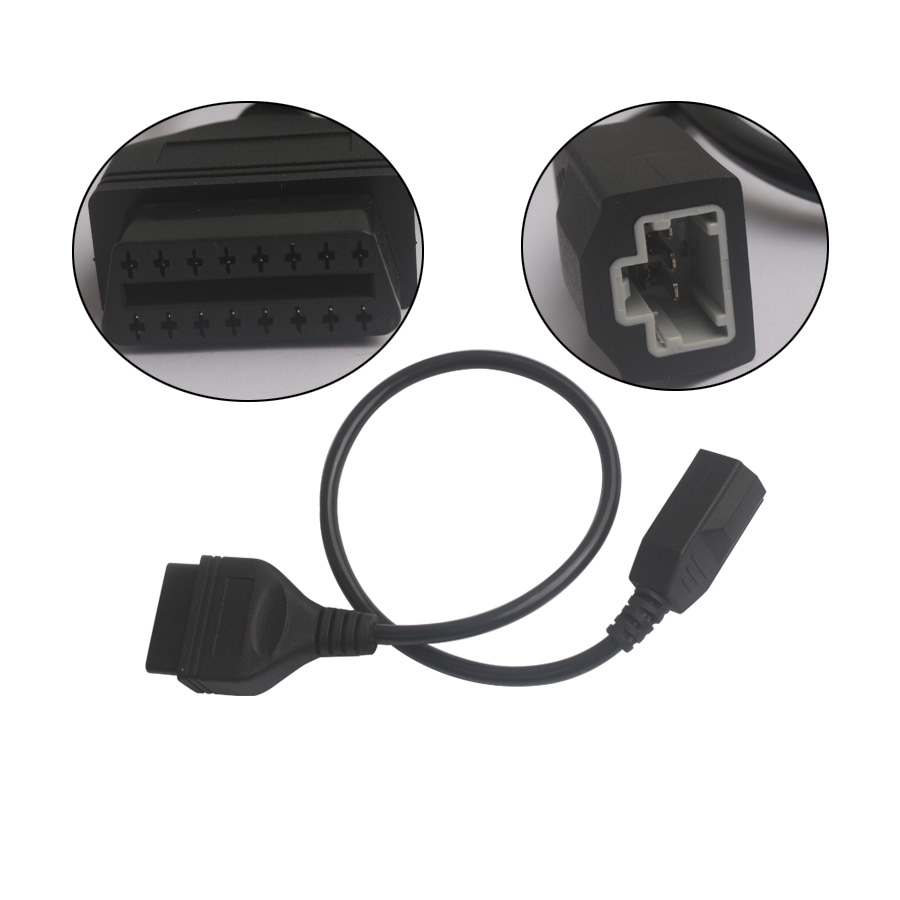

1 x 3 Pin Cable

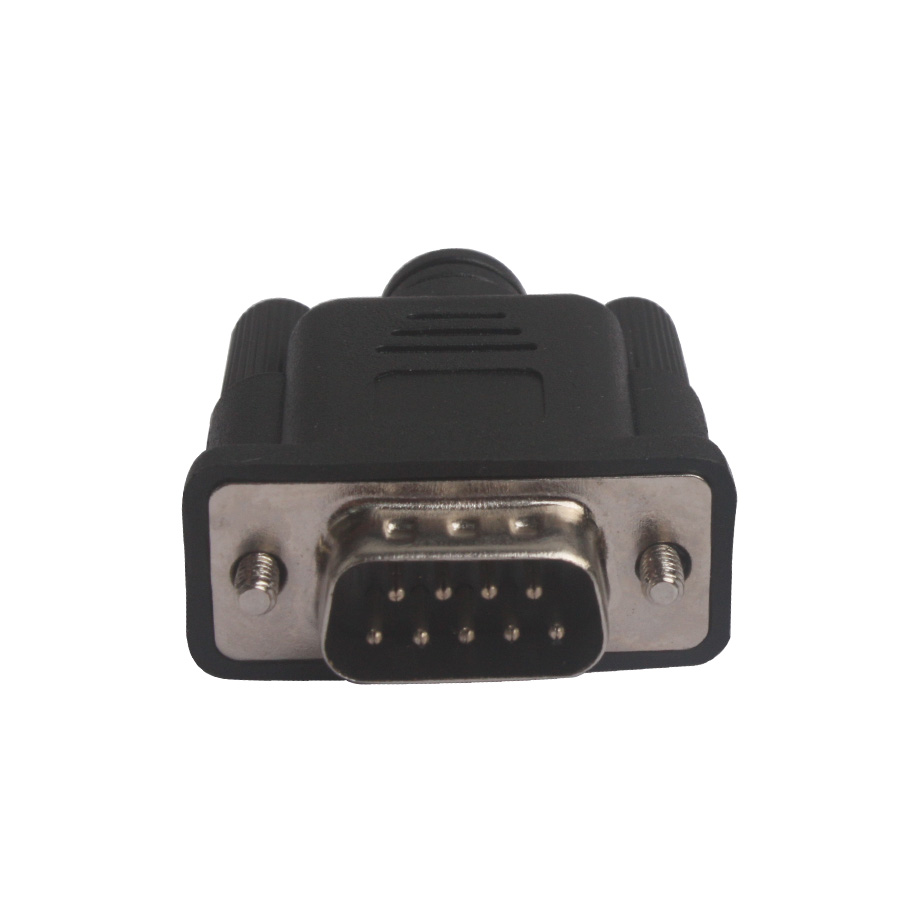

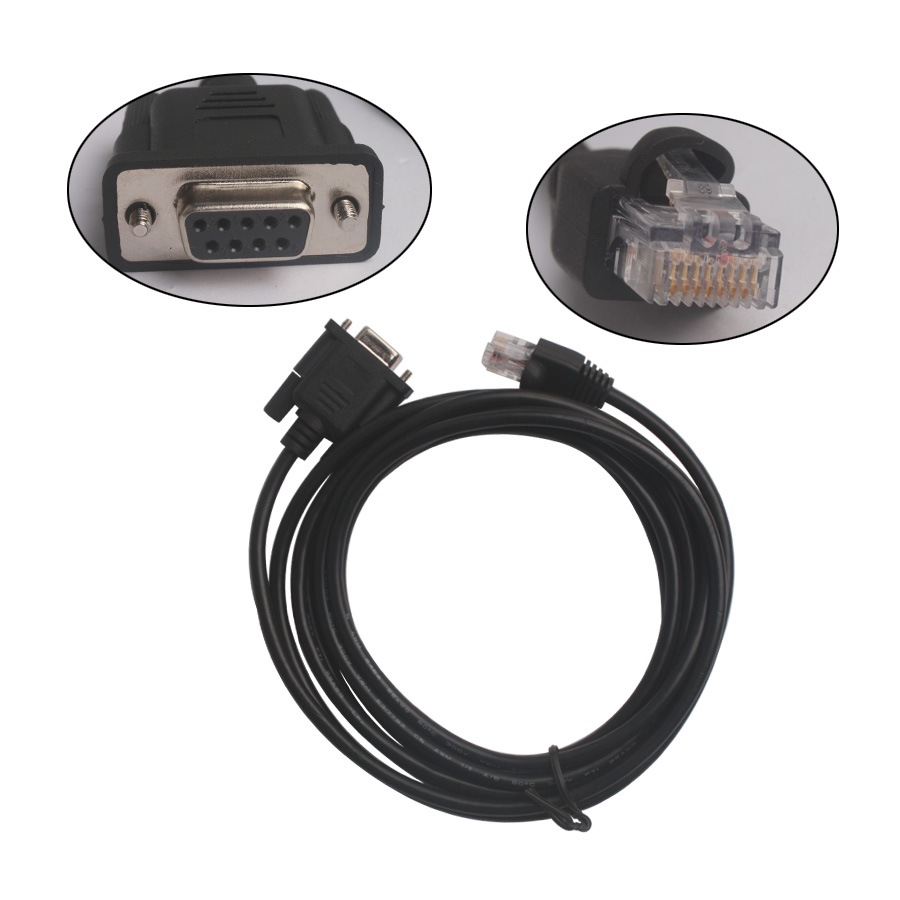

1 x RS232 Cable

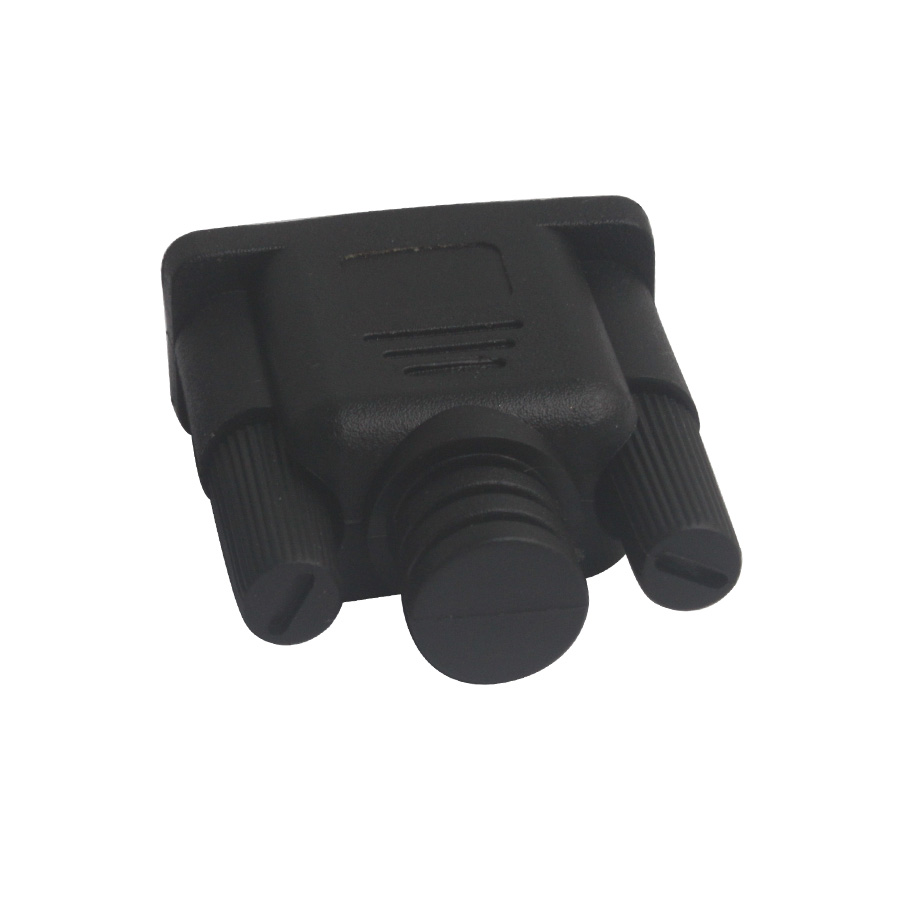

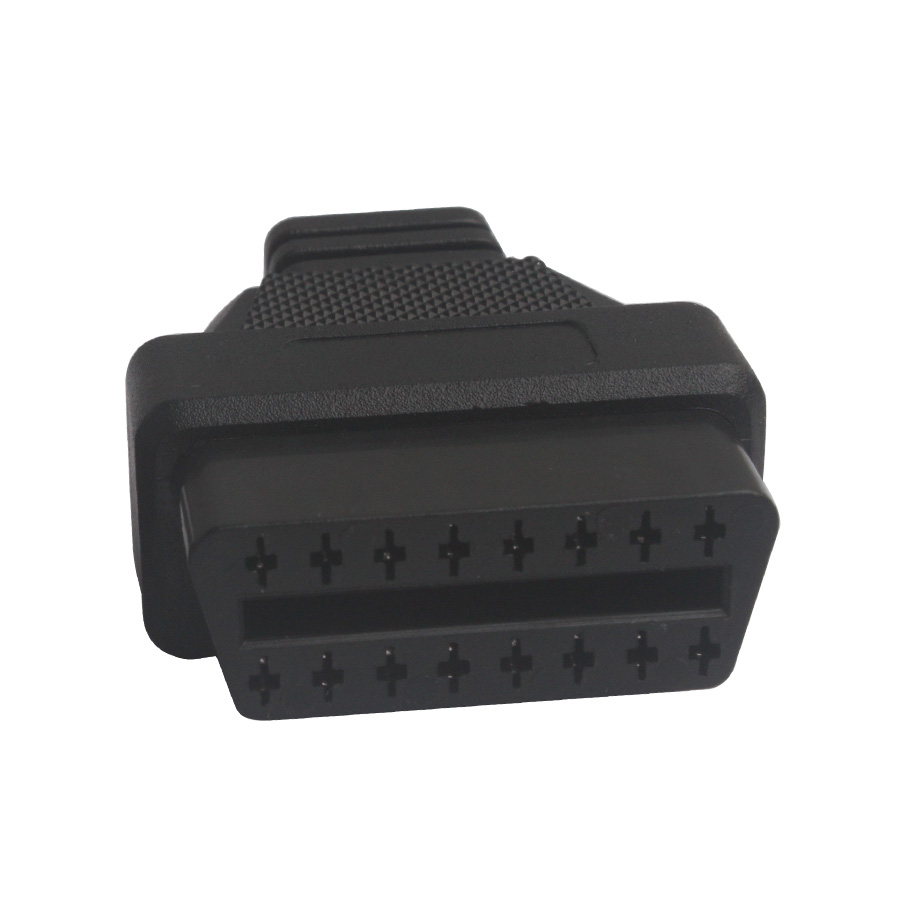

2 x Self test Adapter

1 x AC Adapter

1x Z-TEK USB1.1 To RS232 Convert Connector

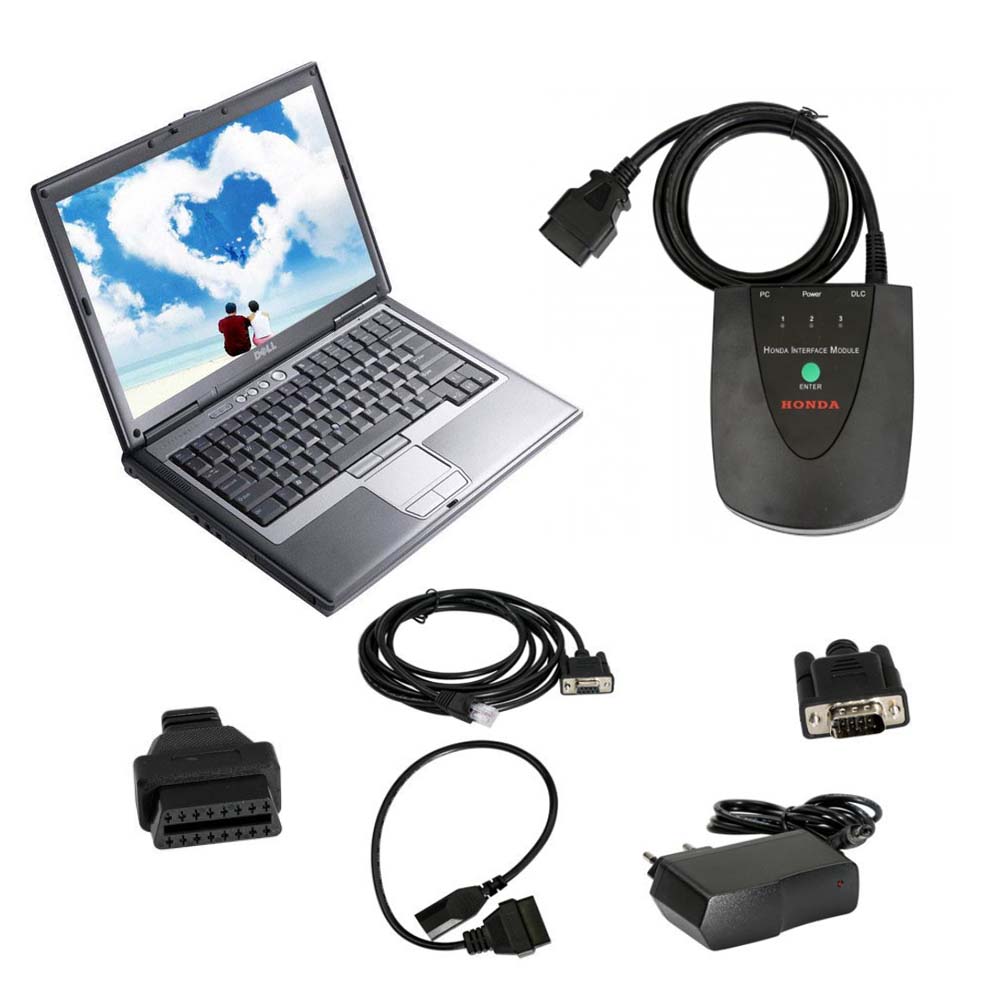

Honda HDS HIM Package List 2:

1 x HIM with OBD II Cable

1 x 3 Pin Cable

1 x RS232 Cable

2 x Self test Adapter

1 x AC Adapter

1x Z-TEK USB1.1 To RS232 Convert Connector

1pc x Second hand DELL D630 Laptop with software

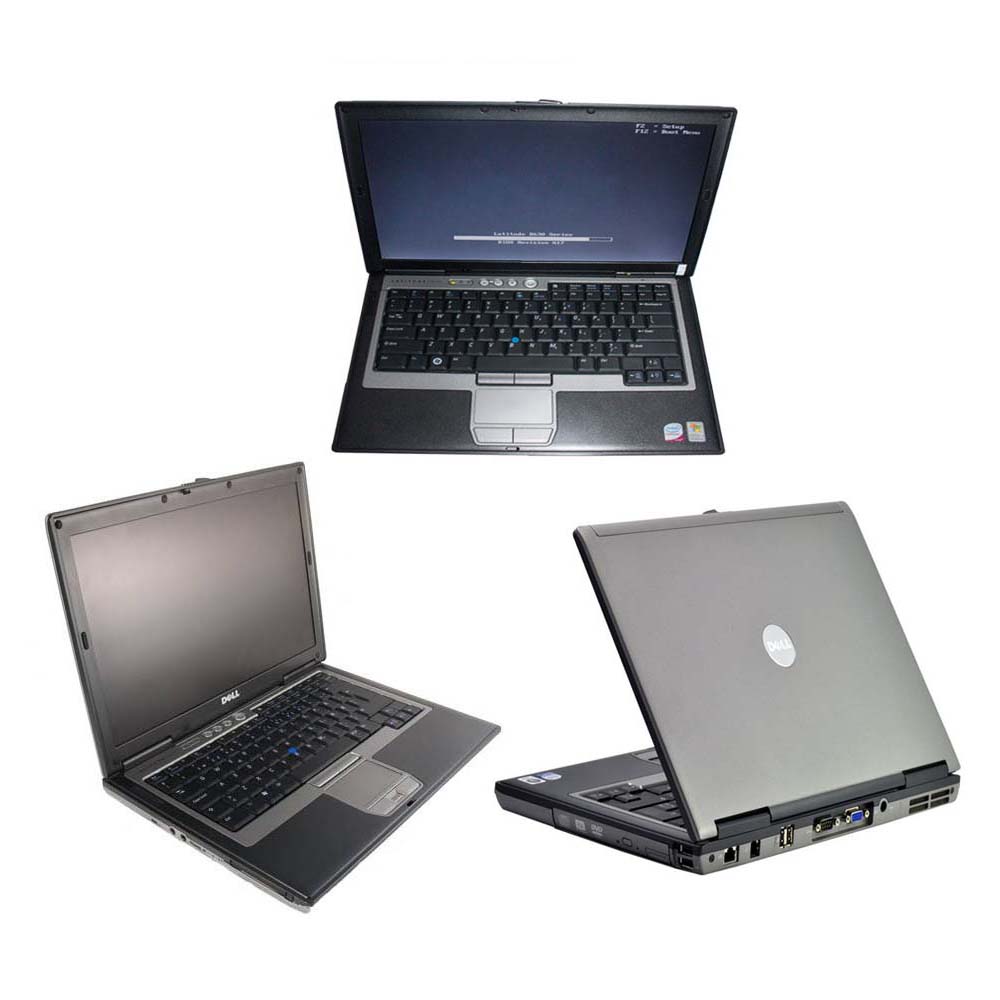

DELL D630 Laptop：

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended.

Brand:  Dell

Type:  Laptop/Notebook

Screen Size:  14.0

Memory (RAM):  2000 Processor Type:  Intel Core 2 Duo

Primary Drive:  DVD+/-RW Processor Speed:  1.80 GHz

Processor Configuration:  Dual Core

Memory: 4GB
