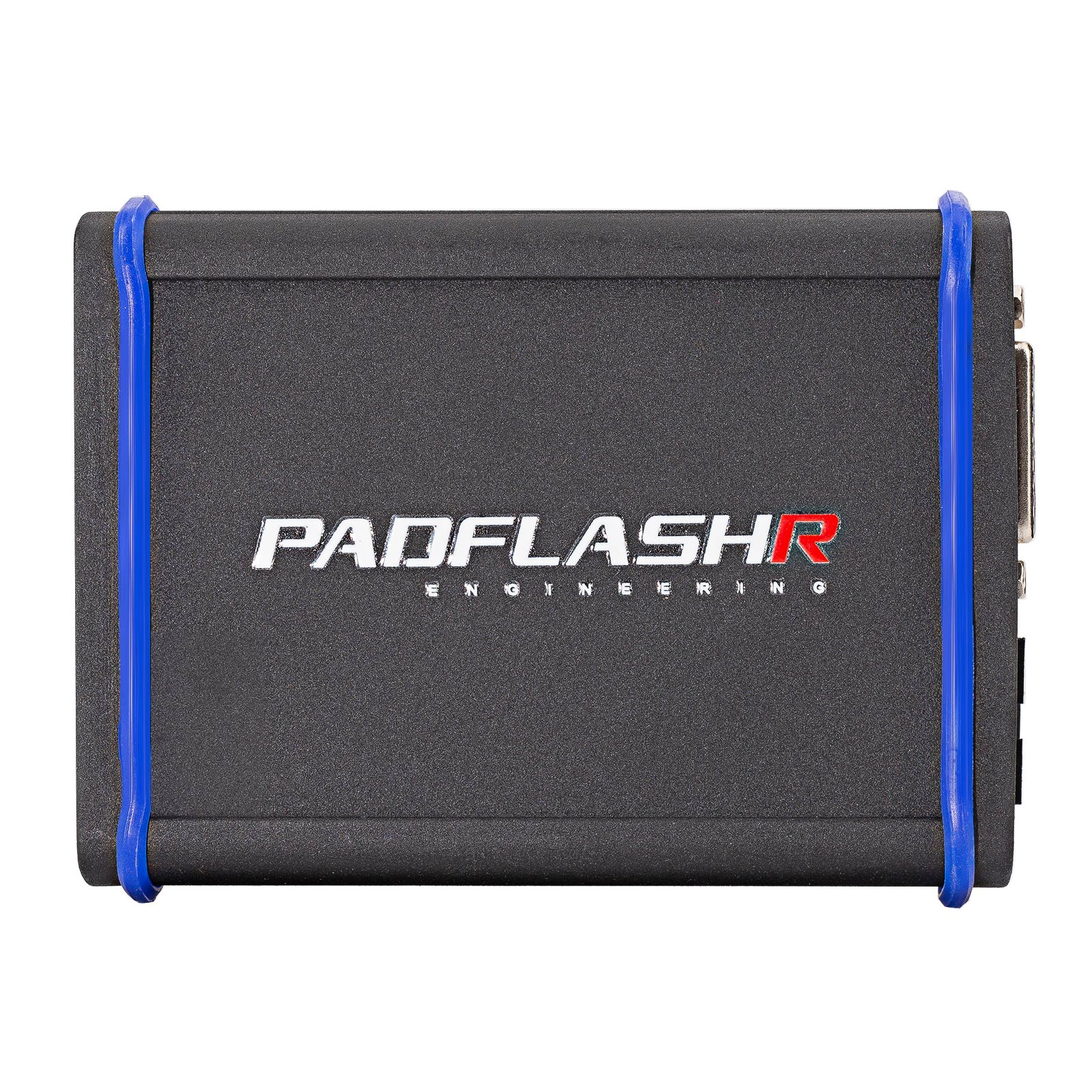

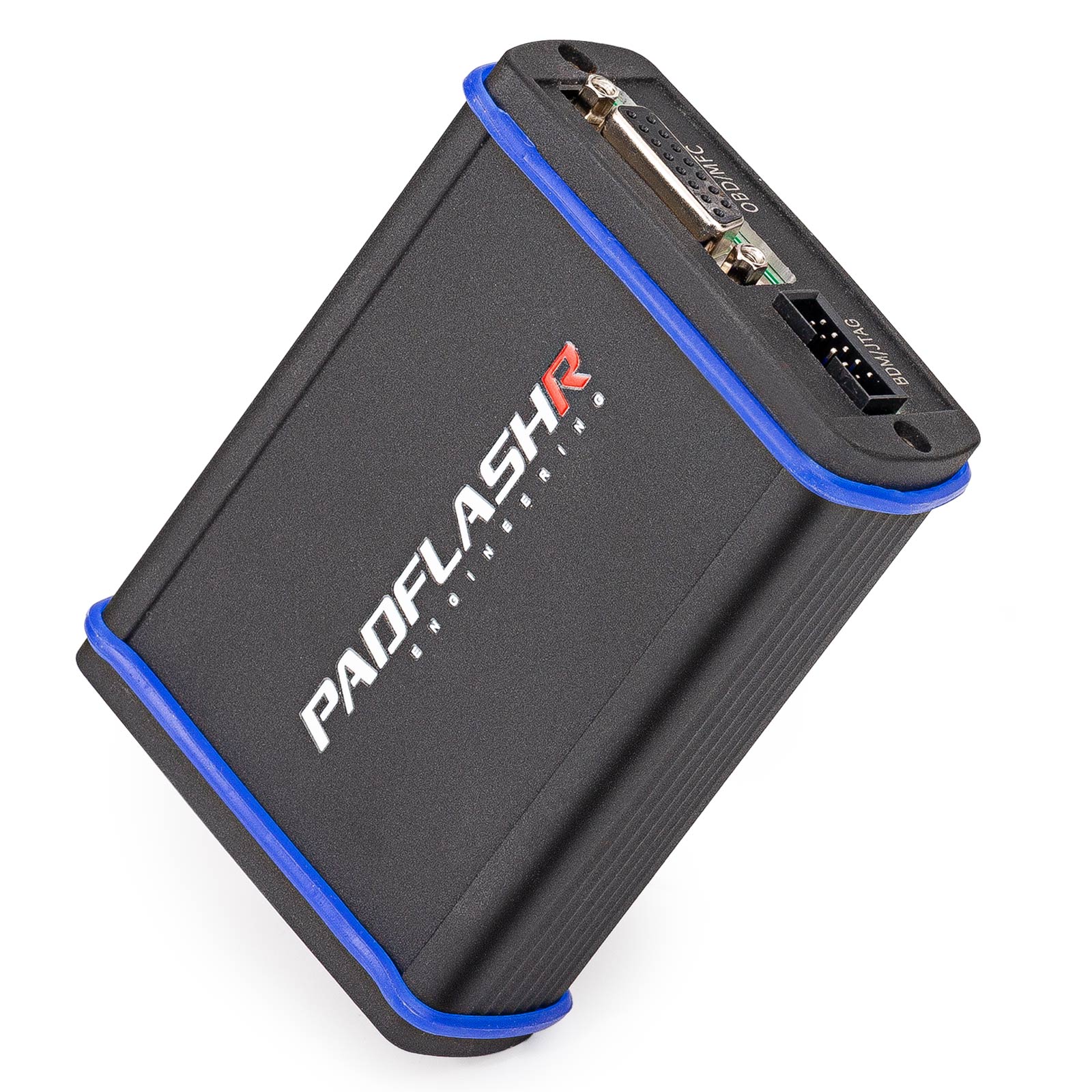

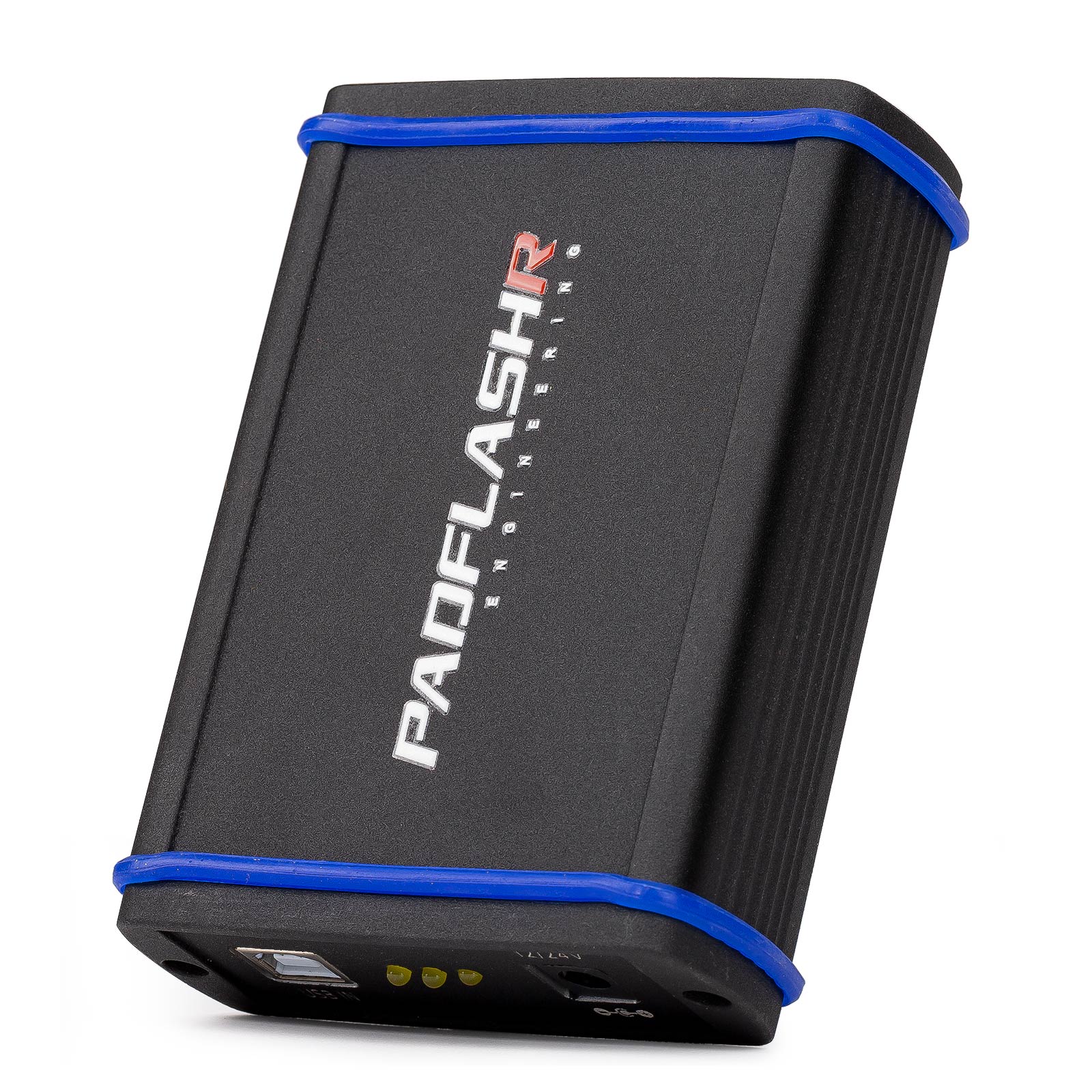

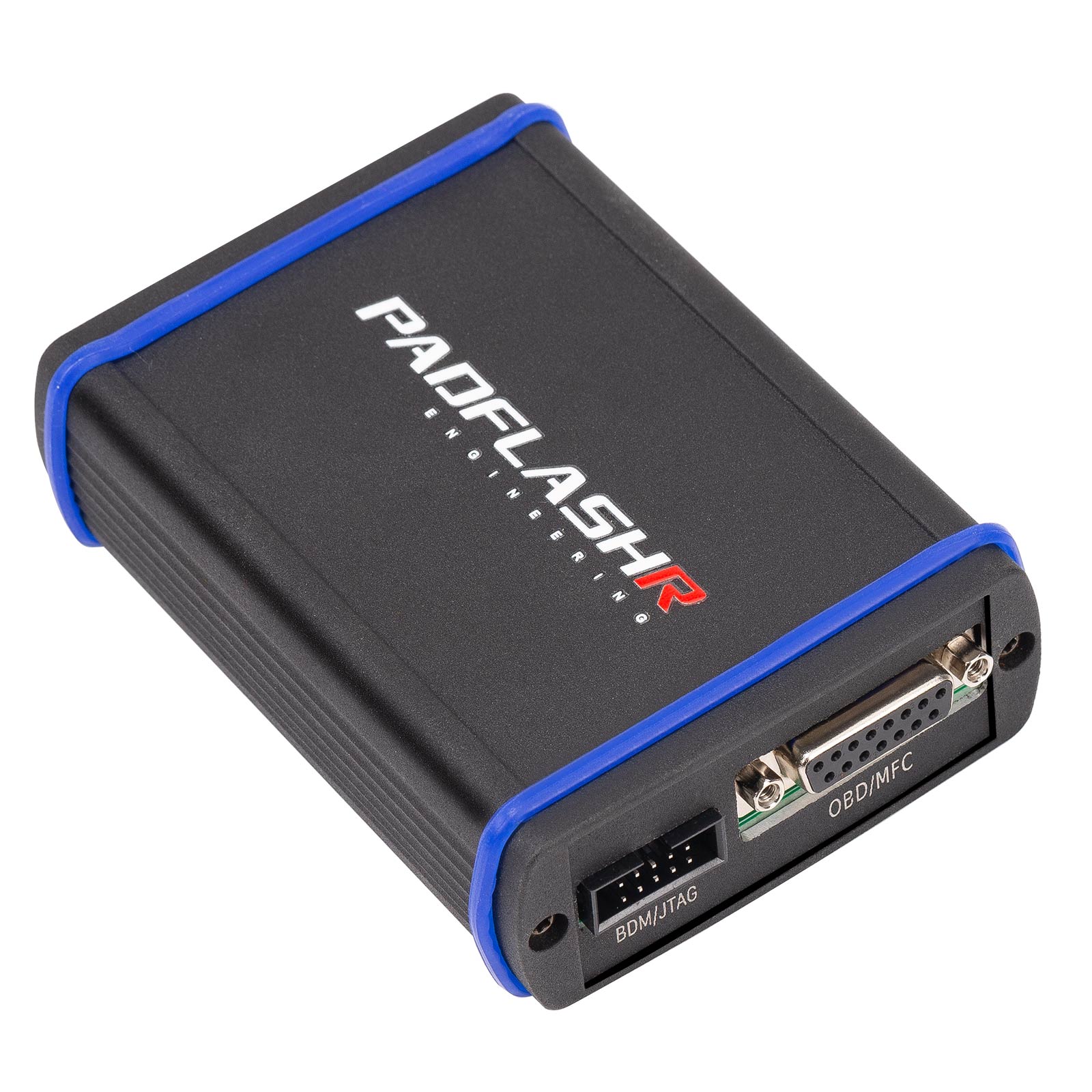

PADFLASH Full Version ECU Programmer with USB Dongle OBD Bench Boot Supports Checksum VR Files

1.Master version, full protocol stored in the USB dongle.
2.Free update.  No subscription, no annual fee.
3.Supports cars, trucks, bikes, agricultural vehicles via OBD, OBDvr, bench and boot.

PADFLASHR is a professional tool for automotive workshops and chip tuners designed to  diagnose, repair and reprogram engine and transmission control units of cars, trucks, special vehicles,boats and yachts, bikes, agricultural and many other vehicles.

PADFlash Hightlights:
1.Master version, with USB dongle
2.Full protocols open
3.Online checksum and virtual reading, support chiptuning, anti-theft off, scr/dpf off etc.
4.Free update.   No subscription, no annual fee.
5.VR read online work (some ecu need use our VR system, tool auto connect to ousr server donload file )
6.Multi-Language Supported: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish etc
7.High hardware reliability, the equipment can run stably for a long time
8.User-Friendly Interface – Designed for easy operation and efficient workflow.
9.Multi-Port Connectivity – Supports various connection types for different control units.
10.Wide Compatibility – Works with brands like Bosch, Delphi, Denso, Siemens, Magneti, and Hitachi.
11.Operating system: Win7 64bit stable (Win10 64bit not recommended).   PC requirement: RAM more than 4GB,  CPU 2.5GHz onwards.

Full Version Software
1.Car ECU +TCU ( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
2.TURCK ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
3.TRACTOR/MARINE ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)
4.MOTOBIKE ECU+TCU(( OBD BENCH BOOT JTAG FULLCONNECTION BOOT JTAG/BDM)

PADFLASH Supported ECU
Bosch, Delphi, Denso, Siemens, Magneti, Hitachi and more


PADFLASH Overview:
1.The device is suitable for cars, trucks, tractors and agricultural machinery, as well as motorcycles and boats
2.Currently supports ECM and TCM reading and writing programming
3.Support modes are as follows: BENCH does not open ECU mode, BOOT opens ECU mode, OBD mode, JTAG/BDM mode, and PINOUT mode

Market demand and application:
1. Although market customers have devices of different brands, it often appears that the same protocol used by a device may not necessarily work.    For example, a user has MED17.1 of device A, which cannot be read and written, but can be read and written by changing to MED17.1 of device B, so advanced users usually need different ECU devices as alternatives.
2.PADFLASH hardware design is simple, and the reading and writing speed is stable and fast.
3.The operation interface is simple and easy for users to use.
4.No annual fee, the sales price is cost-effective in the same support agreement range.
5.Auto repair shops, automotive electronics repair users, locksmiths,

Compared With Similar products:
1.Similar products are expensive, and annual subscription fees are paid
2.The protocol is comparable to other equipment worth thousands of dollars

Technical support:
1.Remote online assistance to customers to install and activate the equipment, saving customers' worries.
2.Online technical support during working hours

PADFLASHR vs Foxflash vs Other Tools

Feature	PADFLASH	FOXFLASH	Other Tools (FLEX, KESS, etc.)
Protocol Coverage	Supports EMS2.4, SID6, SID8, MD1CS018, MG1CA811	Does not support EMS2.4, SID6, SID8, MD1CS018, MG1CA811	Varies by tool
TCU Support	Less	Strong	Varies by tool
Bench Support	Yes	Yes	Some yes, some no
Supported Vehicles	Car, Truck, Tractor, Marine, Bike	Car, Truck, Tractor, Marine, Bike	Typically limited (e.g., Car or Truck or Bike)
Subscription Fee	No	No	Some no, some ~$600/year
Read Methods	Bench, OBD, Full System, Boot, JTAG, BDM	Bench, OBD, Full System, Boot, JTAG, BDM	Varies by tool
Virtual Read	Yes, more VR files	Yes	Some yes, some no
Internet Connection	Yes	Yes	Yes
Dongle	Yes	No	Part of them have
EMS2.4	Yes	No	Varies by tool
SID6 & SID8 Support	Yes	No	Some yes, some no
PSG16 Clone	Bench Read, Can be cloned	OBD Read, Cannot be cloned	OBD or Boot
M10JA Support	Bench Read, Can be cloned	OBD, Boot, OTB, Cannot be cloned	Some OBD, some Bench, some Boot
MD1CS018	Yes	No	Some can, some cannot
MG1CA811	Yes	No	Some can, some cannot
Master or Slave	Master	Master	Master or Slave
Language Support	16	Less than 16	About 6
Counter Reset	Yes	No	Varies by tool
Speed Modification	Partly supported	No	Varies by tool
Conclusion	Better for cloning without opening ECU	Strong TCU support	Varies by tool

Device Installation Process:
After receiving the device, please follow the steps below to install it
1.Please install Teamviwer remote control software on your computer
2.Connect the device host USB cable to the computer
3.Insert the USB KEY that comes with the device into the computer
4.Maintain a good working network
5.Turn on your teamviwer device and send the remote control ID and password to your sales, or send an email to info@padflashr.uk
6.Remote technical staff is online to assist you with installation online.
7.Activation time is
1: CET, UTC+1 11:00-14:00
2: CEST, UTC+2 12:00-15:00
Spanish time
8.For the convenience of customers, please leave a WhatsApp or email address to facilitate technical flexibility to connect with customers for installation and activation.
9.Operating system requirements: Currently, WIN7 64 is recommended as the main choice for better stability.  WIN10 is currently under testing, and customers are not recommended to install WIN10 64.  If it is stable, the win10 64 operating system will be released.
10.Computer hardware requirements: RAM not less than 4GB, CPU not less than 2.5GHz

Warm reminder: Users should not disassemble the device casing by themselves, otherwise the machine will be damaged and the warranty will be void.

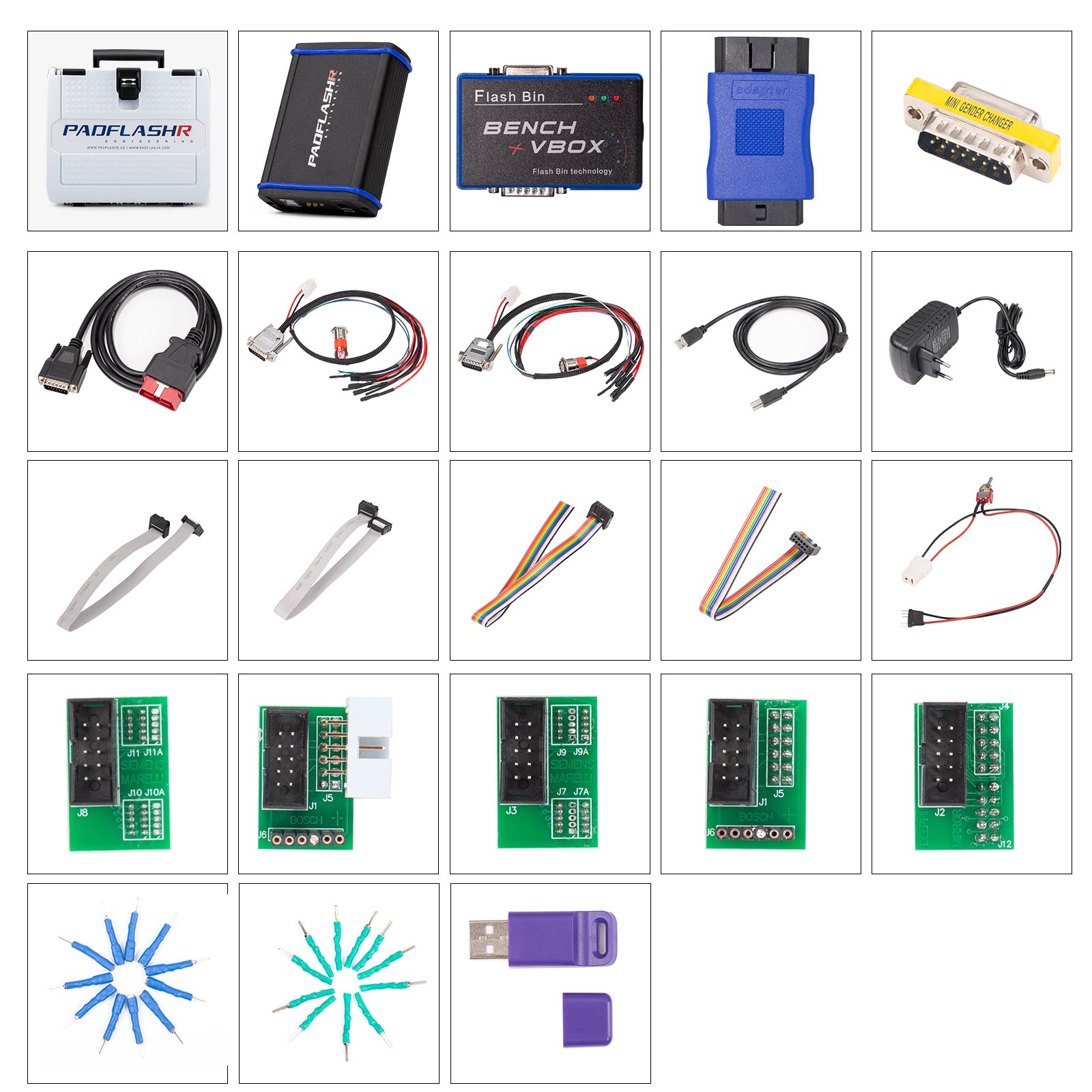

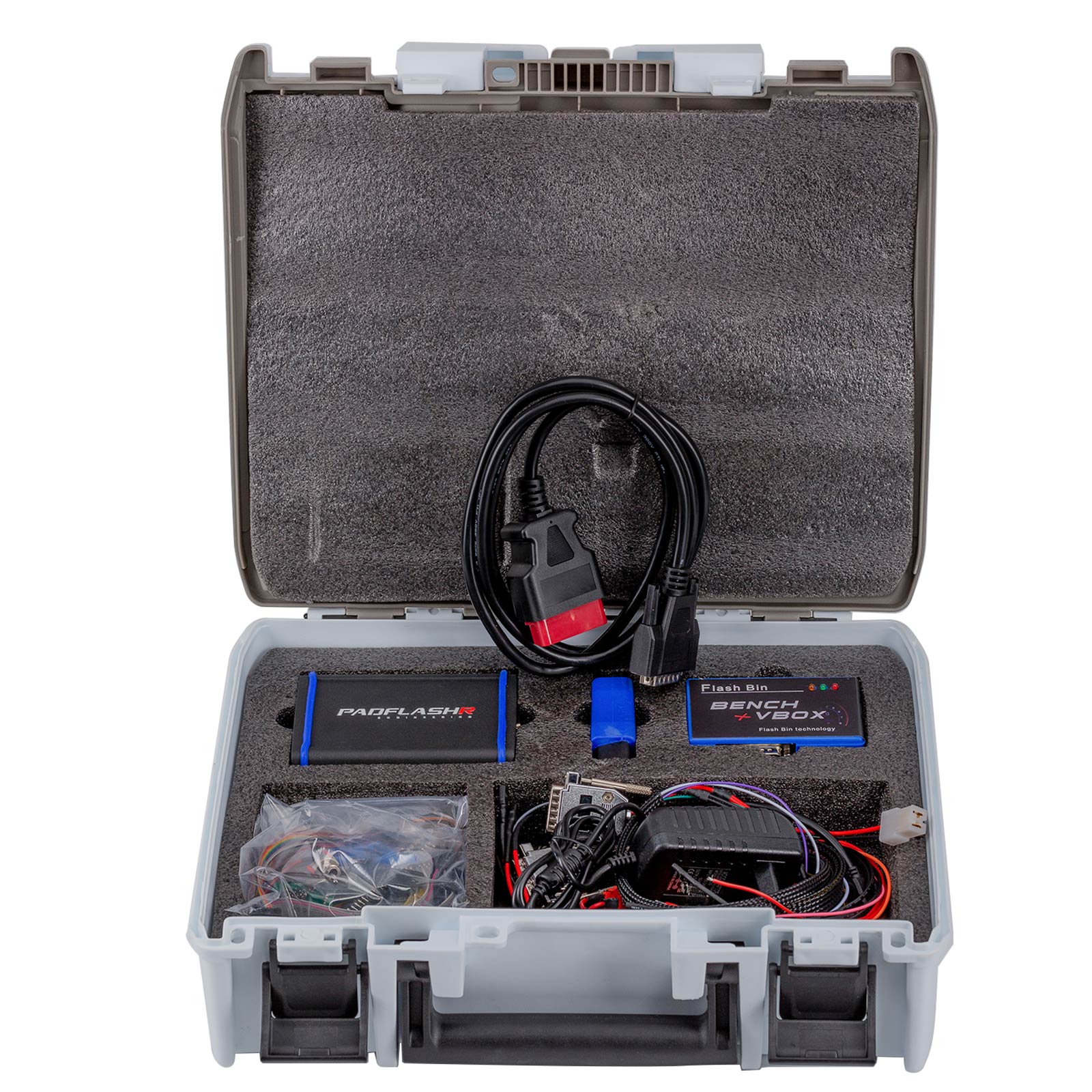

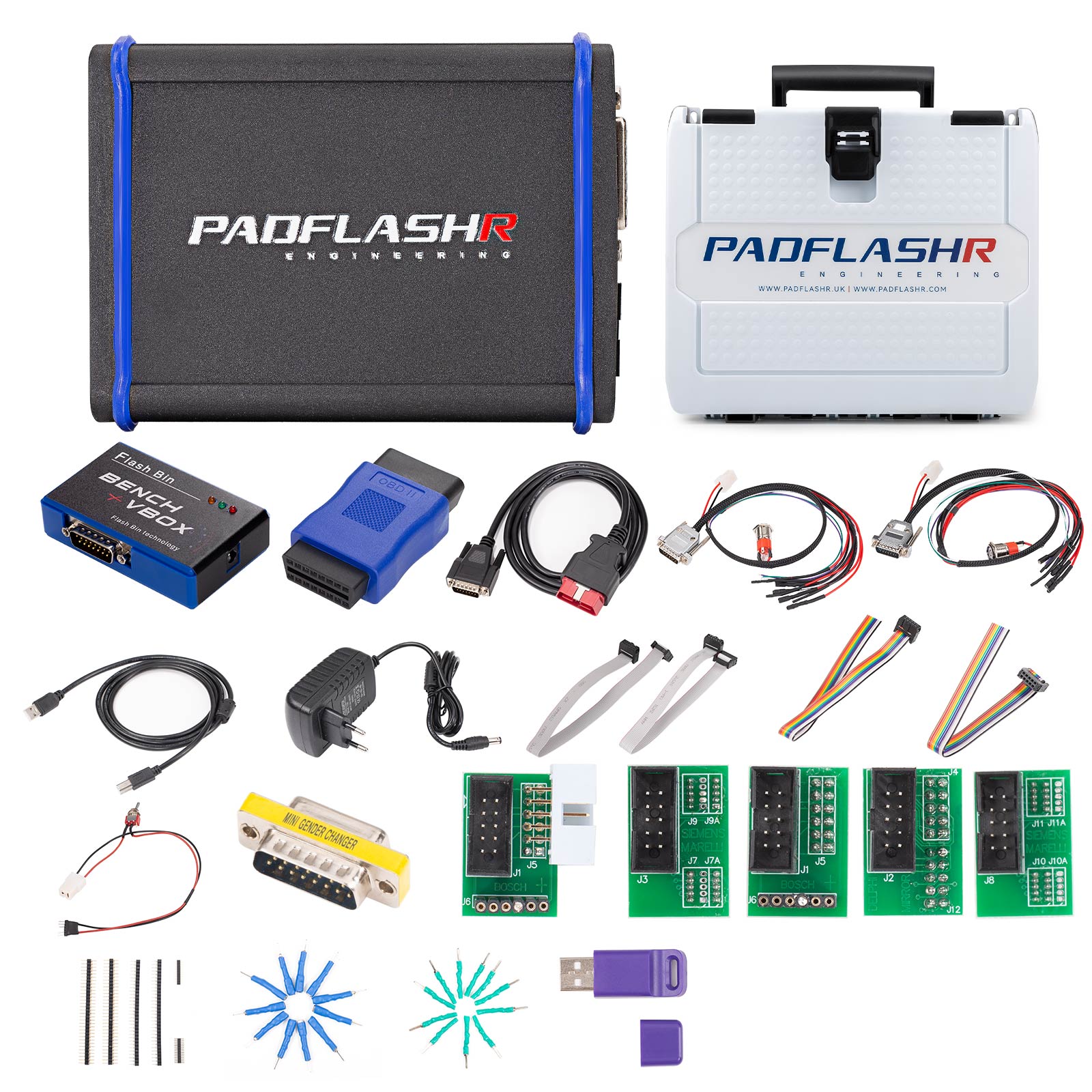

Package includes:
1pc x main unit

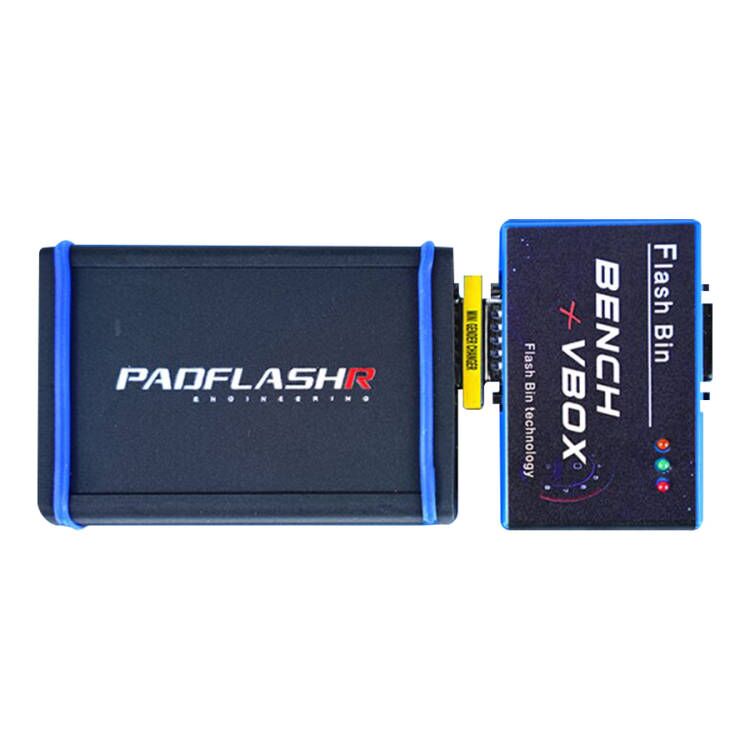

1pc x BENCH VBOX
1pc x OBDII main cable
1pc x Truck OBD adapter
1pc x Bench Boot Cable(for New Style Trucks)
1pc x Bench Boot Cable(for Old Style Trucks)
1pc x power adapter
1pc x MINI adapter
1pc x USB Key
5pcs x BDM JTAG adapters
4pcs x wiring pins
2pcs x wiring pins
1pc x adapter cable
2pcs x bdm jtag cables
2pcs x bdm jtag cables(grey)
11pcs x adapter pins(green)
11pcs x adapter pins(blue)

FAQs:
Q1: Why I need use this padflash, I already have others chiptuning tools.
Answer1: No one tuner can use one tool cover all protocols, for example, even though you have tool which includes pcr2.1, you cant read it in real test.  But another tool also have pcr2.1, you will get it works on others tool, that's why we need a lot of tools.

Q2: Does it have sub fee every year?
Answer2: No.

Q3: Master or Slave?
Answer3: Master.

Q4: Need offline or online?
Answer4: online use because need checksum online.

Q5: Support virtual read or not?
Answer5: Yes, very important things, it has VR read.

Q6: Device Compatibility Which vehicle models and ECU types are supported?
Answer6: It is compatible with standard OBD-II, CAN, K-Line, and other communication protocols.  It supports various vehicle types, including passenger cars, commercial trucks, motorcycles, and agricultural machinery, bikes.

Q7: What are the hardware specifications?

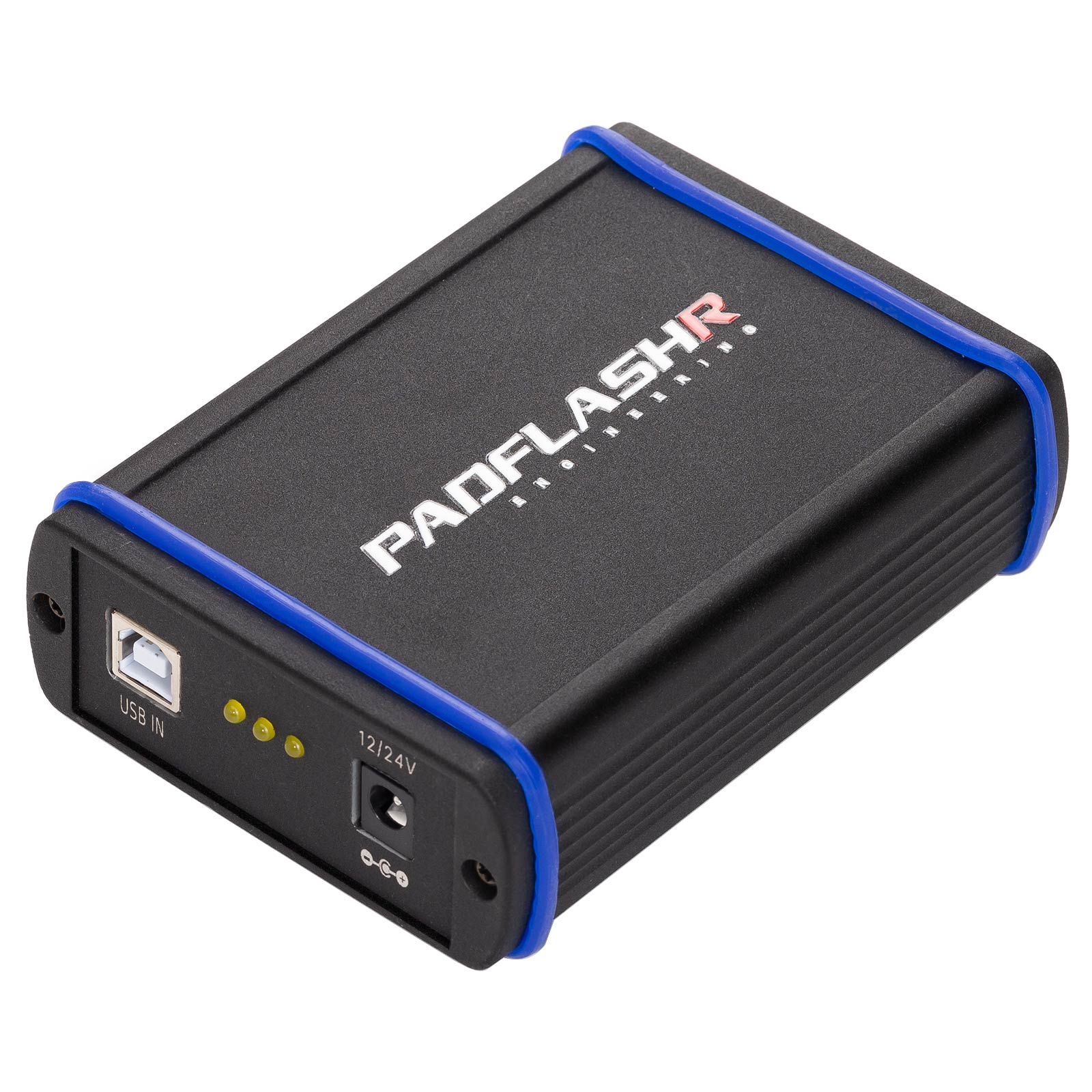

Answer7: USB, 12v and 24v support.

Q8: Usability & Operation?
Answer8: support automatic ECU identification, or manual selection.  It requires user's manual support.

Q9: After-Sales Support
1 year warranty online support, online installation support, provide remote assistance service.

Q10: Security Feature:
Answer: It has the dongle to keep hardware safe.
