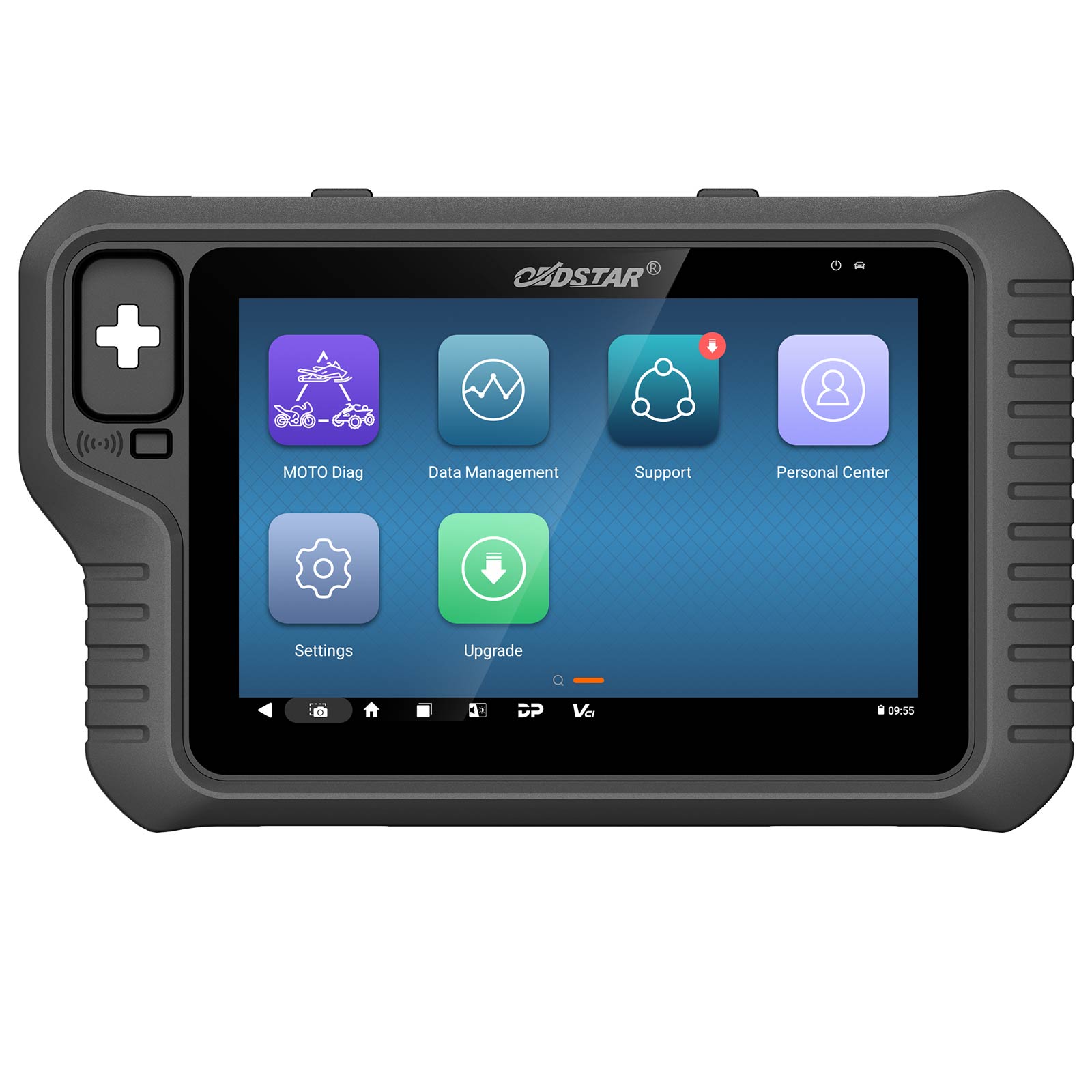

OBDSTAR MOTOMASTER Motorcycle Scanner Support CAN FD DoIP,MOTO Diag IMΜΟ,ECU Flasher,ODO Meter,RFID,Remote Test

MOTOMASTER is a new generation of intelligent motorcycle (Motorcycle/Snow mobile/ATV/UTV etc) scanner, can read all systems fault code, a powerful diagnostic scan tool for APRILIA, BENELLI, BMW, BRP, DUCATI, HARLEY DAVIDSON, HONDA, INDIAN, KAWASAKI, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, POLARIS, SUZUKI, TRIUMPH, VESPA, YAMAHA...

Features:
1.  Android 11 operation system, one-click OTA upgrade;
2.  Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3.  Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4.  Menu arbitrary selection is more convenient and quicker;
5.  Record and play back real-time flow, quickly and accurately locate sensor and component faults;
6.  Wi-Fi connection to the internet, one-click software upgrade;
7.  One-click remote function, OBDSTAR technical staff remote assistance;
8.  Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models;
9.  Support screen recording and wireless screen casting function.

Advanced Functions
1.  The OBDSTAR mobile APP integrates functions such as diag socket location（DLC), flash code query, technical bulletin, manual service lamp  reset, parameters, etc., working with MOTOMASTER to make motorcycle diagnosis more accurately and efficiently;
2.  The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
3.  Exclusive interactive wiring diagram and electrical description query function, so that you can have a worry-free diagnosis;
4.  Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
5.  Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

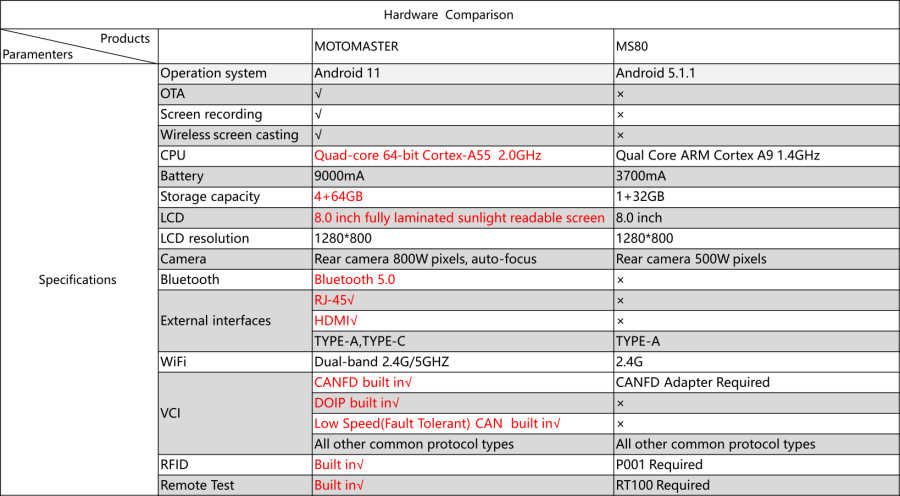

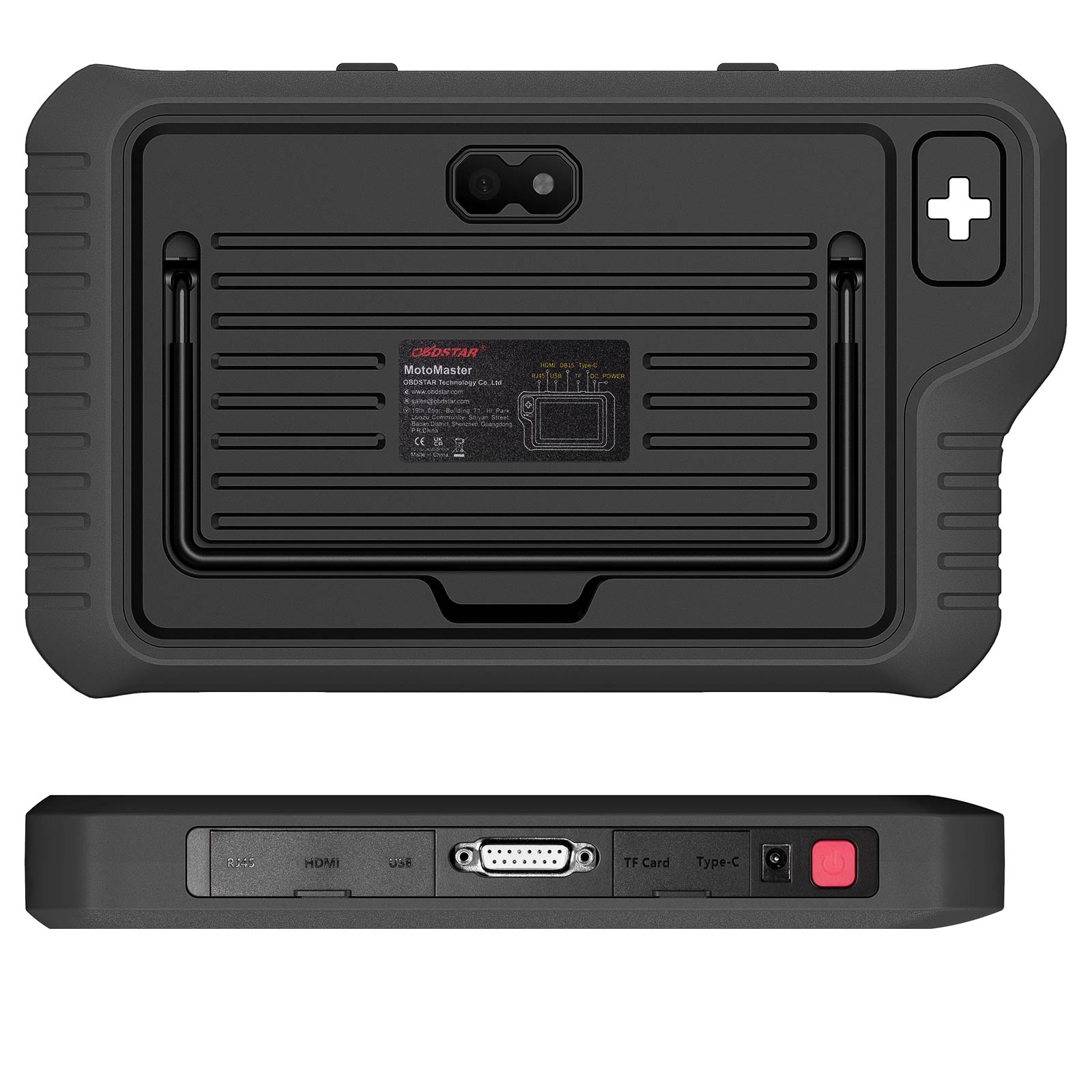

OBDSTAR MOTOMASTER vs OBDSTAR MS80 Hardware Comparison

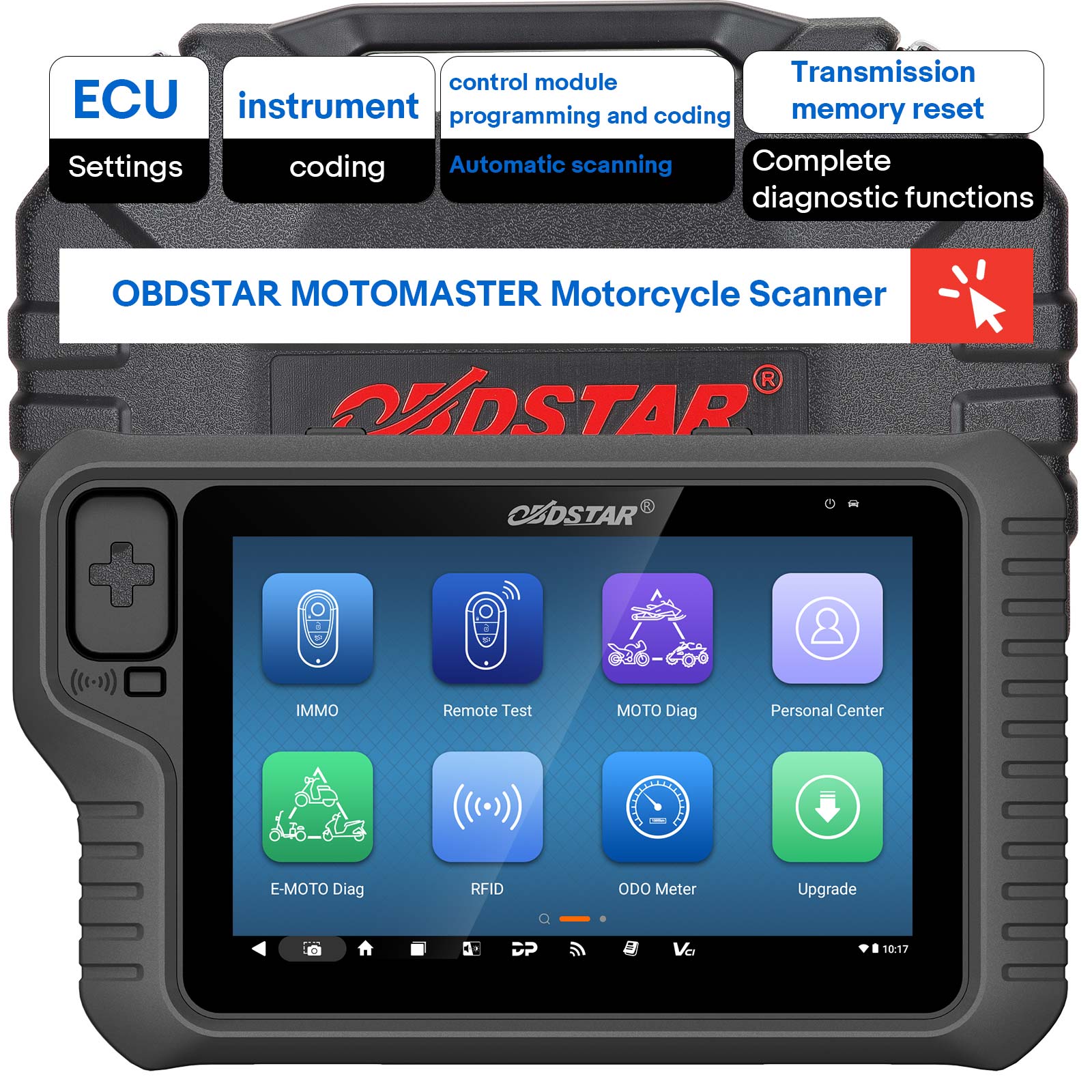

OBDSTAR MOTOMASTER Motorcycle Scanner
IMΜΟ
Remote Test
MоTо Diag
E-MOTO Diag
RFID
ODO Meter
ECU Flasher
Programmer

Advanced Functions:
A/F Value Reset
Electrical Description Query
ABS Control Unit Setting
EOL Mode
Action Test
First Fault Guidance
Automatic Scanning
Help Data
Automatic VIN Recognition
Idle Speed Adjustment
Clear Computer Memory
Instrument Coding
CO Adjustment
Interactive Wiring Diagram
Code Reading/Clearing
Maintenance Light Reset
Control Module Programming and Coding
Technical Bulletin
Data Flow
Tire Pressure Monitoring System
Diag Socket
Transmission Memory Reset
ECU Setting

Supported Models:
MOTO DIAG (140+ Brands)
APRILIA, HARLEY DAVIDSON, MV AGUSTA, TRIUMPH, BENELLI, BMW, HONDA, PEUGEOT, VESPA, INDIAN, PIAGGIO, YAMAHA, BRP, KAWASAKI, POLARIS, DUCATI, KTM, SUZUKI.

IMMO:
BMW, HAOJUE, ITALJET, POLARIS, BRP, HARLEY, DAVIDSON, KAWASAKI, SUZUKI, DAYANG, HONDA, PEUGEOT, TRIUMPH, DUCATI, INDIAN, PIAGGIO, YAMAHA,

Cluster Recallibration:
APRILIA, BRP, DUCATI, KTM

E-Moto Diag:
BROSE, NIU, YADEA, ZEEHO

Cluster Recallibration by Dump:
APRILIA, DUCATI, KAWASAKI, PIAGGIO/VESPA, BENELLI, GENERIC, KTM, SUZUKI, BMW, HAOJUE, KYMCO, TRIUMPH, BUELL, HARLEY DAVIDSON, MV AGUSTA, YAMAHA, CAGIVA, HONDA, PEUGEOT

ECU Flasher:
APRILIA, GILERA, MOTO GUZZI, QJBENELLI, BRP, ITALJET, PEUGEOT, ROYAL ENFIELD, CFMOTO, KTM, PIAGGIO, VESPA, DERBI

Make Key:
APRILIA, DUCATI, KAWASAKI, SUZUKI, BMW, HONDA, PIAGGIO, YAMAHA

Function Display-DP

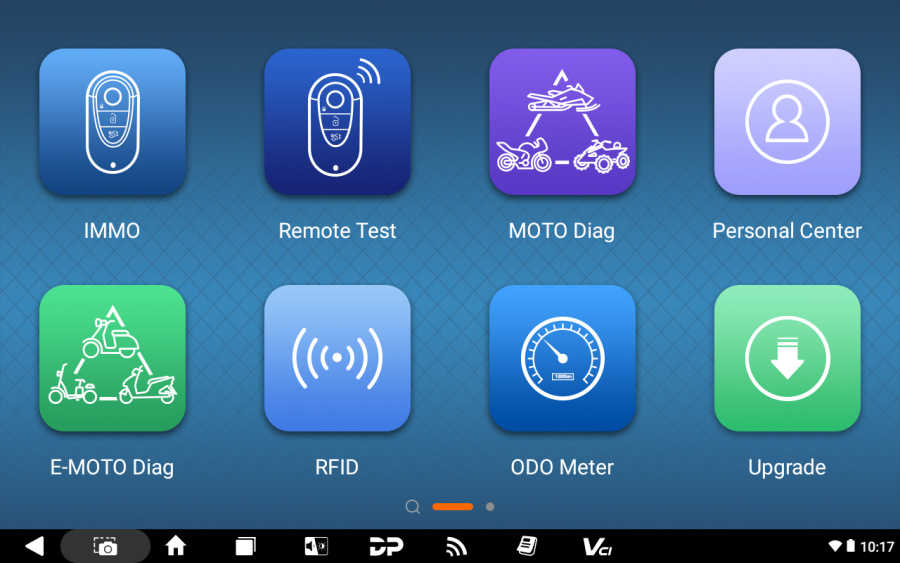

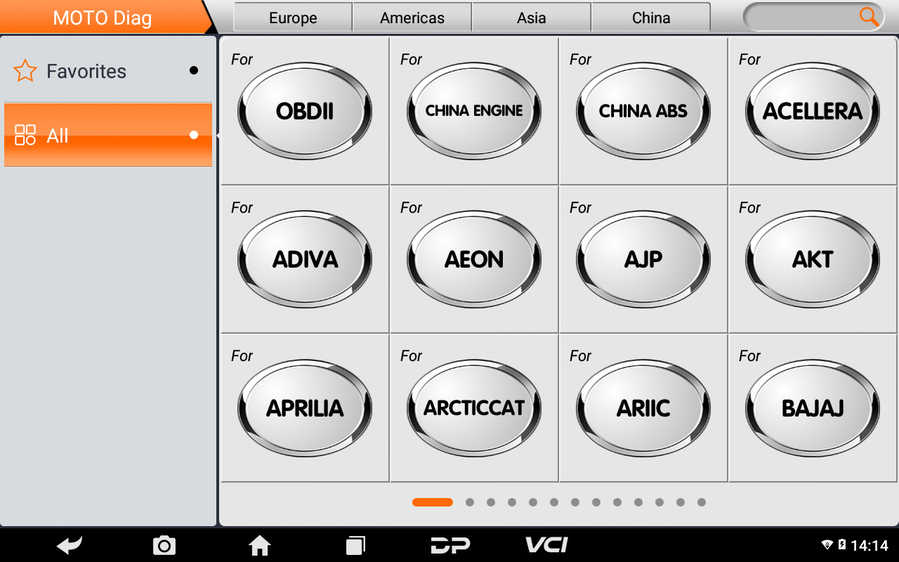

1) Main Page/Brand Supported

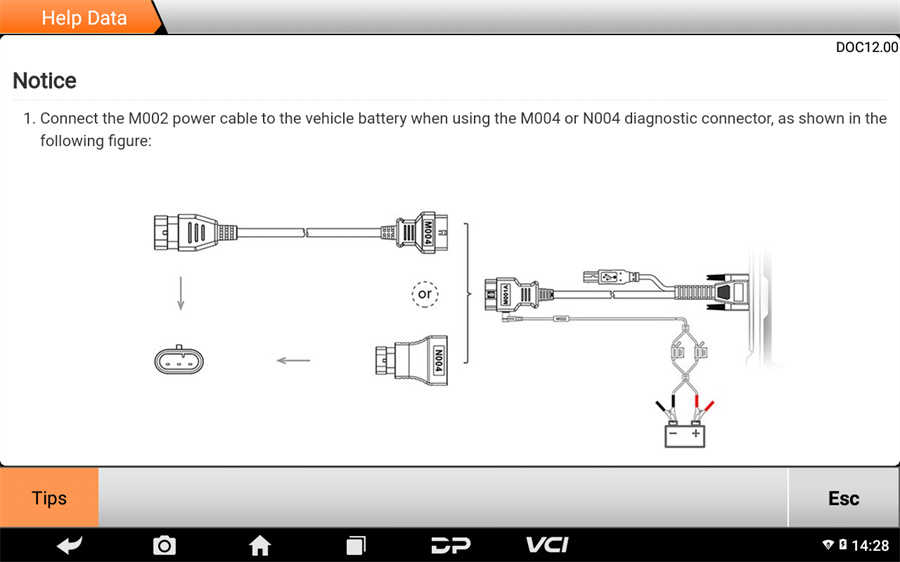

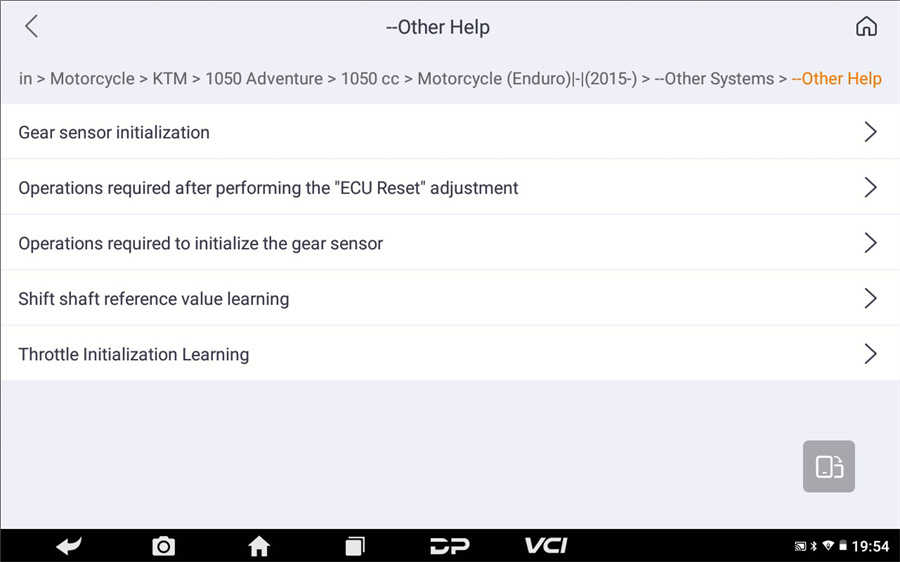

2) Help materials

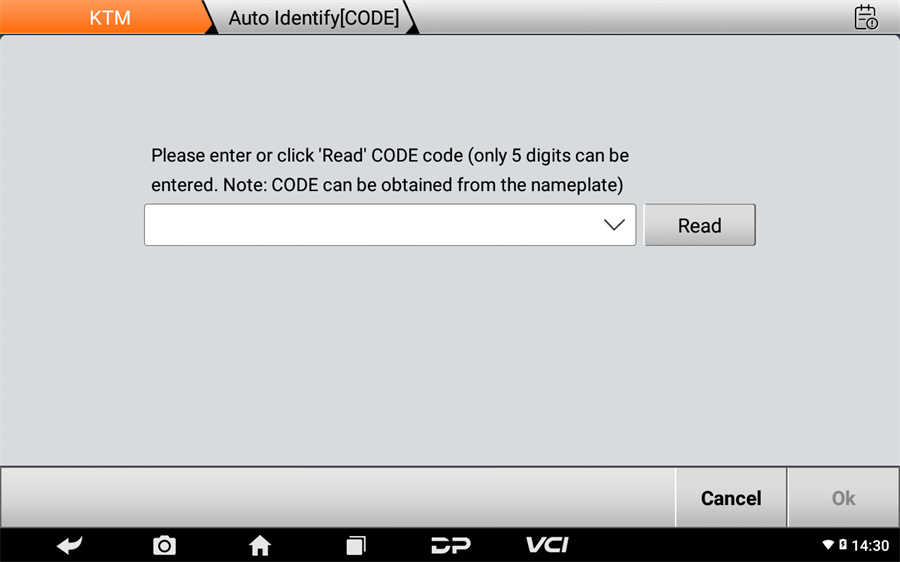

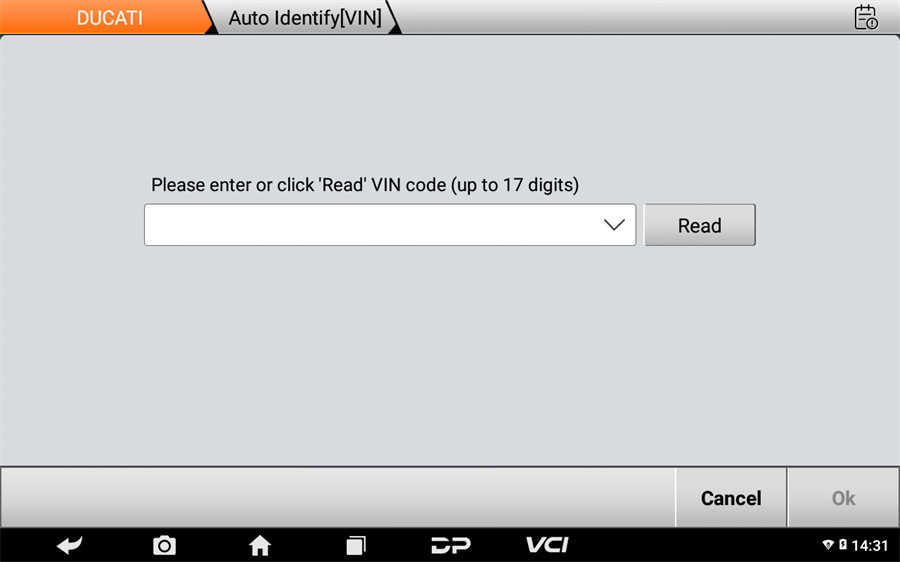

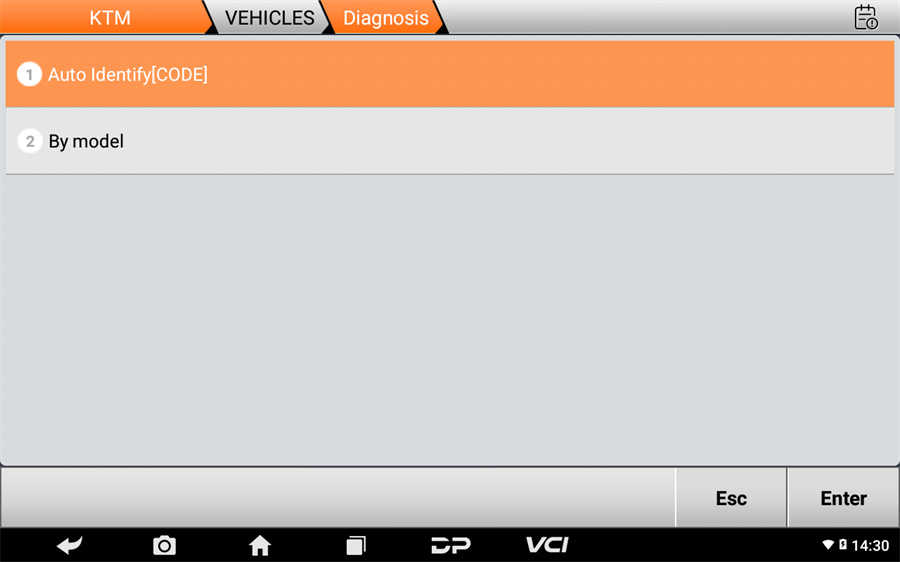

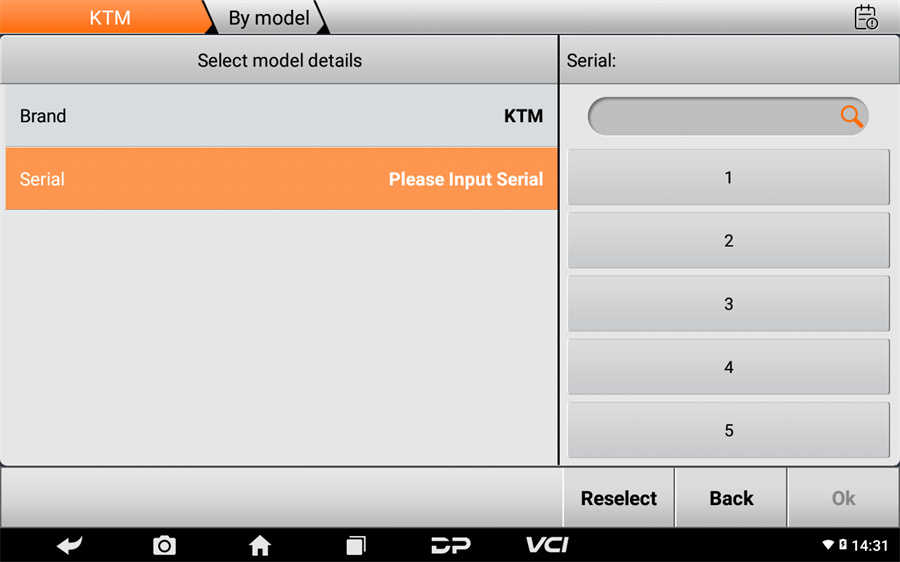

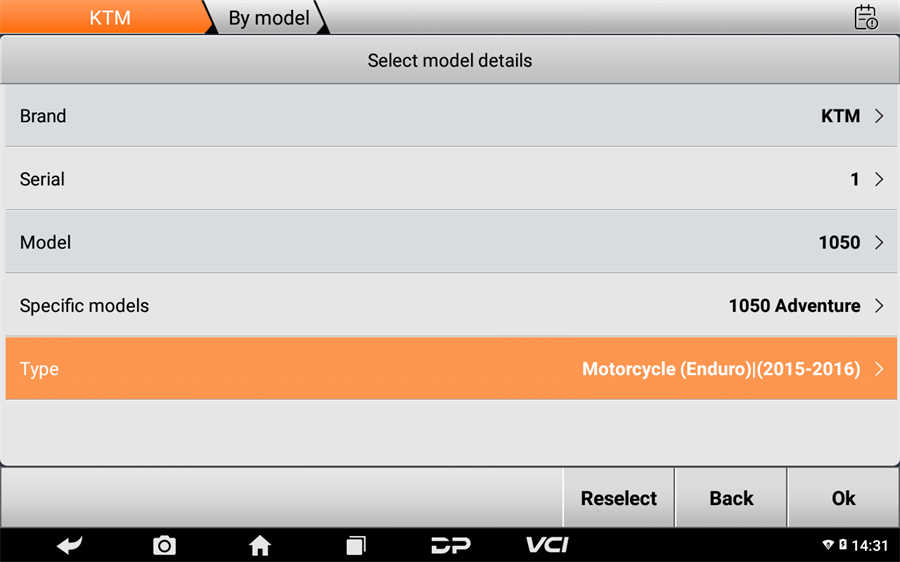

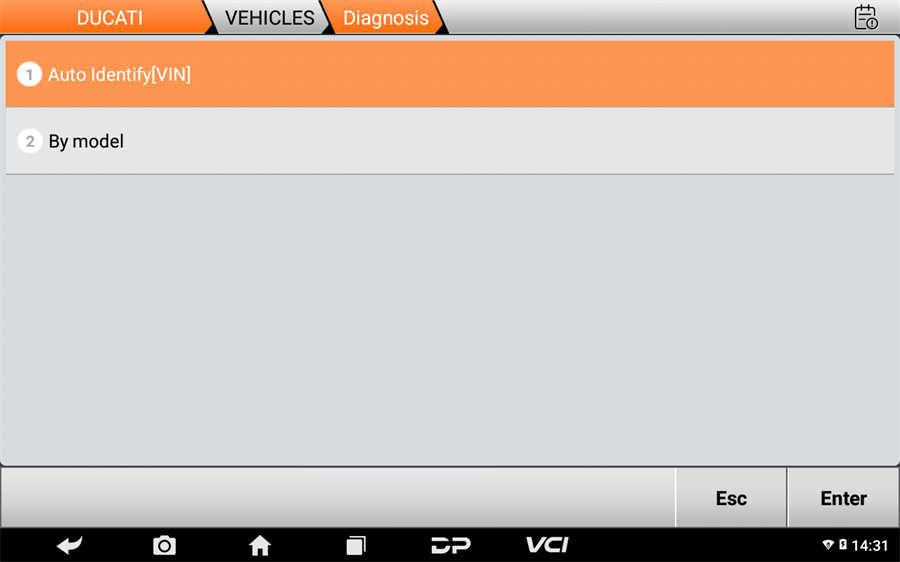

3) Auto Identify/By model Select

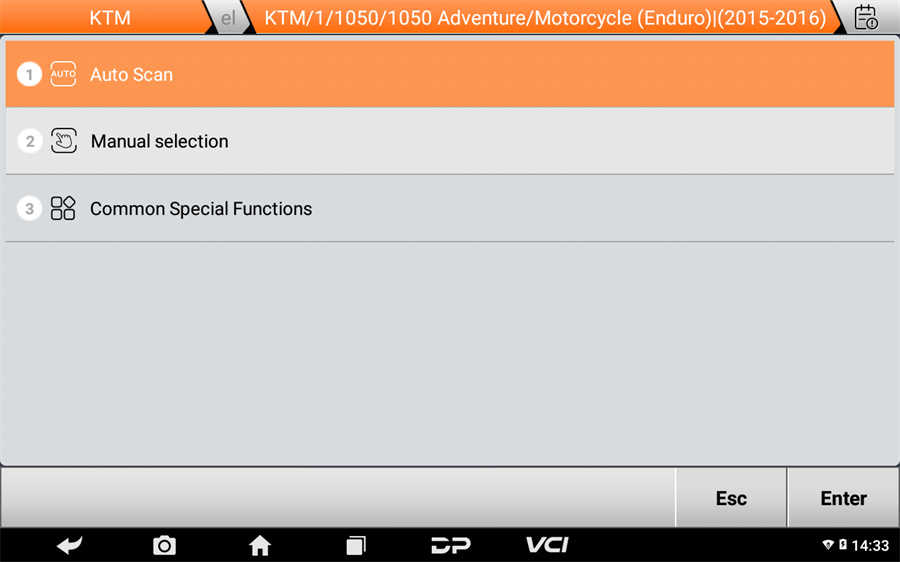

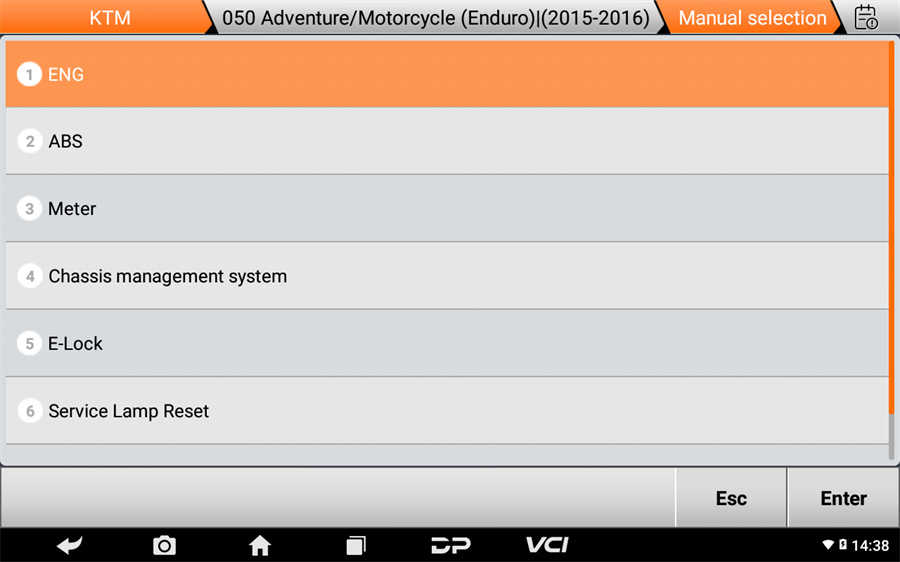

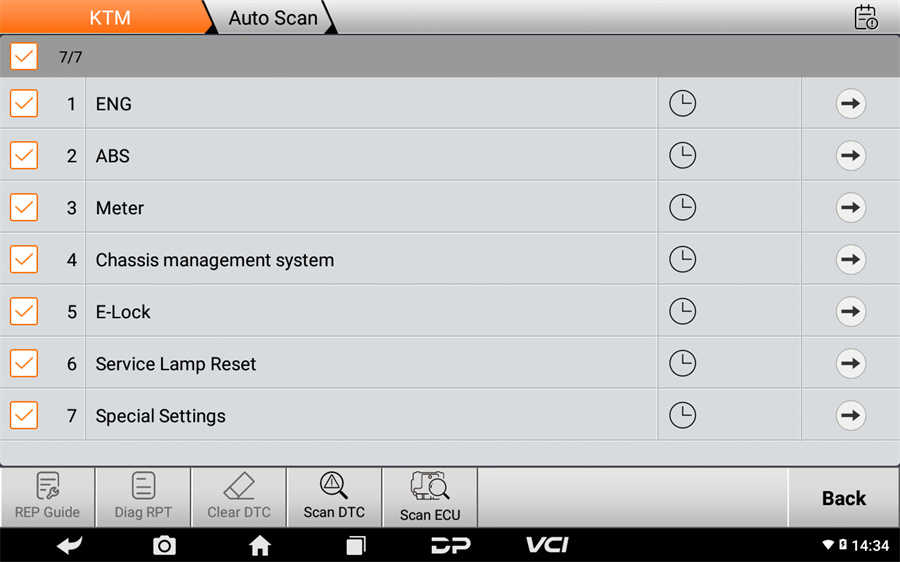

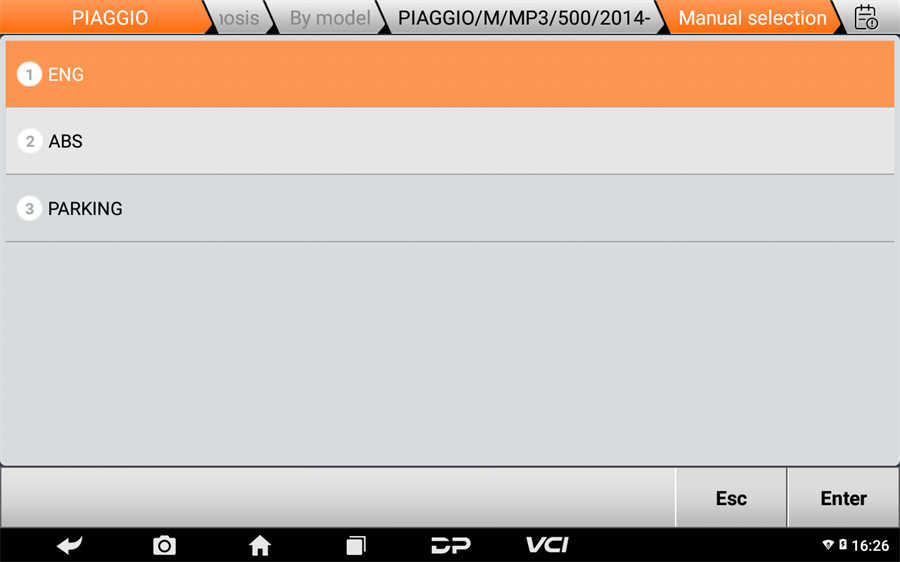

4) Auto Scan/Manual selection/Common Special Functions
Auto Scan under a specific model can help users learn more quickly about the systems supported by the model being diagnosed, as well as perform basic scan DTC and clear DTC functions.

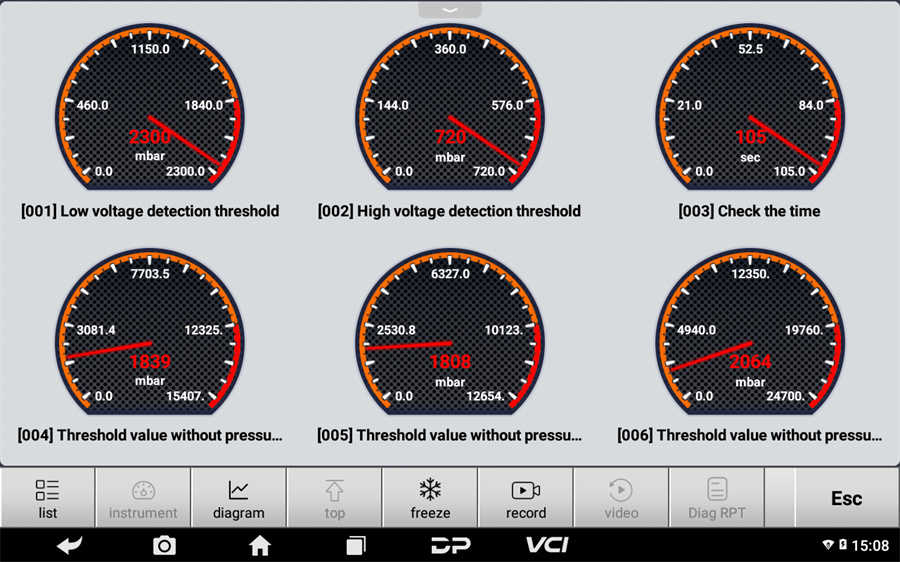

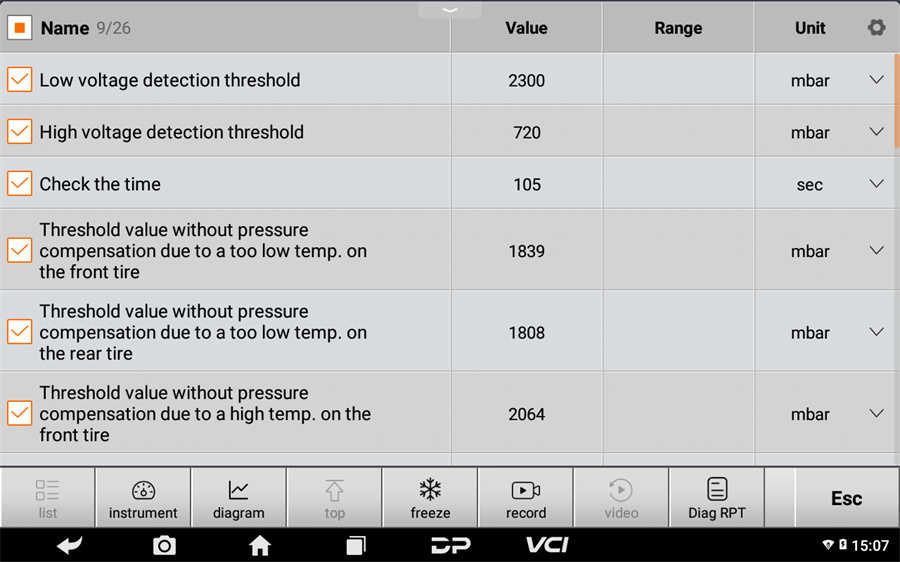

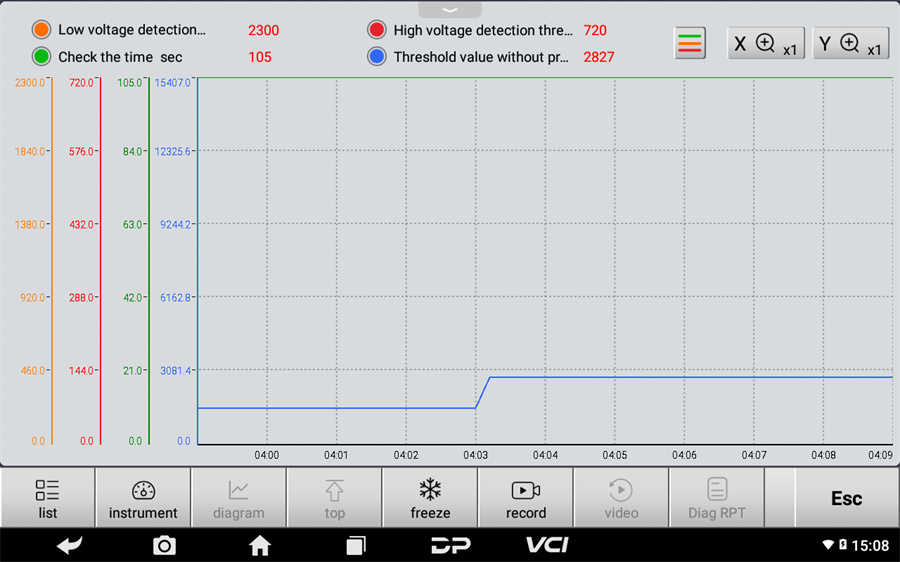

5) Data Flow Text/Waveform Diagram/Instrument Diagram

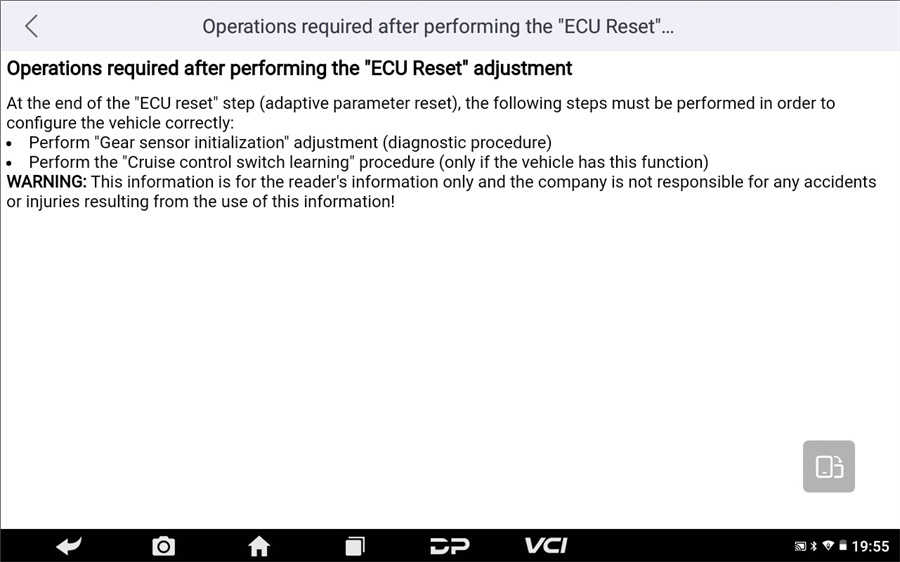

Also including ABS Bleeding、 ECU Reset、Service Lamp Reset、Throttle Valve Reset、Mileage Writing、Data Buffer Reset、etc. functions.

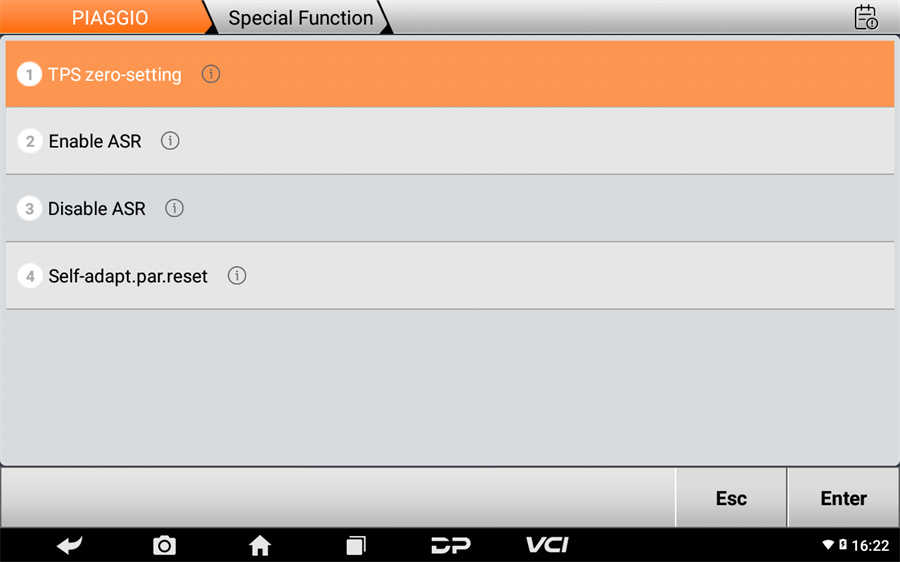

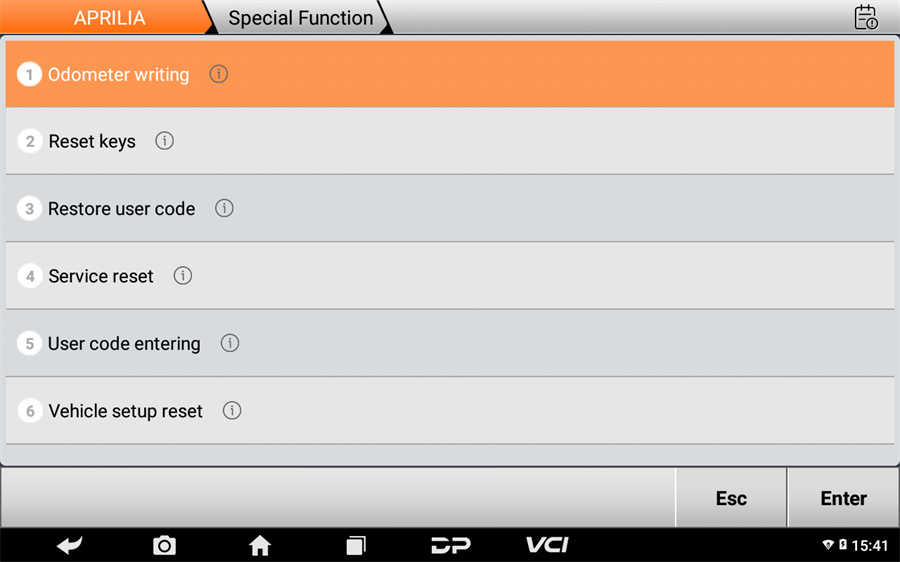

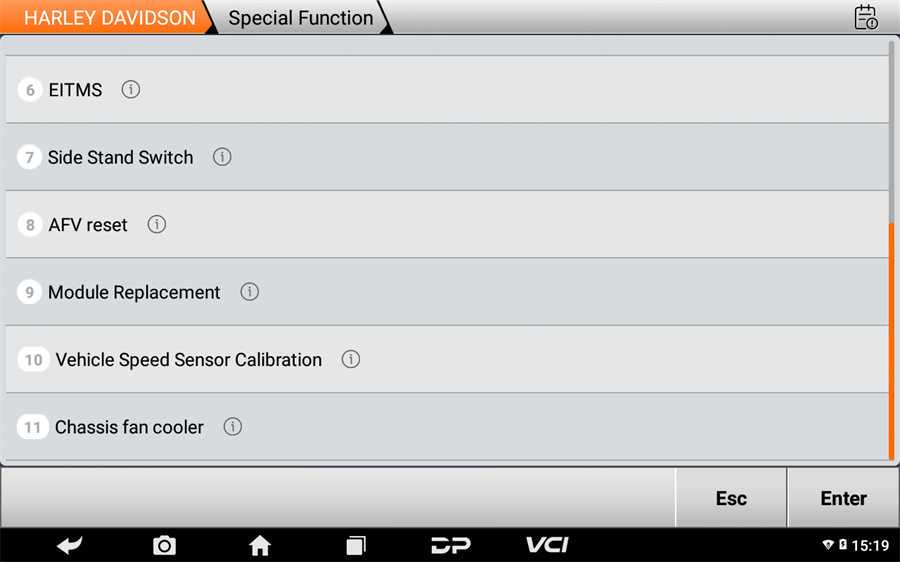

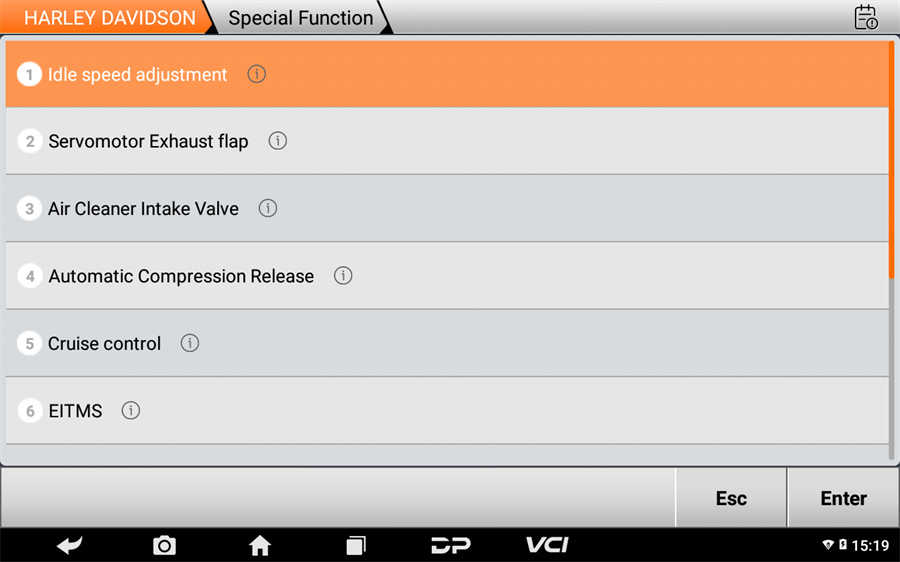

6) Special Function-HARLEY DAVIDSON-TRIUMPH-KTM-BMW-APRILIA-PIAGGIO-SYM-KYMCO






Function Display-APP

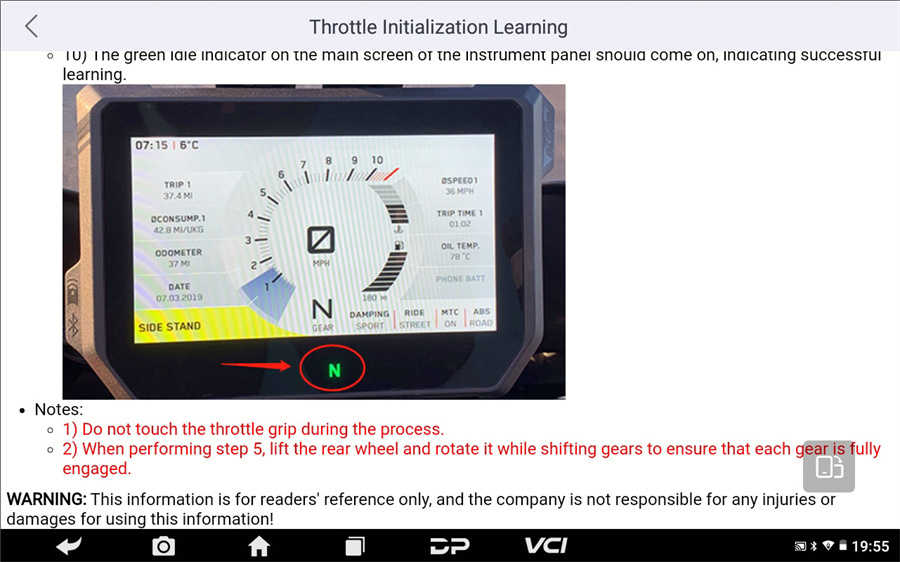

1) Tech Bulletin (Tech Bulletin is mainly for vehicle-specific problems, common faults to provide technical solutions, such as: ABS exhaust method, throttle initialization method, etc.)

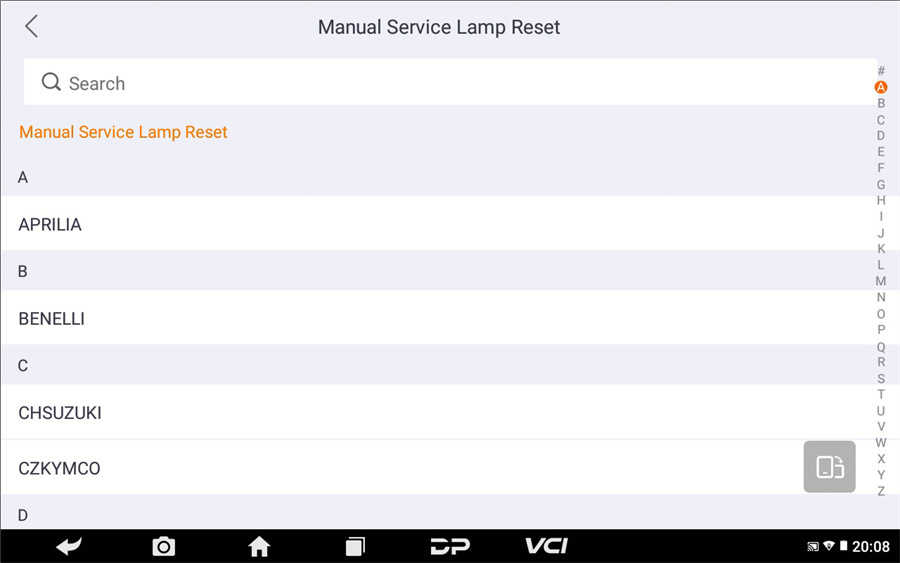

2) Manual Serivice Lamp Reset (Manual Serivice Lamp Reset is used to manually reset the maintenance reminder light or maintenance reminder message after completing maintenance in some models)

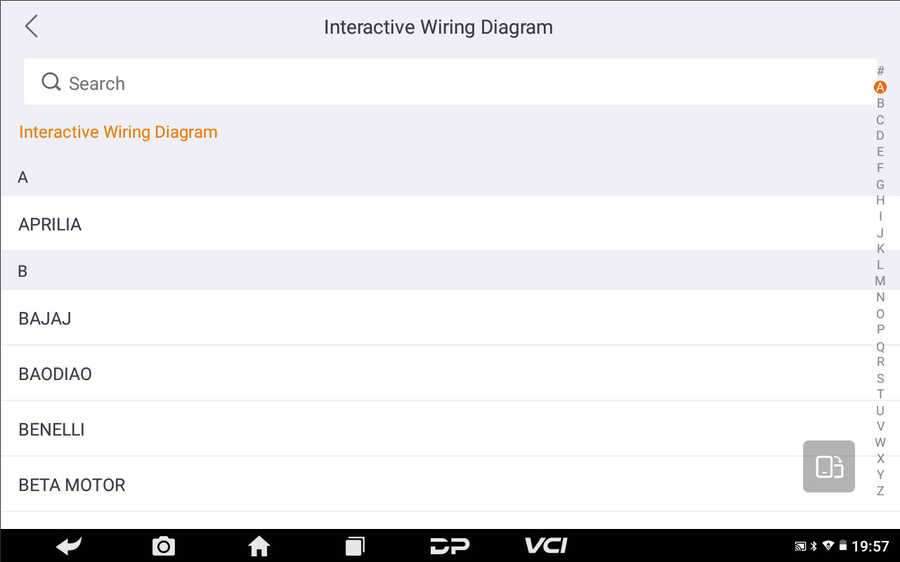

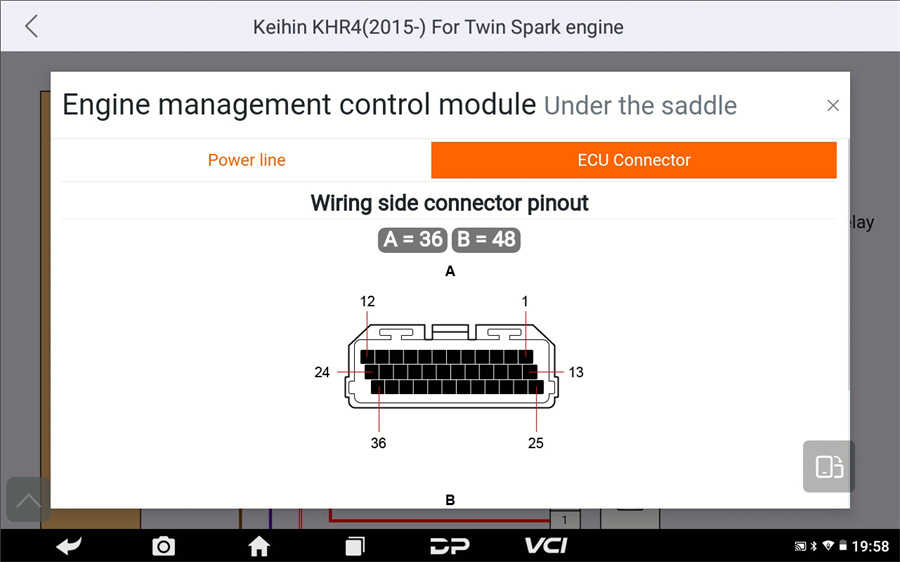

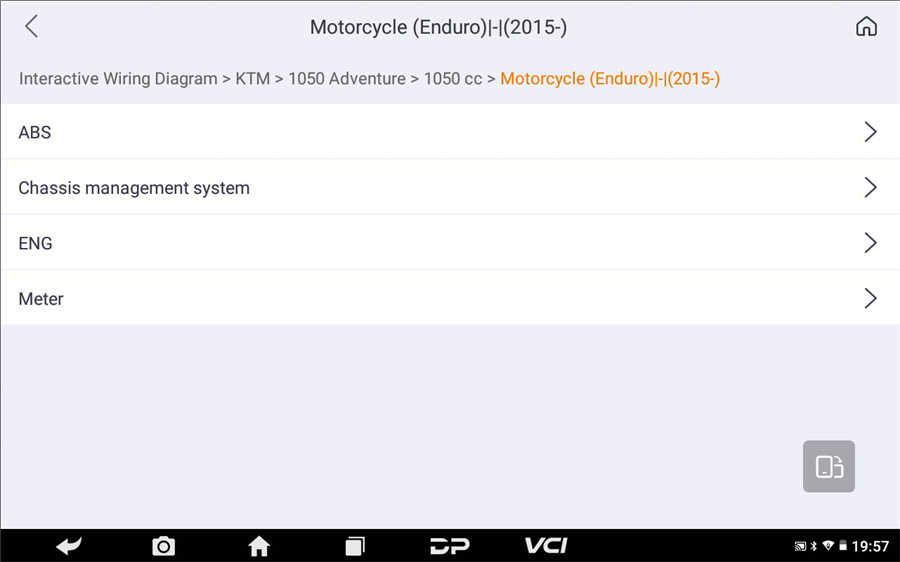

3) Interactive Wiring Diagram (Interactive Wiring Diagram compared with the traditional static circuit diagram using dynamic interactive circuit diagram, visual more intuitive, line flow is more clear, according to the needs of irrelevant lines to hide, display the required lines, click on the components to display the corresponding component description)

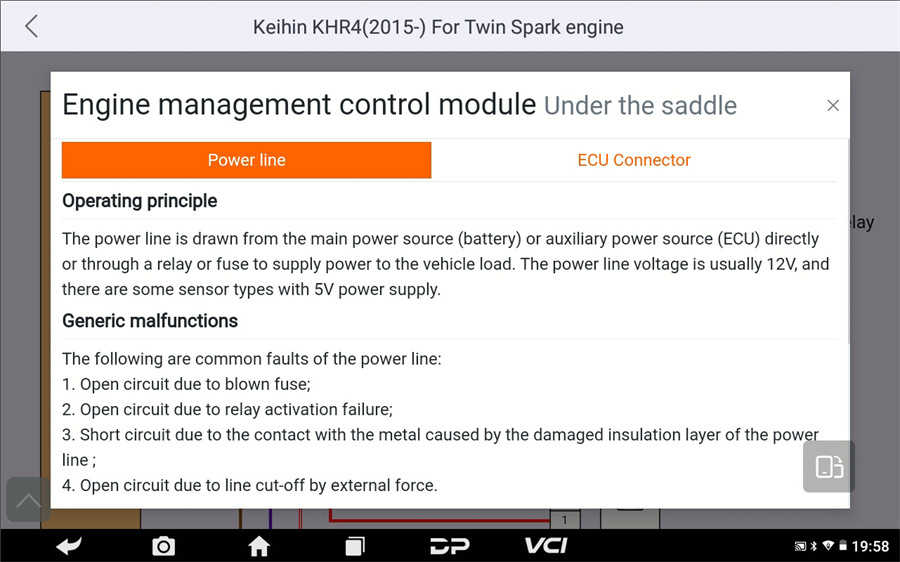

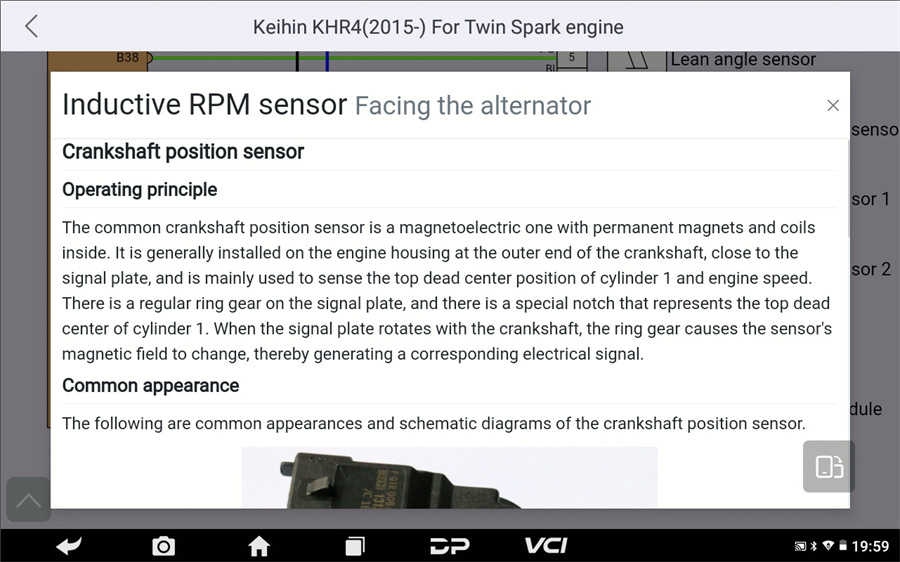

4) Components Inspection (a detailed introduction to some components in the interactive circuit diagram, including: component operating principle, pin definition, common appearance, common faults, repair methods, etc.)

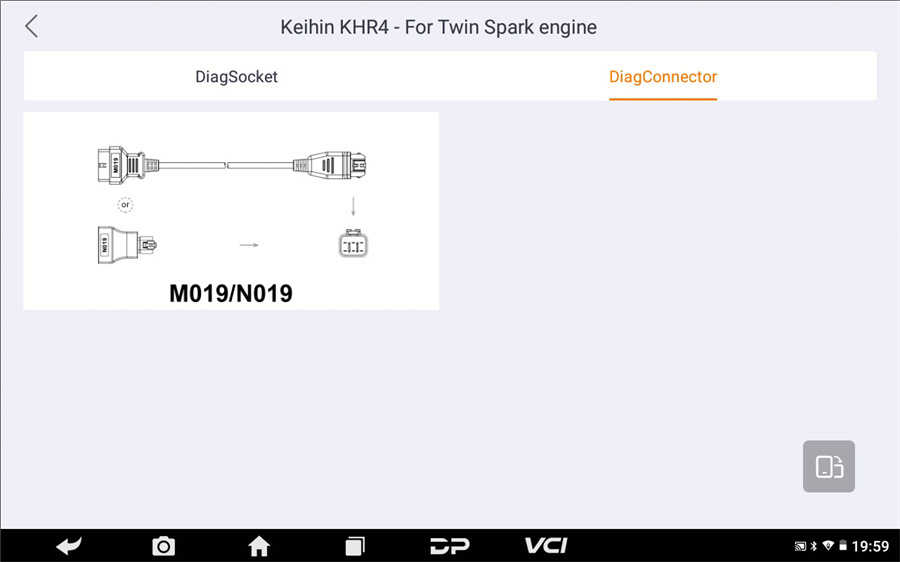

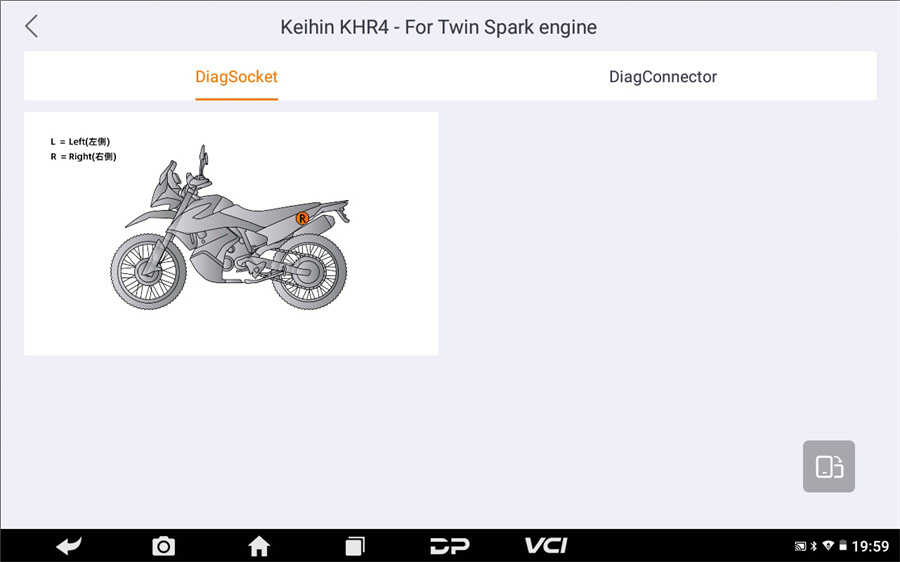

5) Diag Socket Location/ Diag Connector instructions (provides the corresponding diagnostic socket location of different models and the description of the diagnostic harness to be used)

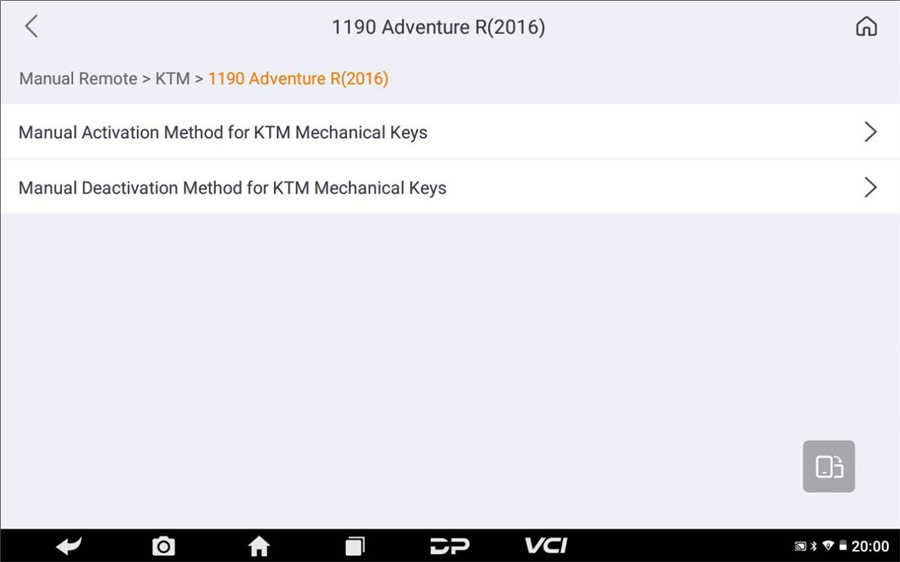

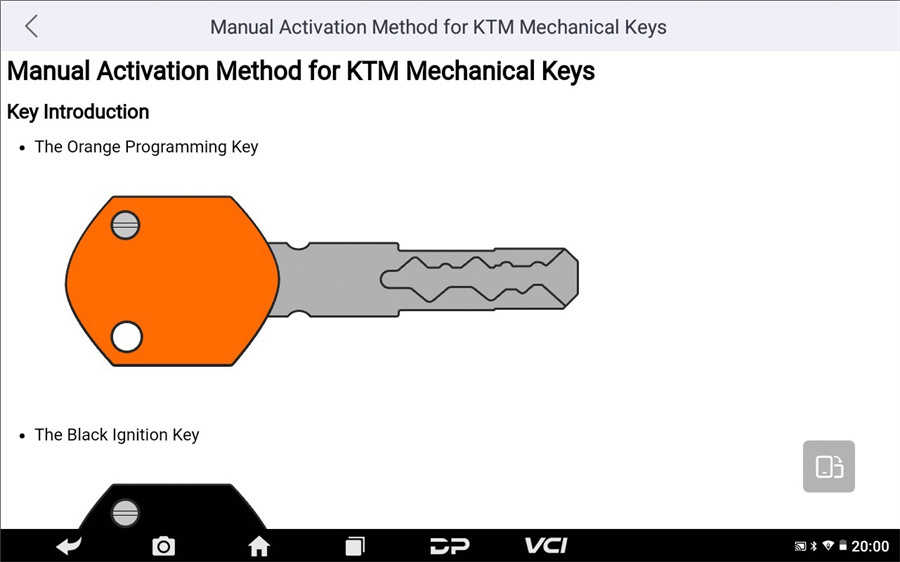

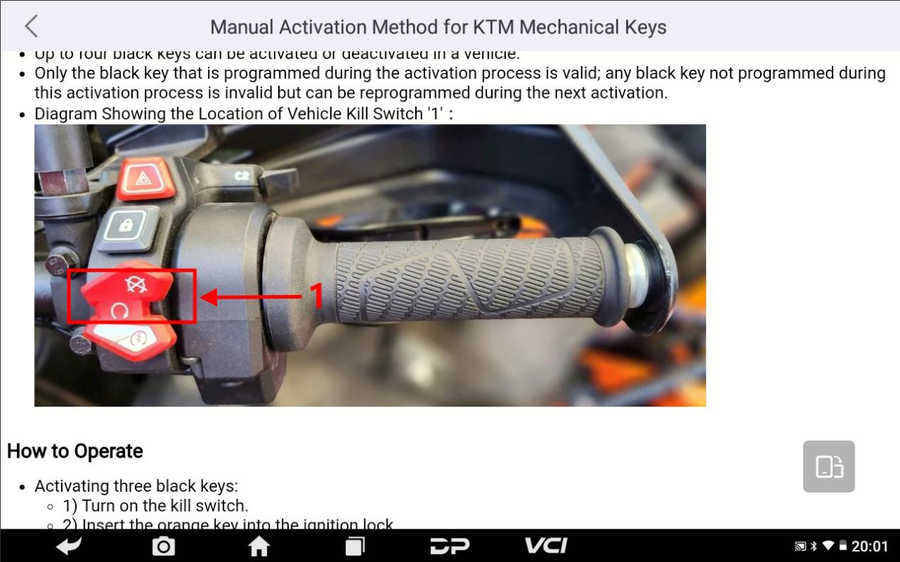

6) Manual Remote (for some models, when adding a new key or disable the old key, it needs to be done manually, manual remote control matching information provides a detailed operating procedures)




Package includes:

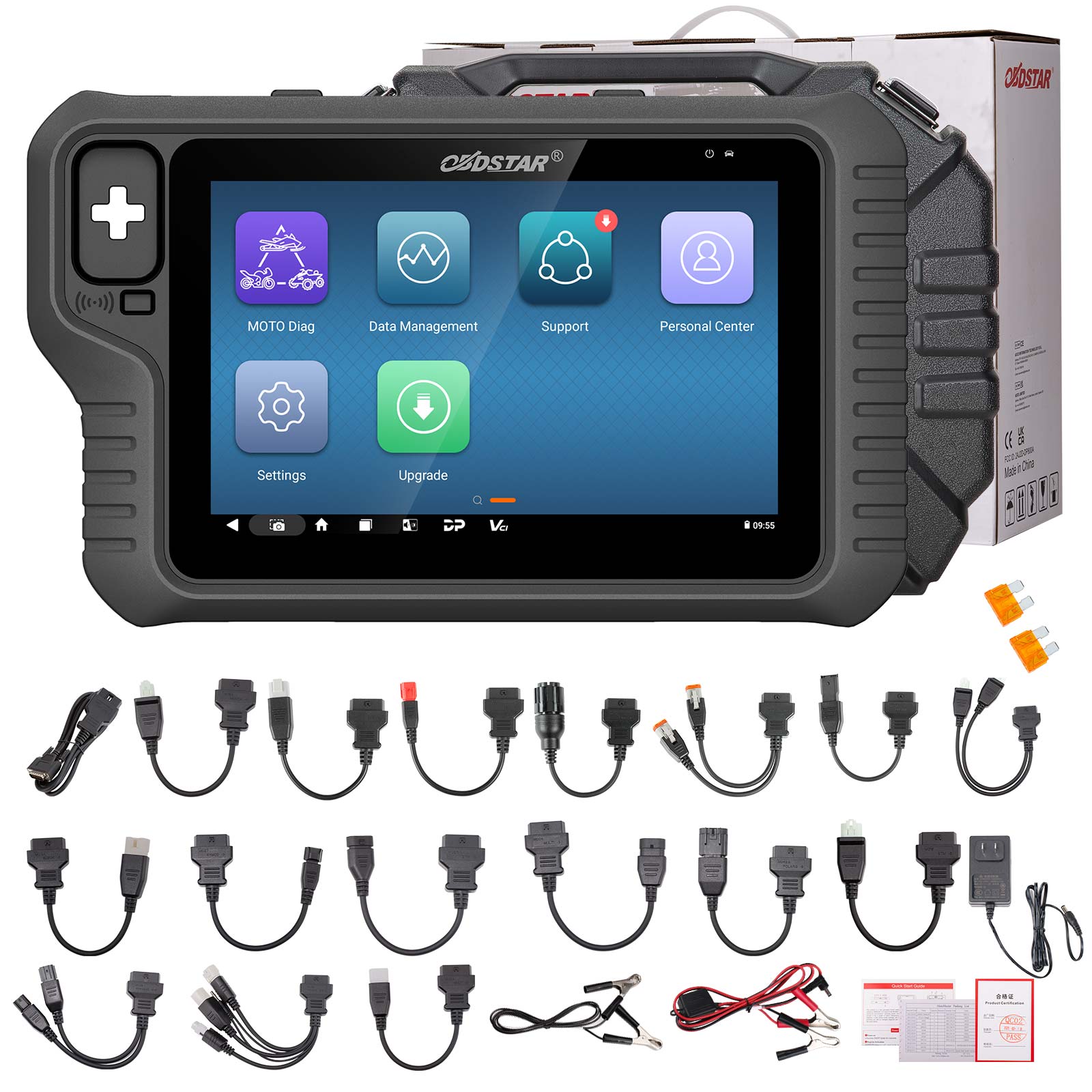

1set x OBDSTAR MOTOMASTER Motorcycle Scanner

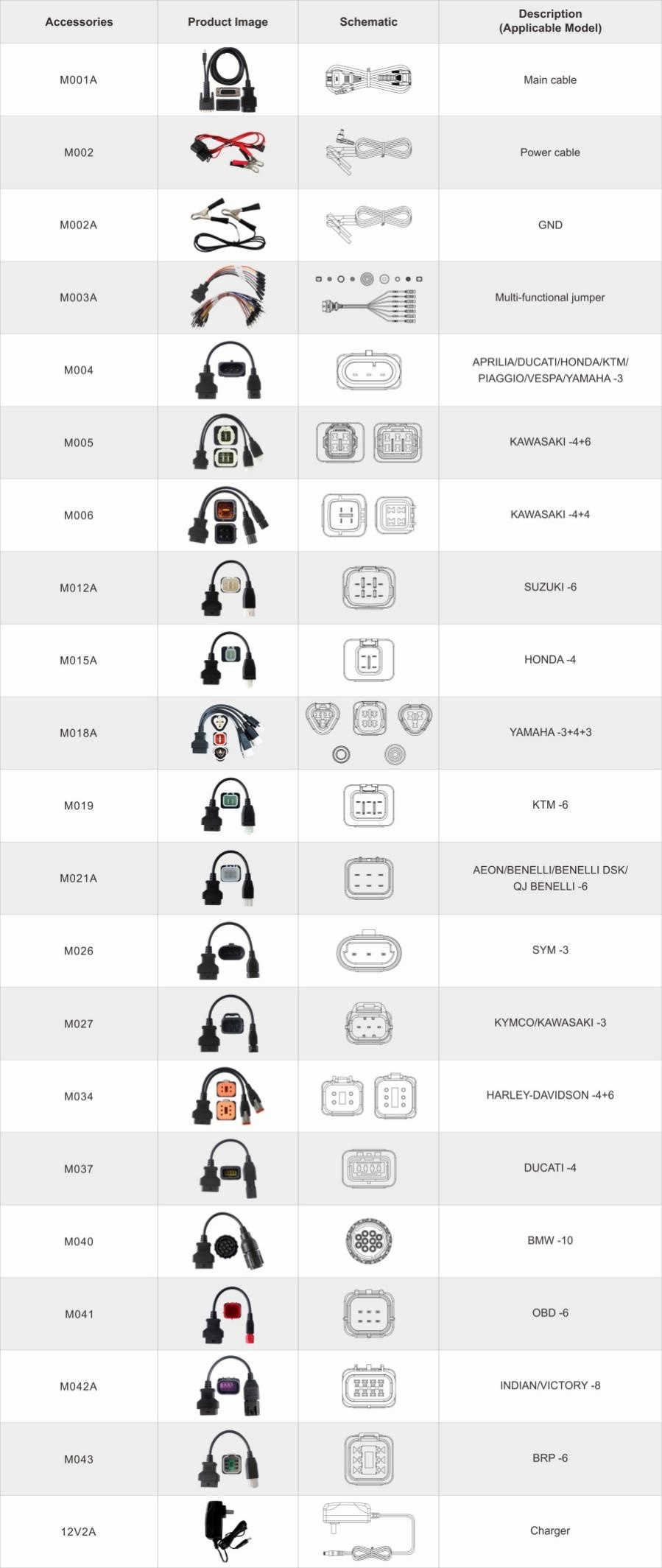

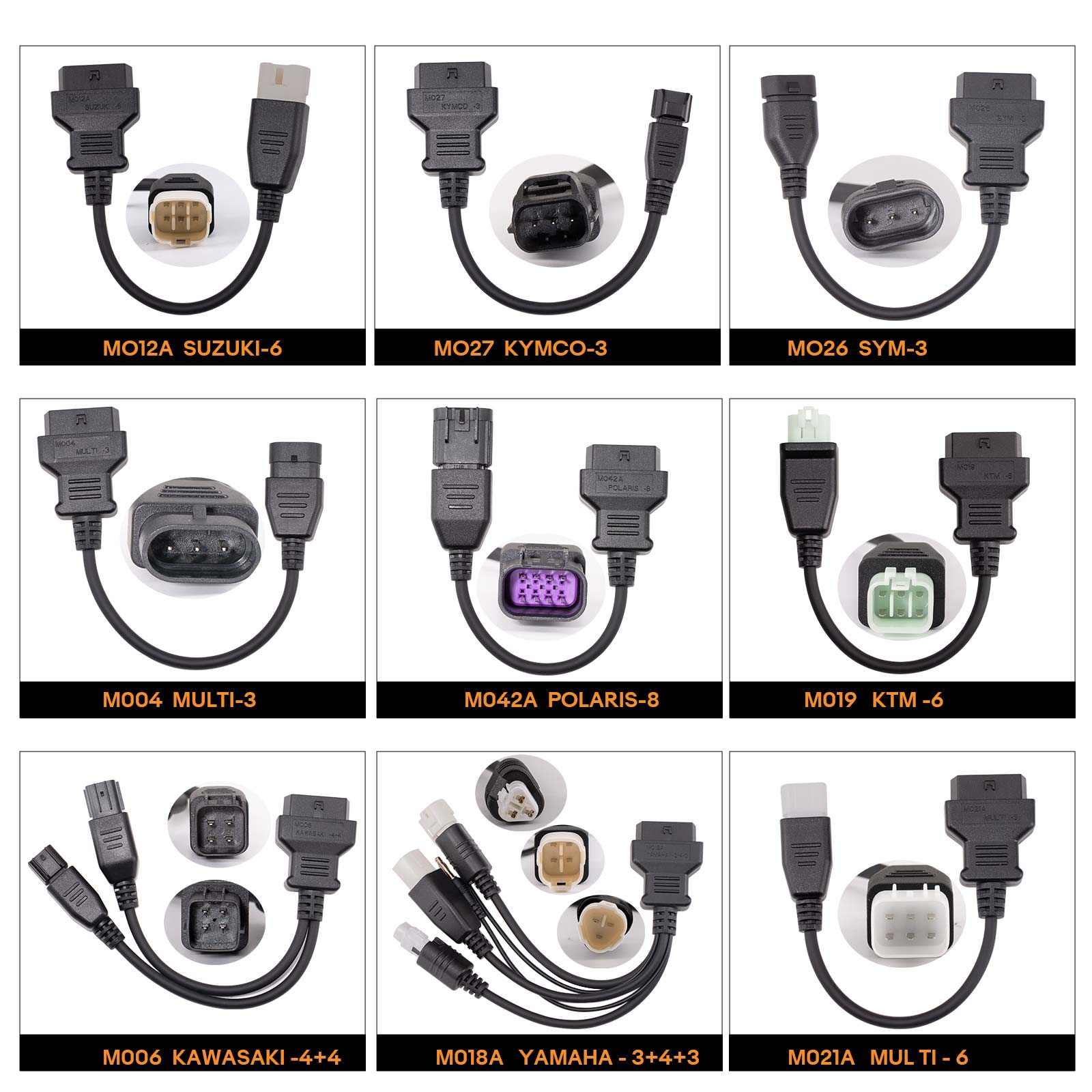

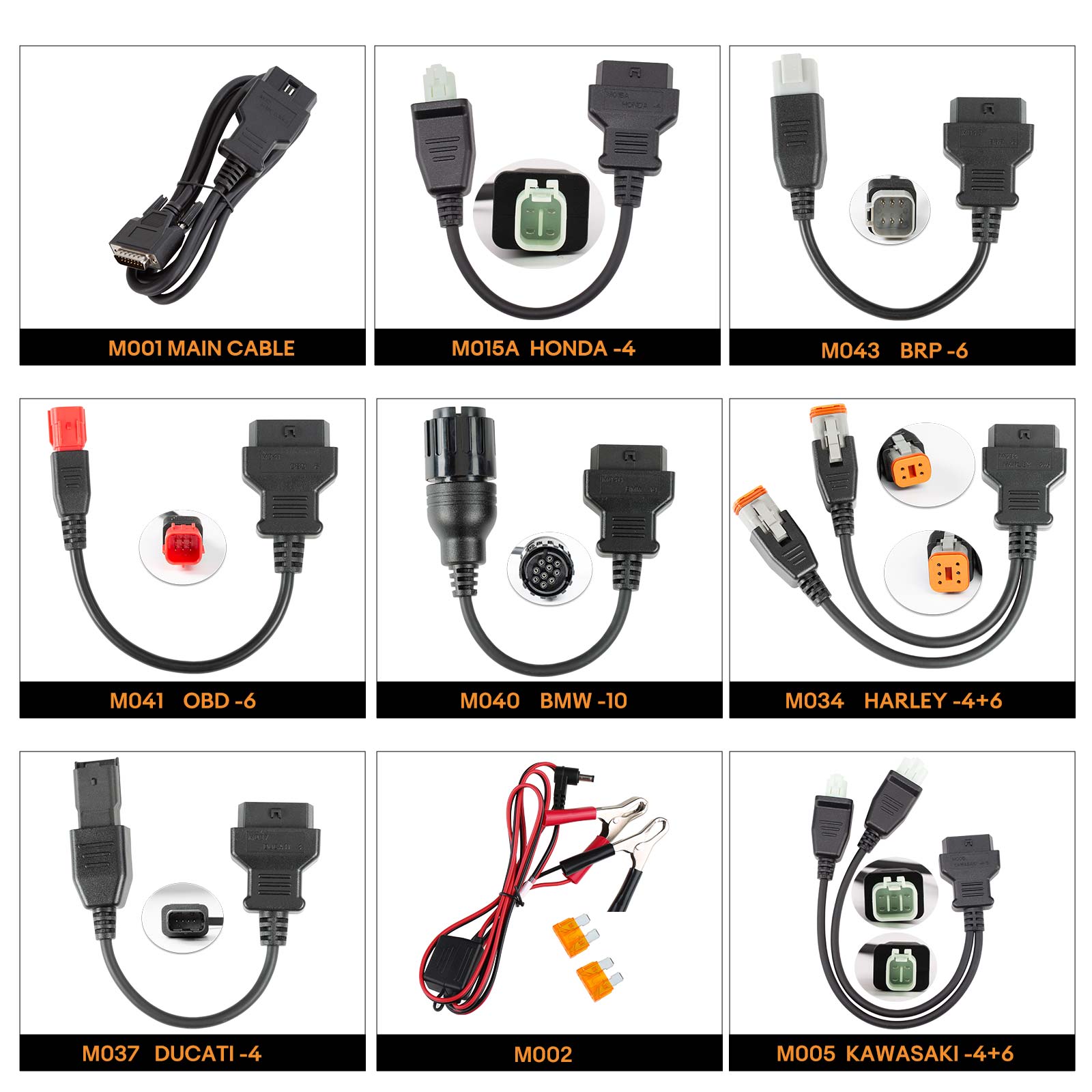

Accessories
