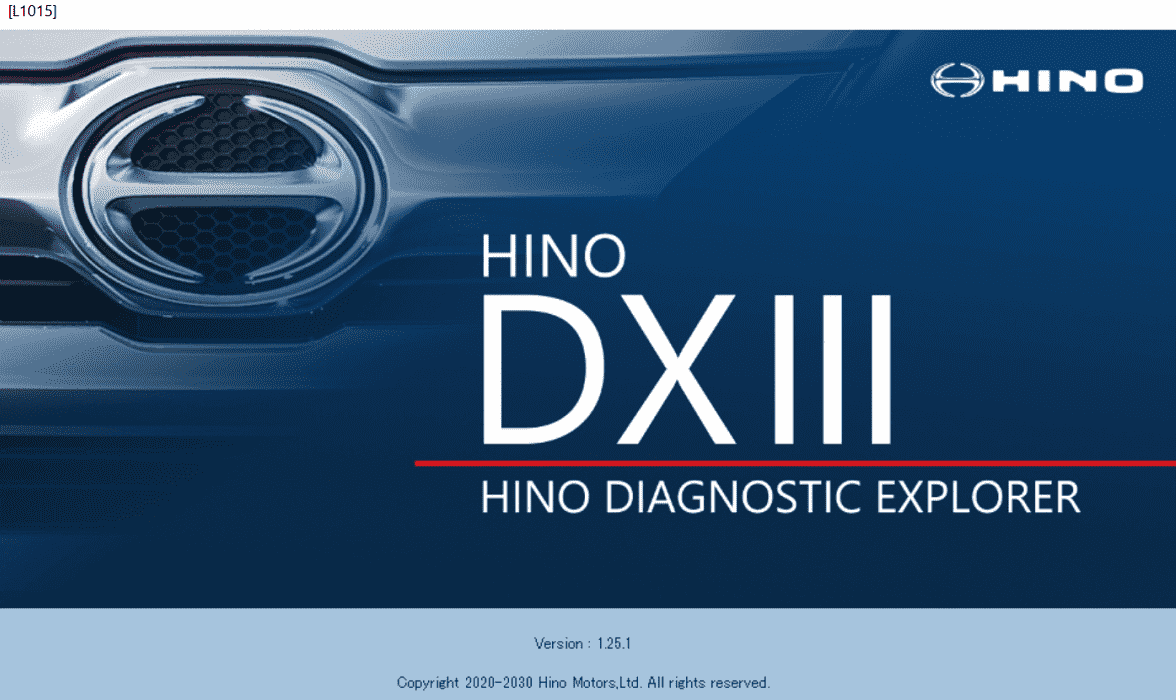

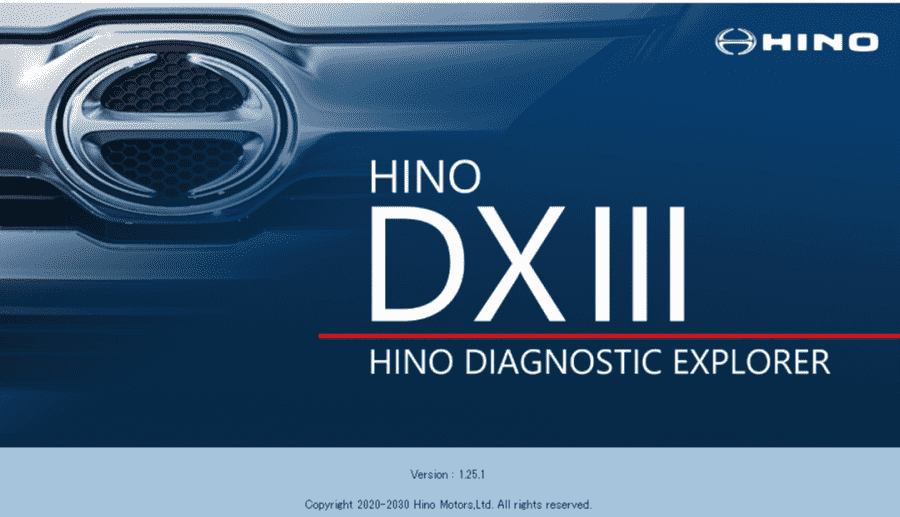

Hino Diagnostic Explorer 3 (Hino DX3 v1.25.1) 2025.01 Diagnostic Software

Notice:
After payment, we will remotely install and activate the software for you (just install on one computer).

Diagnostic Software
Make: Hino
Region:    WorldWide
Interface Languages: Multi
Database Languages: Only English
disks:    287 MB (compressed archive)
OS:    Windows 7 32 bit, Windows 7 64 bit, Windows 8/8.1 32 bit, Windows 8/8.1 64 bit, Windows 10 32 bit, Windows 10 64 bit, Windows 11 64 bit, Windows 11 Pro 64 bit



The HINO Diagnostic eXplorer DX3 is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into HINO engines.

This tool covers the following markets: US markets, USA, Japan, Russia, and others.

Low-speed DXI contact with large amounts of data, not to expand the software's functionality, led to the need to develop a new diagnostic system the HINO Diagnostic eXplorer DX3.

Main functions:
– Simulates diagnostic work with only a PC (Simulation function).
– Obtains conditions when vehicle sensor problems (freeze frame function) occur.

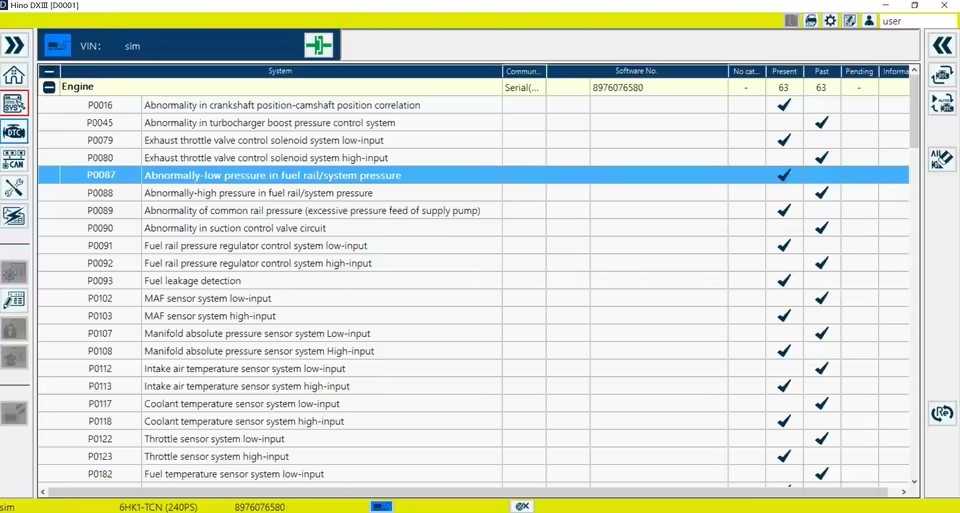

– Acquires and deletes trouble data.
– Warps the trouble codes read from the ECU to workflow sequences corresponding diagnostic and directly displays the required data diagnosis.
– Monitors the sensors and actuators equipped on the engine (monitor function data) and tests the operation of the solenoid valves to force operating them (Active Test function).
– Automatically saves the data from the ECU and analyzes the problems based on the stored data even when you can not understand the cause of the problems and many others.

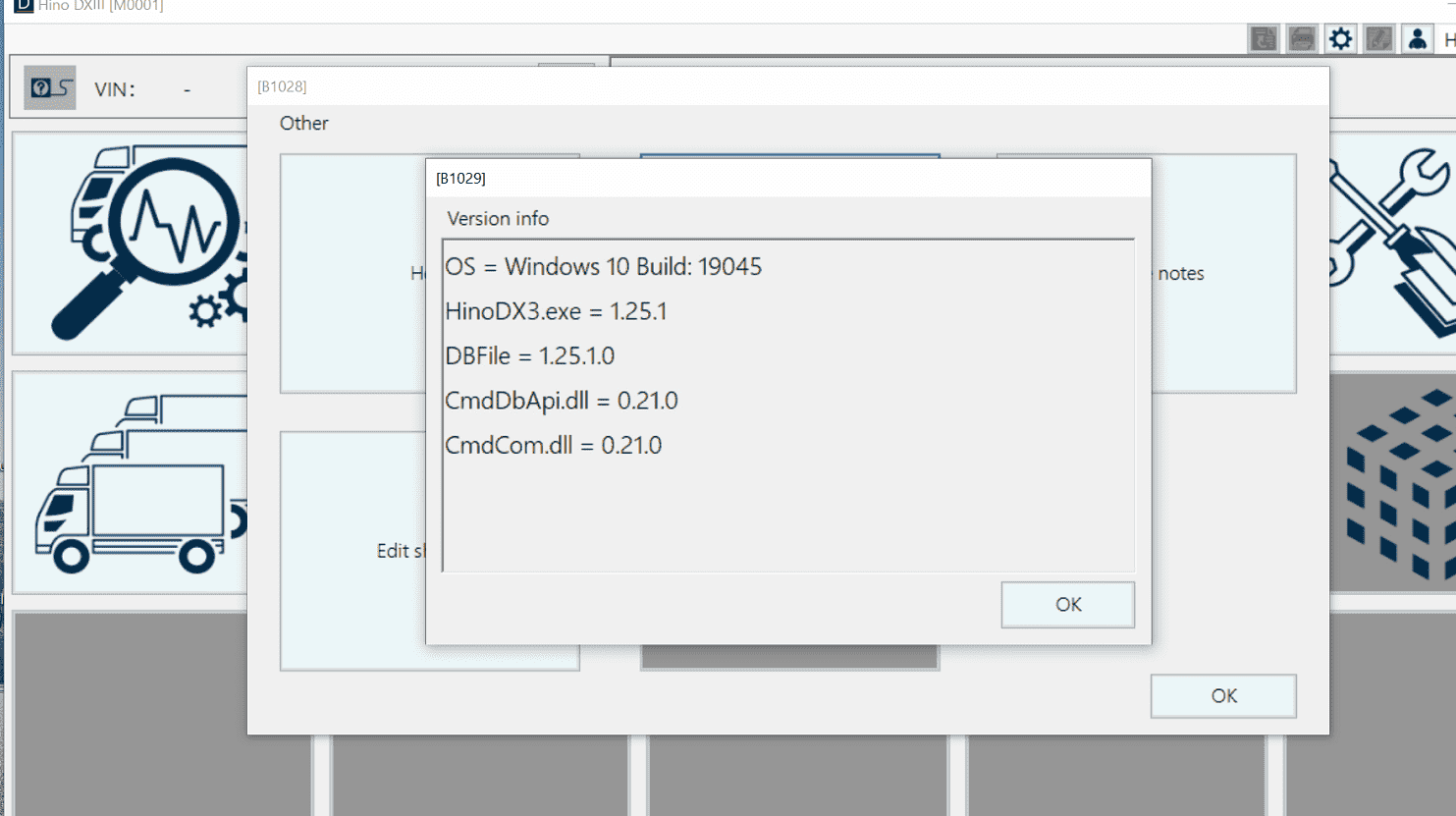

App info:
HinoDX3.exe = 1.25.1
DBFile = 1.25.1.0
CmdDbApi.dll = 0.21.0
CmdCom.dll = 0.21.0

If you have questions about installing or working with this program - please get in touch with us, we provide after-sales support.

Vehicle classification:
600 series (Conventional) North America
1. Engine
2. Tracsmission (old AT)
3. DCU(Doser)(500K)
4. BCU(Bumer)
5. Meter
6. Meter(7inch)
7. VCS(Vehicle Control System)
8. Differential lock
9. Brake (WABCO ABS-E8)
10. Body Control Module

300 Series (COE) (Norht America)
1. Engine
2. Transmission
3. Transmission (AT)
4. Brake (DENSO ABS)
5. Hybrid
6. Hybrid_14MYsince
7. Inverter
8. Battery
9. DCU (Doser) (500K)
10. Brake
11. Clutch
12. VCS (Vehicle Control System)
13. VCS (Vehicle Control System) (sub)
14. LDWS: Lane departure warning system
15.FCM: Front image recognition sensor
16. Driving support

700 series
1. Engine
2. VCS (Vehicle Control System)
3. ABSCOM
4. Brake (WABCO EBS)

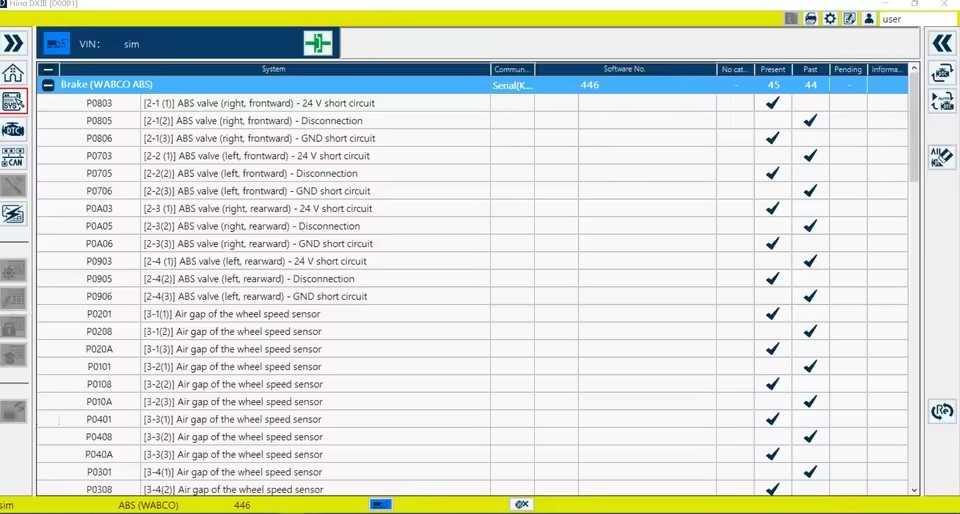

5. Brake (WABCO ABS)
6. Brake (WABCO EBS3)
7. Brake (WABCO ABS-E8)
8. Transmission
9. Transmission (ASTRONIC)
10. Transmission (TRAXON) 500K
11. ZF INTARDER
12. ZF INTARDER3(500K)
13. Hybrid
14. Hybrid_14MYsince
15. Inverter
16. Battery
17. DCU (Doser) (500K)
18. Suspension
19. Scanning cruise/Lane departure warning systems/Collision mitigation
20. Lane departure warning systems
21. Tire inflation pressure monitor
22. HINO STOP&START SYSTEM
23. SRS (Airbag)
24. Air bag 2
25. Immobilizer
26. Meter
27. Meter (7 inch)
28. Body Control Module
29. FCM: Front image recognition sensor
30. LDWS: Lane departure warning systems (for 700 500 series / buses)
31. Central gateway
32. Central gateway (sub)
33. Adaptive Driving Beam
34. Driving support
35. Suspension (WABCO AIRSUSPENSION)
