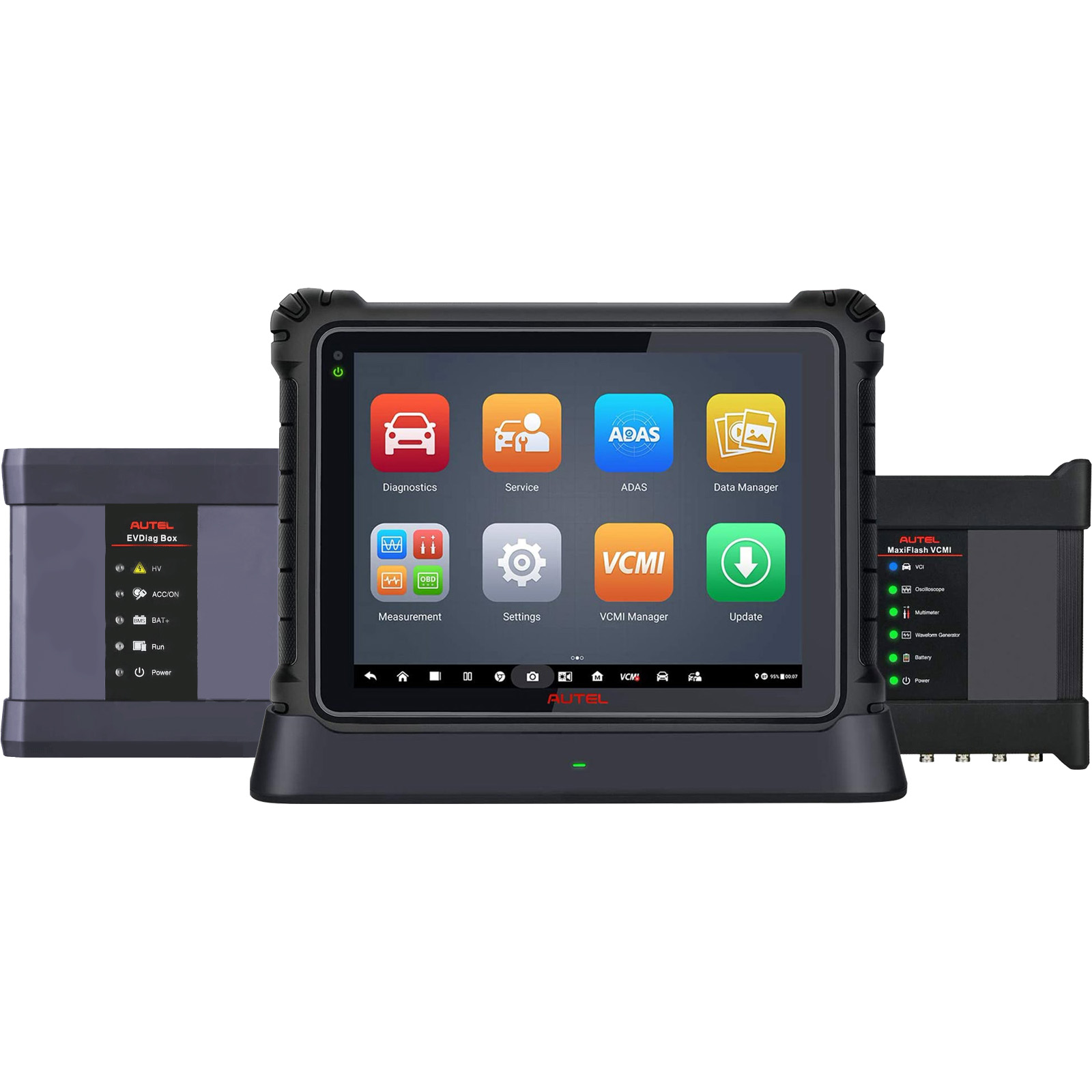

Autel Maxisys Ultra EV Scanner Top Intelligent Electric Vehicle Diagnostic Scan Tool with 5-in-1VCMI, ECU Programming & Coding

Autel MS Ultra EV (1000 less than purchasing Ultra and EV Box separately) adds an EVDiag Kit to Ultra, making the scanner possible to diagnose new energy vehicles, including Tesla, BMW, VW, Au-di, etc.  This automobile diagnostic scanner combines together almost every high-end diagnostic feature you can think of, bringing repair stores more orders.

Package includes:

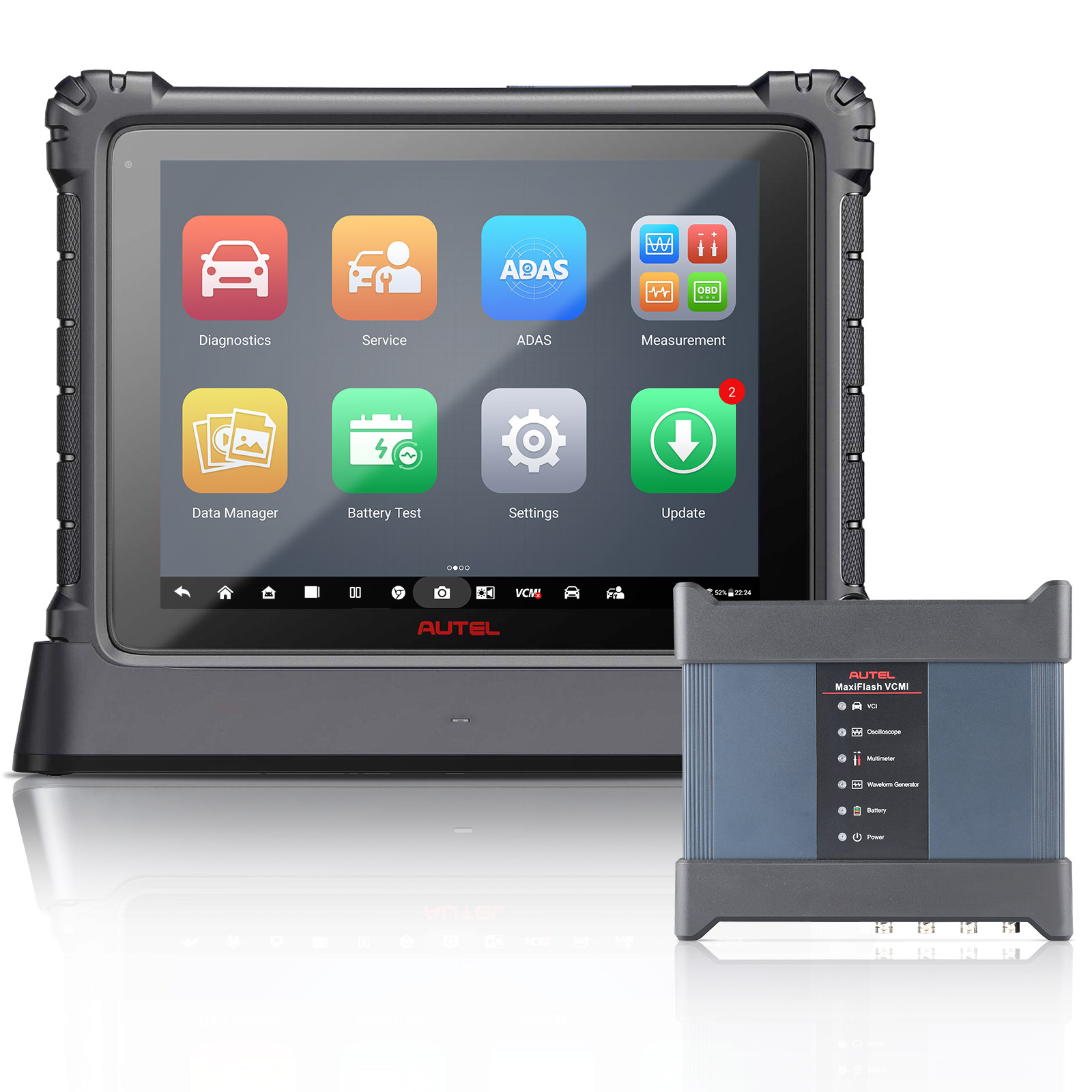

Full set MaxiSys Ultra diagnostic tool
EV diagnostic kit

NOTE:
For customers who already bought MS909 or MaxiSys Ultra can just buy EV box to upgrade their device to MS909EV and MaxiSys Ultra EV.
The methods to active EV box on MS909/ MaxiSys Ultra: to imput EV box SN on tablets portal directly to upgrade.
* You have to have an Active Subscription in order to access the Autel servers.
If you're trying to offline SCN program a Benz or BMW, you'll need an active subscription.

AUTEL MAXISYS ULTRA EV
1.  Global Version, No Area Restriction, No IP Limitation
2.  Support System Languages: English, Spanish, Portuguese
3.  Support Topology Mapping and Battery Pack Analysis
4.  Supported Vehicle Models: Electric, Hybrid, Gas and Diesel Vehicles
5.  Advanced VCMI 5-In-1 Dongle Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
6.  ECU Programming for Benz/ BMWI Mini, ECU Coding and Refresh
7.  40+ Services & Bi-Directional Control
8.  Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
9.  Multiple Repair Guidance: Technical Service Bulletin (TSB), DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases;
10.  One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize.







EV Vehicle High Voltage Diagnostic

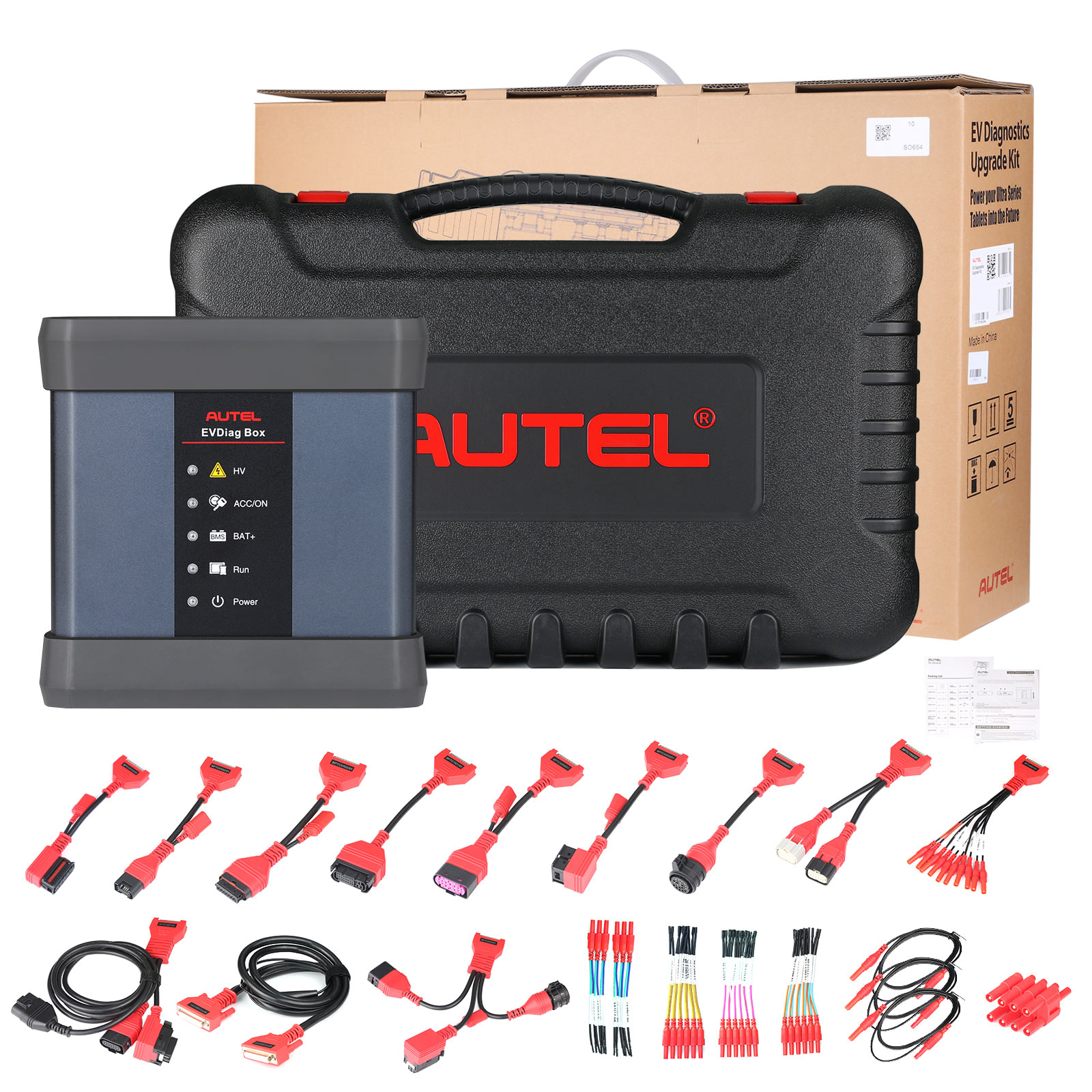

EVDiag Box & Adapters for Battery Pack Diagnostics
The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters with a carrying case for specific electric vehicles to perform battery pack analysis. The EVDiag Box is compatible with the MaxiSys Ultra, MaxiSys Ultra ADAS, MaxiSys MS919, and MaxiSys MS909 tablets. EVDiag Box connects to MaxiFlash VCI or VCMI.

- Includes EVDiag Box, Adapters for BMW, Tesla, VW and Breakout Leads, and Carrying Case
- Compatible with Ultra series products to perform Battery Pack diagnostics
- State of Charge and State of Health analysis for true battery condition

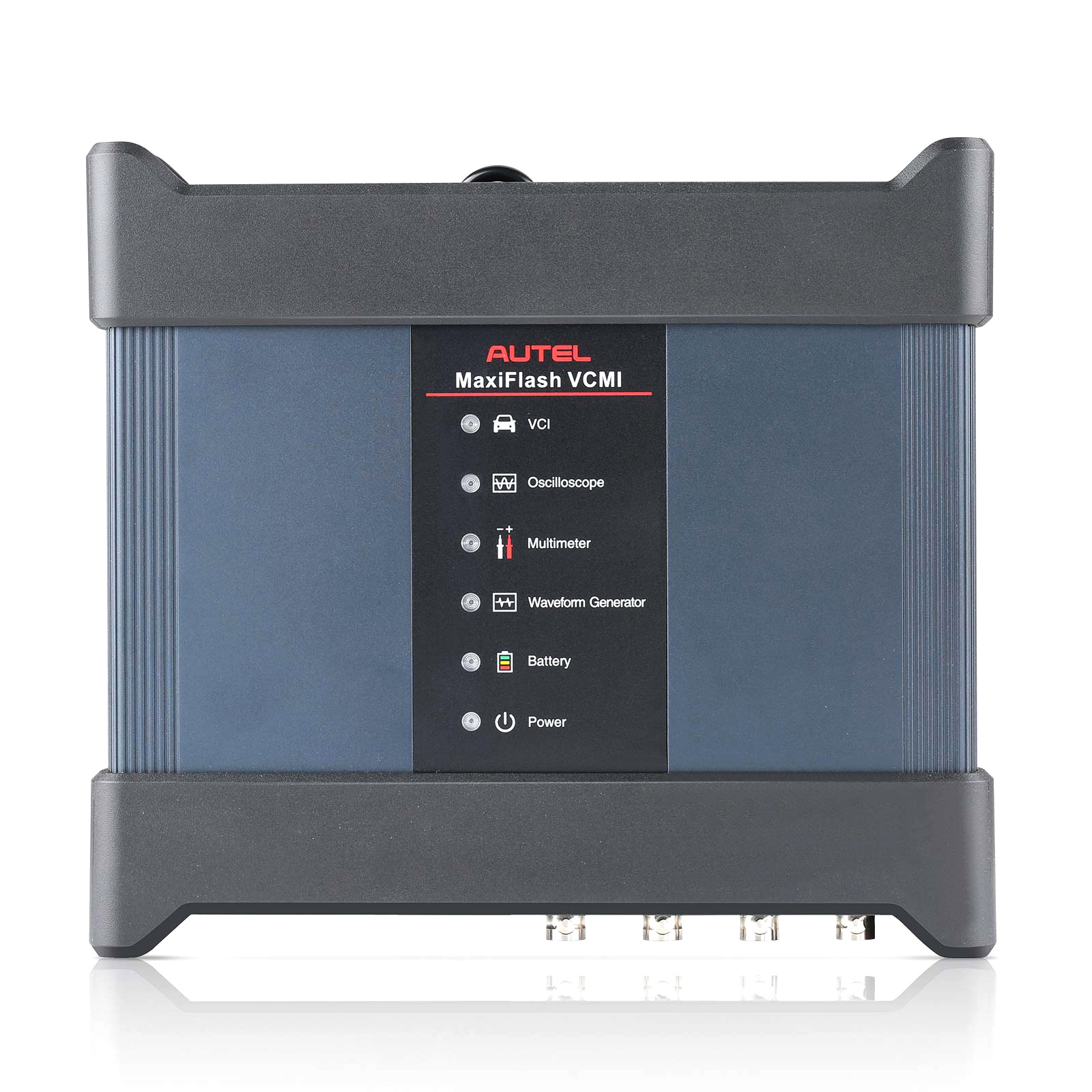

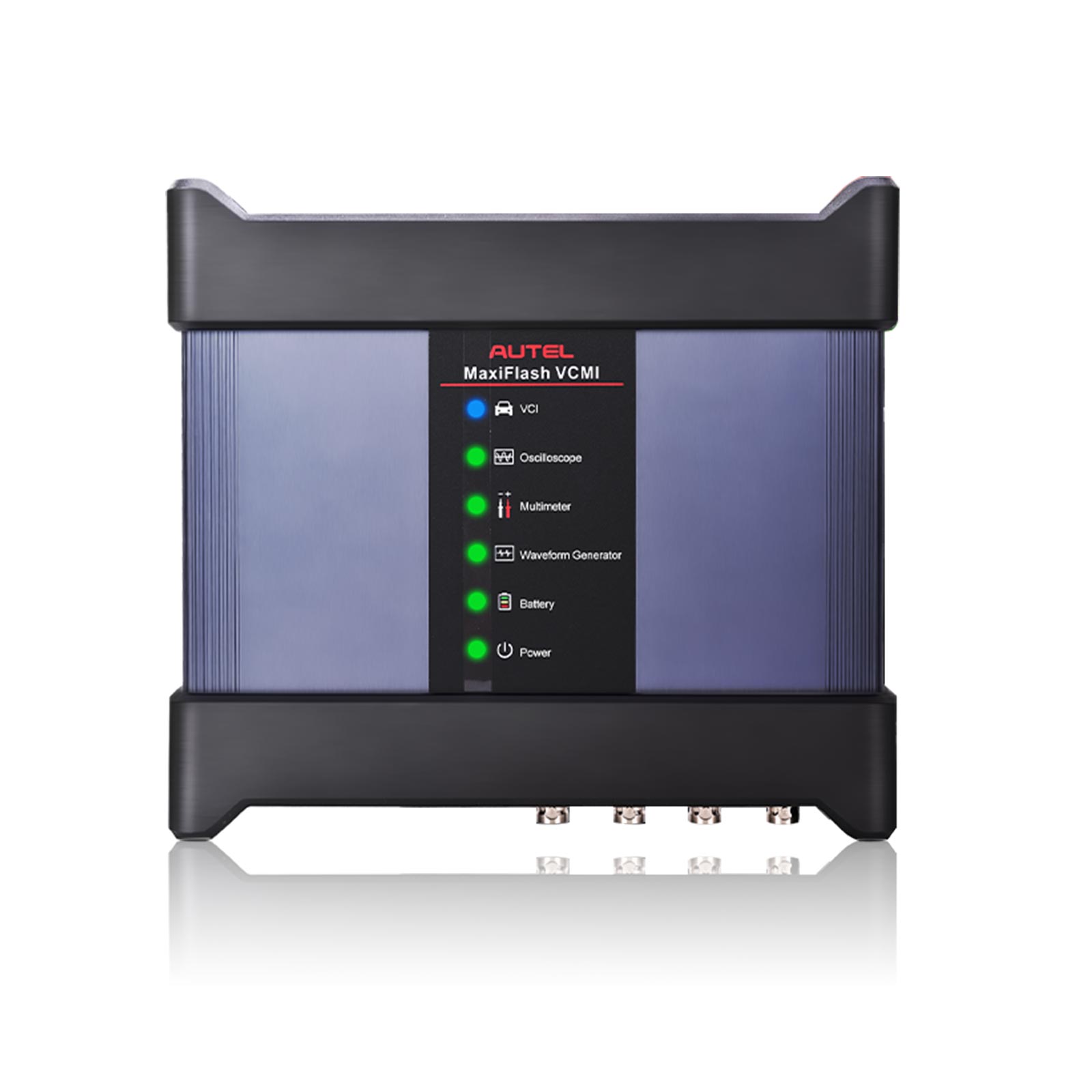

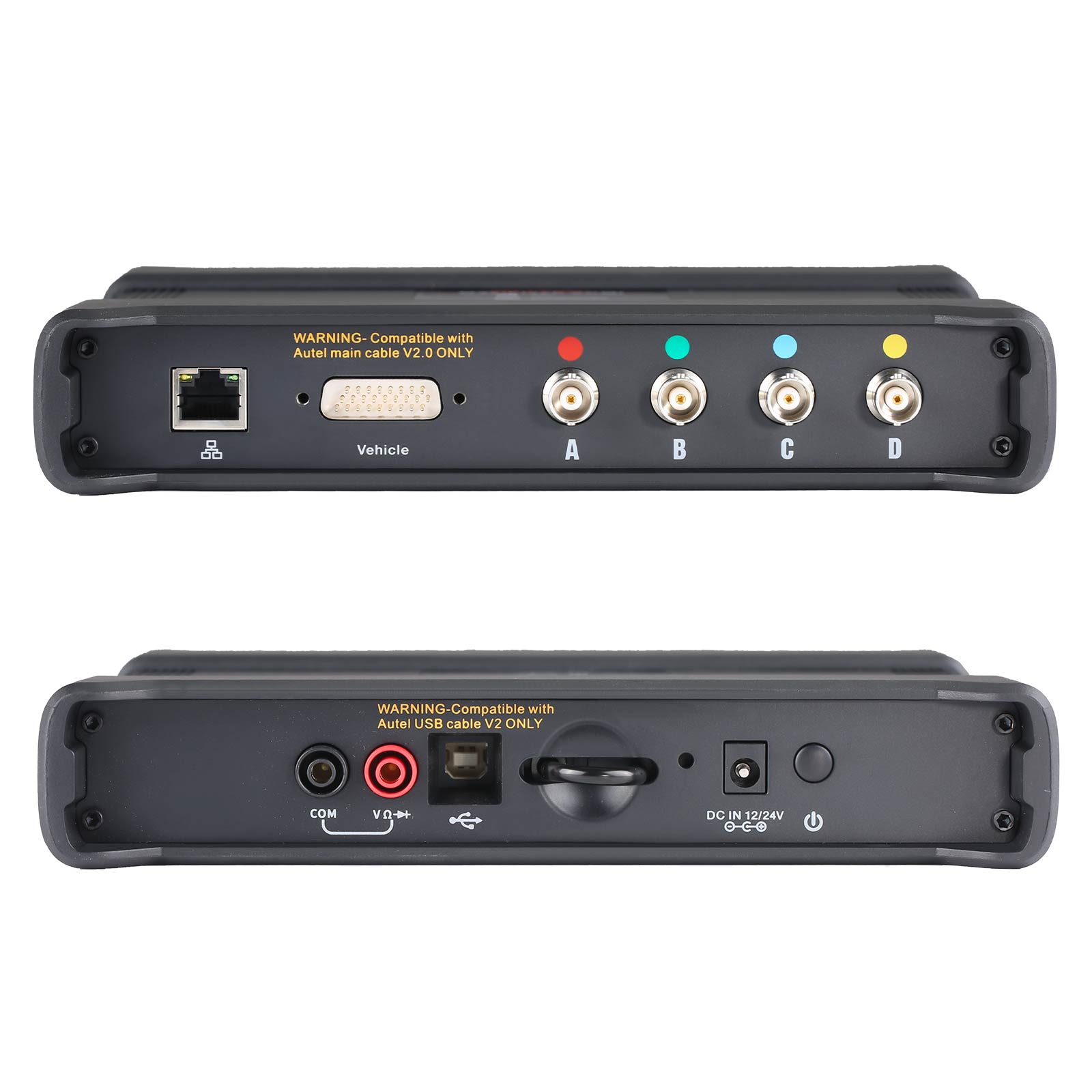

Advanced 5-IN-1 VCMI

Superior to traditional scanners, Top MaxiSys Ultra is designed with the advanced 5-in-1MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and OBD2 CAN BUS Check, realizing multiple functions of diagnostics, detection, signal simulation, etc.  Also, it's a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface, capable of connecting with OEM diagnostic tools to diagnose and program 99% of vehicles.

5-in-1 VCMI, Diagnose & Program Vehicles More Efficiently
Autel MaxiSys Ultra automatically sets Waveform acquisistion parameters, Waveform comparision, Waveform analysis.  It only takes 3 steps to easily complete waveform analysis and fault location, and the efficiency of solving typical problems can be improved by 80%.

5-in-1 VCMI: Except working as a diagnostic tool, it also functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester.  Main Features as following:
Large Bandwidth;
High Sampling Rate;
Deep Storage;
Massive Preset Cases;
Zoom & Playback;
Advanced Triggering.

More Advanced than J2534: With the 3 diagnostic protocols (D-PDU/ SAE J2534/ RP1210), Ultra can work with more OEM diagnostic tools and diagnose & program more vehicles than J2534 programming tools.



New 2nd Generation Topology Moudle Mapping

The new Topology Module Listing CAN BUS Tree, specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the numbers of systems, the scanned systems, and the scan results at a glance.
- Clearly view the color coded module status tree by zooming in and out;
- Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.
- With topological diagram Function,it can displays the entire system through the Topology Map to glance all the modules with trouble code, which is easy to locate faults and causes. Up to 5 ways of DTC display: Easy View of All Systems
- Topology, list, separately click into the control unit, Intelligent Diagnostics details, vehicle diagnosis report, among which Topology is the newest and innovative configuration.
- Display the entire system through the Topology Map to glance all the modules with faults, which is easy to locate faults and causes. Color-coded topology displays all system status in one page and structure of communication between modules. Communication between modules and status can be spotted in a glance and you can locate faults more intuitively to solve problems quickly!



ECU Programming & Coding

The need to perform ECU programming & coding services is now more relevant in the aftermarket than ever. There are more and more instances where programming/coding is necessary, e.g., replacing a module, replacing the existing software or firmware in the ECUs, fixing software-controlled drivability issues and emission issues, etc.

MaxiSys Ultra EV allows you to pass through the blocks to access the OE ECU data package and tune the ECU module as you want. Program rewriting, ECU upgrading & downgrading, ECU module matching & replacement, etc. Supports interface standard, D-PDU, J2534, RP1210, Do IP and CAN-FD.

ECU Programming:
Online programming for Mercedes-Benz (204, 212, 207, 463), the online SCN for (222, 212, 204, 205) and ECU coding and programming for most of models .

Online & Offline ECU Coding:
Ultra EV empowers you to tune the ignition time, oil injector, air intake, software-controlled driving system. Anyway, it’s time to unlock the handcuffs and stop being bound with the OE settings.

The online coding, flashing hidden, modification for Volkswagen and Audi.
The online coding, DTCs guidance (The Ultra EV can suggest you step by step to clear the DTCs) for Porches.
The online coding for Renault
The personalization for Toyota, Nissan, Peugeot, Citroën


Complete Special Functions List

Autel MaxiSys Ultra EV is a professional car diagnostic tool that provides 40+ maintainence & reset services including Oil Reset, EPB Reset, SAS Reset, DPF Regeneration, Battery Registration, Throttle Reset, ABS Bleed, Injector Coding, Key Fob Programming and etc.

Offering Complete Special Functions and the Best Vehicle Coverage of the Autel brand.


Newly Added Functions on Ultra EV
1.  WiFi Printing：
MaxiSys Ultra EV offers you super convenient feature --- WiFi Printing, that is, you can print reports directly from any page, no need to connect to PC, click the "Print" from your Ultra Scanner and you'll get the report right away.
2.  FCA Auto Auth Support:
No more extra cost to buy the 12+8 adapter!  Since 2023, Autel has released FCA Auto Auth Function for FREE on FCA cars after 2018 (Chrysler Dodge Jeep Fiat) in the US, Canada and Mexico, which covers wider vehicles and helps technicians win more business.
3.  Support Renault Car Maker Security Gateway pass through
4.  VAG Guided Function:
Autel MaxiSys Ultra provides detailed step-by-step operation guidance to simplify all the complicated functions implement.  It is compatible with VW, with Audi, with Seat, with Skoda cars.
5.  Compatible with Autel MV108 Camera and BT506 Battery Tester
6.  Supprt D-PUD / RP1210 / DoIP / CAN FD Protocol


13

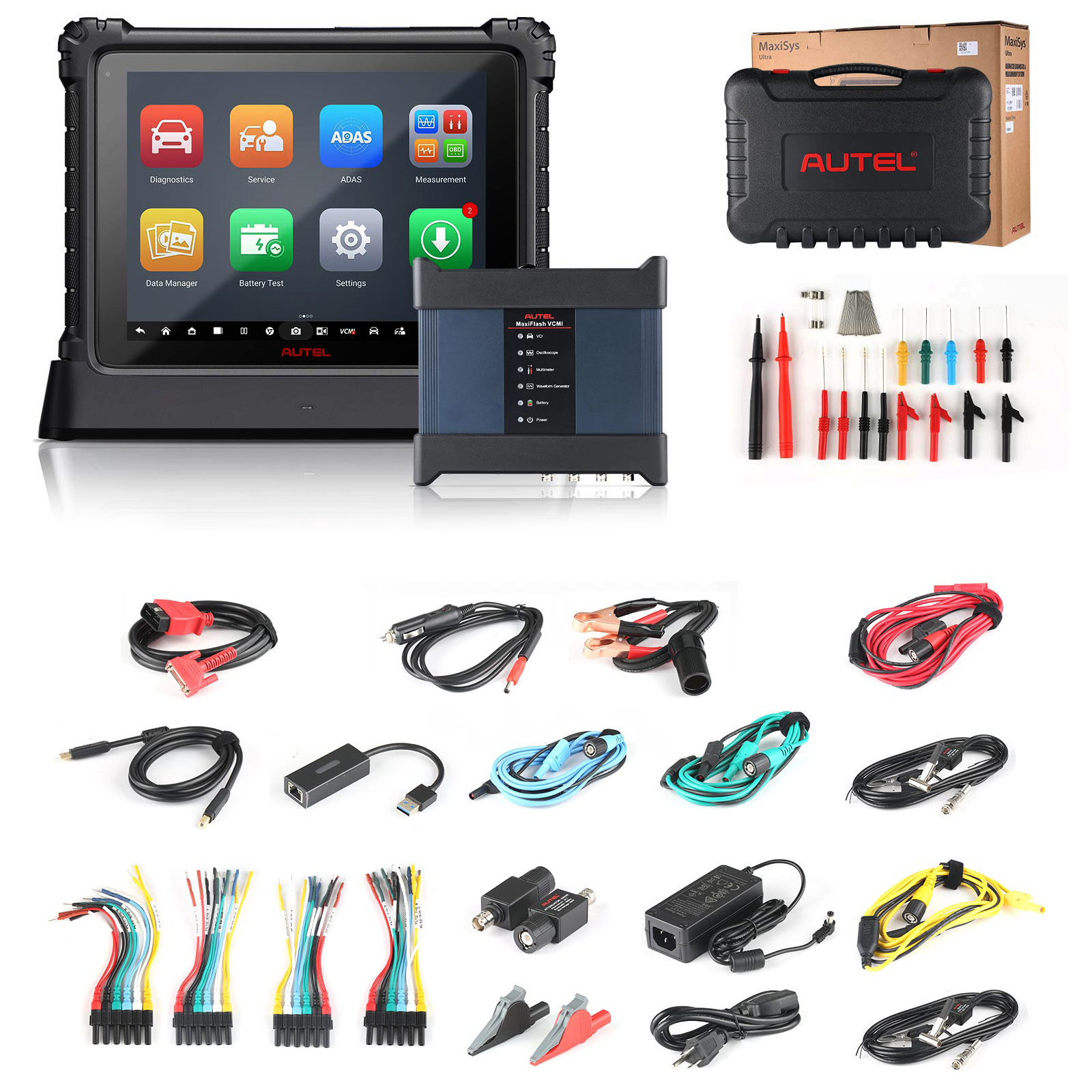

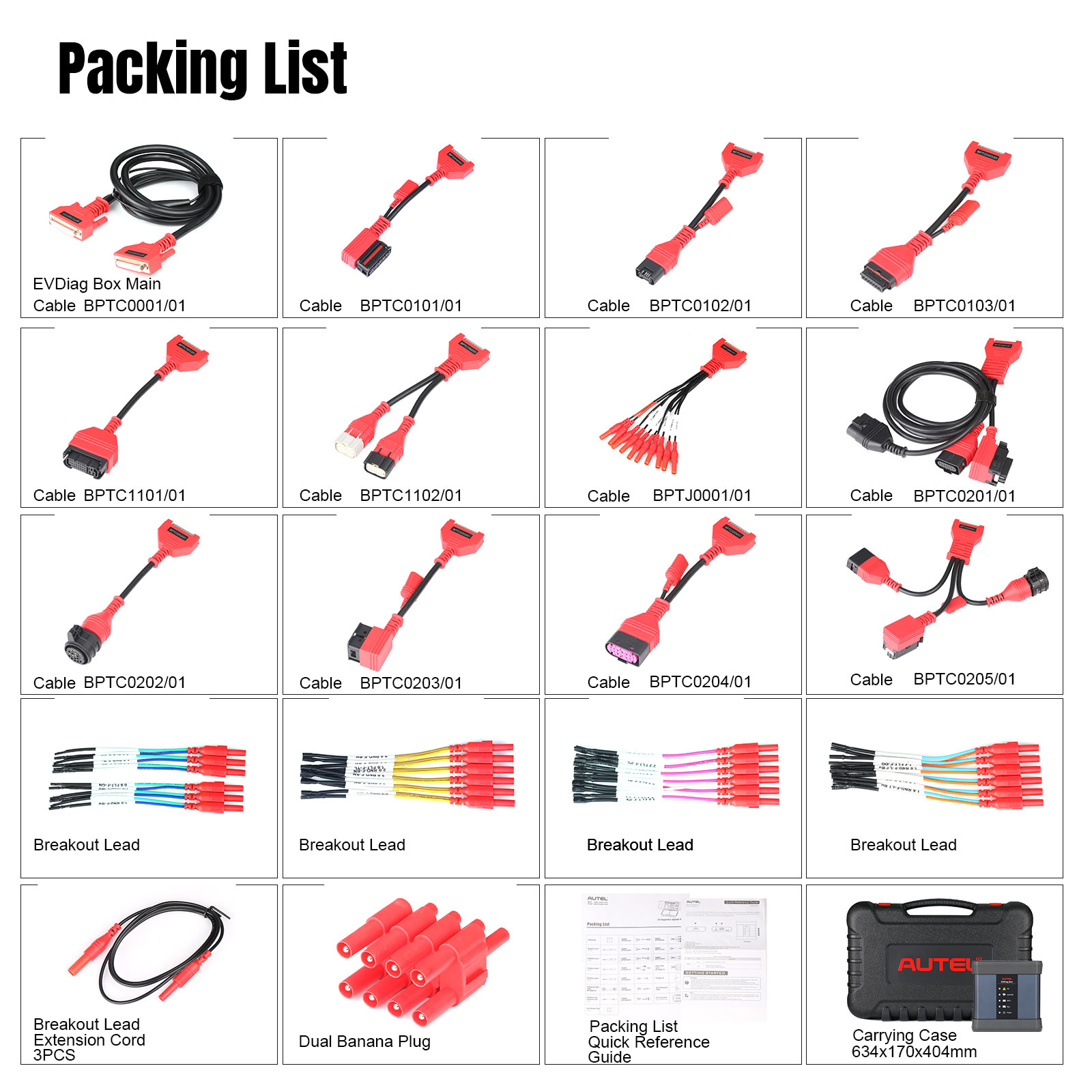

Packing List:
- Main Unit
- MaxiFlash VCMI
- EV Diag Box
- Main Cable V2.0
- USB 2.0 Cable V2
- AC/CD Adapter (12V)
- Cigarette Lighter
- Light Fuse 6x30mm 2 PCS
- Clipper Cable
- Docking Station
- Breakout Lead 1
- Breakout Lead 2
- Breakout Lead 3
- Breakout Lead 4
- Multimeter Test Lead 2PCS
- Secondary lgnition Pickup
- Attenuator 20:1
- Breakout Lead 4x6 PCS
- Multimeter Probe 1x2 PCS
- Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
- Back-pinning Probe Screw 2PCS
- BPTC0001-01
- Back-pinning Probe Replacement Needle 20PCS
- Small Crocodile Clip 2x2 PCS
- Large Dolphin Clip 1x2 PCS
- Quick Reference Guide
- Packing List
- Soft Cloth
- Tool Box 177x102.5x23.5mm
- Carrying Case 687x170x470mm
- BPTC0001-01 (4PCS)
- BPTC0101-01
- BPTC0102-01
- BPTC0103-01
- BPTC0201-01
- BPTC0202-01
- BPTC0203-01
- BPTC0204-01
- BPTC0105-01
- BPTC1101-01
- BPTC1102-01
- BPTJ0001-01
- Dual Banana Plug
