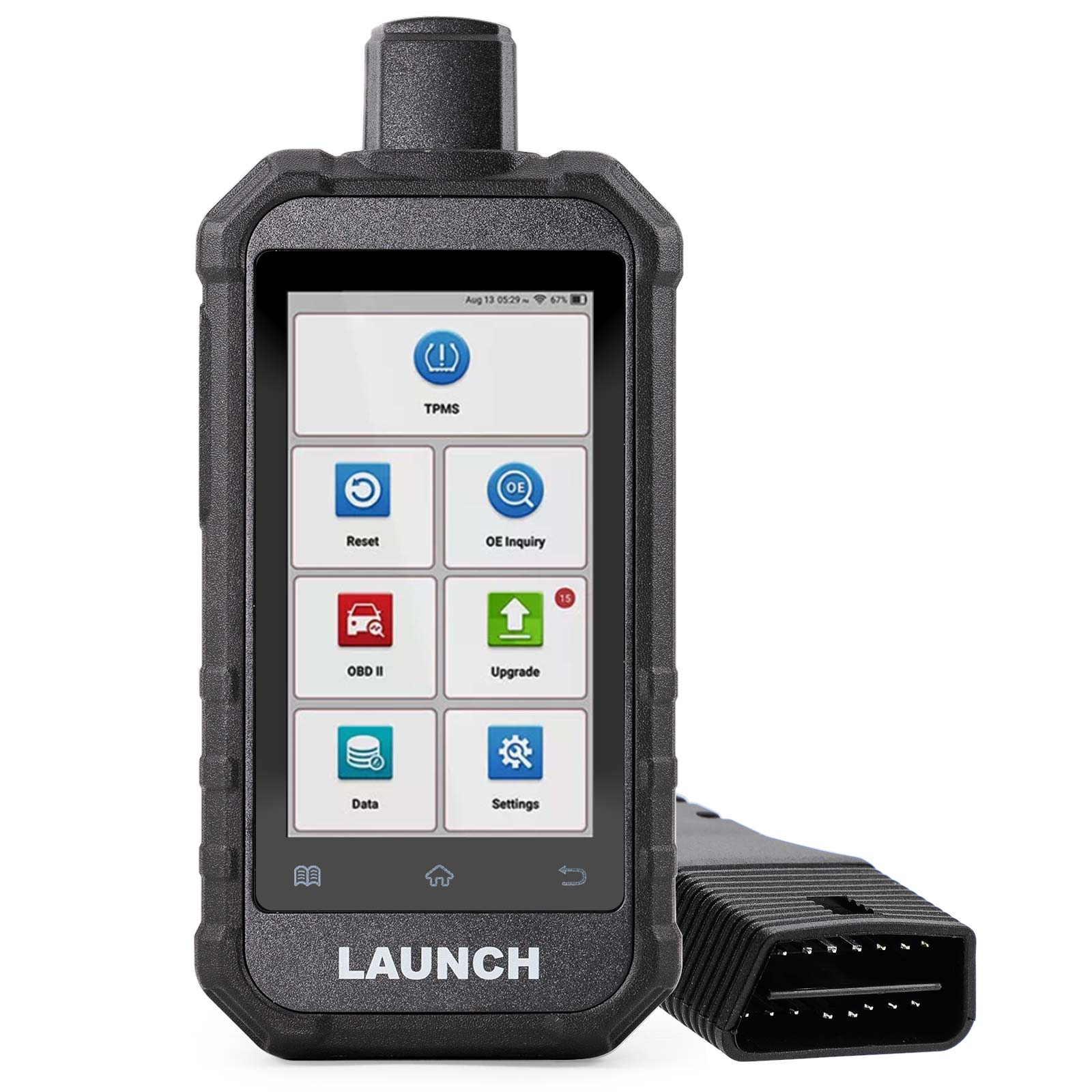

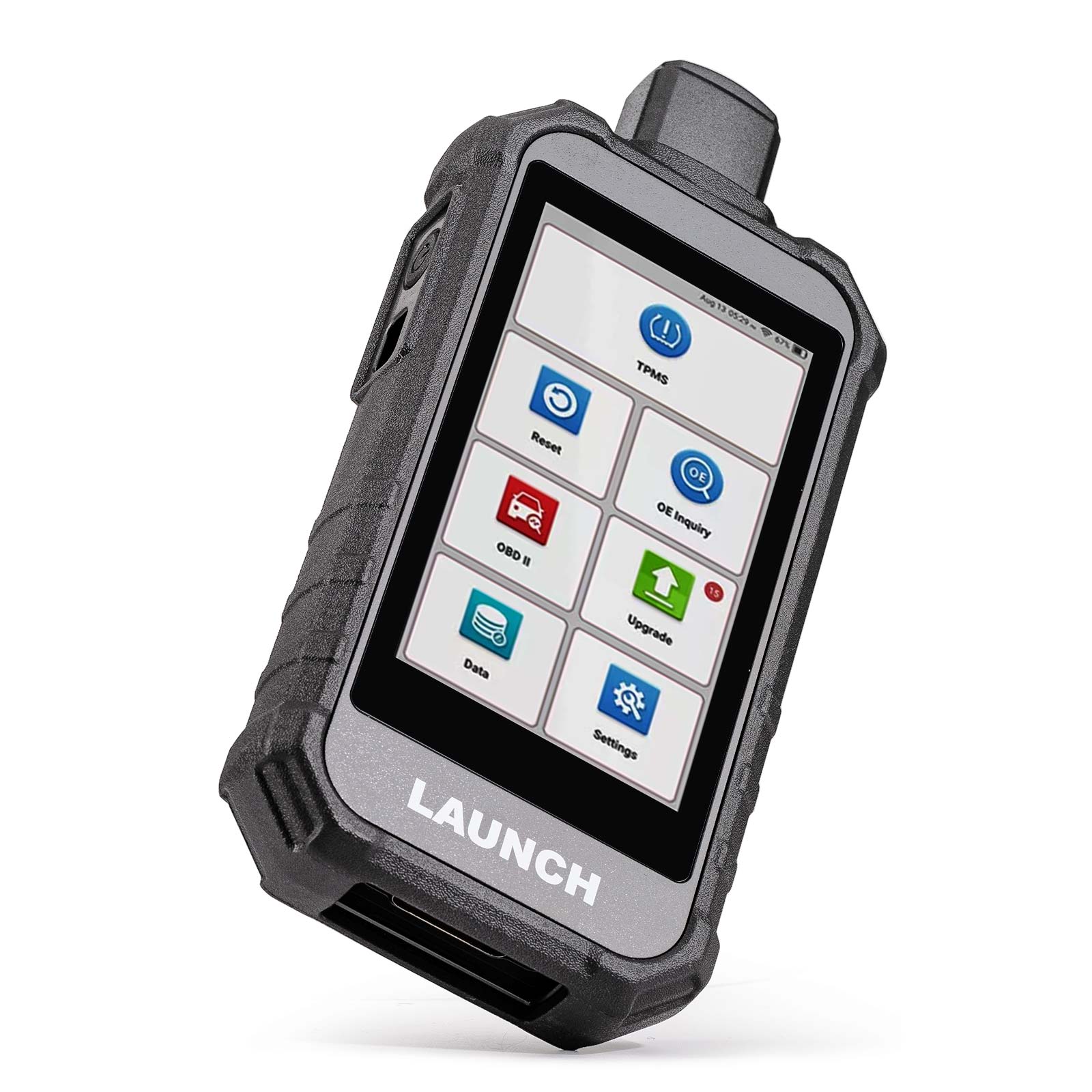

Launch Creader TPMS 5011 V2 TPMS Relearn Tool Activate 315/433MHZ Tire Pressure Sensors

Creader TPMS 5011 V2 is an intelligent tire pressure system detection terminal based on Android operating system, suitable for tire pressure systems of multiple models of vehicles.It has the functions of TPMS sensor activation, reading, diagnosis, learning and programming.Moreover, it can connect to Wi-Fi for one-click upgrade.

This device is for professional technicians or maintenance personnel.Its application scenarios are mainly various types of automobile repair companies and 4S stores.It also has 12 special functions: ABS exhaust, battery matching, brake pad replacement, DPF regeneration, throttle learning, IMMO matching, injector coding, maintenance light reset, steering angle learning, seat calibration, sunroof initialization, door and window calibration.

Launch TPMS 5011 V2 Features:
1.Tire pressure matching learning can be performed through the OBD interface, ECU ID can be read, and the tire pressure system can be diagnosed, including code reading, code clearing, etc.
2.Sensor ID values can be read/copied/written.
3.Sensor data can be written through programming, and unlimited repeated programming is supported.
4.Real-time tire pressure data can be read through activation, including sensor ID, tire pressure, temperature, battery status, etc.
5.WIFI one-click upgrade, no need to use a computer to plug and unplug the memory card to upgrade, easy to upgrade.
6.All 315/433MHZ and 2.4Ghz tire pressure sensors can be activated (the activation function of Tesla Bluetooth sensors will be added soon!)
7.OE number query, you can query the model menu according to the sensor part number, and the model menu positioning is more accurate.
8.Support the generation and sharing of diagnostic reports, which is conducive to historical diagnostic queries and after-sales maintenance.
9.Support data feedback, which is conducive to development and timely optimization, and fixed-point push version, helping customers solve vehicle problems in a timely manner.
10.Unit and ID options are directly presented in the vehicle function interface, making settings easier.
11.Supported 11 languages: German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic
12.Supports expansion of tire tread meter, diagnostic feedback, tire pressure maintenance information learning, screenshots and sharing in LAUNCH Academy to meet users' more comprehensive needs.



Launch TPMS 5011 V2 Functions:
1. 3-in-1 TPMS Service Tool: LAUNCH X431 Creader TPMS 5011 V2 scan tool offer faster and smarter TPMS repairs for mechanics or DIYERs. TPMS 5011 V2 TPMS can perform 1. TPMS diagnostic and comprehensive TPMS health check, turn off TPMS MILs, read sensor ID by OBD, sensor activation, reading, learning and programming. TPMS 5011 V2 supports both full OBDII/EOBD functions and 12 reset functions. Let you know the state of the tyres, do-it-yourself to get auto TPMS sensors analyzed and replaced, and can always adjust the tyres to the best condition for driving.

2. Activate 99% 315/433MHz Sensors: LAUNCH Creader TPMS 5011 V2 can easily activate most of the known OEM 315/433MHz TPMS sensors. The main application scenarios of TPMS 5011 V2 are tire pressure sensor replacement, tire replacement, car assembly and detection of whether the sensor is normal. Whether you are an automotive DIY enthusiast or mechanic, you can easily activate any brand of sensor with this TPMS reset tool.

3. Unlimited Repeat Programming: LAUNCH Creader TPMS 5011 V2 supports simple and fast automatic creation, manual creation, OBD copy ID, active copy ID and creation of multiple sensors (up to 8), program sensor data to LAUNCH LTR-03 sensor and replace the battery life is low or does not work properly Sensor. Note: This feature is only available for LAUNCH LTR-03 sensor and other unencrypted sensors.

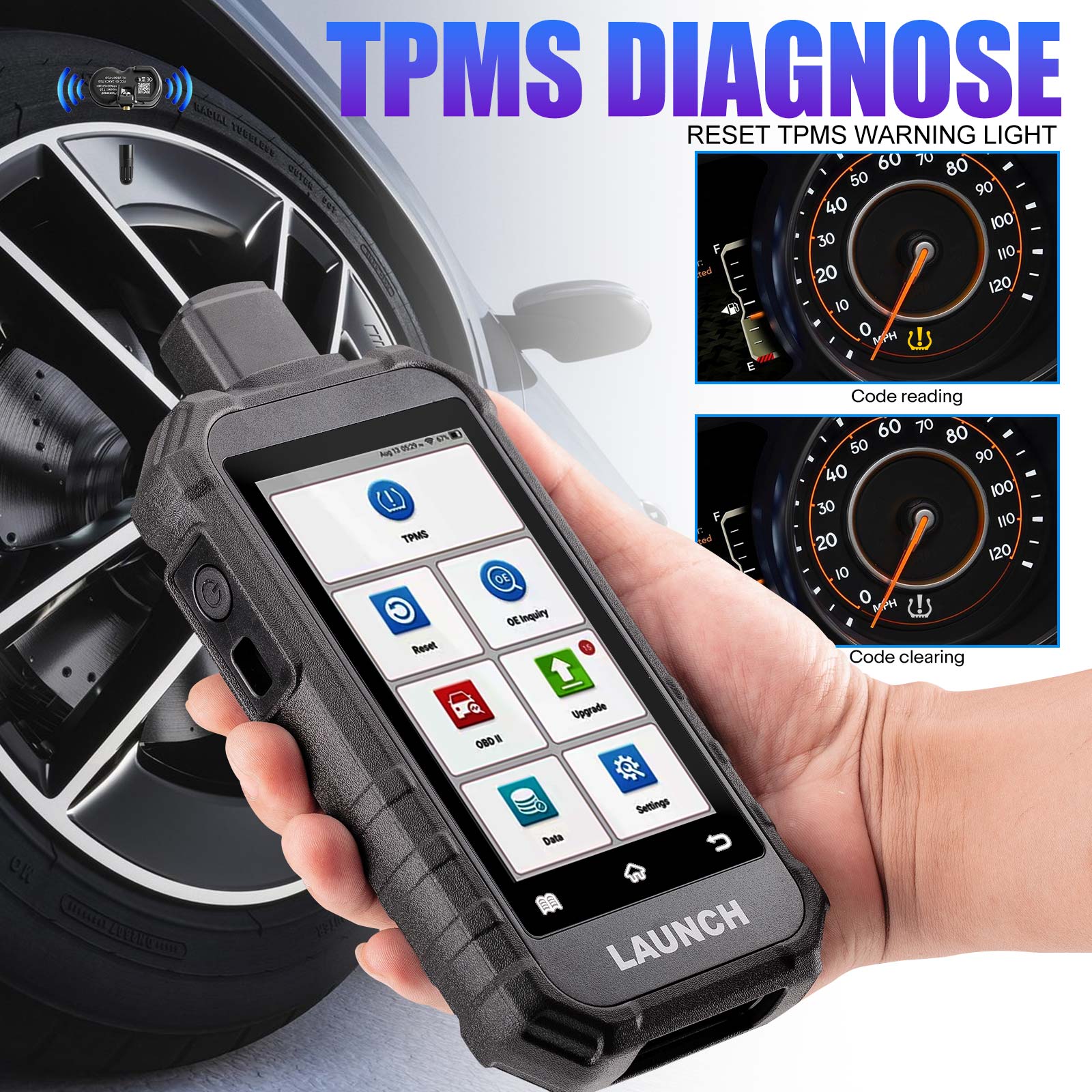

4. TPMS Relearn & Read TPMS ECU ID: LAUNCH Creader TPMS 5011 V2 is a tire pressure monitoring system relearn tool, which supports 3 relearn ways: OBD relearn, automatic relearn and stationary relearn. After sensor resetting is completed, the relearn function needs to be executed to register the sensor ID in the ECU. Besides writing the sensor ID into ECU, it can read sensor ECU ID from TPMS. It is worth mentioning that TPMS 5011 V2 also supports the diagnosis of 99% of the models on the market.

5. Full OBD Functions & 12 Resets: LAUNCH Creader TPMS 5011 V2 offers full OBD diagnostic functions and 12 daily reset functions, OBD function include read and clear codes, I/M readiness, data stream, view freeze frame, O2 sensor test, on-board monitor test, EVAP system test, vehicle info, etc. Reset functions include brake reset, oil reset, battery reset, SAS reset, ABS bleeding, throttle reset, D-P-F rengeneration, injector coding, seats calibration, sunroof reset, windows calibration, etc.

6. Powerful Function: LAUNCH X431 Creader TPMS 5011 V2 is based on the Android 8.1 operating system and uses more intelligent features. Compared with other devices, the built-in exclusive OE inquiry, diagnostic report, diagnostic repeat, data feedback, maintenance database and other functions can give you a work efficiency prompt of about 70%. In addition, TPMS 5011 V2 can be upgraded for free via WiFi, and you only need to connect to the network.

Creader TPMS 5011 V2 vs CRT5011E/CRT5011X

Model	Creader TPMS 5011 V2	CRT5011E/CRT5011X
Screen	5-inch	3.5-inch
Resolution	720*1280	320*480
Battery	6000mAh	3100mAh
Storage	2+32GB	-
WIFI+Bluetooth	2.4G	-
OBDII interface Input voltage	9~18V	9~18V
Operating temperature	0℃~45℃	0℃~45℃
Storage temperature	-20℃~+70℃	-20℃~+70℃
Size	211.5*99*34.5mm	112.5*198*35mm
Input voltage	9~18VDC input via vehicle diagnostic socket/5V via USB cable	9~18VDC input via vehicle diagnostic socket/5V via USB cable
Languages	German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic	German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Polish
Certification Type	CE/FCC/ROHS/IC	CE/FCC/ROHS

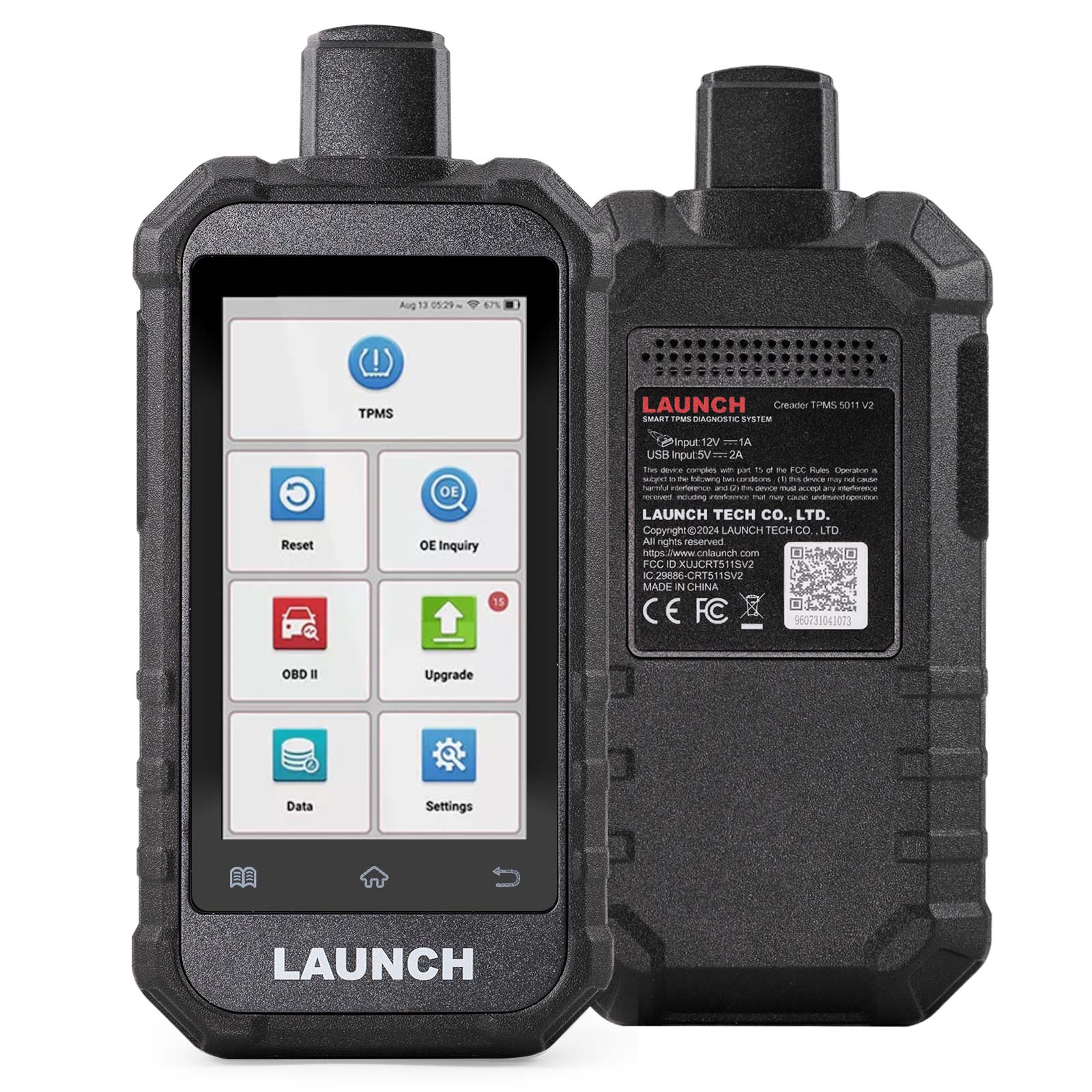

Creader TPMS 5011 V2 Specifications:

screen	5-inch 720P, touch screen
interface	1. Standard OBDII interface 2. TYPE-C interface
Android version	Android 8.1
storage	2+32GB
battery	6000mAh
CPU	1.3G
communications/upgrades	WIFI 2.4Ghz （b/g/n）
weight	<880g
Storage temperature	-20~70 ℃
Operating temperature	-10~50 ℃

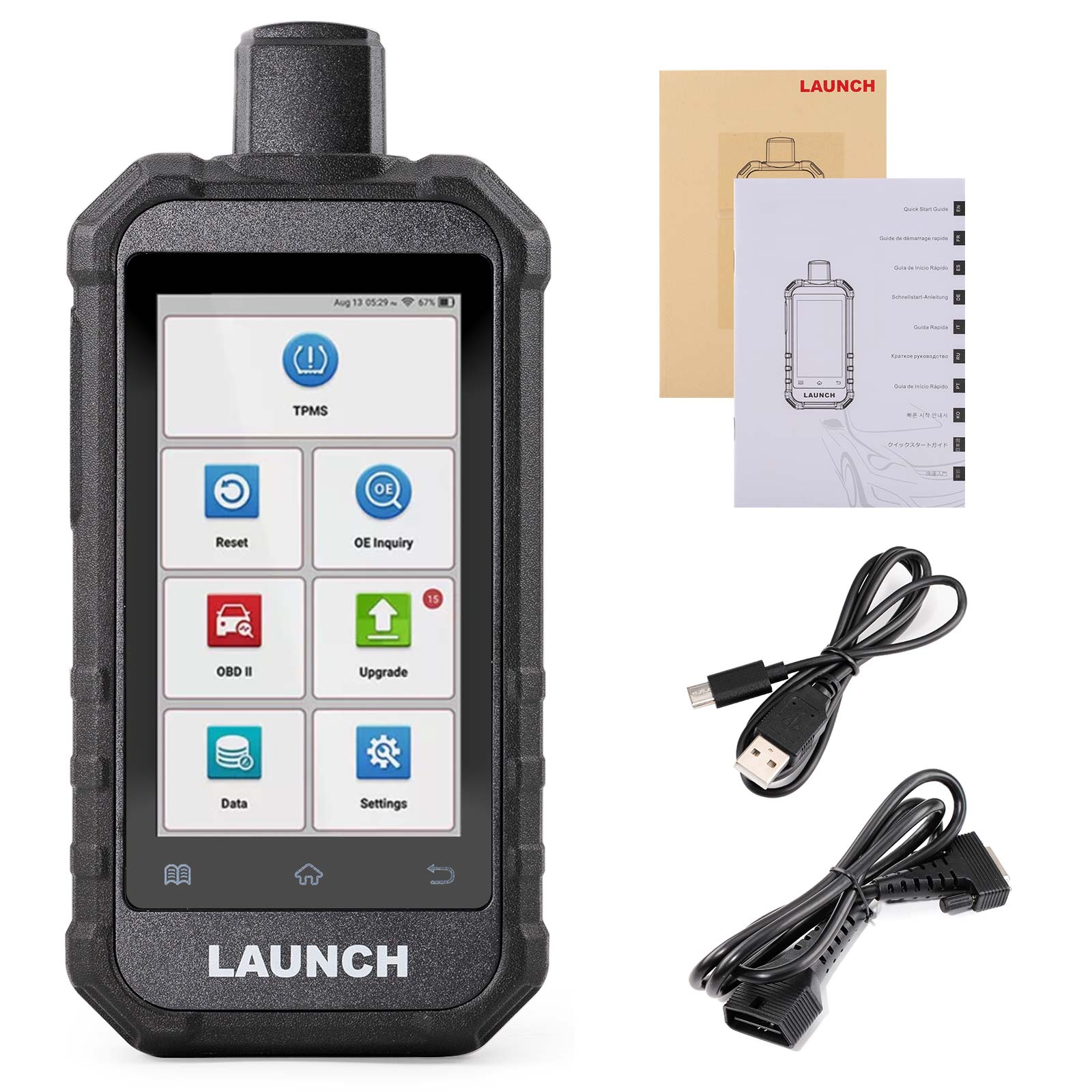

Package includes:
1pc x main unit
1pc x main cable
1pc x charging cable
1pc x quick start
