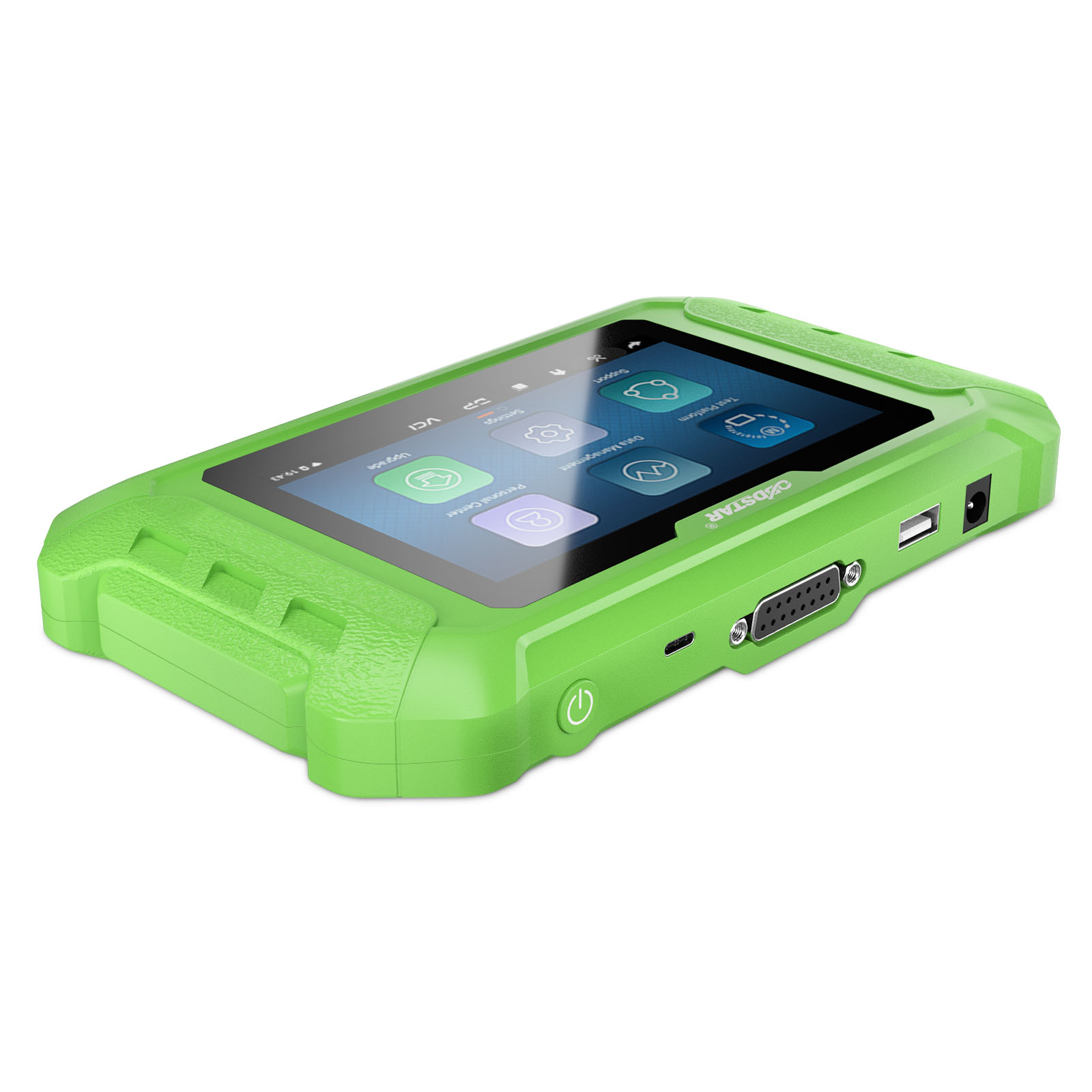

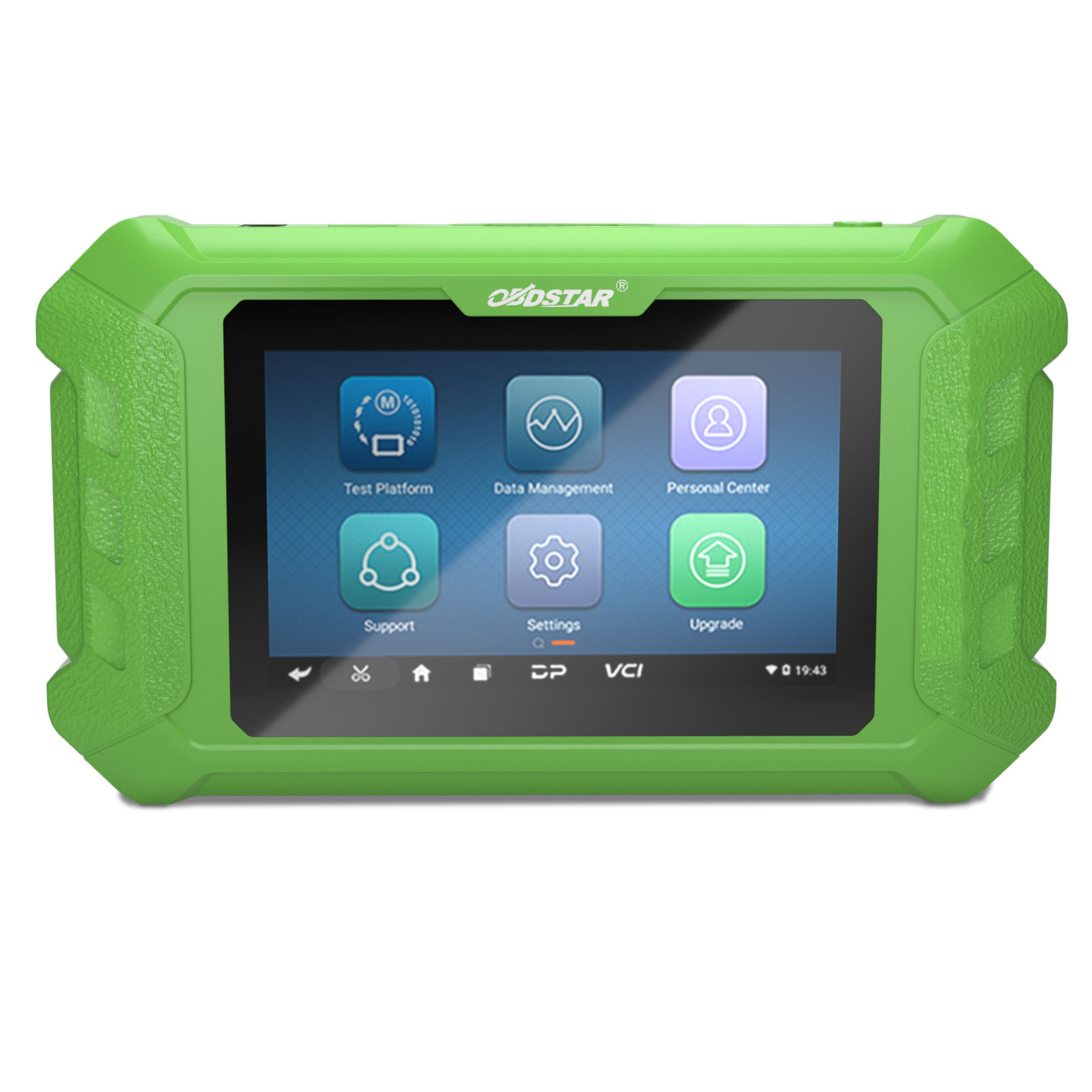

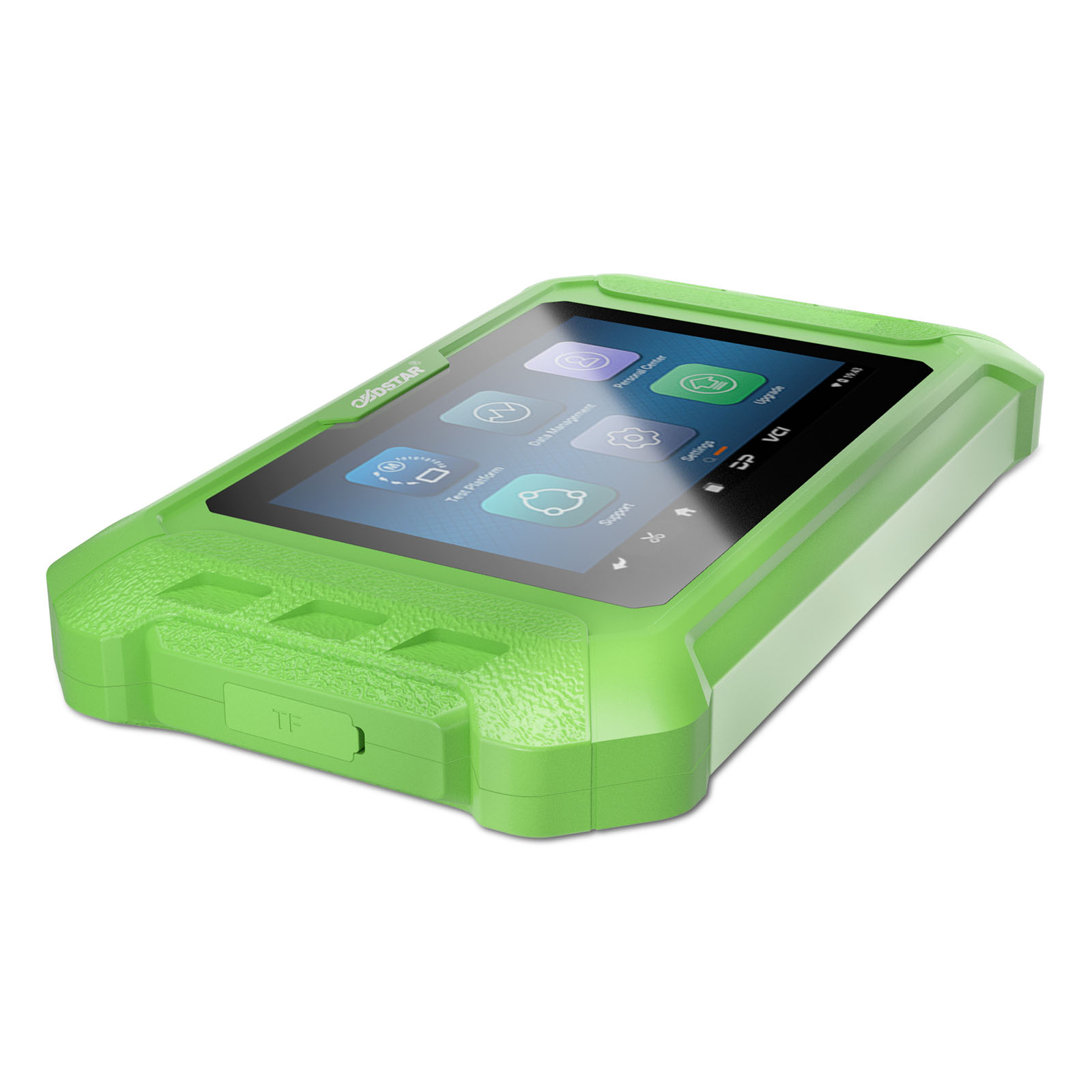

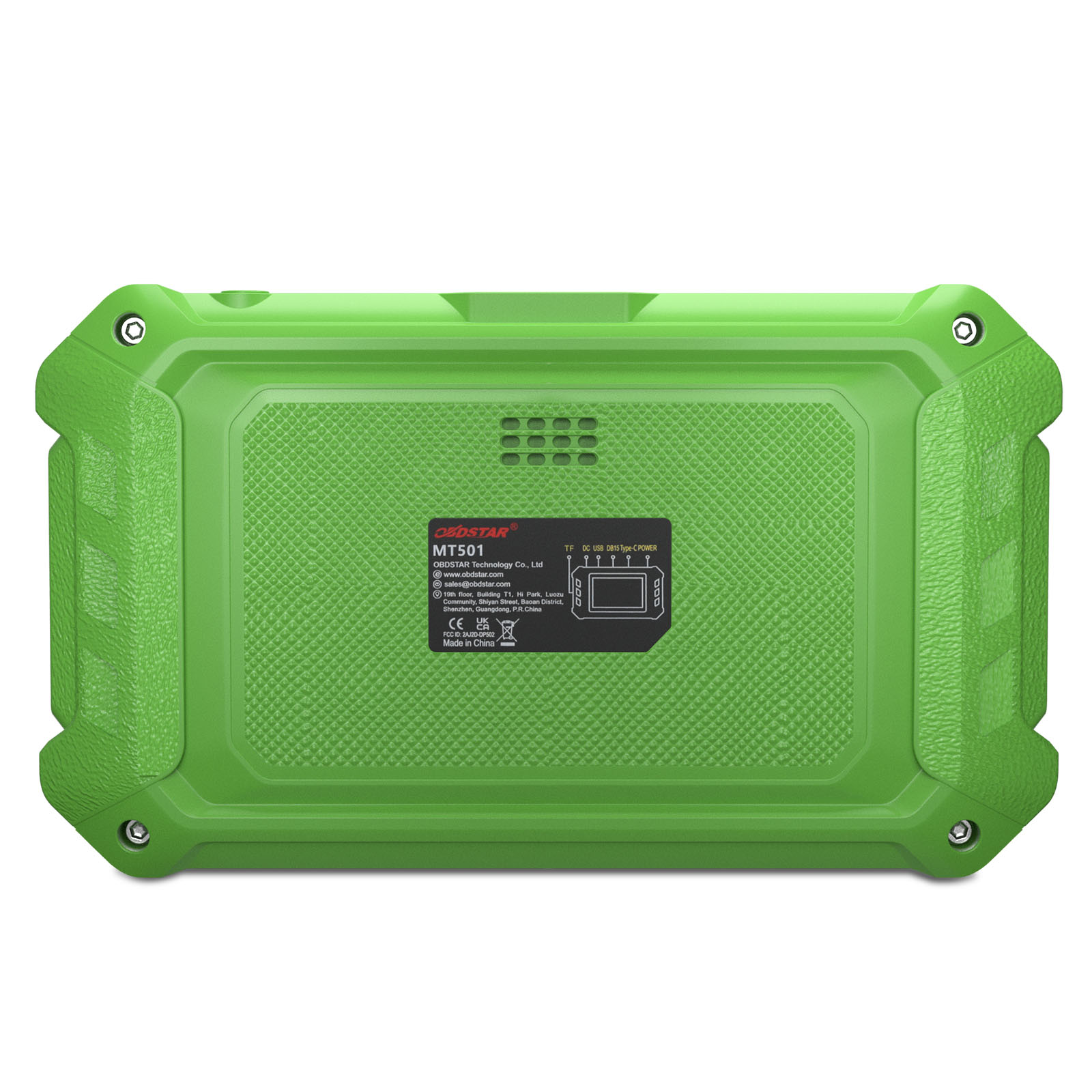

    OBDSTAR MT501 Dashboard, Airbag, Gear Lever Bench Test Platfor

    MT501 is an automotive test platform by BENCH newly developed by OBDSTAR, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more.

    It adopts latest 3.0 APK operating platform, is a good helper for automotive maintenance technicians.



    Development Background
    Nowadays, many dashboards, audio, gear levers on cars are powered on through CAN BUS communication to make their hosts working. So their hosts fail to be powered on when technicians repair or detect them on the platform due to without CANBUS communication.

    Therefore, OBDSTAR developed MT501 to make them powering on without CANBUS communication on the platform. Meanwhile, it integrated multifunction in one making repairing easier and saving a big cost for technicians.

    Functions
    1.New android 5.1.1 operation system;
    2.Simple and intuitive menu guidance allows you to quickly master the equipment operation;
    3.Wi-Fi connection to the internet, one-click software upgrade;
    4.Intelligent search, with help guide, easy to use.

    Advanced Functions
    1. Support dashboard power on for below brands:
    AUDI
    BMW
    BENZ
    DODGE
    FORD
    JAGUAR
    LAMBORGHINI
    LAND ROVER
    PORSCHE
    ROLLS-ROYCE
    VOLKSWAGEN
    VOLVO
    ...
    2.Support BMW G series A/C panel power on
    3.Support LAND ROVER/JAGUAR gear lever power on
    4.Support BENZ ABS power on
    More power on functions are under development...

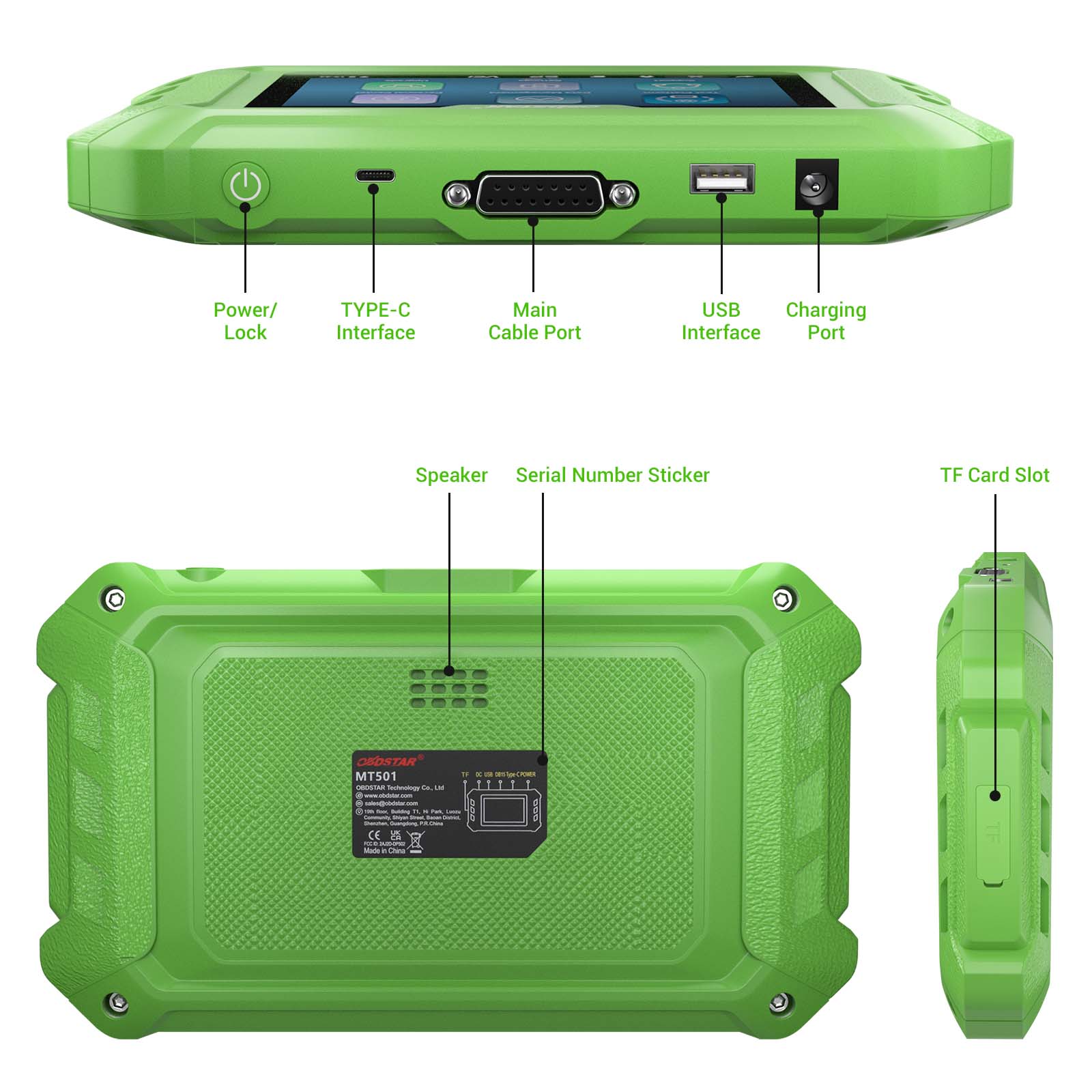

    Specification:

    Operation system

    Android 5.1.1

    CPU

    RK3128 quad-core ARM cortex A7

    Battery

    2600mA, rechargeable polymer lithium battery

    Extension memory card

    32G micro SD (TF) card supported

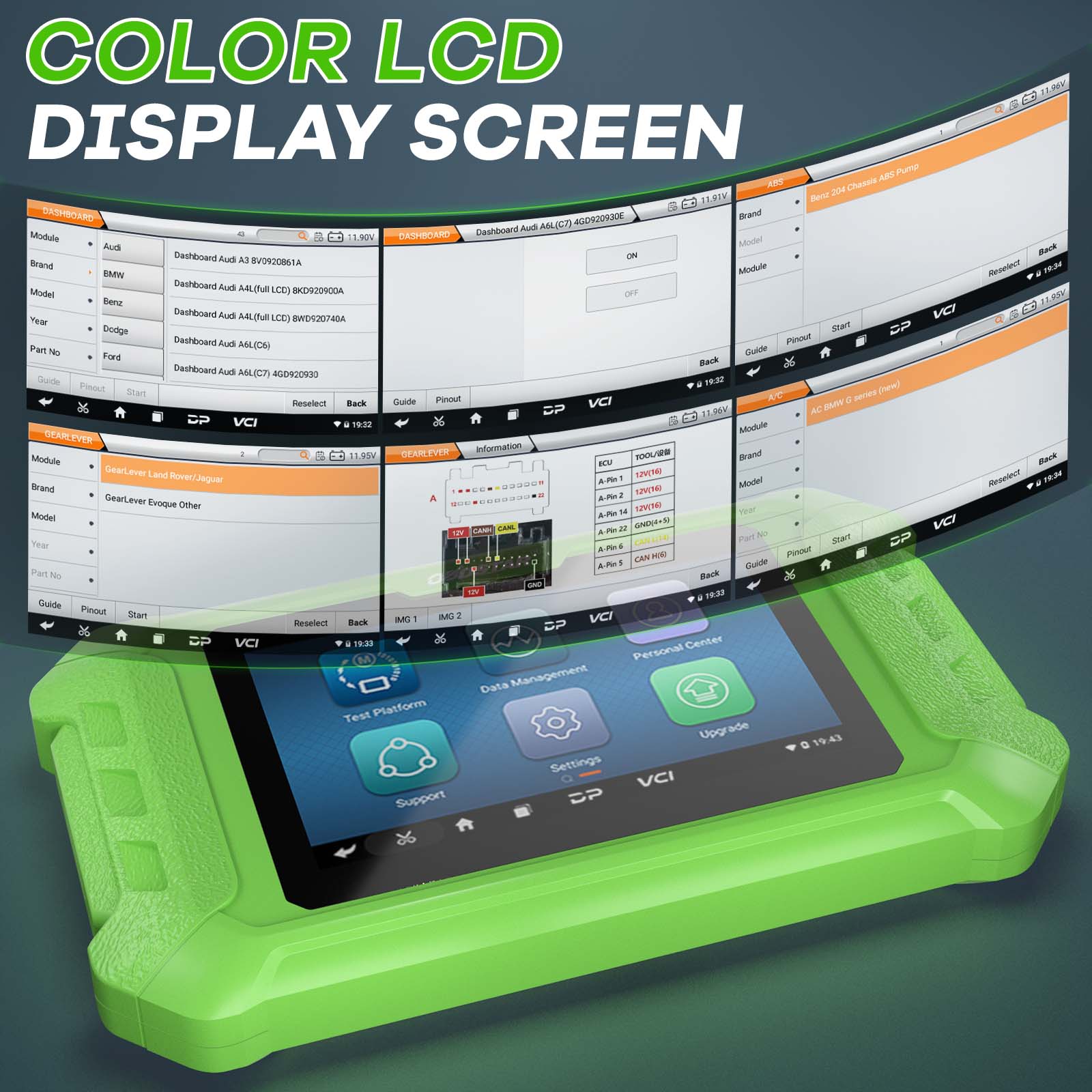

    LCD

    5.0 inch

    LCD resolution

    800*480

    Touch screen

    Capacitive touch screen

    Wifi

    Supported

    Working temperature

    -20℃~55℃ (14℉~131℉)

    Storage temperature

    -20℃~70℃ (-4℉~158℉)

    Weight

    About 700g

    Dimension

    198mm*115mm*31mm

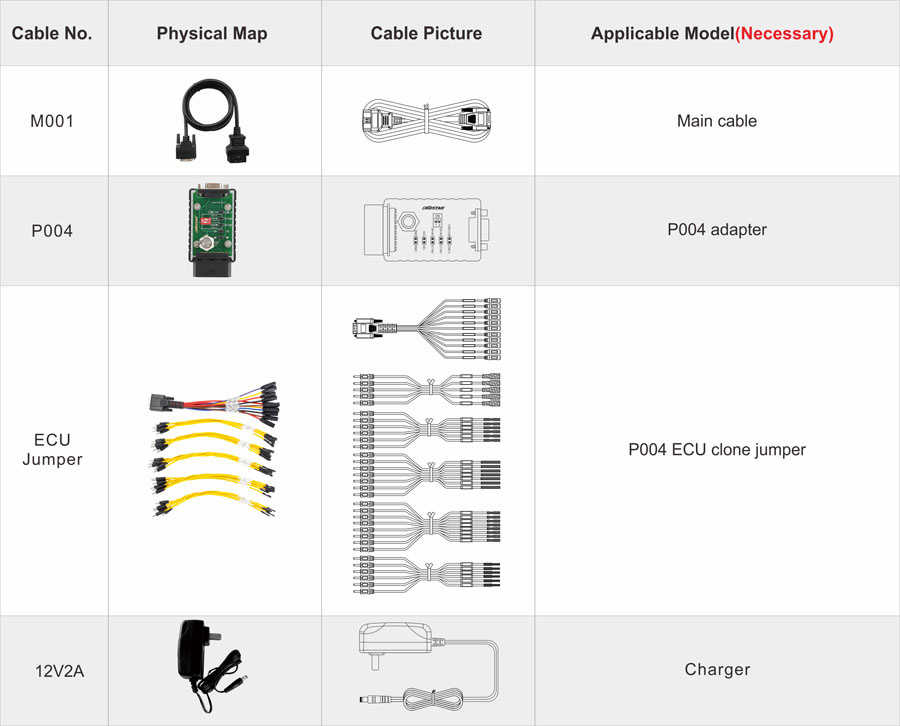

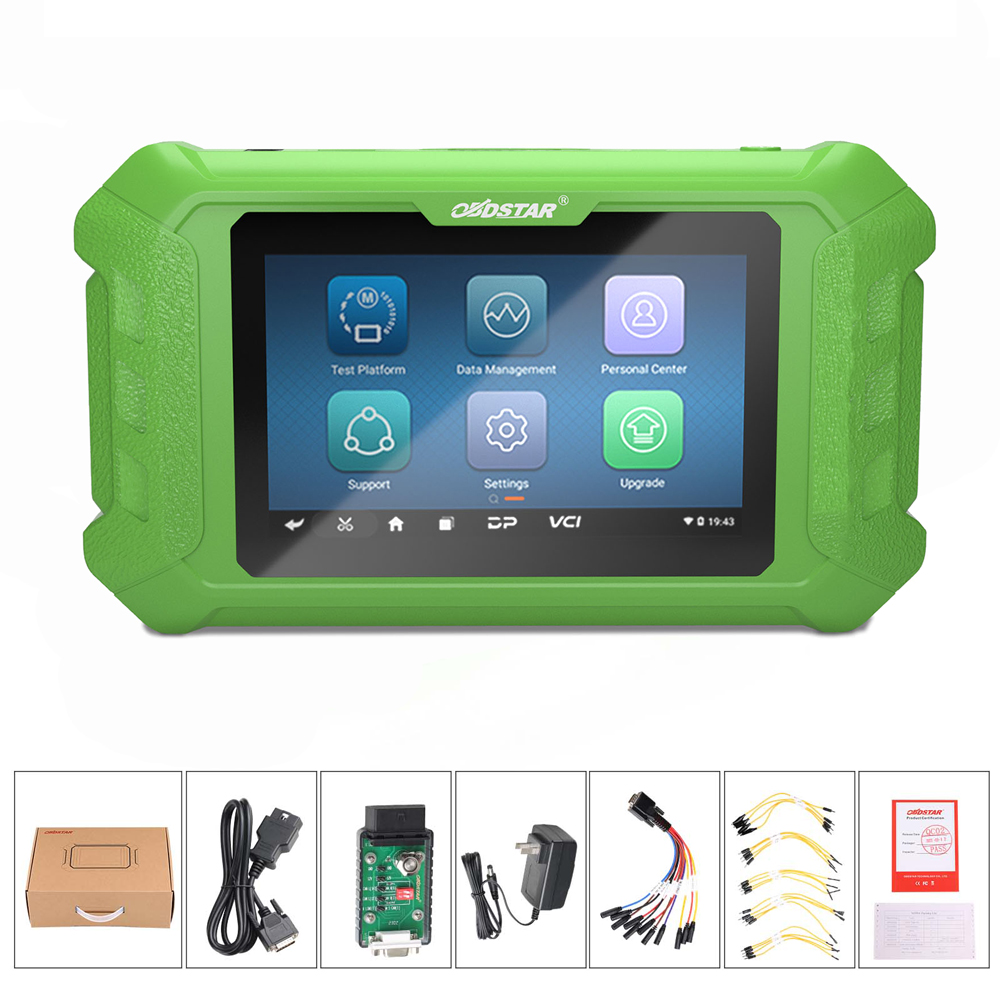

    Package List:
