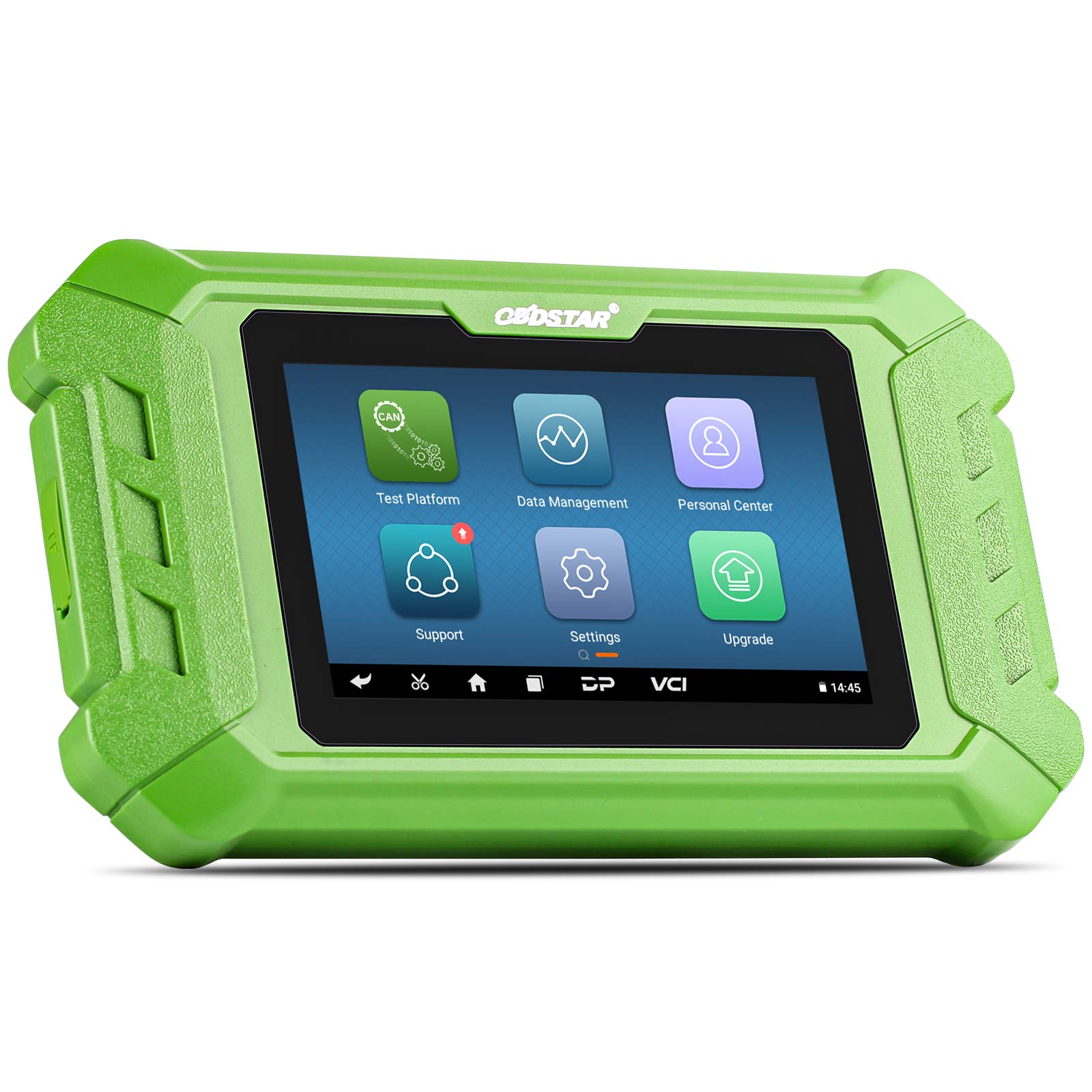

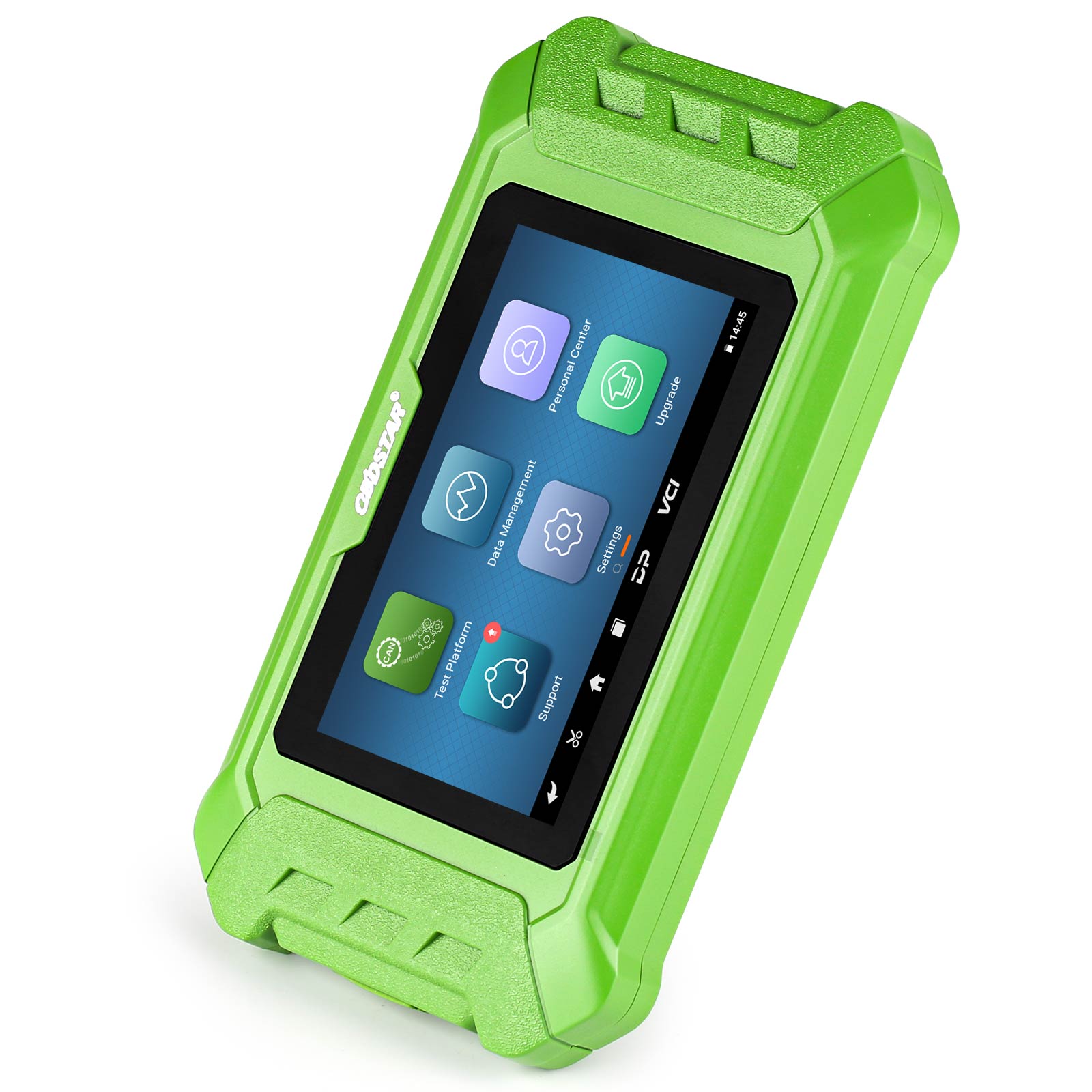

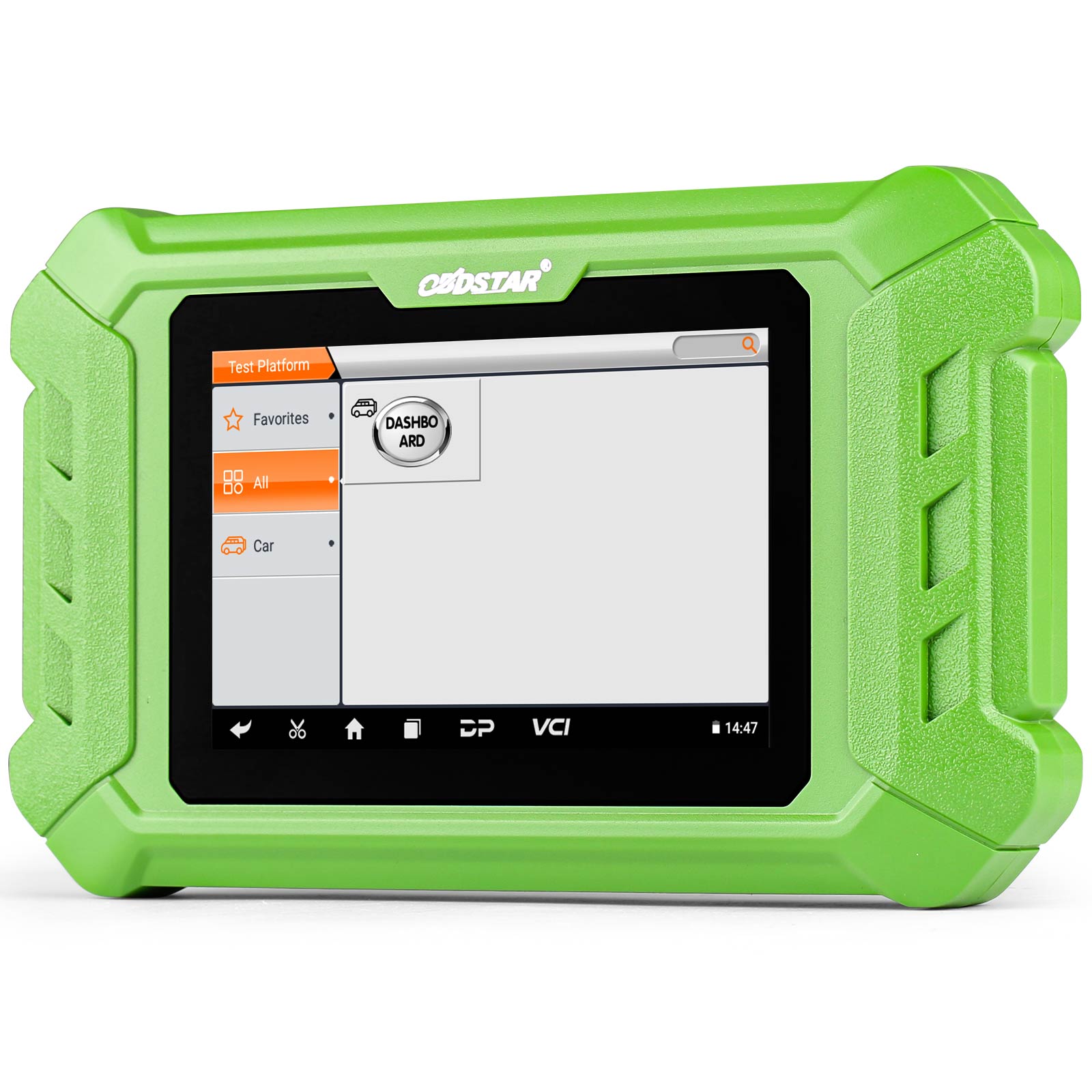

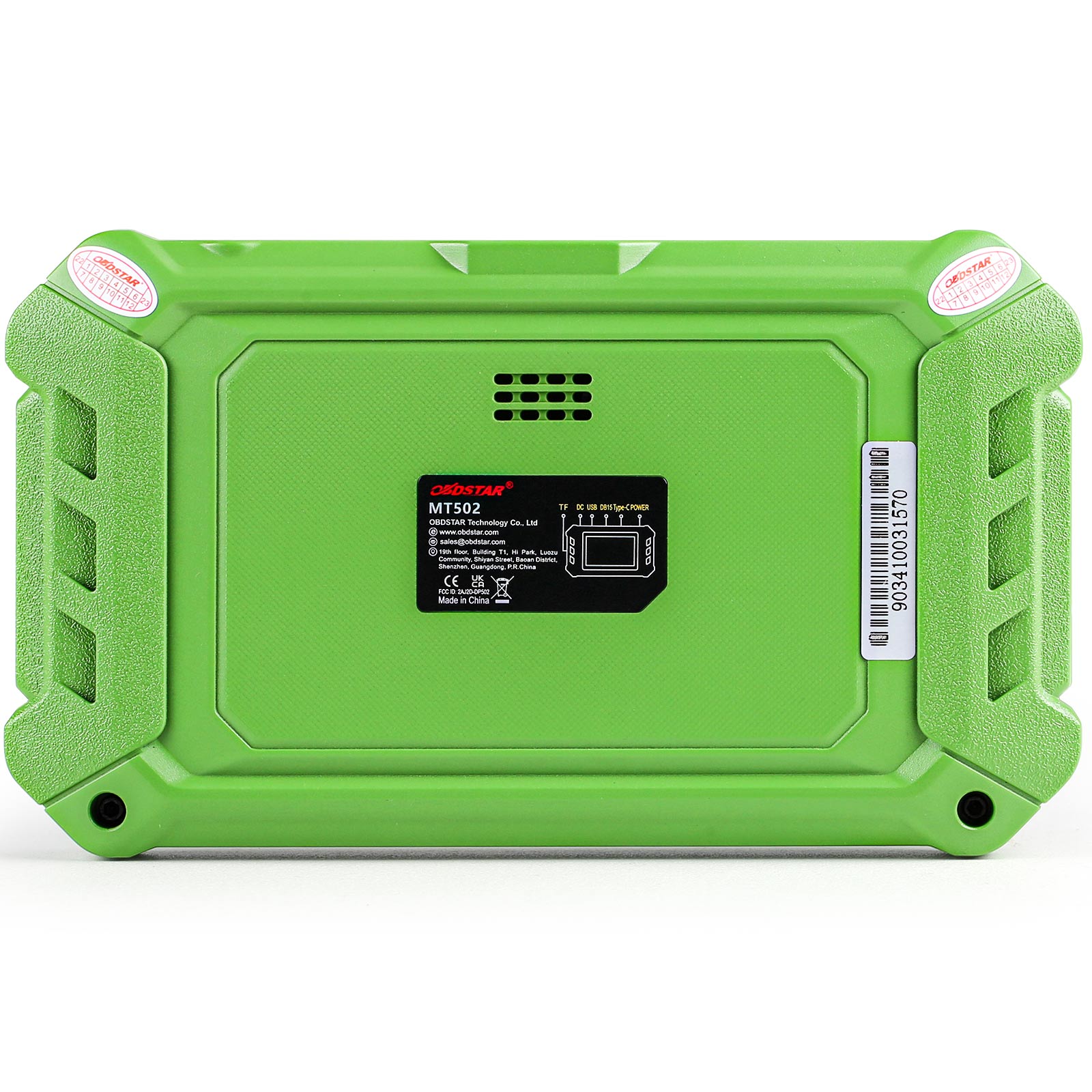

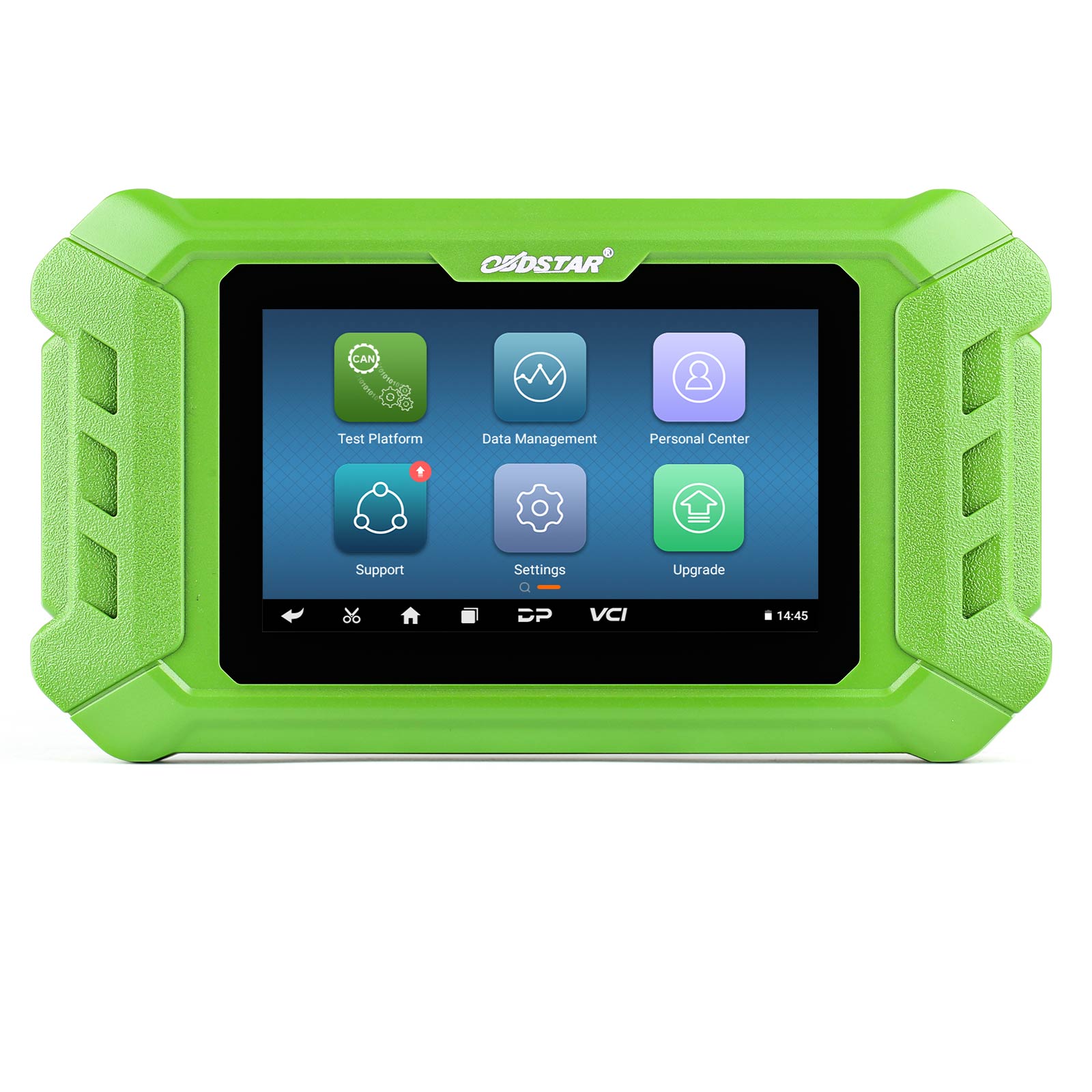

OBDSTAR MT502 Automotive Compressor Test Platform by Bench

MT502 is an automotive compressor test platform by BENCH newly developed by OBDSTAR, which almost can power on air conditioning compressor by sending CAN BUS signal, supporting most brands of electric scroll compressors.

It adopts latest 3.0 APK operating platform, is a good helper for automotive maintenance technicians.

Development Background
Nowadays, electric vehicles are generally equipped with an electric scroll compressor, which almost works by sending CANBUS signals from the air conditioning controller to the compressor to control its rotation.   The MT502 can send a CANBUS signal to the compressor, so that the compressor can be tested and verified.

MT502 Functions
1.New android 5.1.1 operation system;
2.Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3.Wi-Fi connection to the internet, one-click software upgrade;
4.Intelligent search, with help guide, easy to use.

MT502 Advanced Functions
1.Support hundreds of new energy compressor models
2.Intelligent search(by make/ model/ part No.  / ECU manufacturers/ MCU controller types)
3.Exclusive 2 tow 7 low-voltage special connector, make wirings easy
4.Exclusive 1+7 groups of high-voltage special cable, make operations safe

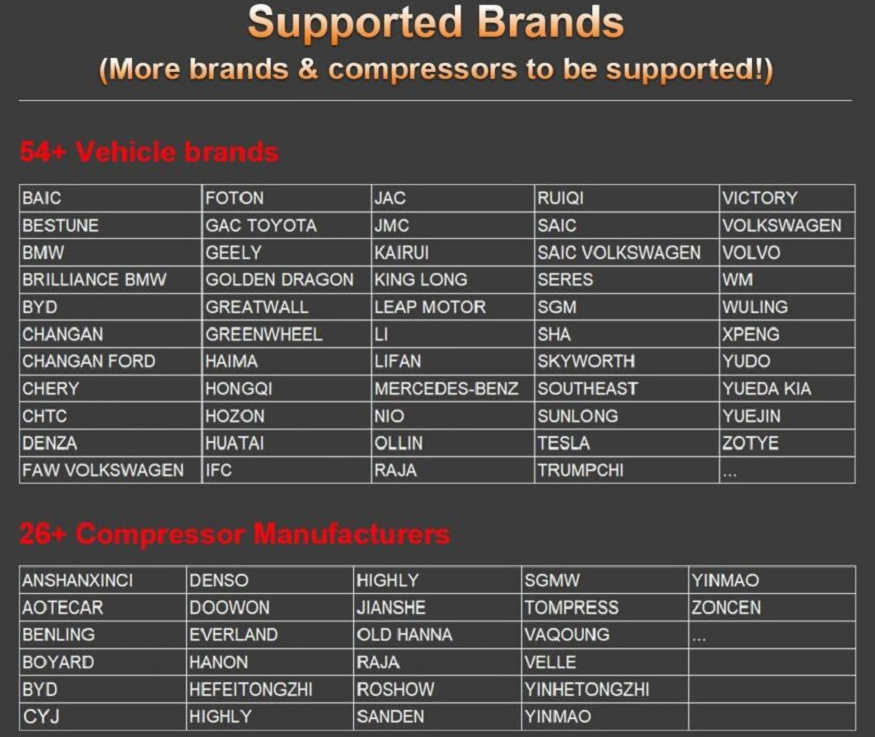

Supports following car brands:
BAIC
BESTUNE
BMW
BRILLIANCE BMW
BYD
CHANGAN
CHANGAN FORD
CHERY
CHTC
DENZA
FAW VOLKSWAGEN
FOTON
GAC TOYOTA
GEELY
GOLDEN DRAGON
GREATWALL
GREENWHEEL
HAIMA
HONGQI
HOZON
HUATAI
IFC
JAC
JMC
KAIRUI
KING LONG
LEAP MOTOR
LI
LIFAN
MERCEDES-BENZ
NIO
OLLIN
RAJA
RUIQI
SAIC
SAIC VOLKSWAGEN
SERES
SGM
SHA
SKYWORTH
SOUTHEAST
SUNLONG
TESLA
TRUMPCHI
VICTORY
VOLKSWAGEN
VOLVO
WM
WULING
XPENG
YUDO
YUEDA KIA
YUEJIN
ZOTYE
...

Supports compressors from following manufacturers:
ANSHANXINCI
AOTECAR
BENLING
BOYARD
BYD
CYJ
DENSO
DOOWON
EVERLAND
HANON
HEFEITONGZHI
HIGHLY
HIGHLY
JIANSHE
OLD HANNA
RAJA
ROSHOW
SANDEN
SGMW
TOMPRESS
VAQOUNG
VELLE
YINHETONGZHI
YINMAO
YINMAO
ZONCEN



OBDSTAR MT502 Specification:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 700g
Dimension	198mm*115mm*31mm

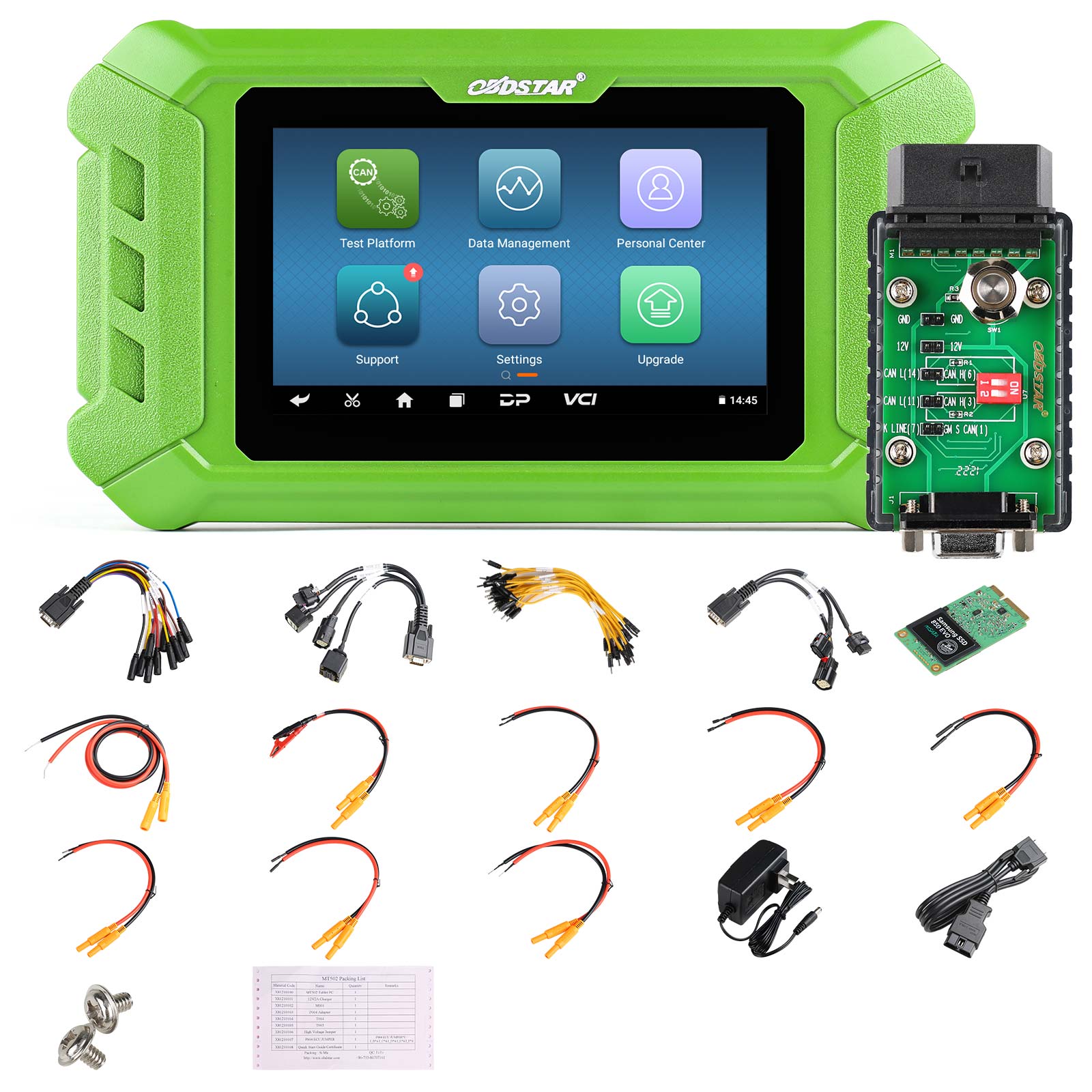

Package Includes:
1pc x Tablet
1pc x M001 main cable
1pc x T004 compressor test harness 1
1pc x T005 compressor test harness 2
1pc x High Voltage Jumper
1pc x P004 adapter
1pc x P004 ECU clone jumper
1pc x 12V2A charger
