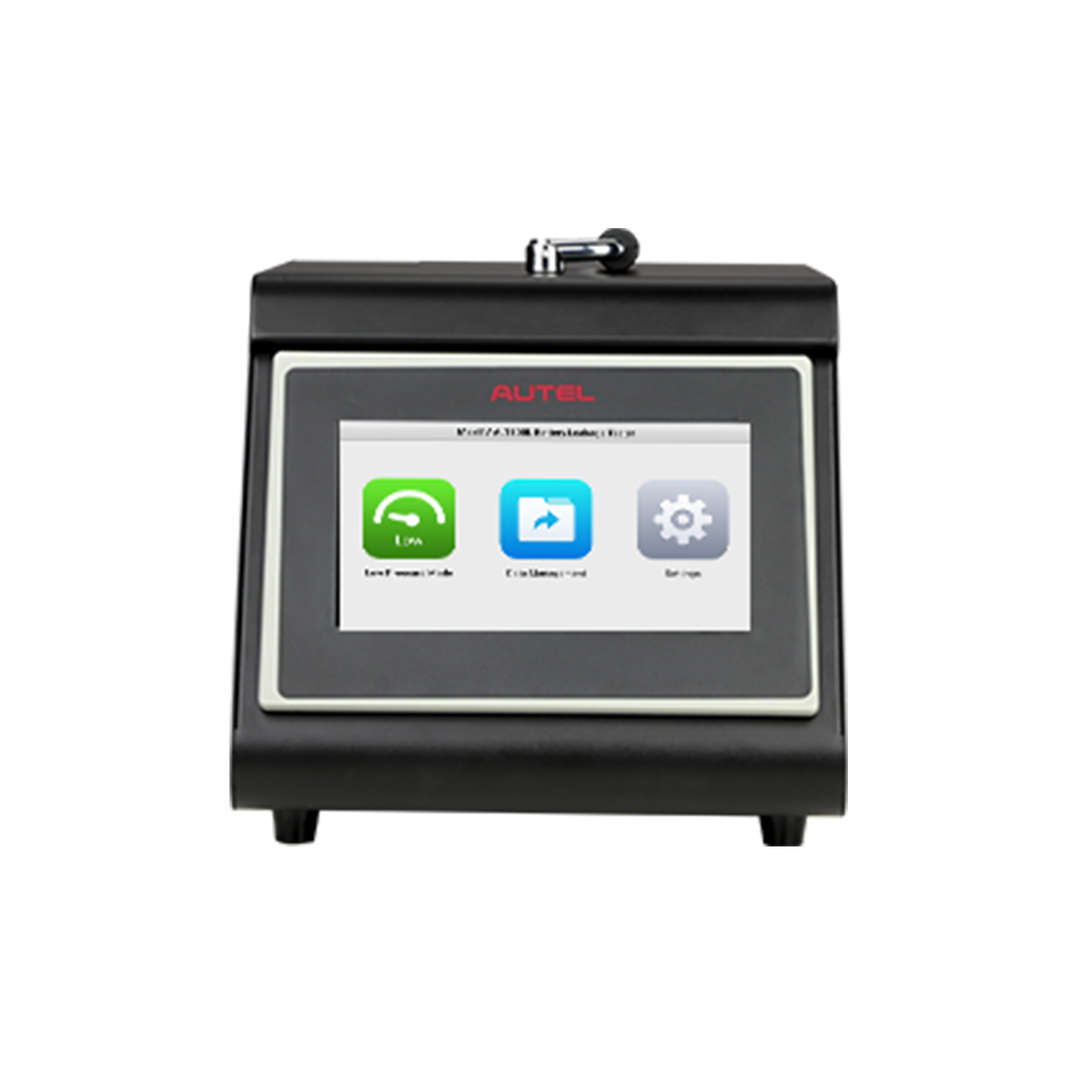

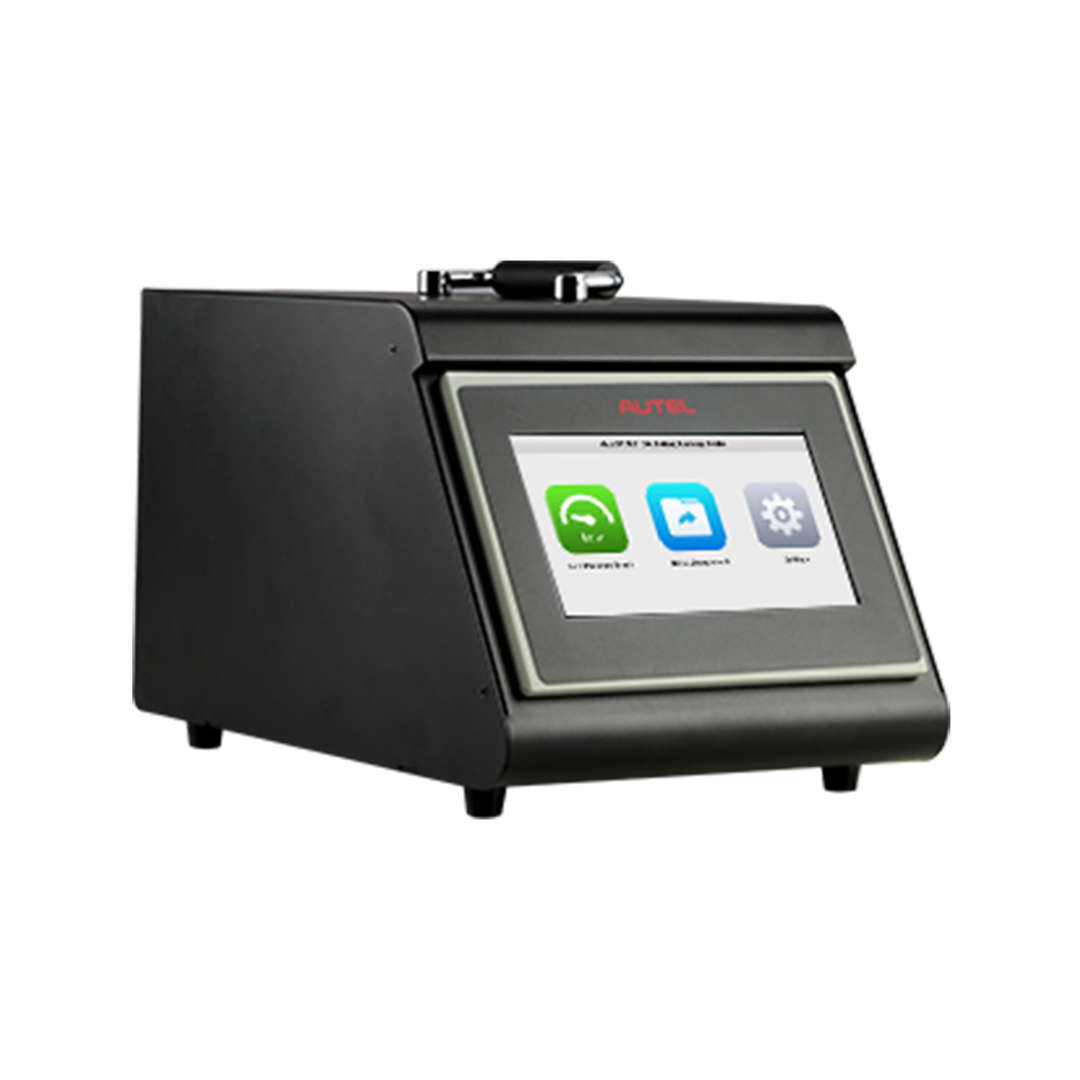

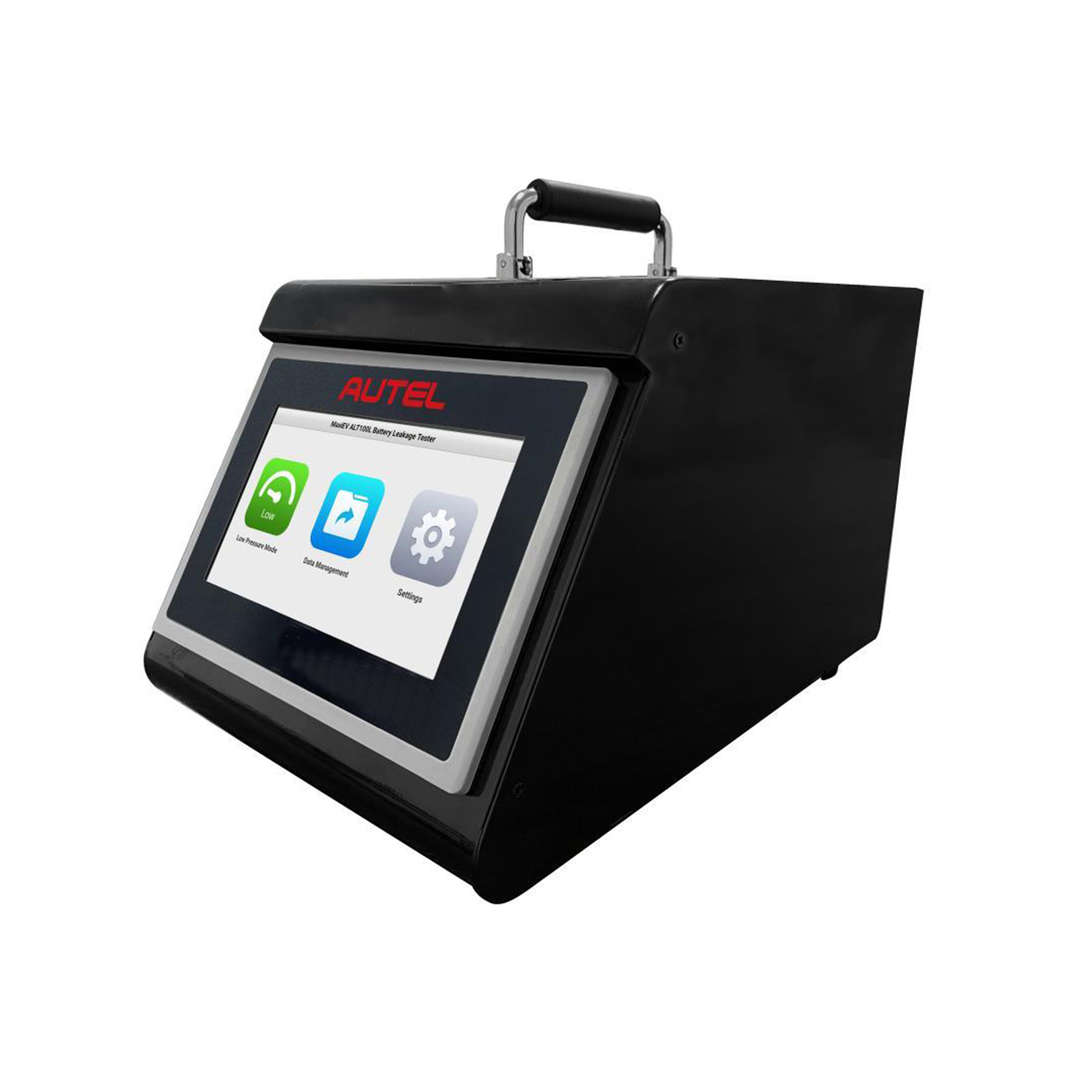

AUTEL MaxiEV ALT100L EV Battery Enclosure Integrity Tester Battery Leakage & Airtightness Testing

Autel MaxiEV ALT100L User Manual

The MaxiEV ALT100L is an EV battery leakage and airtightness tester. The unit tests high voltage battery enclosures and high voltage thermodynamics systems for leaks. Offers real-time, dual pressure display of current pressure and leakage fluctuation with high-sensitive pressure sensing that significantly improves test accuracy and stability. The ALT100L offers customizable presets: Pack ID and volume, target pressure, testing phase time, alarm settings, and save and print reports. Offers onscreen test monitoring, and automatically saves test parameters for easy retest adjustments.

Autel ALT100L Features:
Tests high voltage battery enclosures and high voltage thermodynamics systems such as coolant and A/C for leaks
High-sensitive pressure sensing significantly improves test accuracy and stability
Dual Pressure Display: Real-time display of current pressure and leakage fluctuations
On-screen monitoring of tests progress
Customizable Presets: Pack ID and volume, target pressure, testing phase time, and alarm settings
Automatically saves test parameters for easy retest adjustments
Audible and visual abnormal or failed test results to ensure safety
Saves test result screenshots to USB for report generation
Software updates via download

Specifications:
TEST POWER:  20W Max
TEST PRESSURE RANGE:  0-30KPa
SENSOR RESOLUTION:  1 Pa
TEST ACCURACY:  ±5pa
COMMUNICATION PORT:  RS-232 / USB
DATA STORAGE: Internal memory/ download via USB disk
POWER SUPPLY:  AC 220V
AIR SUPPLY:  0.1‒1.0 MPa dry compressed air
AIR INLET PORT/TEST PORT:  φ6mm air pipe/φ6mm air pipe
WORK TEMPERATURE/HUMIDITY:  10%‒90% @25°C, without condensation
DIMENSIONS (WEIGHT):  280*300*200 mm 3.5kg

Package includes:
1pc x AUTEL MaxiEV ALT100L EV Battery Enclosure Integrity Tester
