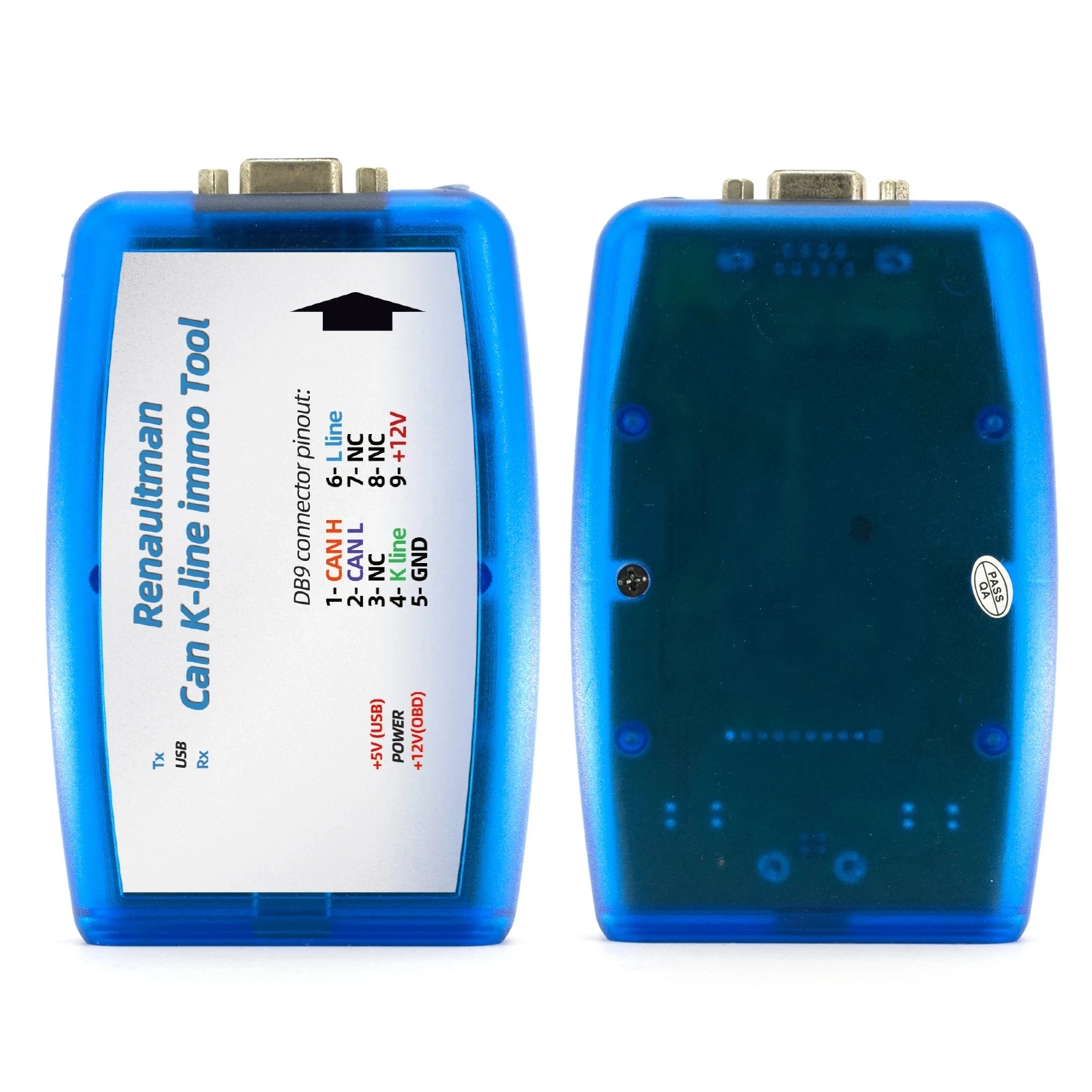

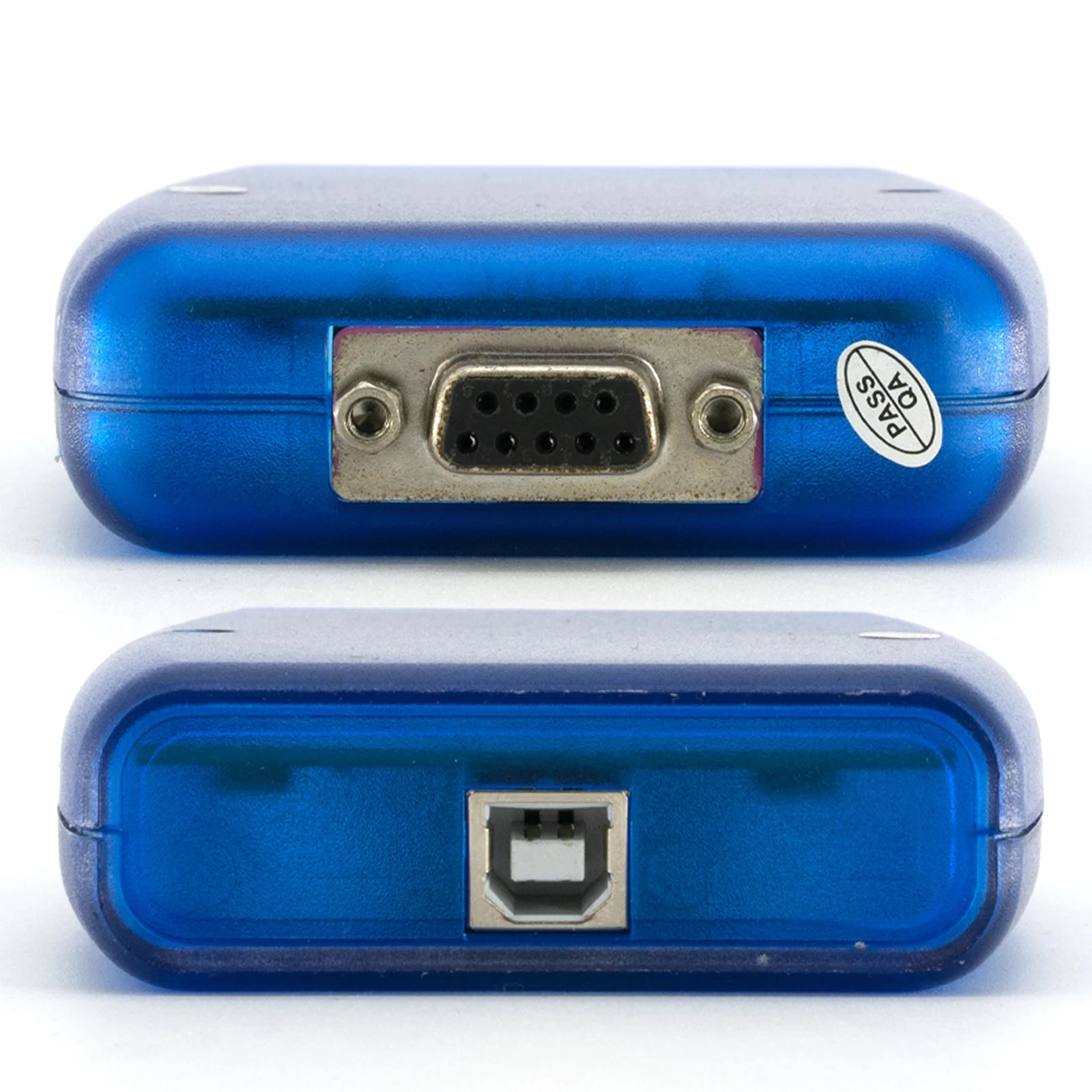

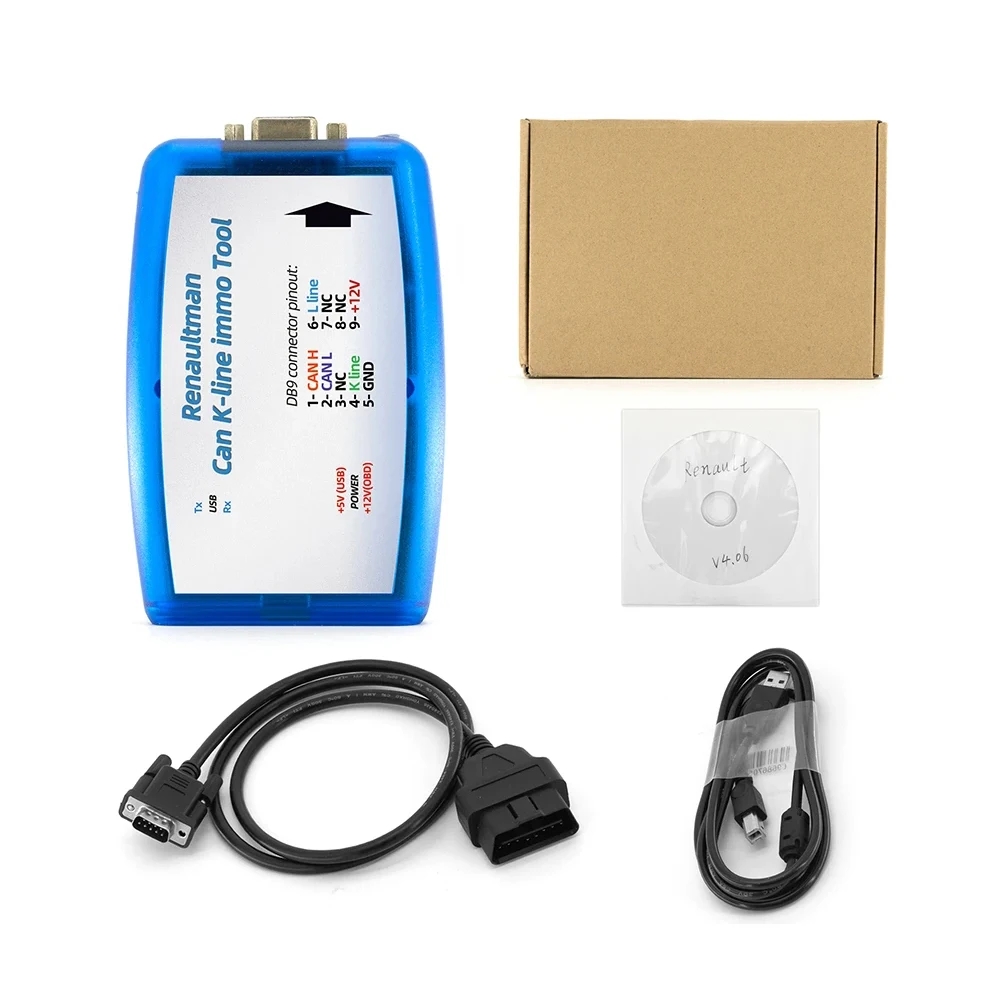

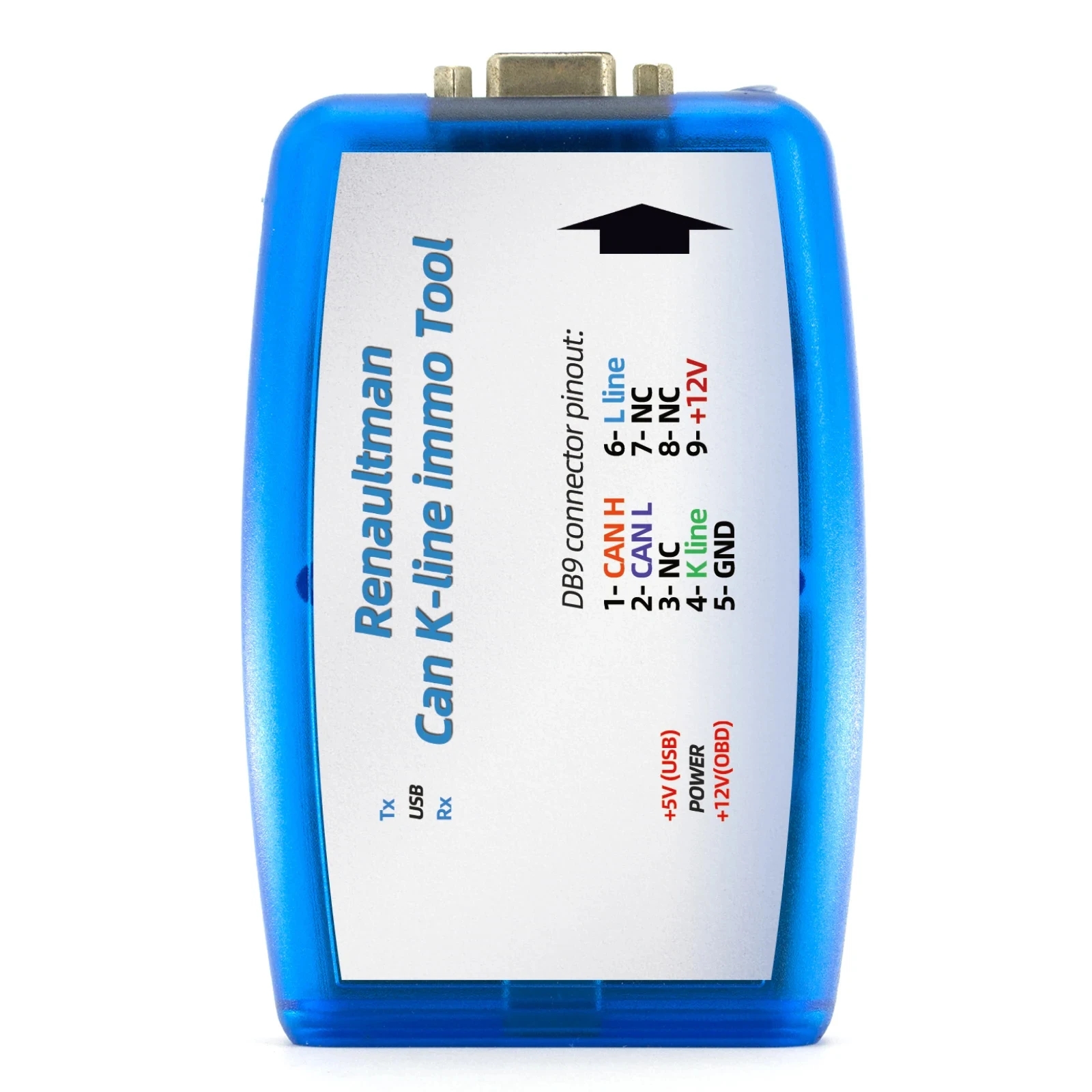

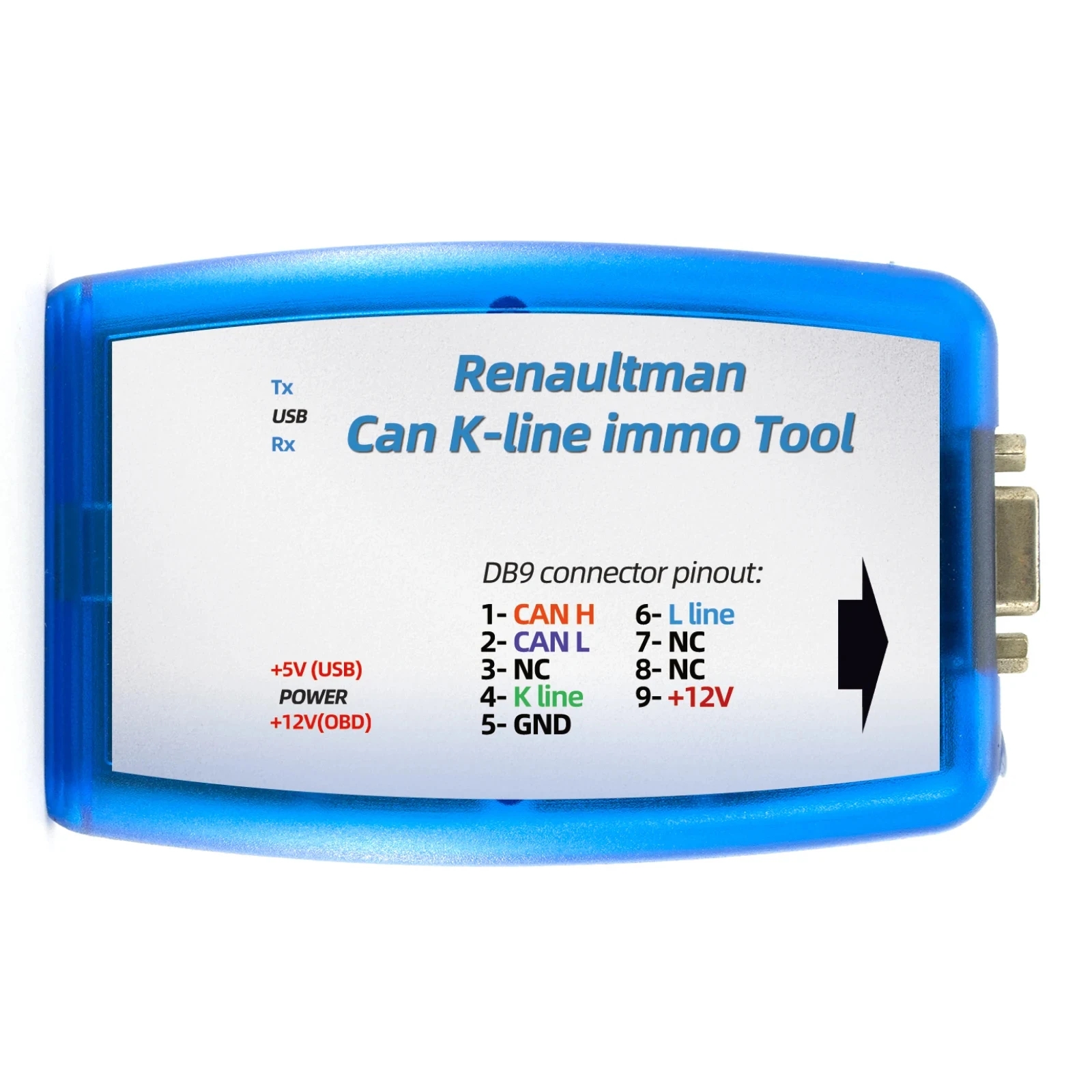

Renault ECU Tool RENAULT CAN K-line IMMO Tool V4.09 Support Read / Write EEPROM

Description
Renault Can K-line Immo Tool V4.09 Support for Renault CAN/K-line ECU Tool OBD2 Programmer Read Write EEPROM OBDII tool with various Renault car electronic control unit internal memory modification functions, such asRead/Write EEPROM or FLASH, Clear Immobilizer Code, Read Immobilizer Status and Program Cards. There is no need to open control unit, de-solder memory IC or connect any wires directly to it. All functions works by OBDII connector, but any supported control unit can be connected "on the bench" using Connection Manual. Clear Immobilizer Code function is fully automated - just press button and control unit will be cleared. ECU is ready to accept new immobilizer code after previously programmed code is cleared - no future programming is required.

Software V4.09 supports:
· ABS/ESP (ATE) for X91/X95/X38/L70 - EEPROM R/W, Change VIN, Change KM by OBDII
· Automatic parking brake (TRW) for X95/X38 - R/W Config, Change VIN, set maintenance mode for breakpad replace  (NEW !)
· EDC17 / SID305-310 / DCM3.4 / EMS31XX MILEAGE REPAIR by OBD II
· EDC15C3 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· EDC15C13  - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· SIRIUS 31H  - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· SIRIUS 32[N] (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· SIRIUS 34 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· SIRIUS 35  - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· EMS3132 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· EMS3134 (both CAN-BUS and WIRE immo systems) - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code
· SID301 - Read/Write EEPROM, Read/Write FLASH, Clear Immo Code, Clear IMPACT DETECTED, Read stored mileage
· SIM32 - Read/Write EEPROM, Read/Write FLASH from HD64F7055, Clear Immo Code
· SAFIR / SAFIR2 / SFR200 (35 / 55 pin connector) - Read TMS374 EEPROM, Clear Immo Code (carruns without immobilizer code)
· IAW 6R.20 - Read/Write TMS370 EEPROM
· IAW 6R.30 - Read TMS370 EEPROM, Clear Immo Code  (car runs without immobilizer code)
· VALEO BII for ESPACE III - Read/Write (9)08AZ60 EEPROM, Read/Write mileage, Clear for Replacement, Read transponder data, Emergency Startup
· VALEO IMMOBILIZER for LAGUNA I Ph2 (1998-2000) - Read transponder data, Configure, Reset to VIRGIN
· VALEO IMMOBILIZER for LAGUNA I Ph1 / SAFRANE Ph1 (1995-1996) - Read PINCODE, Reset to VIRGIN
· INSTRUMENT CLUSTER for ESPACE III (1998-2002) - Reset odometer, Erase RF remote programming  by instrument cluster connector
· SIEMENS IMMOBILIZER for ESPACE III Ph1 (1996-1998) - Read/Write 68HC05B16 EEPROM, read transponder data
· INSTRUMENT CLUSTER for ESPACE IV Ph1 ('03-'04) K-Line - Change language and units, Change VIN, KM, Read/Write EEPROM
· INSTRUMENT CLUSTER for ESPACE IV Ph2-Ph4 ('2005+) CAN- Change language and units, Change VIN, KM, Read/Write EEPROM
· SIEMENS UCH for MEGANE/SCENIC I Ph2 ('99-'02) - Read/Write 705B32 EEPROM, Read/Write configuration, Learn Keys, Reset to VIRGIN
· SIEMENS UCBIC for MEGANE/SCENIC I Ph1 ('96-'98) - Read/Write 68HC05B16 EEPROM, Read/Write configuration, Resest to VIRGIN
· LAGUNA II, ESPACE IV, VELSATIS Ph1/Ph2 - KeyCard Programming, Change VIN. Reset UCH to VIRGIN, Learn UCH
· MEGANE II, SCENIC II Ph1/Ph2 - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN, Config TPMS
· INSTRUMENT CLUSTER for SCENIC II ('04-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM
· INSTRUMENT CLUSTER for MEGANE II ('03-'08) - Wake-Up by CAN-BUS for repair or to check mileage, Change language and units, Change VIN, KM, Read/Write EEPROM
· CLIO II Ph1 - Key Learning, Configuration, Reset BMT to VIRGIN
· CLIO II Ph2-5, KANGOO, TRAFIC, MASTER, VIVARO, MOVANO (-'07) - Read/Write EEPROM 93C66, Key Learning, Change VIN, Reset UCH to VIRGIN, Learn UCH
· KANGOO I, TRAFIC, MASTER, VIVARO, MOVANO ('07-) - Key Learning, Change VIN, Reset UCH to VIRGIN, Learn VIRGIN UCH
· KANGOO II (2007-2012) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
· MODUS / CLIO III ELECTRIC POWER ASSISTED STEERING (TRW DAE/PAS) - Clear Immo Code, Change VIN by OBDII, erase DF002 from 24C16 dump, repair CRC
· MEGANE/SCENIC III ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII
· MEGANE/SCENIC IV (2016+) ELECTRIC POWER ASSISTED STEERING (NSK DAE/PAS) - Clear Immo Code, Change VIN by OBDII
· TWINGO III ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII
· ESPACE V / TALISMAN / SAMSUNG SM6 ELECTRIC POWER ASSISTED STEERING (TRW EPS) - Clear Immo Code, Change VIN by OBDII
· CLIO IV ELECTRIC POWER ASSISTED STEERING (JTEKT DAE/PAS) - Clear Immo Code, Change VIN by OBDII
· LAGUNA III (2007-2015) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN
· LAGUNA III / LATITUDE (2007-2015) - Learn BCM / ECM / ESCL in protected mode
· LATITUDE (2010+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN
· CLIO III / MODUS - Key Programming, Change VIN, Learn ECM in protected mode, Learn BCM, Reset BCM to VIRGIN
· CLIO III - Card/UCH/ECM/ESCL Learning, Change VIN, Reset UCH to VIRGIN
· CLIO IV (2012+)- Card Programming, Change VIN, Reset HFM to VIRGIN, Learn ECM / ESCL/HFM in protected mode
· MASTER III (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
· TRAFIC II Ph3 (2010-2014) - Key Programming, Change VIN, Reset BCM to VIRGIN, Learn VIRGIN BCM
· WIND (2010-2013) - Key Programming, Change VIN, Reset BCM, Learn ECM, Learn BCM
· TWINGO II (2007-2013) - Key Programming, Change VIN, Reset BCM, Learn ECM, Learn BCM
· TWINGO (2001-2006), LOGAN (2004-2008), SANDERO I, THALIA, SYMBOL - Key Programming, Change VIN
· LOGAN, SANDERO, THALIA, SYMBOL (2008-2012), Duster (2010-2012) - Key Programming, Change VIN
· LOGAN, SANDERO, DOKKER, SYMBOL, DUSTER (2012+) - Key/ECM/BCM learning, Reset to VIRGIN, Read DataFlash, Change VIN
· MEGANE III / SCENIC III (2009-2015) - Card Programming, Change VIN, Reset BCM to VIRGIN
· MEGANE III / SCENIC III (2009-2015) - Classical Key Programming, Change VIN, Reset BCM to VIRGIN
· MEGANE III / SCENIC III / FLUENCE (2009-2015) - Learn BCM / ECM / ESCL in protected mode. Config TPMS
· KOLEOS (2008+) - KeyCard Programming, Change VIN, Reset BCM to VIRGIN, Learn ECM/BCM/ESCL
· EDC17 / MED17 TRICORE EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs
· EDC17 / MED17 TRICORE TC1793 EEPROM DUMP CRC - Repair block CRCs
· EDC16 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, repair block CRCs  (IMPROVED !)
· DELPHI DCM 3.4 EEPROM DUMP CRC - Reset EEPROM dump to VIRGIN, Change KM, repair block CRCs
· DECRYPT ISK FROM ECM DUMP - Get ISK from ECM for VIRGING BCM learning when original BCM is missing
· SID305/306/307/308/309 TRICORE DFLASH DUMP CRC - Search/change KM, repair block CRCs
· MEGANE III / SCENIC III / FLUENCE / LATITUDE AIRBAG (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
· LAGUNA III AIRBAG (AUTOLIV RC5) - Erase CRASH DATA by OBDII / direct connection
· TWINGO II (X44) / KANGOO II (X61) AIRBAG (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
· MASTER III / MOVANO-B / CLIO III Ph2 / MODUS Ph2 AIRBAG (AUTOLIV) - Erase CRASH DATA by OBDII / direct connection
· AIRBAG MODULE WITH SPC560 MCU (CONTINENTAL) - Erase CRASH DATA by OBDII / direct connection
· MEGANE II / SCENIC II AIRBAG (AUTOLIV ACU4) - Erase CRASH DATA by OBDII / direct connection
· CLIO II X65 AIRBAG (BOSCH AB8) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
· CLIO III Ph1 / MODUS Ph1 AIRBAG (BOSCH AB9.X) - Erase CRASH DATA, Erase fault codes by OBDII / direct connection
· ESPACE III AIRBAG (SIEMENS) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
· LOGAN X90 / DUSTER H79 AIRBAG (TEMIC-CONTINENTAL) - Erase CRASH DATA, Read EEPROM by OBDII / direct connection
· LOGAN X90 AIRBAG (BOSCH AB8.X with yellow connector) - Erase CRASH DATA, Read/Write MCU internal EEPROM by OBDII / direct connection
· KADJAR / TALISMAN AIRBAG (AUTOLIV AC7 with MCU XC2336) - Erase CRASH DATA by OBDII / direct connection. Read full Flash
· CLIO IV Ph2 / CAPTUR Ph2 AIRBAG (CONTINENTAL 985100475R, 985101180R, 985103419R with R7F7010133) - Erase CRASH DATA by OBDII / direct connection
