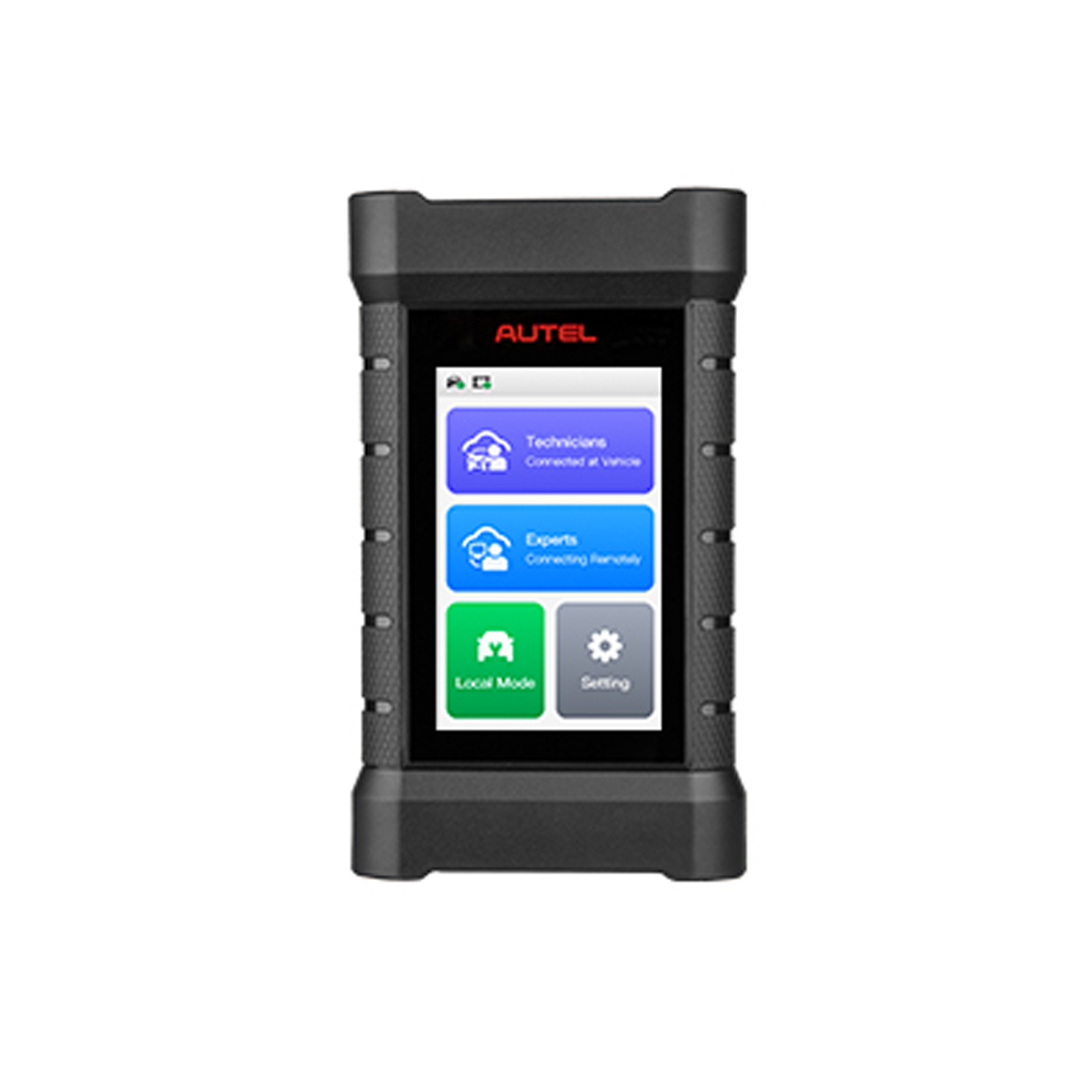

Autel MaxiFlash XLink J2534 Tool Remote Expert ECU Programming Device

Autel MaxiFlash Xlink J2534 is a versatile tool Supports vehicle diagnostics and programming works with PC, mobile phone and MS909 MS919 Ultra series scanners.

Autel MaxiFlash XLink J2534 ECU Programming Device
The MaxiFlash Xlink is a 3-in-1 communication and programming device that can act as an enhanced vehicle communication interface (VCI), a J2534 pass-thru programmer, and a Remote Expert-ready device. Use the Xlink to enable Remote Expert’s experienced programmers, diagnosticians, and system experts to connect to the vehicle needing service in your shop. Use the Xlink as a J2534 pass-thru programmer with OE software subscriptions to flash or program system modules onsite. Use the Xlink as an enhanced VCI with any MaxiSYS tablet to communicate with and diagnose vehicles using the latest protocols.
Includes a one-year limited warranty.

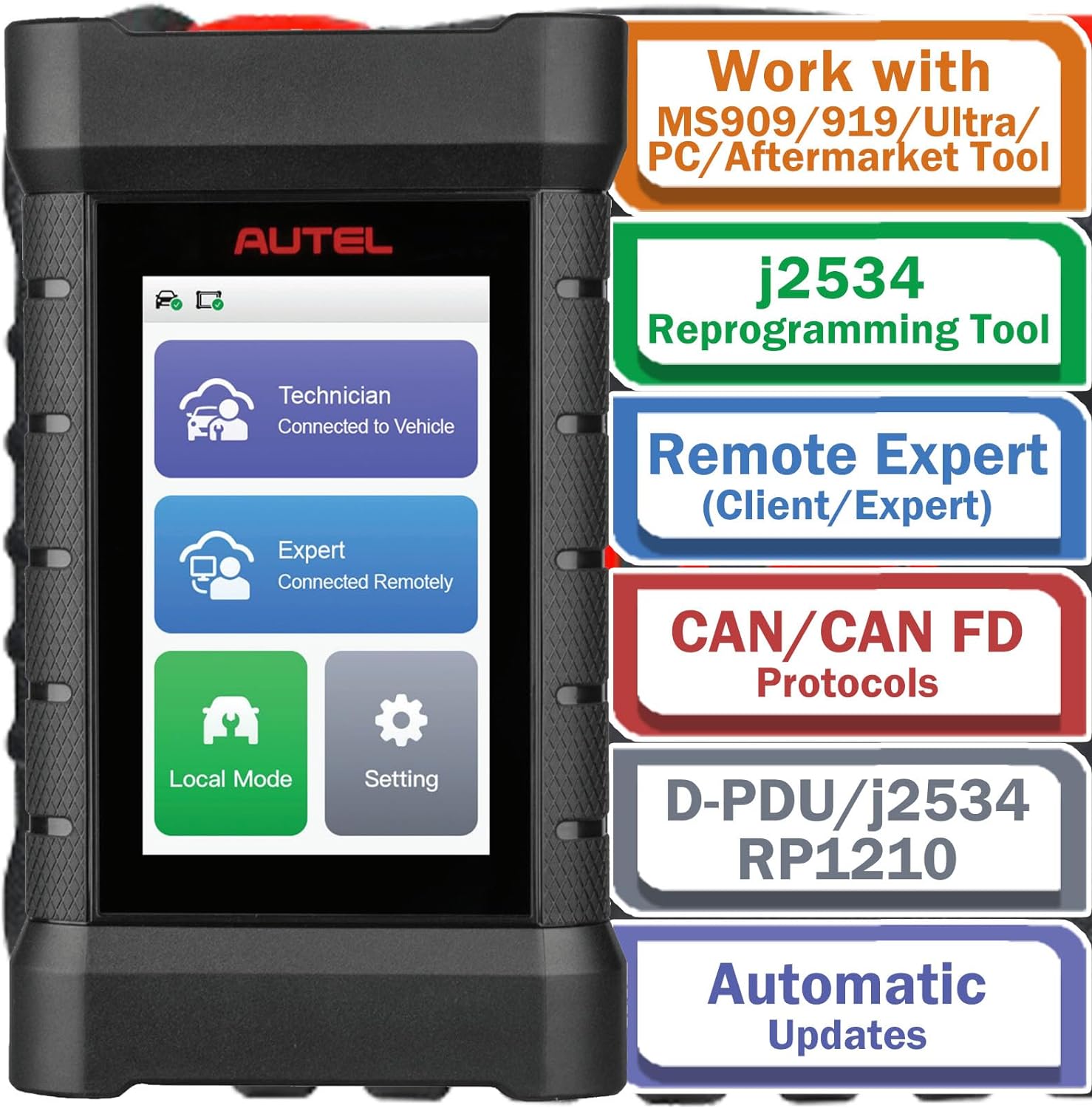

Autel MaxiFlash XLink J2534 Functions:
1.Remote Expert-ready standalone device: connect with experienced programmers, diagnosticians and system expert
2.Enhanced Vehicle Communication Interface for quicker communication and systems access
3.J2534-pass thru programmer to update modules with OE software
4.Equipped with a 4-inch LCD touchscreen for easy operation
5.Enables remote programming and local diagnostics
6.Automatic software updates for uninterrupted use and support
7.Can be used for both client-side (technician or vehicle) and expert-side (programmer with OE software or diagnostician) to provide remote programming and diagnostics.
8.Supports D-PDU, J2534, and RP1210 diagnostics protocols for a wide range of vehicles compatibility
9.Supports DoIP, CAN, and CAN FD protocols to ensure coverage of the latest vehicles
10.Supports remote programming on more than 41 U.S., Asian, and European vehicle brands
11.Pair with Autel MaxiSYS Tablet/OE/Aftermarket Diagnostic Tool
12.Enables onsite and remote module programming
13.Server and point-to-point Dual Channel Communication ensures smooth remote-service performance

ENHANCED, MULTI-PROTOCOL VCI
• Pair with Autel MaxiSYS Tablets (MS909, MS919, Ultra) to perform Advanced Diagnostics with Multiple Communication Protocols Including CAN, CAN FD & DoIP. Updates via Wi-Fi. It will not add Mercedes and BMW coding to tablets that do not already include that feature. (i.e. Using this with an MS906 Pro will not gain programming through the tablet)

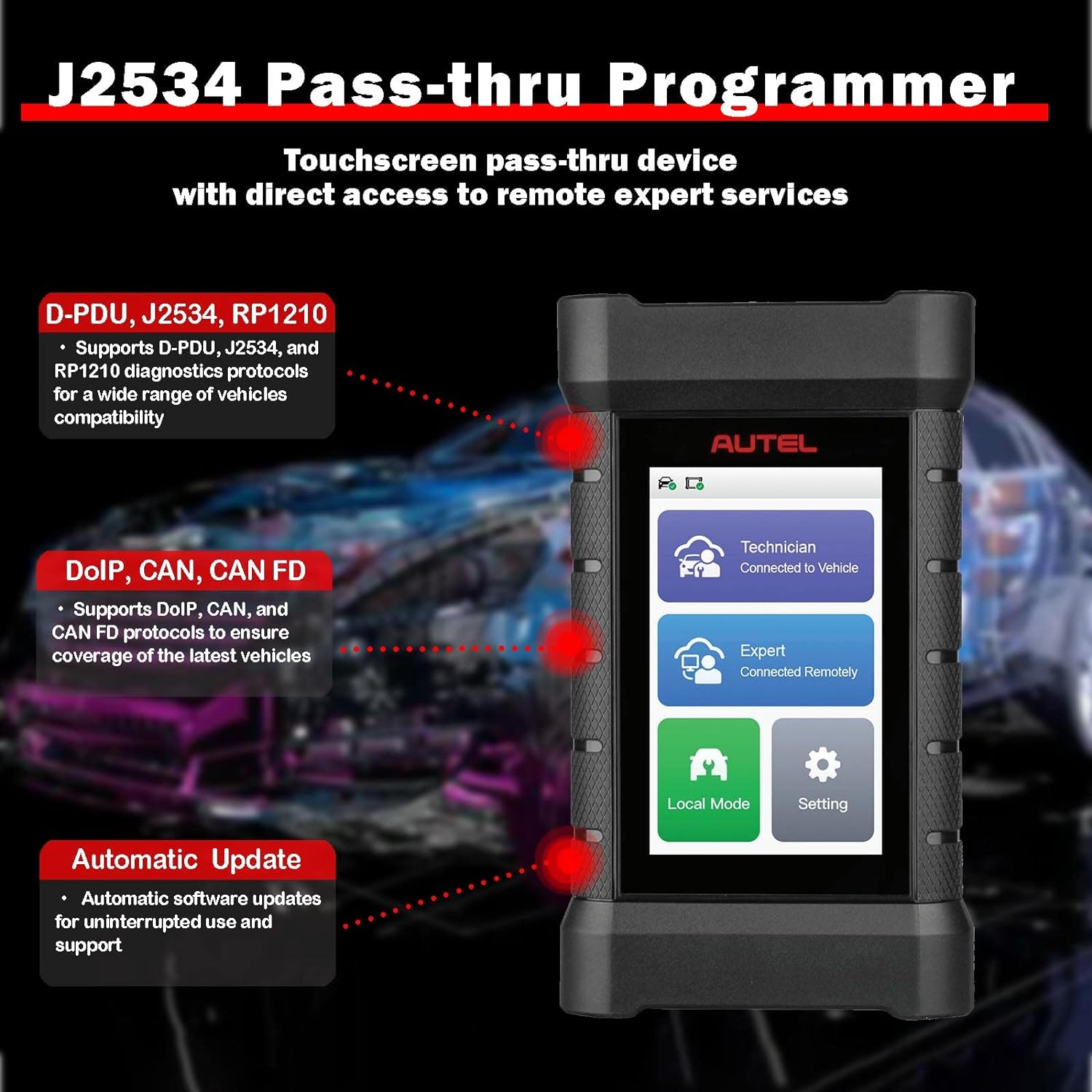

J2534 PASS-THRU PROGRAMMER
• Perform Module Programming with on most U.S., Asian, European vehicles
• Supports CAN FD/DoIP protocols
• Compatible with Windows PC and Autel Maxi PC Suite

REMOTE EXPERT-READY DEVICE
• Connect with Autel Remote Expert module programmers, automotive diagnosticians, and system experts for tasks requiring OE data, software, or tools.
• Post orders to the Remote Expert platform via the Autel MaxiFix mobile apps (iOS, Android).
• Connect the Xlink to the vehicle and use the MaxiFIX app to post, monitor and pay for the session.

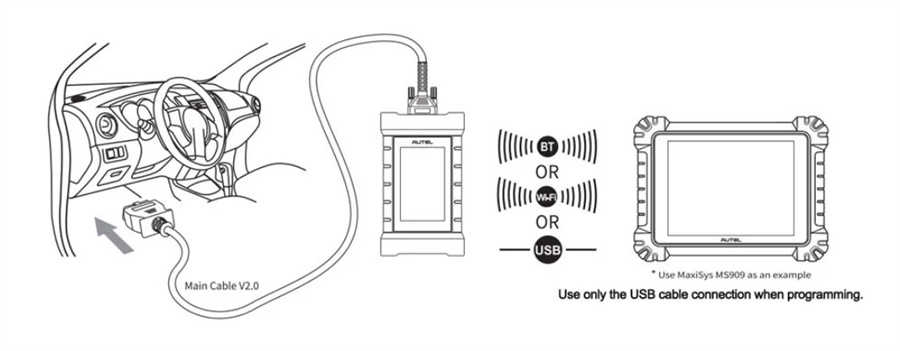

Autel MaxiFlash XLink J2534 Local Diagnostics Connection

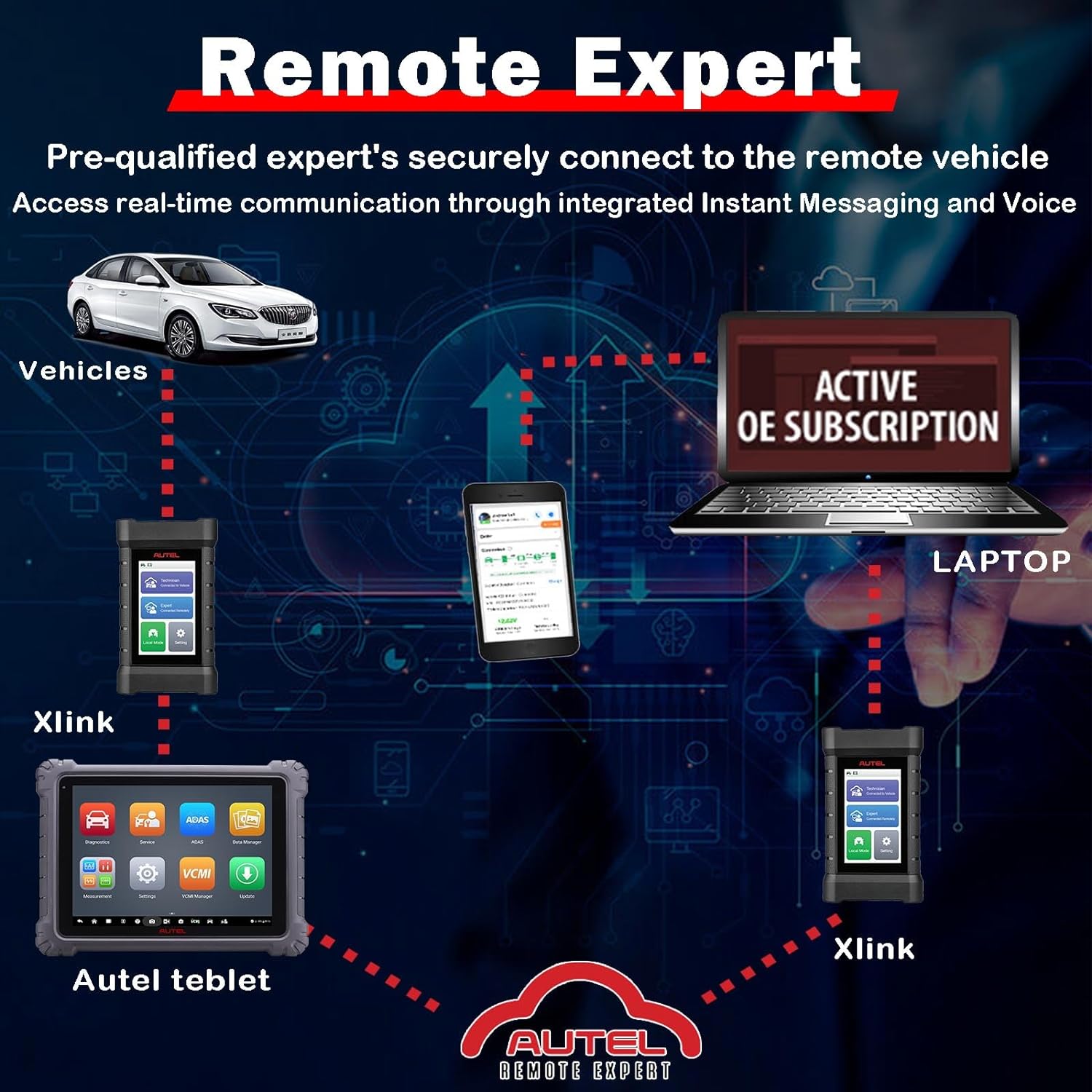

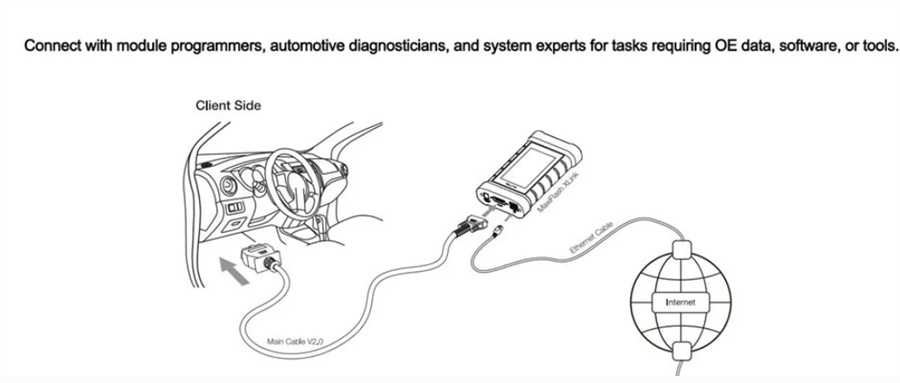

Autel MaxiFlash XLink J2534 Remote Diagnostics Connection



Autel MaxiFlash XLink J2534 Specification:
1.Display: 4.0 inch TFT screen (480x800)
2.Operating Voltage:
3.- DC 9 to 36V power provided via OBD (Technician-side)
4.- DC 9 to 15V power provided via adapter (Expert-side)
5.Communication Method: Ethernet
6.Storage: 32GB
7.Memory: 4GB
8.Power Consumption: <5W
9.Operating Temp: -10 ℃ to 50 ℃
10.Storage Temp: -20℃ to 60 ℃

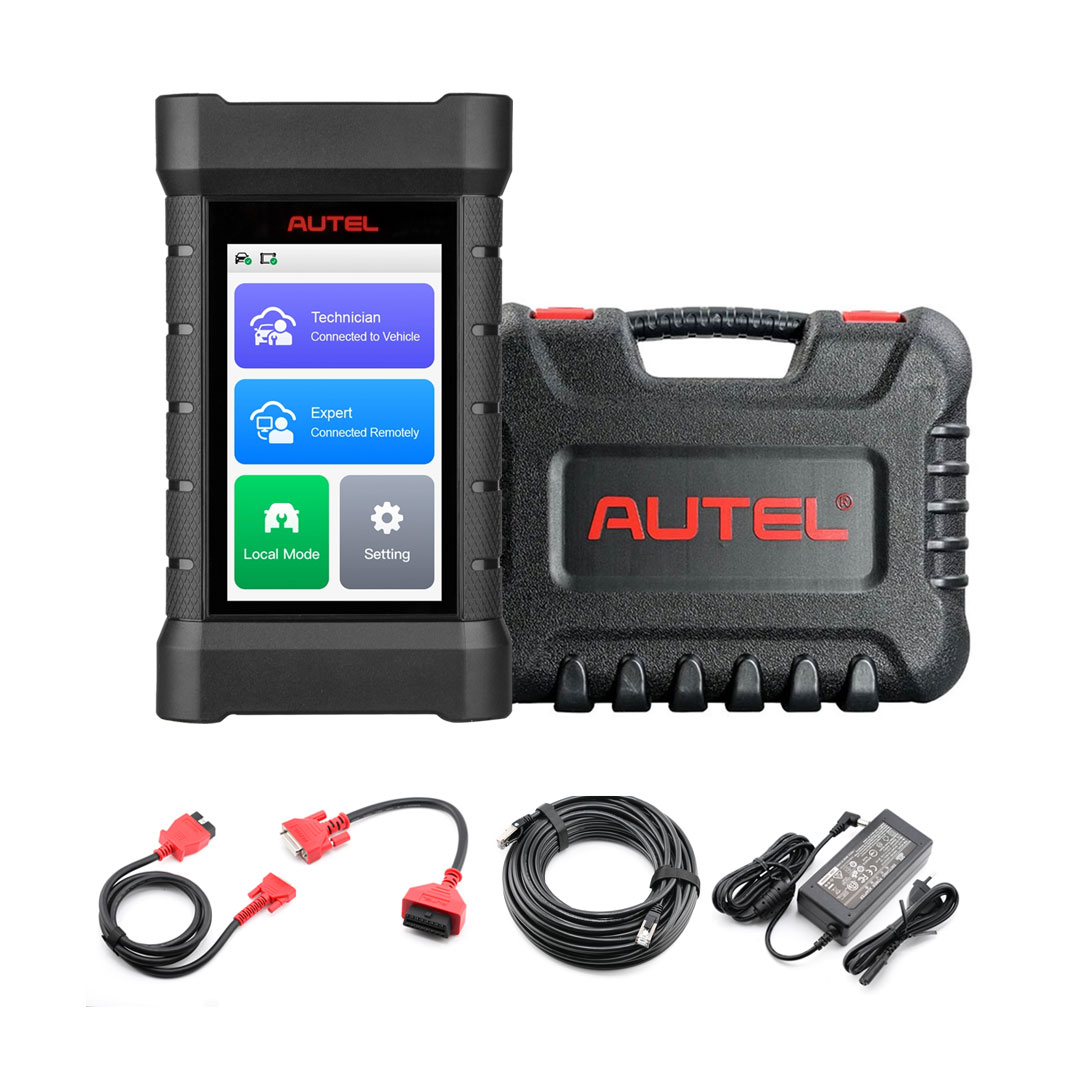

Autel MaxiFlash XLink J2534 Packing List:
1pc x main unit
1pc x main cable V2.0
1pc x main cable(expert side)
1pc x AC/DC adapter(12V)
1pc x Ethernet cable
1pc x quick reference guide
1pc x packing list
1pc x carrying case
