Launch X431 IMMO Programmer GIII X-Prog 3 X-PROG3 PC Adaptor Overseas Online Configuration
Launch X431 IMMO Programmer GIII X-Prog 3 X-PROG3 PC Adaptor Overseas Online Configuration

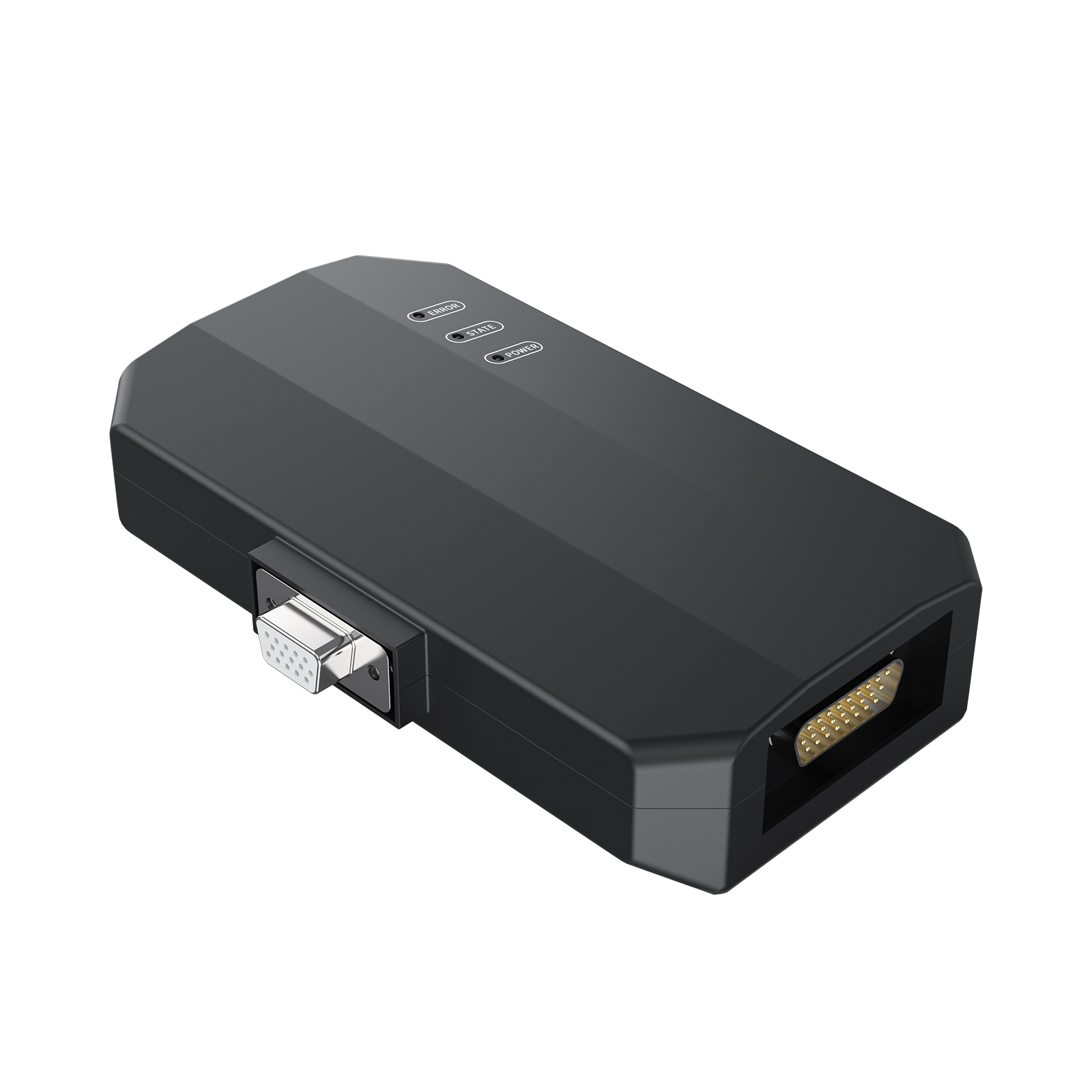

Launch X431 IMMO Programmer X-PROG3 PC Adaptor
1. Used in conjunction with X-PROG3 anti lift matching programmer
2. 2D menu, clear and easy to choose
3. Powerful search function
4. Convenient modification of ECU data
5. USB communication, with a speed more than three times that of Android devices, making it more stable
6. Easy to copy data
7. Support engine data validation function
Software download link: https://en.cnlaunch.com/download
PC Software Interface Description:

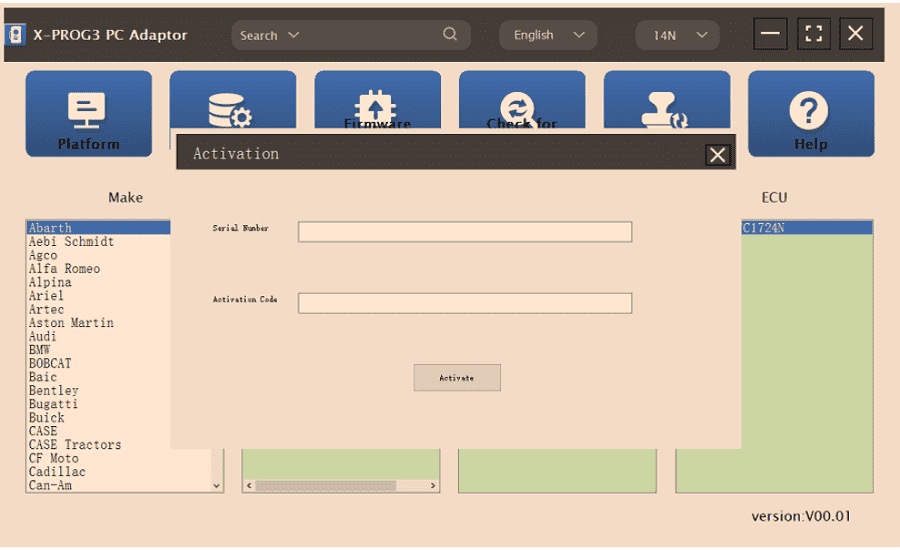

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once, no need to activate it again later), as shown in Figure
I.ECU Data Reading/Writing
1. Obtain the related ECU.

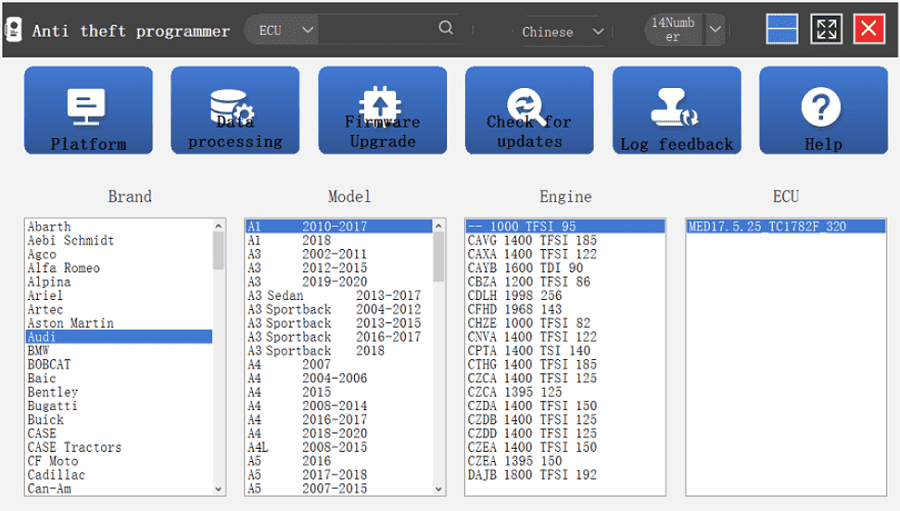

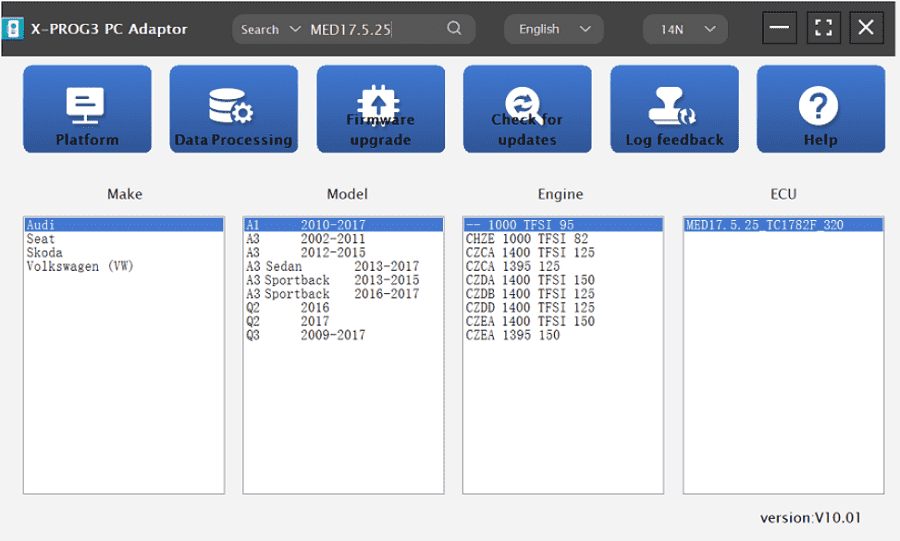

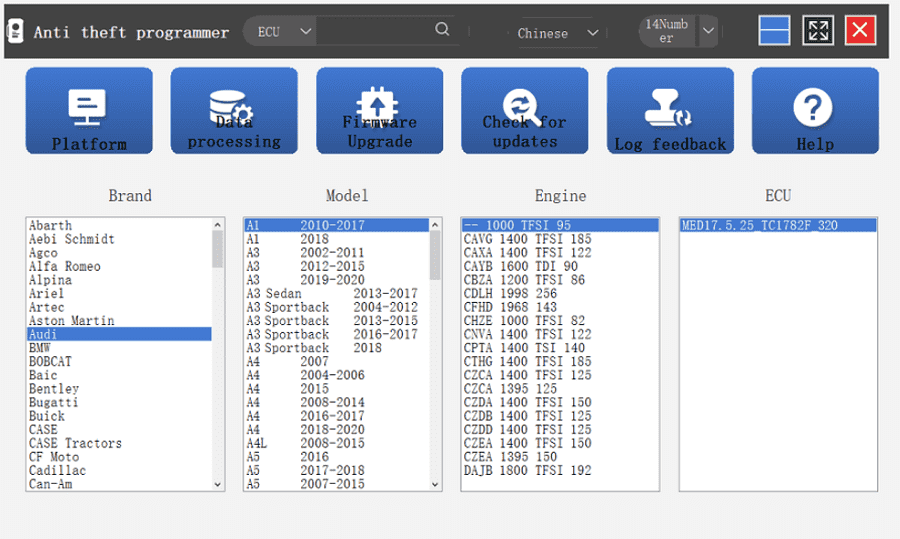

(1) Method 1: Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure.
(2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure.

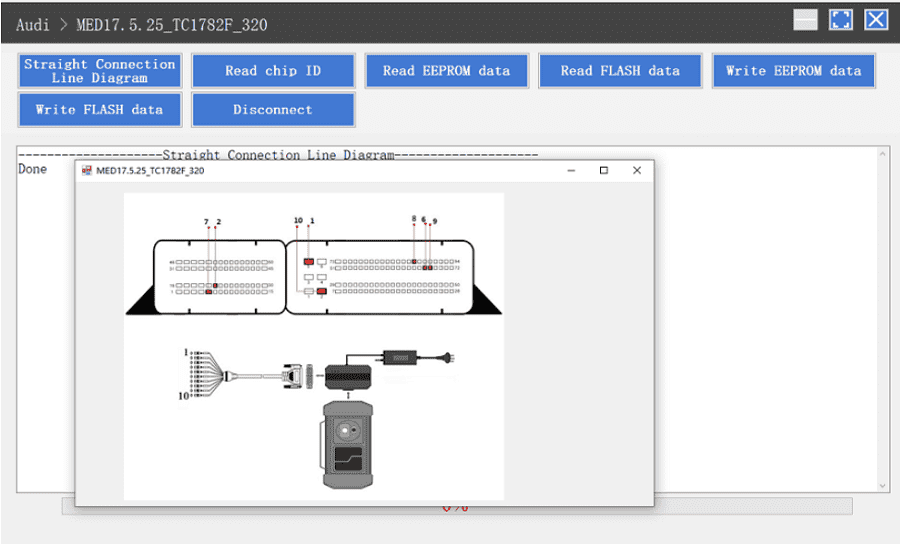

2. Click [Straight Connection Line Diagram] to obtain the ECU connection diagram, as shown in Figure.

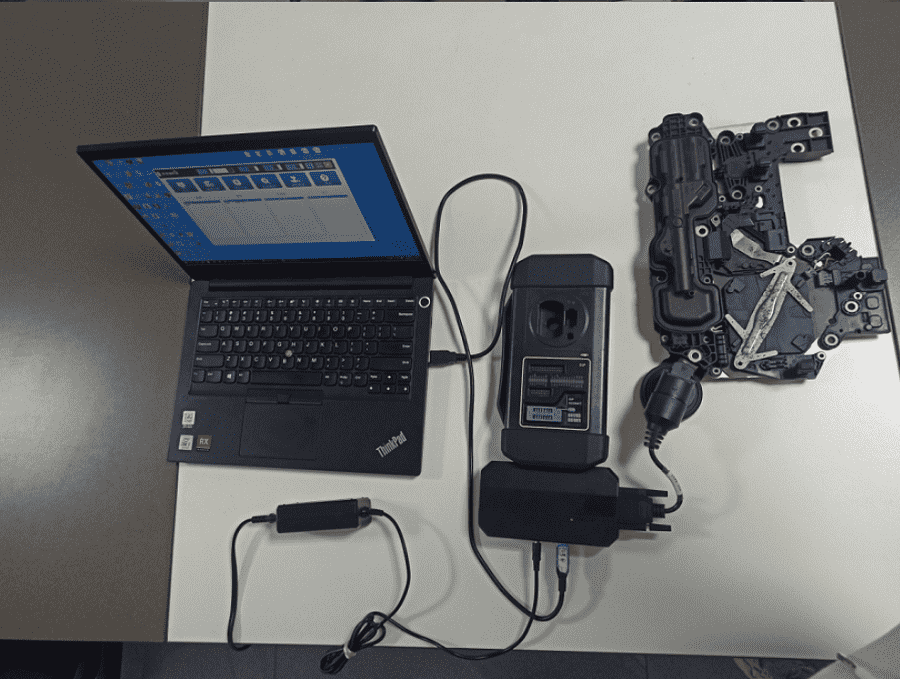

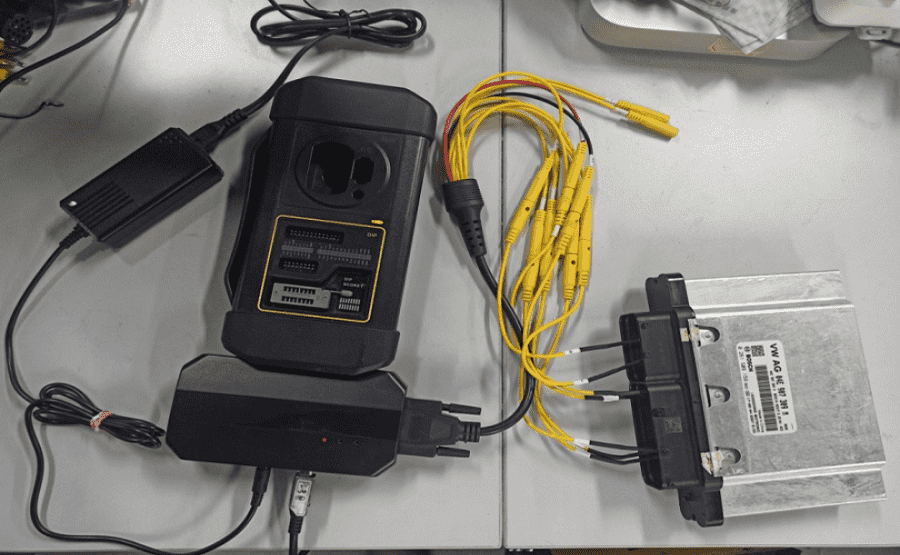

3. Connection: Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure, and the physical connection diagram using the gearbox adapter is shown in Figure.

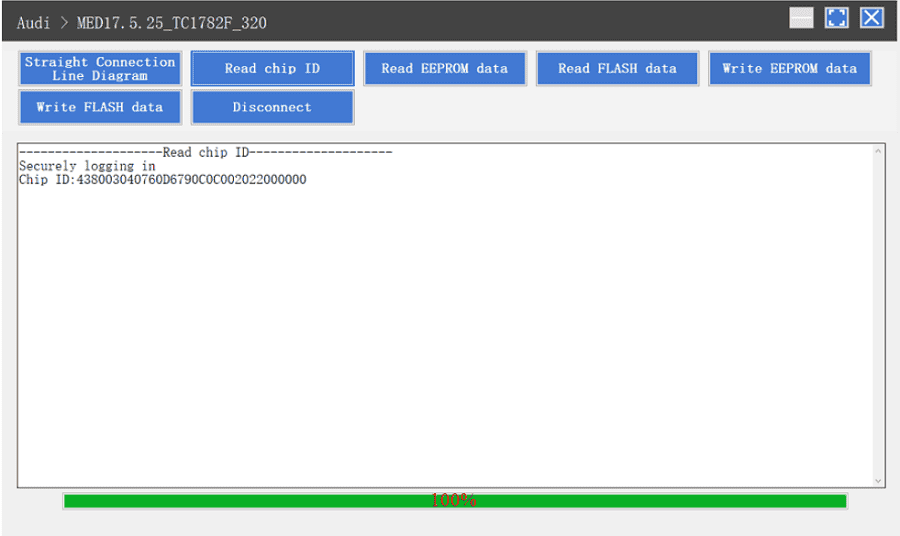

4. Read the chip ID, as shown in Figure.

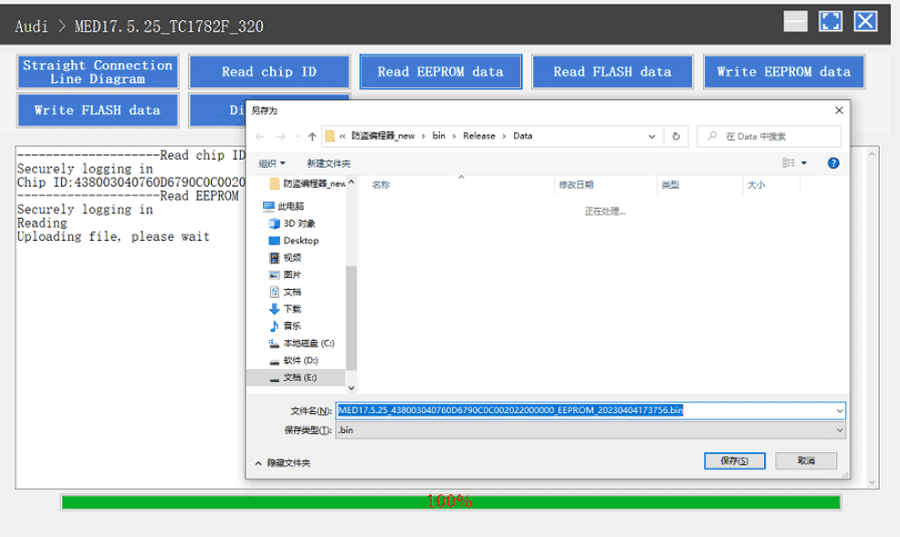

5. Back up the EEPROM data and save it, as shown in Figure (the figure shows the save page of the read data).

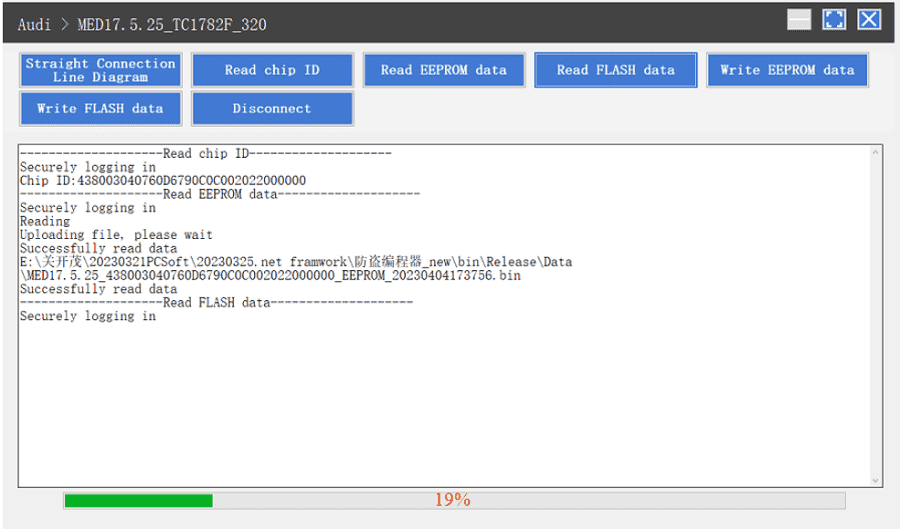

6. Back up the FLASH data and save it, as shown in Figure (the figure shows the process of reading FLASH data).

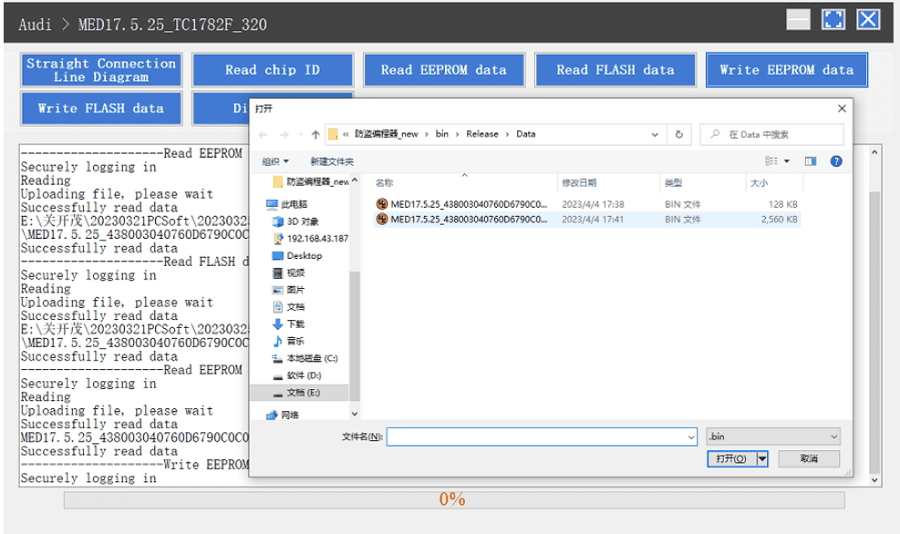

7. Restore EEPROM/FLASH data, as shown in Figure (the figure shows the file selection page).
II. Data Processing

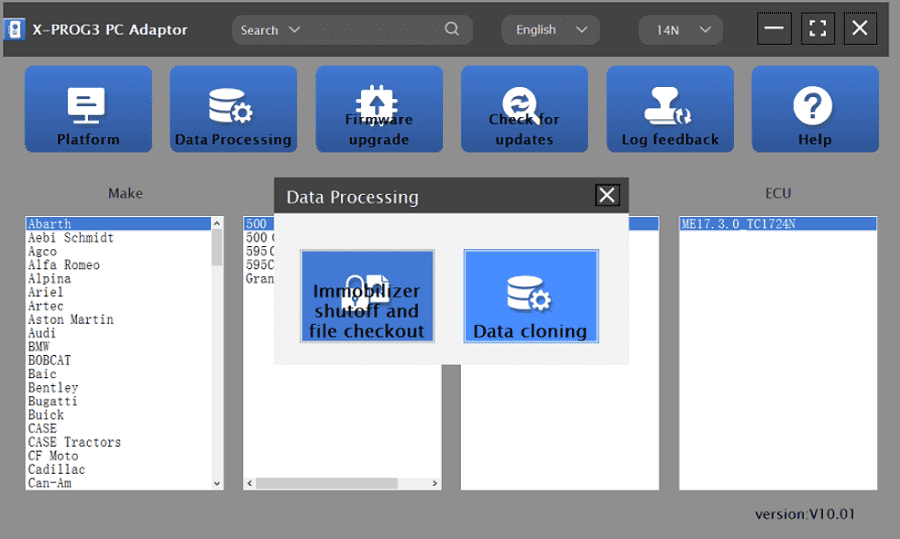

1. Click the [Data Processing] button on the main page, as shown in Figure, and select [Immobilizer Shutoff and File Checkout] [Data Cloning] process Volkswagen series and Porsche engine data, as shown in Figure.

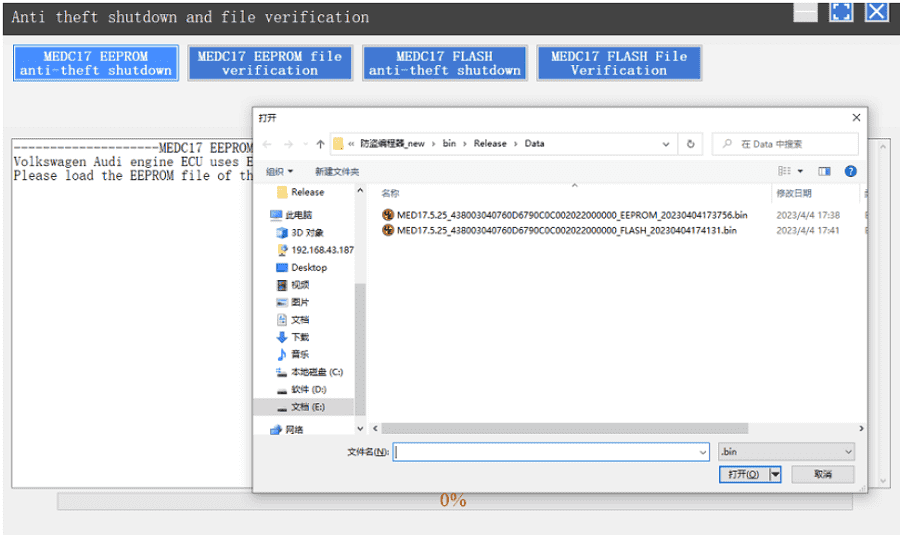

2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.
Support list June 2023:
ECU Name
ECU Type
ECU Brand
G3
FLEX
EDC16XX
ECM
Bosch
Support
Support
EDC17XX
ECM
Bosch
Support
Support
MD1CSXXX
ECM
Bosch
Support
Support
MD1CPXXX
ECM
Bosch
Support
Support
ME17.X.X
ECM
Bosch
Support
Support
MED17.X.X
ECM
Bosch
Support
Support
MED9.X.X
ECM
Bosch
Support
Support
MEV17.X.X
ECM
Bosch
Support
Support
MEVD17.X.X
ECM
Bosch
Support
Support
MG1CSXXX
ECM
Bosch
Support
Support
MG1CPXXX
ECM
Bosch
Support
Support
MSDXX
ECM
CONTINENTAL/SIEMENS
Support
Support
MSVXX
ECM
CONTINENTAL/SIEMENS
Support
Support
SDIX
ECM
Continental
Support
Support
GM EXX/TXX
ECM
DELCO
Support
Support
SIM271XX
ECM
Continental
Support
Support
SIMOS12.X
ECM
Continental
Not support
Support
SIMOS8.X
ECM
Continental
Support
Support
SIMOS-PCR2.X
ECM
Continental
Not support
Support
6HPXX
TCM
ZF
Support
Support
8HPXX
TCM
ZF
Support
Support
7DCT300
TCM
ZF
Support
Support
9G Tronic
TCM
Bosch
Support
Support
ALXXX
TCM
ZF
Support
Support
TCXX
TCM
Bosch
Support
Support
DPS6/DC4
TCM
GETRAG
Support
Support
DKG
TCM
GETRAG
Support
Support
DLXXX
TCM
Temic
Support
Support
DQXXX
TCM
Temic
Support
Support
MPS6
TCM
GETRAG
Support
Support
SPS6
TCM
GETRAG
Support
Support
VGSX
TCM
GETRAG
Support
Support
VL381
TCM
Temic
Support
Support
GM 6TXX/6LXX
TCM
DELCO
Support
Support
MEDG17.9.8
TCM
Bosch
Support
Support
MEG17.9.2
TCM
Bosch
Support
Support

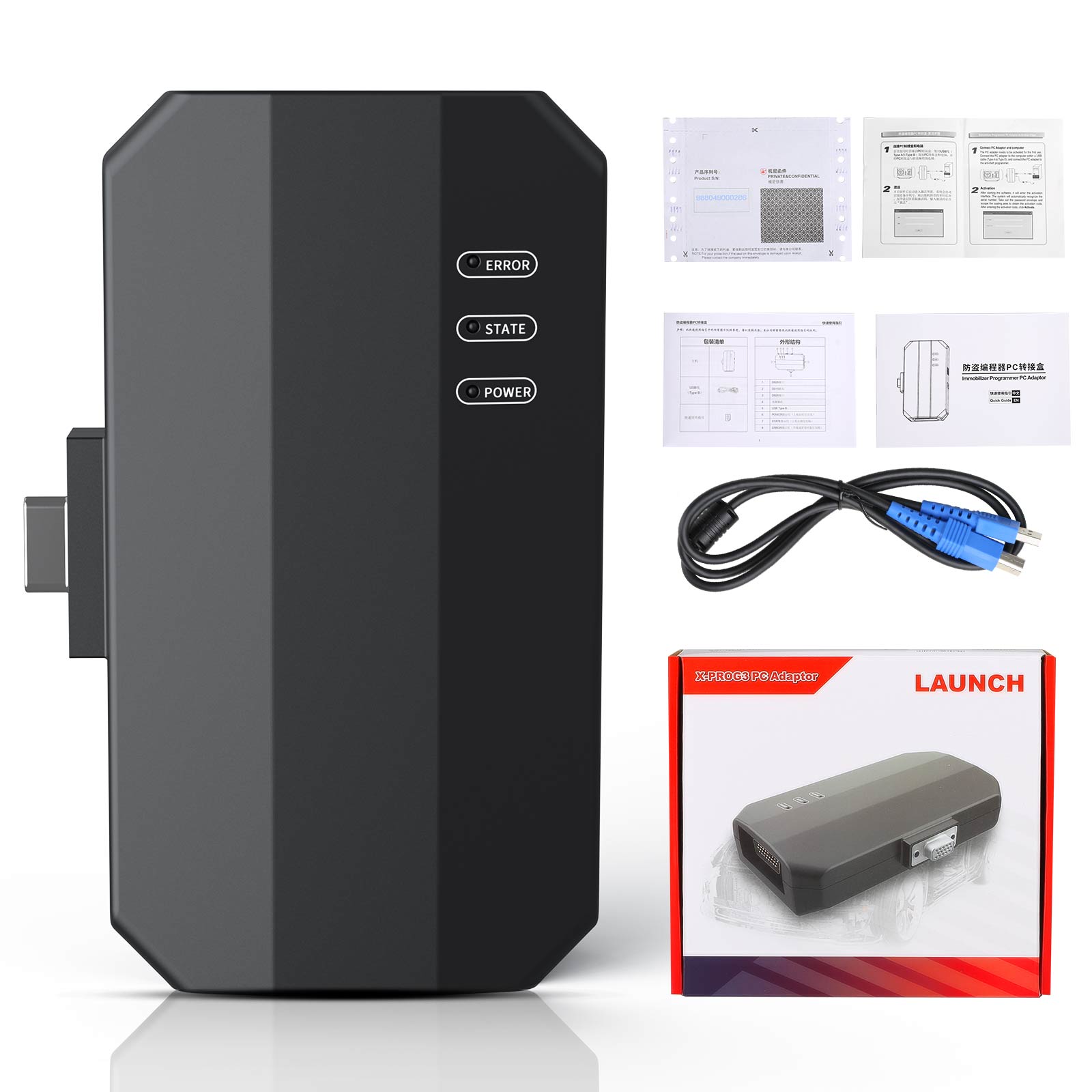

Package Includes:
1pc x Launch X431 IMMO Programmer X-PRO G3 PC Adaptor
Optional adapter accessories(Not included in the package):
Accessory
Name
Material
code
function
1
X-PROG3 Adapter Cable 1 (DQ200XX)
307110077
Used to connect the DQ200XX gearbox, and available models include VW, Audi, etc.
2
X-PROG3 Adapter Cable 2 (VL381)
307110078
Used to connect the VL381 gearbox, and available models include VW, Audi, etc.
3
X-PROG3 Adapter Cable 3 (DQ380)
307110079
Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include VW, Audi, etc.
4
X-PROG3 Adapter Cable 4 (DQ250)
307110080
Used to connect the DQ250 gearbox, and available models include VW, Audi, etc.
5
X-PROG3 Adapter Cable 5 (DL501)
307110081
Used to connect the DL501XX gearbox, and available models include VW, Audi, Porsche, etc.
6
X-PROG3 Adapter Cable 6 (DL382)
307110082
Used to connect the DL382 gearbox, and available models include VW, Audi, etc.
7
X-PROG3 Adapter Cable 7 (VGS-NAG3)
307110083
Used to connect the VGS-NAG3 gearbox, and available models include Benz, Nissan, etc.
8
X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)
307110084
Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include Benz, Infiniti, etc.
9
X-PROG3 Adapter Cable 9 (VGS3-NAG2)
307110085
Used to connect the VGS3-NAG2 gearbox, and available models include Benz, etc.
10
X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)
307110086
Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include BMW, Land Rover, Jaguar, Dodge, Alpina, Chrysler, Rolls Royce, Alfa Romeo, Aston Martin, Great Wall, Jeep, Lamborghini, Maserati, Iveco, etc.
11
X-PROG3 Adapter Cable 11 (MPS6)
307110087
Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include Ford, Renault, Chrysler, Dodge, Land Rover, Volvo, etc.
12
X-PROG3 Adapter Cable 12 (DPS6)
307110088
Used to connect the DPS6 gearbox, and available models include Ford, etc.
13
X-PROG3 Adapter Cable Main Line (ML)
307110089
The extension wire of the gearbox harness, with one end connected to the immobilizer programmer and the other end connected to the gearbox harness
