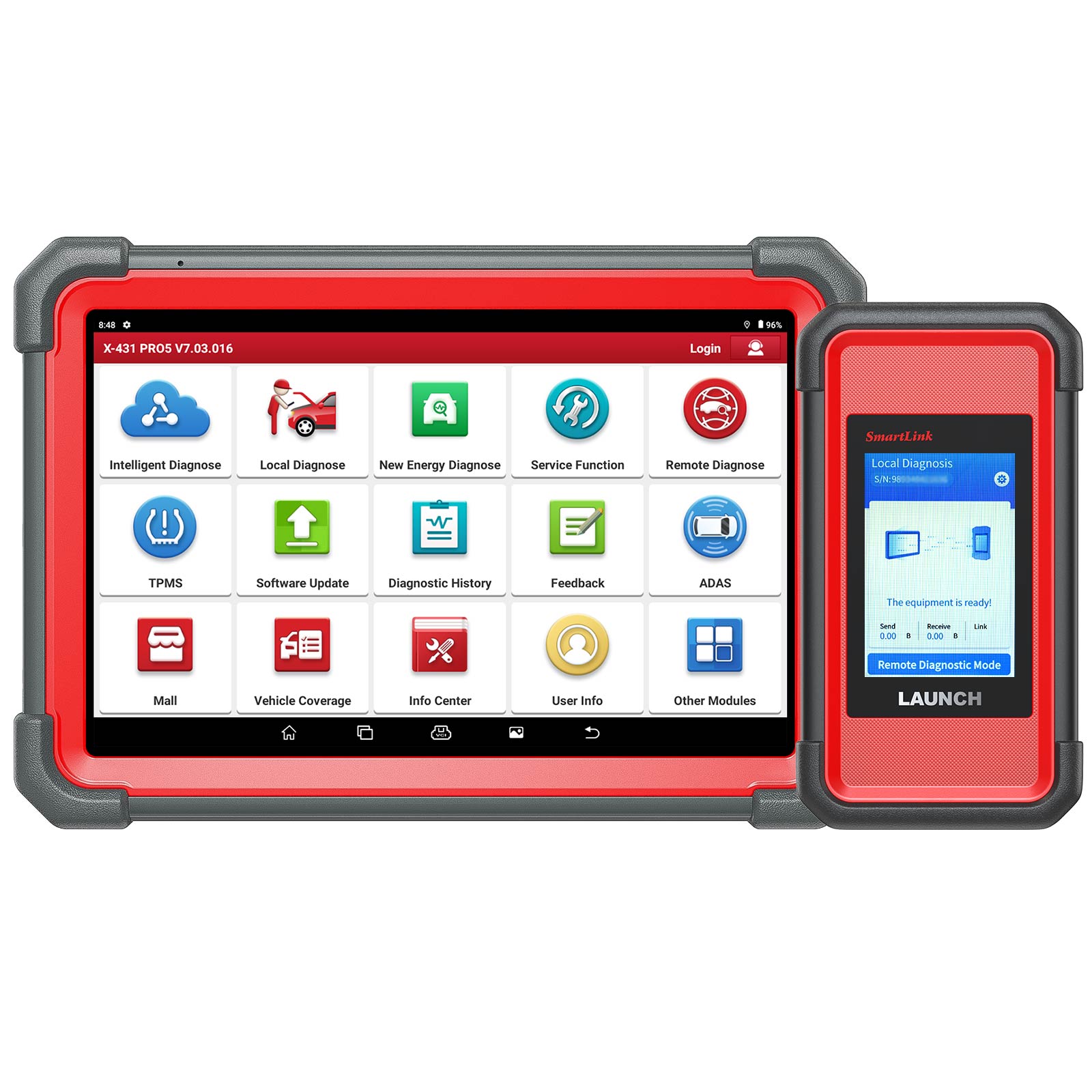

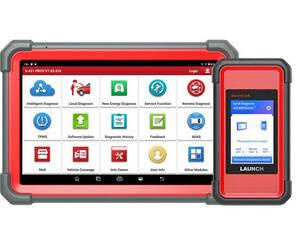

LAUNCH X431 PRO5 Bi-directional Diagnostic Tool with J2534 Smartlink 2.0 CANFD DoIP HD Supports Online Programming and Topology Mapping

Selling Points:
1.  Newest Release of LAUNCH in the year of 2024, latest hardware and software equiped.
2.  All System Diagnosis + All 50+ Reset Service + Active Test
3.  ECU Coding & Programming via SmartLink C V2.0 ( Used as J2534)
4.  Support CAN FD and DoIP ( need to use with DOIP adaptor)
5.  VAG Guided Function
6.  FCA AutoAuth Access
7.  OE-Level car coverage.100+ car brands, 20,000+ models from the US, European, and Asian car markets;   still expanding.
8.24+ Languages Support .
9.  Global version is No IP Limit.You can use it all around the world.
10.  Two Years Free Update.It will not be locked after 2 years, local diagnostic software will work for a lifetime.
11.  Five Years Warranty.We offer free aftersale service within 5 years.
12.  Compatible with X-PROG3, Heavy Duty software, X-431 TSGUN, BST360, VSP-600, ADAS, WIFI Printer etc.
13.  Topology Module Mapping Support

Detailed Information About PRO5
1.Served as J2534 ECU Programming
Now launch x431 pro5 can do ecu programming as J2534 for BMW and Benz, offering cost-effective access to data and OE programming downloads from vehicle manufacturers.
Other brands are coming soon.

2.All System Diagnosis
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
-Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
-Read & erase DTCs to locate problem areas and clear the codes.
-View Live Data of each parameter item.

The following is a list of modern vehicle systems that this scan tool can get access to:
-Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
-Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
-Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
-Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
-Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ...    and more.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

3.50+ Hot Reset & Relearn Maintenance Services
You can easily choose multiple commonly-used service functions, follow their clear and precise instructions to complete complex projects much faster, including but not limited to the following:
-Oil Maintenance Light Reset: reset the oil service lamp;     re-calculate the optimal oil life change interval.
-Steering Angle Reset: reset the steering angle to zero to keep the car running straight.
-Injector Coding: write the new injector code into the system to correct cylinder injection quantity.
-Electronic Parking Brake Reset: help replace and reset the brake pad.
-ABS Bleeding: help exhaust the air in ABS system in an easy way.
-Throttle Matching: initialize the throttle actuators to the default state.
-Battery Matching: register the battery after replacement.
-DPF Regeneration: help remove the particulate matter to keep the trap stable.
-Anti-theft Matching (IMMO Service): disable lost keys to prevent the car from being stolen, and add new keys.     *Limited in default;     can be fully upgraded with X-PROG & X-PROG3.
-Tire Pressure Reset: reset the tire pressure.
-Suspension Level Calibration: adjust the vehicle body height sensor for level calibration.
-Headlight Matching: initialize the adaptive headlamp system.
-Gearbox Matching: help complete the gearbox self-learning to improve gear shifting quality.
-Sunroof Initialization: initialize the sunroof when to be locked off, or closed.
-Tooth Learning: help to finish tooth learning after changing crankshaft in the car engine.
And many more with expanding.     Function menus vary by manufacturer, year, and model.     Reach us for compatibility check.

NOTE: *Explore more service functions by accessing menus of “Vehicle Brand -> System Diagnostics -> Special Function”.

Newly added Maintenance Service
①　Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
②　Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.
③　Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.
④　Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.
⑤　Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.
⑥　Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.
⑦　Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.
⑧　Power Balance: Compatible with Chrysler / GM / Ford etc.
⑨　Programmable Module Installation: Compatible with Ford / Mazda etc.
⑩　Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.
⑪　Cylinder Balance test/Cylinder leakage test/Cylinder Pressure variations

4.Active Test
With this diagnostic tool’s Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly, without using the vehicle’s control:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]

5.ECU Coding: Alter the Car on Your Demand
From manufacturer-specific reprogramming to full diagnostic capability, this LAUNCH diagnostic scanner also has the magic power “ECU Coding” to keep you on the cutting edge:
1)You can match, relearn, and code the newly installed ECU module after making repairs or replacements.
2)You can change the market-specific settings to activate higher-level car functions and disable unneeded features, breaking limitations.

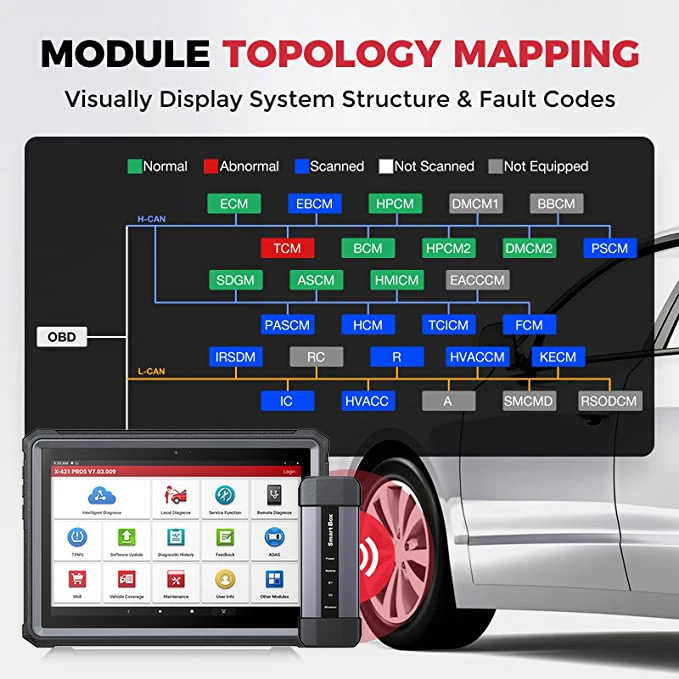

6.Topology Module Mapping Support
The Smart Topology Module Mapping in this diagnostic tool allows you to directly view the color-coded topology display for all communication structures between vehicle modules, and click to check the fault code, saving the hassle of toggling menus back and forth to find what you want.


7.Multilingual Support
Chinese Simplified, English, Traditional Chinese, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian , Finnish, Hungarian, Swedish, Turkish, Serbian, Croatian

8.Car Brands Coverage
-American Cars
Buick; Cadillac; Chevrolet; Chrysler; Dodge; Ford; GM; Hummer; Jeep; Lincoln; (BRAZIL) BX-Fiat; BX-GM

-European Cars:
Abarth; Alfa Romeo; Audi; Bentley; Benz; BMW; Bugatti; Citroen; Dacia; EU-Ford; Ferrari; Fiat; Jaguar; Lamborghini; Lancia; LandRover; Maserati; Maybach; Mini; Opel; Peugeot; Porsche; Renault; Rolls-Royce; Rover; Saab; Seat; Skoda; Smart; Sprinter; Vauxhall; Volvo; VW; (UKRAINE) ZAZ; (RUSSIA) GAZ; VAZ

-Asian Cars
(JAPAN) Acura; Daihatsu; Honda; Infiniti; Isuzu; Jpisuzu; Lexus; Mazda; Mitsubishi; Nissan; Nissan GTR; Scion; Subaru; Subaru; Suzuki; Tlisuzu; Toyota; (KOREA) Daewoo; Hyundai; KIA; Samsung; Ssangyong; (CHINA) Baic; Beijing; Changan; Changan-Ford; Changcheng; Changhe; Chsuzuki; DF Peugeot; DF Honda; DF Nissan; DF XK; Flyer,BYD; Fukang; Futian,Foton; Geely; Gonow; GZ Honda; Hafei; Haoqing; HC BMW; Hmada; Huachen; Isuzu,JMC; Jacty; Jianghuai; Jiao; Jinlong; Joylong; Lifan; Liuwel-TY; Luxgen; NJ Fiat; Qirul-TY,chery; Qoros; Saicmg; Spark-TY; TJ Toyota; Trumpchi GAC; Weili; Xiaokang Dongfeng; Xili,Faw Tianjin; Xinkai; YQ Mazda; Zhongshun; Zhongtai,Zotye; Zhongxing; (INDIA) Mahindra; Maruti; Tata; (MALAYSIA) Perodua; Proton; (IRAN) MVM

-Australian Cars
Au-Ford; Holden

More car models, please contact us for details.

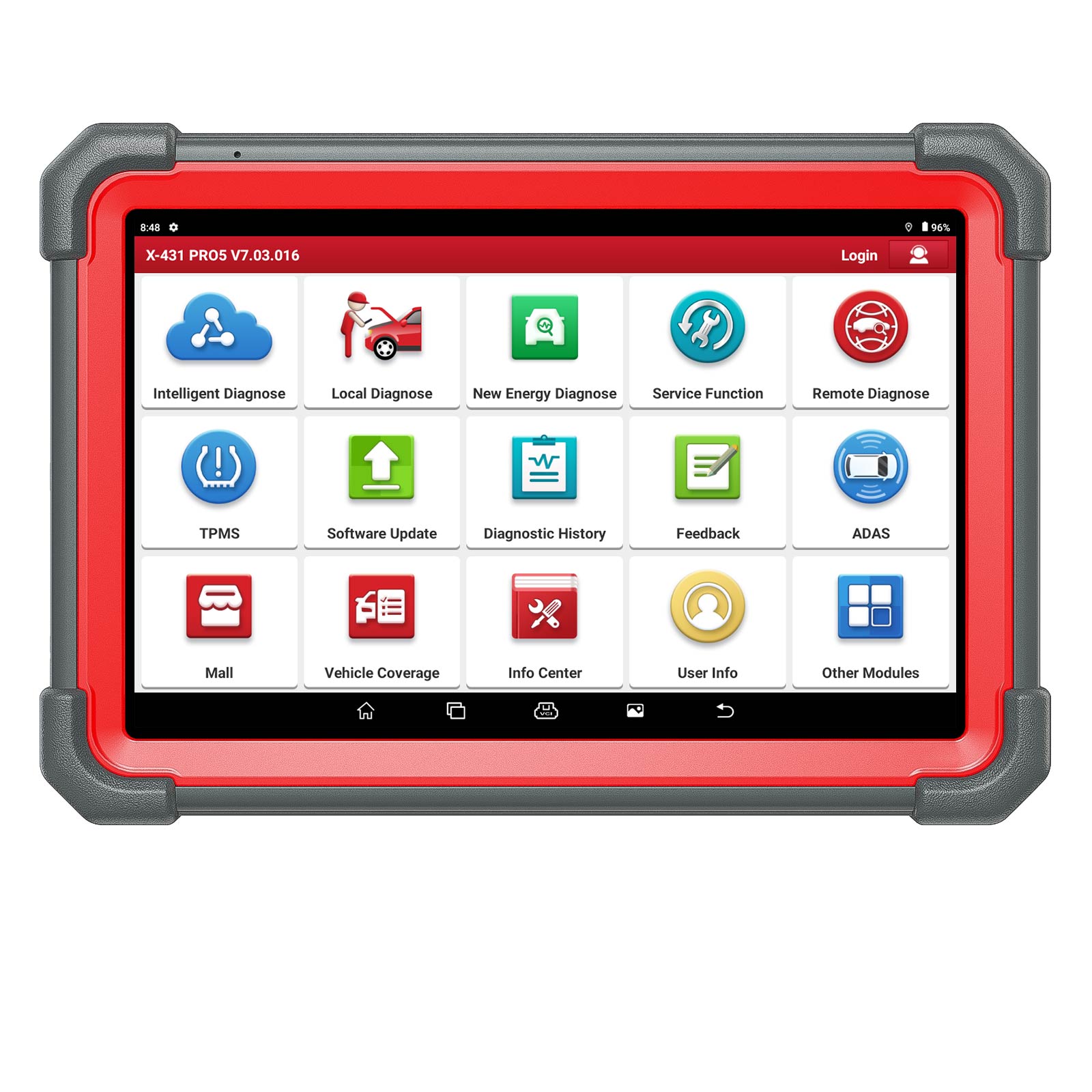

9.Specification for Launch X431 PRO5 Tablet
Display: 10.1-Inch ，1280x800 FHD IPS
CPU: 8-Core Processor, 2.0GHz
Camera: 800 pixels Rear
WI-FI: 2.4GHz /5GHz
OS: Android 10.0
RAM: 4G, ROM 64G
Battery： 6300 mAh / 3.8V
Operating voltage: 9~36V
Storage Temperature:-20℃~70℃ (-4℉~158℉)
Working Temperature:0℃~50℃ (32℉~122℉)
Dimension: 274x190.5x39.5(mm)

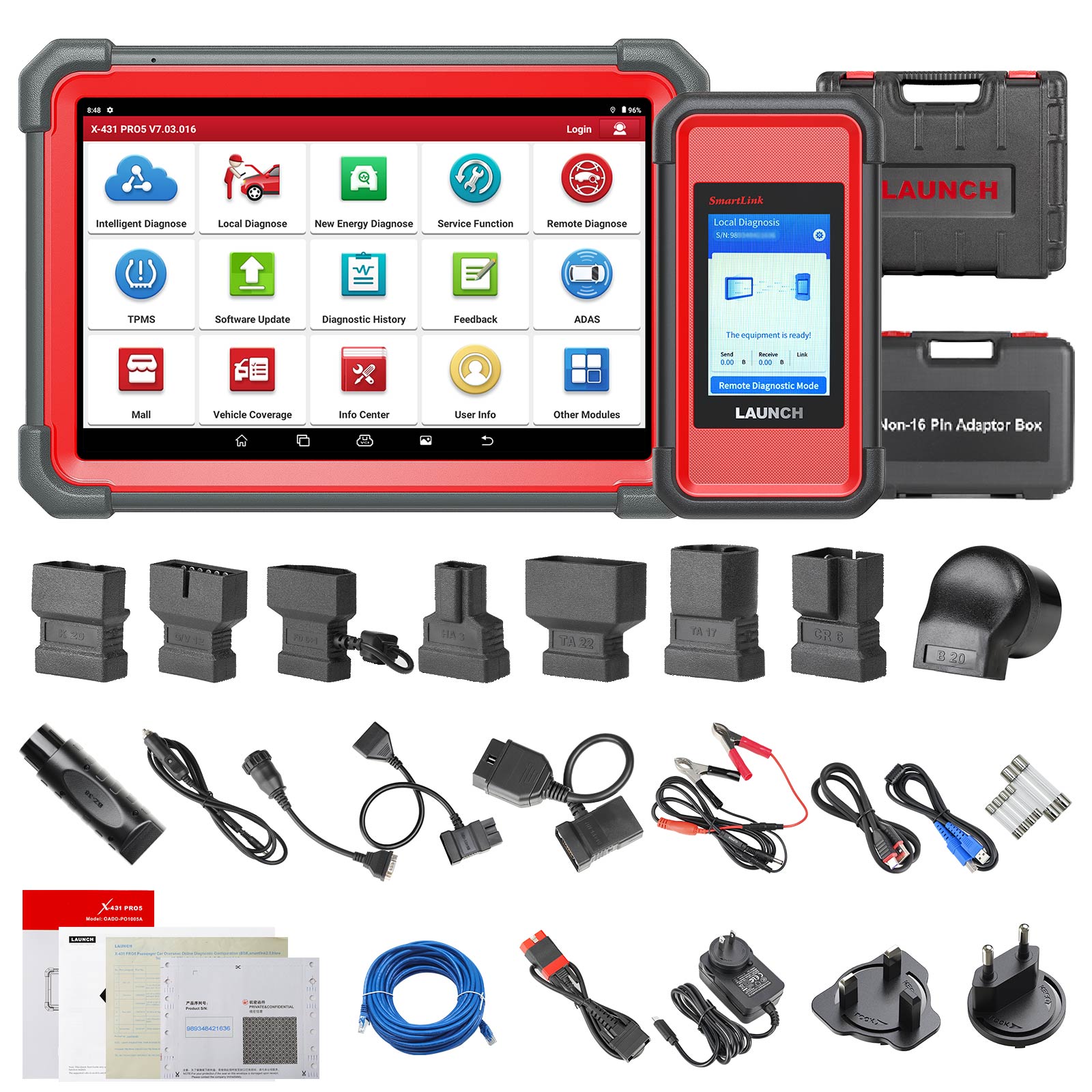

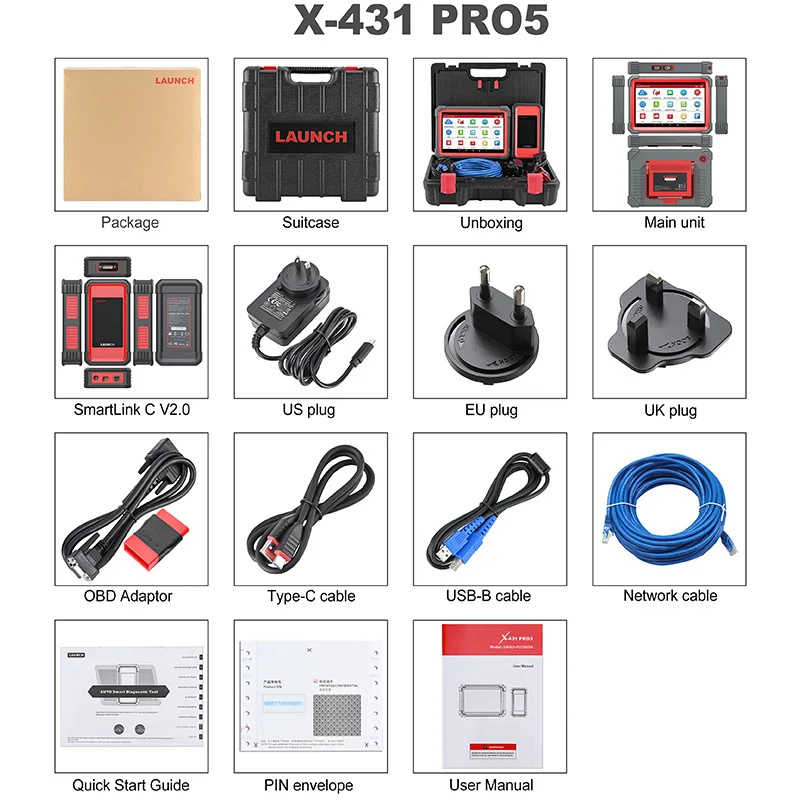

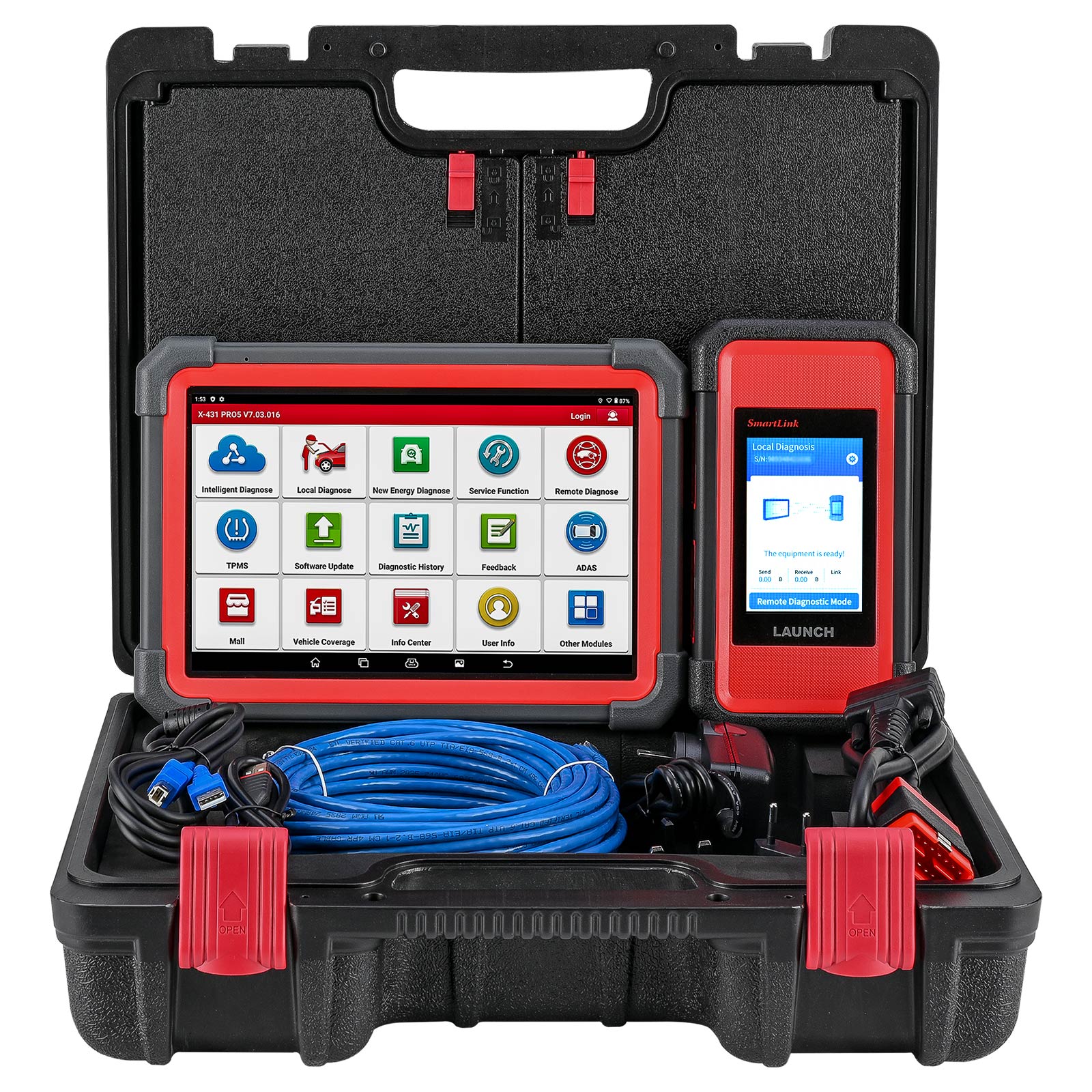

Package Includes:

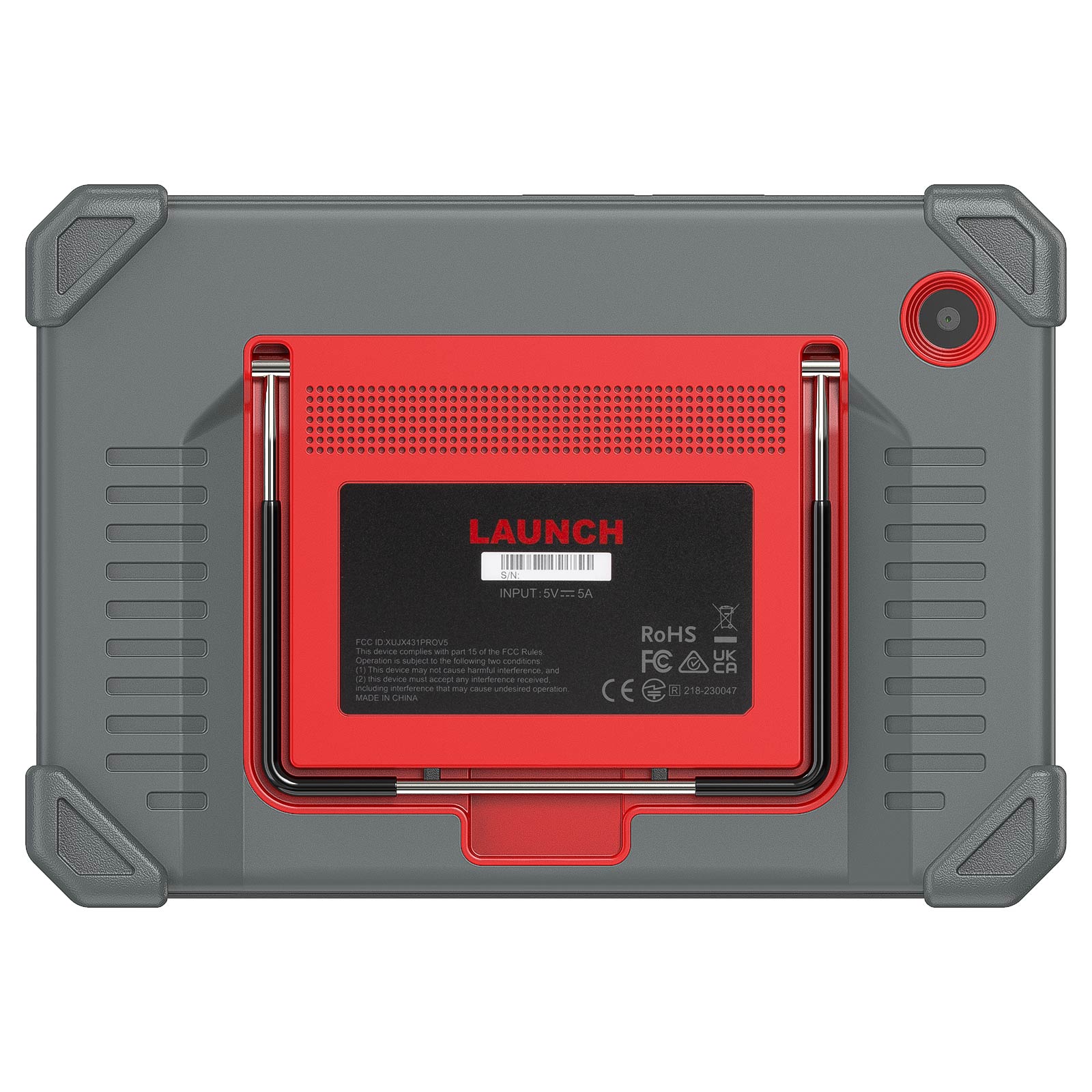

1pc x X431 PRO5 tablet

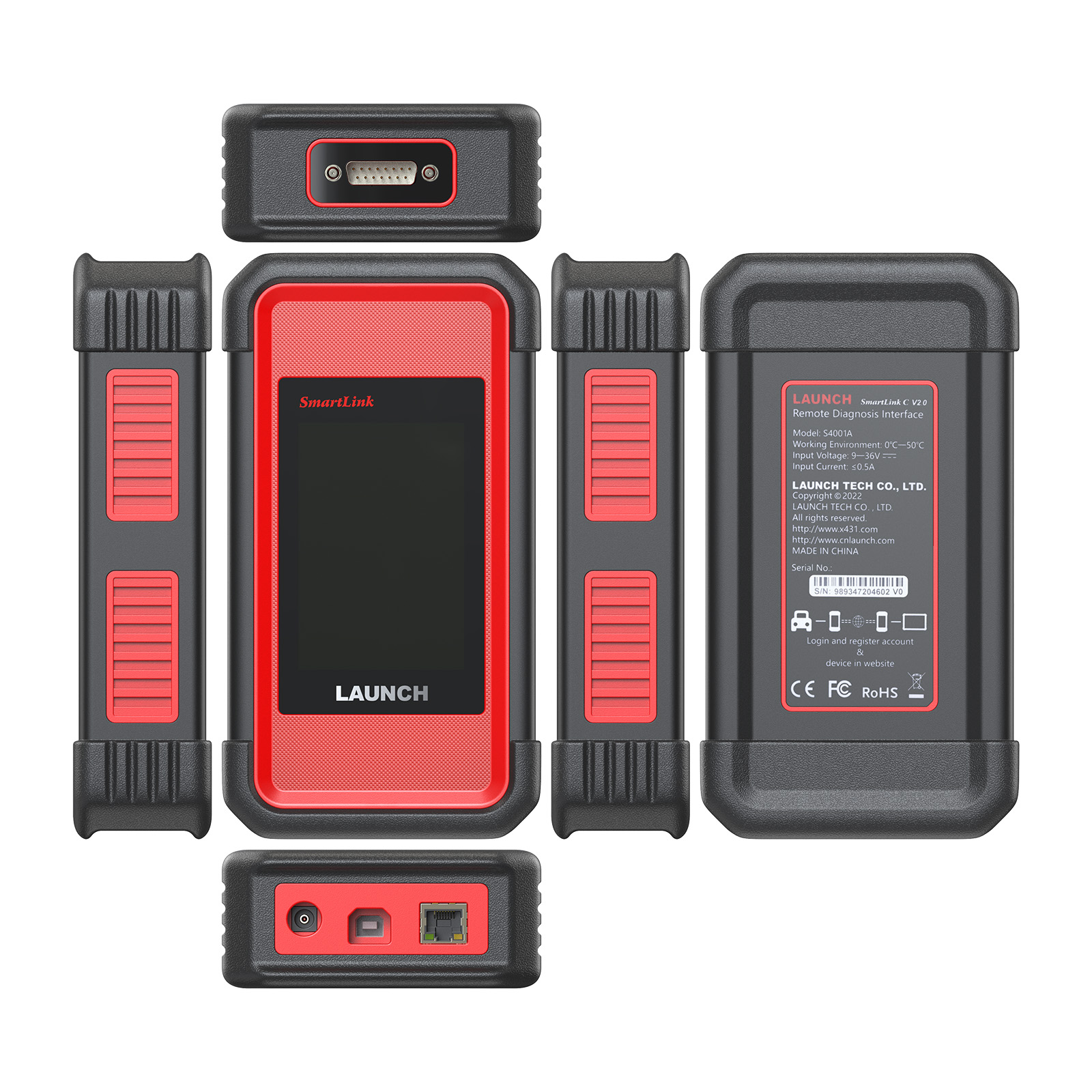

1pc x SmartLink C 2.0 device
1pc x US plug
1pc x EU plug
1pc x UK plug
1pc x OBD adapter
1pc x Type-C cable
1pc x USB-B cable
1pc x Ethernet cable
1pc x quick start guide
1pc x PIN envelope
1pc x user manual



Check detail comparison table:

Item	Model	X431 PRO5 Smartbox 3.0	X431 PRO5 SmartLink 2.0
Hardware Configurations	CPU	8-Core Processor, 1.8 GHz	4-Core Processor, 2.0 GHz
	ROM	64G	64G
	RAM	4G	4G
	battery capacity	7000 mAh / 3.8V	7000 mAh / 3.8V
	Android version	Andorid 9.0	Andorid 10.0
	Screen Size	10.1-Inch	10.1-Inch
	Screen resolution	1920*1200	1280*800
	Wi-FI	2.4GHz /5GHz	2.4GHz /5GHz
	Camera	Rear 8.0MP, Front 5.0MP	Rear 8.0MP, Front 5.0MP
	Type C	No	Yes (connect X-prog3, X431 key programmer, i-TPMS directly)
	Remote Communication	Local Diagnosis: WiFi/BT/USB	Local Diagnosis: WiFi/BT/USB SmartLink Remote Diagnosis: WiFi/Ethernet
	VCI	Smartbox 3.0	SmartLink 2.0
	Dual mode diagnosis	Local diagnostics	Local diagnostics Remote diagnostics
Main Features	Basix Functions (Read & Clear the codes and data stream)	√	√
	Service Function	31	31
	Full System Diagnosis	√	√
	Active test	√	√
	Auto VIN	√	√
	SCAN VIN/License	√	√
	Remote Desk	×	√
	Diagnostic Topology Display	√	√
Online Programming	Benz	√	√
	BMW	√	√
	VW, Audi, Skoda, SEAT	×	×
	Porsche	×	×
	Land Rover	×	×
	Jaguar	×	×
	Renault	×	×
	Nissan	×	×
	Subaru	×	×
	Infiniti	×	×
	Hyundai	×	×
	Kia	×	×
Online Parameterization	VW	×	×
	Audi	×	×
Online Coding	BENZ (SCN)	√	√
	BMW	√	√
	VW, Audi, Skoda, SEAT	√	√
	Porsche	√	√
	Renault	×	×
Online FFS Activation	VW, Audi	√	√
Online Calibration & Matching	VW, Audi	√	√
Guided Function	VW, Audi, Skoda	√	√
Offline Programming	Ford	√	√
	Mazda	√	√
	Vauxhall	√	√
	Opel	√	√
Flash Hidden Function	Benz	√	√
	BMW	√	√
	VW, Audi, Skoda, SEAT	√	√
	Porsche	√	√
	Jeep	√	√
	Dodge	√	√
	Chrysler	√	√
	Toyota	√	√
	Honda	√	√
Repair Data	Benz	×	×
	BMW	×	×
	VW, Audi	×	×
	Porsche (11-)	×	×
Add-on Tools	Diesel Vehicle Diagnosis(HD)	√	√
	ADAS License	√	√
	TPMS(TSGUN)/iTPMS	TSGUN √, i-TPMS No	√
	X-PROG 3	√	√
	Battery Tester	√	√
	Oscilloscope	×	×
	Endoscope	√	√
Protocol Supported	Diagnostic Protocols: D-PDU/J2534/RP1210	√	√
	Bus Protocols: DoIP/CAN FD	√	√
Subscription Fee	Tesla License	√ (Optional)	√ (Optional)
	FCA Secure Gateway	√	√
	Upgrade	2 Years Free Update	2 Years Free Update
Languages	Software Languages	English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch,  Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, Czech	English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch,  Greek, Hungarian, Arabic, Danish, Korean, Persian, Romanian, Serbian, Finnish, Swedish, Czech
	User Manual Language	English	English
