Autel MaxiTPMS TBE200E Tire Brake Examiner 2022 Newest Laser Tire Tread Depth Brake Disc Wear 2in1 Tester Work with ITS600E


Autel MaxiTPMS TBE200 (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate (measuring accuracy of 0.1 mm) wear measurements. Measure tread depth/brake disc wear without removing wheels.

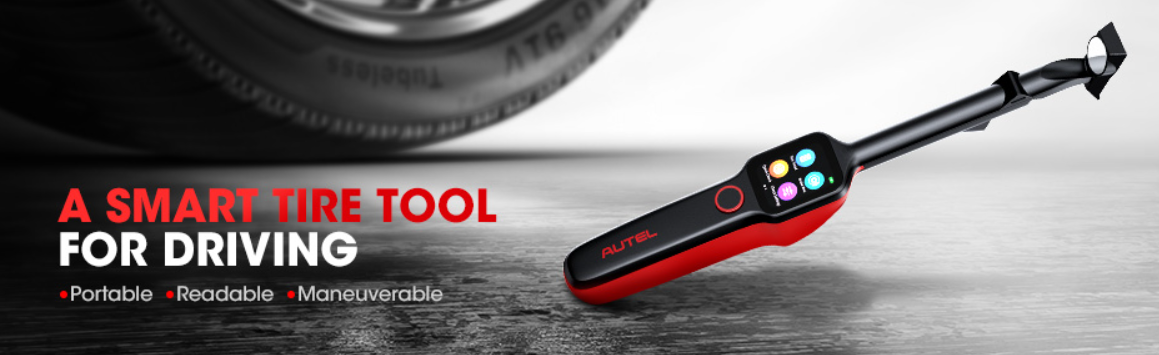

It's a wand-like, laser-enabled device that scans tire and brake disc surfaces to determine the condition and need for service or replacement. The TBE200 provides wear analysis and displays the analysis and service recommendations on its 1.65-inch-high resolution Super Retina touchscreen AMOLED display. The full-color graphical display illustrates wear and provides service recommendations, including tire and brake disc replacement, tire rotation, and 4-wheel alignment.


Autel TBE200E TPMS Functions
1. Real-time measurement data on touchscreen
2. Measurement data curve display
3. Uneven wear analysis
4. Test detail for single tire tread/brake disc
5. Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
6. Scan DOT, tire expiration notice, tire recall lookup
7. Take photos of tire wear & damage
8. Lifetime free update online

Laser Measurement
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during the measurement
• Laser measurement with 0.1mm accuracy
• Full tread measurement
• Quick Check both tread depth & brake disc

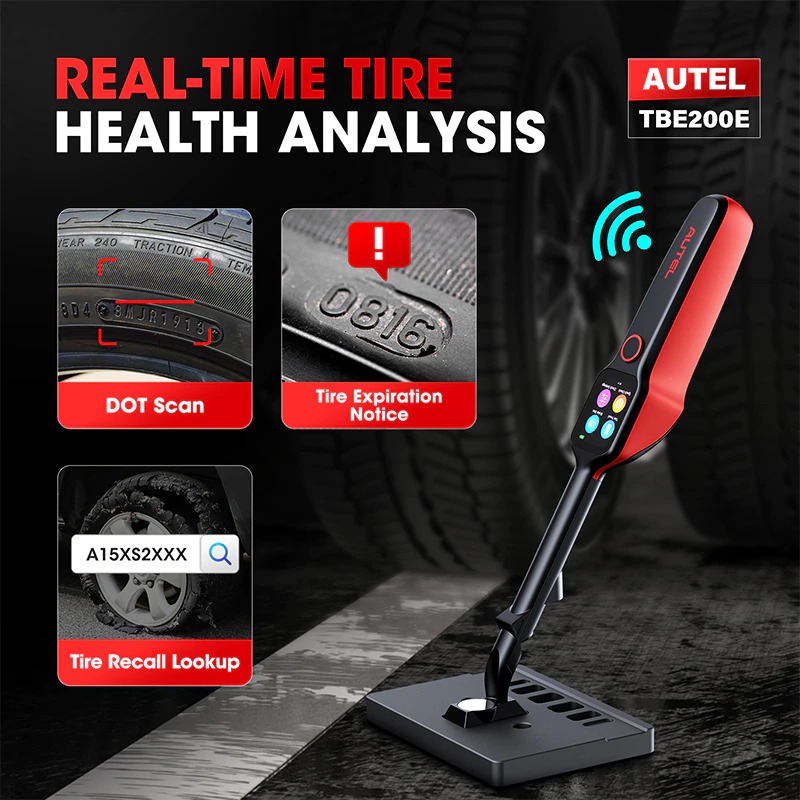

Real-Time Tire Health Analisis
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for single tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
• Scan DOT, tire expiration notice, tire recall lookup
• Take photos of tire wear & damage


Working with Autel TPMS Relearn Tool ITS600 (E), Autel MaxiTPMS TBE200 (E) tire tread scan tool can get the most comprehensive Test Reports and professional tire maintenance tips for almost all the tires on the market.

Comprehensive Test Report
• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
Autel MaxiTPMS TBE200 (Tire Brake Examiner) brings tire and brake disc inspection into the modern age with quick and accurate (measuring accuracy of 0.1 mm) wear measurements. Measure tread depth/brake disc wear without removing wheels.



It's a wand-like, laser-enabled device that scans tire and brake disc surfaces to determine the condition and need for service or replacement. The TBE200 provides wear analysis and displays the analysis and service recommendations on its 1.65-inch-high resolution Super Retina touchscreen AMOLED display. The full-color graphical display illustrates wear and provides service recommendations, including tire and brake disc replacement, tire rotation, and 4-wheel alignment.

Tire Tread Depth & Brake Disc Wear Meet Your Needs


Tire Tread Depth:
Using laser technology, the Tire Tread application analyzes the wear of the tires on vehicles with no need to remove the tires. Place the tool on the tire, and the tool projects a laser beam. The wear measurement is then sent to the display screen with an accuracy within 0.1mm. Measurements are also displayed graphically. The Tire Tread application provides two types of checks: “All Treads” and “Single.” When using this application, a message will display prompting user to choose between the current mode the alternative one.

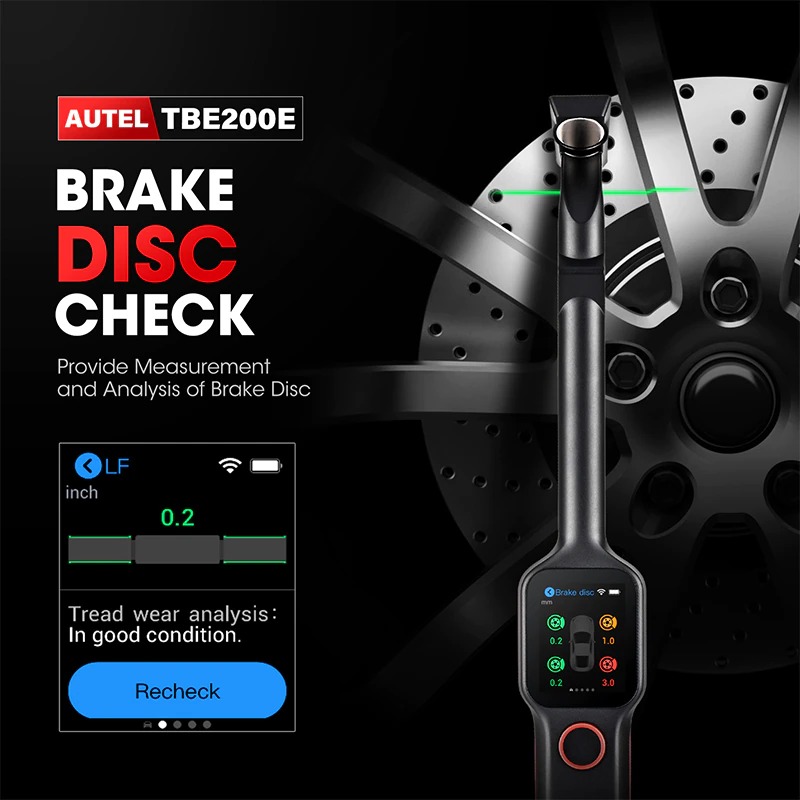

Brake Disc Check:
This function allows the Brake rotor surface wear to be measured independent of the tire tread depth measuring functions. In the order displayed on the tool. Place the tool’s magnetic tip on the rotor 90 degrees so the laser will span from the hub and the edge of the disc. Swiping left will display the information for each brake rotor. 0.1 refers to the amount of surface wear on the brake rotor. 1/10TH of a millimeter. The typical threshold for replacement is 1.0 mm of material worn off the surface. These rotors are in great condition.

Wear Analysis
After diagnose Tire Tread and Brake Disk, the TPMS tool TBE200(E) can quickly and accurately analyse tire wear data and intuitive reflect on the screen. 4 different colors represent corresponding grade:
 Unchecked
 Normal
 Replacement recommended
 Replace immediately.

Technician can take different measures based on different tire health condition and to ensure vehicle driving safety.

Auto Scan & Manually DOT Scan
 Autel tire tread depth examiner TBE200(E) provides 2 ways to acquire Tire DOT (Department of transportation):
 Auto Tire Scan: scan Tire Identification Numbers (TINs) with the cameras.

Input tire DOT series number manually. Enter the DOT to obtain detailed tire characteristics such as tire recall (American region only) and tire age, etc.

Tire Type Setting
Autel brake disc examiner TEB200(E) offers 3 tire types: Summer, Winter, and All Season. Select a tire type. A check mark will display to the left of the active selection. Right beneath each tire option is the tire wear limit with the default value of 1.6–3.2 mm. Tap the arrow icon at the lower-right corner of the tire option bar to change the tread wear limit.

Lifetime Free Updates, 19 Language Menus
Autel tire tread depth scan tool MaxiTPMS TBE200 (E) comes Lifetime Free Software Updates, and 7/24 after-sales online Support. It also supports 19 kinds of languages, universal for every native speaker. I you need Spanish or ANY other language, please send us the S/N, we’ll authorize your target language for free.

System Calibration
Autel tire tread tester TBE200 (E)come with a System Calibration Base, which is used to calibrate your examination tool for optimal measuring results. Calibration is recommended every two month. Immediate calibration should be performed when deviations are detected or when the tool is dropped or mishandled in any manner.

Data Query
What if I want to check the previous tester records? Connect the brake disc wear examiner TBE200 (E) with Autel ITS600 (E)/ITS600 Pro TPMS reset tool, check the “Data Query”, you will be available to check previous stored measurements, they will be displayed on the tablet screen automatically.

Autel TEB200E Universal Tire Tread Tester: Covering 99% of tires in the market.
Autel maxitpms tire tread and brake disc wear examiner TBE200 (E) is compatible with 99% vehicle tires on the market including:

 all types of passenger cars
 commercial vehicles (trucks, heavy trucks, buses)
 off-road vehicles
 motorcycle
 more



With this distinguished laser tire health diagnosis tool, you can figure out all the questions about the tire and to ensure safe driving all the time.

Easy to Use-Autel MaxiTPMS TBE200, A good helper for Your Vehicle Tire Autel MaxiTPMS TBE200 one-button operation, easy to use.



STEP 1: Long press the power button to turn on the tool.

STEP 2: Perform Tire Tread Check: On the Main Job screen, tap the Tread Check icon, and place the tool on the tire surface. Short press the power button. Ensure the laser line is perpendicular to the channels of the tire. The screen will display real-time measurement data, slide left to view details.

STEP 3: Possible Results for Measurements: Wear status is represented by icon color: A gray icon indicates the tire is untested; green indicates the tire is in good condition

Autel TBE200E Specifications:
Recommended Use Indoor
Processor 4x ARM Cortex-A35 (1.5 GHz
Memory 1GB RAM LPDDR3 & 4GB ROM
Display 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
Sensors CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio input/output Output: Beep
Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
Tested Battery Life Around 8 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.
-10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight 188 g (0.41 lb.)
Warranty & Update 1-year Free Update & Warranty

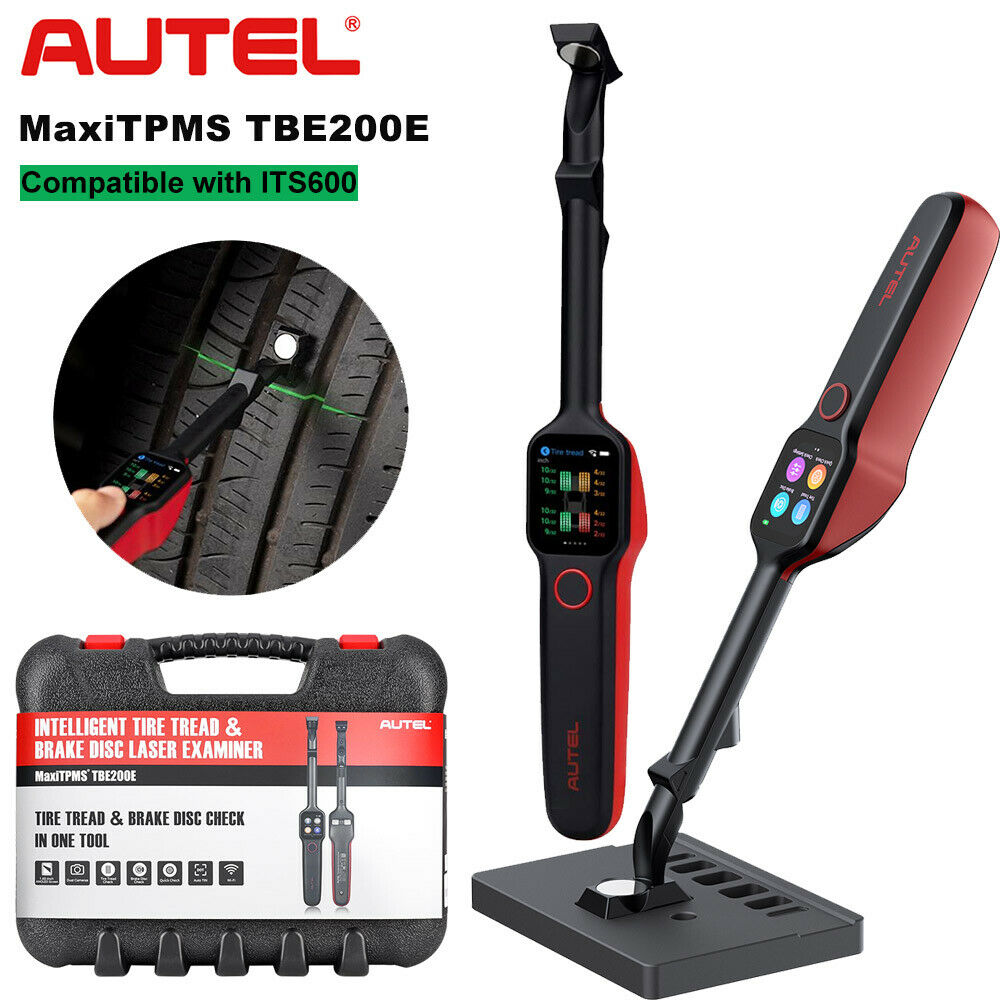

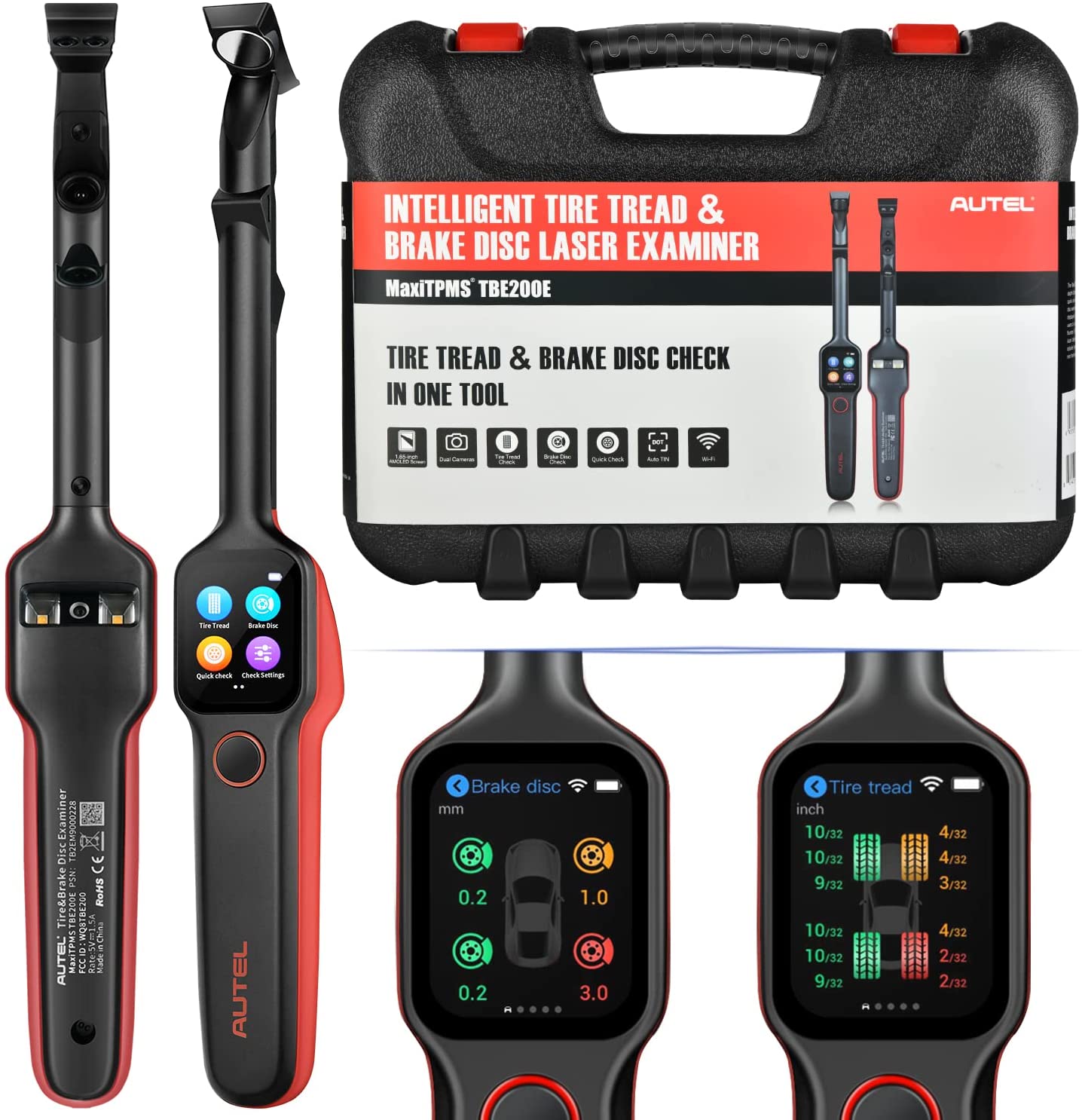

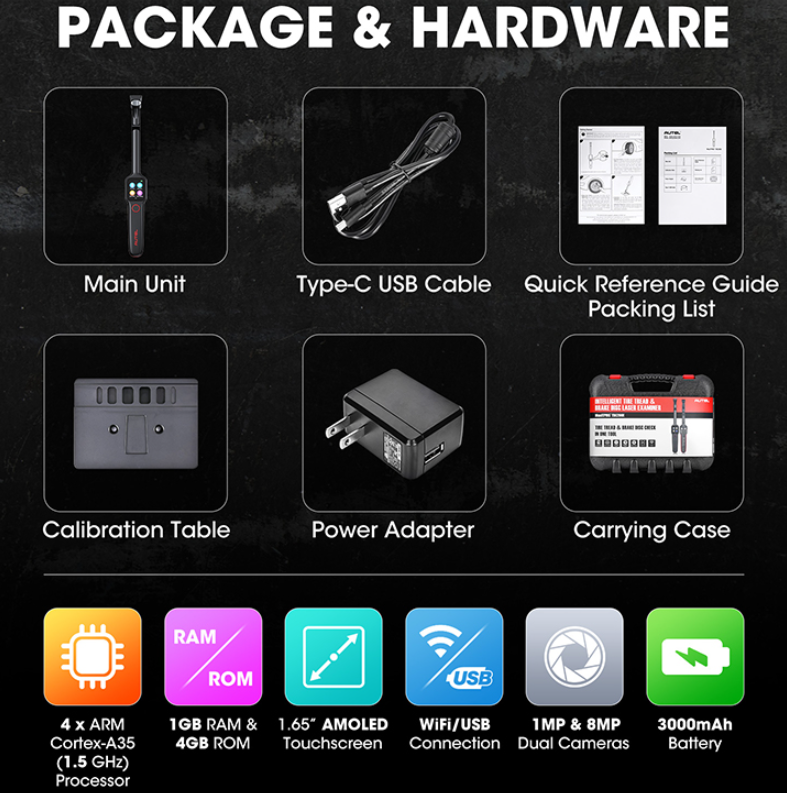

Autel MaxiTPMS TBE200E Package:

1. Autel MaxiTPMS TBE200E * 1

2. Calibration Table * 1
3. Power Adapter * 1
4. Type C USB Cable * 1
5. Quick Reference Guide * 1
6. Packing List * 1

7. Carrying Case * 1
