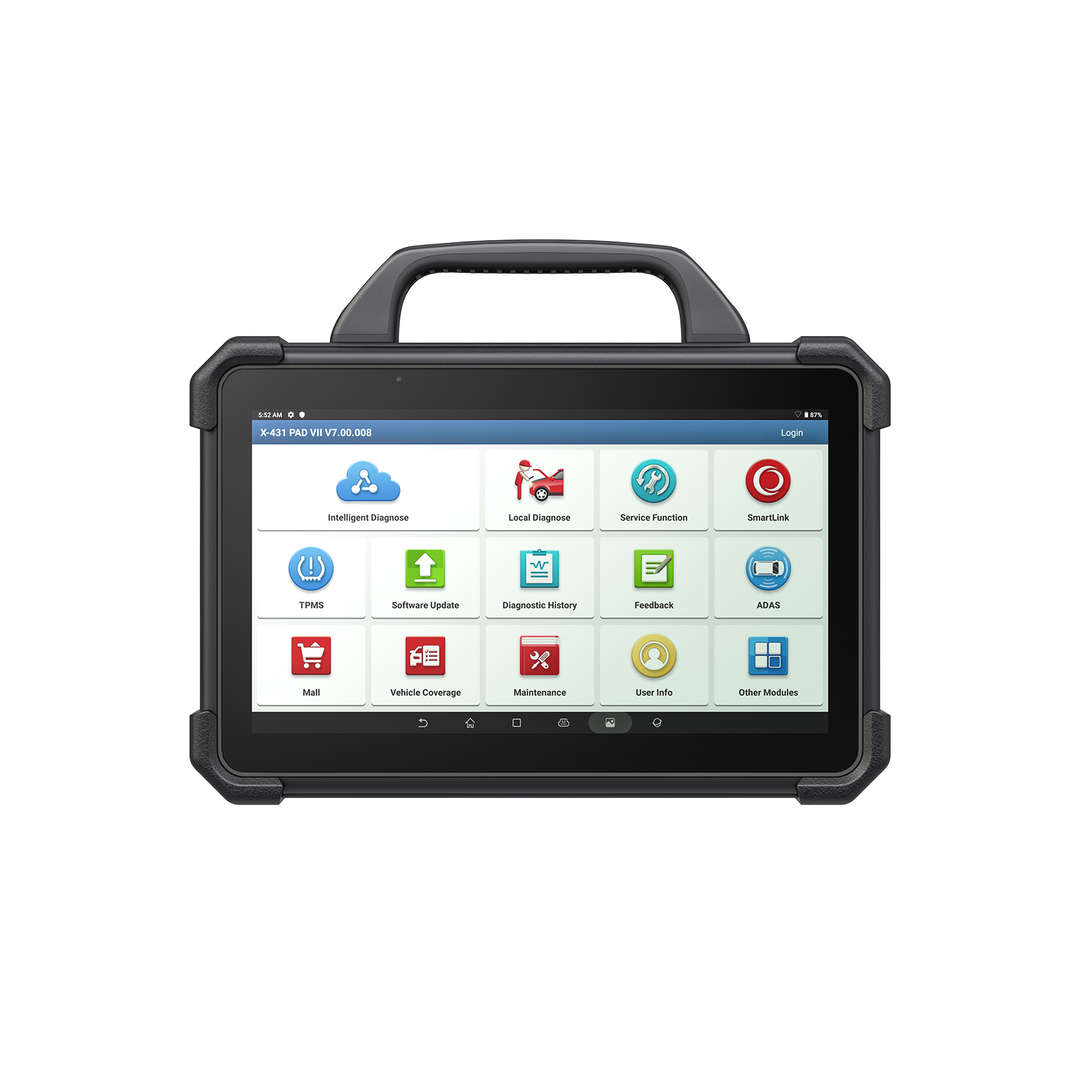

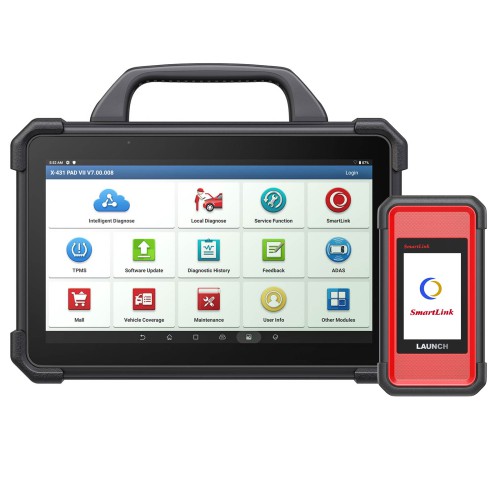

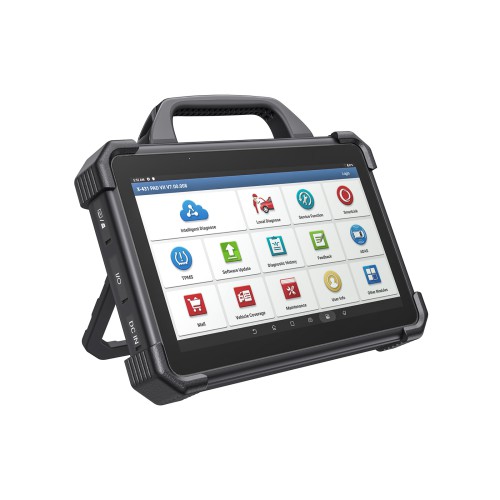

Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool Support Online Coding Programming and ADAS Calibration


Customer Feedback:
It has nice functions, it did things for me on Mercedes especially the online scn coding and variant coding is great much more than im608. Also on old Volkswagen I could never read DTC from it with im608 or other tools but pad 7 do it easy.

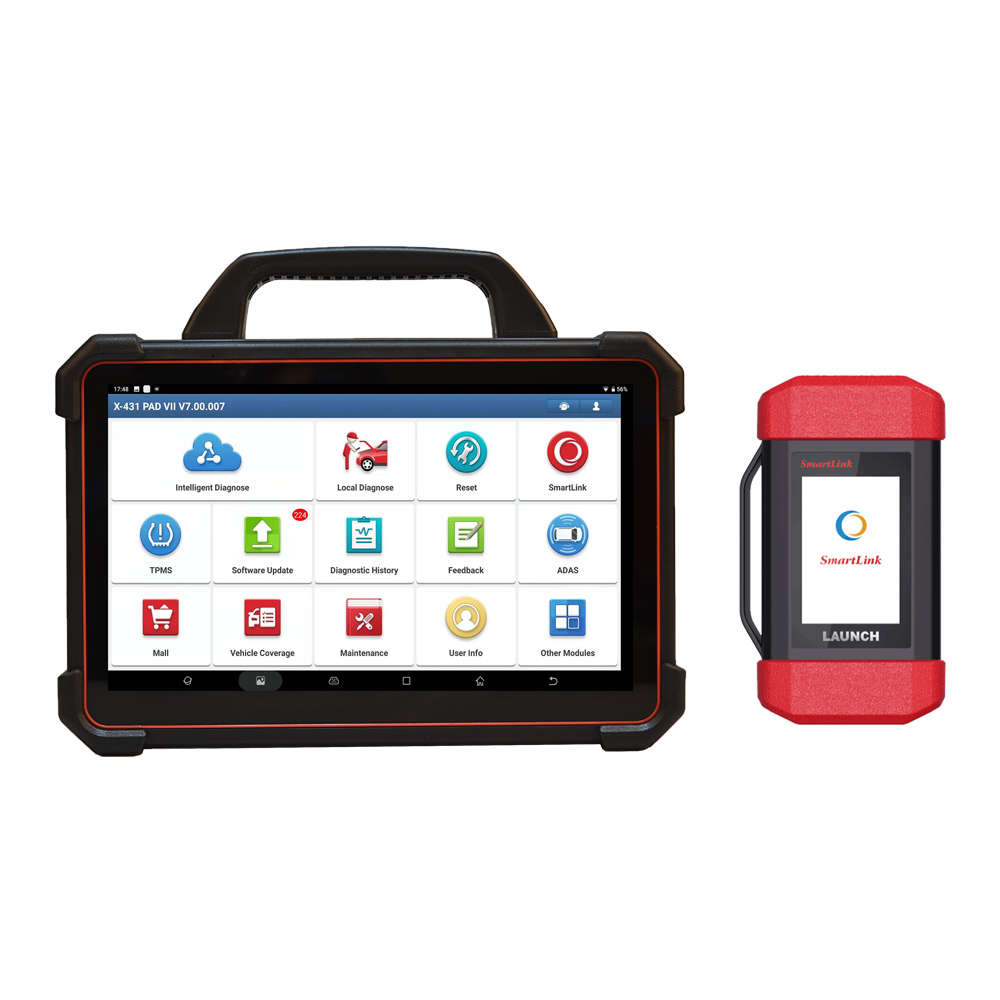

Launch X431 PAD VII Elite is an unexpected high-end professional diagnostic tool with LAUNCH Innovation technology, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions such as videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types. X431 Pad V II offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software.

Highlights:
1. With 2 Years Free Update Online (Register after Oct 1st, 2022). After 2 Years, Please buy Update Service.
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S, Asian and European markets over 110 brands, which is continually updated
7. 32 Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.
9. Guided Function for VW and AUDI
10. Support ADAS calibration Function and Eight Extended Mudule: videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester.
11. Build-in repair information and training video modules help to track and fix issue fast.

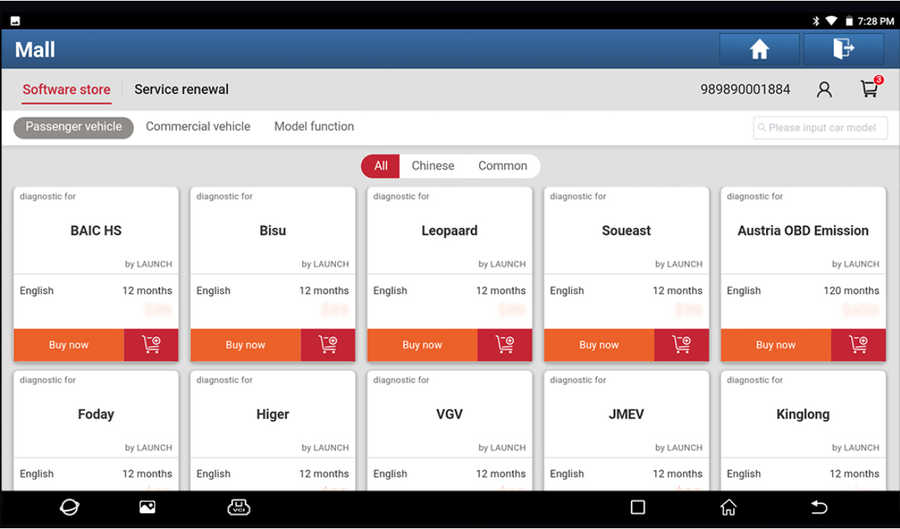

12. Upgrade and expand the X-431 PAD VII Elite with more software and service via the new module 'MALL' as demanded

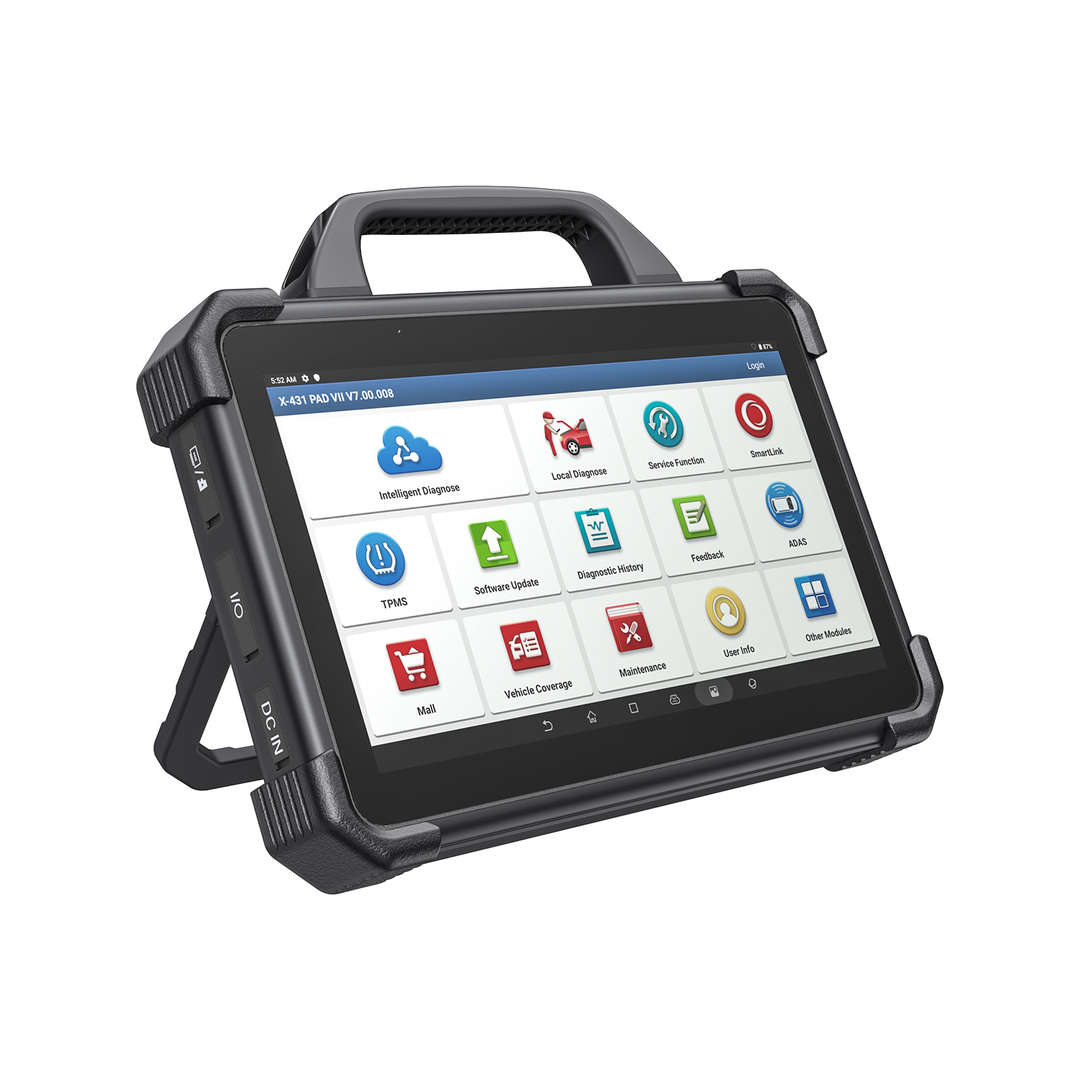

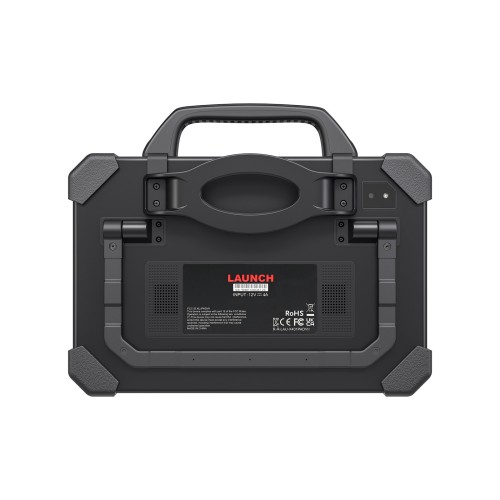

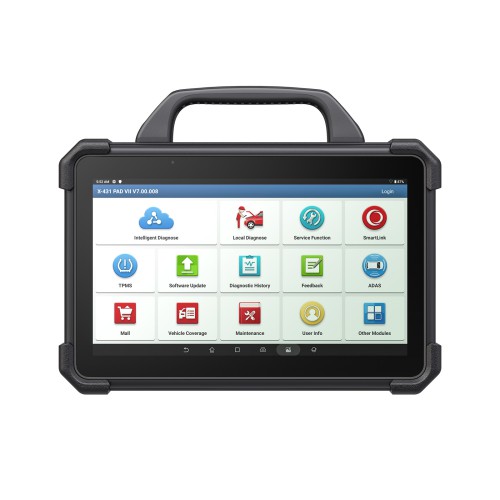

Superior Hardware Make Diagnosis Faster Than Ever
Launch X431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.


Launch X431 Pad VII Elite Functions:

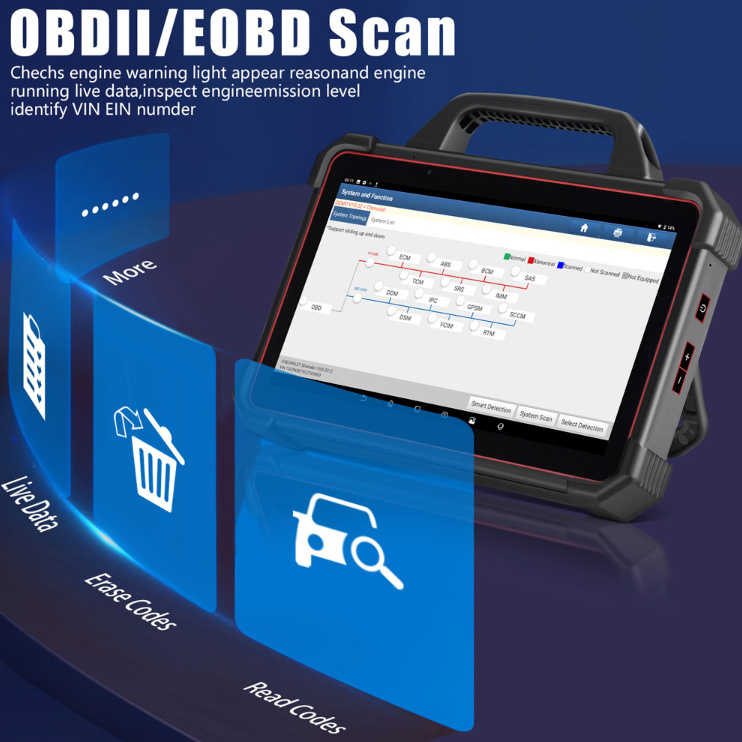

1. ALL System Diagnosis
Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly


BI-Directional Control [Active Test]


Check the DTCs and all systems communication status visually by topology module mapping function

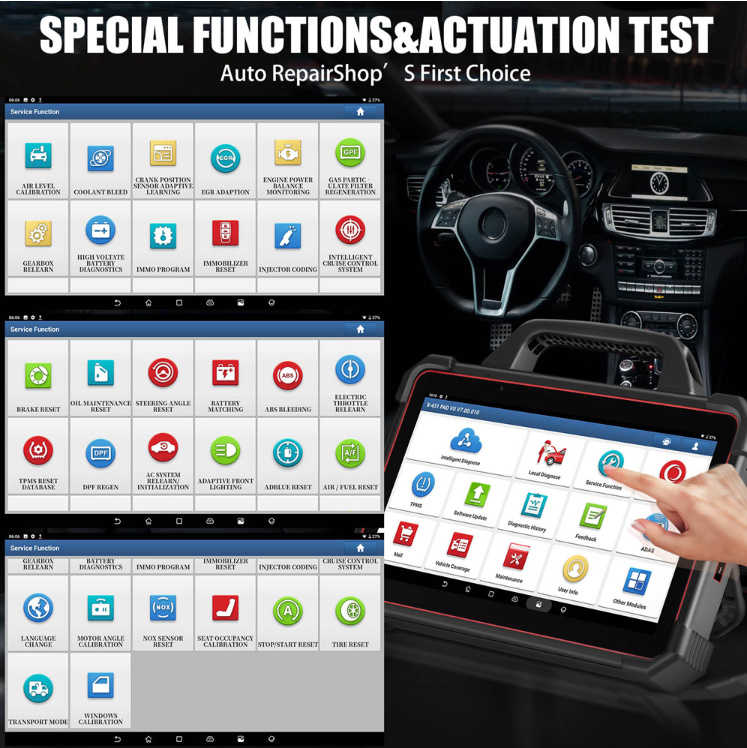

2. 32 Service Functions:
Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change

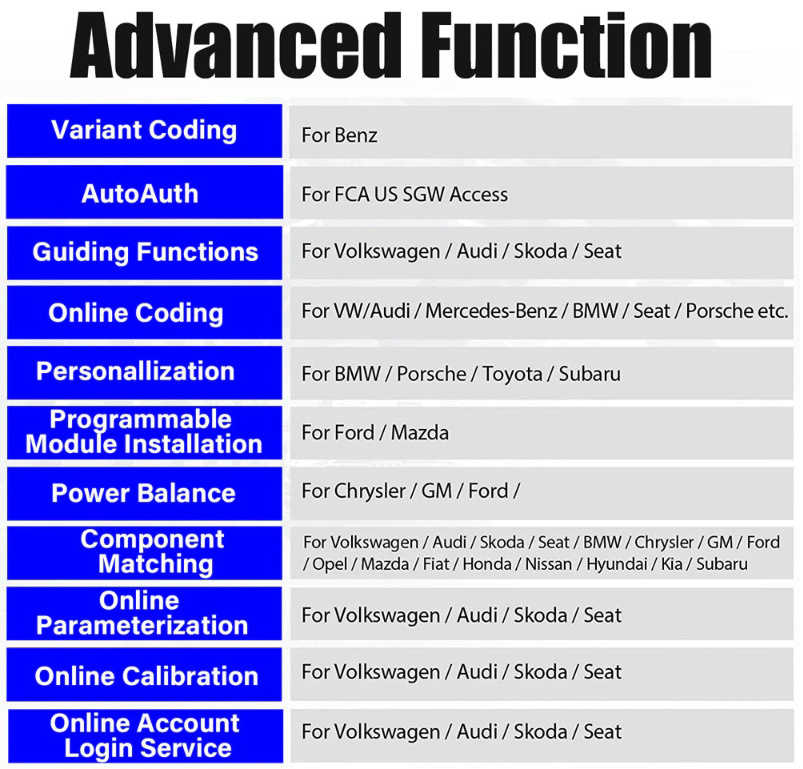

3. Advanced ECU Coding and Online Coding
J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service


4. ADAS calibration Function and Extend 8 Module Functions
Optional ADAS calibration function increases more revenue.

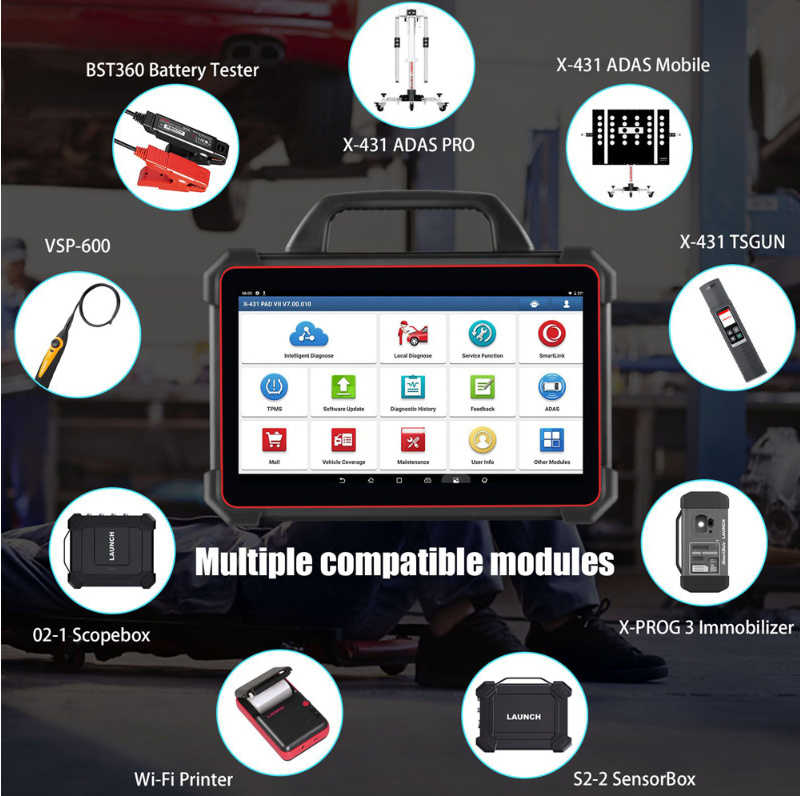

X431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester.  With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters,

please notice
1.  X431 VSP-600 Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
2.  X431 TSGUN (Not only can you use it to activate the sensor's ID, tire pressure, sensor frequency, tire temperature, and battery status;  you can also program sensor data to a blank LAUNCH brand sensor in three ways: Auto, Manual, and Activation Copy;  at the same time, you It can be used to write the newly programmed sensor ID to the vehicle ECU.)
3.  X431 X-PROG III(IMMO For VAG Group Above 3.5,advanced immobilizer & key programmer)Vehicles that require cloning are not compatible with this accessory
4.  X431 ADAS Moblie/ADAS PRO (Calibrate a wide range of camera-based & radar-based driver assistance systems)
5.  X431 Printer (Print out diagnostic data/reports.)
6.  X431 BST360 Battery Test. (For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
7.  S2-2 Sensor Box.  (Designed to test and simulate most vehicle sensors.  quickly troubleshooting the ECU)


5. More Advanced Functions:


Available Buy LAUNCH IMMO Function Authorization. Activate IMMO Plus function To Launch X431 PAD VII Elite

Launch X431 PAD VII Elite Vehicle Coverage:

Passenger Vehicles:
1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

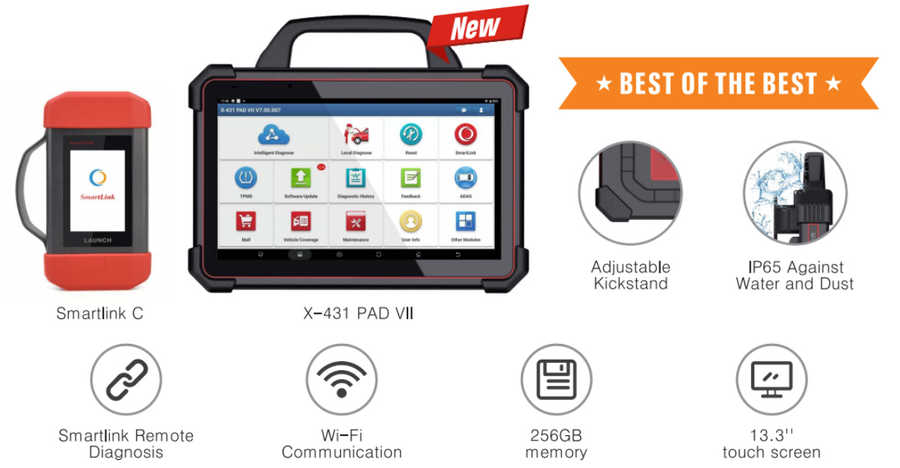

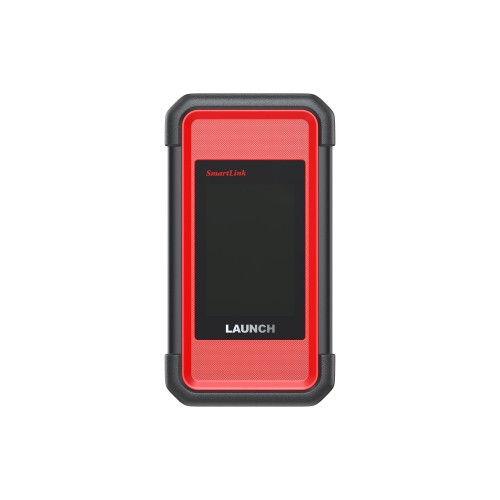

Smartlink C VCI

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

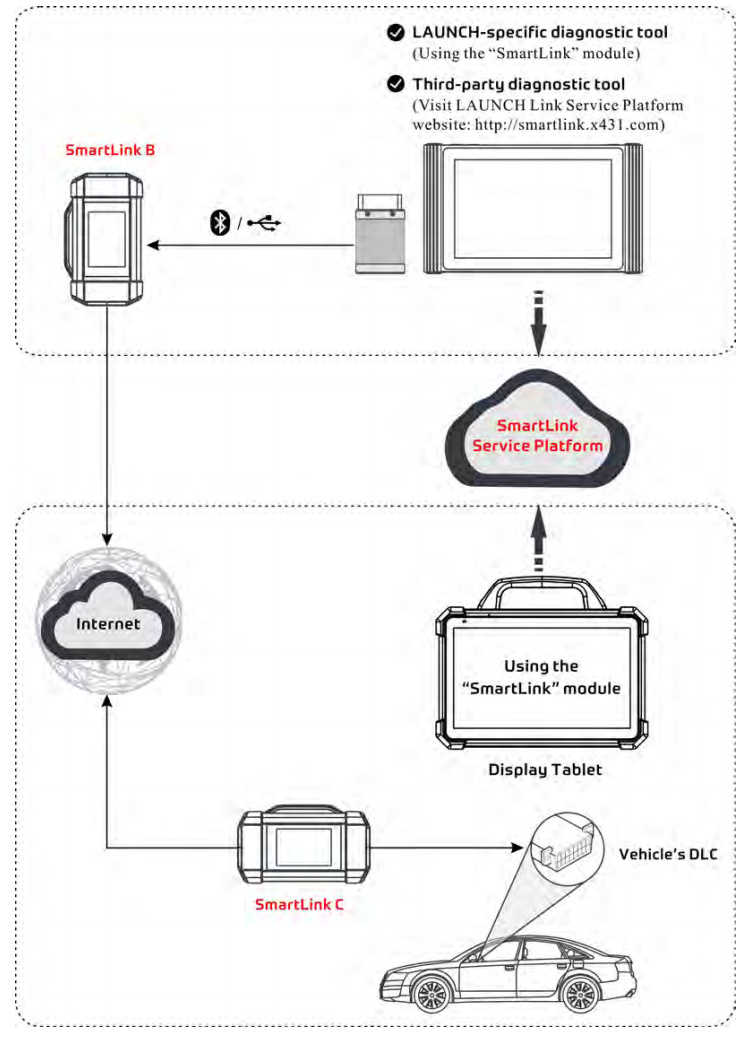

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.

It mainly consists of the following parts:

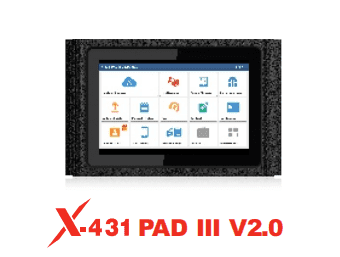

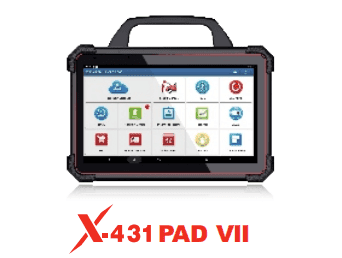

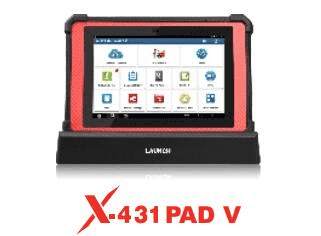

Comparison Table for Launch X431 PAD VII, PAD V and PAD III V2.0:

	Launch PAD III V2.0	Launch PAD V	Launch PAD VII Elite
				Configuration
Display	10.1'' / IPS 1920*1200	10.1'' / IPS 1920*1200	13.3''  / 1920 x 1080 IPS
CPU	2.0GHz Octa-core	2.0GHz Octa-core	2.0GHz Octa-core
Memory	2 GB	4 GB	8 GB
Storage	64 GB	64 GB	256 GB
Camera	8MP Rear + 2MB Front	13MP Rear + 8MB Front	13MP Rear + 8MB Front
VCI Connector	DBScar IV	Smartbox 3.0	Smartlink C
VCI Connection	Bluetooth	2.4GHz & 5GHz dual WiFi	2.4GHz & 5GHz dual WiFi
Battery	15000mAh	9360mAh	71.1Wh (≈19000mAh)
Adjustable Supporting Holder	●	●	●
IP65 Waterproof & Dustproof		●	●
Quick Charge Technology		●	●
Charging Station		●
PUSH PUSH Design Size (mm)	317 * 202 * 53	320 * 211 * 46	353 * 236 * 71
FEATURES
Operating System	Android™ 5.1.1	Android™ 7.1	Android™ 9.0
Full System Diagnosis	●	●	●
OBD II Full Function	●	●	●
Tech-to-Tech Remote Diangosis	●	●	●
Smartlink Remote Diagnosis			●
Auto VIN Identification	●	●	●
Bi-Directional Control	●	●	●
Advanced Coding	●	●	●
VW & AUDI Guided Function	●	●	●
J2534		●	●
DoIP		●	●
RP1210/D-PDU		●	●
Advanced Programming	●	●	●
Complete TPMS Service	with X-431 TSGUN	with X-431 TSGUN	with X-431 TSGUN
Advanced Key Programming	with X-PROG 3	with X-PROG 3	with X-PROG 3
ADAS Calibration	Optional	Optional	Optional
Software Upgrade	WiFi	WiFi	WiFi
Vehicle Coverage	Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)	Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)	Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)
Service Functions	21	26	32 by local diagnosis Get More by Smartlink Remote Diagnosis
SERVICE FUNCTIONS
Brake Reset	●	●	●
Oil Reset	●	●	●
SAS Reset	●	●	●
Battery Match	●	●	●
ABS Bleeding	●	●	●
Elec. Throttle RLRN	●	●	●
TPMS Reset	●	●	●
DPF Regeneration	●	●	●
Gear Learning	●	●	●
Immobilizer	●	●	●
Injector Coding	●	●	●
Sunroof Initialization	●	●	●
SUS Reset	●	●	●
AFS Reset	●	●	●
Gearbox Learning	●	●	●
Adblue Reset	●	●	●
Coolant Bleeding	●	●	●
EGR Adaption	●	●	●
Nox Sensor Reset	●	●	●
Seats Call Bration	●	●	●
Tyre Reset	●	●	●
Windows Calibration		●	●
A/F Reset		●	●
Stop/Start Reset		●	●
Transport Mode		●	●
Language Change		●	●
AC System Relearn			●
ACC Calibration			●
Engine Power Balance Monitoring			●
GPF Regeneration			●
Rotation Angle Sensor Calibration			●
High-Voltage Battery Health Detection			●
More Reset Services			Via Smartlink Remote Diagnosis
Compatible Modules
X-431 ADAS PRO	●	●	●
X-431 ADAS Mobile	●	●	●
X-PROG 3  Immobilizer	●	●	●
X-PROG  Immobilizer	●	●	●
BST360 Battery Tester	●	●	●
WiFi Printer	●	●	●
X-431 TSGUN TPMS device	●	●	●
VSP600 Videoscope	●	●	●
X-431 O2-1 Osciloscope	●	●	●
X-431 S2-2 Sensorbox	●	●	●
HD III Module	●

Launch X-431 PAD VII Elite Specification:

	X-431 PAD VII Elite	Smartlink
Operation System	Andorid 9.0	N/A
CPU	2.0GHz Octa-core	N/A
Display	13.3' touch screen 1920*1080	3.5' touch screen  320*480
Memory	8GB	256M
Storage	256GB	8GB
Camera	Rear 13MP, Front 8MP	N/A
WiFi	Dual Band 2.4 & 5GHz	Dual Band 2.4 & 5GHz
Diagnostic Communication	WiFi	WiFi & BT & USB
Working Temperature	0℃~50℃	0℃~50℃
Dimension	353*236*71 mm	204*110*45 mm

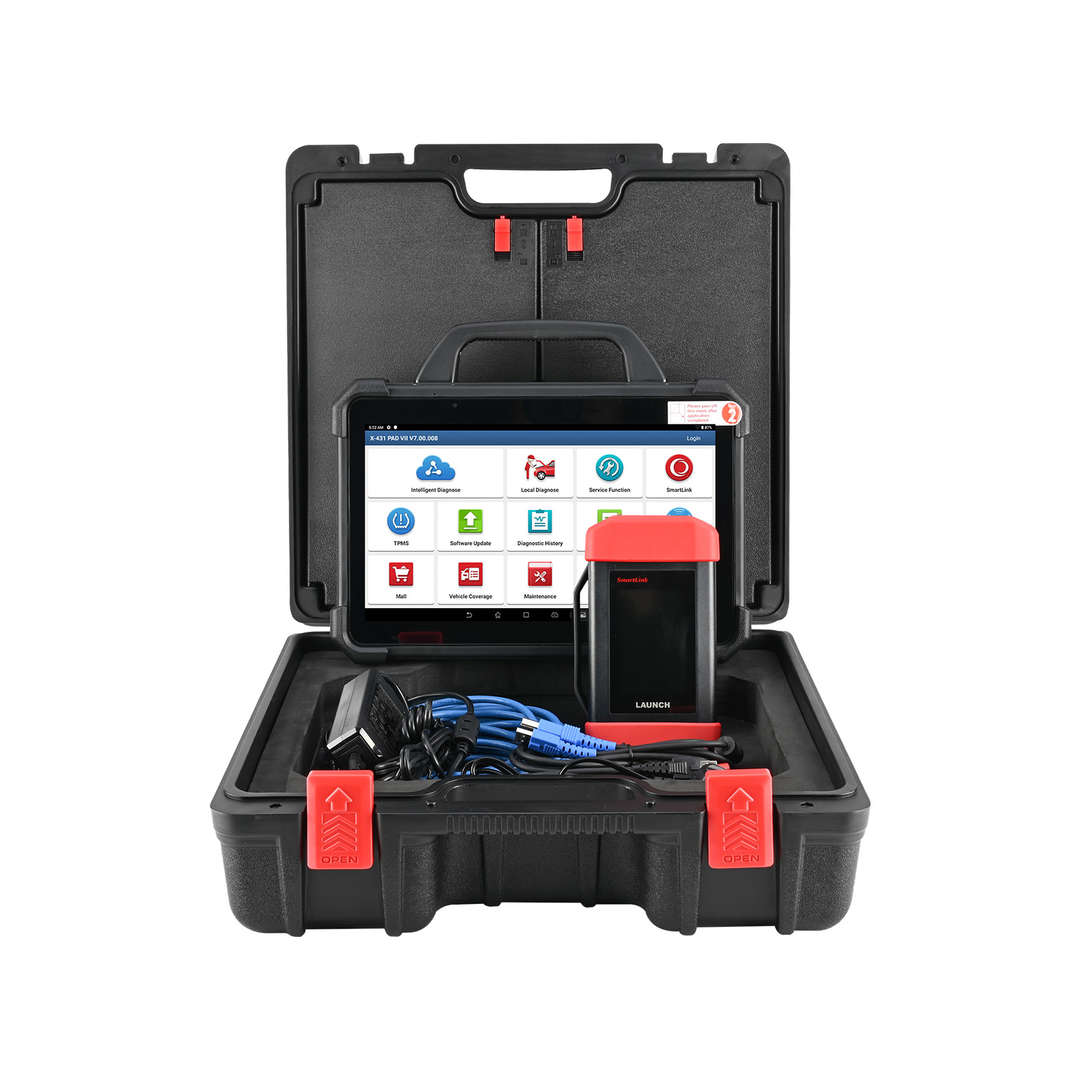

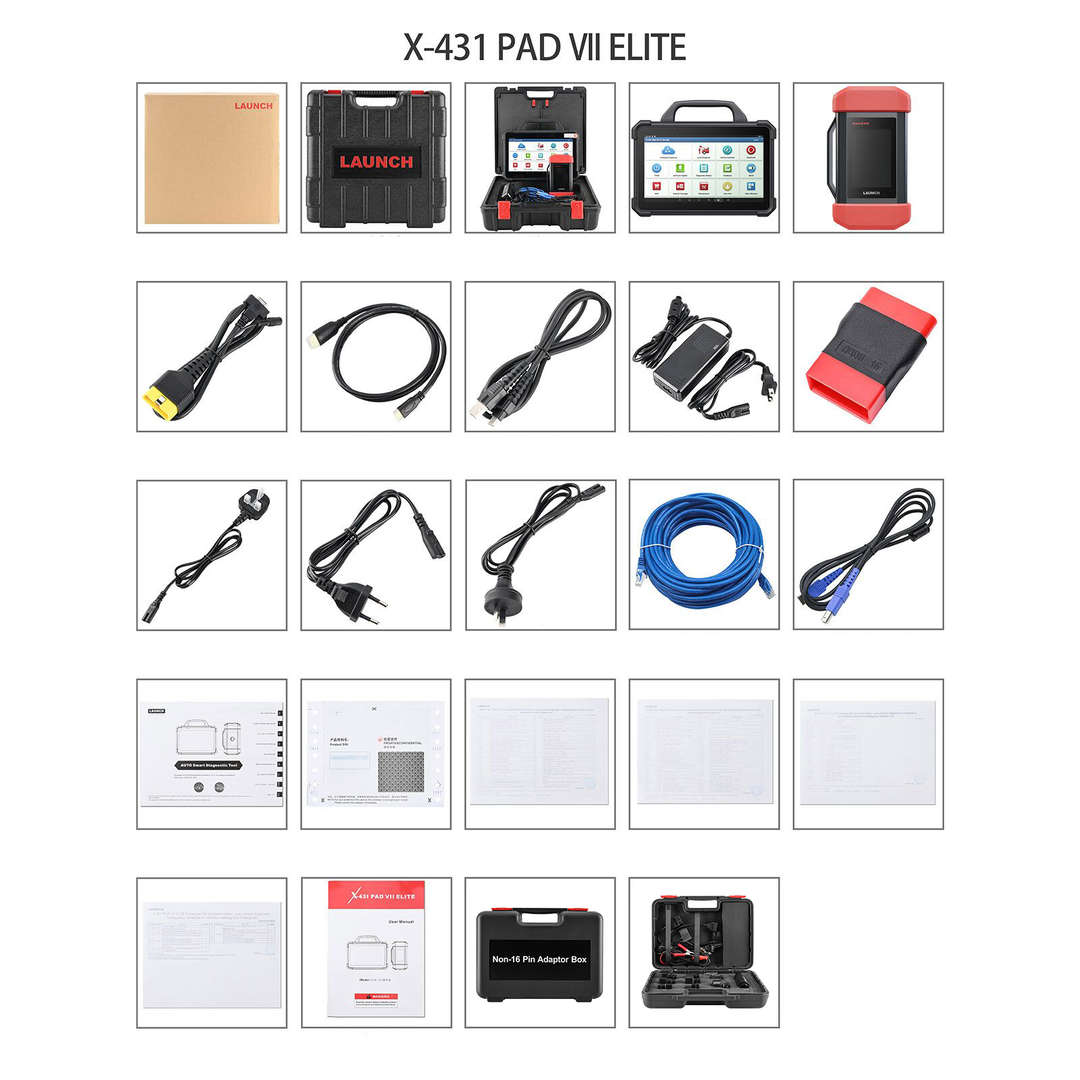

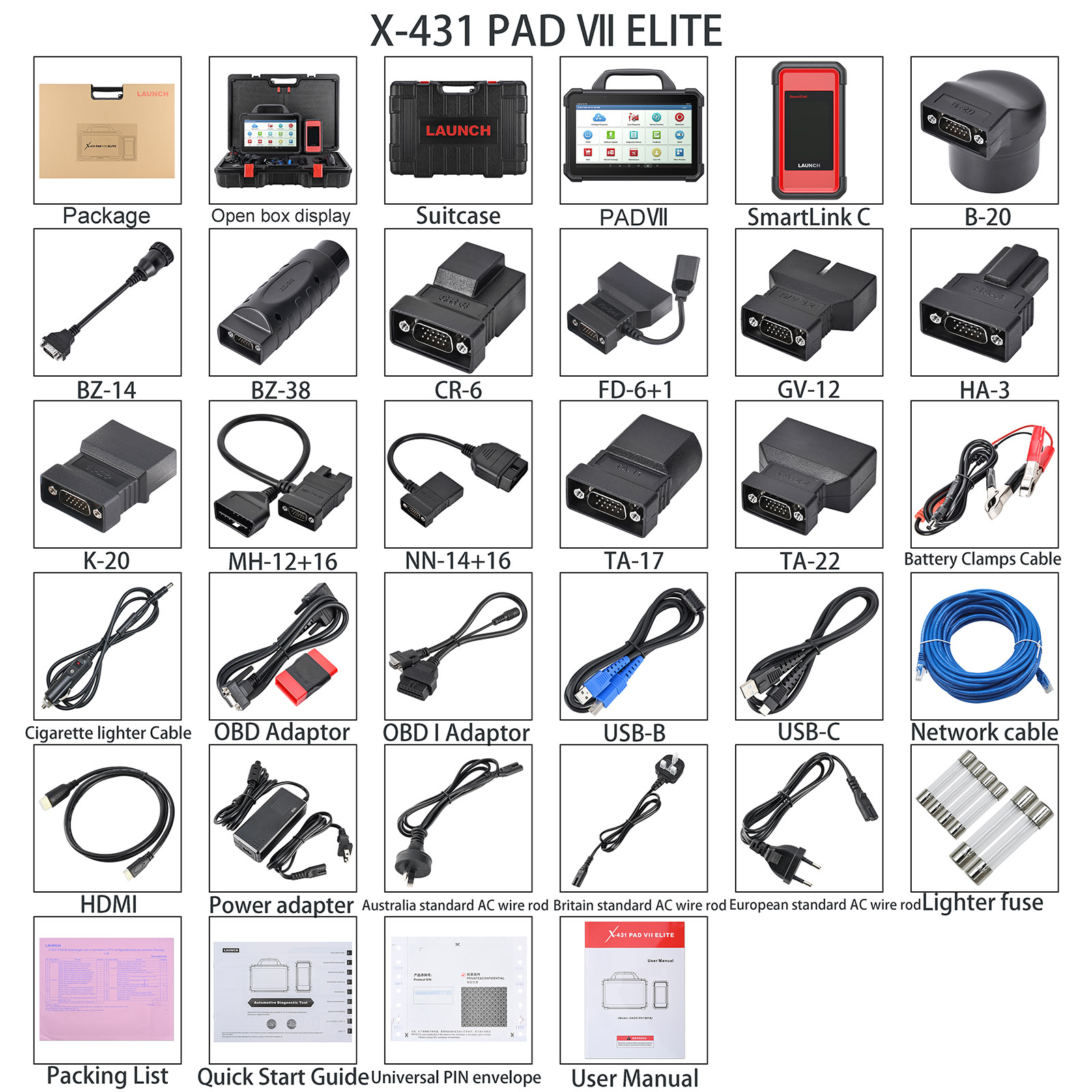

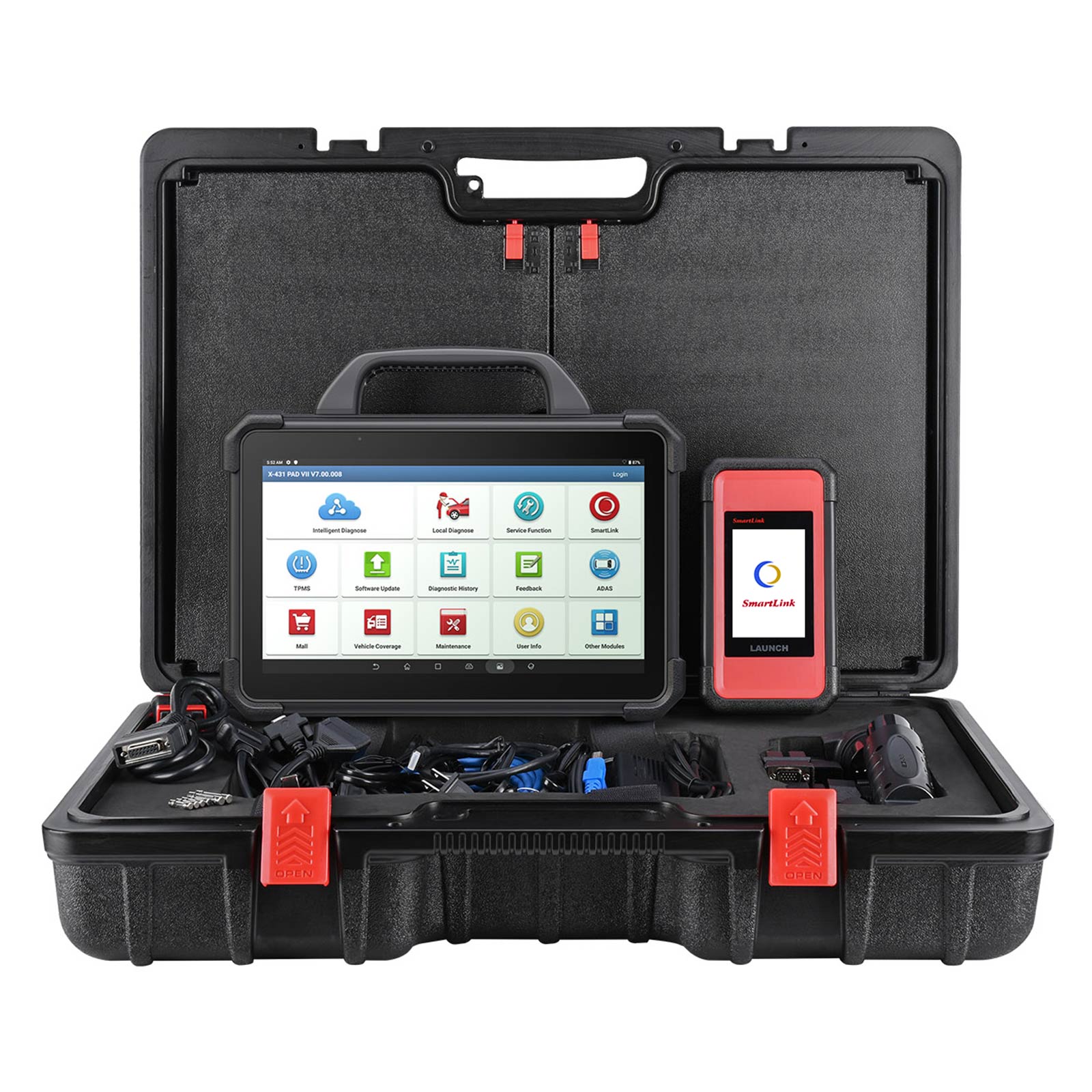

Launch X431 Pad VII Elite Package List:
1pc x carton
1pc x plastic box
1pc x PAD Ⅶ elite
1pc x smartlink
1pc x main cable
1pc x HDMI
1pc x USB-C
1pc x US power adaptor
1pc x OBD2 16-pin adaptor box

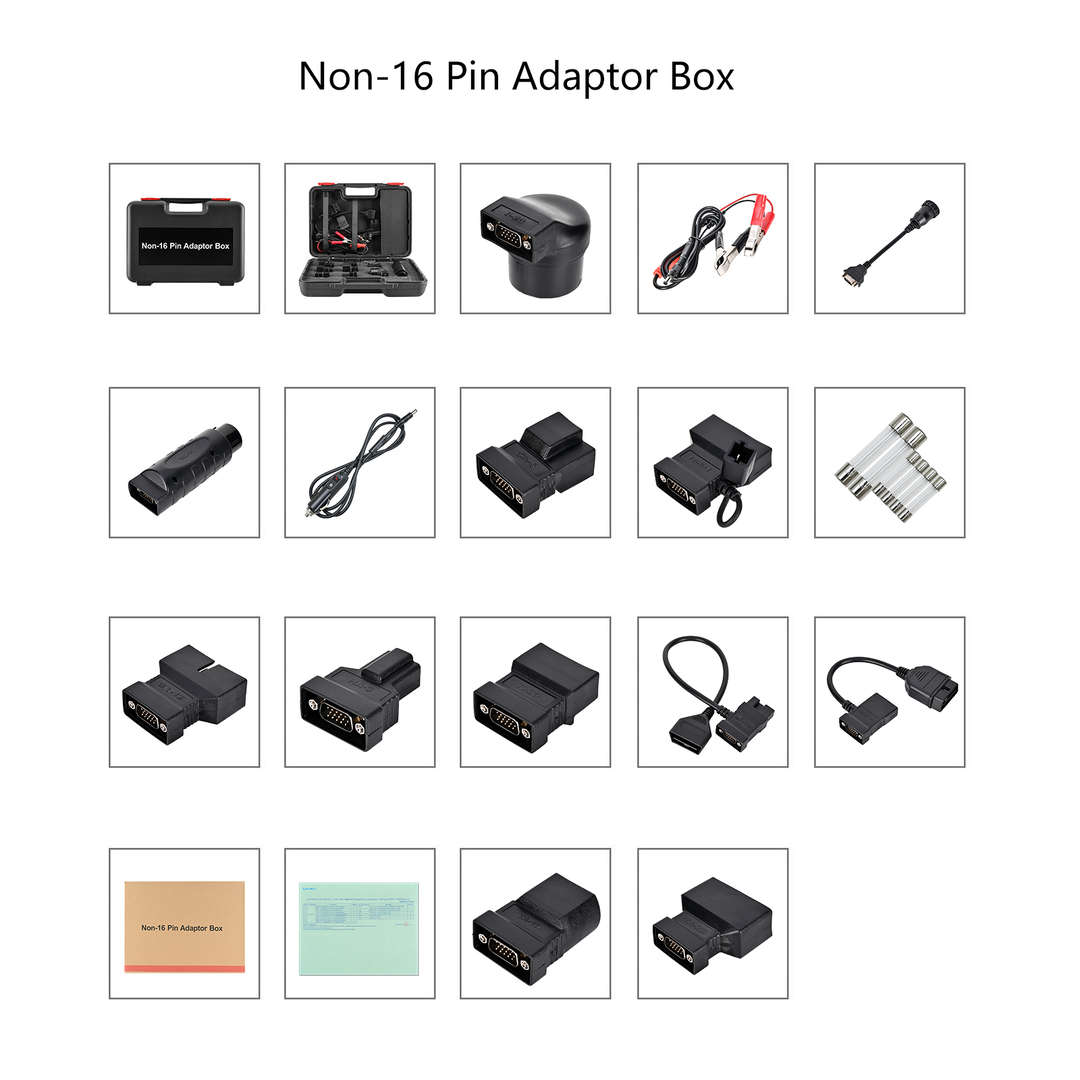

1pc x Non-16 Pin adaptor box
1pc x UK power adaptor
1pc x Australia power adaptor
1pc x net cable
1pc x USB printer cable
1pc x quick start guide
1pc x product S/N
1pc x packing list
3pcs x software list
1pc x manual
