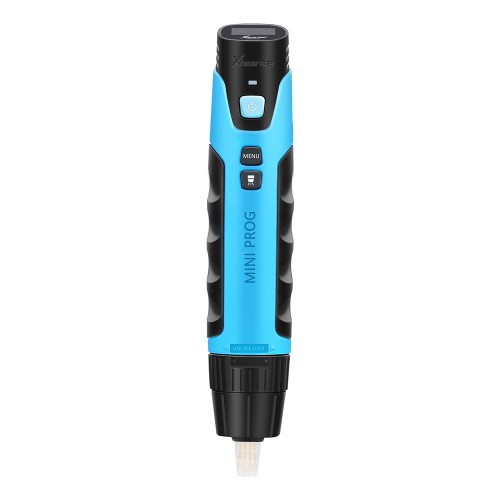

Xhorse MINI PROG Powerful Chip Programmer

Xhorse MINI PROG, a professional smart programming device, provides users the most portable chip programming solution. The 3 different pin headers can be easily switched to read and write different chips and to satisfy different demands. The smart screen on the top of MINI PROG clearly shows the real-time working status. MINI PROG can be connected to your smartphone to intelligently complete the chip programming works via Bluetooth and WiFi.

What features the MINI PROG can surprise you?

· Portable; Easy to use

· No need to remove chip

· No need soldering

· No need to cut the wire

· No need to lift the pin



Xhorse MINI PROG Features:

1.Solder-free Programming

2.EEPROM Reading & Writing

3.Dashboard Data Reading & Writing

4.Data Editing

5.Press Header

6.PIN Status Detection

7.APP Control

8.Cloud Backup


Leads a New Trend of Solder-free Programming

Designed to Offer Simple and Secure Programming Experience

Traditional way of programming with solder

Need to solder wire, complicate and time-consuming

Need to remove chip and cut the wire which may lead to car breakdown or data loss if you are not good at soldering

Data loss may be easily caused by solder skips

No need to remove chip/solder/cut the wire/lift the pin

No need to dismantle or cut the wire with no risk of damaging PCB

Easy to use for green hands

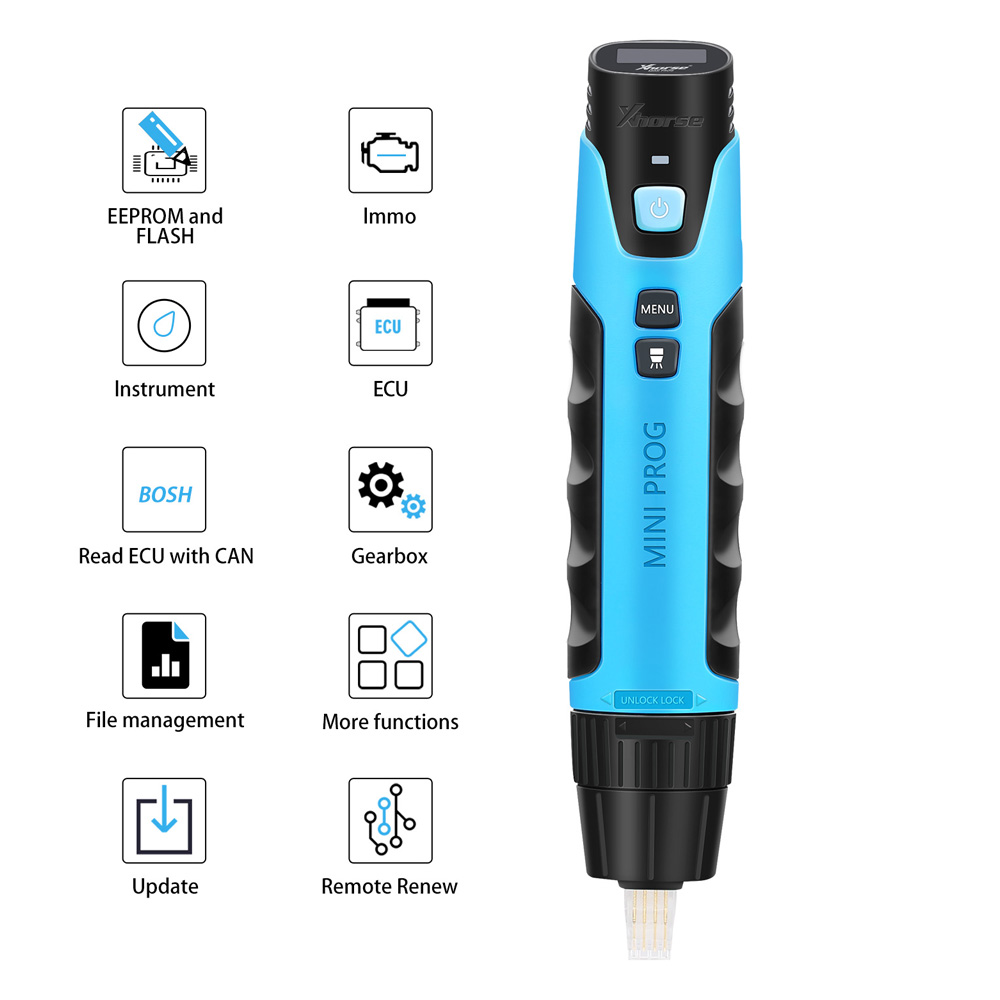

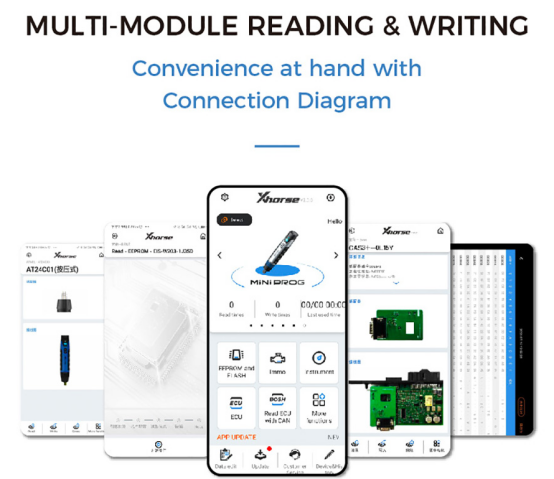

Multi-module Reading & Writing

Convenience at hand with Connection Diagram



IMMO data reading & writing

BMW: BDC/CAS3/CAS3+/CAS4/CAS4+/FEM

BENZ: EIS/EIZ

PORSCHE: BCM

LANDROVER: RFA

VOLVO: CEM/KVM

EEPROM reading & writing

Support reading and writing 24C××, 93C××,95×××, 25××× etc. EEPROM data

Covering 95% of common EEPROM in market



ECU data reading & writing

Support reading & writing DFLASH and PFLASH of BMW, AUDI, VW

Dashboard data reading & writing

Support Honda, Kia, Hyundai etc.

The support list above is displayed only partially and you can refer to the latest version of MINI PROG for the complete list.

Pin Header Reading Chip Directly, Pioneer in Industry



Ultra-simple operation that adapts to you.

There is no need to remove the chip when reading. All you need is to press the pin header at the appropriate chip and then you can read and write data on Xhorse APP.

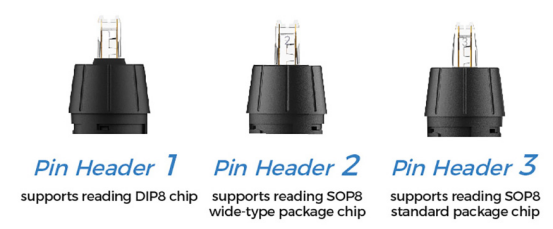

Pin Header 1 supports reading DIP8 chip

Pin Header 2 supports reading SOP8 wide-type package chip

Pin Header 3 supports reading SOP8 standard package chip


Smart Detection

Detect Pin Connection Status with Great Accuracy

Your work, more secure.

MINI PROG supports pin status detection and will give notice when poor contact arises, which makes it easy to operate and avoid data loss and damage.

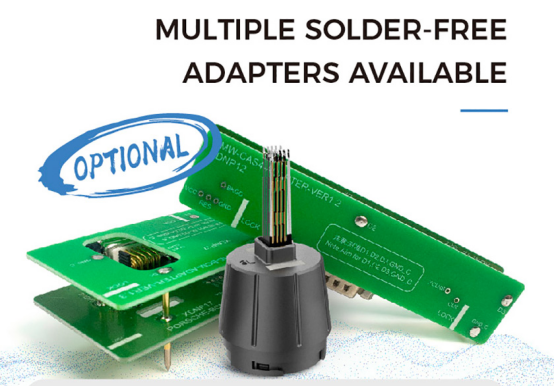

Multiple Solder-free Adapters Available(Optional)

BMW Adapters

BMW CAS3/CAS3+, CAS4/CAS4+, FRM, DB15-DB25 adapter(for EWS4 adapter only), D80/35080, ECU interface board kit

PORSCHE IMMO Adapter

Porsche BCM

LANDROVER IMMO Adapter

LANDROVER KVM

VOLVO IMMO Adapters

VOLVO KVM, VOLVO CEM-1, VOLVO CEM-2

MB91F Dashboard Adapter

Honda FIT-H

Honda FIT-L

Hyundai SONATA

KIA K3

KIA K5

ECU Adapter

Remote Renew Adapter

9S12XE cable

MCU cable

DB9 cable

12V+5V power adapter

Pin Header 4

All adapters and cables above are optional and are not included in standard configuration. You can contact the dealer for purchase if you need them.

High-tech made simple



APP Control With No Need to Use Computer Anymore

Download Xhorse APP and connect to your MINI PROG via Bluetooth or WiFi. MINI PROG allows you to finish works like data reading, writing and editing directly on your smartphone, providing greater convenience when working outside.

Cloud Storage, Safer Than Ever

 Data can be stored in Local File as well as Cloud to ensure the safety of data, avoiding data loss caused by misconduct.

Professional Online Customer Service Available

 More Functions Coming Soon

MINI PROG delivers firmware and database updating and functions adding from time to time. Stay tuned!

Log in to Xhorse APP and you can find related videos and technical articles that will help you transform from a green hand to an old hand.

 Xhorse provides professional after-sale service and you can contact the technical support team on Xhorse APP to solve your problems.

MINI PROG Parameters:

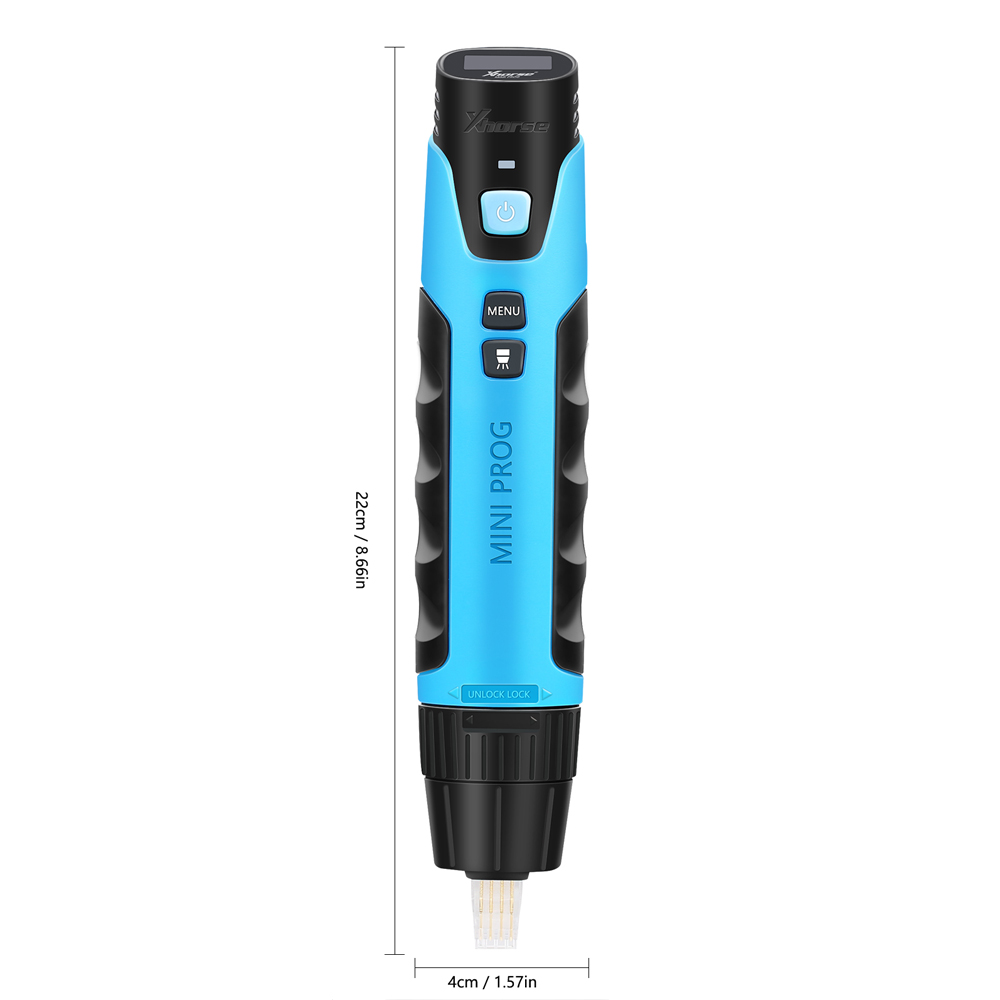

MINI PROG weighs no more than 0.21kg and it's easy to operate and carry. It offers the perfect blend of form and function, fitting into any work environments.

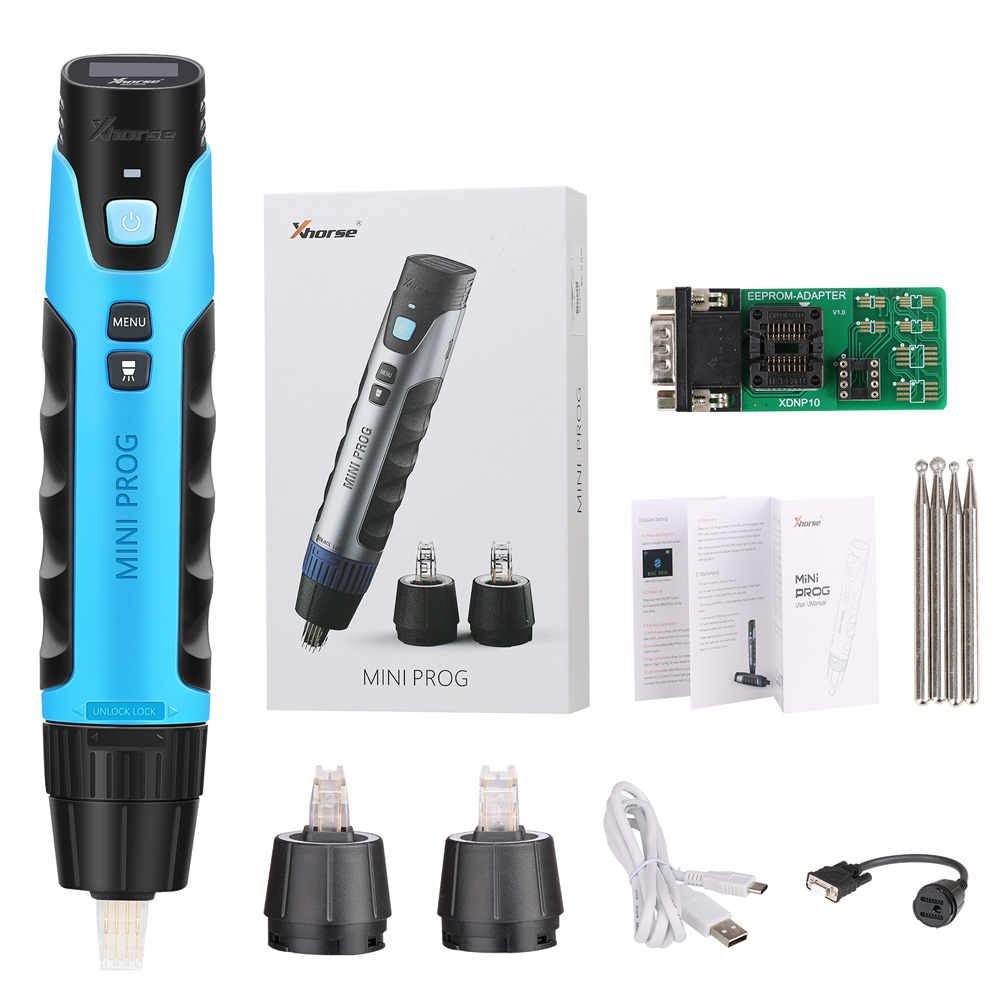

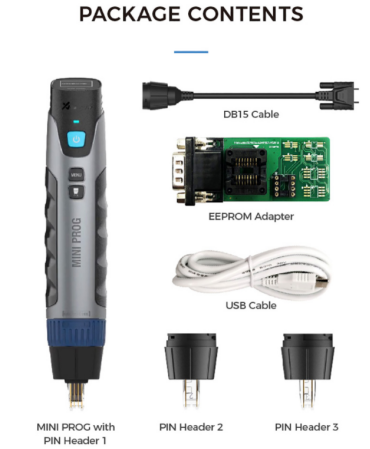

XHORSE MINI PROG Package includes:

1pc x DB15 Cable

1pc x EEPROM Adapter

3pc x Pin Headers

Pin Header 1 supports reading DIP8 chip

Pin Header 2 supports reading SOP8 wide-type package chip

Pin Header 3 supports reading SOP8 standard package chip

User Comment(Total 10 User Comment Num)

• by Tahir Ahmadov,Nov 12,2021


  Mini prog can remove crash data on srs part without removing?

  Reply #1 by Nancy Nov 13,2021
  Hello friend, it can do this.

  Nancy

  ---

• by Michael Mark,Nov 08,2021


  Program m35160DW with Mini prog is it possible?

  Reply #1 by Nancy Nov 09,2021
  Hello friend, Yes, it is.

  Nancy

  ---

• by MOHAMMED BABELLY,May 12,2021


  Received the chip programmer, thank you

  Reply #1 by Nancy May 13,2021
  Hello friend, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by Benjamin Jensen,May 06,2021


  great tool fast shiping seller is awsome answer me, recommend!!!

  Reply #1 by Nancy May 07,2021
  Hello friend, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by ali kayachi,Apr 28,2021


  can you extract Ping-Code for key programming?

  Reply #1 by Nancy Apr 29,2021
  Sorry dear, the VVDI MINI PROG doesn’t support thid function.

  Nancy

  ---

• by Patrick Creedon,Apr 25,2021


  does this device support to read SRS modules?

  Reply #1 by Nancy Apr 26,2021
  Hello friend, Xhorse mini prog can only support 8 foot chip.

  Nancy

  ---

• by ayad jaefer saleh,Apr 21,2021


  Very Fast shipping,received the parcel, I will check later.

  Reply #1 by Nancy Apr 22,2021
  Hello friend, happy to receive your feedback. If you have problem to use our tool, Please contact us.

  Nancy

  ---

• by Peter Southern,Apr 19,2021


  If MINI Prog can read and write EEPROM data and MCU data.

  Reply #1 by Nancy Apr 20,2021
  Yes, it supported.

  Nancy

  ---

• by Sauger Sebastien,Apr 11,2021


  This tool feels good, please let me know if you have it in stock.

  Reply #1 by Nancy Apr 12,2021
  Hello friend, it has enough stock, you can make order now, we can send you as soon as possible.

  Nancy

  ---

• by Zubkova Maria,Apr 05,2021


  Hi, how to connect the xhorse app with mini prog? Does the mini prog support bluetooth?

  Reply #1 by Nancy Apr 06,2021
  Hello friend, it supported wifi and bluetooth.
  You can download Xhorse APP and connect to the MINI PROG via Bluetooth or WiFi.

  Nancy

  ---
