V2024.10 DOIP MB SD Connect C4 Star Diagnosis Plus Panasonic CF 19 I5 4GB Laptop With Vediamo and DTS Engineering Software

Lots of customer encounter setting problem when using DOIP MB SD Connect C4 star diagnosis, so we recommend this bundling sale for those customer who want once get in hand then can use it directly. We will install and activate for you ready to use. What's more, this package offer saves you money than buying them alone.

Attention :
2024 MB Star BENZ Diagnostic Software : There have car software and truck software selection, please choose the correct software which you request
The software with authorization, add free offline diagnostic certificate. Supporting diagnostic tests for new cars such as benz C205 W206 W213 W223 W167 W447 W448 etc

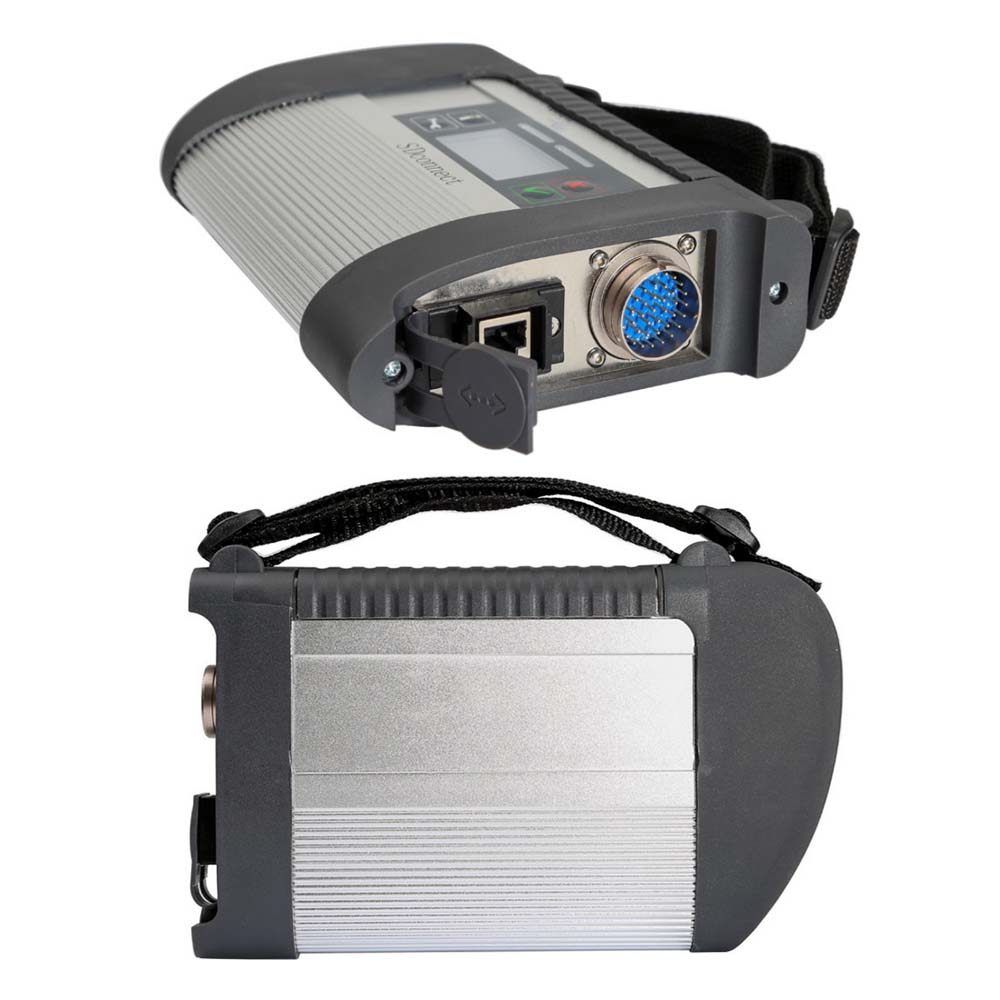

DOIP MB SD Connect Compact 4 Wireless Star Diagnosis Features:
1. 1:1 clone of the original, which is able to work for DoIP protocol.
2. The only C4 that supports ethernet communication (DoIP).
3. Tested without issues on new Benz with DoIP.
4. Works on 24V trucks.
5. High quality, waterproof, shockproof and tamper proof.
6. No need to install batteries for firmware update.
7. No need to worry about firmware damage in the update process.
8. The wireless connection is stable.
9. Connect automatically to WLAN for diagnostic tests.
10. Remote help is available.

Please kindly note:
1.Including Super Engineer Software: DTS monaco V9.02+V8.16 And Vediamo V5.01.01 Support Offline Programming
2.Support Wireless
3.Software Version: V2024.09 Car / V2024.10 Truck Diagnostic Software
4.Support Multi-Language: (Default language is English, if you want other languages, please leave message)
English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese
5.Support Both Mercedes Benz Cars and Trucks
6.Support Mercedes Benz Cars After Year 2000
7.Support Offline and Online Programming, If You Want to Do Online,you must have an account online

Softwares list:
1. DAS 2024.09 for car and DAS 2024.10 for truck: the automatically Diagnosis Assistance System
2. Xentry 2024.09 for car and Xentry 2024.10 for truck: New software released by Bennz Company after 04/2009 by diagnosis new cars.
3. WIS net 2021.07: Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail
4. EPC.net 2018.11: Electronic Parts Catalog
5. ST Finder: Part Location Finder options: 2016 and 2020
6. STARUTILITIES: the movement management system and self-test
7. SD MEDIA 2014
8. PL76 2022.01
9.HHT Software for old cars
10.Engineer version Vediamo updated to V5.01.01, Engineer version DTS updated to V9.02, Upgrade to the latest version of 2022 data
1) Fix the error that Mercedes-Benz DAS cannot directly call WIS
2) Join the DAS sedan smart offline programming
3) Join the 204 DAS stand-alone version, which can be mutated (German), which is more powerful than Vediamo
4) Join DAS special function password-free access PKW and SMART
5) Repair SMART 450, 451, 452, 454 No longer need TAN Caculator, all offline
6) Increase offline EOL and VMAX all LKW, modify truck maximum speed limit
7) Lift the truck NOx TORGUE restriction, do not need FDOK XT calculation code, directly enter, directly cancel the legal speed limit, you can modify without special function
8) Clear the truck SCR/ADBLUE fault code (MR), do not need FDOK XN calculation code, enter directly
9）Add DAS 212，207 prototyp model
10）Add Xentry special features and the VeDoc calculator($53 for activation)

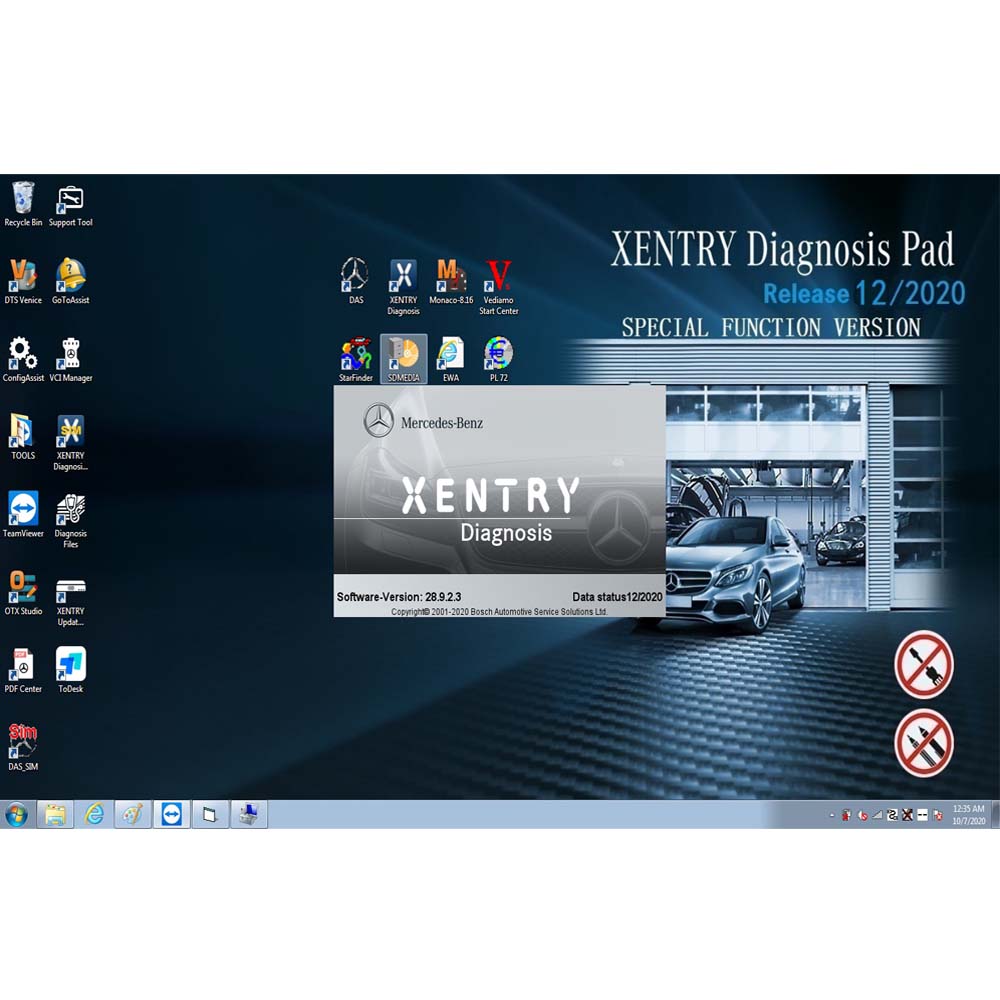

Software Display:

DAS Special Functions

1. DAS Special Function Password Free PKW and SMART
purpose:
when you do special functions, e.g AB or ABR ecu in DAS W204, you are asked to insert password. With this patch, you can enter any character, minimum one and F2 to continue.
2. Audio Video Navigation and telematics - HU Exchange Audio 50 to COMAND password free
purpose: No password required, F3 to continue.
3.Audio Video Navigation and telematics - add Dev menu in DAS COMAND APS menu
purpose: Add developer menu in DAS Comand APS menu
4. TRANSMISSION or GETRIEBE - EGS1 Special Function password free
purpose: No password required, F3 to continue.
5.TRANSMISSION or GETRIEBE - EGS2 Diagnosis Routine password free
purpose: No password required, F3 to continue.
6.DAS Deutsch - TRANSMISSION or GETRIEBE VGS3 SonderAbläufe Sonderfunktionen password free
purpose: No password required, F3 to continue.
This unique menu only if you use DAS in Deutsch (German language). Cmiiw, this is like eeprom dump special function.
7.Adding 204 in DAS STANDALONE
purpose: Add 204 in DAS Standalone. You can do variant coding in development menu with language (in Deutsch) that are more friendly than vediamo, or adaptation or actuation that are password protected in 204 xentry. I 'facelift' the menu and delete a disturb file compare to the one which floating around. The disturbed file causes 'data missing' error in diagnostic DAS vehicles that are missing definition because of the use of older def file.
8.W164 DAS Password for Tailgate special function
purpose: No Password Required, press F2 to continue
jaxone quote:
"We replaced a Rear Sam Module (bought NEW module from Mercedes) for a ML 320cdi (164) as the old one went in fumes of smoke because of water damage.
Module installed and coded and everything is fine except the height of the tailgate (hydraulic).
When I want to make adaptation of tailgate (in REAR SAM), DAS will come and ask for a password for this function."
9.212 PROTOTYPE FOR XDOS DAS Standalone ver 0.8
purpose:
- Diagnose 212 using XDOS DAS Standalone.
- No cbf conversion error like the one that floating in internet/forum
- Several error fixes for 212 (not fully yet. will be added later)
- Includes old prototype cbf (without seedkey?)
- ability to add/expand Development Data ourselves
10.ADD SMART SAM 450 & 452 Extra Functions for power users
purpose:Add extra functions: Writing VIN & Development Status (inside control unit adaptation).
11.ADD SMART 451 Special Functions for power users
purpose:
- Add Development Data & Development Data (inside control unit adaptation) SAM451
- Add Development Data & Extra Coding(inside conrol unit adaptation) ESP451
12.ADD SMART 454 Special Functions for power users
purpose: Add Development Data and Read codingstring in ESP 454
13.Suppress ALL TAN  codes for Smart equipment upto 2016-09 without Qutomotive Advertisement
purpose: Suppress ALL TAN  codes for Smart equipment upto 2016-09 and without Qutomotive Advertisement
14. ADD SMART 451 & 454 OFFLINE KEY TEACH-IN program key transponder key DAS 2016-12 UP
purpose:
Since Xentry 12/16 there is a new system to teach in Smart keys (BR 451 and BR 454). You don't have the TAN input to teach in again. Smart TAN Calculator and the old csdsmart solution don't work anymore. biggrinEAD:
Now you have to log in to daimler server. While Smart 450, 452 don't go online and also do not need TAN codes.
This fix is able to teach in program key transponder key Offline & don't need TAN codes too for Smart SAM451 & ETACS454.
15. ADD SMART 451 & 454 OFFLINE SAM Assignment DAS 2016-12 UP
purpose: SMART 451 454 OFFLINE SAM Assignment 2016-12UP
16.Special Function Password Free Transporter
purpose: Special Function Password Free for Transporter
17.DAS PKW/SMART/TRANSP Offline Programming & Online/Offline Entry of Retrofits & Modifications
purpose: to update ecu firmware & Offline/Online Entry of Retrofist & Modifications
Note:
Change to original mode when update addons. Daimler always update to increase security in Online Programming!!!
If not, the offline patch will get error when using.
18. Nox Torque Limit Setting (FR/CPC0) with correct New FDOK XT
purpose:
- Nox Torque limit Setting: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK internally, and change the encrypted random number to correct one in memory
- Added value: UNLOCK Legal speed limit direct edit without going to special function
19.Erase SCR/ADBLUE fault code (in MR) with correct New FDOK XN
purpose:
- Erasing of emission-relevant (SCR/ADBLUE) fault code: No need FDOK encrypted random number, F3 to continue
- Calculate correct nueu-FDOK XN internally, and change the encrypted random number to correct one in memory
20.NFZ SonderFunktion Password Free
purpose: password free for NFZ when doing SonderFunktion (Flash/Programming)
21.Added Offline EOL & VMAX ALL LKW (OBD1 & OBD2) for DAS 2014-12UP
purpose:
Patch original files from XDOS 2018-07:
- Added Offline EOL & VMAX ALL LKW  (OBD1 & OBD2) for DAS 2014-12UP
- Added Deleted VIN function
- Avoid MR Manipulation because of change VIN
22.MR1_96 Conversion to emissions standard 'Euro 3' download + Flash Data Complete
Purpose: Offline downgrade MR FLASH memory from Euro 4/5 to Euro 3 to disable AdBlue
23.ADM2 & ADM3 Unlock speed
purpose: Speed limit Read/Write on ADM2 and ADM3 on Kamaz, MAZ, Industrial motors, Crans, Combines
24.CPC4 Unlock speed
purpose: New IMO replace its old ADM2/3 with new CPC4 - TC1796. This will unlock speed limit Read/Write on Kamaz, MAZ, Freightliner,...

MB SD Connect Compact 4 Supported Vehicle List:
Passenger Car Supported List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Van Support List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

Truck Support List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

Unimog Support List:
U20, UGN, UHN

Bus Support List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,
Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400,
FURTHER MODEL SERIES

Super Sports Car Support List:
SLR(199)

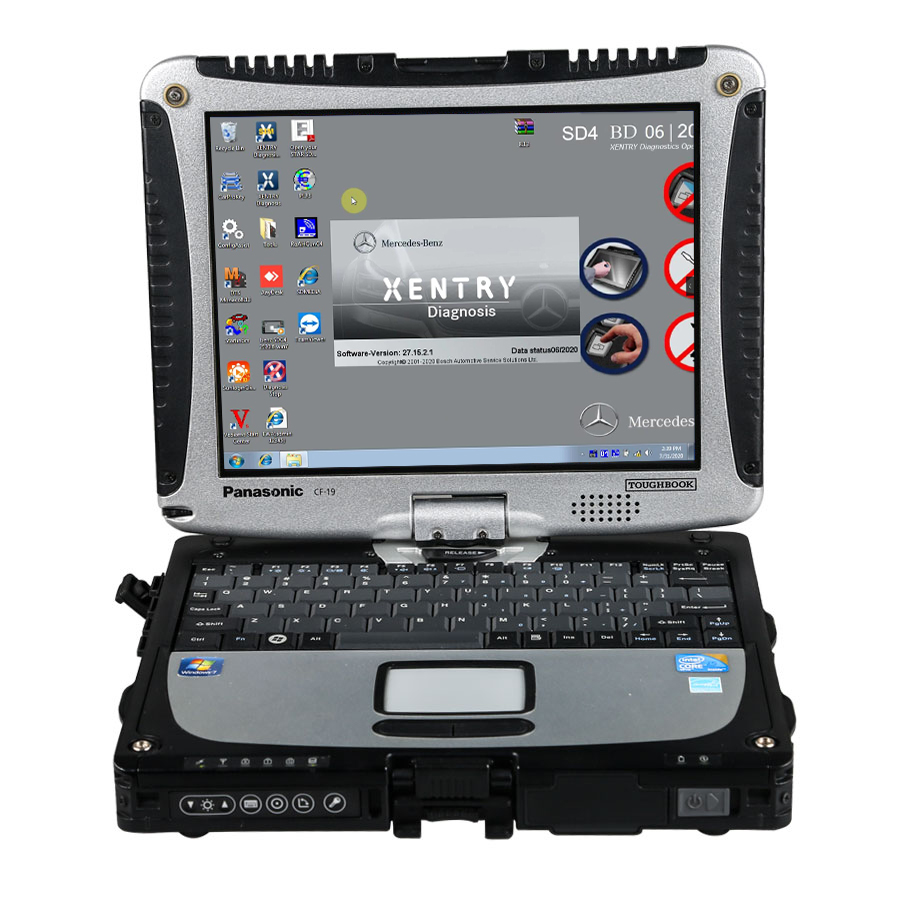

Second Hand Panasonic CF19 I5 4GB Laptop
System Information:
Processor: Intel(R) Core(TM)I5 CPU U540@1.2GHz
Processor Speed: 1.20 GHz
Memory Size: 4096 MB (DDR3)
Available Memory: 3893 MB (3253 MB for 32bit OS)
BIOS Information:
BIOS :  V4.00L11
Embedded Controller: V4.00L13
Intel(R) ME Firmware:   6.0.31.1288
Accumulative Operating Time: 18590 Hours
Hard Disk：256G SSD or 512G SSD (Optional)

Package List:
1pc x Multiplexer
1pc x OBDII 16Pin Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1set x Second Hand Panasonic CF19 I5 4GB Laptop plus MB Star Diagnostic Software(Optional)
