12V Electronic Automotive Relay Tester Universal Auto Car Diagnostic Battery Checker

Feature:

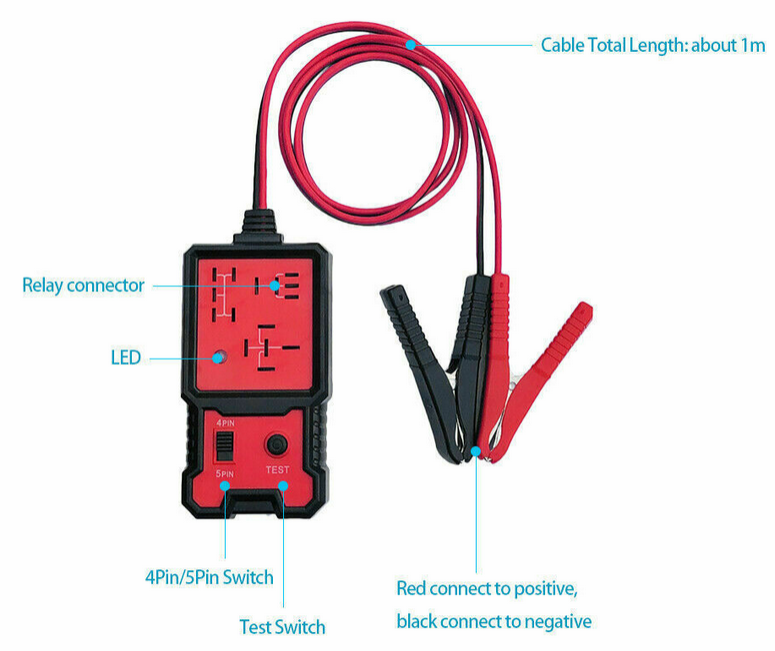

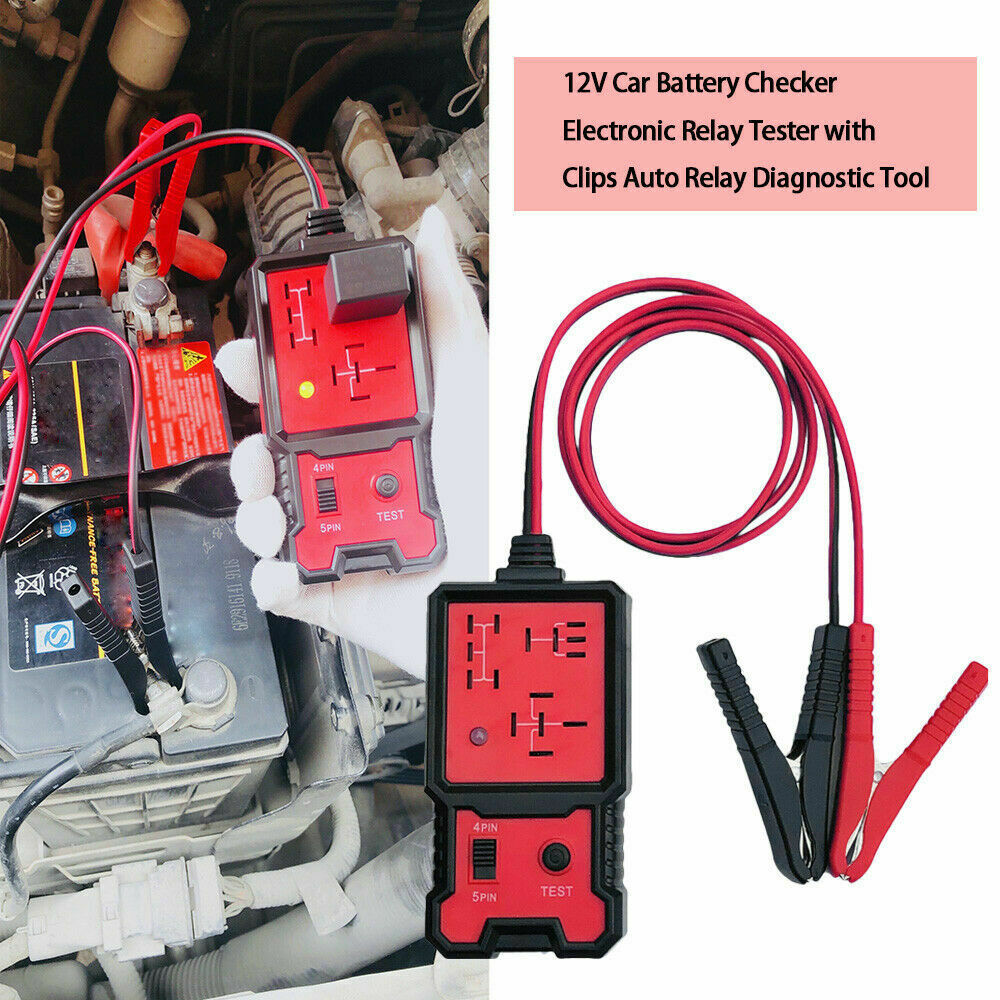

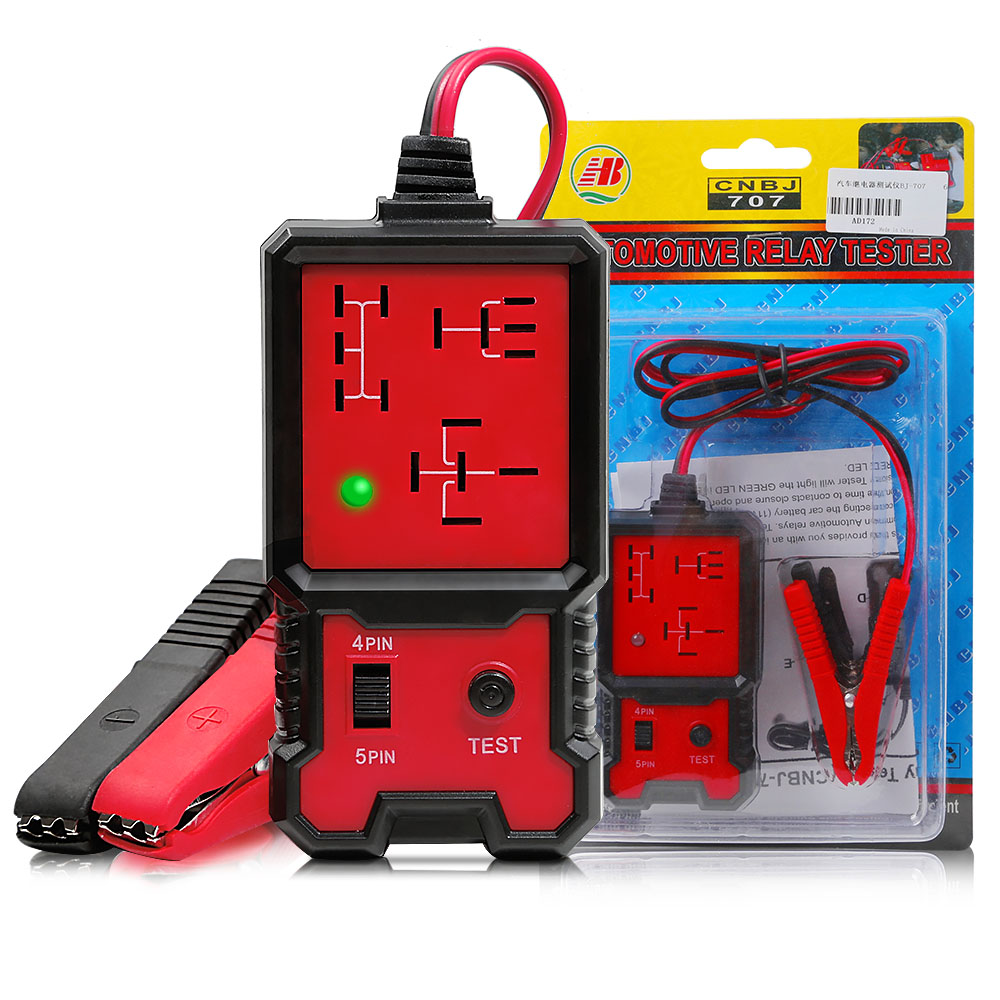

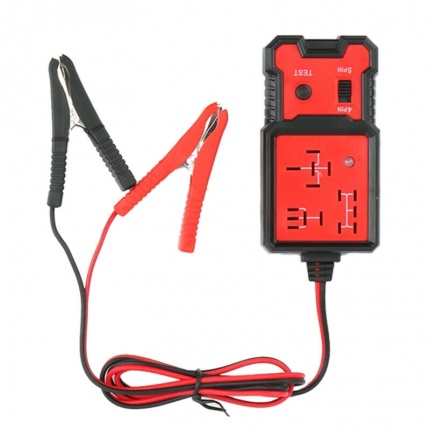

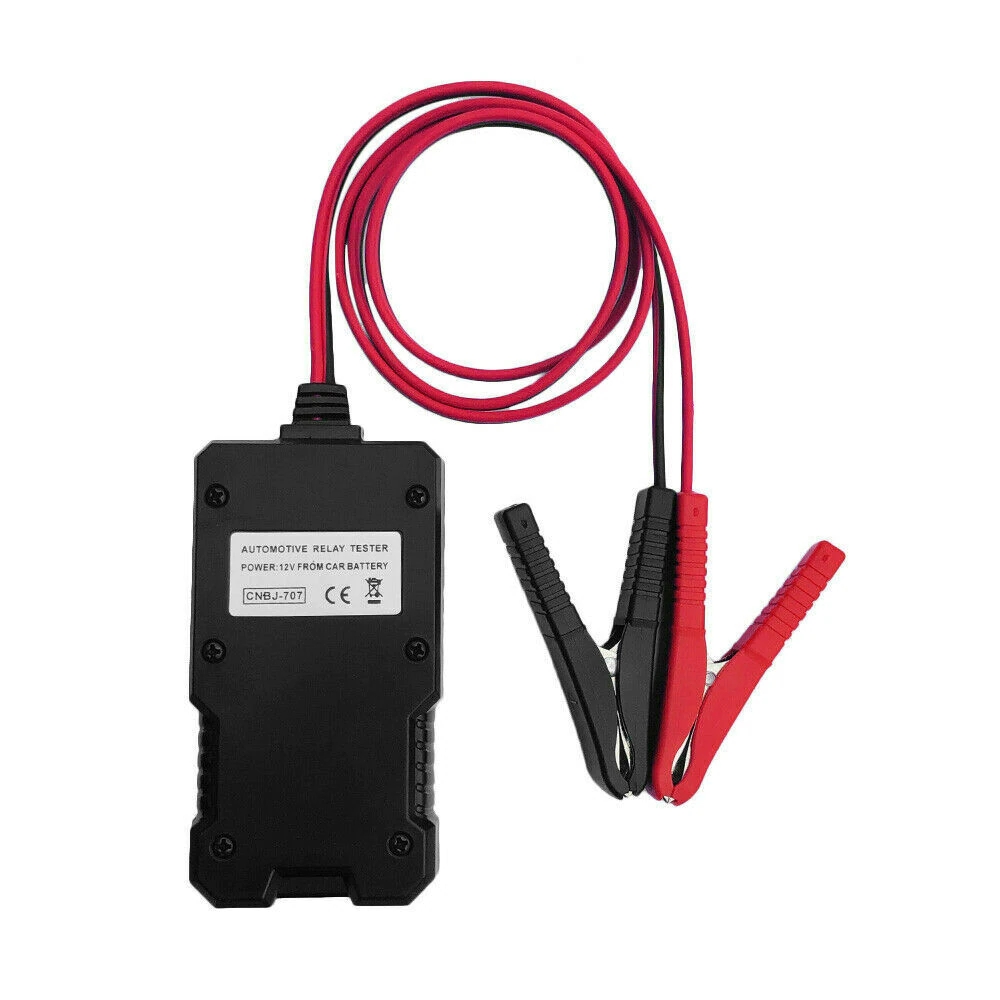

1.Automotive relays test tool.
2.Through the continuous automobile battery (11V-15V) to the relay coil, the detector can properly check the relay contact function.
3.The tester observes contact data, closure time, relay inertia at each test stage, etc.
4.Test to properly control the opening and closing of the relay.

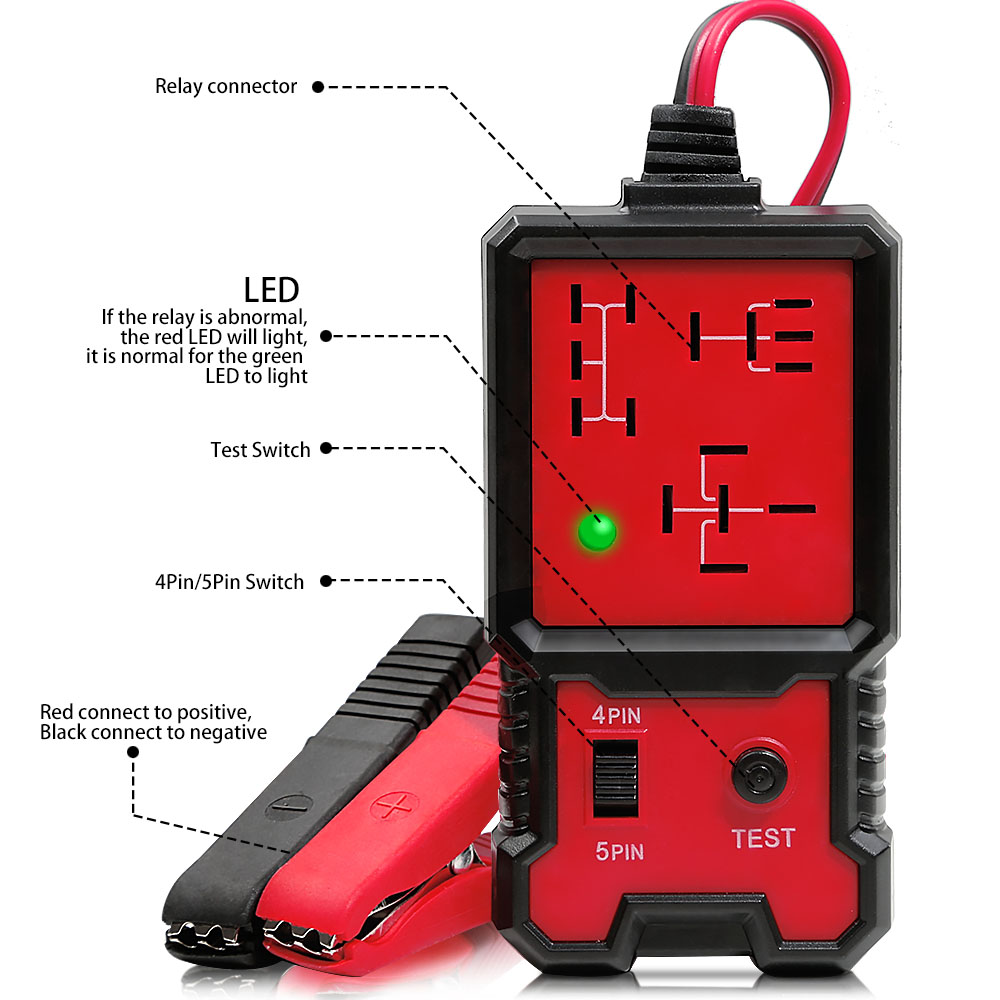

5.If the relay is abnormal the red LED will light, it's normal the green LED will light.
6. Fine workmanship and good performance.
7.Easy to operate.
8. Convenient to carry.
9.Durable in use.

Description：
Brand new
Material: Plastic & Metal
Color: Black & Red
Voltage: 12V

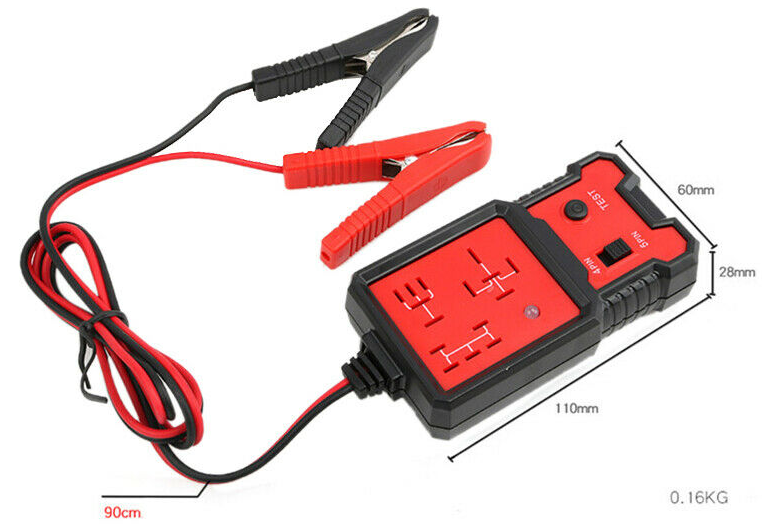

Size: approx. 110 * 60 * 28mm

Package included:
1 x Relay Tester

Note:
1.Car battery must be 12V battery, the voltage must be between 11-15V. The coil resistance is preferably at least 20 ohms.
2.Please allow 0-1cm errors due to manual measurement.
3.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
