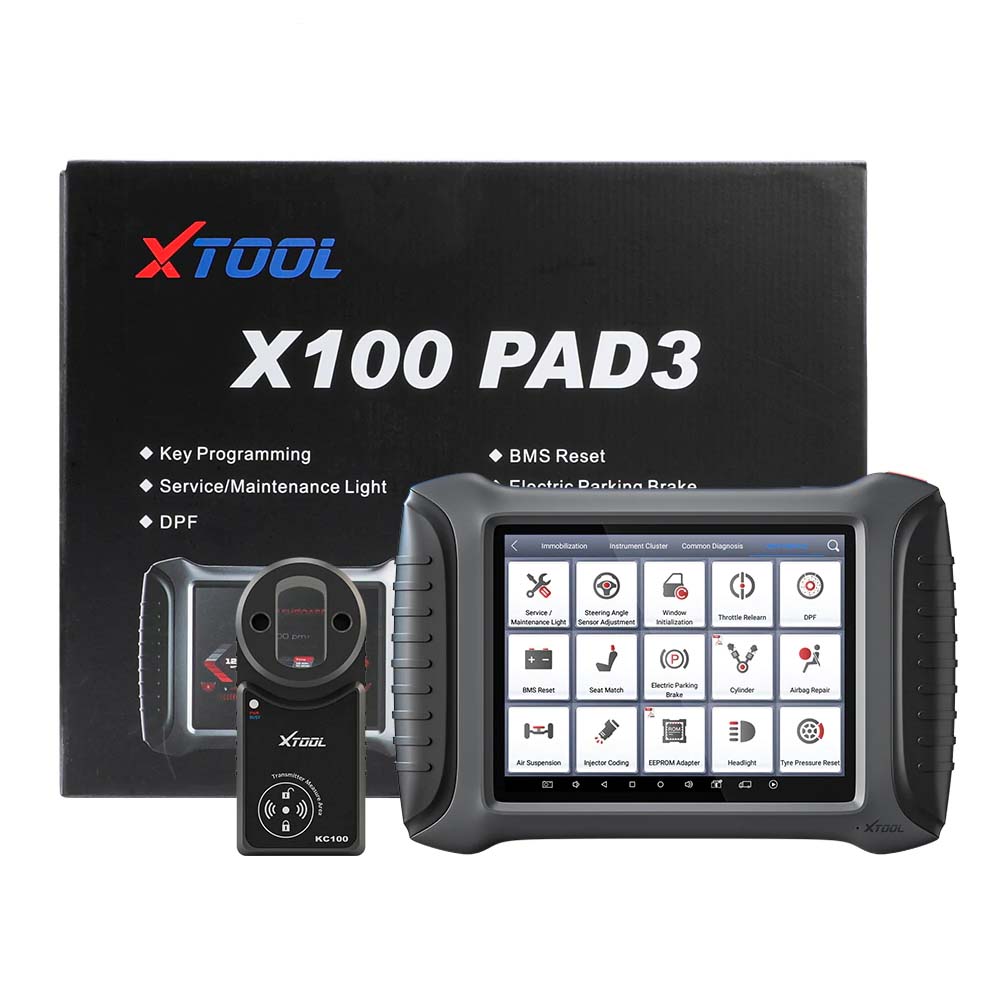

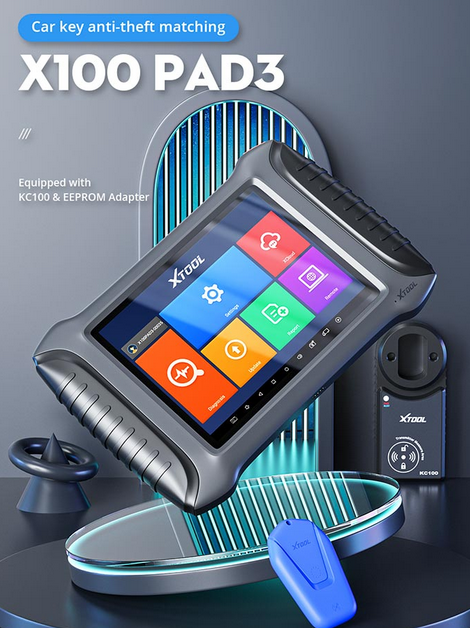

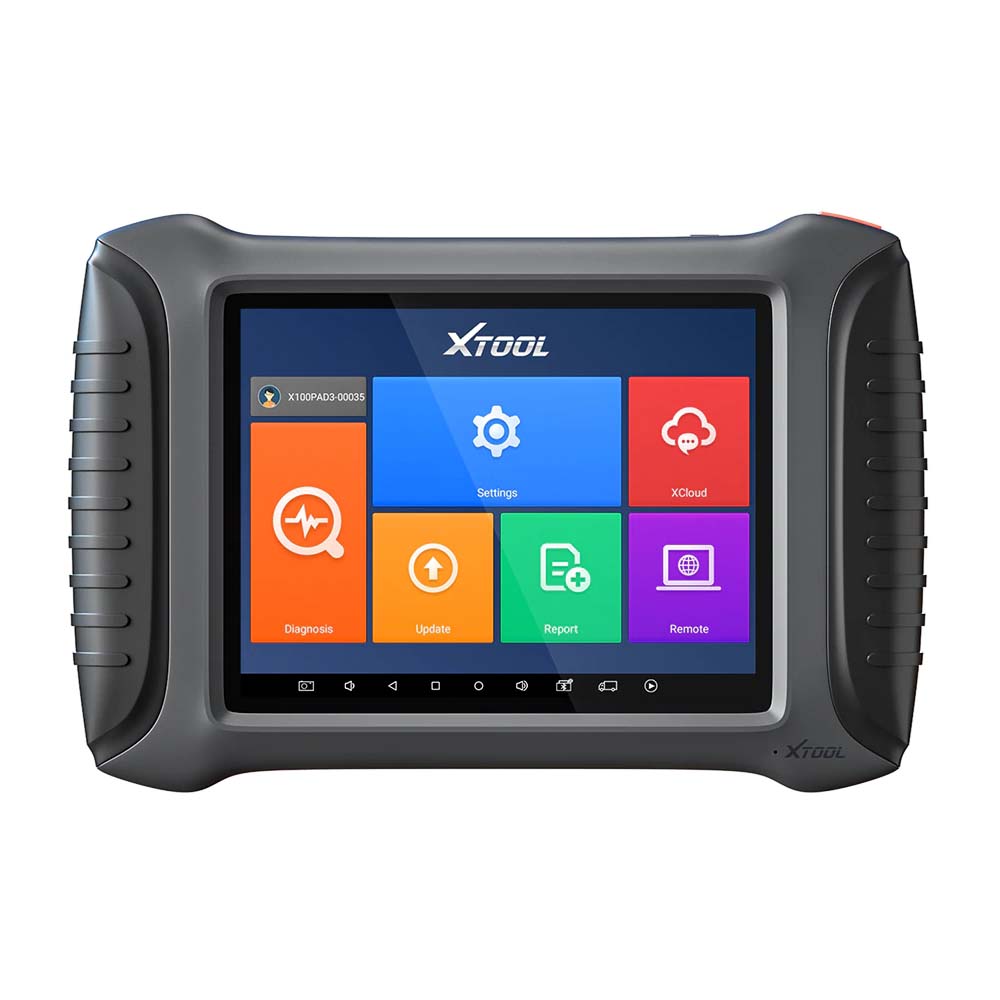

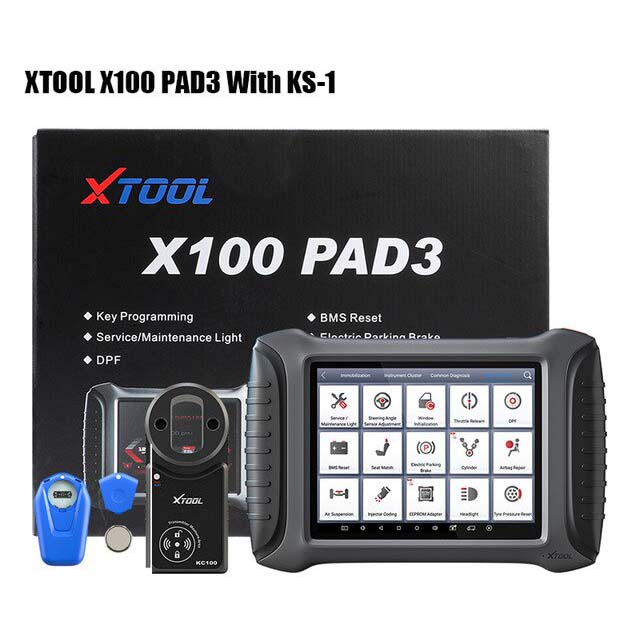

XTOOL X100 PAD3 Auto key programmer odometer adjustment OBD2 car diagnostic tool with KC100

Product description:

XTOOL X100 PAD3 which is called X100 PAD Elite too, is a professional tablet key programmer which not only provides customers with key programming, but also supplies advanced special functions including Key programming, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis, etc.

Multi-Language: English, Spanish, French, Russian, German, Polish, Portuguese

X100 PAD3 Functions:
* Key programming
* Oil Reset/Engine oil light reset
* Odometer Adjustment
* Tire Pressure Warning Light Reset (Manual Operation)
* Timing belt light reset (Manual Operation)
* EPB Electrical Parking Brake Adaptation
* TPS Throttle Body Adaptation
* Steering Angle Calibration
* Battery Reset
* PIN Code Reading
* Hexadcimal editor(Win Hex)
* OBDII Diagnosis
* INJ Code
* Support the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)
*More....

Key Programming Features:
1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
4.Reads keys from immobilizer's memory
5.New immobilizer programming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer
8.New remote controller programming
9.With full and strong database for the most important vehicle makes

Key Programming Vehicle Coverage:
Asia: for Toyota, for Lexus, for Honda, for Acura, for Mazda, forNissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: for Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America: forGM,for Cadillac, for Buick, for Chrysler, for Ford etc
China: for Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD,for  BYD , for JAC, etc.

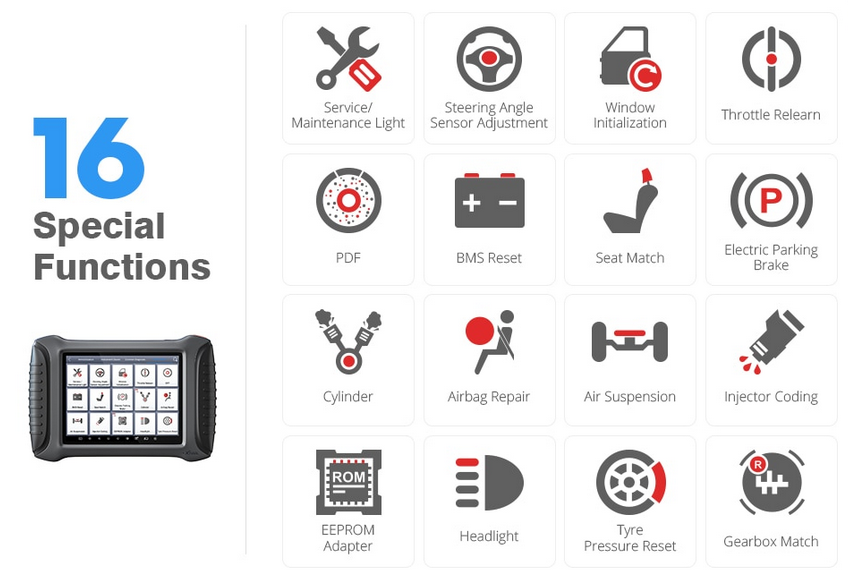

Support 16 Special Functions:
Servce/Maintenance Light
Steering Angle Sensor Adjustment
Window Initialization
Throttle Relearn
PDF
BMS Reset
Seat Match
Electric Parking Brake
Cylinder
Airbag Repair
Air Suspension
Injector Coding
EEPROM Adapter
Headlight
Tyre Pressure Reset
Gearbox Match

Oil Reset Functions Feature:

Innovative one-click oil reset for for VW, for Audi, for BMW, for Mercedes for Seat, for Skoda, for Volvo, etc.

Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.

Support for Mercedes for Benz new C Class, E Class models and for Mercedes Benz VITO/for VIANO/for SPINTER.

Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.

Support for Porsche Cayenne, for Panamera till 2012

Support for maintenance light reset for Volvo, for Land Rover.



Oil Service Light Reset Coverage:

America: for Buick, for Cadillac,for  Chevrolet, for Chrysler, for Chevrolet/forG MC, forFord/for Mercury/for Lincoln, for Oldsmobile, for Pontiac, for Saturn, forGM, for Jeep and more…

European: for VW, for Audi, for Porsche, for BMW, for Mercedes-Benz, for Volvo,for  Land Rover, for Peugeot, for Citroen, for SAAB, for Seat, for Skoda and more…

Asia: for Toyota/for Lexus, forNissan/for Infiniti,for Honda, forAcura,for Isuzu, for Chery, forFord Transit, for Roewe, for MG and more…



Odometer Adjustment:

for VW /for AUDI/for SEAT/for SKODA, for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, forFORD, for MAZDA, forNISSAN, for SUZUKI, for KIA, for HYUNDAI, for JAGUAR, for LAND ROVER, for PORSCHE and more…



EPB Electrical Parking Brake Adaptation:

for VW ( R36, CC, Magotan etc.), for Audi ( A4L, A6L, Q5 etc.), for Seat, for Skoda and more…

Tire Pressure Warning Light Reset (Manual Operation):

for Mercedes-Benz, forGM,for  VW, for BMW, for Toyota and more…

Timing Belt Light Reset (Manual Operation)

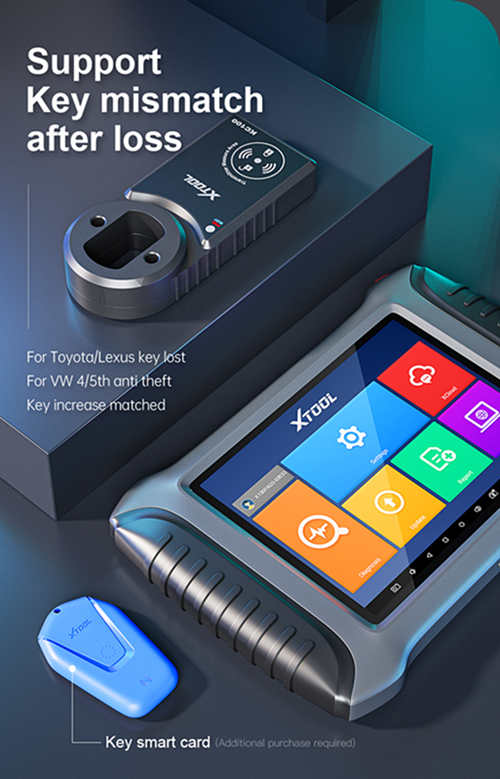

With KC100
Support for Volkswagen for Audi for Skoda 4th generation, 5th generation, MQB key matching
Support for Volkswagen for Audi for Skoda 4-generation 96-bit online, 5-generation online, MQB online key matching
Support for BMW CAS1-CAS3 + key matching
Support for  Land Rover's smart key write start function after 2015
Support for Fiat, for Fischer, 500, for Palio and other models
Support for Toyota for Lexus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation

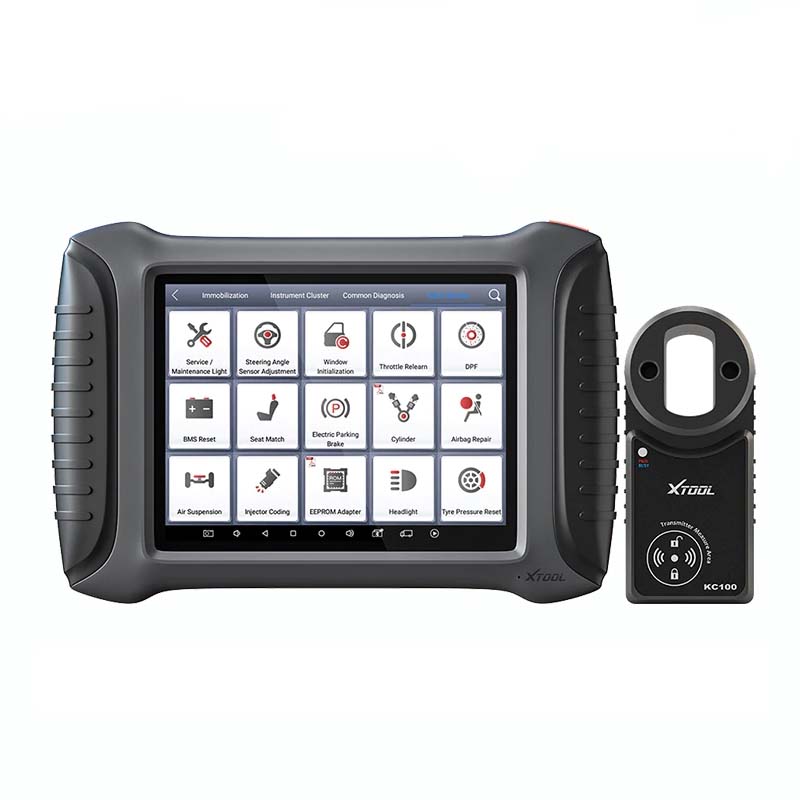

XTOOL KC100 Smart Key Emulator for Toyota Lexus All Keys Lost No Need Disassembly Work with X100 PAD2/PAD3

Xtool KC100 Description:

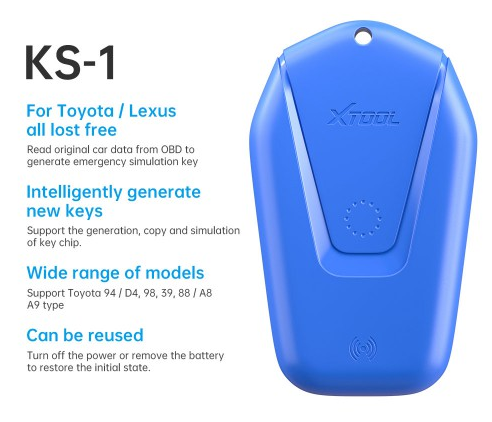

KS-1 The five-in-one simulation card can eliminate the need to disassemble the smart box and other modules.
As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.

Highlights of Xtool KC100:
1.Toyota/Lexus All Lost No Need Disassembly
2. Support Toyota/Lexus all key lost and dismantled,read the original car data from OBD to generate emergency simulation key,directly drive the car without disassemble, intelligent and efficient
3. Intelligently Generate New Keys
4. Through reading of the original car data, a smart key is generated, which can be operated according to the process of adding a key.
Supporting generation,copying and simulation functions of the key chip
5. More Cars
Support Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all-key-lost matching. Matching speed is fast
6. Reuse
After matching the key, turn off the power or remove the battery to restore the initial state

Xtool KC100 Key Type Support List: (Keep Updating)

NO.	Vehicle	Year	Key Type	Support or Not	Remarks
1	RAV4	2015	88	Yes
2	Alphard	2013	94	Yes
3	Alphard	2015	A9	Yes
4	Previa	2008	94	Yes
5	Crown	2010	98	Yes
6	Crown	2015	A8	Yes
7	Crown	2016	A8	No	After 2016,Toyota Crown is not supported
8	Prado	2011	98	Yes
9	Previa	2013	94	Yes
10	Reiz	2011	98	Yes
11	Innova		39	Yes	The car is being tested for the Indian Tango

Xtool KC100 Specifications:

Parameter	Index
Battery	CR2025 3V 165mAh
Standby current	Standby current≤2μA
Reading and writing frequency	125kHz
Status Indicator Lamp	1pc (mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading)
Update	The simulation card firmware can be updated  with KC100
Working temperature	-20℃~60℃
Storage temperature	-20℃~70℃
Structure size	66mm*40mm*12mm

User Comment(Total 8 User Comment Num)

• by Dimitri Selemidis,Dec 05,2021


  Can I update via WIFI?

  Reply #1 by Nancy Dec 06,2021
  Hello friend, yes, you can.

  Nancy

  ---

• by Jonathan Azpurua,Dec 01,2021


  Good work on my VW 4/5th anti-theft.

  Reply #1 by Nancy Dec 02,2021
  Hello Jonathan, thanks for your feedback.

  Nancy

  ---

• by Christopher Teal,Nov 24,2021


  Can you send me the support car list?

  Reply #1 by Nancy Nov 25,2021
  Hello friend, Please check: http://forobd2tool.com/wp-content/download/XTOOL-PAD3/XTOOL-X100-PAD3-ODMILEAGE-Car-list.pdf

  Nancy

  ---

• by Bob Huffman,Jun 23,2021


  Hello I wants to ask if
  XTOOL X100 PAD3
  can odometer adjustment NISSAN GTR
  Thank you

  Reply #1 by Kelly Jun 24,2021
  Hello, It hink it doesn’t support. I had checked the support car list for you and found that it can support these models.

  NISSAN Altima 2013
  NISSAN Altima 2019
  NISSAN Pathfinder 2013
  NISSAN Teana 2013
  NISSAN Teana 2019

  Kelly

  ---

• by Shane Deaton,Jun 03,2021


  Hello, What is the difference between this tool X100 PAD2 and the PAD3 model?

  Reply #1 by Kelly Jun 04,2021
  Hello, X100 PAD3 is a Update Version of X100 Pad2 PRO. X100 PAD3 has more diagnostic functions, i.e in VW Engine menu
  X100 PAD2 shows Read Trouble Code and Clear Trouble Code menus only.X100 pad 3 has more functions, including coding, adaptation, actuation test etc.

  Kelly

  ---

• by Rick Palmer,Mar 28,2021


  Very good unit. Covers many vehicle brands but not all. All downloads took awhile but successful. Would definitely recommend this product and store Took a bit before they shipped but came fairly quick after that

  Reply #1 by Kelly Mar 29,2021
  Hello, Thank you so much for your feedback.If you have problem to use our tool, Please no hesitate to contact us.

  Kelly

  ---

• by shane roberts,Nov 14,2020


  everything takes my car very well, it will be visible at work.

  Reply #1 by Kelly Nov 15,2020
  Hello,
  Thank you for your support and feedback on our website.
  Any further questions please feel free to contact us.
  Best regards!

  Kelly

  ---

• by tom catucci,Jun 13,2020


  The case material is durable and well made and the connection cable is also reenforced well and seems strong.

  Reply #1 by Vivian Jun 13,2020
  Thanks for your feedback.

  Vivian

  ---
