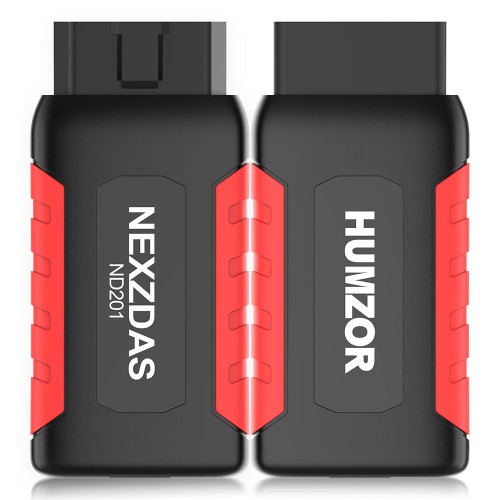

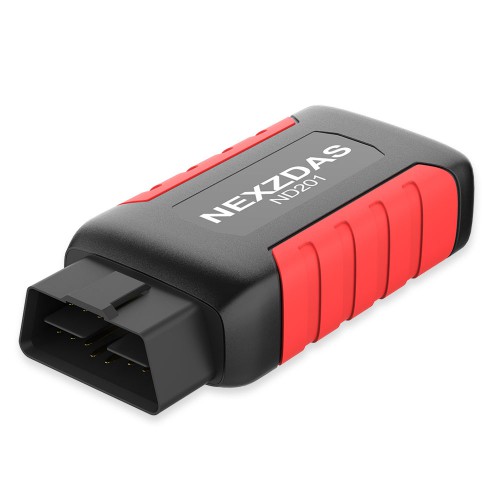

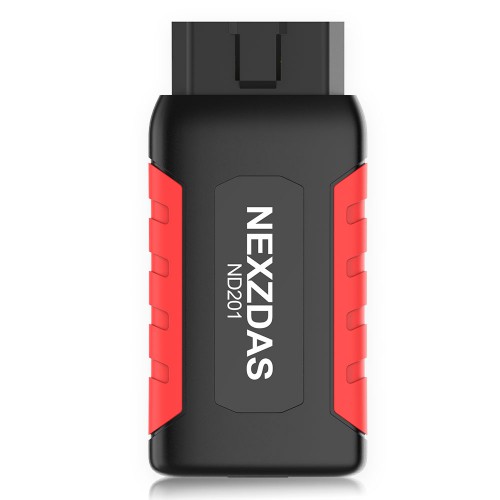

HUMZOR NexzDAS ND306 Lite Full-System Diagnostic Tool + Oil Reset + TMPS +EPB+ ABS+ SAS +DPF for Android

Product description:

NexzDAS Lite is the Professional Diagnostic Scan Tool trusted by mechanics and developed by Professional Engineer Team, which breaks the traditional limitations with the modality of VCI+APP and achieves convenient and efficient diagnosis. It maximumlly offer the perfect diagnostic solution for shops and technicians who demand unrivalled smart technology and smart repairs.

1. Comprehensive diagnostic tool for passanger cars, support most extensive coverage for more than 90 American, European, Asian..
2. Support full system OBD2 diagnosis and 9 special resetting functions like Oil Reset ,TPMS reset, Injector Adjust, EPB, SRS, ABS Bleeding,Battery Change,Throttle Sensor,and so on, can meet all your need.
3. One-click update online

HUMZOR NexzDAS ND306 Lite Diagnosis Tool highlights:
1.High cost-effective configuration with VCI+App.
2.Bluetooth 4.2 connection, Android phone available.
3.Multi-model coverage for free download, Asia, Europe, America, etc. included.
4.Full-system diagnosis, quick scan for all the electronic systems of the car.
5.Professional diagnosis report offer you detailed inspection result for each DTC.
6.Customized special function provided for extra demand , such as Oil reset, ABS, TPMS, EPB, etc.
7.Powerful database supports online DTC inquiry.
8.Intelligent operation, one key record/ feedback/ update within App.

HUMZOR NexzDAS ND306 Lite Basic Function List:
Read Code
Clear Code
Live Data
Freeze Frame
Smog Check
O2 Sensor
Mode 6
MIL Status
Vehicle Information
Battery Test

HUMZOR NexzDAS ND306 Lite Special Functions:
Injector Coding:
Diesel infector code need programming ID and parameters to the ECU for accurate communication and Injection control system

ABS,Antilock Brake Reset:
The auto bleed procedure is used on BOSH 5.3 equipped vehicles.
This procedure used a scan tool to cycle the system solenoid valves and run the pump in order to purge the air from the secondary circuits.

SRS Steering Angle Sensor Reset:
Helps clear the facult steering angle sensor memories and plays an important role in the steering angle sensor calibration.

Oil Service Light Reset:
Allows you to perform reset maintencance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.

TPMS Tire Pressure Monitoring System Reset:
Makes tpms sensor in displaying sensor IDs from the vehicle's ECU,inputting TPMS sensor replacement IDs and activate tpms sensors.

TBA/TPS Throttle Body Alignment Reset:
Vehicle's throttle position system sensor connected to the butterfly spindle and is primarily used to monitor the throttle position within an inner combustion engine.Due to its location,the throttle position sensor is able to effectively observe where the throttle butterfly valve is positioned.

BRT Battery Mangement Service:
Allows the scan tool to evaluate the battery charge state,monitor the close-circuit current,register the new battery replacement,and activate the rest state of the vehicle battery system.

EPB Electronic Park Brake Reset:
It is important in the maintenance of electronic braking system's safety and effciency when replace brake pad or motor.

DPF Diesel Particulate Filter Reset:
Specially works for Diesel Particulate Filter system with DPF regeneration,DPF component replacement teach-in and DPF teach-in after repalcing the engine control unit.

Auxiliary Functions:
One-Key DTC Query: powerful database available for you to search code definition and description.
One-Key Data Manage: check the stored information at anytime and anywhere, both images and videos.
One-Key VIN Query: search the car information online. Input the VIN or scan it directly.
One-Key Feedback: Multi methods to contact us and feedback your questions by clicking the button at the top right corner.
One-Key Update: No PC, no SD card. Get new version upgrade information in time and choose to update it at fast speed within App.

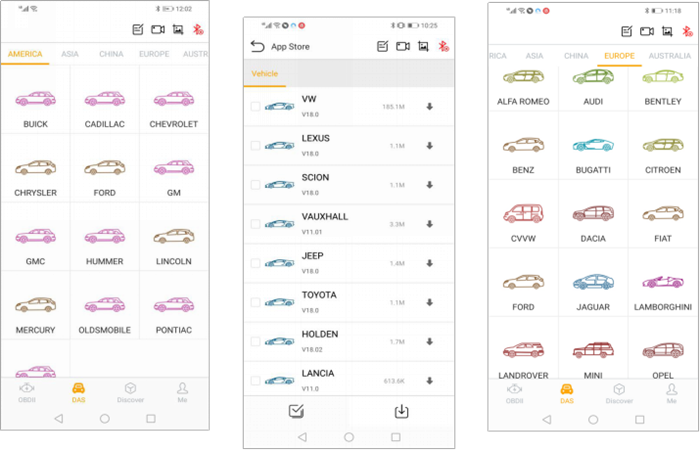

Vehicle Coverage（Download 170+ models for free in App Store）
American: GM, GMC, CHEVROLET, BUICK, HUMMER, SATURN, PONTIAC, CADILLAC, OLDSMOBILE, ASIAGM, FORD(EUROPE), FORD(AMERICA), Ford, Mercury, Lincoln, FORD(AUSTRALIA), MAZDA, CHRYSLER, JEEP, SCION,ACURA

European: VW, CVVW, AUDI, SEAT, SKODA, Bently, BUGATTI, LAMBORGHINI, BENZ, Smart, MAYBACH, BWM, MINI, ROLLS ROYCE, PORSCHE, PEUGEOT, CITROEN, OPEL, VAUXHALL, Renault, Dacia, Renault Samsong, JAGUAR, LANDROVER, SAAB, VOLVO, FIAT, LANCIA, ALFA ROMEO, ABARTH,  ASTON MARTIN, FERRARI, MASERATI

Asian：TOYOTA, LEXUS, HONDA, Nissan, Infiniti, MITSUBISHI, SUBARU, SUZUKI, ISUZU, FUSO, HYUNDAI, KIA, DAEWOO, SSANGYONG, PERODUA, PROTON, TATA, Mahindra, Maruti

Chinese: BYD, CHANGAN, CHANGHE, FOTON, GWM, HBSH, HUACHEN, WULING, CHERY, EMGRAND, ENGLON, GEELY, GLEAGLE, LIFAN, YUAN, RIICH, ZOTYE

Function Display

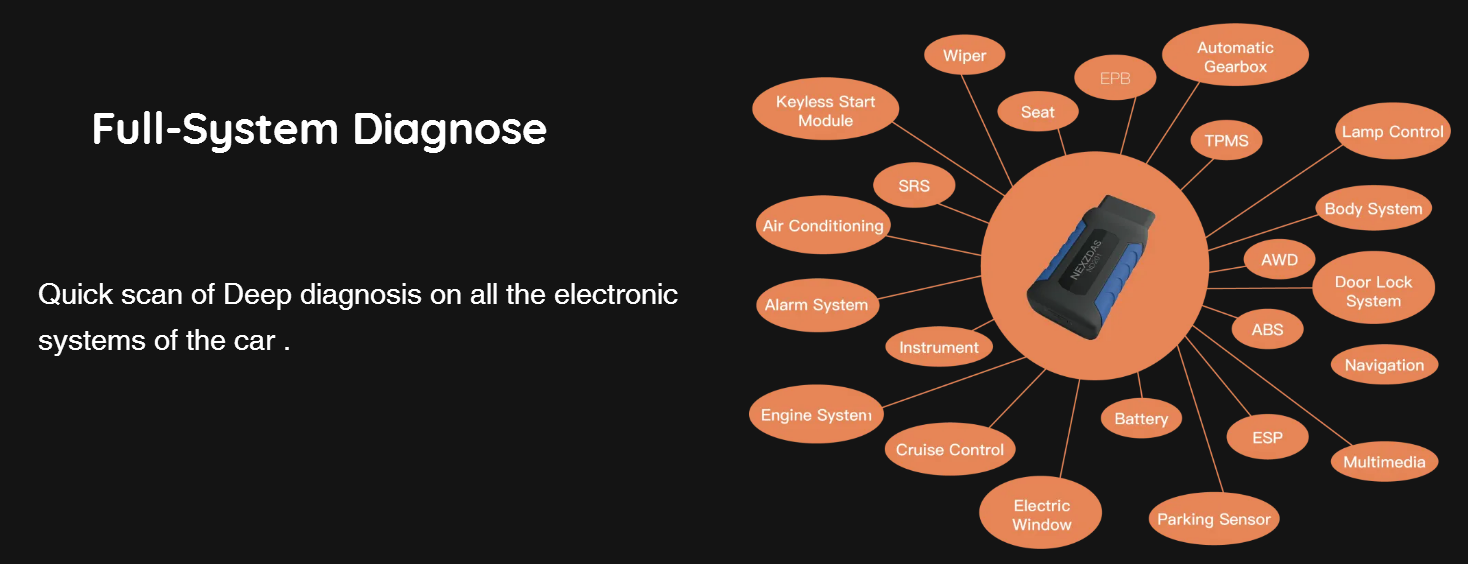

Full-system Diagnosis:

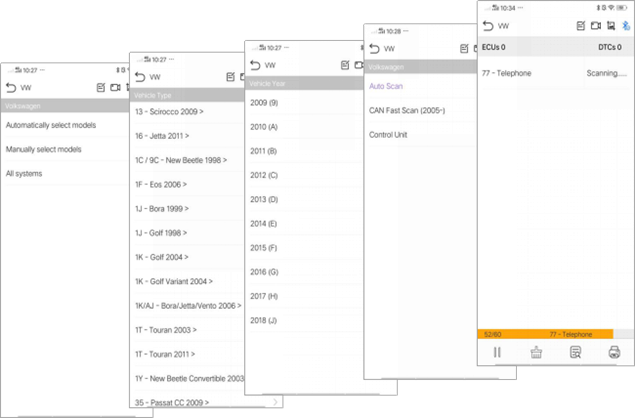

Select vehicle model --- Select vehicle type --- Select Year --- Auto Scan --- Full-system Scan

Complete OBD2 Diagnosis
Read Code, Clear Code, Live Data, Freeze Frame, Smog Check, O2 Sensor, Mode 6, MIL Status, Vehicle Information, Battery Test

Resetting ( $10 for each one)
Oil Reset: Baic, BYD, Chery, FAW CAR, Greatwall, JAC, Luxgen, Soueast, Rover, ACURA, AUDI, BENZ, BESTURN, BENTLEY, BUICK, BUGATTI, BMW, CADILLAC, CHRYSLER, CITROEN, DACIA, DAEWOO, DODGE, FERRARI, FIAT, FORD, GM, HOLDEN, HONDA, HUMMER, HYUNDAI, INFINITI, ISUZU, JAGUAR, JEEP, KIA, LANDROVER, LAMBORGHINI, LEXUS, LINCOLN, MASERATI, MERCURY, MINI, MITSUBISHI, NISSAN, OLDSMOBILE, OPEL, PEUGEOT, PORSCHE, PONTIAC, RENAULT, ROLLS-ROYCE, ROMEO, ROVER, SAAB, SATURN, SCION, SEAT, SKODA, SMART, SUBARU, SUZUKI, TOYOTA, VAUXHALL, VOLVO, VW

TPMS: AUDI, BENZ, BUICK, BMW, CADILLAC, CHRYSLER, DODGE, FORD, GM, GMC, HONDA, HUMMER, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LANDROVER, LEXUS, LINCOLN, MERCURY,MITSUBISHI,
NISSAN, PORSCHE, PONTIAC, SATURN, SCION, SGM, SUBARU, TOYOTA, VW

Injector Adjust: CITROEN，FIAT，HYUNDAI，JAGUAR，KIA，LANDROVER，MITSUBISHI，OPEL，SUBARU，VAUXHALL

EPB: BMW, CITROEN, DAEWOO, GM, HONDA, HYUNDAI, JAGUAR, KIA, LANDROVER, OPEL, PEUGEOT, RENAULT, SAAB, SUBARU, TOYOTA, VAUXHALL, VOLVO, VW

DPF: BMW, CITROEN, DAEWOO, JAGUAR, LANDROVER, OPEL, PEUGEOT, SUBARU, VAUXHALL

Battery Change: FORD, JAGUAR, LANDROVER, LEXUS, TOYOTA, VOLVO

ABS Bleeding: DAEWOO, JAGUAR, LANDROVER, OPEL, RENAULT

SAS: BAIC, BAOJUN, BYD, ZOTYE, Soueast, Haima, DF_FENG_XING, DF_FENG_SHEN,DF_XIAO_KANG, Chery, ROEWE, TRUMPCHE, Geely Emgrand, Geely Englon, Geely Gleagle, JAC, JMC, LIFAN, Greatwall, DAEWOO, SsangYong

Throttle Sensor: Baojun, BYD, ACURA, BMW, CHRYSLER, DAEWOO, BUICK, Cadillac, Chevrolet, Holden, Pontiac, Saturn, HONDA, JEEP, KIA, NISSAN, TOYOTA,VOLVO

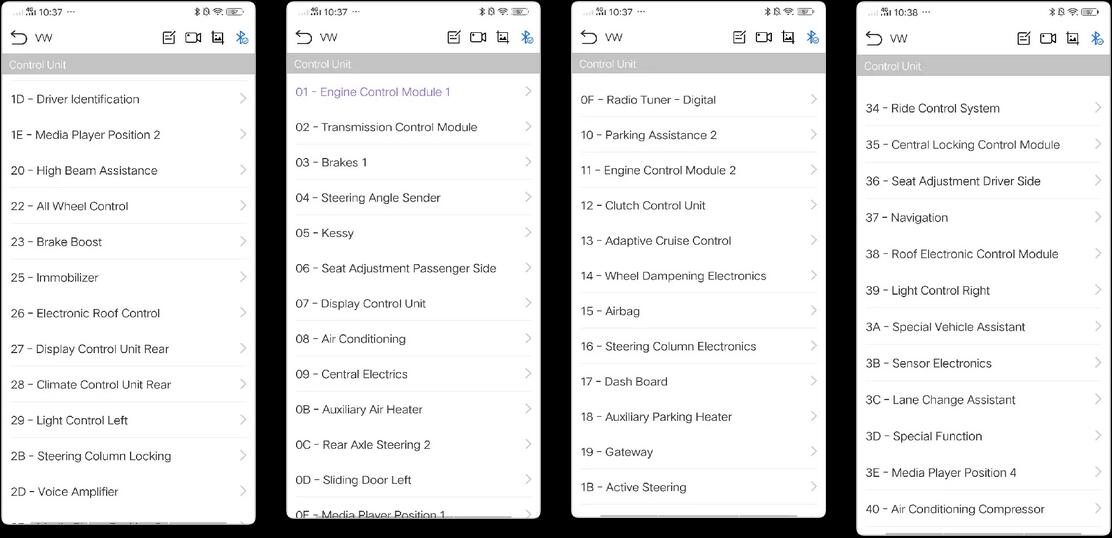

HUMZOR NexzDAS ND306 Lite VW Control Units Coverage:
01-Engine Control Module 1
02-Transmission Control Module
03-Brakes 1
04-Steering Angle Sensor
05-Kessy
06-Seat Adjustment Passenger Side
07-Display Control Unit
08-Air Conditioning
09-Central Electrics
0B-Auxiliary Air Heater
0C-Rear Axle Steering 2
0D-Sliding Door Left
0E-Media Player Position 1
0F-Radio Tuner-Digital
10-Parking Assistance 2
12-Clutch Control Unit
13-Adaptive Cruise Control
14-Wheel Dampening Electronics
15-Airbag
16-Steering Column Electronics
17-Dash Board
18-Auxiliary Parking Heater
19-Gateway
1B-Active Steering
1D-Driver Identification
1E-Media Player Position 2
20-High Beam Assistance
22-All Wheel Control
23-Brake Boost
25-Immobilizer
26-Electronic Roof Control
27-Display Control Unit Reaer
28-Climate Control Unit Rear
29-Light Control Left
2B-Steering Column Locking
2D-Voice Amplifier
........

HUMZOR NexzDAS Lite Auxiliary Functions
One-Key DTC Query: nearly 40,000 database available for you to search code definition and description.
One-Key Data Manage: check the stored information at anytime and anywhere, both images and videos.
One-Key Car Inquire: search the car information online. Input the VIN or scan it directly.
One-Key Feedback: Multi methods to contact us and feedback your questions by clicking the button at the top right corner.
One-Key Update: No PC, no SD card. Get new version upgrade information in time and choose to update it at fast speed within App.

Humzor NexzDAS App have been upgraded to version 3.9 (May 14th, 2019):
There have been an optimization and improvement on the followings:
1. The stability of software operation
2. Extensive support of Android system, 4.4 and above
3. Layout and beautification of UI
Sincerely welcome you to install and experience it! The specific operations are as follows:
1. Remove the original 3.8 version App from your phone;
2. Search "NexzDAS" on Google Play, download and install it;
3. After installation, enter your registered email and password to log in (* models, function data do not need to be re-downloaded);

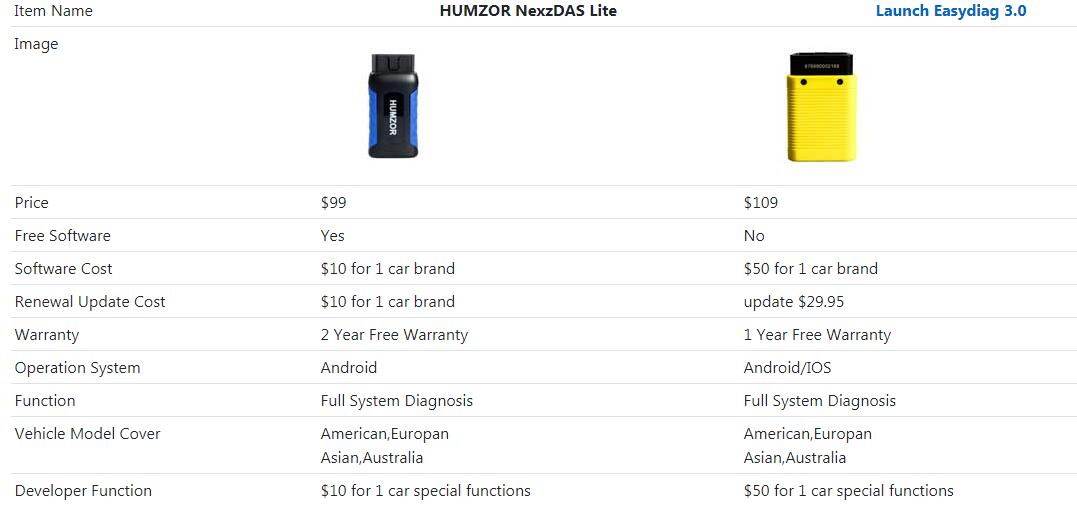

HUMZOR NexzDAS ND306 Lite vs Launch Easydiag 3.0

HUMZOR NexzDAS ND306 Lite Specifications
Operating System                          Android 5.0 and above
Communications                            Bluetooth 4.2
Operating Voltage                         9～30V DC
Operating Temperature                -20～70°C(14-158℉), Relative Humidity: < 90%
Storage Temperature                    -40～85°C(-40-185℉), Relative Humidity: < 90%
Average Power Consumption       <2W
Dimension                                      97mm*47mm*26mm

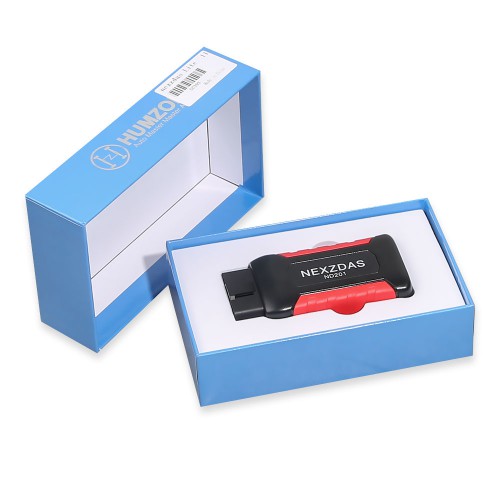

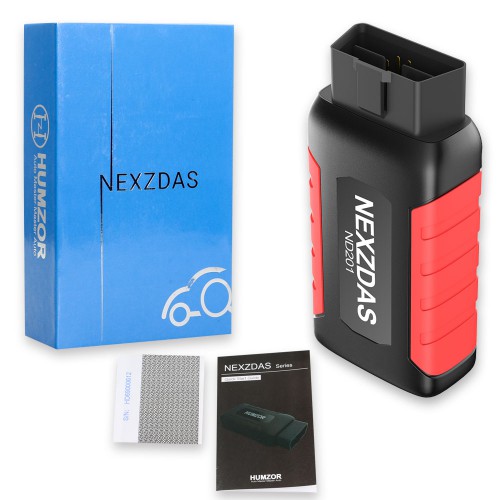

HUMZOR NexzDAS ND306 Lite package list:
1pc x HUMZOR NexzDAS ND306 Lite Main Unit
1pc x USB Cable
1pc x Password
1pc x User Manual

FAQ for HUMZOR NexzDAS Lite
Q1:Where to download APP?
A1:For NexzDAS APP, please kindly search "NexzDAS" on Google Play or kindly scan the QR code below to download.

Q2:How to connect the Bluetooth?
A2:After plug into the VCI, open the NexzDAS App and click the Bluetooth icon at the upper right corner within App to connect it directly, the icon light will turn into blue which means connection succeeds. If it can not be connected the first time，please kindly exit the software completely and try again.

Q3:Why cannot I binding the product, it shows serial number does not exist?
A3:Please make sure you download the right software "NexzDAS" If the problem still exists, please contact us and offer your S/N for a check.

Q4:Do I need to connect the PC to update?
A4:No, just click "Me"‘Upgrade’ to complete the process within APP.

Q5:Why there is nothing listed when I login, no models or functions?
A5:Please click "Discover" "APP store" and choose download the models and functions you need.
