IDSS Isuzu Global Diagnostic services System （E-IDSS）2018 Isuzu Diagnostic Tool

NOTE：

E-IDSS exclusive software for Isuzu Industrial engines,Can Not use in truck and bus engine.if you want diagnostic truck, bus and pickup, you buy G-IDSS 2018 Is OK.

E-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, so it can't write data into ECM/ECU. Other functions can be perfectly  diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions such as adjustment functions  e-idss is software USB-LINK Special Edition is hardware. It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM

It can test the Isuzu engine sensor, adblue and DPF of the Diagnostic Denso ECU but it can't  test the Bosch and Delphi systems ISUZU. Only test denso isuzu,denso KATO,denso kobelco,denso Sumitomo denso HITACHI ECU/ECM.

IDSS Isuzu Global Diagnostic services System (E-IDSS ) 2018.

All regions

Languages:  English, Japanese chinese

OS:  Win7 x32, Win7 x64, Windows10 x32/x64

Quantity of CD:  1 DVD

Data of update:  7/2018

DENYO

2005-2015 (4JJ1 Tier-4, 4HK1 Tier-4, 6WG1 Tier-4, 4LE2 Tier-4, 6WG1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)

Doosan

2005-2010 (6WG1 Tier-3, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4)

Hidromek

2005-2012 (4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

Hitachi

2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 6UZ1 GB3, 6WG1 GB3, 4JJ1 GB3, 4HK1 tier-4, 6HK1 tier-4, 6UZ1 tier-4, 6WG1 tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4, 4JJ Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)

Hokuetsu

2005-2014 (4LE2 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

HSC

2005-2010 (6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)

IHI

2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

ISEKI

2006-2012 (4JJ1 INT-Tier-4, 4JJ1 Tier-3)

Isuzu PT-China

200 5-2015 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

Isuzu America

2005-2013 (4JJ1 Tier-4, 4LE1 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3 Tier-4,

4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)

IWAFUJI

2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)

JCB HP

2005-2010 (6HK1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

KATO

2006-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3)

KCM

2005-2014 (6WG1 Tier-4, 6WG1 INT-Tier-4, 4HK1 Tier-3)

KG Flowtech no

2005 (4HK1  Tier-3)

Kobelko

2013 (4LE2 Tier-4)

Madill

2005 (6HK1 Tier-3)

Maeda Seisakusho

2013 (4LE2 Tier-4)

Morooka

2010 (4HK1 INT-Tier-4)

NH Kobelco

2005 (6HK1 Tier-3)

Nihon Josetsu

2005-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)

Nihon Sharyou

2005-2006 (4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)

Sakai

2005-2012 (4JJ1 INT-Tier-4, 4JJ1 tier-3, 4HK1 Tier-3)

Sanward

2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)

Sany

2005-2014 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)

Shinko Engineering

2005 (4HK1 Tier-3, 6HK1 Tier-3)

Sumitomo

2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 4HK1 Tier-4, 4JJ1 GB3, 6HK1 Tier-4, 4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)

Takeuchi

2 006-2013 (4JJ1 Tier-4, 4JJ1 INT-Tier-4, 4JJ1 Tier-3)

Unicarriers

2005-201 0 (4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3)

Uotani

2005 (4HK1 Tier 3)

Yamabiko

2005 (4HK1 Tier-3, 6HK1 Tier-3)

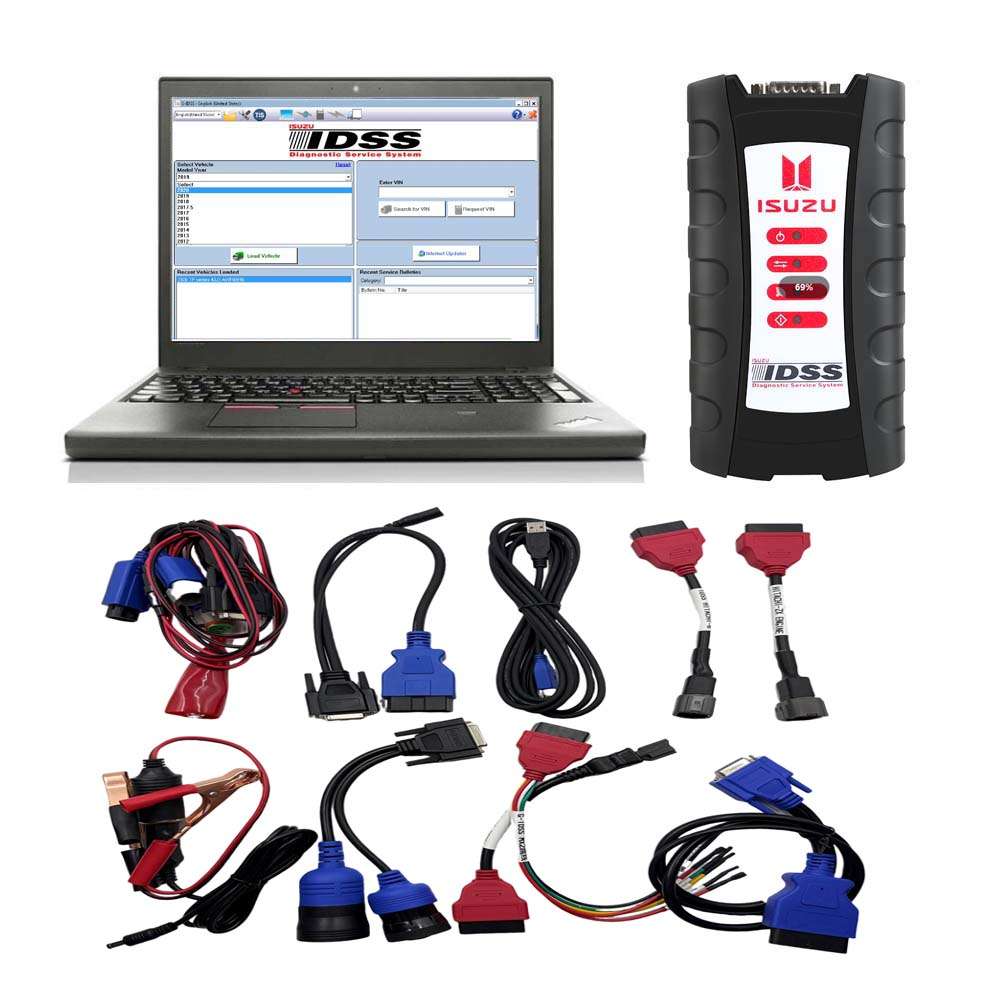

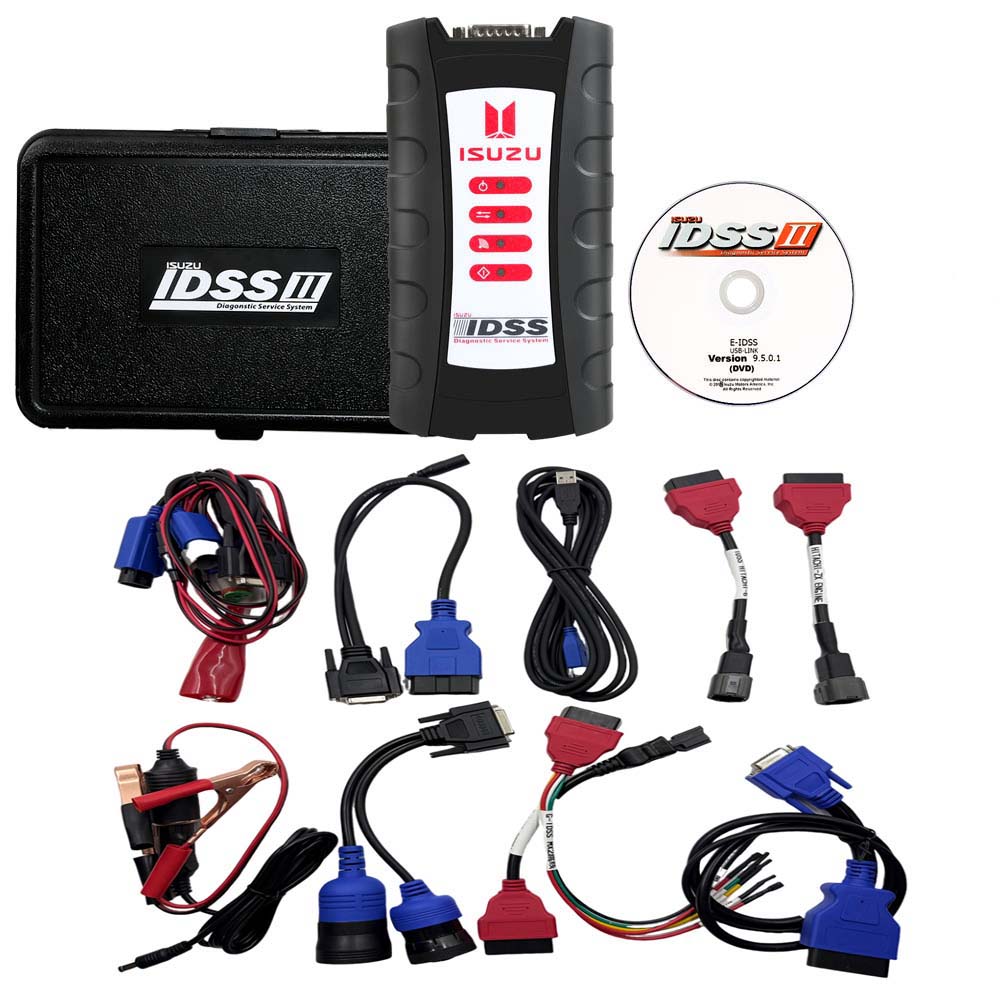

Package list:

1pc x E-IDSS program（Diagnostics activation,reflash not activation）

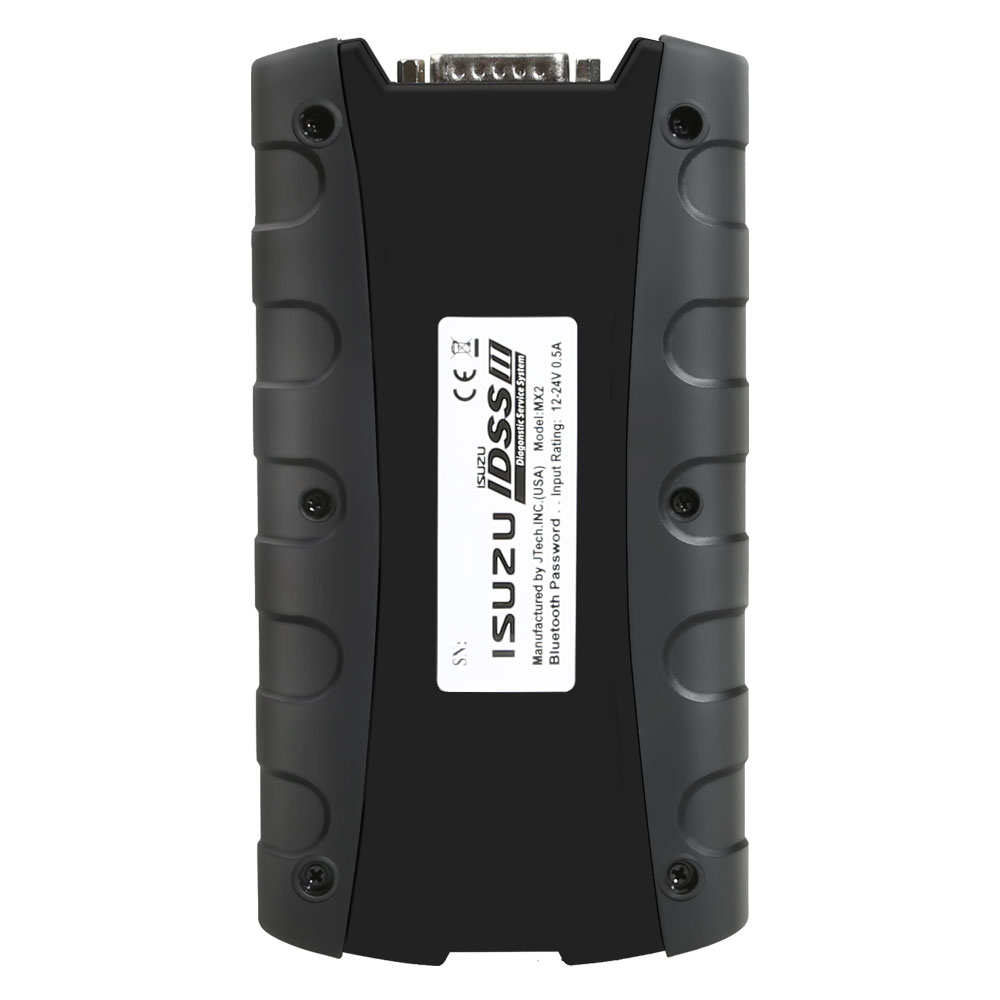

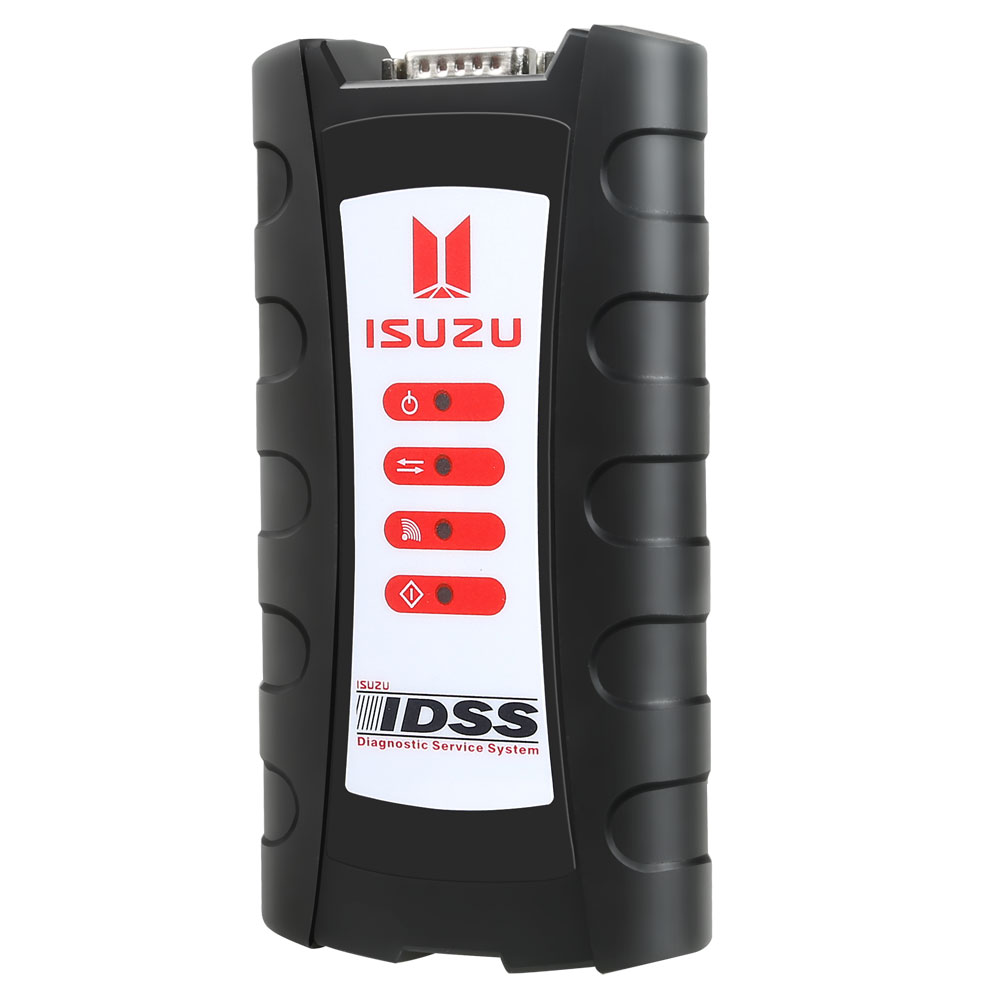

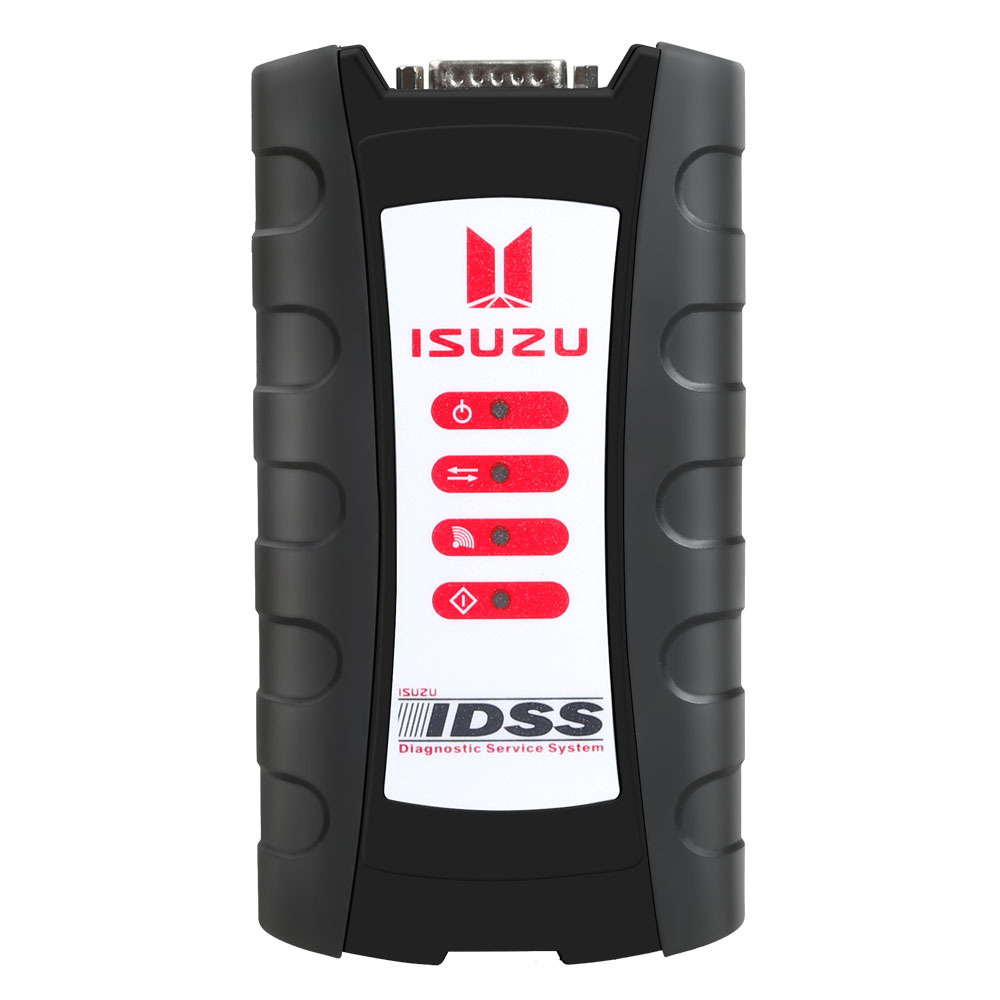

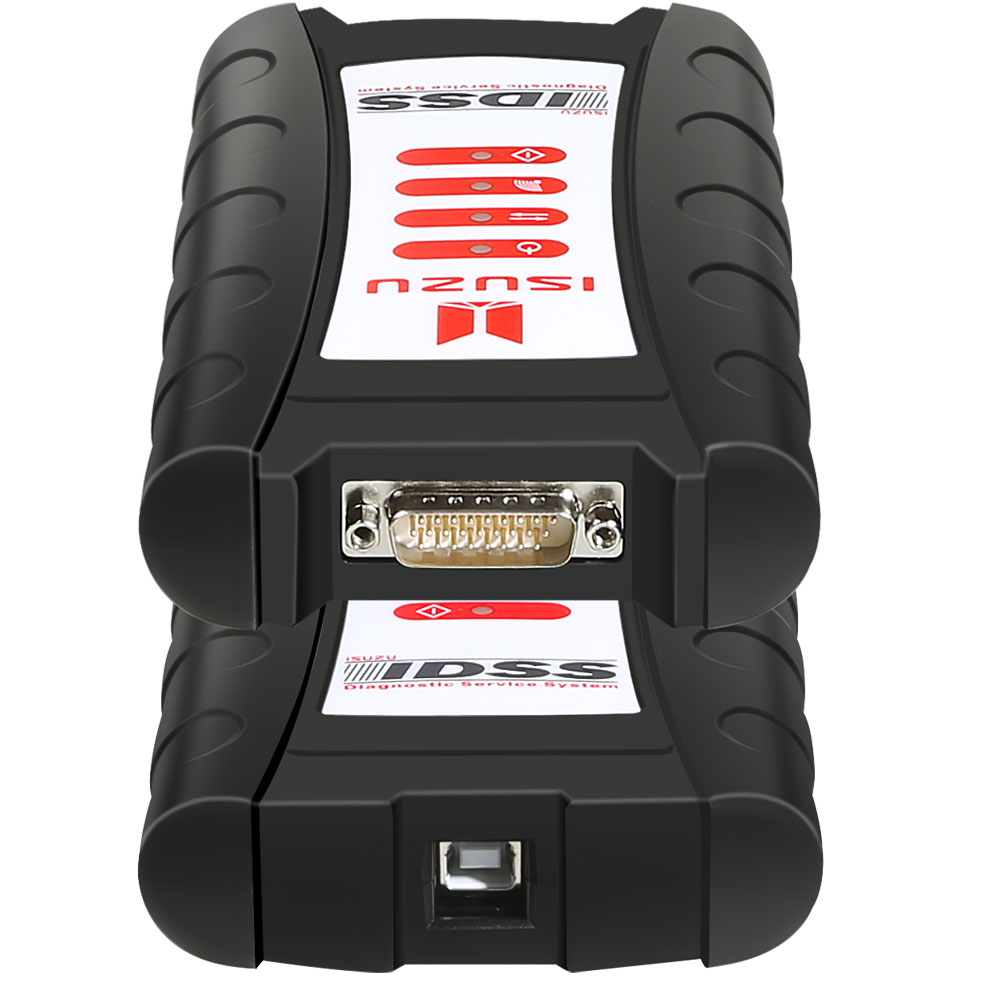

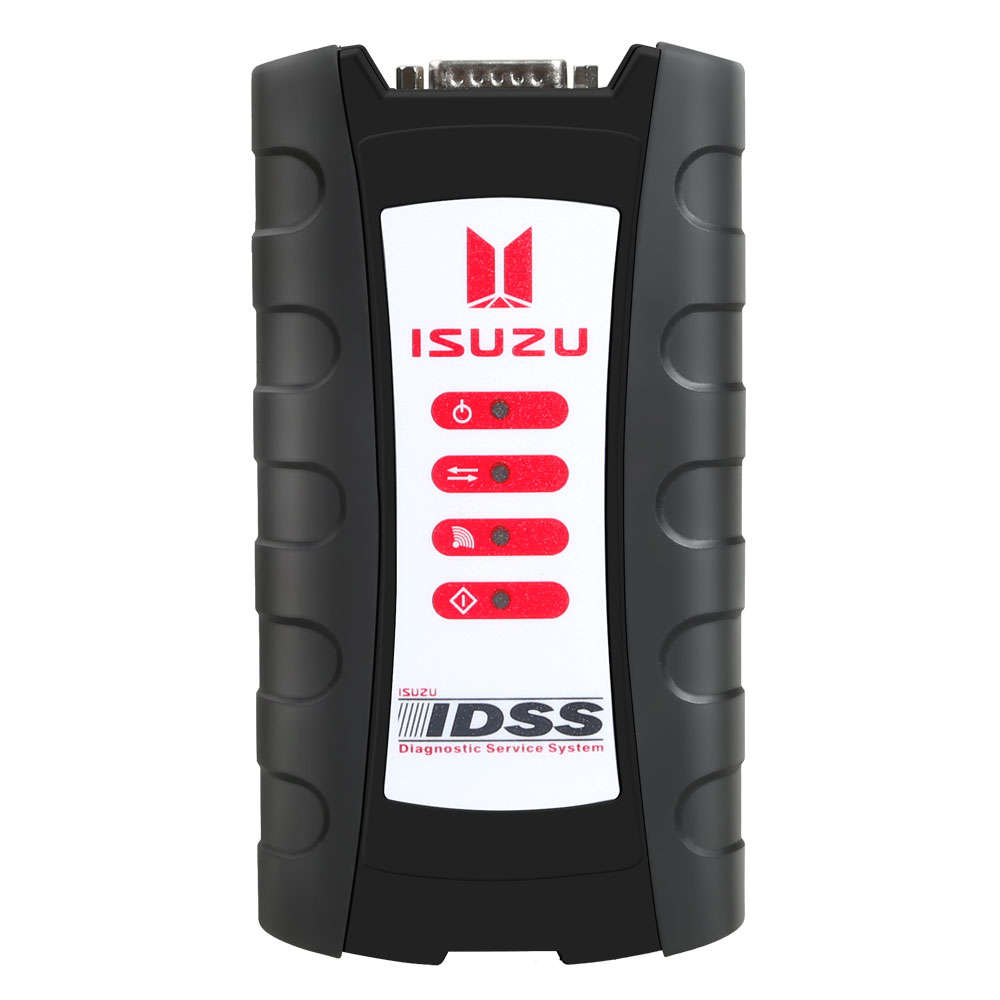

1pc x IDSS USB-Link 1 adapter

1pc x USB cable

1pc x 6-pin/9-pin American cable

1pc x E-IDSS OBD2 cable

1pc x KATO Cable With DC 2.1 Famale

1pc x HITACHI EMPS-III Cable

1pc x CANBUS 3pin
