Autel MaxiCOM MK808 OBD2 Diagnostic Scan Tool with All System and EPB/IMMO/DPF/SAS/TMPS More Service Functions

Autel MaxiCOM MK808 is an advanced tablet scan tool based on the Android operating system. Consist of MD802 and Mexicheck pro, this obd2 scanner’s advantages not only lie in its comprehensive functions including Full systems diagnoses, all obd2 functions, various reset features (Oil reset, EPB/SAS/BMS/TPMS/DPF reset), but it its excellent performance in advanced hardware, faster and more accurate diagnosis.

1. Update Online: One Year Free Update Online

2. Multi-Language Supported: English is default language. It also supports German, Spanish, Portuguese, Dutch, French, Italian.Korean, Japanese, Russian ,Polish,Swedish, etc. (But for other languages, you need to pay 70USD for language exchange.)

3. Easy to Use: Once accessed to the Diagnostics service of MaxiCOM MK808, here are a variety of functions available including oil reset and EPB/BMS/SAS/ DPF service which are used for the safety and efficient maintenance of systems.

4. Cost-effective: Compared with those at similar price, this automotive diagnostic scanner supports basic IMMO functions and TPMS Service, including displaying sensor IDs from vehicle's ECU, inputting TPMS sensor replacement IDs and registering sensors to vehicle.

5. Extensive Coverage: MaxiCOM MK808 works on most 1996 US-based, 2000 EU-based and newer vehicles to do the full systems diagnoses including reading/clearing codes and viewing live data to check the health status of parts.

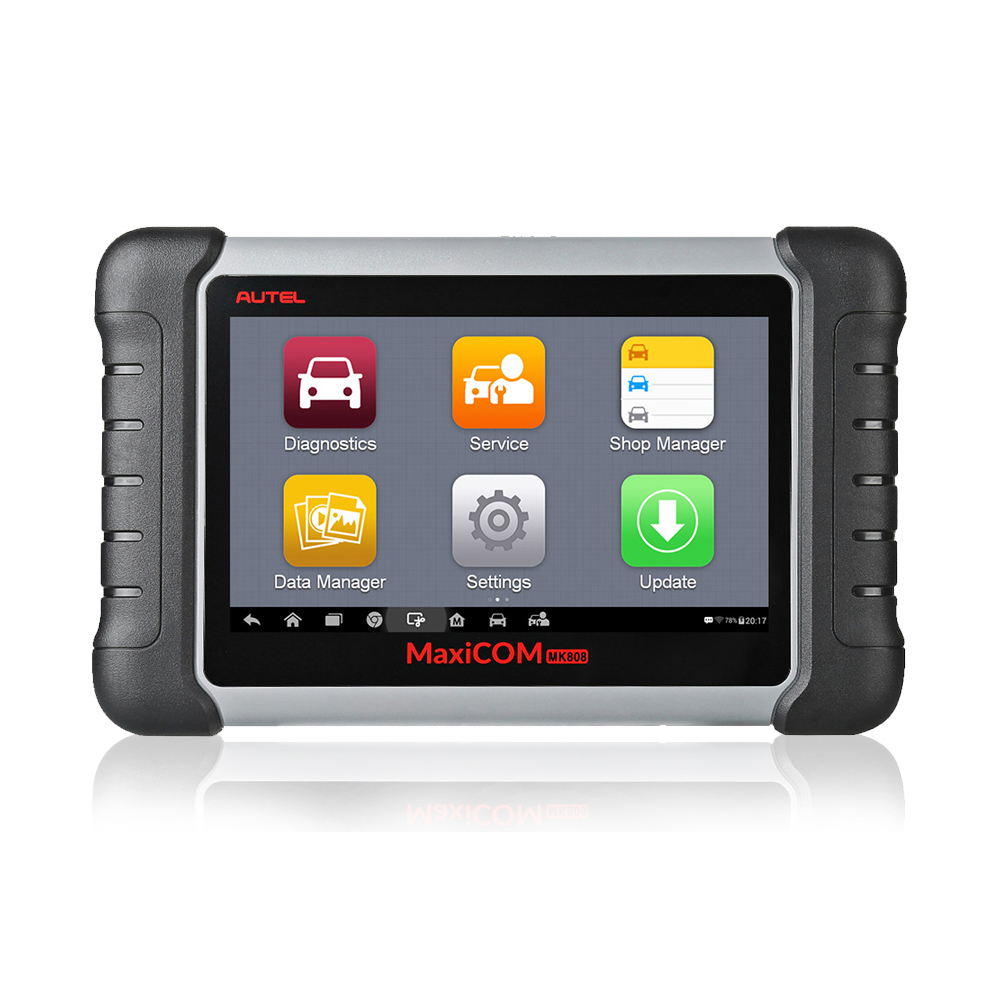

6. User-Friendly: This is a tablet diagnostic scanner with 7＂touchable screen and enables sensitive response with fast quad-core process; Moreover, with Wi-Fi connection there is no USB or card reader needed for updating software (one-touch updates)

Functions ：

1.The Autel MaxiCOM MK808 obd2 scanner read/clear codes for all available systems

2.The diagnostic tool displays live data in text, graph & analog for easy data review

3.Auto VIN technology automatically identifies the vehicle’s make, model and year

4.Relearns parking brake pad position after replacement

5.The automotive scanner Supports IMMO functions

6.The diagnostic scanner supports forced diesel particulate filter regeneration and injector adjustments

7.The code reader resets Steering Angle Sensor (SAS)

8.The scan tool resets service mileage and service intervals

9.TPMS sensor relearn

10.Supports battery registration and reset

Full Systems Diagnoses

1.Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review

2.To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

3.To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

4.To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

5.To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

6.To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

7.To diagnose Light System if you see rapid signal blinking or dimming lights.

8.And many more ...

18 Kinds of Special Reset Service Fnctions

1.Oil Reset Service allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB service is important in the maintenance of electronic braking system's safety and efficiency.

3.BMS service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS service makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO the unique function Autel MaxiCOM MK808 has at this price, is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding  ABS brake bleeding to get a firm brake pad after air exhaustion.

9.And many more ...

Complete OBD2 functions

1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Global Vehicle Coverage

1.Support many US cars after 1992, EU cars after 2002, Asia cars after 2008

2.Utilizes new Auto VIN ID Tech to automatically identify the vehicle's make, model and year .

3.Autel MaxiCOM MK808 For Abarth, Acura, Alfa, Audi, Bentley, Benz, BMW, Bugatti, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Dodge, Fiat, Ford, Ford, GM, GTR, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, Lambor Ghini, Lancia, LandRover, Lexus, LT3, Maruti Suzuki, Maserati, Maybach, Mazda, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Saab, Scion, Seat, Skoda, Smart, Sprinter, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volkswagen CV, Volvo

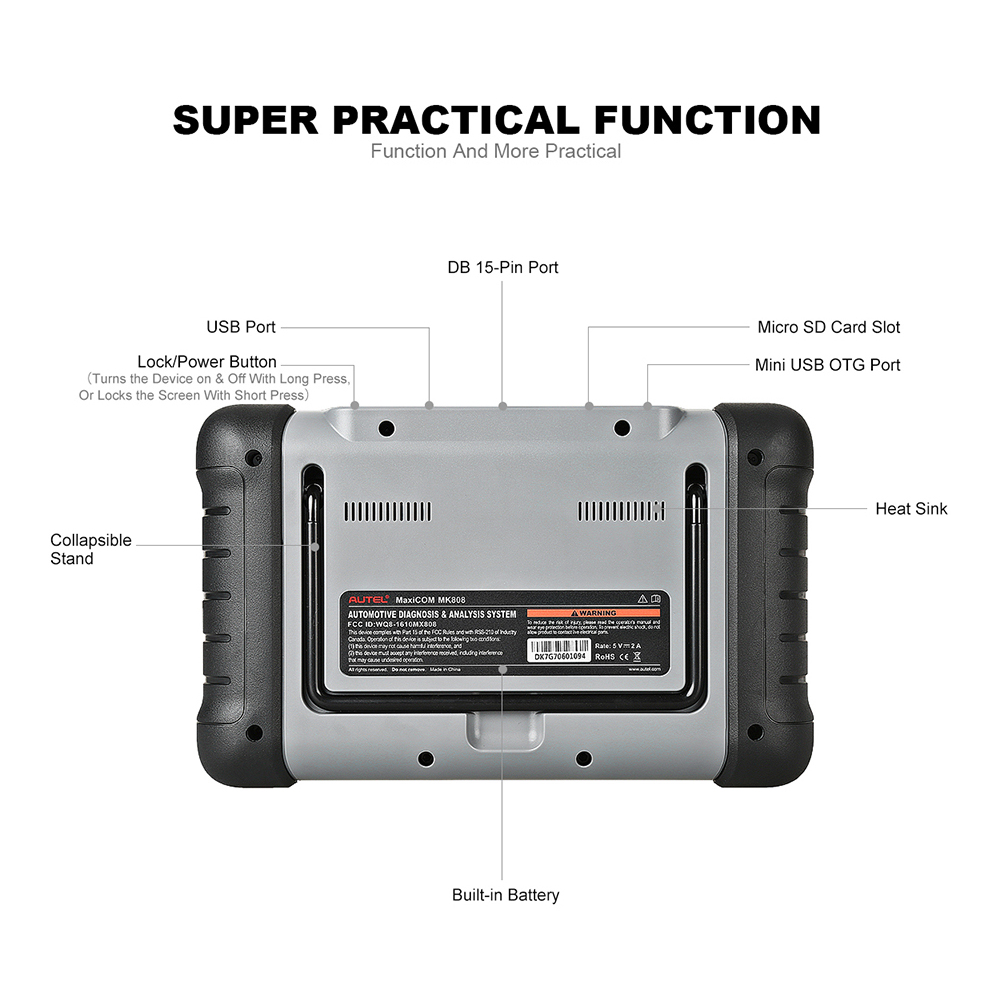

Advanced Hardware

1.Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation.

2.Android-based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor.

3.7 inch touchable LCD screen does a great job in the better user experience; you can directly get what you need with intuitive navigation.

4.32 GB memory is not only an extended storage space but a way to reduce the possible condition of slow response.

5.Built-in battery has up to 4.5 hours battery life giving you a worry-free operation experience.

Additional Features

1.SHOP MANAGER – You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.

2.DATA MANAGER – The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF，Review Data, Apps Uninstall or Data Logging.

3.REMOTE DESK – you can directly get ad-hoc remote support from Autel via Team Viewer software.



Warranty & Update

1.Full one-year warranty including all online updates and technical support. Updates can improve the Autel MaxiCOM MK808 capabilities and application functionality



Different Choice for Diagnoses

1.Autel MaxiCOM MK808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.

2.When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection

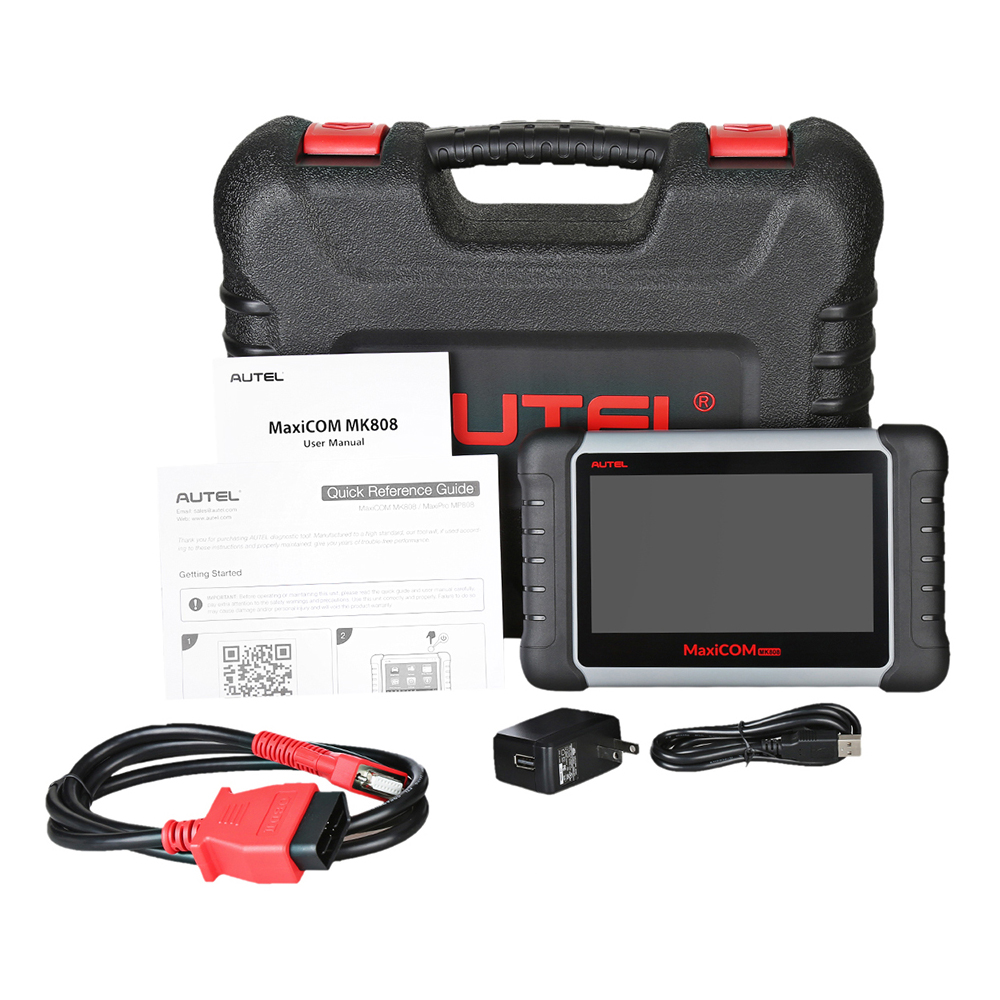

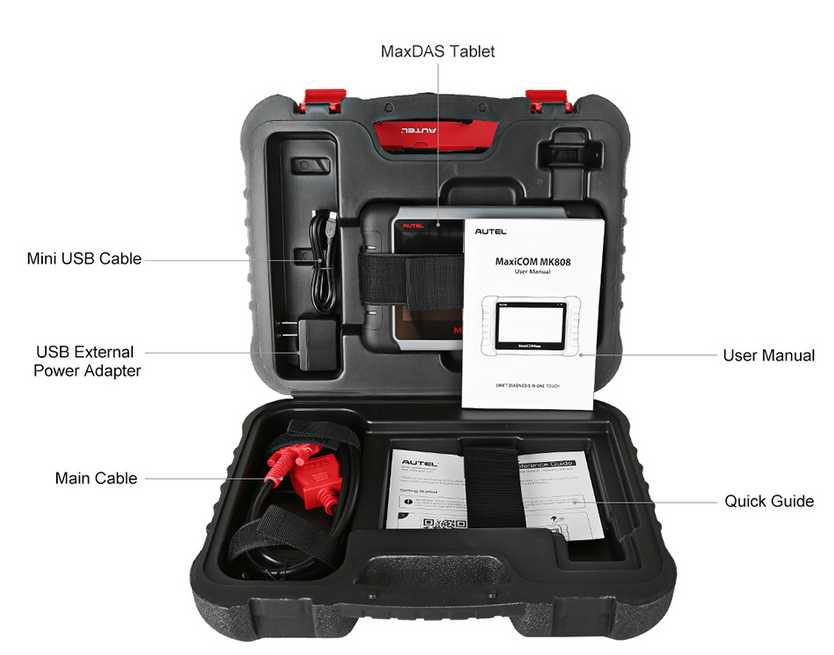

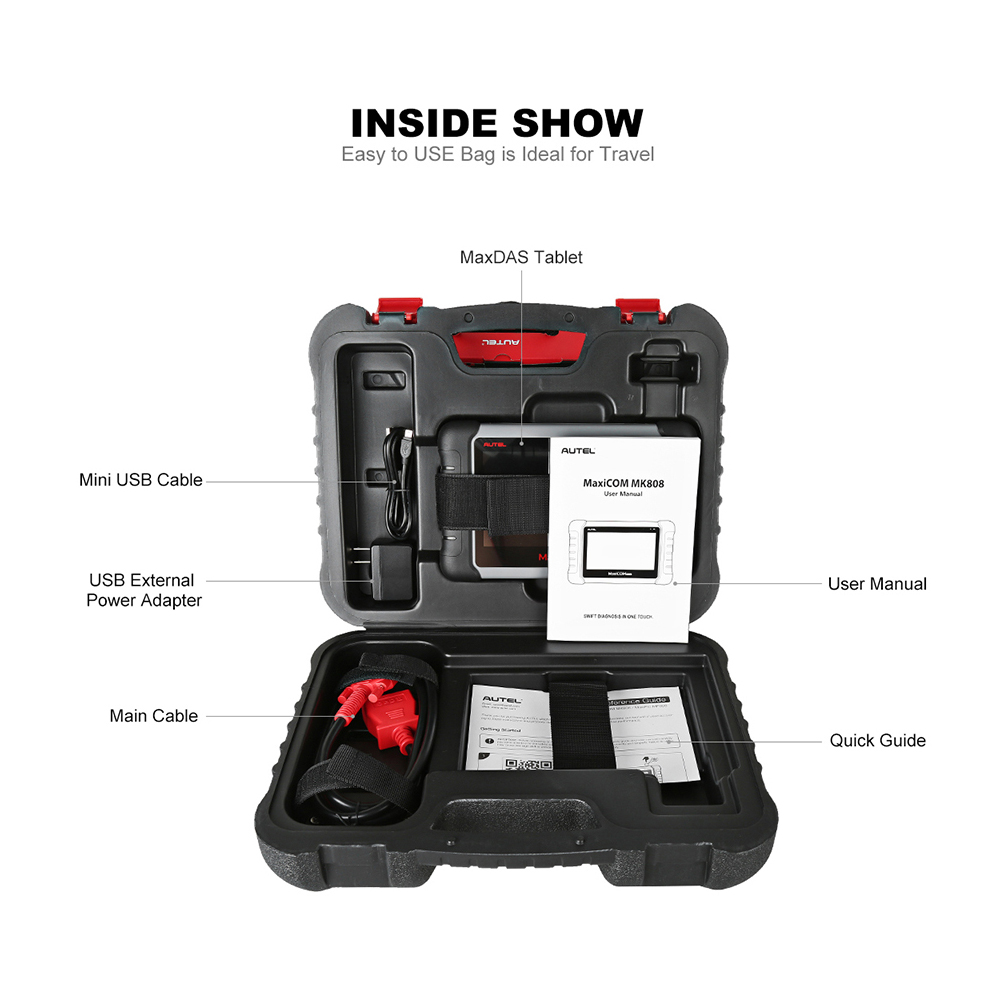

Package List:

1pc x USB External Power Adapter

1pc x User Manual

1pc x Quick Reference Guide

1pc x Main cable

1pc x Carry case

1pc x Mini USB Cable
